Mercedes-Benz CLA
Date of manufacture
6/2016 – 2019 (Estate)
6/2016 – 2019 (Coupé)
Platform
MFA
Manufacturing locations
Kecskemét, Hungary
Designer
Mark Fetherston
Robert Lešnik
Tags
C-segment
German cars
The Mercedes-Benz CLA has been manufactured since 2016 and is built on the MFA platform. It offers coupe and estate body styles with a luggage capacity of 470 litres (coupe) and 495 litres (estate). The engine range includes petrol and diesel engines, the most powerful model being the CLA 45 AMG 4MATIC with an output of 280 kW, reaching a maximum speed of 250 km/h and the best acceleration from 0-100 km/h in 4.2 seconds. The most fuel-efficient model is the CLA 180d BlueEFFICIENCY with a combined fuel consumption of 3.5 l/100 km and CO2 emissions of 89 g/km. In terms of safety, the EURONCAP model received a rating of 5 out of 5 in 2013. Hungary is the country of production of the Mercedes-Benz CLA.
Car body style

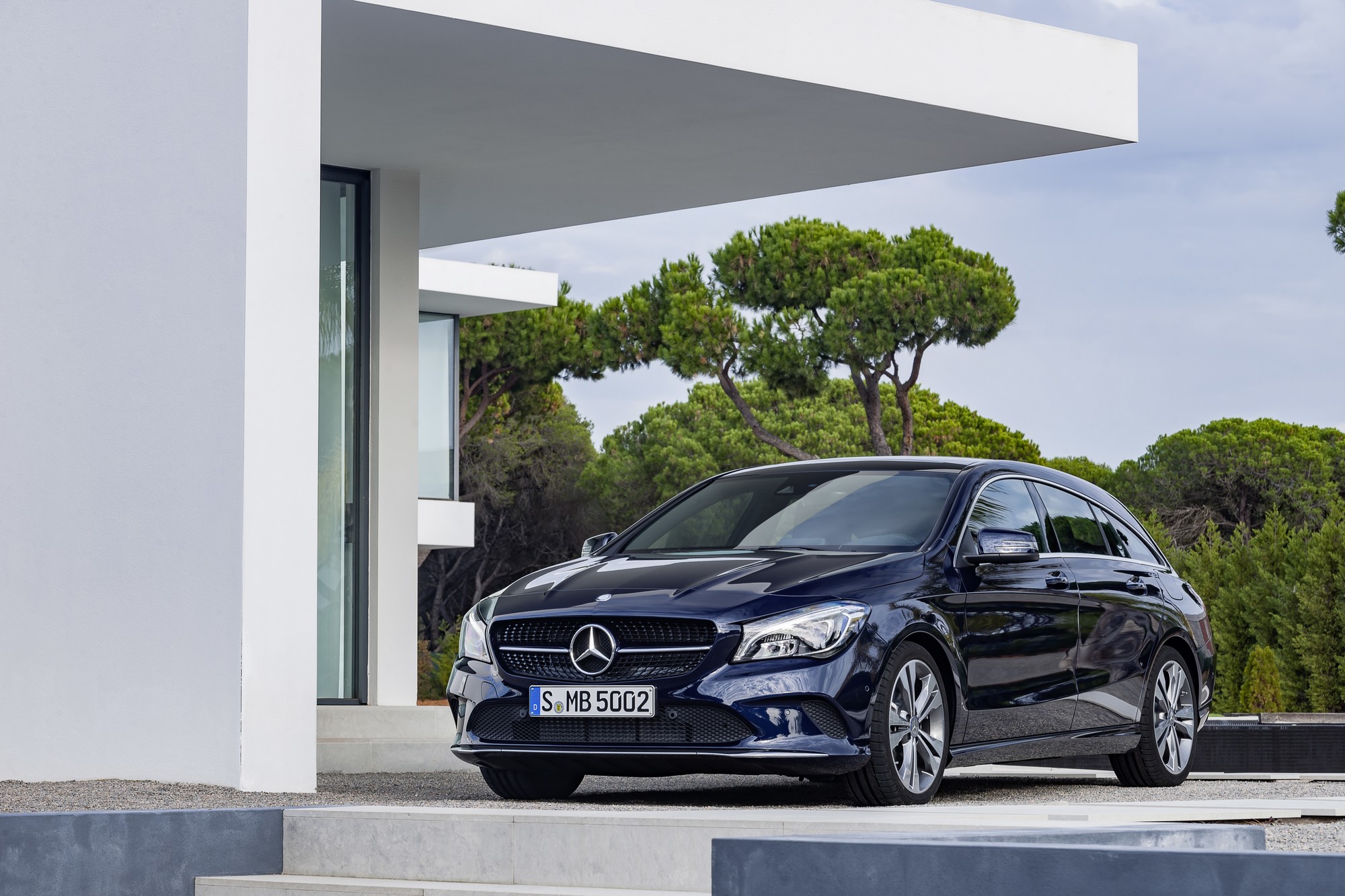

Estate (Shooting Brake)
after upgrade (facelift)
Date of manufacture
6/2016 – 2019Internal designation

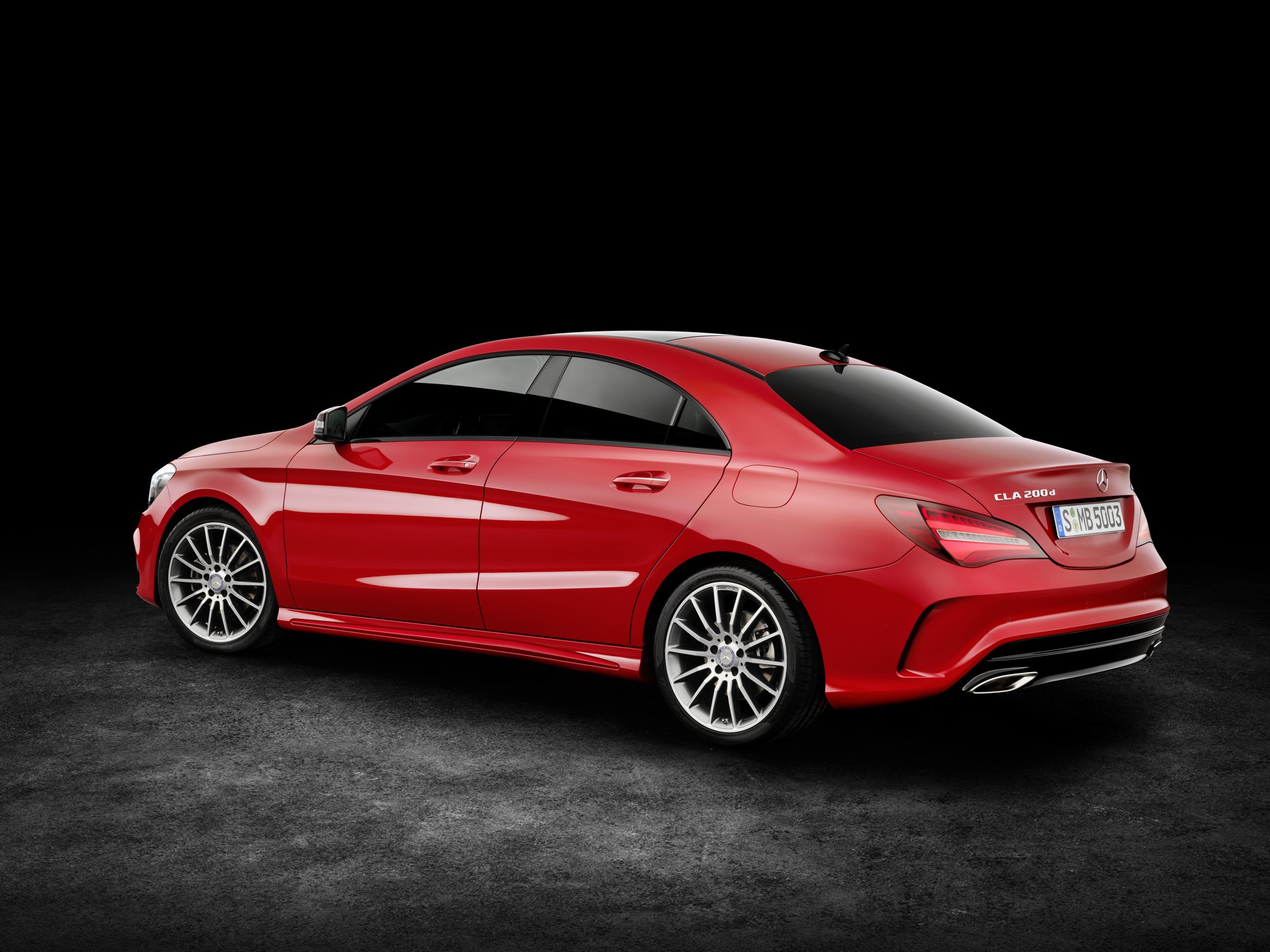

X117Coupé
after upgrade (facelift)
Date of manufacture
6/2016 – 2019Internal designation
C117
Technical data
Estate (Shooting Brake)
| CLA 180 | CLA 180 | CLA 200 | CLA 200 | CLA 220 4MATIC | CLA 250 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1595 | 1595 | 1991 | 1991 |
| Maximum output / speed [kW/min-1] | 90/5000 | 90/5000 | 115/5300 | 115/5300 | 135/5500 | 155/5500 |
| Maximum torque [Nm/min-1] | 200/1250-4000 | 200/1250-4000 | 250/1250-4000 | 250/1250-4000 | 300/1200-4000 | 350/1200-4000 |
| Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 9,8:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 210 | 210 | 225 | 225 | 235 | 240 |
| Acceleration 0–100 km/h [s] | 9.1 | 8.8 | 8.5 | 8.2 | 7.2 | 6.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4-7.9 | 7.0-7.4 | 7.5-7.9 | 7.0-7.4 | 8.7-8.8 | 8.7-8.8 |
| Out of town [l] | 4.4-4.9 | 4.5-4.8 | 4.5-4.9 | 4.5-4.8 | 5.5.-5.7 | 5.2-5.4 |
| Combined [l] | 5.5-6.0 | 5.4-5.7 | 5.6-6.0 | 5.4-5.7 | 6.7-6.9 | 6.6-6.7 |
| CO2 emissions [g/km] | 128-140 | 126-134 | 130-140 | 126-134 | 154-158 | 151-156 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1430 | 1460 | 1430 | 1460 | 1550 | 1470 |
| Overall weight [kg] | 1955 | 1955 | 1955 | 1955 | 2045 | 1995 |
| Maximum trailer weight unbraked/braked [kg] | 715/1200 | 730/1200 | 715/1400 | 730/1400 | 750/1500 | 735/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 |
| Boot length [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |
| Boot length with rear seats folded [mm] | 1760 | 1760 | 1760 | 1760 | 1760 | 1760 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/703 | -/703 | -/703 | -/703 | -/703 | -/703 |
| Loading edge height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Height of the open boot door [mm] | 1975 | 1975 | 1975 | 1975 | 1975 | 1975 |
| Boot opening height [mm] | 571 | 571 | 571 | 571 | 571 | 571 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 56 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.27 | 0.28 | 0.28 | 0.31 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 |
| Wheel size front | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 7.5 J x 17 ET52.5 |
| Wheel size rear | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 7.5 J x 17 ET52.5 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | 4640 |
| Overall width without/including mirrors [mm] | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 |
| Overall height [mm] | 1435 | 1435 | 1435 | 1435 | 1439 | 1435 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1542 | 1549 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1541 | 1547 |
| Forward overhang [mm] | 925 | 925 | 925 | 925 | 925 | 925 |
| Rear overhang [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Clearance [mm] | 94 | 94 | 94 | 94 | 94 | 94 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.7 | 13.7 | 13.7 | 13.7 | 13.7 | 13.7 |
| Approach angle rear [°] | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 |
| Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 |
| Rear elbow/shoulder width [mm] | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLA 250 | CLA 250 4MATIC | CLA 250 Sport 4MATIC | CLA 45 AMG 4MATIC | CLA 180d | CLA 180d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1991 | 1991 | 1991 | 1991 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 155/5500 | 155/5500 | 160/5500 | 280/6000 | 80/4000 | 80/4000 |
| Maximum torque [Nm/min-1] | 350/1200-4000 | 350/1200-4000 | 350/1200-4000 | 475/2250-5000 | 260/1750-2500 | 260/1750-2500 |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | 9,8:1 | 9,8:1 | 9,8:1 | 8,6:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | 4x4 | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 240 | 240 | 240 | 250 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 6.7 | 6.6 | 6.7 | 4.3 | 11.9 | 11.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.2 | 8.7-8.8 | 8.8 | 9.2-9.6 | 4.4-4.7 | 4.7-4.9 |
| Out of town [l] | 4.8-5.1 | 5.5.-5.7 | 5.8 | 5.6-6.0 | 3.6-3.9 | 3.8-4.0 |
| Combined [l] | 6.1-6.3 | 6.7-6.9 | 6.9 | 6.9-7.3 | 3.9-4.2 | 4.1-4.3 |
| CO2 emissions [g/km] | 141-145 | 154-158 | 160 | 162-171 | 101-110 | 107-114 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1500 | 1555 | 1565 | 1615 | 1470 | 1495 |
| Overall weight [kg] | 1995 | 2050 | 2050 | 2120 | 1990 | 1990 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | - | - | 735/1200 | 745/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 495 | 495 | 495 | 495 | 495 | 495 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 |
| Boot length [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | 1003 |
| Boot length with rear seats folded [mm] | 1760 | 1760 | 1760 | 1760 | 1760 | 1760 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/703 | -/703 | -/703 | -/703 | -/703 | -/703 |
| Loading edge height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Height of the open boot door [mm] | 1975 | 1975 | 1975 | 1975 | 1975 | 1975 |
| Boot opening height [mm] | 571 | 571 | 571 | 571 | 571 | 571 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 56 | 56 | 56 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.31 | 0.29 | 0.34 | 0.26 | 0.27 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 225/45 R17 | 225/45 R17 | 235/40 R18 | 235/40 ZR18 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 225/45 R17 | 225/45 R17 | 235/40 R18 | 235/40 ZR18 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | 8.0J x 18 ET48 | 8.0J x 18 ET48 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 |
| Wheel size rear | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | 8.0J x 18 ET48 | 8.0J x 18 ET48 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 |
| Brake dimensions front | - | - | - | 350 x 32 | - | - |
| Brake dimensions rear | - | - | - | 330 x 22 | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.04/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | 4640 |
| Overall width without/including mirrors [mm] | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 |
| Overall height [mm] | 1439 | 1439 | 1439 | 1417 | 1435 | 1435 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1542 | 1542 | 1542 | 1557 | 1549 | 1549 |
| Rear wheel track [mm] | 1541 | 1541 | 1541 | 1561 | 1547 | 1547 |
| Forward overhang [mm] | 925 | 925 | 925 | 925 | 925 | 925 |
| Rear overhang [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Clearance [mm] | 94 | 94 | 94 | 94 | 94 | 94 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.7 | 13.7 | 13.7 | 13.7 | 13.7 | 13.7 |
| Approach angle rear [°] | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 |
| Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | 947 |
| Front elbow/shoulder width [mm] | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 |
| Rear elbow/shoulder width [mm] | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLA 200d | CLA 200d | CLA 200d 4MATIC | CLA 220d | CLA 220d 4MATIC | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 2143 | 2143 | 2143 | 2143 | 2143 | |
| Maximum output / speed [kW/min-1] | 100/3200-4400 | 100/3200-4400 | 100/3200-4400 | 130/3600-3800 | 130/3600-3800 | |
| Maximum torque [Nm/min-1] | 300/1400-3000 | 300/1400-3000 | 300/1400-3000 | 350/1400-3400 | 350/1400-3400 | |
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | 4x4 | Front | 4x4 | |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | |
| Drive specifications | - |
|
|
|
| |
| Top speed [km/h] | 215 | 215 | 212 | 228 | 225 | |
| Acceleration 0–100 km/h [s] | 9.7 | 9.2 | 9.2 | 7.8 | 7.8 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.2-5.5 | 4.7-4.9 | 5.7-6.2 | 4.8-5.0 | 5.7-6.1 | |
| Out of town [l] | 3.4-3.7 | 3.4-3.8 | 4.0-4.4 | 3.6-3.9 | 4.0-4.4 | |
| Combined [l] | 4.1-4.4 | 3.9-4.2 | 4.6-5.0 | 4.0-4.3 | 4.6-5.0 | |
| CO2 emissions [g/km] | 108-115 | 101-111 | 121-131 | 105-112 | 121-131 | |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1530 | 1555 | 1615 | 1555 | 1615 | |
| Overall weight [kg] | 2050 | 2050 | 2100 | 2050 | 2100 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | 750/1500 | 750/1500 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | |
| Boot volume [l] | 495 | 495 | 495 | 495 | 495 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1354 | -/1354 | -/1354 | -/1354 | -/1354 | |
| Boot length [mm] | 1003 | 1003 | 1003 | 1003 | 1003 | |
| Boot length with rear seats folded [mm] | 1760 | 1760 | 1760 | 1760 | 1760 | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | -/703 | -/703 | -/703 | -/703 | -/703 | |
| Loading edge height [mm] | 685 | 685 | 685 | 685 | 685 | |
| Height of the open boot door [mm] | 1975 | 1975 | 1975 | 1975 | 1975 | |
| Boot opening height [mm] | 571 | 571 | 571 | 571 | 571 | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 50 | 50 | 56 | 50 | 56 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.27 | 0.27 | 0.28 | 0.29 | 0.3 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 | |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/45 R17 | |
| Wheel size front | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | |
| Wheel size rear | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | |
| Overall width without/including mirrors [mm] | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | |
| Overall height [mm] | 1435 | 1435 | 1439 | 1435 | 1439 | |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1542 | 1542 | |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1541 | 1541 | |
| Forward overhang [mm] | 925 | 925 | 925 | 925 | 925 | |
| Rear overhang [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | |
| Clearance [mm] | 94 | 94 | 94 | 94 | 94 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | 13.7 | 13.7 | 13.7 | 13.7 | 13.7 | |
| Approach angle rear [°] | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | |
| Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | |
| Headroom rear [mm] | 947 | 947 | 947 | 947 | 947 | |
| Front elbow/shoulder width [mm] | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 | |
| Rear elbow/shoulder width [mm] | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Coupé
| CLA 180 | CLA 180 BlueEFFICIENCY | CLA 180 | CLA 200 | CLA 200 | CLA 220 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1595 | 1595 | 1595 | 1595 | 1595 | 1991 |
| Maximum output / speed [kW/min-1] | 90/5000 | 90/5000 | 90/5000 | 115/5300 | 115/5300 | 135/5500 |
| Maximum torque [Nm/min-1] | 200/1250-4000 | 200/1250-4000 | 200/1250-4000 | 250/1250-4000 | 250/1250-4000 | 300/1200-4000 |
| Bore and stroke [mm x mm] | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 73,7 | 83,0 x 92,0 |
| Compression ratio | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 10,3:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications | - | - |
| - |
|
|
| Top speed [km/h] | 210 | 190 | 210 | 230 | 230 | 240 |
| Acceleration 0–100 km/h [s] | 9.0 | 9.0 | 8.7 | 8.2 | 7.9 | 7.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.4-7.7 | 6.8 | 6.8-7.1 | 7.5-7.7 | 6.9-7.2 | 8.4-8.6 |
| Out of town [l] | 4.2-4.6 | 4.0 | 4.2-4.6 | 4.3-4.6 | 4.3-4.7 | 5.4-5.7 |
| Combined [l] | 5.4-5.7 | 5.0 | 5.1-5.5 | 5.5-5.7 | 5.2-5.6 | 6.5-6.7 |
| CO2 emissions [g/km] | 125-133 | 117 | 119-126 | 126-133 | 121-128 | 152-156 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1395 | 1395 | 1430 | 1395 | 1430 | 1530 |
| Overall weight [kg] | 1920 | 1850 | 1920 | 1920 | 1920 | 2020 |
| Maximum trailer weight unbraked/braked [kg] | 695/1200 | 695/1200 | 715/1200 | 695/1400 | 715/1400 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 470 | 470 | 470 | 470 | 470 | 470 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1745 | 1745 | 1745 | 1745 | 1745 | 1745 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 40 | 50 | 50 | 50 | 56 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.23 | 0.23 | 0.24 | 0.26 | 0.26 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 205/55 R16 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 205/55 R16 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5 J x 16 ET49 | 6.5J x 15 ET47 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 |
| Wheel size rear | 6.5 J x 16 ET49 | 6.5J x 15 ET47 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | 4640 |
| Overall width without/including mirrors [mm] | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 |
| Overall height [mm] | 1432 | 1432 | 1432 | 1432 | 1432 | 1432 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1549 | 1549 | 1549 | 1549 | 1549 | 1542 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1541 |
| Forward overhang [mm] | 925 | 925 | 925 | 925 | 925 | 925 |
| Rear overhang [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Clearance [mm] | 94 | 94 | 94 | 94 | 94 | 94 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.7 | 13.7 | 13.7 | 13.7 | 13.7 | 13.7 |
| Approach angle rear [°] | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 |
| Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1006 | 1006 | 1006 | 1006 | 1006 | 1006 |
| Headroom rear [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Front elbow/shoulder width [mm] | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 |
| Rear elbow/shoulder width [mm] | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLA 250 | CLA 250 | CLA 250 4MATIC | CLA 250 Sport | CLA 250 Sport | CLA 250 Sport 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1991 | 1991 | 1991 | 1991 | 1991 | 1991 |
| Maximum output / speed [kW/min-1] | 155/5500 | 155/5500 | 155/5500 | 160/5500 | 160/5500 | 160/5500 |
| Maximum torque [Nm/min-1] | 350/1200-4000 | 350/1200-4000 | 350/1200-4000 | 350/1200-4000 | 350/1200-4000 | 350/1200-4000 |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 240 | 240 | 240 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.6 | 6.5 | 6.6 | 6.5 | 6.4 | 6.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6-8.8 | 7.9-8.0 | 8.4-8.6 | 8.9 | 8.1 | 8.7 |
| Out of town [l] | 5.0-5.3 | 4.7-4.9 | 5.4-5.7 | 5.4 | 5.0 | 5.9 |
| Combined [l] | 6.4-6.6 | 5.8-6.0 | 6.5-6.7 | 6.7 | 6.2 | 6.8 |
| CO2 emissions [g/km] | 148-153 | 136-140 | 152-156 | 156 | 143 | 160 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1445 | 1475 | 1535 | 1460 | 1490 | 1550 |
| Overall weight [kg] | 1965 | 1965 | 2025 | 1965 | 1965 | 2025 |
| Maximum trailer weight unbraked/braked [kg] | 720/1500 | 735/1500 | 750/1500 | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 470 | 470 | 470 | 470 | 470 | 470 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1745 | 1745 | 1745 | 1745 | 1745 | 1745 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 56 | 56 | 56 | 56 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.29 | 0.28 | 0.28 | 0.28 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 225/45 R17 | 225/45 R17 | 225/45 R17 | 235/40 R18 | 235/40 R18 | 235/40 R18 |
| Tyre dimensions rear | 225/45 R17 | 225/45 R17 | 225/45 R17 | 235/40 R18 | 235/40 R18 | 235/40 R18 |
| Wheel size front | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | 8.0J x 18 ET 48 | 8.0J x 18 ET 48 | 8.0J x 18 ET 48 |
| Wheel size rear | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | 8.0J x 18 ET 48 | 8.0J x 18 ET 48 | 8.0J x 18 ET 48 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | 4640 |
| Overall width without/including mirrors [mm] | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 |
| Overall height [mm] | 1432 | 1432 | 1432 | 1432 | 1432 | 1432 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1542 | 1542 | 1542 | 1542 | 1542 | 1542 |
| Rear wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1541 | 1541 |
| Forward overhang [mm] | 925 | 925 | 925 | 925 | 925 | 925 |
| Rear overhang [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Clearance [mm] | 94 | 94 | 94 | 94 | 94 | 94 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.7 | 13.7 | 13.7 | 13.7 | 13.7 | 13.7 |
| Approach angle rear [°] | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 |
| Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1006 | 1006 | 1006 | 1006 | 1006 | 1006 |
| Headroom rear [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Front elbow/shoulder width [mm] | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 |
| Rear elbow/shoulder width [mm] | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLA 45 AMG 4MATIC | CLA 180d | CLA 180d BlueEFFICIENCY | CLA 180d | CLA 200d | CLA 200d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1991 | 1461 | 1461 | 1461 | 2143 | 2143 |
| Maximum output / speed [kW/min-1] | 280/6000 | 80/4000 | 80/4000 | 80/4000 | 100/3200-4000 | 100/3200-4000 |
| Maximum torque [Nm/min-1] | 475/2250-5000 | 260/1750-2500 | 260/1750-2500 | 260/1750-2500 | 300/1400-3000 | 300/1400-3000 |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 83,0 x 99,0 | 83,0 x 99,0 |
| Compression ratio | 8,6:1 | 15,4:1 | 15,4:1 | 15,4:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
| - | - |
| - |
|
| Top speed [km/h] | 250 | 205 | 190 | 205 | 220 | 220 |
| Acceleration 0–100 km/h [s] | 4.2 | 11.6 | 11.6 | 11.6 | 9.5 | 9.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.2-9.6 | 4.3-4.7 | 4.0 | 4.4-4.7 | 5.2-5.5 | 4.7-5.1 |
| Out of town [l] | 5.6-6.0 | 3.3-3.7 | 3.1 | 3.5-3.9 | 3.3-3.7 | 3.4-3.7 |
| Combined [l] | 6.9-7.3 | 3.7-4.0 | 3.5 | 3.8-4.2 | 4.0-4.4 | 3.8-4.2 |
| CO2 emissions [g/km] | 162-171 | 98-108 | 89 | 100-109 | 104-114 | 100-110 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1585 | 1440 | 1430 | 1465 | 1500 | 1525 |
| Overall weight [kg] | 2075 | 1955 | 1850 | 1955 | 2015 | 2015 |
| Maximum trailer weight unbraked/braked [kg] | - | 720/1200 | - | 730/1200 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 470 | 470 | 470 | 470 | 470 | 470 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1745 | 1745 | 1745 | 1745 | 1745 | 1745 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 56 | 50 | 40 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.25 | 0.23 | 0.25 | 0.25 | 0.25 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Tyre dimensions front | 235/40 ZR18 | 205/55 R16 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 235/40 ZR18 | 205/55 R16 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 8.0J x 18 ET48 | 6.5 J x 16 ET49 | 6.5J x 15 ET47 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 |
| Wheel size rear | 8.0J x 18 ET48 | 6.5 J x 16 ET49 | 6.5J x 15 ET47 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 | 6.5 J x 16 ET49 |
| Brake dimensions front | 350 x 32 | - | - | - | - | - |
| Brake dimensions rear | 330 x 22 | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.04/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4640 | 4640 | 4640 | 4640 | 4640 | 4640 |
| Overall width without/including mirrors [mm] | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 | 1777/2032 |
| Overall height [mm] | 1416 | 1432 | 1432 | 1432 | 1432 | 1432 |
| Wheelbase [mm] | 2699 | 2699 | 2699 | 2699 | 2699 | 2699 |
| Front wheel track [mm] | 1557 | 1549 | 1549 | 1549 | 1549 | 1549 |
| Rear wheel track [mm] | 1561 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Forward overhang [mm] | 925 | 925 | 925 | 925 | 925 | 925 |
| Rear overhang [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Clearance [mm] | 94 | 94 | 94 | 94 | 94 | 94 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.7 | 13.7 | 13.7 | 13.7 | 13.7 | 13.7 |
| Approach angle rear [°] | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 |
| Transition angle [°] | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1006 | 1006 | 1006 | 1006 | 1006 | 1006 |
| Headroom rear [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Front elbow/shoulder width [mm] | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 | 1422/1391 |
| Rear elbow/shoulder width [mm] | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 | 1410/1350 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLA 200d 4MATIC | CLA 220d | CLA 220d 4MATIC | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 2143 | 2143 | 2143 | |||
| Maximum output / speed [kW/min-1] | 100/3200-4000 | 130/3600-3800 | 130/3600-3800 | |||
| Maximum torque [Nm/min-1] | 300/1400-3000 | 350/1400-3400 | 350/1400-3400 | |||
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | |||
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | Front | 4x4 | |||
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 216 | 232 | 230 | |||
| Acceleration 0–100 km/h [s] | 9.0 | 7.7 | 7.7 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.5-5.8 | 4.9-5.2 | 5.5-5.8 | |||
| Out of town [l] | 4.0-4.3 | 3.5-3.7 | 4.0-4.3 | |||
| Combined [l] | 4.6-4.9 | 4.0-4.2 | 4.6-4.9 | |||
| CO2 emissions [g/km] | 119-127 | 104-111 | 119-127 | |||
| Emission standard | EU6 | EU6 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1585 | 1525 | 1585 | |||
| Overall weight [kg] | 2065 | 2015 | 2065 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 470 | 470 | 470 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | 1745 | 1745 | 1745 | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 4 | 4 | 4 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 56 | 50 | 56 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.26 | 0.27 | 0.28 | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | four-link | four-link | four-link | |||
| Tyre dimensions front | 205/55 R16 | 225/45 R17 | 225/45 R17 | |||
| Tyre dimensions rear | 205/55 R16 | 225/45 R17 | 225/45 R17 | |||
| Wheel size front | 6.5 J x 16 ET49 | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | |||
| Wheel size rear | 6.5 J x 16 ET49 | 7.5 J x 17 ET52.5 | 7.5 J x 17 ET52.5 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | |||
| Overall length [mm] | 4640 | 4640 | 4640 | |||
| Overall width without/including mirrors [mm] | 1777/2032 | 1777/2032 | 1777/2032 | |||
| Overall height [mm] | 1432 | 1432 | 1432 | |||
| Wheelbase [mm] | 2699 | 2699 | 2699 | |||
| Front wheel track [mm] | 1549 | 1542 | 1542 | |||
| Rear wheel track [mm] | 1547 | 1541 | 1541 | |||
| Forward overhang [mm] | 925 | 925 | 925 | |||
| Rear overhang [mm] | 1016 | 1016 | 1016 | |||
| Clearance [mm] | 94 | 94 | 94 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 13.7 | 13.7 | 13.7 | |||
| Approach angle rear [°] | 14.4 | 14.4 | 14.4 | |||
| Transition angle [°] | 9.5 | 9.5 | 9.5 | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1006 | 1006 | 1006 | |||
| Headroom rear [mm] | 905 | 905 | 905 | |||
| Front elbow/shoulder width [mm] | 1422/1391 | 1422/1391 | 1422/1391 | |||
| Rear elbow/shoulder width [mm] | 1410/1350 | 1410/1350 | 1410/1350 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |

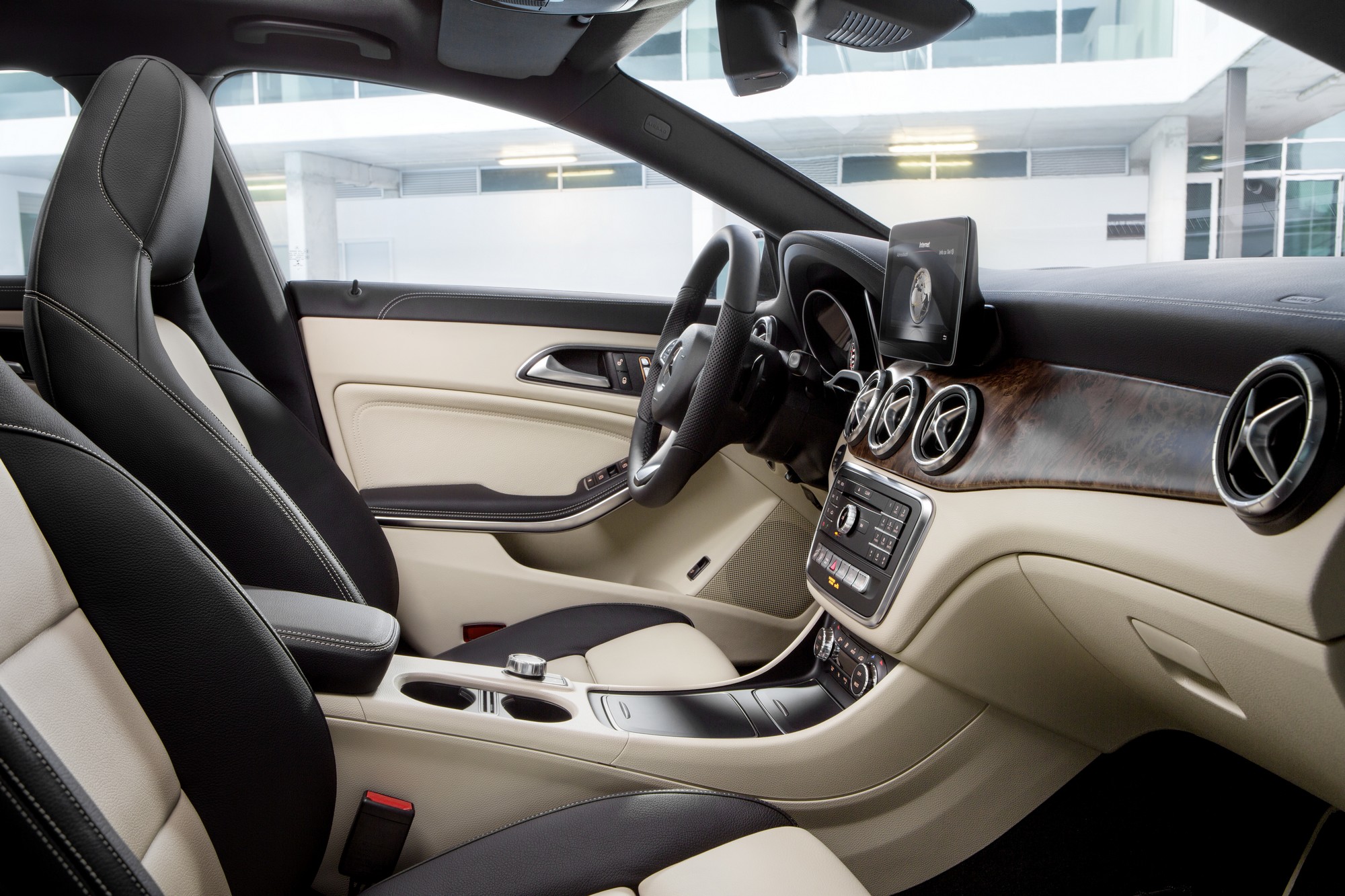

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
