Mercedes-Benz CLA
Date of manufacture
2/2019 – to this day (Coupé)
2019 – to this day (Estate)
Platform
MFA2
Manufacturing locations
Kecskemét, Hungary
Designer
-
Tags
C-segment
German cars
The Mercedes-Benz CLA is available in coupe and estate body styles and has been produced since 2019. The country of manufacture is Hungary. The car is built on the MFA2 platform. The car can also be purchased in hybrid or plug-in hybrid versions. The engine range includes petrol, diesel and hybrid engines. The most powerful model is the CLA AMG 45 S 4MATIC with 310 kW. The top speed of the CLA AMG 45 S 4MATIC is 270 km/h. The CLA AMG 45 S 4MATIC has the best acceleration from 0-100 km/h in 4.0 seconds. The CLA 250e has the lowest combined fuel consumption of 1.5 l/100 km and CO2 emissions of 35 g/km. The coupe version has a boot capacity of 460 l and the estate version has a boot capacity of 454 l. The car was tested for safety in 2019 and achieved an overall rating of 5 out of 5 according to EURONCAP.
Car body style
Coupé
Date of manufacture
2/2019 – to this dayInternal designation

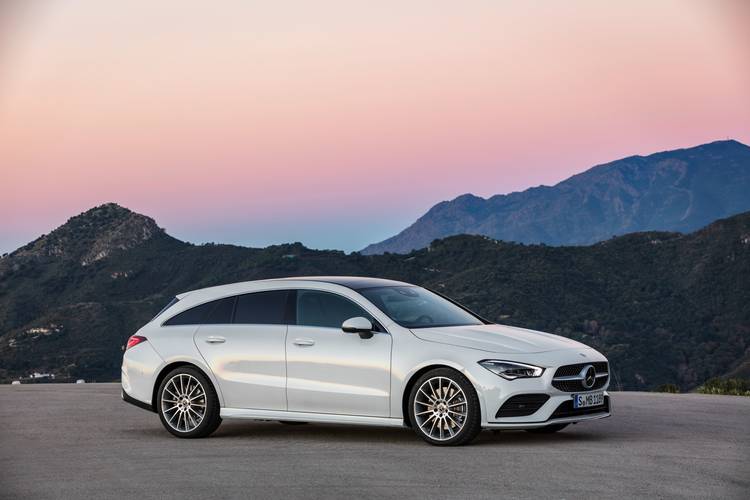

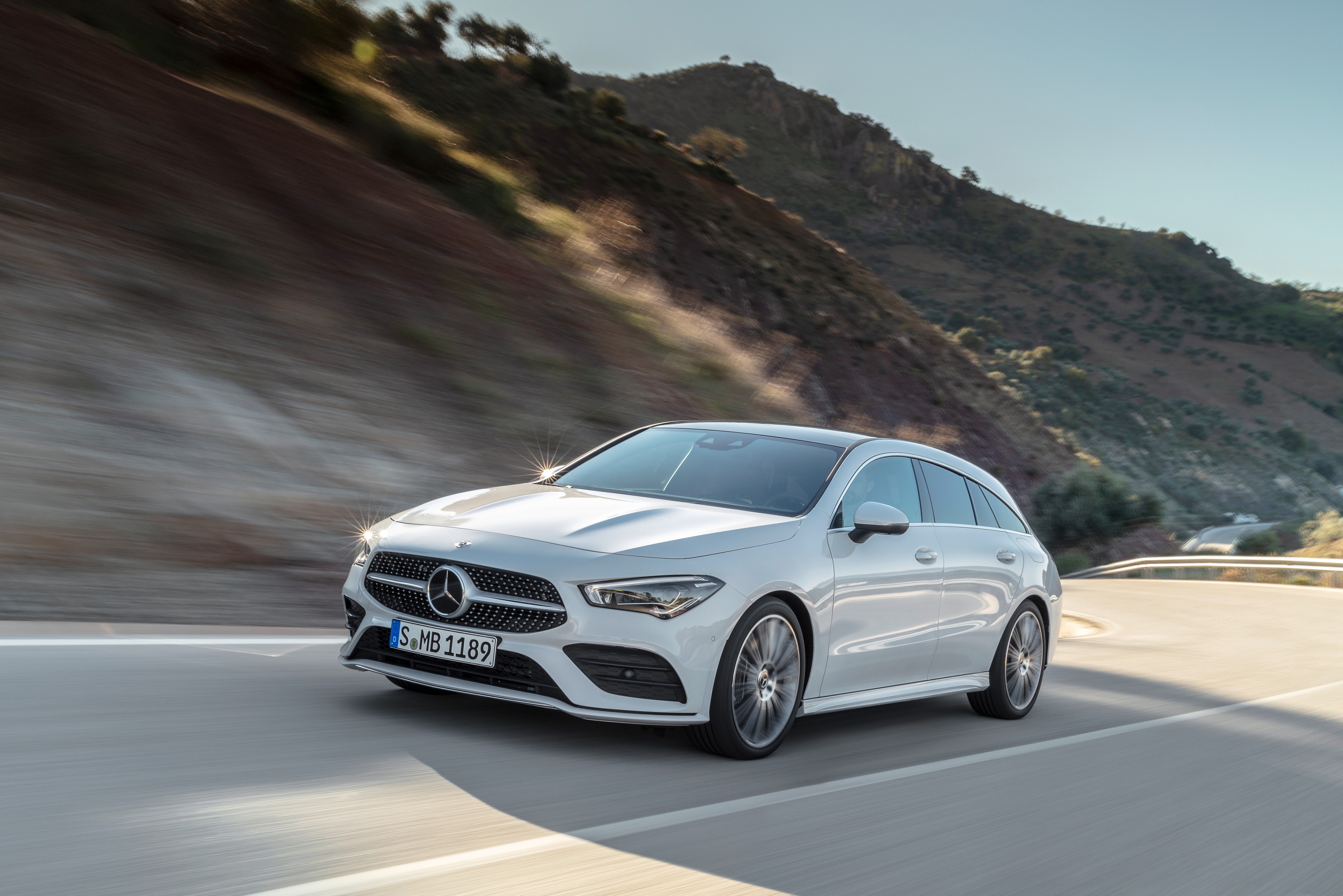

C118Estate (Shooting Brake)
Date of manufacture
2019 – to this dayInternal designation
X118
Technical data
Coupé
| CLA 180 | CLA 180 | CLA 200 | CLA 200 | CLA 200 4MATIC | CLA 220 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1332 | 1332 | 1332 | 1332 | 1332 | 1991 |
| Maximum output / speed [kW/min-1] | 100/5500 | 100/5500 | 120/5500 | 120/5500 | 120/5500 | 140/5800 |
| Maximum torque [Nm/min-1] | 200/1460-4000 | 200/1460-4000 | 250/1620-400 | 250/1620-400 | 250/1620-400 | 300/1600 |
| Bore and stroke [mm x mm] | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 83.0 x 92.0 |
| Compression ratio | 10.6:1 | 10.6:1 | 10.6:1 | 10.6:1 | 10.6:1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Rear |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 216 | 216 | 229 | 226 | 225 | 241 |
| Acceleration 0–100 km/h [s] | 9,4 | 9.0 | 8,5 | 8,4 | 8,7 | 7.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,7-7,2 | 7,7-7,2 | 7,8-7,2 | 7,6-6.6 | 8,2-7,7 | - |
| Out of town [l] | 4,8-4,4 | 4,7-4,3 | 4,8-4,4 | 5.0-4,4 | 5,3-4,7 | - |
| Combined [l] | 5,9-5,4 | 5,7-5,4 | 5,9-5,4 | 5,7-5,3 | 6,3-5,8 | 6.3-6.1 |
| CO2 emissions [g/km] | 134-123 | 130-123 | 135-124 | 131-122 | 144-133 | 143-139 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1414 | 1465 | 1424 | 1465 | 1503 | 1490 |
| Overall weight [kg] | 1934 | 2025 | 1939 | 2025 | 2028 | 2020 |
| Maximum trailer weight unbraked/braked [kg] | 705/1400 | 730/14600 | 710/1600 | 730/1600 | 750/1800 | 745/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |

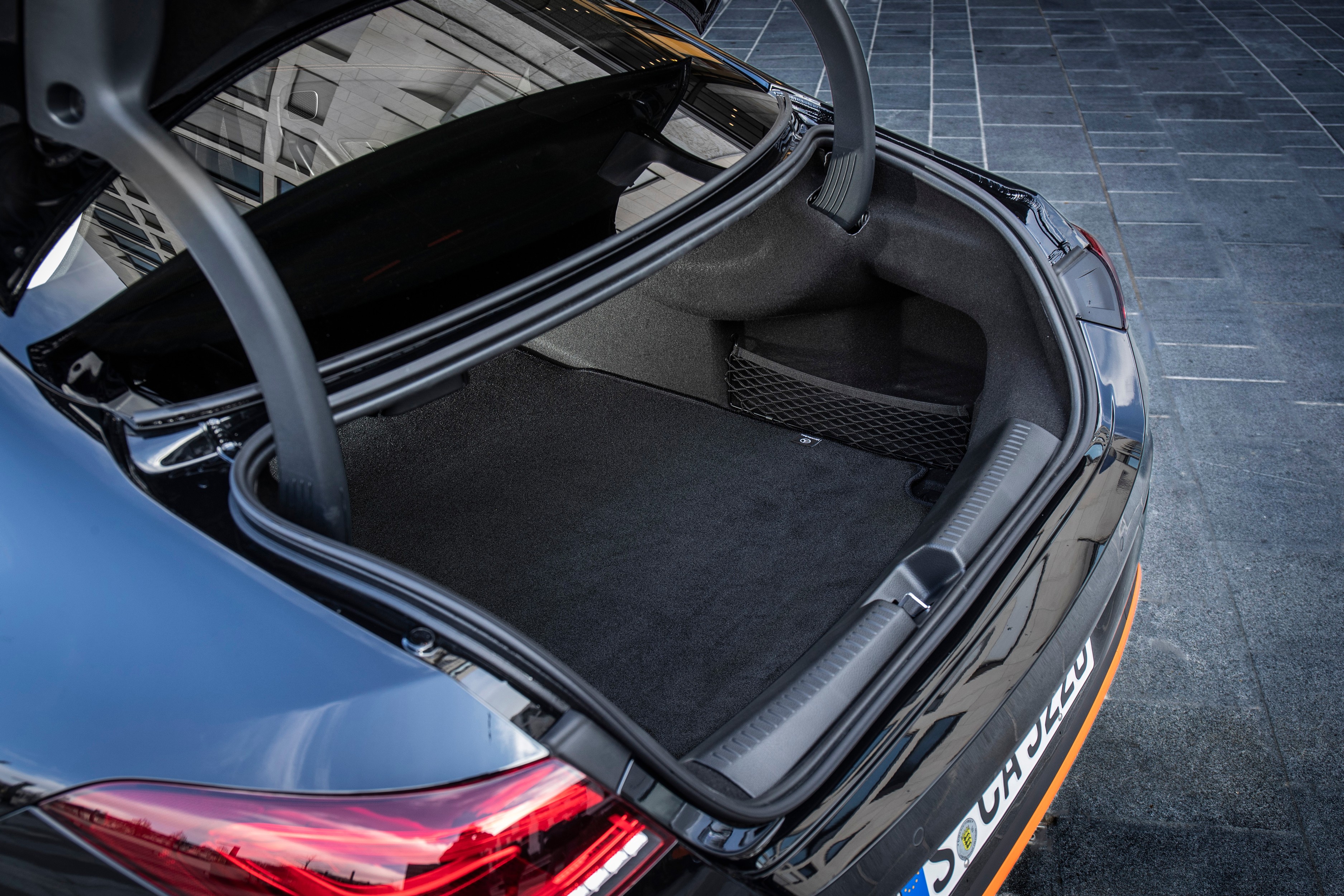

| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Height of the open boot door [mm] | 1836 | 1836 | 1836 | 1836 | 1836 | 1836 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 43 | 43 | 43 | 43 | 51 | 43 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.24 | 0.24 | - | 0.24 | 0.24 | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/55 R17 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/55 R17 |
| Wheel size front | 6.5 J x 16 H2 ET44 | 6.5 J x 16 H2 ET44 | 6.5 J x 16 H2 ET44 | 6.5 J x 16 H2 ET44 | 6.5J x 16 | 6.5J x 17 |
| Wheel size rear | 6.5 J x 16 H2 ET44 | 6.5 J x 16 H2 ET44 | 6.5 J x 16 H2 ET44 | 6.5 J x 16 H2 ET44 | 6.5J x 16 | 6.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.1 | -/11.1 | -/11.1 | -/11.1 | -/11.1 | -/11.1 |
| Overall length [mm] | 4688 | 4688 | 4688 | 4688 | 4688 | 4688 |
| Overall width without/including mirrors [mm] | 1830/1999 | 1830/1999 | 1830/1999 | 1830/1999 | 1830/1999 | 1830/1999 |
| Overall height [mm] | 1439 | 1439 | 1439 | 1439 | 1439 | 1439 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1612 | 1612 | 1612 | 1612 | 1612 | 1612 |
| Rear wheel track [mm] | 1602 | 1602 | 1602 | 1602 | 1602 | 1602 |
| Forward overhang [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Rear overhang [mm] | 1032 | 1032 | 1032 | 1032 | 1032 | 1032 |
| Clearance [mm] | 104 | 104 | 104 | 104 | 104 | 104 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 |
| Approach angle rear [°] | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 |
| Transition angle [°] | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
| Headroom rear [mm] | 908 | 908 | 908 | 908 | 908 | 908 |
| Front elbow/shoulder width [mm] | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 |
| Rear elbow/shoulder width [mm] | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLA 220 4MATIC | CLA 250 | CLA 250 4MATIC | CLA AMG 35 4MATIC | CLA AMG 45 4MATIC | CLA AMG 45 S 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | - | - | - | from 2019 to | from 2019 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1991 | 1991 | 1991 | 1991 | 1991 | 1991 |
| Maximum output / speed [kW/min-1] | 140/5800 | 165/5500 | 165/5500 | 225/5800-6100 | 285/6500 | 310/6750 |
| Maximum torque [Nm/min-1] | 300/1600 | 350/1800 | 350/1800-400 | 400/3000-4000 | 480/4750-5000 | 500/5000-5250 |
| Bore and stroke [mm x mm] | 83.0 x 92.0 | 83.0 x 92.0 | 83.0 x 92.0 | 83.0 x 92.0 | 83.0 x 92.0 | 83.0 x 92.0 |
| Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.0:1 | 10.0:1 | 10.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 237 | 250 | 250 | 250 | 250 | 270 |
| Acceleration 0–100 km/h [s] | 7.0 | 6,3 | 6,3 | 4,9 | 4,1 | 4,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 8,3-7,9 | 9,2-8,5 | 9,5-9,3 | 10,6 | 10,6 |
| Out of town [l] | - | 5,2-4,7 | 5,6-5,0 | 6,3-6,0 | 6,9-6,7 | 6,9-6,8 |
| Combined [l] | 6.7-6.5 | 6,3-5,9 | 6,9-6,3 | 7,4-7,2 | 8,3-8,2 | 8,3-8,2 |
| CO2 emissions [g/km] | 153-149 | 145-134 | 158-144 | 170-165 | 189-187 | 190 |
| Emission standard | Euro 6d-TEMP | Euro 6d | Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1545 | 1493 | 1554 | 1615 | 1680 | 1695 |
| Overall weight [kg] | 2080 | 2028 | 2089 | 2115 | 2175 | 2175 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 745/1600 | 750/1800 | 750/1800 | 750/1500 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 460 | 460 | 460 | 460 | 460 | 460 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Height of the open boot door [mm] | 1836 | 1836 | 1836 | 1836 | 1836 | 1836 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 43 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | 0.25 | 0.25 | 0.27 | 0,305 | 0,309 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R17 | 205/55 R17 | 205/55 R17 | 235/40 ZR18 95Y XL | 245/40 ZR18 97Y XL | 255/35 ZR19 96Y XL |
| Tyre dimensions rear | 205/55 R17 | 205/55 R17 | 205/55 R17 | 235/40 ZR18 95Y XL | 245/40 ZR18 97Y XL | 255/35 ZR19 96Y XL |
| Wheel size front | 6.5 J x 17 H2 ET44 | 6.5J x 17 | 6.5J x 17 | 8.0J x 18 ET49 | 8,5J x 18 ET46 | 9.0J x 19 ET52 |
| Wheel size rear | 6.5 J x 17 H2 ET44 | 6.5J x 17 | 6.5J x 17 | 8.0J x 18 ET49 | 8,5J x 18 ET46 | 9.0J x 19 ET52 |
| Brake dimensions front | - | - | - | 350 | 350 x 34 | 360 x 36 |
| Brake dimensions rear | - | - | - | 330 | 330 x 22 | 330 x 22 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.1 | -/11.1 | -/11.1 | -/11.54 | -/11,62 | -/11.62 |
| Overall length [mm] | 4688 | 4688 | 4688 | 4695 | 4693 | 4693 |
| Overall width without/including mirrors [mm] | 1830/1999 | 1830/1999 | 1830/1999 | 1834/1999 | 1857/1999 | 1857/1999 |
| Overall height [mm] | 1439 | 1439 | 1439 | 1404 | 1407 | 1413 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1612 | 1612 | 1612 | 1608 | 1597 | 1585 |
| Rear wheel track [mm] | 1602 | 1602 | 1602 | 1610 | 1616 | 1605 |
| Forward overhang [mm] | 927 | 927 | 927 | - | - | - |
| Rear overhang [mm] | 1032 | 1032 | 1032 | - | - | - |
| Clearance [mm] | 104 | 104 | 104 | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.4 | 13.4 | 13.4 | - | - | - |
| Approach angle rear [°] | 14.3 | 14.3 | 14.3 | - | - | - |
| Transition angle [°] | 9.4 | 9.4 | 9.4 | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
| Headroom rear [mm] | 908 | 908 | 908 | 908 | 908 | 908 |
| Front elbow/shoulder width [mm] | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 |
| Rear elbow/shoulder width [mm] | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLA 250e | CLA 180d | CLA 180d | CLA 180d | CLA 200d | CLA 200d | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2020 | from 2020 to | from 2020 to | - | - |
| Engine type | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1332 | 1461 | 1950 | 1950 | 1950 | 1950 |
| Maximum output / speed [kW/min-1] | 118 combustion 75 el. 160 total | 85/4000 | 85/3400-4400 | 85/3400-4400 | 110/3400-4400 | 110/3400-4400 |
| Maximum torque [Nm/min-1] | 230/1620-4000 combustion 330 el. 450 total | 260/1750-2750 | 280/1300-2600 | 280/1300-2600 | 320/1400-3200 | 320/1400-3200 |
| Bore and stroke [mm x mm] | 72.2 x 81.4 | 76.0 x 80.5 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 |
| Compression ratio | 10.6:1 | 15.1:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 8 gear automatic | 6 gear manual | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
| - | - |
| - |
|
| Top speed [km/h] | 240 | 205 | 205 | 205 | 226 | 226 |
| Acceleration 0–100 km/h [s] | 6,8 | 10.9 | 10,4 | 9.8 | 8,9 | 8.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 5.0-4.7 | 6,8-6,4 | 6.6-5.4 | 6,3-6,1 | 6.2-5.3 |
| Out of town [l] | - | 4.1-3.6 | 4,2-3,8 | 4.1-3.8 | 4,2-3,9 | 4.1-3.7 |
| Combined [l] | 1.5-1.4 [15.2-14.7 kWh] | 4.5-4.0 | 5,1-4,7 | 5.0-4.4 | 5,0-4,7 | 4.9-4.3 |
| CO2 emissions [g/km] | 35-31 | 118-106 | 135 | 131-117 | 132-124 | 129-114 |
| Emission standard | Euro 6d | Euro 6d-TEMP | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 15.6 kWh | - | - | - | - | - |
| Range with fully charged battery [km] | 71-78 | - | - | - | - | - |
| Charging time |
| - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | 150 | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1741 | 1478 | 1534 | 1560 | 1534 | 1560 |
| Overall weight [kg] | 2216 | 1988 | 2029 | 2055 | 2029 | 2055 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1400 | 750/1400 | 750/1400 | 750/1600 | 750/1600 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 395 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 765 | 765 | 765 | 765 | 765 | 765 |
| Height of the open boot door [mm] | 1836 | 1836 | 1836 | 1836 | 1836 | 1836 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 35 | 43 | 43 | 43 | 43 | 43 |
| AdBlue tank volume [l] | - | 23.8 | 23.8 | 23.8 | 23.8 | 23.8 |
| Air resistance [Cd] | 0,24 | - | - | - | 0.24 | 0.24 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.1 | -/11.1 | -/11.1 | -/11.1 | -/11.1 | -/11.1 |
| Overall length [mm] | 4688 | 4688 | 4688 | 4688 | 4688 | 4688 |
| Overall width without/including mirrors [mm] | 1830/1999 | 1830/1999 | 1830/1999 | 1830/1999 | 1830/1999 | 1830/1999 |
| Overall height [mm] | 1439 | 1439 | 1439 | 1439 | 1439 | 1439 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1612 | 1612 | 1612 | 1612 | 1612 | 1612 |
| Rear wheel track [mm] | 1602 | 1602 | 1602 | 1602 | 1602 | 1602 |
| Forward overhang [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Rear overhang [mm] | 1032 | 1032 | 1032 | 1032 | 1032 | 1032 |
| Clearance [mm] | 104 | 104 | 104 | 104 | 104 | 104 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 | 13.4 |
| Approach angle rear [°] | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 | 14.3 |
| Transition angle [°] | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 | 9.4 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1023 | 1023 | 1023 | 1023 | 1023 | 1023 |
| Headroom rear [mm] | 908 | 908 | 908 | 908 | 908 | 908 |
| Front elbow/shoulder width [mm] | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 |
| Rear elbow/shoulder width [mm] | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLA 200d 4MATIC | CLA 220d | CLA 220d 4MATIC | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1950 | 1950 | 1950 | |||
| Maximum output / speed [kW/min-1] | 110/3400-4400 | 140/3800 | 140/3800 | |||
| Maximum torque [Nm/min-1] | 320/1400-3200 | 400/1600-2600 | 400/1600-2600 | |||
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | |||
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | Front | 4x4 | |||
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 222 | 244 | 238 | |||
| Acceleration 0–100 km/h [s] | 8,5 | 7,1 | 7,0 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 6,0-5,8 | 5,8-5,5 | 6,2-5,8 | |||
| Out of town [l] | 4,3-3,8 | 4,0-3,7 | 4,2-3,8 | |||
| Combined [l] | 5,0-4,5 | 4,7-4,4 | 4,9-4,5 | |||
| CO2 emissions [g/km] | 130-120 | 123-115 | 130-120 | |||
| Emission standard | Euro 6d | Euro 6d | Euro 6d | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1618 | 1564 | 1618 | |||
| Overall weight [kg] | 2118 | 2069 | 2128 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1600 | 750/1800 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 450 | 450 | 450 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | 765 | 765 | 765 | |||
| Height of the open boot door [mm] | 1836 | 1836 | 1836 | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 4 | 4 | 4 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 51 | 43 | 51 | |||
| AdBlue tank volume [l] | 23.8 | 23.8 | 23.8 | |||
| Air resistance [Cd] | 0.24 | 0.25 | 0,24 | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | |||
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | |||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | -/11.1 | -/11.1 | -/11.1 | |||
| Overall length [mm] | 4688 | 4688 | 4688 | |||
| Overall width without/including mirrors [mm] | 1830/1999 | 1830/1999 | 1830/1999 | |||
| Overall height [mm] | 1439 | 1439 | 1439 | |||
| Wheelbase [mm] | 2729 | 2729 | 2729 | |||
| Front wheel track [mm] | 1612 | 1612 | 1612 | |||
| Rear wheel track [mm] | 1602 | 1602 | 1602 | |||
| Forward overhang [mm] | 927 | 927 | 927 | |||
| Rear overhang [mm] | 1032 | 1032 | 1032 | |||
| Clearance [mm] | 104 | 104 | 104 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 13.4 | 13.4 | 13.4 | |||
| Approach angle rear [°] | 14.3 | 14.3 | 14.3 | |||
| Transition angle [°] | 9.4 | 9.4 | 9.4 | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 1023 | 1023 | 1023 | |||
| Headroom rear [mm] | 908 | 908 | 908 | |||
| Front elbow/shoulder width [mm] | 1400/1457 | 1400/1457 | 1400/1457 | |||
| Rear elbow/shoulder width [mm] | 1372/1454 | 1372/1454 | 1372/1454 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Estate (Shooting Brake)
| CLA 180 | CLA 180 | CLA 200 | CLA 200 | CLA 250 | CLA 250 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1332 | 1332 | 1332 | 1332 | 1991 | 1991 |
| Maximum output / speed [kW/min-1] | 100/5500 | 100/5500 | 120/5500 | 120/5500 | 165/5500 | 165/5500 |
| Maximum torque [Nm/min-1] | 200/1460-4000 | 200/1460-4000 | 250/1620-400 | 250/1620-400 | 350/1800 | 350/1800-400 |
| Bore and stroke [mm x mm] | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 83.0 x 92.0 | 83.0 x 92.0 |
| Compression ratio | 10.6:1 | 10.6:1 | 10.6:1 | 10.6:1 | 10.5:1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 215 | 215 | 226 | 226 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 9,6 | 9.2 | 8,7 | 8.4 | 6,4 | 6,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,7-7,2 | 7.7-7.2 | 7,9-7,2 | 7.7-6.6 | 8,5-8,1 | 9,0-8,6 |
| Out of town [l] | 4,9-4,5 | 4.8-4.4 | 4,9-4,5 | 5.1-4.5 | 5,4-4,9 | 5,5-5,1 |
| Combined [l] | 5,9-5,5 | 5.8-5.4 | 6,0-5,5 | 5.8-5.7 | 6,5-6,1 | 7,0-6,4 |
| CO2 emissions [g/km] | 136-125 | 132-124 | 137-125 | 133-124 | 149-139 | 160-147 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1444 | 1465 | 1449 | 1465 | 1518 | 1579 |
| Overall weight [kg] | 2004 | 2025 | 2014 | 2025 | 2098 | 2164 |
| Maximum trailer weight unbraked/braked [kg] | 720/1400 | 730/1600 | 720/1600 | 730/1600 | 750/1600 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 454 | 454 | 454 | 454 | 454 | 454 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 900/1310 | 900/1310 | 900/1310 | 900/1310 | 900/1310 | 900/1310 |
| Boot length [mm] | 1048 | 1048 | 1048 | 1048 | 1048 | 1048 |
| Boot length with rear seats folded [mm] | -/1792 | -/1792 | -/1792 | -/1792 | -/1792 | -/1792 |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | -/710 | -/710 | -/710 | -/710 | -/710 | -/710 |
| Loading edge height [mm] | 770 | 770 | 770 | 770 | 770 | 770 |
| Height of the open boot door [mm] | 2004 | 2004 | 2004 | 2004 | 2004 | 2004 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 43 | 43 | 43 | 43 | 43 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.28 | 0.28 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/55 R17 | 205/55 R17 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/55 R17 | 205/55 R17 |
| Wheel size front | 6.5 J x 16 H2 ET44 | 6.5 J x 16 H2 ET44 | 6.5 J x 16 H2 ET44 | 6.5 J x 16 H2 ET44 | 6.5J x 17 | 6.5J x 17 |
| Wheel size rear | 6.5 J x 16 H2 ET44 | 6.5 J x 16 H2 ET44 | 6.5 J x 16 H2 ET44 | 6.5 J x 16 H2 ET44 | 6.5J x 17 | 6.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.1 | -/11.1 | -/11.1 | -/11.1 | -/11.1 | -/11.1 |
| Overall length [mm] | 4688 | 4688 | 4688 | 4688 | 4688 | 4688 |
| Overall width without/including mirrors [mm] | 1830/1999 | 1830/1999 | 1830/1999 | 1830/1999 | 1830/1999 | 1830/1999 |
| Overall height [mm] | 1442 | 1442 | 1442 | 1442 | 1442 | 1442 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1612 | 1612 | 1612 | 1612 | 1612 | 1612 |
| Rear wheel track [mm] | 1602 | 1602 | 1602 | 1602 | 1602 | 1602 |
| Forward overhang [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Rear overhang [mm] | 1032 | 1032 | 1032 | 1032 | 1032 | 1032 |
| Clearance [mm] | 109 | 109 | 109 | 109 | 109 | 109 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
| Approach angle rear [°] | 14.7 | 14.7 | 14.7 | 14.7 | 14.7 | 14.7 |
| Transition angle [°] | 9.8 | 9.8 | 9.8 | 9.8 | 9.8 | 9.8 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Headroom rear [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Front elbow/shoulder width [mm] | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 |
| Rear elbow/shoulder width [mm] | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLA AMG 35 4MATIC | CLA AMG 45 4MATIC | CLA AMG 45 S 4MATIC | CLA 250e | CLA 180d | CLA 180d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2020 | from 2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1991 | 1991 | 1991 | 1332 | 1461 | 1950 |
| Maximum output / speed [kW/min-1] | 225/5800-6100 | 285/6500 | 310/6750 | 118 combustion 75 el. 160 total | 85/4000 | 85/3400-4400 |
| Maximum torque [Nm/min-1] | 400/3000-4000 | 480/4750-5000 | 500/5000-5250 | 230/1620-4000 combustion 330 el. 450 total | 260/1750-2750 | 280/1300-2600 |
| Bore and stroke [mm x mm] | 83.0 x 92.0 | 83.0 x 92.0 | 83.0 x 92.0 | 72.2 x 81.4 | 76.0 x 80.5 | 82.0 x 92.3 |
| Compression ratio | 10.0:1 | 10.0:1 | 10.0:1 | 10.6:1 | 15.1:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 7 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
| - | - |
| Top speed [km/h] | 250 | 250 | 270 | 235 | 203 | 203 |
| Acceleration 0–100 km/h [s] | 4,9 | 4,1 | 4,0 | 6,9 | 11.2 | 10,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.1-9,5 | 10,7-10,6 | 10,7-10,6 | - | 5.1-4.7 | 6,8-6,4 |
| Out of town [l] | 6,6-6,3 | 7,0-6,9 | 7,0-6,9 | - | 4.3-3.7 | 4,2-3,9 |
| Combined [l] | 7,9-7,5 | 8,3-8,2 | 8,4-8,3 | 1.6-1.4 [15.5-14.8 kWh] | 4.6-4.1 | 5,2-4,8 |
| CO2 emissions [g/km] | 177-171 | 191-188 | 192 | 37-33 | 120-108 | 136 |
| Emission standard | Euro 6d-TEMP - Euro 6d EURO 6D-ISC-FCM | Euro 6d | Euro 6d | Euro 6d | Euro 6d-TEMP | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 15.6 kWh | - | - |
| Range with fully charged battery [km] | - | - | - | 68-76 | - | - |
| Charging time | - | - | - |
| - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | 150 | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1645 | 1705 | 1715 | 1766 | 1508 | 1564 |
| Overall weight [kg] | 2155 | 2200 | 2195 | 2286 | 2058 | 2094 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 710/1500 | 710/1500 | 750/1600 | 750/1400 | 750/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 454 | 454 | 454 | 454 | 454 | 454 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 900/1310 | 900/1310 | 900/1310 | 900/1310 | 900/1310 | 900/1310 |
| Boot length [mm] | 1048 | 1048 | 1048 | 1048 | 1048 | 1048 |
| Boot length with rear seats folded [mm] | -/1792 | -/1792 | -/1792 | -/1792 | -/1792 | -/1792 |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | -/710 | -/710 | -/710 | -/710 | -/710 | -/710 |
| Loading edge height [mm] | 770 | 770 | 770 | 770 | 770 | 770 |
| Height of the open boot door [mm] | 2004 | 2004 | 2004 | 2004 | 2004 | 2004 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 35 | 43 | 43 |
| AdBlue tank volume [l] | - | - | - | - | 23.8 | 23.8 |
| Air resistance [Cd] | 0.299 | 0.305 | 0.331 | 0.27 | - | 0.25 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/40 ZR18 95Y XL | 245/40 ZR18 97Y XL | 255/35 ZR19 96Y XL | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 235/40 ZR18 95Y XL | 245/40 ZR18 97Y XL | 255/35 ZR19 96Y XL | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 8.0J x 18 ET49 | 8,5J x 18 ET46 | 9.0J x 19 ET52 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 8.0J x 18 ET49 | 8,5J x 18 ET46 | 9.0J x 19 ET52 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 350 | 350 x 34 | 360 x 36 | - | - | - |
| Brake dimensions rear | 330 | 330 x 22 | 330 x 22 | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.54 | -/11,62 | -/11.62 | -/11.1 | -/11.1 | -/11.1 |
| Overall length [mm] | 4695 | 4693 | 4693 | 4688 | 4688 | 4688 |
| Overall width without/including mirrors [mm] | 1834/1999 | 1857/1999 | 1857/1999 | 1830/1999 | 1830/1999 | 1830/1999 |
| Overall height [mm] | 1405 | 1409 | 1415 | 1442 | 1442 | 1442 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1608 | 1597 | 1585 | 1612 | 1612 | 1612 |
| Rear wheel track [mm] | 1610 | 1616 | 1605 | 1602 | 1602 | 1602 |
| Forward overhang [mm] | - | - | - | 927 | 927 | 927 |
| Rear overhang [mm] | - | - | - | 1032 | 1032 | 1032 |
| Clearance [mm] | - | - | - | 109 | 109 | 109 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | 13.8 | 13.8 | 13.8 |
| Approach angle rear [°] | - | - | - | 14.7 | 14.7 | 14.7 |
| Transition angle [°] | - | - | - | 9.8 | 9.8 | 9.8 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Headroom rear [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Front elbow/shoulder width [mm] | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 |
| Rear elbow/shoulder width [mm] | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLA 180d | CLA 200d | CLA 200d | CLA 200d 4MATIC | CLA 220d | CLA 220d 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1950 | 1950 | 1950 | 1950 | 1950 | 1950 |
| Maximum output / speed [kW/min-1] | 85/3400-4400 | 110/3400-4400 | 110/3400-4400 | 110/3400-4400 | 140/3800 | 140/3800 |
| Maximum torque [Nm/min-1] | 280/1300-2600 | 320/1400-3200 | 320/1400-3200 | 320/1400-3200 | 400/1600-2600 | 400/1600-2600 |
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 |
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | Front | 4x4 |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 205 | 221 | 221 | 218 | 221 | 235 |
| Acceleration 0–100 km/h [s] | 9.8 | 9,1 | 8.4 | 8,7 | 7,2 | 7,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.7-5.5 | 6,3-6,1 | 6.2-5.3 | 6,6-5,8 | 5,8-5,5 | 6,1-6,0 |
| Out of town [l] | 4.2-3.9 | 4,3-3,9 | 4.2-3.8 | 4,3-4,0 | 4,1-3,8 | 4,5-4,1 |
| Combined [l] | 5.0-4.5 | 5,1-4,7 | 4.9-4.4 | 5,1-4,7 | 4,7-4,4 | 5,1-4,8 |
| CO2 emissions [g/km] | 133-118 | 133-125 | 131-115 | 134-123 | 125-116 | 134-127 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1560 | 1564 | 1577 | 1643 | 1589 | 1643 |
| Overall weight [kg] | 2055 | 2094 | 2127 | 2188 | 2144 | 2203 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | 750/1600 | 750/1400 | 750/1800 | 750/1600 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 454 | 454 | 454 | 454 | 454 | 454 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 900/1310 | 900/1310 | 900/1310 | 900/1310 | 900/1310 | 900/1310 |
| Boot length [mm] | 1048 | 1048 | 1048 | 1048 | 1048 | 1048 |
| Boot length with rear seats folded [mm] | -/1792 | -/1792 | -/1792 | -/1792 | -/1792 | -/1792 |
| Boot width between wheels/max [mm] | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- | 1050/- |
| Boot height to headliner/ceiling [mm] | -/710 | -/710 | -/710 | -/710 | -/710 | -/710 |
| Loading edge height [mm] | 770 | 770 | 770 | 770 | 770 | 770 |
| Height of the open boot door [mm] | 2004 | 2004 | 2004 | 2004 | 2004 | 2004 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | 43 | 43 | 51 | 43 | 51 |
| AdBlue tank volume [l] | 23.8 | 23.8 | 23.8 | 23.8 | 23.8 | 23.8 |
| Air resistance [Cd] | 0.25 | 0.24 | 0.24 | - | 0.28 | 0.26 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.1 | -/11.1 | -/11.1 | -/11.1 | -/11.1 | -/11.1 |
| Overall length [mm] | 4688 | 4688 | 4688 | 4688 | 4688 | 4688 |
| Overall width without/including mirrors [mm] | 1830/1999 | 1830/1999 | 1830/1999 | 1830/1999 | 1830/1999 | 1830/1999 |
| Overall height [mm] | 1442 | 1442 | 1442 | 1442 | 1442 | 1442 |
| Wheelbase [mm] | 2729 | 2729 | 2729 | 2729 | 2729 | 2729 |
| Front wheel track [mm] | 1612 | 1612 | 1612 | 1612 | 1612 | 1612 |
| Rear wheel track [mm] | 1602 | 1602 | 1602 | 1602 | 1602 | 1602 |
| Forward overhang [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Rear overhang [mm] | 1032 | 1032 | 1032 | 1032 | 1032 | 1032 |
| Clearance [mm] | 109 | 109 | 109 | 109 | 109 | 109 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
| Approach angle rear [°] | 14.7 | 14.7 | 14.7 | 14.7 | 14.7 | 14.7 |
| Transition angle [°] | 9.8 | 9.8 | 9.8 | 9.8 | 9.8 | 9.8 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1025 | 1025 | 1025 | 1025 | 1025 | 1025 |
| Headroom rear [mm] | 955 | 955 | 955 | 955 | 955 | 955 |
| Front elbow/shoulder width [mm] | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 | 1400/1457 |
| Rear elbow/shoulder width [mm] | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 | 1372/1454 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

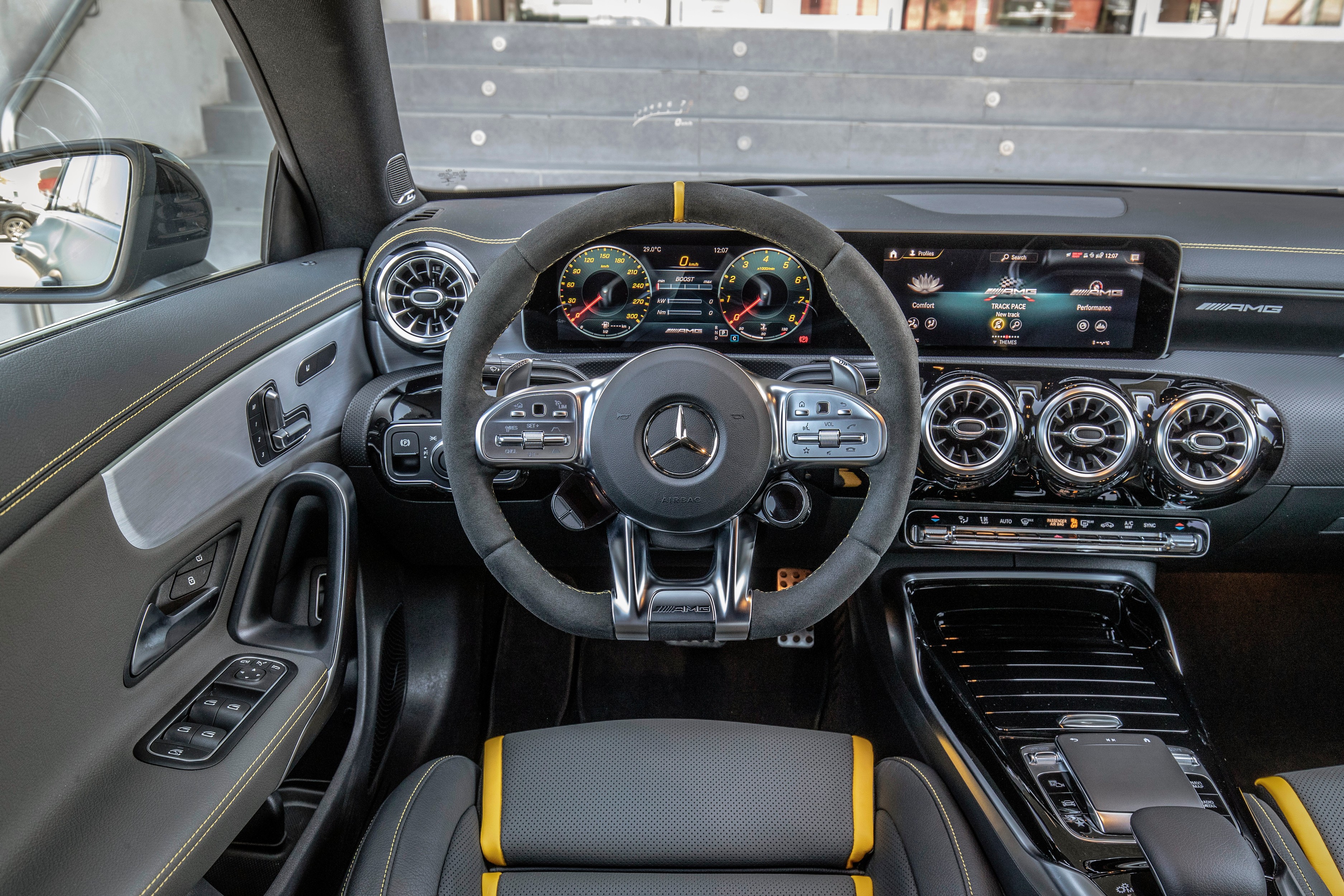

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
