Mercedes-Benz CLS
Date of manufacture
6/2014 – 2018 (Estate)
6/2014 – 2018 (Coupé)
Platform
-
Manufacturing locations
Sindelfingen, Germany
Designer
Hubert Lee
Tags
E-segment
German cars
Mercedes-Benz CLS is a luxury car that has been manufactured in Germany since 2014. It is available as a coupe or estate and can be powered by petrol or diesel engines. The most powerful version, the CLS 63 AMG S 4MATIC, with 430 kW of power, has a top speed of 250 km/h and accelerates from 0-100 km/h in 3.6 seconds. The most economical variant, the CLS 250d, consumes only 4.6 l/100 km and emits 120 g/km of CO2. The luggage compartment volume varies depending on the body type - 520 l for the coupe and 590 l for the estate.
Car body style

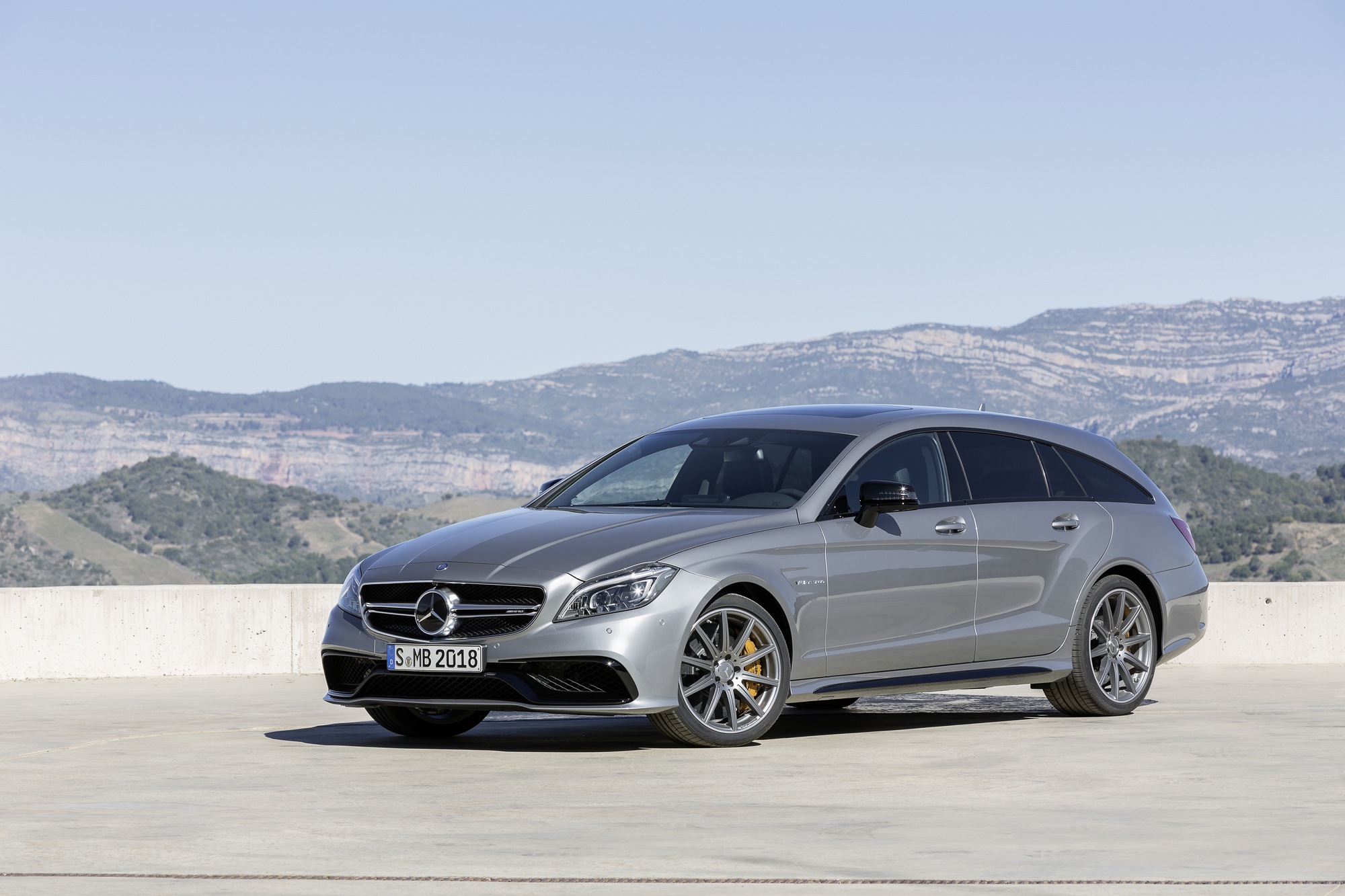

Estate (Shooting Brake)
after upgrade (facelift)
Date of manufacture
6/2014 – 2018Internal designation

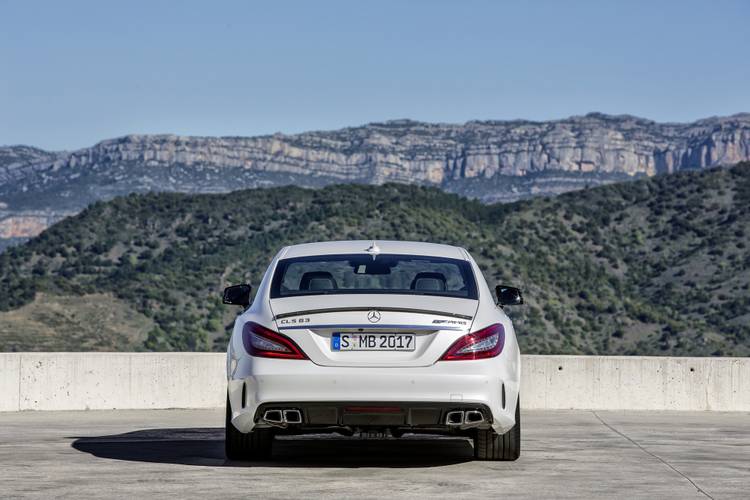

X218Coupé
after upgrade (facelift)
Date of manufacture
6/2014 – 2018Internal designation
W218Technical data
Estate (Shooting Brake)
| CLS 400 | CLS 400 4MATIC | CLS 500 | CLS 500 4MATIC | CLS 500 4MATIC | CLS 63 AMG 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 3498 | 3498 | 4663 | 4663 | 4663 | 5461 |
| Maximum output / speed [kW/min-1] | 245/5250-6000 | 245/5250-6000 | 300/5000-5750 | 300/5000-5750 | 300/5000-5750 | 410/5500 |
| Maximum torque [Nm/min-1] | 480/1200-4000 | 480/1200-4000 | 600/1600-4750 | 600/1600-4750 | 600/1600-4750 | 720/1750-5250 |
| Bore and stroke [mm x mm] | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 | 98,0 x 90,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.4 | 5.4 | 4.9 | 4.9 | 4.8 | 3.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.8-10.3 | 10.5-12.1 | 12.1-13.3 | 13.3 | 12.7-12.8 | 14.5-14.7 |
| Out of town [l] | 5.8-5.9 | 6.5-6.8 | 6.8-7.8 | 7.8 | 7.5-7.8 | 8.4-8.5 |
| Combined [l] | 7.3-7.5 | 8.0-8.8 | 8.8-9.8 | 9.8 | 9.3-9.6 | 10.6-10.8 |
| CO2 emissions [g/km] | 169-175 | 186-205 | 205-229 | 229 | 219-225 | 247-251 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1845 | 1915 | 1955 | 2005 | 2005 | 2025 |
| Overall weight [kg] | 2370 | 2440 | 2480 | 2530 | 2530 | 2560 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 590 | 590 | 590 | 590 | 590 | 550 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 |
| Boot length [mm] | 1158 | 1158 | 1158 | 1158 | 1158 | 1158 |
| Boot length with rear seats folded [mm] | 1937 | 1937 | 1937 | 1937 | 1937 | 1937 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/748 | -/748 | -/748 | -/748 | -/748 | -/748 |
| Loading edge height [mm] | 643 | 643 | 643 | 643 | 643 | 643 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 576 | 576 | 576 | 576 | 576 | 576 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.3 | 0.3 | 0.3 | 0.3 | 0.31 |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/45 R17 | 245/45 R17 | 255/40 R18 | 255/40 R18 | 255/40 R18 | 255/35 ZR 19 |
| Tyre dimensions rear | 245/45 R17 | 245/45 R17 | 255/40 R18 | 255/40 R18 | 255/40 R18 | 285/30 ZR 19 |
| Wheel size front | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 18 ET 34.5 | 8.5J x 18 ET 34.5 | 8.5J x 18 ET 34.5 | 9.0J x 19 ET 37 |
| Wheel size rear | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 18 ET 34.5 | 8.5J x 18 ET 34.5 | 8.5J x 18 ET 34.5 | 10.0J x 19 ET 47 |
| Brake dimensions front | - | - | - | - | - | 390 x 36 |
| Brake dimensions rear | - | - | - | - | - | 360 x 26 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.18/- | 11.51/- | 11.21/- | 11.53/- | 11.53/- | 11.25/- |
| Overall length [mm] | 4953 | 4953 | 4953 | 4953 | 4953 | 4953 |
| Overall width without/including mirrors [mm] | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 |
| Overall height [mm] | 1419 | 1419 | 1419 | 1419 | 1419 | 1419 |
| Wheelbase [mm] | 2874 | 2874 | 2874 | 2874 | 2874 | 2874 |
| Front wheel track [mm] | 1596 | 1596 | 1596 | 1596 | 1596 | 1625 |
| Rear wheel track [mm] | 1629 | 1629 | 1629 | 1629 | 1629 | 1607 |
| Forward overhang [mm] | 898 | 898 | 898 | 898 | 898 | - |
| Rear overhang [mm] | 1181 | 1181 | 1181 | 1181 | 1181 | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
| Front elbow/shoulder width [mm] | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 |
| Rear elbow/shoulder width [mm] | 1435/1495 | 1435/1495 | 1435/1495 | 1435/1495 | 1435/1495 | 1435/1495 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLS 63 AMG S 4MATIC | CLS 220d | CLS 250d | CLS 250d 4MATIC | CLS 350 BlueTEC 4MATIC | CLS 350d | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 |
| Engine displacement [cm³] | 5461 | 2143 | 2143 | 2143 | 2987 | 2987 |
| Maximum output / speed [kW/min-1] | 430/5500 | 125/3000-4200 | 150/3800 | 150/3800 | 185/3600 | 190/3400 |
| Maximum torque [Nm/min-1] | 800/1750-5000 | 400/1400-2800 | 500/1600-1800 | 500/1600-1800 | 620/1600-2400 | 620/1600 |
| Bore and stroke [mm x mm] | 98,0 x 90,5 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 10,0:1 | 16,2:1 | 16,2:1 | 16,2:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | 4x4 | 4x4 | Rear |
| Gearbox | 7 gear automatic | 9 gear automatic | 9 gear automatic | 7 gear automatic | 7 gear automatic | 9 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 220 | 235 | 229 | 240 | 245 |
| Acceleration 0–100 km/h [s] | 3.7 | 8.6 | 7.7 | 8.1 | 6.8 | 6.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 14.5-14.7 | 5.6-5.7 | 5.7-5.8 | 6.7-6.8 | 8.1-8.3 | 6.5 |
| Out of town [l] | 8.4-8.5 | 4.3-4.4 | 4.4-4.5 | 4.9-5.1 | 5.8-6.0 | 5.0-5.1 |
| Combined [l] | 10.6-10.8 | 4.7-4.8 | 4.8-4.9 | 5.5-5.7 | 6.6-6.8 | 5.6-5.7 |
| CO2 emissions [g/km] | 247-251 | 125-127 | 128-130 | 144-147 | 174-178 | 145-149 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2025 | 1845 | 1885 | 1955 | 1995 | 1935 |
| Overall weight [kg] | 2560 | 2370 | 2410 | 2480 | 2520 | 2460 |
| Maximum trailer weight unbraked/braked [kg] | - | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 590 | 590 | 590 | 590 | 590 | 590 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 |
| Boot length [mm] | 1158 | 1158 | 1158 | 1158 | 1158 | 1158 |
| Boot length with rear seats folded [mm] | 1937 | 1937 | 1937 | 1937 | 1937 | 1937 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/748 | -/748 | -/748 | -/748 | -/748 | -/748 |
| Loading edge height [mm] | 643 | 643 | 643 | 643 | 643 | 643 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 576 | 576 | 576 | 576 | 576 | 576 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 80 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 255/35 ZR 19 | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 |
| Tyre dimensions rear | 285/30 ZR 19 | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 |
| Wheel size front | 9.0J x 19 ET 37 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 |
| Wheel size rear | 10.0J x 19 ET 47 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 |
| Brake dimensions front | 390 x 36 | - | - | - | - | - |
| Brake dimensions rear | 360 x 26 | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.25/- | 11.18/- | 11.18/- | 11.51/- | 11.51/- | 11.18/- |
| Overall length [mm] | 4953 | 4953 | 4953 | 4953 | 4953 | 4953 |
| Overall width without/including mirrors [mm] | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 |
| Overall height [mm] | 1419 | 1419 | 1419 | 1419 | 1419 | 1419 |
| Wheelbase [mm] | 2874 | 2874 | 2874 | 2874 | 2874 | 2874 |
| Front wheel track [mm] | 1625 | 1596 | 1596 | 1596 | 1596 | 1596 |
| Rear wheel track [mm] | 1607 | 1629 | 1629 | 1629 | 1629 | 1629 |
| Forward overhang [mm] | - | 898 | 898 | 898 | 898 | 898 |
| Rear overhang [mm] | - | 1181 | 1181 | 1181 | 1181 | 1181 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 974 | 974 | 974 | 974 | 974 | 974 |
| Front elbow/shoulder width [mm] | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 |
| Rear elbow/shoulder width [mm] | 1435/1495 | 1435/1495 | 1435/1495 | 1435/1495 | 1435/1495 | 1435/1495 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLS 350d 4MATIC | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2987 | |||||
| Maximum output / speed [kW/min-1] | 190/3400 | |||||
| Maximum torque [Nm/min-1] | 620/1600 | |||||
| Bore and stroke [mm x mm] | 83,0 x 92,0 | |||||
| Compression ratio | 15,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 9 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 247 | |||||
| Acceleration 0–100 km/h [s] | 6.5 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.3-7.4 | |||||
| Out of town [l] | 5.7-5.9 | |||||
| Combined [l] | 5.2-6.4 | |||||
| CO2 emissions [g/km] | 165-172 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1995 | |||||
| Overall weight [kg] | 2520 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 590 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | |||||
| Boot length [mm] | 1158 | |||||
| Boot length with rear seats folded [mm] | 1937 | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | -/748 | |||||
| Loading edge height [mm] | 643 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | 576 | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 80 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.29 | |||||
| Front suspension | multilink | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 245/45 R17 | |||||
| Tyre dimensions rear | 245/45 R17 | |||||
| Wheel size front | 8.5J x 17 ET 34.5 | |||||
| Wheel size rear | 8.5J x 17 ET 34.5 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.51/- | |||||
| Overall length [mm] | 4953 | |||||
| Overall width without/including mirrors [mm] | 1881/2075 | |||||
| Overall height [mm] | 1419 | |||||
| Wheelbase [mm] | 2874 | |||||
| Front wheel track [mm] | 1596 | |||||
| Rear wheel track [mm] | 1629 | |||||
| Forward overhang [mm] | 898 | |||||
| Rear overhang [mm] | 1181 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1018 | |||||
| Headroom rear [mm] | 974 | |||||
| Front elbow/shoulder width [mm] | 1453/1495 | |||||
| Rear elbow/shoulder width [mm] | 1435/1495 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Coupé
| CLS 400 | CLS 400 4MATIC | CLS 500 | CLS 500 4MATIC | CLS 500 4MATIC | CLS 63 AMG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 3498 | 3498 | 4663 | 4663 | 4663 | 5461 |
| Maximum output / speed [kW/min-1] | 245/5250-6000 | 245/5250-6000 | 300/5000-5750 | 300/5000-5750 | 300/5000-5750 | 410/5500 |
| Maximum torque [Nm/min-1] | 480/1200-4000 | 480/1200-4000 | 600/1600-4750 | 600/1600-4750 | 600/1600-4750 | 720/1750-5250 |
| Bore and stroke [mm x mm] | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 | 98,0 x 90,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | 4x4 | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 | 4.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.6-10.0 | 10.2-10.8 | 11.7-12.0 | 13.4 | 12.5-12.7 | 14.0-14.2 |
| Out of town [l] | 5.6-5.7 | 6.2-6.5 | 6.6-6.7 | 7.4 | 7.1-7.5 | 7.6-7.7 |
| Combined [l] | 7.1-7.3 | 7.8-8.0 | 8.5-8.7 | 9.6 | 9.1-9.3 | 9.9-10.1 |
| CO2 emissions [g/km] | 164-169 | 179-187 | 198-202 | 224 | 213-219 | 230-234 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1775 | 1835 | 1890 | 1940 | 1940 | 1870 |
| Overall weight [kg] | 2260 | 2320 | 2375 | 2425 | 2425 | 2390 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.28 | 0.28 | 0.28 | 0.29 |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/45 R17 | 245/45 R17 | 255/40 R18 | 255/40 R18 | 255/40 R18 | 255/35 ZR 19 |
| Tyre dimensions rear | 245/45 R17 | 245/45 R17 | 255/40 R18 | 255/40 R18 | 255/40 R18 | 285/30 ZR 19 |
| Wheel size front | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 18 ET 34.5 | 8.5J x 18 ET 34.5 | 8.5J x 18 ET 34.5 | 9.0J x 19 ET 37 |
| Wheel size rear | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 18 ET 34.5 | 8.5J x 18 ET 34.5 | 8.5J x 18 ET 34.5 | 10.0J x 19 ET 47 |
| Brake dimensions front | - | - | - | - | - | 390 x 36 |
| Brake dimensions rear | - | - | - | - | - | 360 x 26 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.18/- | 11.51/- | 11.21/- | 11.53/- | 11.53/- | 11.25/- |
| Overall length [mm] | 4937 | 4937 | 4937 | 4937 | 4937 | 4937 |
| Overall width without/including mirrors [mm] | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 |
| Overall height [mm] | 1418 | 1418 | 1418 | 1418 | 1418 | 1418 |
| Wheelbase [mm] | 2874 | 2874 | 2874 | 2874 | 2874 | 2874 |
| Front wheel track [mm] | 1596 | 1596 | 1596 | 1596 | 1596 | 1625 |
| Rear wheel track [mm] | 1626 | 1626 | 1626 | 1626 | 1626 | 1607 |
| Forward overhang [mm] | 898 | 898 | 898 | 898 | 898 | - |
| Rear overhang [mm] | 1165 | 1165 | 1165 | 1165 | 1165 | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Headroom rear [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Front elbow/shoulder width [mm] | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 |
| Rear elbow/shoulder width [mm] | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLS 63 AMG 4MATIC | CLS 63 AMG S 4MATIC | CLS 220d | CLS 250d | CLS 250d 4MATIC | CLS 350 BlueTEC 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 8/32 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 5461 | 5461 | 2143 | 2143 | 2143 | 2987 |
| Maximum output / speed [kW/min-1] | 410/5500 | 430/5500 | 125/3000-4200 | 150/3800 | 150/3800 | 185/3600 |
| Maximum torque [Nm/min-1] | 720/1750-5250 | 800/1750-5000 | 400/1400-2800 | 500/1600-1800 | 500/1600-1800 | 620/1600-2400 |
| Bore and stroke [mm x mm] | 98,0 x 90,5 | 98,0 x 90,5 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 92,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 16,2:1 | 16,2:1 | 16,2:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 9 gear automatic | 9 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 226 | 242 | 236 | 245 |
| Acceleration 0–100 km/h [s] | 3.7 | 3.6 | 8.3 | 7.5 | 7.9 | 6.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 14.3-14.5 | 14.3-14.5 | 5.5-5.6 | 5.5-5.6 | 6.4 | 7.3-7.4 |
| Out of town [l] | 8.0-8.2 | 8.0-8.2 | 4.1-4.2 | 4.1-4.2 | 4.5-4.6 | 5.3-5.5 |
| Combined [l] | 10.3-10.5 | 10.3-10.5 | 4.6-4.7 | 4.6-4.7 | 5.3 | 6.1-6.2 |
| CO2 emissions [g/km] | 239-244 | 239-244 | 120-123 | 120-123 | 139-140 | 160-164 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1945 | 1945 | 1790 | 1815 | 1875 | 1935 |
| Overall weight [kg] | 2415 | 2415 | 2275 | 2300 | 2360 | 2420 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 520 | 520 | 475 | 475 | 475 | 470 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 66 | 66 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.26 | 0.26 | 0.26 | 0.28 |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 255/35 ZR 19 | 255/35 ZR 19 | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 |
| Tyre dimensions rear | 285/30 ZR 19 | 285/30 ZR 19 | 245/45 R17 | 245/45 R17 | 245/45 R17 | 245/45 R17 |
| Wheel size front | 9.0J x 19 ET 37 | 9.0J x 19 ET 37 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 |
| Wheel size rear | 10.0J x 19 ET 47 | 10.0J x 19 ET 47 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 |
| Brake dimensions front | 390 x 36 | 390 x 36 | - | - | - | - |
| Brake dimensions rear | 360 x 26 | 360 x 26 | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.25/- | 11.25/- | 11.18/- | 11.18/- | 11.51/- | 11.51/- |
| Overall length [mm] | 4937 | 4937 | 4937 | 4937 | 4937 | 4937 |
| Overall width without/including mirrors [mm] | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 | 1881/2075 |
| Overall height [mm] | 1418 | 1418 | 1418 | 1418 | 1418 | 1418 |
| Wheelbase [mm] | 2874 | 2874 | 2874 | 2874 | 2874 | 2874 |
| Front wheel track [mm] | 1625 | 1625 | 1596 | 1596 | 1596 | 1596 |
| Rear wheel track [mm] | 1607 | 1607 | 1626 | 1626 | 1626 | 1626 |
| Forward overhang [mm] | - | - | 898 | 898 | 898 | 898 |
| Rear overhang [mm] | - | - | 1165 | 1165 | 1165 | 1165 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1016 | 1016 | 1016 | 1016 | 1016 | 1016 |
| Headroom rear [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Front elbow/shoulder width [mm] | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 | 1453/1495 |
| Rear elbow/shoulder width [mm] | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 | 1435/1494 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLS 350d | CLS 350d 4MATIC | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 6/24 | 6/24 | ||||
| Engine displacement [cm³] | 2987 | 2987 | ||||
| Maximum output / speed [kW/min-1] | 190/3400 | 190/3400 | ||||
| Maximum torque [Nm/min-1] | 620/1600 | 620/1600 | ||||
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | ||||
| Compression ratio | 15,5:1 | 15,5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Rear | 4x4 | ||||
| Gearbox | 9 gear automatic | 9 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 250 | 250 | ||||
| Acceleration 0–100 km/h [s] | 6.5 | 6.4 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.3-6.5 | 7.2-7.3 | ||||
| Out of town [l] | 4.7-5.0 | 5.4-5.7 | ||||
| Combined [l] | 5.3-5.5 | 5.9-6.2 | ||||
| CO2 emissions [g/km] | 137-142 | 159-166 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1845 | 1915 | ||||
| Overall weight [kg] | 2330 | 2330 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | - | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 475 | 475 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | 80 | 80 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.28 | 0.28 | ||||
| Front suspension | multilink | multilink | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 245/45 R17 | 245/45 R17 | ||||
| Tyre dimensions rear | 245/45 R17 | 245/45 R17 | ||||
| Wheel size front | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | ||||
| Wheel size rear | 8.5J x 17 ET 34.5 | 8.5J x 17 ET 34.5 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.18/- | 11.51/- | ||||
| Overall length [mm] | 4937 | 4937 | ||||
| Overall width without/including mirrors [mm] | 1881/2075 | 1881/2075 | ||||
| Overall height [mm] | 1418 | 1418 | ||||
| Wheelbase [mm] | 2874 | 2874 | ||||
| Front wheel track [mm] | 1596 | 1596 | ||||
| Rear wheel track [mm] | 1626 | 1626 | ||||
| Forward overhang [mm] | 898 | 898 | ||||
| Rear overhang [mm] | 1165 | 1165 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1016 | 1016 | ||||
| Headroom rear [mm] | 927 | 927 | ||||
| Front elbow/shoulder width [mm] | 1453/1495 | 1453/1495 | ||||
| Rear elbow/shoulder width [mm] | 1435/1494 | 1435/1494 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
