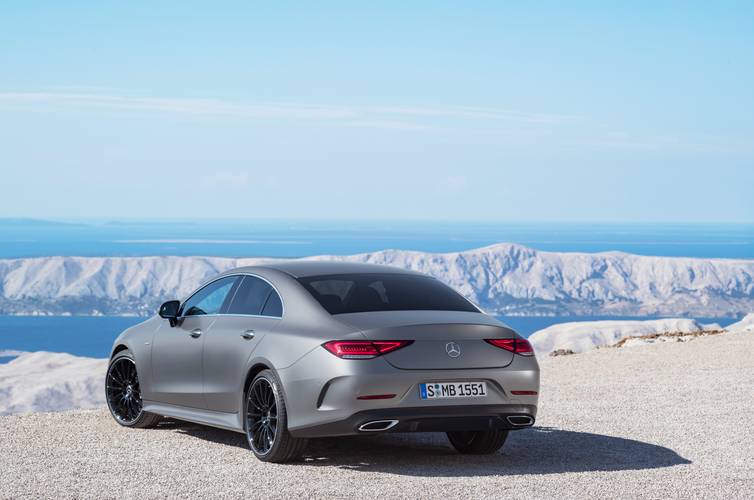

Mercedes-Benz CLS
Date of manufacture
3/2018 – 2021 (Coupé)
Platform
MRA
Manufacturing locations
Sindelfingen, Germany
Samut Prakan, Thailand
Designer
Gorden Wagener
Tags
E-segment
German cars
The Mercedes-Benz CLS is a coupe that has been produced since 2018. The vehicle is built on the MRA platform and offers both petrol and diesel engines. The most powerful CLS 53 AMG 4MATIC has 320 kW, the fastest reaches a top speed of 250 km/h and the best 0-100 km/h acceleration time is 4.5 seconds. The most economical CLS 220d consumes 5.1 l/100 km with CO2 emissions of 133 g/km. The vehicle's trunk size is 520 l and the model has successfully passed EURONCAP safety tests with a rating of 5 out of 5. The car is produced in Germany and Thailand.
Car body style
Coupé
Date of manufacture
3/2018 – 2021Internal designation
C257
Technical data
Coupé
| CLS 350 | CLS 450 4MATIC | CLS 53 AMG 4MATIC | CLS 220d | CLS 300d | CLS 350d 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | from 2019 to 2020 | - | - | from 2019 to | from to 2020 | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 6/24 | 6/24 | 4/16 | 4/16 | 4/24 |
| Engine displacement [cm³] | 1991 | 2999 | 2999 | 1950 | 1950 | 2925 |
| Maximum output / speed [kW/min-1] | 220 10 el. | 270/5500-6100 16 el. | 320/6100 16 el. | 143/3800 | 180/4200 | 210/4600 |
| Maximum torque [Nm/min-1] | 400/3000-4000 | 500/1600-4000 250 el. | 520/1800-5800 250 el. | 400/1600-2800 | 500/1600-2400 | 600/1200-3200 |
| Bore and stroke [mm x mm] | 83.0 x 92.0 | 83.0 x 92.4 | 83.0 x 92.4 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 |
| Compression ratio | 10.0:1 | 10.5:1 | 10.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | 4x4 | Rear | Rear | 4x4 |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 237 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5,9 | 4,8 | 4,5 | 7,5 | 6,4 | 5,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,7-8,9 | 11,5-10,4 | 11,9-11,4 | 6.0-5,5 | 6,4-6,0 | 7,1-6,8 |
| Out of town [l] | 6,2-5,4 | 6,5-6,0 | 7,3-7,1 | 4,6-4,2 | 4,8-4,4 | 5,4-5,1 |
| Combined [l] | 7,5-6,7 | 8,3-7,7 | 9.0-8,7 | 5,1-4,7 | 5,4-5,0 | 6,0-5,7 |
| CO2 emissions [g/km] | 171-162 | 191-175 | 206-199 | 133-124 | 142-137 | 158-152 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | 48 | 48 | - | - | - |
| Battery type and capacity | - | - | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1774 | 1934 | 1985 | 1799 | 1834 | 1944 |
| Overall weight [kg] | 2419 | 2554 | 2555 | 2409 | 2454 | 2554 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/1900 | 750/1900 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 490 | 490 | 490 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1893 | 1893 | 1893 | 1893 | 1893 | 1893 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | five-link | five-link | five-link | five-link | five-link | five-link |
| Tyre dimensions front | 245/45 R18 | 245/45 R18 | 245/40 R19 | 245/45 R18 | 245/45 R18 | 245/45 R18 |
| Tyre dimensions rear | 275/40 R18 | 275/40 R18 | 275/35 R19 | 275/40 R18 | 275/40 R18 | 275/40 R18 |
| Wheel size front | 8.0J x 18 ET33 | 8.0J x 18 ET33 | 8.0J x 19 ET33 | 8.0J x 18 ET33 | 8.0J x 18 ET33 | 8.0J x 18 ET33 |
| Wheel size rear | 9.0J x 18 ET33 | 9.0J x 18 ET33 | 9.0J x 19 ET28 | 9.0J x 18 ET33 | 9.0J x 18 ET33 | 9.0J x 18 ET33 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.6 | -/11.6 | -/12.3 | -/11.6 | -/11.6 | -/11.6 |
| Overall length [mm] | 4988 | 4988 | 5001 | 4988 | 4988 | 4988 |
| Overall width without/including mirrors [mm] | 1890/2069 | 1890/2069 | 1890/2069 | 1890/2069 | 1890/2069 | 1890/2069 |
| Overall height [mm] | 1435 | 1435 | 1422 | 1435 | 1435 | 1435 |
| Wheelbase [mm] | 2939 | 2939 | 2939 | 2939 | 2939 | 2939 |
| Front wheel track [mm] | 1618 | 1618 | 1647 | 1618 | 1618 | 1618 |
| Rear wheel track [mm] | 1620 | 1620 | 1637 | 1620 | 1620 | 1620 |
| Forward overhang [mm] | 888 | 888 | - | 888 | 888 | 888 |
| Rear overhang [mm] | 1161 | 1161 | - | 1161 | 1161 | 1161 |
| Clearance [mm] | 93 | 93 | - | 93 | 93 | 93 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 13.4 | 13.4 | - | 13.4 | 13.4 | 13.4 |
| Approach angle rear [°] | 12.2 | 12.2 | - | 12.2 | 12.2 | 12.2 |
| Transition angle [°] | 8.6 | 8.6 | - | 8.6 | 8.6 | 8.6 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1018 | 1018 | 1018 | 1018 | 1018 | 1018 |
| Headroom rear [mm] | 927 | 927 | 927 | 927 | 927 | 927 |
| Front elbow/shoulder width [mm] | 1467/1496 | 1467/1496 | 1467/1496 | 1467/1496 | 1467/1496 | 1467/1496 |
| Rear elbow/shoulder width [mm] | 1436/1488 | 1436/1488 | 1436/1488 | 1436/1488 | 1436/1488 | 1436/1488 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| CLS 400d 4MATIC | CLS 400d 4MATIC | |||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from 2020 to | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/24 | 4/24 | ||||
| Engine displacement [cm³] | 2925 | 2925 | ||||
| Maximum output / speed [kW/min-1] | 250/4400 | 243/4400 | ||||
| Maximum torque [Nm/min-1] | 700/1200-3200 | 700/1200-3200 | ||||
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | ||||
| Compression ratio | 15.5:1 | 15.5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 9 gear automatic | 9 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 250 | 250 | ||||
| Acceleration 0–100 km/h [s] | 5,0 | 5,0 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 7.1-6,8 | 8.4-8.2 | ||||
| Out of town [l] | 5,4-5,1 | 5,3-5,0 | ||||
| Combined [l] | 6,0-5,7 | 6,4-6.2 | ||||
| CO2 emissions [g/km] | 158-152 | 169-162 | ||||
| Emission standard | Euro 6d-TEMP | Euro 6d | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1944 | 1948 | ||||
| Overall weight [kg] | 2554 | 2558 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 520 | 520 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | 1893 | 1893 | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 4 | 4 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 50 | 50 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | four-link | four-link | ||||
| Rear suspension | five-link | five-link | ||||
| Tyre dimensions front | 245/45 R18 | 245/45 R18 | ||||
| Tyre dimensions rear | 275/40 R18 | 275/40 R18 | ||||
| Wheel size front | 8.0J x 18 ET33 | 8.0J x 18 ET33 | ||||
| Wheel size rear | 9.0J x 18 ET33 | 9.0J x 18 ET33 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | -/11.6 | -/11.6 | ||||
| Overall length [mm] | 4988 | 4988 | ||||
| Overall width without/including mirrors [mm] | 1890/2069 | 1890/2069 | ||||
| Overall height [mm] | 1435 | 1435 | ||||
| Wheelbase [mm] | 2939 | 2939 | ||||
| Front wheel track [mm] | 1618 | 1618 | ||||
| Rear wheel track [mm] | 1620 | 1620 | ||||
| Forward overhang [mm] | 888 | 888 | ||||
| Rear overhang [mm] | 1161 | 1161 | ||||
| Clearance [mm] | 93 | 93 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 13.4 | 13.4 | ||||
| Approach angle rear [°] | 12.2 | 12.2 | ||||
| Transition angle [°] | 8.6 | 8.6 | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1018 | 1018 | ||||
| Headroom rear [mm] | 927 | 927 | ||||
| Front elbow/shoulder width [mm] | 1467/1496 | 1467/1496 | ||||
| Rear elbow/shoulder width [mm] | 1436/1488 | 1436/1488 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
