Mercedes-Benz E
Date of manufacture
2006 – 2009 (Sedan)
2006 – 2009 (Estate)
Platform
-
Manufacturing locations
Sindelfingen, Germany
Beijing, People's Republic of China
Graz, Austria
Toluca, Mexico
Designer
Hartmut Sinkwitz
Tags
E-segment
German cars
The Mercedes-Benz E has been produced since 2006 and is available in three body styles - sedan, estate and the E 63 AMG model. Production of this vehicle takes place in Germany, China, Austria and Mexico. The engine range includes petrol and diesel engines with the highest power output of 378 kW in the E 63 AMG model. This model has the best top speed of 250 km/h and the fastest 0-100 km/h acceleration in 4.5 seconds. The E 220 CDI model has the lowest fuel consumption of 6.1 l/100 km and CO2 emissions of 160 g/km. The sedan body style has a boot capacity of 540 l and the estate version has a boot capacity of 690 l. The Mercedes-Benz E has achieved the highest rating of 5 out of 5 according to EURONCAP in terms of safety.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2006 – 2009Internal designation

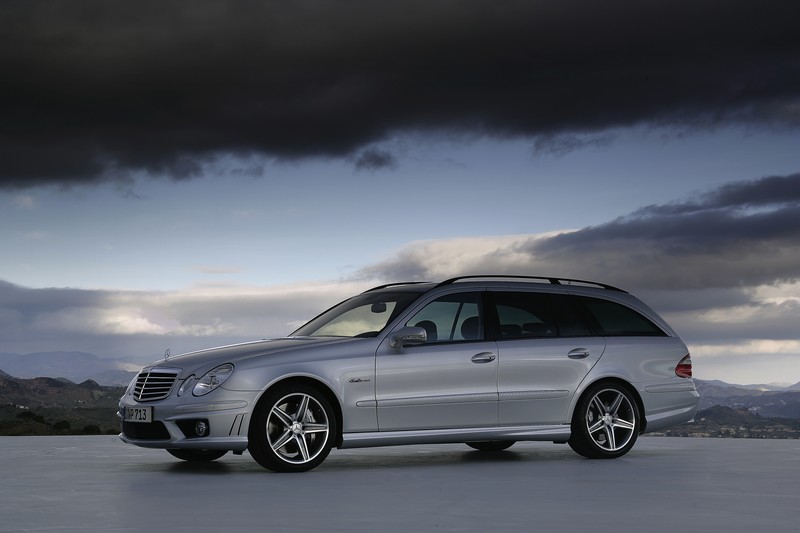

W211 Estate
after upgrade (facelift)
Date of manufacture
2006 – 2009Internal designation
W211
Technical data
Sedan
| E 200 NGT | E 200 Kompressor | E 200 Kompressor | E 230 | E 230 | E 280 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1796 | 1796 | 1796 | 2496 | 2496 | 2996 |
| Maximum output / speed [kW/min-1] | 120/5500 | 135/5500 | 135/5500 | 150/6100 | 150/6100 | 170/6000 |
| Maximum torque [Nm/min-1] | 240/3000-4000 | 250/2800-5000 | 250/2800-5000 | 245/2900-5500 | 245/2900-5500 | 300/2500-5000 |
| Bore and stroke [mm x mm] | 82,0 x 85,0 | 82,0 x 85,0 | 82,0 x 85,0 | 88,0 x 68,4 | 88,0 x 68,4 | 88,0 x 82,1 |
| Compression ratio | 9,5:1 | 8,5:1 | 8,5:1 | 11,2:1 | 11,2:1 | 11,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 5 gear automatic | 6 gear manual | 5 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 227 | 236 | 232 | 248 | 240 | 250 |
| Acceleration 0–100 km/h [s] | 10.7 | 9.1 | 9.4 | 8.9 | 9.1 | 7.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13.0-13.3 | 11.7-12.2 | 12.1-12.6 | 13.3-13.5 | 13.3-13.5 | 13.4-13.6 |
| Out of town [l] | 6.8-7.1 | 6.3-6.7 | 6.5-6.8 | 6.9-7.0 | 7.3-7.5 | 6.9-7.1 |
| Combined [l] | 9.0-9.3 | 8.2-8.8 | 8.5-8.9 | 9.2-9.4 | 9.4-9.6 | 9.3-9.5 |
| CO2 emissions [g/km] | 215-222 | 195-210 | 202-212 | 220-223 | 225-230 | 222-227 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1765 | 1580 | 1580 | 1650 | 1650 | 1660 |
| Overall weight [kg] | 2275 | 2105 | 2105 | 2175 | 2175 | 2185 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/1900 | 750/1900 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 400 | 540 | 540 | 540 | 540 | 540 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 65 | 65 | 65 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 | 0.27 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R16 V | 205/60 R16 V | 205/60 R16 V | 205/60 R16 W | 205/60 R16 W | 205/60 R16 W |
| Tyre dimensions rear | 225/55 R16 V | 205/60 R16 V | 205/60 R16 V | 205/60 R16 W | 205/60 R16 W | 205/60 R16 W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4856 | 4856 | 4856 | 4856 | 4856 | 4856 |
| Overall width without/including mirrors [mm] | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- |
| Overall height [mm] | 1483 | 1483 | 1483 | 1483 | 1483 | 1483 |
| Wheelbase [mm] | 2854 | 2854 | 2854 | 2854 | 2854 | 2854 |
| Front wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Rear wheel track [mm] | 1570 | 1570 | 1570 | 1570 | 1570 | 1570 |
| Forward overhang [mm] | 869 | 869 | 869 | 869 | 869 | 869 |
| Rear overhang [mm] | 1133 | 1133 | 1133 | 1133 | 1133 | 1133 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 961 | 961 | 961 | 961 | 961 | 961 |
| Front elbow/shoulder width [mm] | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 |
| Rear elbow/shoulder width [mm] | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| E 280 | E 280 4MATIC | E 350 | E 350 4MATIC | E 350 CGI | E 500 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 |
| Engine displacement [cm³] | 2996 | 2996 | 3498 | 3498 | 3498 | 5461 |
| Maximum output / speed [kW/min-1] | 170/6000 | 170/6000 | 200/6000 | 200/6000 | 215/6400 | 285/6000 |
| Maximum torque [Nm/min-1] | 300/2500-5000 | 300/2500-5000 | 350/2400-5000 | 350/2400-5000 | 365/3000-5100 | 530/2800-4800 |
| Bore and stroke [mm x mm] | 88,0 x 82,1 | 88,0 x 82,1 | 92,9 x 86,0 | 92,9 x 86,0 | 92,9 x 86,0 | 98,0 x 90,5 |
| Compression ratio | 11,3:1 | 11,3:1 | 10,7:1 | 10,7:1 | 12,2:1 | 10,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | Rear | Rear |
| Gearbox | 7 gear automatic | 5 gear automatic | 7 gear automatic | 5 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 248 | 244 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.3 | 7.8 | 6.9 | 7.1 | 6.8 | 5.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13.5-13.8 | 13.8-14.2 | 14.0-14.4 | 14.5-14.9 | 13.0-13.5 | 16.9 |
| Out of town [l] | 7.0-7.3 | 7.6-8.0 | 7.2-7.8 | 8.0-8.3 | 6.3-6.7 | 8.2 |
| Combined [l] | 9.4-9.7 | 9.9-10.2 | 9.7-10.2 | 10.4-10.7 | 8.7-9.2 | 11.5 |
| CO2 emissions [g/km] | 224-232 | 237-245 | 231-244 | 247-255 | 208-219 | 273 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1660 | 1780 | 1690 | 1785 | 1720 | 1785 |
| Overall weight [kg] | 2185 | 2305 | 2215 | 2310 | 2245 | 2310 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/1900 | 750/1900 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 540 | 540 | 540 | 540 | 540 | 540 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 65 | 65 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.28 | 0.27 | 0.27 | 0.27 | 0.28 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 W | 205/60 R16 W | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 245/45 R17 W |
| Tyre dimensions rear | 205/60 R16 W | 205/60 R16 W | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 245/45 R17 W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4856 | 4856 | 4856 | 4856 | 4856 | 4856 |
| Overall width without/including mirrors [mm] | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- |
| Overall height [mm] | 1483 | 1483 | 1483 | 1483 | 1483 | 1483 |
| Wheelbase [mm] | 2854 | 2854 | 2854 | 2854 | 2854 | 2854 |
| Front wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Rear wheel track [mm] | 1570 | 1570 | 1570 | 1570 | 1570 | 1570 |
| Forward overhang [mm] | 869 | 869 | 869 | 869 | 869 | 869 |
| Rear overhang [mm] | 1133 | 1133 | 1133 | 1133 | 1133 | 1133 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 961 | 961 | 961 | 961 | 961 | 961 |
| Front elbow/shoulder width [mm] | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 |
| Rear elbow/shoulder width [mm] | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| E 500 4MATIC | E 63 AMG | E 200 CDI | E 200 CDI | E 220 CDI | E 220 CDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 8/32 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 5461 | 6208 | 2148 | 2148 | 2148 | 2148 |
| Maximum output / speed [kW/min-1] | 285/6000 | 378/6800 | 100/3800 | 100/3800 | 125/3800 | 125/3800 |
| Maximum torque [Nm/min-1] | 530/2800-4800 | 630/5200 | 340/1800-2600 | 340/1800-2600 | 400/2000 | 400/2000 |
| Bore and stroke [mm x mm] | 98,0 x 90,5 | 102,2 x 94,6 | 88,0 x 88,3 | 88,0 x 88,3 | 88,0 x 88,3 | 88,0 x 88,3 |
| Compression ratio | 10,7:1 | 11,3:1 | 17,5:1 | 17,5:1 | 17,5:1 | 17,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 5 gear automatic | 7 gear automatic | 6 gear manual | 5 gear automatic | 6 gear manual | 5 gear automatic |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 250 | 250 | 214 | 211 | 227 | 225 |
| Acceleration 0–100 km/h [s] | 5.5 | 4.5 | 9.9 | 9.9 | 8.4 | 8.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 17.8 | 22.3 | 8.2-8.6 | 9.0-9.8 | 8.2-8.7 | 9.1-9.6 |
| Out of town [l] | 9.2 | 9.8 | 4.9-5.2 | 5.2-5.5 | 4.9-5.2 | 5.4-5.6 |
| Combined [l] | 12.3 | 14.3 | 6.1-6.4 | 6.5-7.1 | 6.1-6.4 | 6.7-7.1 |
| CO2 emissions [g/km] | 293 | 341 | 160-168 | 173-186 | 160-168 | 177-187 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1880 | 1840 | 1615 | 1615 | 1615 | 1615 |
| Overall weight [kg] | 2405 | 2365 | 2140 | 2140 | 2140 | 2140 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/1900 | 750/1900 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 530 | 530 | 540 | 540 | 540 | 540 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 80 | 80 | 65 | 65 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.27 | 0.27 | 0.27 | 0.27 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/45 R17 W | 245/40 R18 | 205/60 R16 V | 205/60 R16 V | 205/60 R16 V | 205/60 R16 V |
| Tyre dimensions rear | 245/45 R17 W | 265/35 R18 | 205/60 R16 V | 205/60 R16 V | 205/60 R16 V | 205/60 R16 V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4856 | 4856 | 4856 | 4856 | 4856 | 4856 |
| Overall width without/including mirrors [mm] | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- |
| Overall height [mm] | 1483 | 1483 | 1483 | 1483 | 1483 | 1483 |
| Wheelbase [mm] | 2854 | 2854 | 2854 | 2854 | 2854 | 2854 |
| Front wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Rear wheel track [mm] | 1570 | 1570 | 1570 | 1570 | 1570 | 1570 |
| Forward overhang [mm] | 869 | 869 | 869 | 869 | 869 | 869 |
| Rear overhang [mm] | 1133 | 1133 | 1133 | 1133 | 1133 | 1133 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 961 | 961 | 961 | 961 | 961 | 961 |
| Front elbow/shoulder width [mm] | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 |
| Rear elbow/shoulder width [mm] | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| E 280 CDI | E 280 CDI | E 280 CDI 4MATIC | E 300 Bluetec | E 320 CDI | E 320 CDI 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2987 | 2987 | 2987 | 2987 | 2987 | 2987 |
| Maximum output / speed [kW/min-1] | 140/4000 | 140/4000 | 140/4000 | 155/3400 | 165/3800 | 165/3800 |
| Maximum torque [Nm/min-1] | 400/1400-3200 | 400/1400-3200 | 400/1400-3200 | 540/1600-2400 | 540/1600-2400 | 540/1600-2400 |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 17,7:1 | 17,5:1 | 17,5:1 | 16,5:1 | 17,7:1 | 17,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | Rear | Rear | 4x4 |
| Gearbox | 6 gear manual | 7 gear automatic | 5 gear automatic | 7 gear automatic | 7 gear automatic | 5 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 241 | 238 | 234 | 244 | 250 | 244 |
| Acceleration 0–100 km/h [s] | 8.6 | 7.6 | 8.2 | 7.2 | 6.8 | 7.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.5-9.7 | 10.1-10.4 | 10.4-10.6 | 9.9-10.1 | 10.3-10.6 | 10.5-10.7 |
| Out of town [l] | 5.4-5.6 | 5.6-5.9 | 6.3-6.5 | 5.6-5.9 | 5.4-6.0 | 6.4-6.6 |
| Combined [l] | 6.9-7.1 | 7.2-7.5 | 7.8-8.0 | 6.2-7.5 | 7.3-7.6 | 7.9-8.1 |
| CO2 emissions [g/km] | 183-189 | 191-199 | 207-2012 | 189-199 | 194-202 | 210-215 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1715 | 1715 | 1840 | 1735 | 1750 | 1845 |
| Overall weight [kg] | 2240 | 2240 | 2365 | 2260 | 2275 | 2370 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/1900 | 750/1900 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 540 | 540 | 540 | 540 | 540 | 540 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.29 | 0.28 | 0.28 | 0.29 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W |
| Tyre dimensions rear | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.5/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4856 | 4856 | 4856 | 4856 | 4856 | 4856 |
| Overall width without/including mirrors [mm] | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- |
| Overall height [mm] | 1483 | 1483 | 1483 | 1483 | 1483 | 1483 |
| Wheelbase [mm] | 2854 | 2854 | 2854 | 2854 | 2854 | 2854 |
| Front wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Rear wheel track [mm] | 1570 | 1570 | 1570 | 1570 | 1570 | 1570 |
| Forward overhang [mm] | 869 | 869 | 869 | 869 | 869 | 869 |
| Rear overhang [mm] | 1133 | 1133 | 1133 | 1133 | 1133 | 1133 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 993 | 993 | 993 | 993 | 993 | 993 |
| Headroom rear [mm] | 961 | 961 | 961 | 961 | 961 | 961 |
| Front elbow/shoulder width [mm] | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 |
| Rear elbow/shoulder width [mm] | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| E 420 CDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 8/32 | |||||
| Engine displacement [cm³] | 3996 | |||||
| Maximum output / speed [kW/min-1] | 231/3600 | |||||
| Maximum torque [Nm/min-1] | 730/2200 | |||||
| Bore and stroke [mm x mm] | 86,0 x 86,0 | |||||
| Compression ratio | 16,7:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Rear | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 6.1 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 13.2 | |||||
| Out of town [l] | 7.0 | |||||
| Combined [l] | 9.3 | |||||
| CO2 emissions [g/km] | 246 | |||||
| Emission standard | EU4 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1910 | |||||
| Overall weight [kg] | 2435 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 530 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 80 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.28 | |||||
| Front suspension | four-link | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 245/55 R17 W | |||||
| Tyre dimensions rear | 245/55 R17 W | |||||
| Wheel size front | - | |||||
| Wheel size rear | - | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.4/- | |||||
| Overall length [mm] | 4856 | |||||
| Overall width without/including mirrors [mm] | 1822/- | |||||
| Overall height [mm] | 1483 | |||||
| Wheelbase [mm] | 2854 | |||||
| Front wheel track [mm] | 1577 | |||||
| Rear wheel track [mm] | 1570 | |||||
| Forward overhang [mm] | 869 | |||||
| Rear overhang [mm] | 1133 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 993 | |||||
| Headroom rear [mm] | 961 | |||||
| Front elbow/shoulder width [mm] | 1432/1454 | |||||
| Rear elbow/shoulder width [mm] | 1424/1454 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Estate
| E 200 Kompressor | E 200 Kompressor | E 230 | E 230 | E 280 | E 280 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 1796 | 1796 | 2496 | 2496 | 2996 | 2996 |
| Maximum output / speed [kW/min-1] | 135/5500 | 135/5500 | 150/6100 | 150/6100 | 170/6000 | 170/6000 |
| Maximum torque [Nm/min-1] | 250/2800-5000 | 250/2800-5000 | 245/2900-5500 | 245/2900-5500 | 300/2500-5000 | 300/2500-5000 |
| Bore and stroke [mm x mm] | 82,0 x 85,0 | 82,0 x 85,0 | 88,0 x 68,4 | 88,0 x 68,4 | 88,0 x 82,1 | 88,0 x 82,1 |
| Compression ratio | 8,5:1 | 8,5:1 | 11,2:1 | 11,2:1 | 11,3:1 | 11,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 5 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 225 | 222 | 233 | 228 | 246 | 238 |
| Acceleration 0–100 km/h [s] | 9.5 | 9.7 | 9.9 | 9.9 | 8.1 | 7.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.4-12.6 | 12.9-13.0 | 13.8-13.9 | 13.9-14.1 | 13.7-13.9 | 13.8-12.1 |
| Out of town [l] | 6.7-7.0 | 6.9-7.4 | 7.1-7.4 | 7.4-7.6 | 7.2-7.4 | 7.3-7.6 |
| Combined [l] | 8.9-9.1 | 9.2-9.4 | 9.6-9.8 | 9.6-9.9 | 9.6-9.8 | 9.7-10.0 |
| CO2 emissions [g/km] | 212-217 | 219-224 | 229-233 | 232-237 | 222-227 | 232-239 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1720 | 1720 | 1775 | 1775 | 1785 | 1785 |
| Overall weight [kg] | 2295 | 2295 | 2350 | 2350 | 2360 | 2360 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/1900 | 750/1900 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 690 | 690 | 690 | 690 | 690 | 690 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 |
| Boot length [mm] | 1190 | 1190 | 1190 | 1190 | 1190 | 1190 |
| Boot length with rear seats folded [mm] | 1857 | 1857 | 1857 | 1857 | 1857 | 1857 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/850 | -/850 | -/850 | -/850 | -/850 | -/850 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R16 V | 225/55 R16 V | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W |
| Tyre dimensions rear | 225/55 R16 V | 225/55 R16 V | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4888 | 4888 | 4888 | 4888 | 4888 | 4888 |
| Overall width without/including mirrors [mm] | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- |
| Overall height [mm] | 1506 | 1506 | 1506 | 1506 | 1506 | 1506 |
| Wheelbase [mm] | 2854 | 2854 | 2854 | 2854 | 2854 | 2854 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Forward overhang [mm] | 869 | 869 | 869 | 869 | 869 | 869 |
| Rear overhang [mm] | 1165 | 1165 | 1165 | 1165 | 1165 | 1165 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1006 | 1006 | 1006 | 1006 | 1006 | 1006 |
| Headroom rear [mm] | 998 | 998 | 998 | 998 | 998 | 998 |
| Front elbow/shoulder width [mm] | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 |
| Rear elbow/shoulder width [mm] | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| E 280 4MATIC | E 350 | E 350 4MATIC | E 350 CGI | E 500 | E 500 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 |
| Engine displacement [cm³] | 2996 | 3498 | 3498 | 3498 | 5461 | 5461 |
| Maximum output / speed [kW/min-1] | 170/6000 | 200/6000 | 200/6000 | 215/6400 | 285/6000 | 285/6000 |
| Maximum torque [Nm/min-1] | 300/2500-5000 | 350/2400-5000 | 350/2400-5000 | 365/3000-5100 | 530/2800-4800 | 530/2800-4800 |
| Bore and stroke [mm x mm] | 88,0 x 82,1 | 92,9 x 86,0 | 92,9 x 86,0 | 92,9 x 86,0 | 98,0 x 90,5 | 98,0 x 90,5 |
| Compression ratio | 11,3:1 | 10,7:1 | 10,7:1 | 12,2:1 | 10,7:1 | 10,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | 4x4 | Rear | Rear | 4x4 |
| Gearbox | 5 gear automatic | 7 gear automatic | 5 gear automatic | 7 gear automatic | 7 gear automatic | 5 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 232 | 250 | 245 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 8.3 | 7.1 | 7.4 | 7.0 | 5.4 | 5.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 14.3-14.6 | 14.1-14.6 | 14.7-15.3 | 13.1-13.6 | 17.3 | 18.2 |
| Out of town [l] | 8.0-8.3 | 7.5-8.0 | 8.3-8.5 | 6.5-7.0 | 8.5 | 9.5 |
| Combined [l] | 10.3-10.6 | 9.9-10.4 | 10.6-11.0 | 8.9-9.4 | 11.8 | 12.6 |
| CO2 emissions [g/km] | 246-253 | 236-248 | 253-261 | 213-224 | 280 | 300 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1905 | 1810 | 1910 | 1840 | 1895 | 1990 |
| Overall weight [kg] | 2480 | 2385 | 2485 | 2415 | 2460 | 2535 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 690 | 690 | 690 | 690 | 690 | 690 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 |
| Boot length [mm] | 1190 | 1190 | 1190 | 1190 | 1190 | 1190 |
| Boot length with rear seats folded [mm] | 1857 | 1857 | 1857 | 1857 | 1857 | 1857 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/850 | -/850 | -/850 | -/850 | -/850 | -/850 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 70 | 80 | 80 | 80 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.3 | 0.31 | 0.3 | 0.31 | 0.32 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 245/45 R17 W | 245/45 R17 W |
| Tyre dimensions rear | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 245/45 R17 W | 245/45 R17 W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4888 | 4888 | 4888 | 4888 | 4888 | 4888 |
| Overall width without/including mirrors [mm] | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- |
| Overall height [mm] | 1506 | 1506 | 1506 | 1506 | 1506 | 1506 |
| Wheelbase [mm] | 2854 | 2854 | 2854 | 2854 | 2854 | 2854 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Forward overhang [mm] | 869 | 869 | 869 | 869 | 869 | 869 |
| Rear overhang [mm] | 1165 | 1165 | 1165 | 1165 | 1165 | 1165 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1006 | 1006 | 1006 | 1006 | 1006 | 1006 |
| Headroom rear [mm] | 998 | 998 | 998 | 998 | 998 | 998 |
| Front elbow/shoulder width [mm] | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 |
| Rear elbow/shoulder width [mm] | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| E 63 AMG | E 200 CDI | E 200 CDI | E 220 CDI | E 220 CDI | E 280 CDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 8/32 | 4/16 | 4/16 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 6208 | 2148 | 2148 | 2148 | 2148 | 2987 |
| Maximum output / speed [kW/min-1] | 378/6800 | 100/3800 | 100/3800 | 125/3800 | 125/3800 | 140/4000 |
| Maximum torque [Nm/min-1] | 630/5200 | 340/1800-2600 | 340/1800-2600 | 400/2000 | 400/2000 | 400/1400-3200 |
| Bore and stroke [mm x mm] | 102,2 x 94,6 | 88,0 x 88,3 | 88,0 x 88,3 | 88,0 x 88,3 | 88,0 x 88,3 | 83,0 x 92,0 |
| Compression ratio | 11,3:1 | 17,5:1 | 17,5:1 | 17,5:1 | 17,5:1 | 17,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 6 gear manual | 5 gear automatic | 6 gear manual | 5 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 250 | 202 | 200 | 218 | 218 | 231 |
| Acceleration 0–100 km/h [s] | 4.6 | 10.5 | 10.7 | 9.1 | 9.1 | 9.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 22.6 | 9.3-9.6 | 9.5-10.1 | 9.3-9.6 | 9.8-10.3 | 10.0-10.2 |
| Out of town [l] | 9.9 | 5.6-5.9 | 5.7-6.1 | 5.6-5.9 | 5.9-6.2 | 5.6-5.8 |
| Combined [l] | 14.5 | 7.1-7.2 | 7.1-7.5 | 7.1-7.2 | 7.3-7.7 | 7.2-7.4 |
| CO2 emissions [g/km] | 345 | 188-189 | 187-199 | 188-189 | 194-202 | 191-196 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1955 | 1785 | 1785 | 1785 | 1785 | 1845 |
| Overall weight [kg] | 2460 | 2360 | 2360 | 2360 | 2360 | 2420 |
| Maximum trailer weight unbraked/braked [kg] | - | 750/1900 | 750/1900 | 750/1900 | 750/1900 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 690 | 690 | 690 | 690 | 690 | 690 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 | -/1950 |
| Boot length [mm] | 1190 | 1190 | 1190 | 1190 | 1190 | 1190 |
| Boot length with rear seats folded [mm] | 1857 | 1857 | 1857 | 1857 | 1857 | 1857 |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | -/850 | -/850 | -/850 | -/850 | -/850 | -/850 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 80 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.31 | 0.31 | 0.31 | 0.31 | 0.31 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/40 R18 | 225/55 R16 V | 225/55 R16 V | 225/55 R16 V | 225/55 R16 V | 225/55 R16 W |
| Tyre dimensions rear | 265/35 R18 | 225/55 R16 V | 225/55 R16 V | 225/55 R16 V | 225/55 R16 V | 225/55 R16 W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4888 | 4888 | 4888 | 4888 | 4888 | 4888 |
| Overall width without/including mirrors [mm] | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- |
| Overall height [mm] | 1506 | 1506 | 1506 | 1506 | 1506 | 1506 |
| Wheelbase [mm] | 2854 | 2854 | 2854 | 2854 | 2854 | 2854 |
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | 1559 | 1559 |
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Forward overhang [mm] | 869 | 869 | 869 | 869 | 869 | 869 |
| Rear overhang [mm] | 1165 | 1165 | 1165 | 1165 | 1165 | 1165 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1006 | 1006 | 1006 | 1006 | 1006 | 1006 |
| Headroom rear [mm] | 998 | 998 | 998 | 998 | 998 | 998 |
| Front elbow/shoulder width [mm] | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 |
| Rear elbow/shoulder width [mm] | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| E 280 CDI | E 280 4MATIC | E 320 CDI | E 320 CDI 4MATIC | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | ||
| Engine displacement [cm³] | 2987 | 2987 | 2987 | 2987 | ||
| Maximum output / speed [kW/min-1] | 140/4000 | 140/4000 | 165/3800 | 165/3800 | ||
| Maximum torque [Nm/min-1] | 400/1400-3200 | 400/1400-3200 | 540/1600-2400 | 540/1600-2400 | ||
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | ||
| Compression ratio | 17,7:1 | 17,7:1 | 17,7:1 | 17,7:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Rear | 4x4 | Rear | 4x4 | ||
| Gearbox | 7 gear automatic | 5 gear automatic | 7 gear automatic | 5 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 230 | 226 | 240 | 236 | ||
| Acceleration 0–100 km/h [s] | 8.2 | 9.0 | 7.3 | 8.1 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 10.6-11.0 | 10.9-11.5 | 10.6-11.0 | 11.0-11.6 | ||
| Out of town [l] | 5.9-6.4 | 6.7-6.7 | 5.9-6.4 | 6.8-6.9 | ||
| Combined [l] | 7.6-8.1 | 8.2-8.5 | 7.6-8.1 | 8.3-8.6 | ||
| CO2 emissions [g/km] | 202-215 | 218-226 | 202-215 | 220-228 | ||
| Emission standard | EU4 | EU4 | EU4 | EU4 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1845 | 1965 | 1885 | 1980 | ||
| Overall weight [kg] | 2420 | 2540 | 2460 | 2555 | ||
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/2100 | 750/2100 | 750/2100 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | ||
| Boot volume [l] | 690 | 690 | 690 | 690 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1950 | -/1950 | -/1950 | -/1950 | ||
| Boot length [mm] | 1190 | 1190 | 1190 | 1190 | ||
| Boot length with rear seats folded [mm] | 1857 | 1857 | 1857 | 1857 | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | -/850 | -/850 | -/850 | -/850 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 70 | 70 | 80 | 80 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.31 | 0.32 | 0.31 | 0.32 | ||
| Front suspension | four-link | four-link | four-link | four-link | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | ||
| Tyre dimensions rear | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | 225/55 R16 W | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.5/- | ||
| Overall length [mm] | 4888 | 4888 | 4888 | 4888 | ||
| Overall width without/including mirrors [mm] | 1822/- | 1822/- | 1822/- | 1822/- | ||
| Overall height [mm] | 1506 | 1506 | 1506 | 1506 | ||
| Wheelbase [mm] | 2854 | 2854 | 2854 | 2854 | ||
| Front wheel track [mm] | 1559 | 1559 | 1559 | 1559 | ||
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1552 | ||
| Forward overhang [mm] | 869 | 869 | 869 | 869 | ||
| Rear overhang [mm] | 1165 | 1165 | 1165 | 1165 | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 1006 | 1006 | 1006 | 1006 | ||
| Headroom rear [mm] | 998 | 998 | 998 | 998 | ||
| Front elbow/shoulder width [mm] | 1432/1454 | 1432/1454 | 1432/1454 | 1432/1454 | ||
| Rear elbow/shoulder width [mm] | 1424/1454 | 1424/1454 | 1424/1454 | 1424/1454 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
