Mercedes-Benz GLC
Date of manufacture
2019 – to this day (Medium SUV)
2019 – to this day (Coupé)
Platform
MRA
Manufacturing locations
Bremen, Germany
Beijing, People's Republic of China
Pune, India
Uusikaupunki, Finland
Samut Prakan, Thailand
Designer
Gorden Wagener
Tags
Compact SUV
German cars
The Mercedes-Benz GLC is a mid-size SUV and coupe produced since 2019 in countries such as Germany, the People's Republic of China, India, Finland and Thailand. The GLC is built on the MRA platform and offers gasoline, diesel and hybrid powertrains. The most powerful model is the GLC 63 AMG S 4MATIC+ with 375 kW and the best acceleration 0-100 km/h in 3.8 seconds. The most economical variant is the GLC 300 de 4MATIC with emissions of 53 g/km and consumption of 2 l/100 km. The trunk volume of the mid-size SUV is 550 l, coupe 500 l. The Mercedes-Benz GLC has passed the EURONCAP 2015 safety tests and received a rating of 5 out of 5.
Car body style

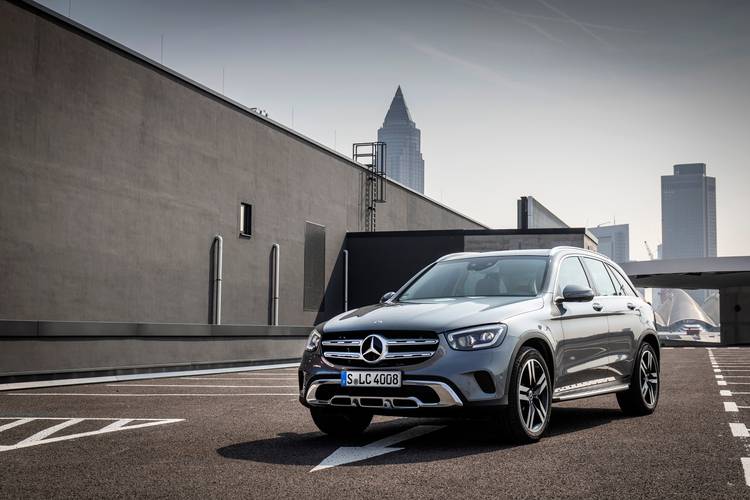

Medium SUV
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
X253Engine size
PetrolPetrol + ElectricDiesel

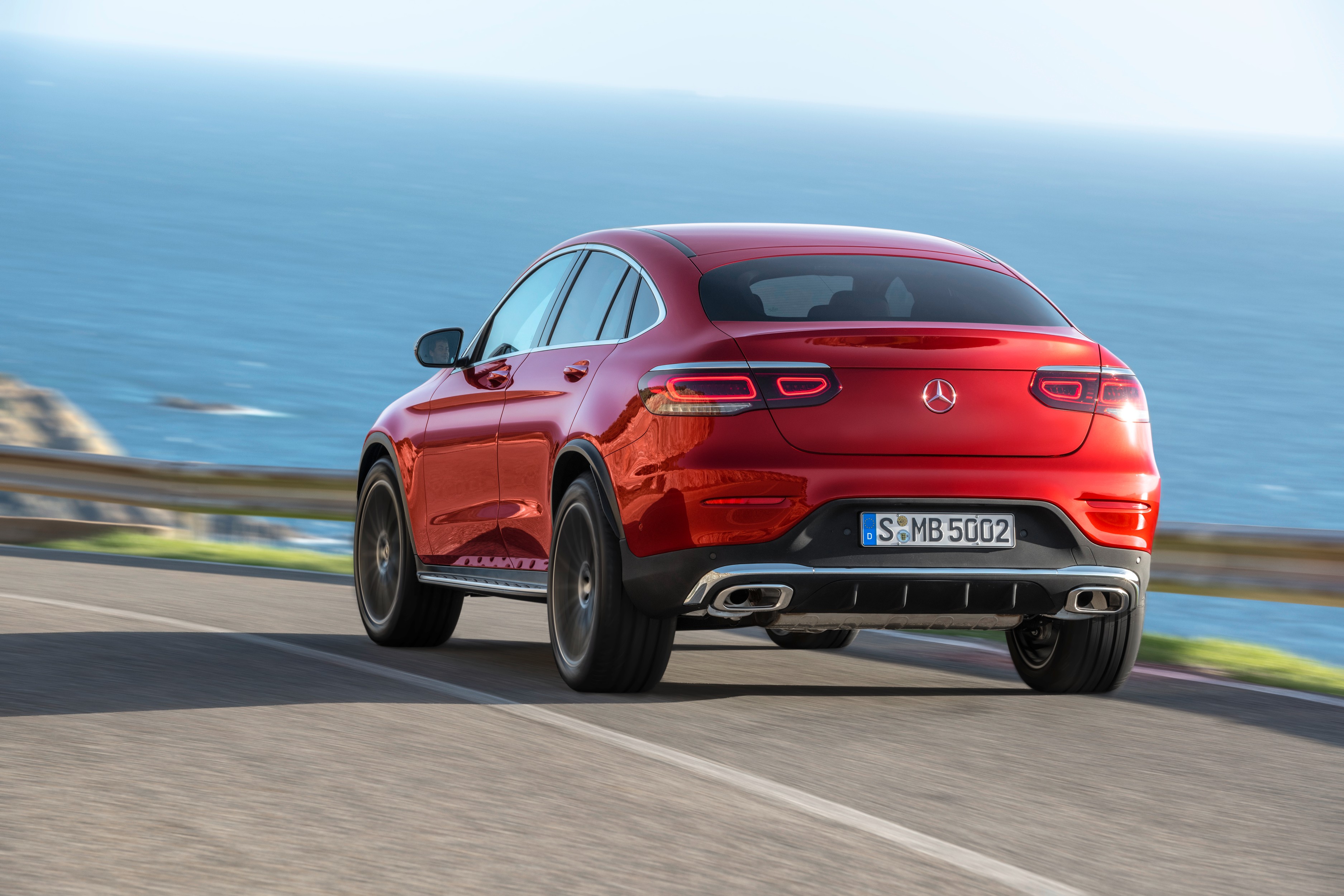

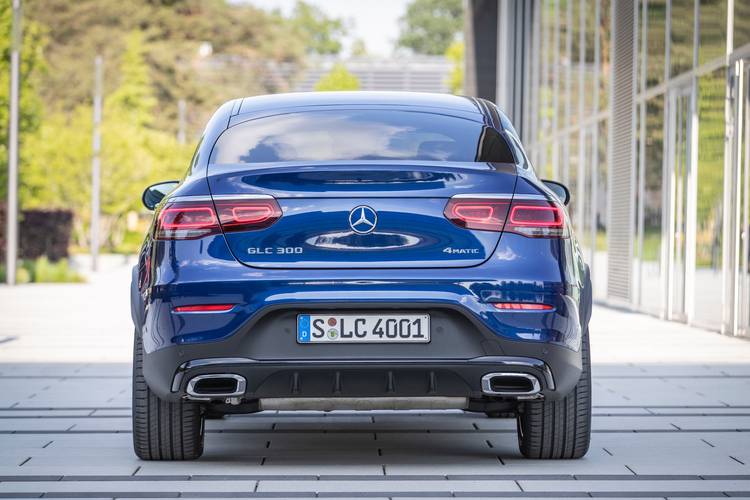

Coupé
after upgrade (facelift)
Date of manufacture
2019 – to this dayInternal designation
C253Engine size
PetrolPetrol + ElectricDiesel
Technical data
Medium SUV
| GLC 200 4MATIC | GLC 300 4MATIC | GLC 43 AMG 4MATIC | GLC 63 AMG 4MATIC+ | GLC 63 AMG S 4MATIC+ | GLC 300e 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 8/32 | 8/32 | 4/16 |
| Engine displacement [cm³] | 1991 | 1991 | 2996 | 3982 | 3982 | 1991 |
| Maximum output / speed [kW/min-1] | 145/5500-6100 10 el. | 190/5500-6100 10 el. | 270/5500-6000 | 350/5500-6250 | 375/5500-6250 | 155/5500 combustion 90 el. 235 total |
| Maximum torque [Nm/min-1] | 320/1650-4000 150 el. | 370/1650-4000 150 el. | 520/2000-4200 | 650/1750-4500 | 700/1750-4500 | 350/1200-4000 combustion 440/0-2000 el. 700 total |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 88,0 x 82,1 | 83,0 x 92,0 | 83,0 x 92,0 | 83.0 x 92.0 |
| Compression ratio | 10.5:1 | 10.5:1 | 10,7:1 | 10,5:1 | 10,5:1 | 10.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 215 | 240 | 250 | 250 | 250 | 230 |
| Acceleration 0–100 km/h [s] | 7,9 | 6,2 | 4,9 | 4,0 | 3,8 | 5,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,6-8,9 | 9,6-8,8 | 14,1-13,6 | 17,3-16,7 | 17,0-16,8 | - |
| Out of town [l] | 7,3-5,9 | 7,3-5,9 | 8,7-8,2 | 9,9-9,4 | 9,8-9,5 | - |
| Combined [l] | 8,1-7,0 | 8,1-7,0 | 10,6-10,2 | 12,4-12,2 | 12,4-12,3 | 2,6-2,2 [18.6-16.3 kWh] |
| CO2 emissions [g/km] | 186-162 | 186-162 | 242 | 283-234 | 282-244 | 60-50 |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | 48 | - | - | - | - |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 13.5 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | 46-51 |
| Charging time | - | - | - | - | - |
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1808 | 1813 | 1878 | 2018 | 2028 | 2038 |
| Overall weight [kg] | 2408 | 2413 | 2468 | 2583 | 2583 | 2623 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2400 | 750/2460 | 750/2200 | 750/2200 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 96 | 100 | 100 | 100 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

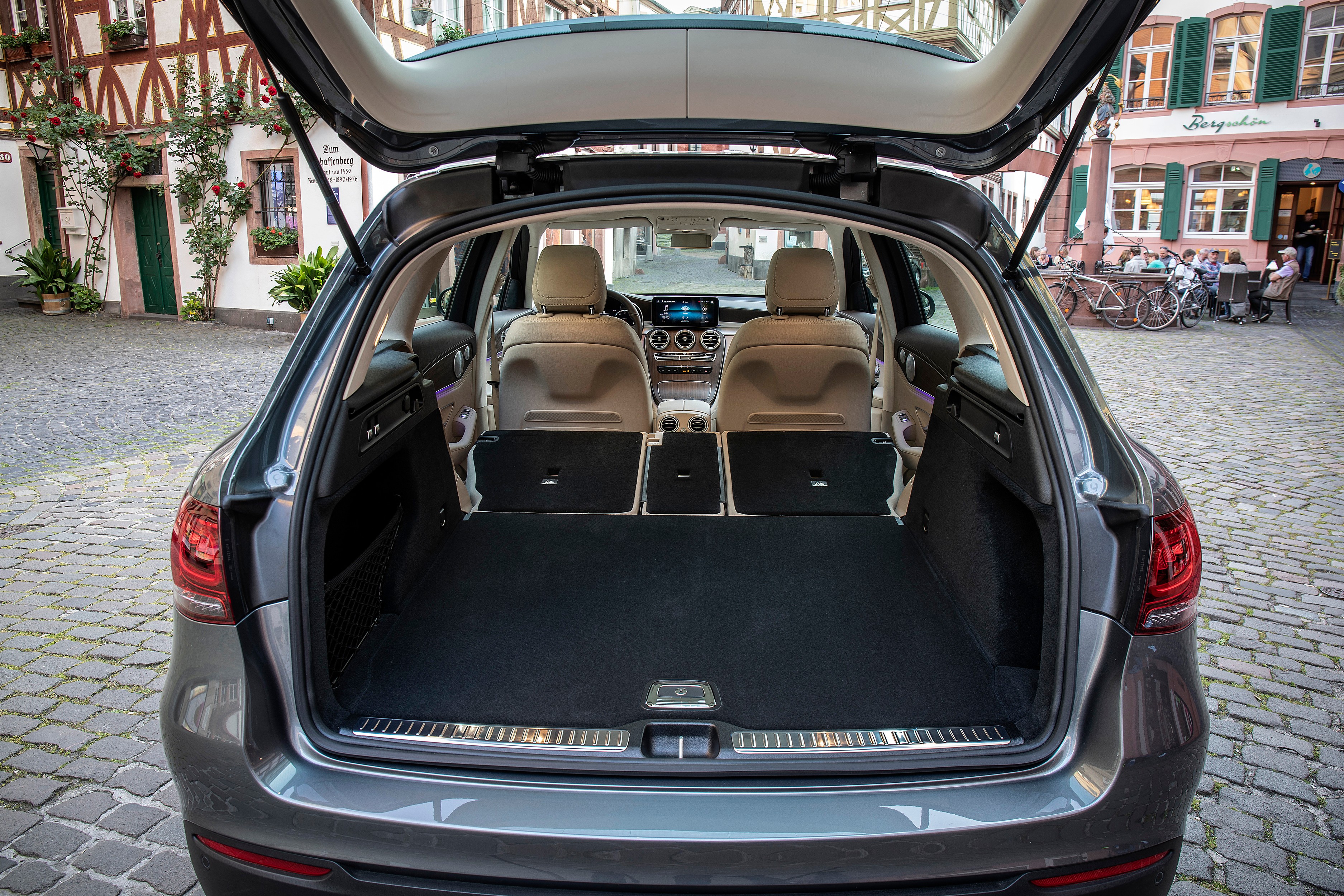

| Boot volume [l] | 550 | 550 | 550 | 550 | 550 | 395 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1600 | -/1445 |
| Boot length [mm] | 930 | 930 | 930 | 930 | 930 | - |
| Boot length with rear seats folded [mm] | 1778 | 1778 | 1778 | 1778 | 1778 | - |
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | - |
| Boot height to headliner/ceiling [mm] | -/808 | -/808 | -/808 | -/808 | -/808 | - |
| Loading edge height [mm] | 723 | 723 | 723 | 723 | 723 | - |
| Height of the open boot door [mm] | 2126 | 2126 | 2126 | 2126 | 2126 | - |
| Boot opening height [mm] | 775 | 775 | 775 | 775 | 775 | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.364 | 0.381 | 0.373 | 0.34 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/65 R17 V | 235/65 R17 V | 235/55 R19 101Y | 235/55 R19 101Y | 265/45 ZR20 108Y XL | 235/60 R18 |
| Tyre dimensions rear | 235/65 R17 V | 235/65 R17 V | 255/50 R19 103Y | 255/50 R19 103Y | 295/40 ZR20 110Y XL | 235/60 R18 |
| Wheel size front | 7.5J x 17 H2 | 7.5J x 17 H2 | 8,0J x 19 ET38 | 8,0J x 19 ET19 | 9,5J x 20 ET30 | 8.0J x 18 ET38 |
| Wheel size rear | 7.5J x 17 H2 | 7.5J x 17 H2 | 9,0J x 19 ET20 | 9,0J x 19 ET18 | 10,0J x 20 ET28 | 8.0J x 18 ET38 |
| Brake dimensions front | - | - | - | 390 x 36 | 390 x 36 | - |
| Brake dimensions rear | - | - | - | 360 x 26 | 360 x 26 | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 12.1/- | 12.1/- | 12.1/- | 11.8/- |
| Overall length [mm] | 4655 | 4655 | 4662 | 4682 | 4682 | 4655 |
| Overall width without/including mirrors [mm] | 1890/2096 | 1890/2096 | 1931/2096 | 1931/2096 | 1931/2096 | 1890/2096 |
| Overall height [mm] | 1644 | 1644 | 1626 | 1620 | 1620 | 1644 |
| Wheelbase [mm] | 2873 | 2873 | 2873 | 2873 | 2873 | 2873 |
| Front wheel track [mm] | 1621 | 1621 | 1639 | 1620 | 1663 | 1621 |
| Rear wheel track [mm] | 1617 | 1617 | 1655 | 1685 | 1653 | 1617 |
| Forward overhang [mm] | 830 | 830 | - | - | - | 830 |
| Rear overhang [mm] | 952 | 952 | - | - | - | 952 |
| Clearance [mm] | 123 | 123 | - | - | - | 123 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 19.9 | 19.9 | - | - | - | 19.9 |
| Approach angle rear [°] | 14.1 | 14.1 | - | - | - | 14.1 |
| Transition angle [°] | 12.1 | 12.1 | - | - | - | 12.1 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1064 | 1064 | 1064 | 1064 | 1064 | 1064 |
| Headroom rear [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Front elbow/shoulder width [mm] | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 |
| Rear elbow/shoulder width [mm] | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLC 200d 4MATIC | GLC 220d 4MATIC | GLC 300d 4MATIC | GLC 400d 4MATIC | GLC 300 de 4MATIC | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 4/16 | |
| Engine displacement [cm³] | 1950 | 1950 | 1950 | 2925 | 1950 | |
| Maximum output / speed [kW/min-1] | 120/3200-4600 | 143/3800 | 180/4200 | 243/3600-4200 | 143/3800 combustion 90 el. 225 total | |
| Maximum torque [Nm/min-1] | 360/1600-3000 | 400/1600-2800 | 500/1600-2400 | 700/1200-3200 | 400/1600-2800 combustion 440/0-2000 el. 700 total | |
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | |
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 205 | 215 | 231 | 240 | 230 | |
| Acceleration 0–100 km/h [s] | 8.9 | 7,9 | 6,5 | 5,1 | 6,2 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6,6-5,7 | 6,6-5,7 | 7,0-6,8 | 8,6-8,2 | - | |
| Out of town [l] | 5,6-4,9 | 5,6-4,9 | 5,3-5,0 | 5,7-5,3 | - | |
| Combined [l] | 6,0-5,2 | 6,0-5,2 | 5,9-5,7 | 6,7-6,4 | 2,0-1,8 [17.3-14.6 kWh] | |
| CO2 emissions [g/km] | 158-137 | 158-137 | 156-150 | 176-168 | 53-45 | |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| System voltage [V] | - | - | - | - | - | |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 13.5 kWh | |
| Range with fully charged battery [km] | - | - | - | - | 45-51 | |
| Charging time | - | - | - | - |
| |
| Number of modules/cells | - | - | - | - | - | |
| Battery weight [kg] | - | - | - | - | - | |
| Charger | - | - | - | - | - | |
| Standby weight [kg] | 1845 | 1845 | 1855 | 1924 | 2135 | |
| Overall weight [kg] | 2510 | 2510 | 2520 | 2589 | 2660 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2500 | 750/2500 | 750/2500 | 750/2500 | 750/2000 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 80 | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 550 | 550 | 550 | 550 | 395 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1600 | -/1600 | -/1600 | -/1600 | -/1445 | |
| Boot length [mm] | 930 | 930 | 930 | 930 | - | |
| Boot length with rear seats folded [mm] | 1778 | 1778 | 1778 | 1778 | - | |
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | - | |
| Boot height to headliner/ceiling [mm] | -/808 | -/808 | -/808 | -/808 | - | |
| Loading edge height [mm] | 723 | 723 | 723 | 723 | - | |
| Height of the open boot door [mm] | 2126 | 2126 | 2126 | 2126 | - | |
| Boot opening height [mm] | 775 | 775 | 775 | 775 | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 50 | 50 | 50 | 66 | 50 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.31 | 0.31 | 0.32 | 0.32 | 0.33 | |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 235/65 R17 V | 235/65 R17 V | 235/65 R17 V | 235/60 R18 | 235/60 R18 | |
| Tyre dimensions rear | 235/65 R17 V | 235/65 R17 V | 235/65 R17 V | 235/60 R18 | 235/60 R18 | |
| Wheel size front | 7.5J x 17 H2 | 7.5J x 17 H2 | 7.5J x 17 H2 | 8.0J x 18 ET38 | 8.0J x 18 ET38 | |
| Wheel size rear | 7.5J x 17 H2 | 7.5J x 17 H2 | 7.5J x 17 H2 | 8.0J x 18 ET38 | 8.0J x 18 ET38 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 11.8/- | 11.8/- | 11.8/- | |
| Overall length [mm] | 4655 | 4655 | 4655 | 4655 | 4655 | |
| Overall width without/including mirrors [mm] | 1890/2096 | 1890/2096 | 1890/2096 | 1890/2096 | 1890/2096 | |
| Overall height [mm] | 1644 | 1644 | 1644 | 1644 | 1644 | |
| Wheelbase [mm] | 2873 | 2873 | 2873 | 2873 | 2873 | |
| Front wheel track [mm] | 1621 | 1621 | 1621 | 1621 | 1621 | |
| Rear wheel track [mm] | 1617 | 1617 | 1617 | 1617 | 1617 | |
| Forward overhang [mm] | 830 | 830 | 830 | 830 | 830 | |
| Rear overhang [mm] | 952 | 952 | 952 | 952 | 952 | |
| Clearance [mm] | 123 | 123 | 123 | 123 | 123 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | 19.9 | 19.9 | 19.9 | 19.9 | 19.9 | |
| Approach angle rear [°] | 14.1 | 14.1 | 14.1 | 14.1 | 14.1 | |
| Transition angle [°] | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1064 | 1064 | 1064 | 1064 | 1064 | |
| Headroom rear [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | |
| Front elbow/shoulder width [mm] | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 | |
| Rear elbow/shoulder width [mm] | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Coupé
| GLC 200 4MATIC | GLC 300 4MATIC | GLC 43 AMG 4MATIC | GLC 63 AMG 4MATIC+ | GLC 63 AMG S 4MATIC+ | GLC 300e 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 8/32 | 8/32 | 4/16 |
| Engine displacement [cm³] | 1991 | 1991 | 2996 | 3982 | 3982 | 1991 |
| Maximum output / speed [kW/min-1] | 145/5500-6100 10 el. | 190/5500-6100 10 el. | 270/5500-6000 | 350/5500-6250 | 375/5500-6250 | 155/5500 combustion 90 el. 235 total |
| Maximum torque [Nm/min-1] | 320/1650-4000 150 el. | 370/1650-4000 150 el. | 520/2000-4200 | 650/1750-4500 | 700/1750-4500 | 350/1200-4000 combustion 440/0-2000 el. 700 total |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 88,0 x 82,1 | 83,0 x 92,0 | 83,0 x 92,0 | 83.0 x 92.0 |
| Compression ratio | 10.5:1 | 10.5:1 | 10,7:1 | 10,5:1 | 10,5:1 | 10.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 216 | 240 | 250 | 250 | 280 | 230 |
| Acceleration 0–100 km/h [s] | 8,0 | 6,3 | 4,9 | 4,0 | 3,8 | 5,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,6-8,9 | 9,6-8,9 | 14,1-13,6 | 17,3-16,8 | 17,1-16,8 | - |
| Out of town [l] | 7,3-5,9 | 7,3-5,9 | 8,6-8,1 | 9,5-9,0 | 9,4-9,2 | - |
| Combined [l] | 8,1-7,0 | 8,1-7,0 | 10,5-10,2 | 12,3-12,1 | 12,3-12,1 | 2,6-2,2 [18.7-16.2 kWh] |
| CO2 emissions [g/km] | 186-162 | 186-162 | 240 | 280-234 | 280-244 | 60-49 |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | 48 | - | - | - | - |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, 13.5 kWh |
| Range with fully charged battery [km] | - | - | - | - | - | 45-52 |
| Charging time | - | - | - | - | - |
|
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1825 | 1830 | 1883 | 2023 | 2033 | 2045 |
| Overall weight [kg] | 2435 | 2440 | 2468 | 2593 | 2593 | 2615 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2400 | 750/2460 | 750/2200 | 750/2200 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 96 | 100 | 100 | 100 | 80 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 500 | 500 | 500 | 500 | 500 | 350 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1400 | -/1400 | -/1400 | -/1400 | -/1400 | -/1250 |
| Boot length [mm] | 997 | 997 | 997 | 997 | 997 | 997 |
| Boot length with rear seats folded [mm] | 1840 | 1840 | 1840 | 1840 | 1840 | 1840 |
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 847 | 847 | 847 | 847 | 847 | 847 |
| Height of the open boot door [mm] | 2209 | 2209 | 2209 | 2209 | 2209 | 2209 |
| Boot opening height [mm] | 562 | 562 | 562 | 562 | 562 | 562 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.359 | 0.356 | 0.35 | 0.33 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/60 R18 | 235/60 R18 | 235/55 R19 101Y | 235/55 R19 101Y | 265/45 ZR20 108Y XL | 235/60 R18 |
| Tyre dimensions rear | 235/60 R18 | 235/60 R18 | 255/50 R19 103Y | 255/50 R19 103Y | 295/40 ZR20 110Y XL | 235/60 R18 |
| Wheel size front | 8.0J x 18 ET38 | 8.0J x 18 ET38 | 8,0J x 19 ET38 | 8,0J x 19 ET19 | 9,5J x 20 ET30 | 8.0J x 18 ET38 |
| Wheel size rear | 8.0J x 18 ET38 | 8.0J x 18 ET38 | 9,0J x 19 ET20 | 9,0J x 19 ET18 | 10,0J x 20 ET28 | 8.0J x 18 ET38 |
| Brake dimensions front | - | - | - | 390 x 36 | 390 x 36 | - |
| Brake dimensions rear | - | - | - | 360 x 26 | 360 x 26 | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 12.1/- | 12.1/- | 12.1/- | 11.8/- |
| Overall length [mm] | 4731 | 4731 | 4729 | 4748 | 4748 | 4731 |
| Overall width without/including mirrors [mm] | 1890/2096 | 1890/2096 | 1931/2096 | 1931/2096 | 1931/2096 | 1890/2096 |
| Overall height [mm] | 1600 | 1600 | 1585 | 1578 | 1584 | 1600 |
| Wheelbase [mm] | 2873 | 2873 | 2873 | 2873 | 2873 | 2873 |
| Front wheel track [mm] | 1621 | 1621 | 1639 | 1685 | 1663 | 1621 |
| Rear wheel track [mm] | 1617 | 1617 | 1655 | 1673 | 1653 | 1617 |
| Forward overhang [mm] | 830 | 830 | - | - | - | 830 |
| Rear overhang [mm] | 1028 | 1028 | - | - | - | 1028 |
| Clearance [mm] | 129 | 129 | - | - | - | 129 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 20.2 | 20.2 | - | - | - | 20.2 |
| Approach angle rear [°] | 14.8 | 14.8 | - | - | - | 14.8 |
| Transition angle [°] | 11.2 | 11.2 | - | - | - | 11.2 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1045 | 1045 | 1045 | 1045 | 1045 | 1045 |
| Headroom rear [mm] | 972 | 972 | 972 | 972 | 972 | 972 |
| Front elbow/shoulder width [mm] | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 |
| Rear elbow/shoulder width [mm] | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLC 200d 4MATIC | GLC 220d 4MATIC | GLC 300d 4MATIC | GLC 400d 4MATIC | GLC 300 de 4MATIC | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 4/16 | |
| Engine displacement [cm³] | 1950 | 1950 | 1950 | 2925 | 1950 | |
| Maximum output / speed [kW/min-1] | 120/3200-4600 | 143/3800 | 180/4200 | 243/3600-4200 | 143/3800 combustion 90 el. 225 total | |
| Maximum torque [Nm/min-1] | 360/1600-3000 | 400/1600-2800 | 500/1600-2400 | 700/1200-3200 | 400/1600-2800 combustion 440/0-2000 el. 700 total | |
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | |
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 206 | 217 | 233 | 240 | 230 | |
| Acceleration 0–100 km/h [s] | 8,9 | 7,9 | 6,6 | 5,1 | 6,2 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 6,6-5,7 | 6,6-5,7 | 7,4-7,0 | 8,6-8,1 | - | |
| Out of town [l] | 5,6-4,8 | 5,6-4,8 | 5,4-5,0 | 5,6-5,2 | - | |
| Combined [l] | 6,0-5,2 | 6,0-5,2 | 6,0-5,7 | 6,6-6,3 | 2,1-1,8 [17.4-14.5 kWh] | |
| CO2 emissions [g/km] | 158-136 | 158-136 | 159-152 | 175-167 | 54-45 | |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| System voltage [V] | - | - | - | - | - | |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 13.5 kWh | |
| Range with fully charged battery [km] | - | - | - | - | 45-51 | |
| Charging time | - | - | - | - |
| |
| Number of modules/cells | - | - | - | - | - | |
| Battery weight [kg] | - | - | - | - | - | |
| Charger | - | - | - | - | - | |
| Standby weight [kg] | 1852 | 1852 | 1882 | 1941 | 2142 | |
| Overall weight [kg] | 2507 | 2507 | 2537 | 2596 | 2667 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2500 | 750/2500 | 750/2500 | 750/2000 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 96 | 100 | 100 | 100 | 80 | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 500 | 500 | 500 | 500 | 350 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1400 | -/1400 | -/1400 | -/1400 | -/1250 | |
| Boot length [mm] | 997 | 997 | 997 | 997 | 997 | |
| Boot length with rear seats folded [mm] | 1840 | 1840 | 1840 | 1840 | 1840 | |
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | 847 | 847 | 847 | 847 | 847 | |
| Height of the open boot door [mm] | 2209 | 2209 | 2209 | 2209 | 2209 | |
| Boot opening height [mm] | 562 | 562 | 562 | 562 | 562 | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 50 | 50 | 50 | 66 | 50 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.3 | 0.3 | 0.31 | 0.31 | 0.32 | |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | |
| Tyre dimensions rear | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | 235/60 R18 | |
| Wheel size front | 8.0J x 18 ET38 | 8.0J x 18 ET38 | 8.0J x 18 ET38 | 8.0J x 18 ET38 | 8.0J x 18 ET38 | |
| Wheel size rear | 8.0J x 18 ET38 | 8.0J x 18 ET38 | 8.0J x 18 ET38 | 8.0J x 18 ET38 | 8.0J x 18 ET38 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.8/- | 11.8/- | 11.8/- | 11.8/- | 11.8/- | |
| Overall length [mm] | 4731 | 4731 | 4731 | 4731 | 4731 | |
| Overall width without/including mirrors [mm] | 1890/2096 | 1890/2096 | 1890/2096 | 1890/2096 | 1890/2096 | |
| Overall height [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | |
| Wheelbase [mm] | 2873 | 2873 | 2873 | 2873 | 2873 | |
| Front wheel track [mm] | 1621 | 1621 | 1621 | 1621 | 1621 | |
| Rear wheel track [mm] | 1617 | 1617 | 1617 | 1617 | 1617 | |
| Forward overhang [mm] | 830 | 830 | 830 | 830 | 830 | |
| Rear overhang [mm] | 1028 | 1028 | 1028 | 1028 | 1028 | |
| Clearance [mm] | 129 | 129 | 129 | 129 | 129 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | 20.2 | 20.2 | 20.2 | 20.2 | 20.2 | |
| Approach angle rear [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | |
| Transition angle [°] | 11.2 | 11.2 | 11.2 | 11.2 | 11.2 | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1045 | 1045 | 1045 | 1045 | 1045 | |
| Headroom rear [mm] | 972 | 972 | 972 | 972 | 972 | |
| Front elbow/shoulder width [mm] | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 | 1455/1499 | |
| Rear elbow/shoulder width [mm] | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 | 1436/1475 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
