Mercedes-Benz GLK
Date of manufacture
2008 – 2012 (SUV)
Platform
-
Manufacturing locations
Bremen, Germany
Beijing, People's Republic of China
Designer
-
Tags
Compact SUV
German cars
The Mercedes-Benz GLK is an SUV that has been produced since 2008. The vehicle can come from Germany or the People's Republic of China and offers a wide range of engines - from petrol to diesel. The most powerful model is the GLK 350 BlueEFFICIENCY 4MATIC with 225 kW of power, which reaches a top speed of 238 km/h and the best acceleration from 0-100 km/h in 6.5 seconds. The most economical variant is the GLK 220 CDI BlueEFFICIENCY with a combined consumption of 5.6 l/100 km and CO2 emissions of 145 g/km. The trunk of the car has a capacity of 450 l. In terms of safety, the EURONCAP gave the Mercedes-Benz GLK a rating of 5 out of 5 in 2010.
Car body style
SUV
Date of manufacture
2008 – 2012Internal designation
X204Engine size
PetrolDiesel
Technical data
SUV
| GLK 280 / 300 4MATIC | GLK 350 4MATIC | GLK 350 BlueEFFICIENCY 4MATIC | GLK 200 CDI BlueEFFICIENCY | GLK 200 CDI BlueEFFICIENCY | GLK 200 CDI BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2996 | 3498 | 3498 | 2143 | 2143 | 2143 |
| Maximum output / speed [kW/min-1] | 170/6000 | 200/6000 | 225/6500 | 105/3200 | 105/3200 | 105/3200 |
| Maximum torque [Nm/min-1] | 300/2500-5000 | 350/2400-5000 | 370/3500-5250 | 350/1200-2800 | 350/1200-2800 | 350/1200-2800 |
| Bore and stroke [mm x mm] | 88,0 x 82,0 | 92,6 x 86,0 | 92,6 x 86,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 |
| Compression ratio | 11,3:1 | 10,7:1 | 12,0:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
|
| - | - |
|
| Top speed [km/h] | 210 | 230 | 238 | 195 | 195 | 190 |
| Acceleration 0–100 km/h [s] | 7.6 | 6.7 | 6.5 | 10.3 | 10.3 | 10.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13.6-14.1 | 14.2-14.6 | 10.5-11.0 | 7.2-7.5 | 6.9-7.4 | 8.0-8.4 |
| Out of town [l] | 8.3-8.4 | 8.3-8.5 | 6.9-7.4 | 5.1-5.3 | 5.0-5.3 | 5.3-5.6 |
| Combined [l] | 10.2-10.5 | 10.5-10.8 | 8.2-8.7 | 5.8-6.1 | 5.7-6.1 | 6.3-6.7 |
| CO2 emissions [g/km] | 239-246 | 245-251 | 194-203 | 153-160 | 149-159 | 164-174 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1830 | 1940 | 1845 | 1790 | 1825 | 1810 |
| Overall weight [kg] | 2480 | 2480 | 2415 | 2385 | 2400 | 2400 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 |
| Boot length [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Boot length with rear seats folded [mm] | 1674 | 1674 | 1674 | 1674 | 1674 | 1674 |
| Boot width between wheels/max [mm] | -/950 | -/950 | -/950 | -/950 | -/950 | -/950 |
| Boot height to headliner/ceiling [mm] | -/840 | -/840 | -/840 | -/840 | -/840 | -/840 |
| Loading edge height [mm] | 726 | 726 | 726 | 726 | 726 | 726 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 774 | 774 | 774 | 774 | 774 | 774 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 59 | 59 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.36 | 0.36 | 0.36 | 0.34 | 0.34 | 0.34 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/60 R17 102 V | 235/60 R17 102 V | 235/60 R17 | 235/60 R17 | 235/60 R17 | 235/60 R17 |
| Tyre dimensions rear | 235/60 R17 102 V | 235/60 R17 102 V | 235/60 R17 | 235/60 R17 | 235/60 R17 | 235/60 R17 |
| Wheel size front | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 |
| Wheel size rear | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4528 | 4528 | 4528 | 4528 | 4528 | 4528 |
| Overall width without/including mirrors [mm] | 1840/2016 | 1840/2016 | 1840/2016 | 1840/2016 | 1840/2016 | 1840/2016 |
| Overall height [mm] | 1698 | 1689 | 1689 | 1689 | 1689 | 1689 |
| Wheelbase [mm] | 2755 | 2755 | 2755 | 2755 | 2755 | 2755 |
| Front wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
| Rear wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Forward overhang [mm] | 813 | 813 | 813 | 813 | 813 | 813 |
| Rear overhang [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
| Clearance [mm] | 147 | 147 | 147 | 145 | 145 | 145 |
| Wading depth [mm] | 300 | 300 | 300 | 300 | 300 | 300 |
| Approach angle front [°] | 23.6 | 23.6 | 23.6 | 23.6 | 23.6 | 23.6 |
| Approach angle rear [°] | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 |
| Transition angle [°] | 14.9 | 14.9 | 14.9 | 15.1 | 15.1 | 15.1 |
| Climbing rate [°] | 70 | 70 | 70 | 70 | 70 | 70 |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Headroom rear [mm] | 1012 | 1012 | 1012 | 1012 | 1012 | 1012 |
| Front elbow/shoulder width [mm] | 1401/1442 | 1401/1442 | 1401/1442 | 1401/1442 | 1401/1442 | 1401/1442 |
| Rear elbow/shoulder width [mm] | 1408/1440 | 1408/1440 | 1408/1440 | 1408/1440 | 1408/1440 | 1408/1440 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLK 200 CDI BlueEFFICIENCY | GLK 220 CDI BlueEFFICIENCY | GLK 220 CDI BlueEFFICIENCY | GLK 220 CDI BlueEFFICIENCY | GLK 220 CDI BlueEFFICIENCY | GLK 220 CDI BlueEFFICIENCY 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2143 | 2143 | 2143 | 2143 | 2143 | 2143 |
| Maximum output / speed [kW/min-1] | 105/3200 | 125/3200-4800 | 125/3200-4800 | 125/3200-4800 | 125/3200-4800 | 125/3200-4800 |
| Maximum torque [Nm/min-1] | 350/1200-2800 | 400/1400-2800 | 400/1400-2800 | 400/1400-2800 | 400/1400-2800 | 400/1400-2800 |
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 | 16,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | 4x4 |
| Gearbox | 7 gear automatic | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
| - | - |
|
|
|
| Top speed [km/h] | 190 | 205 | 205 | 205 | 205 | 205 |
| Acceleration 0–100 km/h [s] | 10.8 | 8.5 | 8.5 | 8.7 | 8.7 | 8.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.4-6.8 | 7.7-8.2 | 6.9-7.4 | 8.0-8.4 | 6.8-6.8 | 8.4-8.6 |
| Out of town [l] | 5.1-5.5 | 5.1-5.4 | 5.0-5.3 | 5.3-5.6 | 5.1-5.5 | 5.8-5.6 |
| Combined [l] | 5.6-6.0 | 6.0-6.4 | 5.7-6.1 | 6.3-6.7 | 5.6-6.0 | 6.7-6.9 |
| CO2 emissions [g/km] | 145-156 | 158-168 | 149-159 | 164-174 | 145-156 | 176-182 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1845 | 1790 | 1825 | 1810 | 1845 | 1845 |
| Overall weight [kg] | 2425 | 2385 | 2400 | 2400 | 2425 | 2440 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 |
| Boot length [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Boot length with rear seats folded [mm] | 1674 | 1674 | 1674 | 1674 | 1674 | 1674 |
| Boot width between wheels/max [mm] | -/950 | -/950 | -/950 | -/950 | -/950 | -/950 |
| Boot height to headliner/ceiling [mm] | -/840 | -/840 | -/840 | -/840 | -/840 | -/840 |
| Loading edge height [mm] | 726 | 726 | 726 | 726 | 726 | 726 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 774 | 774 | 774 | 774 | 774 | 774 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 59 | 59 | 59 | 59 | 59 | 59 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/60 R17 | 235/60 R17 102 V | 235/60 R17 | 235/60 R17 102 V | 235/60 R17 | 235/60 R17 102 V |
| Tyre dimensions rear | 235/60 R17 | 235/60 R17 102 V | 235/60 R17 | 235/60 R17 102 V | 235/60 R17 | 235/60 R17 102 V |
| Wheel size front | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 |
| Wheel size rear | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- |
| Overall length [mm] | 4528 | 4528 | 4528 | 4528 | 4528 | 4528 |
| Overall width without/including mirrors [mm] | 1840/2016 | 1840/2016 | 1840/2016 | 1840/2016 | 1840/2016 | 1840/2016 |
| Overall height [mm] | 1689 | 1689 | 1689 | 1689 | 1689 | 1698 |
| Wheelbase [mm] | 2755 | 2755 | 2755 | 2755 | 2755 | 2755 |
| Front wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | 1567 |
| Rear wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Forward overhang [mm] | 813 | 813 | 813 | 813 | 813 | 813 |
| Rear overhang [mm] | 957 | 957 | 957 | 957 | 957 | 957 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 144 |
| Wading depth [mm] | 300 | 300 | 300 | 300 | 300 | 300 |
| Approach angle front [°] | 23.6 | 23.6 | 23.6 | 23.6 | 23.6 | 23.6 |
| Approach angle rear [°] | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 | 25.1 |
| Transition angle [°] | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 | 15.1 |
| Climbing rate [°] | 70 | 70 | 70 | 70 | 70 | 70 |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Headroom rear [mm] | 1012 | 1012 | 1012 | 1012 | 1012 | 1012 |
| Front elbow/shoulder width [mm] | 1401/1442 | 1401/1442 | 1401/1442 | 1401/1442 | 1401/1442 | 1401/1442 |
| Rear elbow/shoulder width [mm] | 1408/1440 | 1408/1440 | 1408/1440 | 1408/1440 | 1408/1440 | 1408/1440 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| GLK 220 CDI BlueEFFICIENCY 4MATIC | GLK 250 CDI BlueEFFICIENCY 4MATIC | GLK 250 CDI BlueEFFICIENCY 4MATIC | GLK 320 CDI 4MATIC | GLK 350 CDI 4MATIC | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 2143 | 2143 | 2143 | 2987 | 2987 | |
| Maximum output / speed [kW/min-1] | 125/3200-4800 | 150/4200 | 150/4200 | 165/3800 | 170/3800 | |
| Maximum torque [Nm/min-1] | 400/1400-2800 | 500/1600-1800 | 500/1600-1800 | 510/1600-2400 | 540/1600-2400 | |
| Bore and stroke [mm x mm] | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 99,0 | 83,0 x 92,0 | 83,0 x 92,0 | |
| Compression ratio | 16,2:1 | 16,2:1 | 16,2:1 | 17,7:1 | 15,5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 205 | 210 | 210 | 220 | 220 | |
| Acceleration 0–100 km/h [s] | 8.8 | 7.9 | 7.9 | 7.5 | 7.3 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 7.1-7.4 | 8.4-8.7 | 7.1-7.4 | 10.3-10.7 | 9.9-10.6 | |
| Out of town [l] | 5.5-5.9 | 5.7-6.0 | 5.5-5.9 | 6.5-7.0 | 6.8-7.1 | |
| Combined [l] | 6.1-6.5 | 6.7-7.0 | 6.1-6.5 | 7.9-8.4 | 8.0-8.4 | |
| CO2 emissions [g/km] | 159-168 | 176-183 | 159-168 | 208-220 | 209-220 | |
| Emission standard | EU5 | EU5 | EU5 | EU4 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1880 | 1845 | 1880 | 1880 | 1880 | |
| Overall weight [kg] | 2450 | 2440 | 2450 | 2500 | 2500 | |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/2000 | 750/2000 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1550 | -/1550 | -/1550 | -/1550 | -/1550 | |
| Boot length [mm] | 890 | 890 | 890 | 890 | 890 | |
| Boot length with rear seats folded [mm] | 1674 | 1674 | 1674 | 1674 | 1674 | |
| Boot width between wheels/max [mm] | -/950 | -/950 | -/950 | -/950 | -/950 | |
| Boot height to headliner/ceiling [mm] | -/840 | -/840 | -/840 | -/840 | -/840 | |
| Loading edge height [mm] | 726 | 726 | 726 | 726 | 726 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | 774 | 774 | 774 | 774 | 774 | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 59 | 59 | 59 | 66 | 66 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.34 | 0.34 | 0.34 | 0.35 | 0.35 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 235/60 R17 | 235/60 R17 102 V | 235/60 R17 | 235/60 R17 102 V | 235/60 R17 102 V | |
| Tyre dimensions rear | 235/60 R17 | 235/60 R17 102 V | 235/60 R17 | 235/60 R17 102 V | 235/60 R17 102 V | |
| Wheel size front | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | |
| Wheel size rear | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | 7.5J x 17 ET47.5 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.5/- | 11.5/- | 11.5/- | 11.5/- | 11.5/- | |
| Overall length [mm] | 4528 | 4528 | 4528 | 4528 | 4528 | |
| Overall width without/including mirrors [mm] | 1840/2016 | 1840/2016 | 1840/2016 | 1840/2016 | 1840/2016 | |
| Overall height [mm] | 1698 | 1689 | 1689 | 1689 | 1689 | |
| Wheelbase [mm] | 2755 | 2755 | 2755 | 2755 | 2755 | |
| Front wheel track [mm] | 1567 | 1567 | 1567 | 1567 | 1567 | |
| Rear wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | |
| Forward overhang [mm] | 813 | 813 | 813 | 813 | 813 | |
| Rear overhang [mm] | 957 | 957 | 957 | 957 | 957 | |
| Clearance [mm] | 144 | 145 | 145 | 144 | 144 | |
| Wading depth [mm] | 300 | 300 | 300 | 300 | 300 | |
| Approach angle front [°] | 23.6 | 23.6 | 23.6 | 23.6 | 23.6 | |
| Approach angle rear [°] | 25.1 | 25.4 | 25.4 | 25.4 | 25.4 | |
| Transition angle [°] | 15.1 | 15.1 | 15.1 | 14.8 | 14.8 | |
| Climbing rate [°] | 70 | 70 | 70 | 70 | 70 | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1010 | 1010 | 1010 | 1010 | 1010 | |
| Headroom rear [mm] | 1012 | 1012 | 1012 | 1012 | 1012 | |
| Front elbow/shoulder width [mm] | 1401/1442 | 1401/1442 | 1401/1442 | 1401/1442 | 1401/1442 | |
| Rear elbow/shoulder width [mm] | 1408/1440 | 1408/1440 | 1408/1440 | 1408/1440 | 1408/1440 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

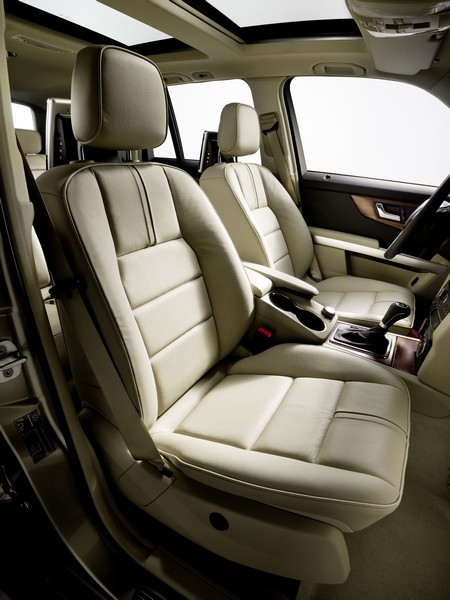

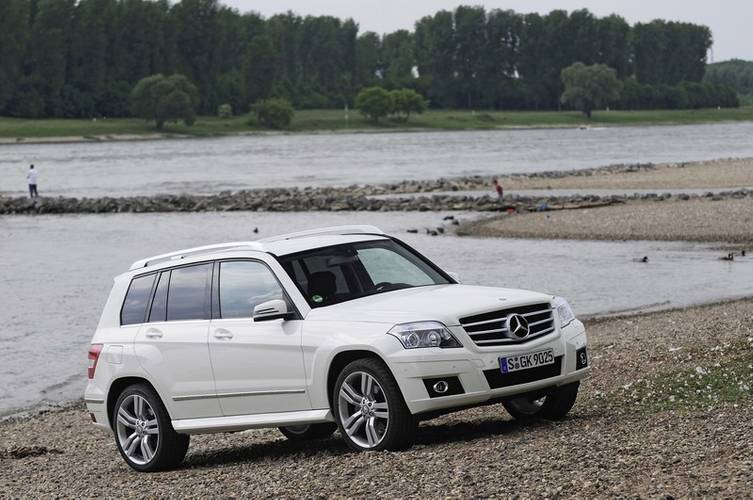

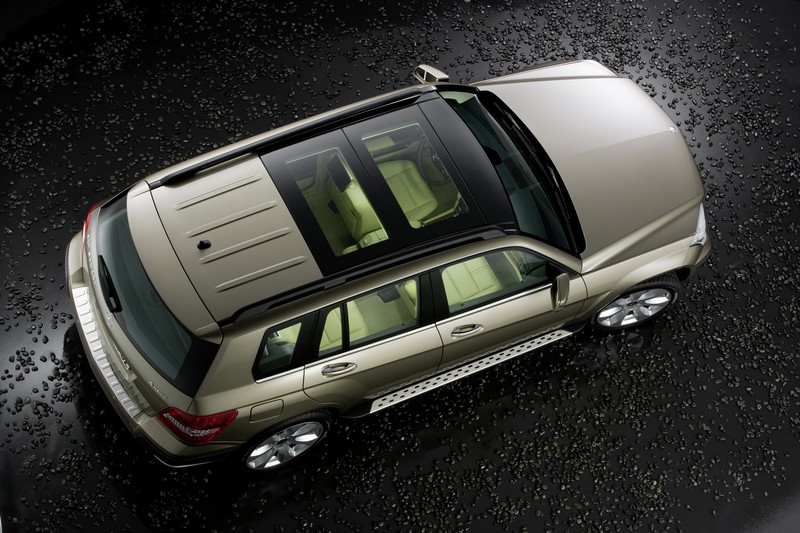

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
