Mercedes-Benz S
Date of manufacture
2009 – 6/2013 (Sedan)
Platform
-
Manufacturing locations
Sindelfingen, Germany
Designer
Gorden Wagener
Tags
F-segment
German cars

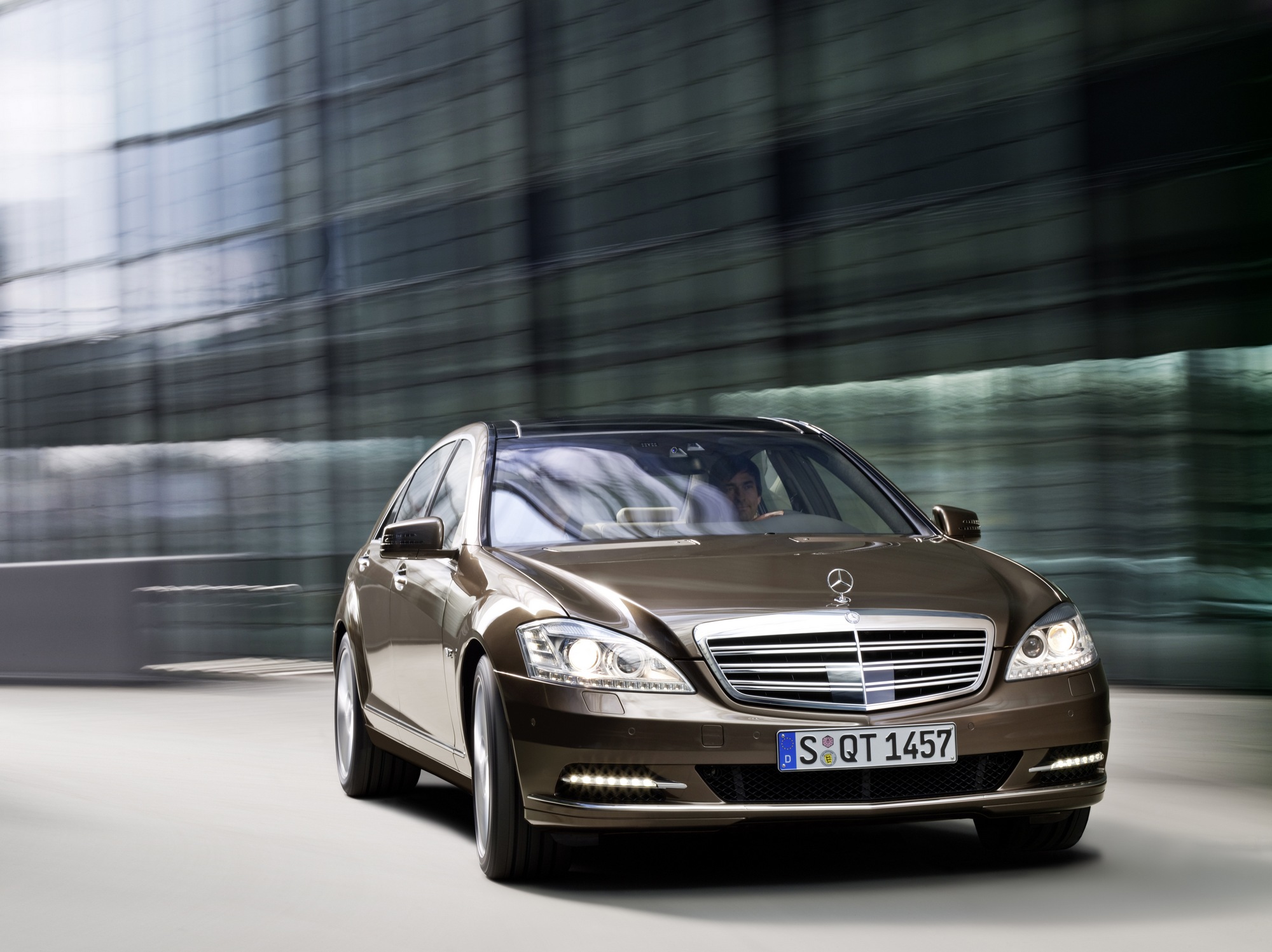

The luxurious Mercedes-Benz S sedan has been available since 2009. It is manufactured in Germany and offers hybrid and plug-in hybrid versions. The engine range includes petrol and diesel engines, the most powerful of which is the S 65 AMG Long with 463 kW, reaching a maximum speed of 250 km/h and the S 63 AMG Performance package with the best acceleration 0-100 km/h in 4.4 seconds. The most economical version is the S 250 CDI BlueEFFICIENCY with a combined consumption of 5.7 l/100 km and CO2 emissions of 149 g/km. The luggage compartment has a volume of 560 l.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
2009 – 6/2013Internal designation
W221Engine size
Petrol
Diesel
Technical data
Sedan
| S 350 | S 350 Long | S 350 4MATIC | S 350 4MATIC Long | S 350 BlueEFFICIENCY | S 350 BlueEFFICIENCY Long | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 3498 | 3498 | 3498 | 3498 | 3498 | 3498 |
| Maximum output / speed [kW/min-1] | 200/6000 | 200/6000 | 200/6000 | 200/6000 | 225/6500 | 225/6500 |
| Maximum torque [Nm/min-1] | 350/2400-5000 | 350/2400-5000 | 350/2400-5000 | 350/2400-5000 | 370/3500-5250 | 370/3500-5250 |
| Bore and stroke [mm x mm] | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 | 92,6 x 86,0 |
| Compression ratio | 10,7:1 | 10,7:1 | 10,7:1 | 10,7:1 | 12,0:1 | 12,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.3 | 7.3 | 7.3 | 7.3 | 6.9 | 7.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 14.6-14.8 | 14.6-14.8 | 14.6-15.0 | 14.7-15.1 | 10.2-10.6 | 10.3-10.7 |
| Out of town [l] | 7.4-7.7 | 7.4-7.7 | 7.8-7.9 | 7.9-8.0 | 6.0-6.3 | 6.1-6.4 |
| Combined [l] | 10.0-10.2 | 10.0-10.2 | 10.2-10.5 | 10.3-10.6 | 7.6-7.9 | 7.7-8.0 |
| CO2 emissions [g/km] | 234-237 | 234-237 | 240-245 | 242-247 | 177-184 | 179-186 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1895 | 1955 | 1955 | 2025 | 1910 | 1955 |
| Overall weight [kg] | 2490 | 2535 | 2555 | 2610 | 2505 | 2535 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 4-5 | 5 | 4-5 | 5 | 4-5 |
| Fuel tank volume [l] | 90 | 90 | 90 | 90 | 83 | 83 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.28 | 0.28 | 0.27 | 0.27 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Tyre dimensions rear | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Wheel size front | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 |
| Wheel size rear | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.80/- | 12.20/- | 11.80/- | 12.20/- | 11.80/- | 12.20/- |
| Overall length [mm] | 5096 | 5226 | 5096 | 5226 | 5096 | 5226 |
| Overall width without/including mirrors [mm] | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 |
| Overall height [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | 1479 |
| Wheelbase [mm] | 3035 | 3165 | 3035 | 3165 | 3035 | 3165 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 1173 | 1173 | 1173 | 1173 | 1173 | 1173 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 961 | 1005 | 961 | 1005 | 961 |
| Headroom rear [mm] | 983 | 977 | 983 | 977 | 983 | 977 |
| Front elbow/shoulder width [mm] | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 |
| Rear elbow/shoulder width [mm] | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S 350 BlueEFFICIENCY 4MATIC | S 350 BlueEFFICIENCY 4MATIC Long | S 450 | S 450 Long | S 450 4MATIC | S 450 4MATIC Long | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 3498 | 3498 | 4663 | 4663 | 4663 | 4663 |
| Maximum output / speed [kW/min-1] | 225/6500 | 225/6500 | 250/6000 | 250/6000 | 250/6000 | 250/6000 |
| Maximum torque [Nm/min-1] | 370/3500-5250 | 370/3500-5250 | 460/2700-5000 | 460/2700-5000 | 460/2700-5000 | 460/2700-5000 |
| Bore and stroke [mm x mm] | 92,6 x 86,0 | 92,6 x 86,0 | 92,9 x 86,0 | 92,9 x 86,0 | 92,9 x 86,0 | 92,9 x 86,0 |
| Compression ratio | 12,0:1 | 12,0:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 6.9 | 7.1 | 5.9 | 5.9 | 5.9 | 5.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.8-10.9 | 10.8-10.9 | 15.9-16.0 | 16.0-16.3 | 16.3-16.4 | 16.3-16.4 |
| Out of town [l] | 6.5-6.7 | 6.5-6.7 | 7.7-7.8 | 7.8-8.0 | 7.9-8.0 | 7.9-8.0 |
| Combined [l] | 8.1-8.3 | 8.1-8.3 | 10.6-10.7 | 10.7-11.0 | 11.0-11.1 | 11.0-11.1 |
| CO2 emissions [g/km] | 189-193 | 189-193 | 249-251 | 251-257 | 256-258 | 256-258 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1980 | 2045 | 1955 | 2015 | 2030 | 2075 |
| Overall weight [kg] | 2580 | 2630 | 2560 | 2595 | 2640 | 2660 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 4-5 | 5 | 4-5 | 5 | 4-5 |
| Fuel tank volume [l] | 83 | 83 | 90 | 90 | 90 | 90 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | - | - | - | - |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/55 R17 | 235/55 R17 | 255/45 R18 | 255/45 R18 | 255/45 R18 | 255/45 R18 |
| Tyre dimensions rear | 235/55 R17 | 235/55 R17 | 255/45 R18 | 255/45 R18 | 255/45 R18 | 255/45 R18 |
| Wheel size front | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 |
| Wheel size rear | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.80/- | 12.20/- | 11.80/- | 12.20/- | 11.80/- | 12.20/- |
| Overall length [mm] | 5096 | 5226 | 5096 | 5226 | 5096 | 5226 |
| Overall width without/including mirrors [mm] | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 |
| Overall height [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | 1479 |
| Wheelbase [mm] | 3035 | 3165 | 3035 | 3165 | 3035 | 3165 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 1173 | 1173 | 1173 | 1173 | 1173 | 1173 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 961 | 1005 | 961 | 1005 | 961 |
| Headroom rear [mm] | 983 | 977 | 983 | 977 | 983 | 977 |
| Front elbow/shoulder width [mm] | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 |
| Rear elbow/shoulder width [mm] | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S 500 | S 500 Long | S 500 4MATIC | S 500 4MATIC Long | E 500 BlueEFFICIENCY | E 500 BlueEFFICIENCY Long | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 8/32 | 8/32 | 8/32 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 5461 | 5461 | 5461 | 5461 | 4663 | 4663 |
| Maximum output / speed [kW/min-1] | 285/6000 | 285/6000 | 285/6000 | 285/6000 | 320/5250 | 320/5250 |
| Maximum torque [Nm/min-1] | 530/2800-4800 | 530/2800-4800 | 530/2800-4800 | 530/2800-4800 | 700/1800-3500 | 600/1600-4750 |
| Bore and stroke [mm x mm] | 98,0 x 90,5 | 98,0 x 90,5 | 98,0 x 90,5 | 98,0 x 90,5 | 92,9 x 86,0 | 700/1800-3500 |
| Compression ratio | 10,7:1 | 10,7:1 | 10,7:1 | 10,7:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.4 | 5.4 | 5.4 | 5.4 | 5.0 | 5.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 16.5-16.7 | 16.6-16.8 | 16.8-16.9 | 16.8-16.9 | 12.9-13.4 | 12.9-13.4 |
| Out of town [l] | 7.9-8.1 | 8.0-8.2 | 8.1-8.2 | 8.1-8.2 | 7.3-7.4 | 7.3-7.4 |
| Combined [l] | 11.0-11.2 | 11.1-11.3 | 11.3-11.4 | 11.3-11.4 | 9.4-9.6 | 9.4-9.6 |
| CO2 emissions [g/km] | 258-262 | 260-264 | 264-266 | 264-266 | 219-224 | 219-224 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1955 | 2015 | 2030 | 2075 | 2010 | 2075 |
| Overall weight [kg] | 2560 | 2595 | 2640 | 2660 | 2615 | 2655 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 4-5 | 5 | 4-5 | 5 | 4-5 |
| Fuel tank volume [l] | 90 | 90 | 90 | 90 | 83 | 83 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | 0.27 | 0.28 | 0.28 | 0.27 | 0.27 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 255/45 R18 | 255/45 R18 | 255/45 R18 | 255/45 R18 | 255/45 R18 | 255/45 R18 |
| Tyre dimensions rear | 255/45 R18 | 255/45 R18 | 255/45 R18 | 255/45 R18 | 255/45 R18 | 255/45 R18 |
| Wheel size front | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 |
| Wheel size rear | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.80/- | 12.20/- | 11.80/- | 12.20/- | 11.80/- | 12.20/- |
| Overall length [mm] | 5096 | 5226 | 5096 | 5226 | 5096 | 5226 |
| Overall width without/including mirrors [mm] | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 |
| Overall height [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | 1479 |
| Wheelbase [mm] | 3035 | 3165 | 3035 | 3165 | 3035 | 3165 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 1173 | 1173 | 1173 | 1173 | 1173 | 1173 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 961 | 1005 | 961 | 1005 | 961 |
| Headroom rear [mm] | 983 | 977 | 983 | 977 | 983 | 977 |
| Front elbow/shoulder width [mm] | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 |
| Rear elbow/shoulder width [mm] | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| E 500 BlueEFFICIENCY 4MATIC | E 500 BlueEFFICIENCY 4MATIC Long | S 600 Long | S 63 AMG | S 63 AMG Long | S 63 AMG | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 8/32 | 8/32 | 12/36 | 8/32 | 8/32 | 8/32 |
| Engine displacement [cm³] | 4663 | 4663 | 5513 | 6208 | 6208 | 5461 |
| Maximum output / speed [kW/min-1] | 320/5250 | 320/5250 | 380/5000 | 386/6800 | 386/6800 | 400/5250-5750 |
| Maximum torque [Nm/min-1] | 700/1800-3500 | 600/1600-4750 | 830/1800-3500 | 630/5200 | 630/5200 | 800/2000-4500 |
| Bore and stroke [mm x mm] | 92,9 x 86,0 | 700/1800-3500 | 82,0 x 87,0 | 102,2 x 94,6 | 102,2 x 94,6 | 98,0 x 90,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 9,0:1 | 11,3:1 | 11,3:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 5 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5.0 | 5.0 | 4.6 | 4.6 | 4.6 | 4.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 13.8 | 13.9 | 21.5-21.7 | 22.2 | 22.4 | 14.4 |
| Out of town [l] | 7.5-7.6 | 7.6-7.7 | 9.7-10.0 | 9.9 | 10.0 | 8.2 |
| Combined [l] | 9.8 | 9.9 | 14.1-14.3 | 14.4 | 14.5 | 10.5 |
| CO2 emissions [g/km] | 228-229 | 230-231 | 329-340 | 344 | 347 | 244 |
| Emission standard | EU5 | EU5 | EU4-EU5 | EU4 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2075 | 2140 | 2210 | 2070 | 2140 | 2120 |
| Overall weight [kg] | 2685 | 2715 | 2690 | 2610 | 2640 | 2670 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 550 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 4-5 | 4-5 | 5 | 4-5 | 5 |
| Fuel tank volume [l] | 83 | 83 | 90 | 90 | 90 | 90 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | - | - | - |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 255/45 R18 | 255/45 R18 | 255/45 R18 | 255/40 ZR19 | 255/40 ZR19 | 255/40 ZR 19 |
| Tyre dimensions rear | 255/45 R18 | 255/45 R18 | 275/45 R18 | 275/40 ZR19 | 275/40 ZR19 | 275/40 ZR 19 |
| Wheel size front | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.5J x 19 ET43 | 8.5J x 19 ET43 | 8.5J x 19 ET43 |
| Wheel size rear | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 9.5J x 18 ET43 | 9.5J x 19 ET43 | 9.5J x 19 ET43 | 9.5J x 19 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.80/- | 12.20/- | 12.20/- | 11.80/- | 12.20/- | 11.82/- |
| Overall length [mm] | 5096 | 5226 | 5226 | 5122 | 5252 | 5122 |
| Overall width without/including mirrors [mm] | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 |
| Overall height [mm] | 1479 | 1479 | 1479 | 1476 | 1476 | 1488 |
| Wheelbase [mm] | 3035 | 3165 | 3165 | 3035 | 3165 | 3035 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1604 | 1604 | 1600 |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 1173 | 1173 | 1173 | 1173 | 1173 | 1173 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 961 | 961 | 1005 | 961 | 1005 |
| Headroom rear [mm] | 983 | 977 | 977 | 983 | 977 | 983 |
| Front elbow/shoulder width [mm] | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 |
| Rear elbow/shoulder width [mm] | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S 63 AMG Long | S 63 AMG Performance package | S 63 AMG Long Performance package | S 65 AMG Long | S 65 AMG Long | S 400 HYBRID | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol |
| Number of cylinders/valves | 8/32 | 8/32 | 8/32 | 12/36 | 12/36 | 6/24 |
| Engine displacement [cm³] | 5461 | 5461 | 5461 | 5980 | 5980 | 3498 |
| Maximum output / speed [kW/min-1] | 400/5250-5750 | 420/5550 | 420/5550 | 450/4800-5100 | 463/4600-5000 | 205/6000 combustion 15 el. 220 total |
| Maximum torque [Nm/min-1] | 800/2000-4500 | 900/2500-3750 | 900/2500-3750 | 1000/2000-4000 | 1000/2300-4300 | 350/3000-5500 combustion 160 el. 385 total |
| Bore and stroke [mm x mm] | 98,0 x 90,5 | 98,0 x 90,5 | 98,0 x 90,5 | 82,6 x 93,0 | 82,6 x 93,0 | 92,6 x 86,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 9,0:1 | 9,0:1 | 11,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 5 gear automatic | 5 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 4.5 | 4.4 | 4.4 | 4.4 | 4.4 | 7.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 14.4 | 14.4 | 14.4 | 21.9 | 21.8 | 10.7-10.9 |
| Out of town [l] | 8.2 | 8.2 | 8.2 | 10.2 | 9.9 | 6.3-6.5 |
| Combined [l] | 10.5 | 10.5 | 10.5 | 14.5 | 14.3 | 7.9-8.1 |
| CO2 emissions [g/km] | 244 | 244 | 244 | 346 | 344 | 186-189 |
| Emission standard | EU5 | EU5 | EU5 | EU4 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | - | - | Lithium-Ionen-Akkumulator, - kWh |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2170 | 2120 | 2170 | 2270 | 2275 | 1955 |
| Overall weight [kg] | 2695 | 2670 | 2695 | 2705 | 2710 | 2550 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 550 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4-5 | 5 | 4-5 | 4-5 | 4-5 | 5 |
| Fuel tank volume [l] | 90 | 90 | 90 | 90 | 90 | 90 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | 0.3 | 0.27 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 255/40 ZR19 | 255/40 ZR19 | 255/40 ZR19 | 255/35 ZR20 | 255/35 ZR20 | 235/55 R17 |
| Tyre dimensions rear | 275/40 ZR19 | 275/40 ZR19 | 275/40 ZR19 | 275/35 ZR20 | 275/35 ZR20 | 235/55 R17 |
| Wheel size front | 8.5J x 19 ET43 | 8.5J x 19 ET43 | 8.5J x 19 ET43 | 8.5J x 20 ET43 | 8.5J x 20 ET43 | 8.0J x 17 ET43 |
| Wheel size rear | 9.5J x 19 ET43 | 9.5J x 19 ET43 | 9.5J x 19 ET43 | 9.5J x 20 ET43 | 9.5J x 20 ET43 | 8.0J x 17 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.22/- | 11.82/- | 12.22/- | 12.20/- | 12.22/- | 11.80/- |
| Overall length [mm] | 5252 | 5122 | 5252 | 5252 | 5252 | 5096 |
| Overall width without/including mirrors [mm] | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 |
| Overall height [mm] | 1488 | 1488 | 1488 | 1478 | 1478 | 1479 |
| Wheelbase [mm] | 3165 | 3035 | 3165 | 3165 | 3165 | 3035 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1604 | 1604 | 1600 |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 1173 | 1173 | 1173 | 1173 | 1173 | 1173 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 961 | 1005 | 961 | 961 | 961 | 1005 |
| Headroom rear [mm] | 977 | 983 | 977 | 977 | 977 | 983 |
| Front elbow/shoulder width [mm] | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 |
| Rear elbow/shoulder width [mm] | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S 400 HYBRID Long | S 450 CDI | S 450 CDI Long | S 250 CDI BlueEFFICIENCY | S 250 CDI BlueEFFICIENCY Long | S 350 CDI BlueEFFICIENCY | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 8/32 | 8/32 | 4/16 | 4/16 | 6/24 |
| Engine displacement [cm³] | 3498 | 3996 | 3996 | 2143 | 2143 | 2987 |
| Maximum output / speed [kW/min-1] | 205/6000 combustion 15 el. 220 total | 235/3600 | 235/3600 | 150/3800 | 150/3800 | 173/3600 |
| Maximum torque [Nm/min-1] | 350/3000-5500 combustion 160 el. 385 total | 730/2200 | 730/2200 | 500/1600-1800 | 500/1600-1800 | 540/1600-2400 |
| Bore and stroke [mm x mm] | 92,6 x 86,0 | 86,0 x 86,0 | 86,0 x 86,0 | 83,9 x 99,0 | 83,9 x 99,0 | 83,0 x 92,0 |
| Compression ratio | 11,7:1 | 16,7:1 | 16,7:1 | 16,2:1 | 16,2:1 | 17,7:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 240 | 240 | 250 |
| Acceleration 0–100 km/h [s] | 7.2 | 6.6 | 6.6 | 8.2 | 8.2 | 7.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.8-11.0 | 13.0-13.2 | 13.0-13.2 | 7.0-7.1 | 7.0-7.1 | 10.4-10.6 |
| Out of town [l] | 6.4-6.6 | 6.9-7.1 | 6.9-7.1 | 5.0 | 5.0 | 5.9 |
| Combined [l] | 8.0-8.2 | 9.1-9.3 | 9.1-9.3 | 5.7-5.8 | 5.7-5.8 | 7.6 |
| CO2 emissions [g/km] | 188-191 | 240-245 | 240-245 | 149-151 | 149-151 | 199-201 |
| Emission standard | EU5 | EU4 | EU4 | EU5 | EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, - kWh | - | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2020 | 2090 | 2150 | 1970 | 2045 | 1955 |
| Overall weight [kg] | 2600 | 2690 | 2700 | 2565 | 2625 | 2550 |
| Maximum trailer weight unbraked/braked [kg] | - | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4-5 | 5 | 4-5 | 5 | 4-5 | 5 |
| Fuel tank volume [l] | 90 | 90 | 90 | 83 | 83 | 90 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.27 | - | - | 0.26 | 0.26 | - |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/55 R17 | 255/45 R18 | 255/45 R18 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Tyre dimensions rear | 235/55 R17 | 255/45 R18 | 255/45 R18 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Wheel size front | 8.0J x 17 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 |
| Wheel size rear | 8.0J x 17 ET43 | 8.5J x 18 ET43 | 8.5J x 18 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.20/- | 11.80/- | 12.20/- | 11.80/- | 12.20/- | 11.80/- |
| Overall length [mm] | 5226 | 5096 | 5226 | 5096 | 5226 | 5096 |
| Overall width without/including mirrors [mm] | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 |
| Overall height [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | 1479 |
| Wheelbase [mm] | 3165 | 3035 | 3165 | 3035 | 3165 | 3035 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 1173 | 1173 | 1173 | 1173 | 1173 | 1173 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 961 | 1005 | 961 | 1005 | 961 | 1005 |
| Headroom rear [mm] | 977 | 983 | 977 | 983 | 977 | 983 |
| Front elbow/shoulder width [mm] | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 |
| Rear elbow/shoulder width [mm] | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S 350 CDI BlueEFFICIENCY Long | S 350 CDI 4MATIC BlueEFFICIENCY | S 350 CDI 4MATIC BlueEFFICIENCY Long | S 350 BlueTEC | S 350 BlueTEC | S 350 BlueTEC 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2987 | 2987 | 2987 | 2987 | 2987 | 2987 |
| Maximum output / speed [kW/min-1] | 173/3600 | 173/3600 | 173/3600 | 190/3600 | 190/3600 | 190/3600 |
| Maximum torque [Nm/min-1] | 540/1600-2400 | 540/1600-2400 | 540/1600-2400 | 620/1600-2400 | 620/1600-2400 | 620/1600-2400 |
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 |
| Compression ratio | 17,7:1 | 17,7:1 | 17,7:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | 4x4 | Rear | Rear | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 245 | 245 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 7.8 | 7.8 | 7.8 | 7.1 | 7.1 | 7.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.5-10.7 | 10.7-10.9 | 10.7-10.9 | 7.7-7.9 | 7.7-7.9 | 9.9-10.1 |
| Out of town [l] | 6.0 | 6.2-6.3 | 6.2-6.3 | 5.4-5.6 | 5.4-5.6 | 5.8-5.9 |
| Combined [l] | 7.7 | 7.8-8.0 | 7.8-8.0 | 6.2-6.4 | 6.2-6.4 | 7.3-7.4 |
| CO2 emissions [g/km] | 202-204 | 207-211 | 207-211 | 164-168 | 164-168 | 193-195 |
| Emission standard | EU4 | EU4 | EU4 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2005 | 2030 | 2070 | 1995 | 2060 | 2065 |
| Overall weight [kg] | 2585 | 2630 | 2655 | 2590 | 2640 | 2660 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4-5 | 5 | 4-5 | 5 | 4-5 | 5 |
| Fuel tank volume [l] | 90 | 90 | 90 | 83 | 83 | 83 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | 0.26 | 0.26 | 0.27 |
| Front suspension | four-link | four-link | four-link | four-link | four-link | four-link |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/55 R 17 | 235/55 R 17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Tyre dimensions rear | 235/55 R 17 | 235/55 R 17 | 235/55 R17 | 235/55 R17 | 235/55 R17 | 235/55 R17 |
| Wheel size front | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 |
| Wheel size rear | 8.0J x 17 ET 43 | 8.0J x 17 ET 43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 | 8.0J x 17 ET43 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.20/- | 11.80/- | 12.20/- | 11.80/- | 12.20/- | 11.80/- |
| Overall length [mm] | 5226 | 5096 | 5226 | 5096 | 5226 | 5096 |
| Overall width without/including mirrors [mm] | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 | 1871/2120 |
| Overall height [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | 1479 |
| Wheelbase [mm] | 3165 | 3035 | 3165 | 3035 | 3165 | 3035 |
| Front wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Rear wheel track [mm] | 1606 | 1606 | 1606 | 1606 | 1606 | 1606 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 1173 | 1173 | 1173 | 1173 | 1173 | 1173 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 961 | 1005 | 961 | 1005 | 961 | 1005 |
| Headroom rear [mm] | 977 | 983 | 977 | 983 | 977 | 983 |
| Front elbow/shoulder width [mm] | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 | 1502/1545 |
| Rear elbow/shoulder width [mm] | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 | 1490/1548 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| S 350 BlueTEC 4MATIC | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2987 | |||||
| Maximum output / speed [kW/min-1] | 190/3600 | |||||
| Maximum torque [Nm/min-1] | 620/1600-2400 | |||||
| Bore and stroke [mm x mm] | 83,0 x 92,0 | |||||
| Compression ratio | 15,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 7 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 7.1 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 9.9-10.1 | |||||
| Out of town [l] | 5.8-5.9 | |||||
| Combined [l] | 7.3-7.4 | |||||
| CO2 emissions [g/km] | 193-195 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 2130 | |||||
| Overall weight [kg] | 2710 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 100/- | |||||
| Boot volume [l] | 560 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 4-5 | |||||
| Fuel tank volume [l] | 83 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.27 | |||||
| Front suspension | four-link | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 235/55 R17 | |||||
| Tyre dimensions rear | 235/55 R17 | |||||
| Wheel size front | 8.0J x 17 ET43 | |||||
| Wheel size rear | 8.0J x 17 ET43 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 12.20/- | |||||
| Overall length [mm] | 5226 | |||||
| Overall width without/including mirrors [mm] | 1871/2120 | |||||
| Overall height [mm] | 1479 | |||||
| Wheelbase [mm] | 3165 | |||||
| Front wheel track [mm] | 1600 | |||||
| Rear wheel track [mm] | 1606 | |||||
| Forward overhang [mm] | 888 | |||||
| Rear overhang [mm] | 1173 | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 961 | |||||
| Headroom rear [mm] | 977 | |||||
| Front elbow/shoulder width [mm] | 1502/1545 | |||||
| Rear elbow/shoulder width [mm] | 1490/1548 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
