Mercedes-Benz S
Date of manufacture
4/2017 – 2020 (Sedan)
2017 – 2021 (Coupé)
2017 – 2021 (Convertible)
Platform
-
Manufacturing locations
Sindelfingen, Germany
Pune, India
Samut Prakan, Thailand
Designer
Il-hun Yoon
Robert Lešnik
Tags
F-segment
German cars
Since 2017, the Mercedes-Benz S has been produced in three body variants - sedan, coupe and cabriolet. Production has been expanded to Germany, India and Thailand. The car offers plug-in hybrid, gasoline, diesel and hybrid engines. The most powerful version of the S 65 AMG has 463 kW and the fastest model of the S 65 AMG can reach a speed of 250 km/h. The best acceleration from 0-100 km/h in 3.5 seconds is provided by the long version and the most comfortable ride is provided by the long version with a combined fuel consumption of 2.6 l/100 km and CO2 emissions of 59 g/km. The size of the luggage compartment of the sedan model is 510 l, 400 l for the coupe and 350 l for the cabriolet.
Car body style

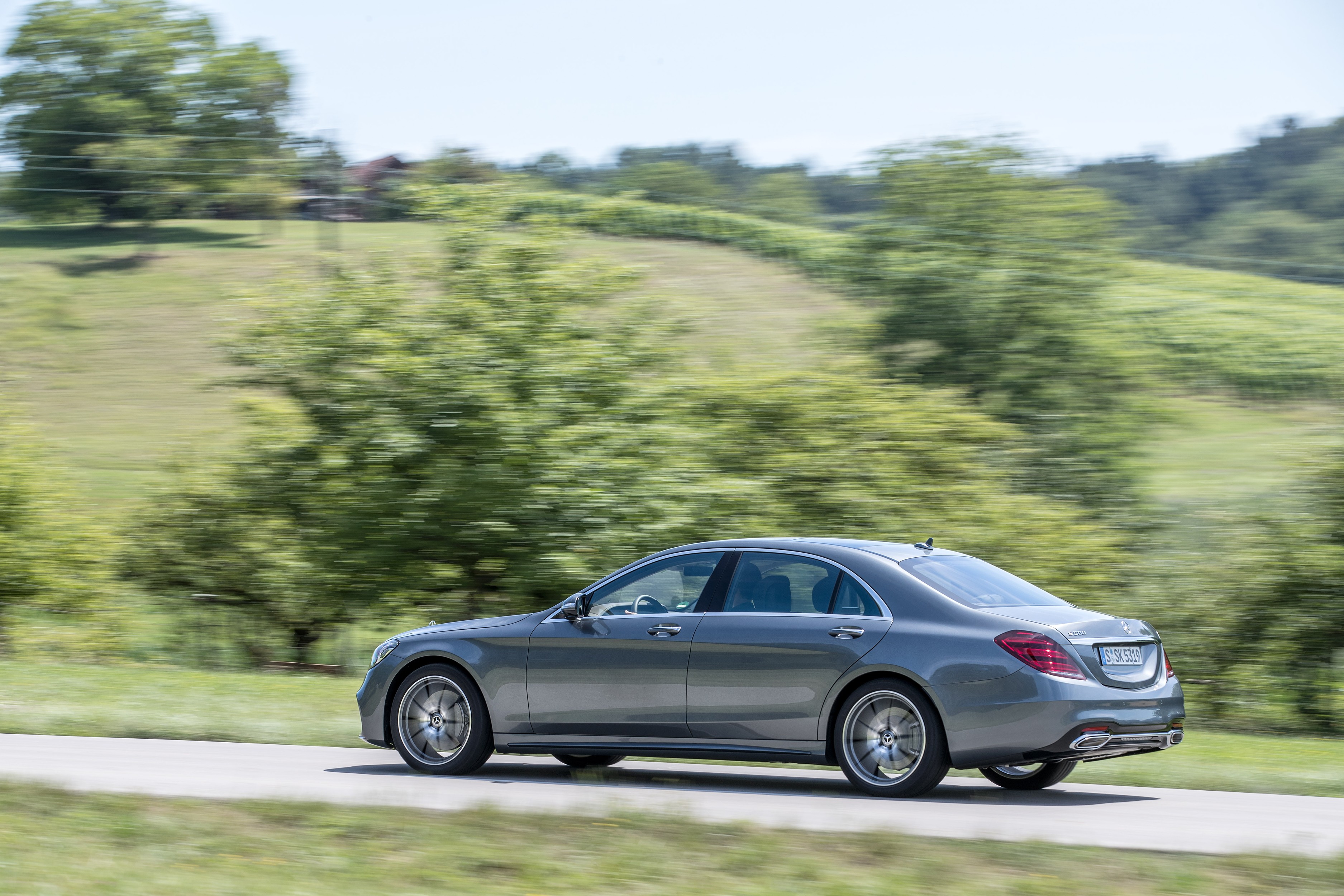

Sedan
after upgrade (facelift)
Date of manufacture
4/2017 – 2020Internal designation
V222Coupé
after upgrade (facelift)
Date of manufacture
2017 – 2021Internal designation

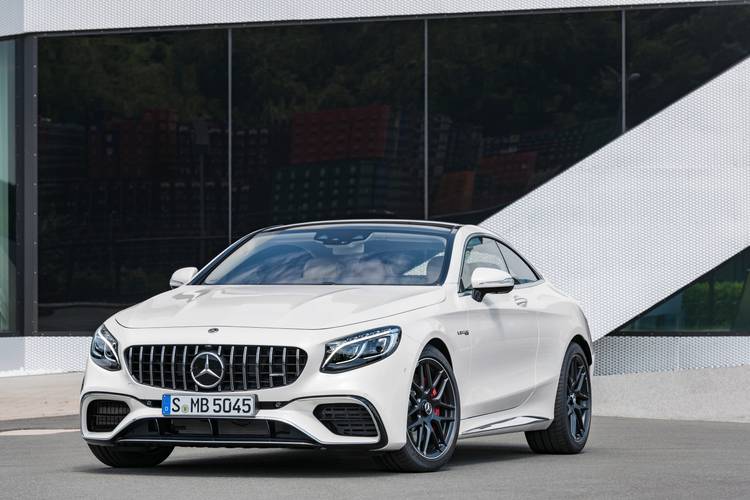

C217Convertible
after upgrade (facelift)
Date of manufacture
2017 – 2021Internal designation
A217Engine size
Technical data
Sedan
| S 450 | S 450 4MATIC | S 500 | S 560 | S 560 4MATIC | long | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 | 6/24 |
| Engine displacement [cm³] | 2999 | 2999 | 2999 | 3982 | 3982 | 2999 |
| Maximum output / speed [kW/min-1] | 270/5500-6100 16 el. | 270/5500-6100 16 el. | 320/5900-6100 16 el. | 345/5250-5500 | 345/5250-5500 | 270/5500-6100 16 el. |
| Maximum torque [Nm/min-1] | 500/1600-4500 250 el. | 500/1600-4500 250 el. | 520/1800-5500 250 el. | 700/2000-4000 | 700/2000-4000 | 500/1600-4500 250 el. |
| Bore and stroke [mm x mm] | 83.0 x 92.0 | 83.0 x 92.0 | 83.0 x 92.0 | 83,0 x 92,0 | 83,0 x 92,0 | 83.0 x 92.0 |
| Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | Rear | 4x4 | Rear |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5,1 | 4,9 | 4,8 | 4,7 | 4,6 | 5,1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9,9-9,6 | 11,0-10,8 | 9,9-9,6 | 14,2-13,7 | 14,2-13,2 | 9,9-9,6 |
| Out of town [l] | 6,1-5,9 | 6,7-6,5 | 6,1-5,9 | 7,5-6,9 | 7,8-7,6 | 6,1-5,9 |
| Combined [l] | 7,5-7,3 | 8,3-8,1 | 7,5-7,3 | 9,8-9,5 | 10,1-9,8 | 7,5-7,3 |
| CO2 emissions [g/km] | 171-166 | 189-184 | 171-166 | 223-217 | 231-225 | 171-166 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | 48 | 48 | - | - | 48 |
| Battery type and capacity | - | - | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1997 | 2057 | 2010 | 2060 | 2105 | 2017 |
| Overall weight [kg] | 2667 | 2727 | 2675 | 2755 | 2765 | 2702 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 510 | 510 | 510 | 530 | 530 | 510 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1803 | 1803 | 1803 | 1803 | 1803 | 1803 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 80 | 80 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 |
| Tyre dimensions rear | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 |
| Wheel size front | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 |
| Wheel size rear | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 5125 | 5125 | 5125 | 5125 | 5125 | 5255 |
| Overall width without/including mirrors [mm] | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 |
| Overall height [mm] | 1496 | 1496 | 1496 | 1496 | 1496 | 1494 |
| Wheelbase [mm] | 3035 | 3035 | 3035 | 3035 | 3035 | 3165 |
| Front wheel track [mm] | 1624 | 1624 | 1624 | 1624 | 1624 | 1624 |
| Rear wheel track [mm] | 1637 | 1637 | 1637 | 1637 | 1637 | 1637 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 1193 | 1193 | 1193 | 1193 | 1193 | 1193 |
| Clearance [mm] | 130 | 130 | 130 | 130 | 130 | 128 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| Approach angle rear [°] | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 |
| Transition angle [°] | 11.3 | 11.3 | 11.3 | 11.3 | 11.3 | 11.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1069 | 1069 | 1069 | 1069 | 1069 | 1069 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 |
| Rear elbow/shoulder width [mm] | 1501/1561 | 1501/1561 | 1501/1561 | 1501/1561 | 1501/1561 | 1501/1561 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| long | long | long | long | long | long | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | 12/36 | 8/32 |
| Engine displacement [cm³] | 2999 | 2999 | 3982 | 3982 | 5980 | 3982 |
| Maximum output / speed [kW/min-1] | 270/5500-6100 16 el. | 320/5900-6100 16 el. | 345/5250-5500 | 345/5250-5500 | 390/4900-5300 | 450/5500-6000 |
| Maximum torque [Nm/min-1] | 500/1600-4500 250 el. | 520/1800-5500 250 el. | 700/2000-4000 | 700/2000-4000 | 830/1900-4000 | 900/2750-4500 |
| Bore and stroke [mm x mm] | 83.0 x 92.0 | 83.0 x 92.0 | 83,0 x 92,0 | 83,0 x 92,0 | 82,6 x 93,0 | 83,0 x 92,0 |
| Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 10.5:1 | 9,0:1 | 8.6:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | Rear | 4x4 | Rear | 4x4 |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 4,9 | 4,8 | 4,7 | 4,6 | 4,6 | 3,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11,0-10,8 | 9,9-9,6 | 14,2-13,7 | 14,1-13,2 | 19,7 | 16,0 |
| Out of town [l] | 6,7-6,5 | 6,1-5,9 | 7,5-6,9 | 7,8-7,6 | 10,7 | 8,6 |
| Combined [l] | 8,3-8,1 | 7,5-7,3 | 9,8-9,5 | 10,1-9,8 | 14,0 | 11,2 |
| CO2 emissions [g/km] | 189-184 | 171-166 | 223-217 | 231-225 | 320 | 255 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | 48 | 48 | - | - | - | - |
| Battery type and capacity | - | - | - | - | - | - |
| Range with fully charged battery [km] | - | - | - | - | - | - |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2077 | 2031 | 2086 | 2126 | 2234 | 2103 |
| Overall weight [kg] | 2762 | 2696 | 2801 | 2806 | 2789 | 2778 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 510 | 510 | 530 | 530 | 500 | 510 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1803 | 1803 | 1803 | 1803 | 1803 | 1803 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 |
| Fuel tank volume [l] | 70 | 70 | 80 | 80 | 80 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/45 R19 | 255/45 R19 |
| Tyre dimensions rear | 245/50 R18 | 245/50 R18 | 245/50 R18 | 245/50 R18 | 275/40 R19 | 285/40 R19 |
| Wheel size front | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8,5J x 19 ET36 | 8.5J x 19 ET39 |
| Wheel size rear | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 9,5J x 19 ET43,5 | 9.5J x 19 ET39 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 5255 | 5255 | 5255 | 5255 | 5255 | 5255 |
| Overall width without/including mirrors [mm] | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 |
| Overall height [mm] | 1494 | 1494 | 1494 | 1494 | 1494 | 1494 |
| Wheelbase [mm] | 3165 | 3165 | 3165 | 3165 | 3165 | 3165 |
| Front wheel track [mm] | 1624 | 1624 | 1624 | 1624 | 1624 | 1624 |
| Rear wheel track [mm] | 1637 | 1637 | 1637 | 1637 | 1637 | 1637 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 1193 | 1193 | 1193 | 1193 | 1193 | 1193 |
| Clearance [mm] | 128 | 128 | 128 | 128 | 128 | 128 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| Approach angle rear [°] | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 |
| Transition angle [°] | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1069 | 1069 | 1069 | 1069 | 1069 | 1069 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 |
| Rear elbow/shoulder width [mm] | 1501/1561 | 1501/1561 | 1501/1561 | 1501/1561 | 1501/1561 | 1501/1561 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| long | Mercedes-Maybach S 560 | Mercedes-Maybach S 560 4MATIC | Mercedes-Maybach S 65 AMG | long | S 350d | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2019 | - | - | from to 2019 | from 2018 to | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 12/36 | 8/32 | 8/32 | 12/36 | 6/24 | 6/24 |
| Engine displacement [cm³] | 5980 | 3982 | 3982 | 5980 | 2996 | 2925 |
| Maximum output / speed [kW/min-1] | 463/4800-5400 | 345/5250-5500 | 345/5250-5500 | 463/4800-5400 | 270/5500-6000 combustion 90 el. 350 total | 210/3400-4600 |
| Maximum torque [Nm/min-1] | 1000/2300-4300 | 700/2000-4000 | 700/2000-4000 | 1000/2300-4300 | 500/1800-4500 combustion 440/0-2000 el. 700 total | 600/1200-3200 |
| Bore and stroke [mm x mm] | 82,6 x 93,0 | 83,0 x 92,0 | 83,0 x 92,0 | 82,6 x 93,0 | 88,0 x 82,1 | 82.0 x 92.3 |
| Compression ratio | 9,0:1 | 10.5:1 | 10.5:1 | 9,0:1 | 10,5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | Rear | Rear | Rear |
| Gearbox | 7 gear automatic | 9 gear automatic | 9 gear automatic | 7 gear automatic | 9 gear automatic | 9 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 [130 el.] | 250 |
| Acceleration 0–100 km/h [s] | 4.2 | 4,9 | 4,9 | 4,7 | 5,0 | 6,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 19.9 | 14,4-13,5 | 14,6 | 27,2-19,7 | - | 7,6-7,5 |
| Out of town [l] | 10.9 | 8,1-7,6 | 7,6 | 13,3-10,4 | - | 5,1-4,9 |
| Combined [l] | 14.2 | 10,1 | 10,2 | 18,4-14,0 | 2,6-2,5 [15.5 kWh] | 6,0-5,9 |
| CO2 emissions [g/km] | 325 | 231-230 | 234 | 421-320 | 59-57 | 160-156 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | - | Lithium-Ionen-Akkumulator, 13.5 kWh | - |
| Range with fully charged battery [km] | - | - | - | - | 50 | - |
| Charging time | - | - | - | - |
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2250 | 2251 | 2301 | 2359 | 2227 | 2008 |
| Overall weight [kg] | 2750 | 2816 | 2821 | 2819 | 2827 | 2708 |
| Maximum trailer weight unbraked/braked [kg] | - | 750/2100 | 750/2100 | 750/2100 | - | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 510 | 500 | 500 | 500 | 395 | 510 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1803 | 1806 | 1806 | 1806 | 1803 | 1803 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 63 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | 25 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 255/40 R20 | 245/45 R19 | 245/45 R19 | 245/45 R19 | 245/50 R18 | 245/55 R17 |
| Tyre dimensions rear | 285/35 R20 | 275/40 R19 | 275/40 R19 | 275/40 R19 | 275/45 R18 | 245/55 R17 |
| Wheel size front | 8,5J x 20 ET39 | 8.5J x 19 ET36 | 8.5J x 19 ET36 | 8.5J x 19 ET36 | 8.0J x 18 ET41 | 8.0J x 17 ET41 |
| Wheel size rear | 9,5J x 20 ET39 | 9.5J x 19 ET43,5 | 9.5J x 19 ET43,5 | 9.5J x 19 ET43,5 | 9.5J x 18 ET43,5 | 8.0J x 17 ET41 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 5255 | 5462 | 5462 | 5462 | 5255 | 5125 |
| Overall width without/including mirrors [mm] | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 |
| Overall height [mm] | 1494 | 1498 | 1498 | 1498 | 1494 | 1496 |
| Wheelbase [mm] | 3165 | 3365 | 3365 | 3365 | 3165 | 3035 |
| Front wheel track [mm] | 1624 | - | - | - | 1624 | 1624 |
| Rear wheel track [mm] | 1637 | - | - | - | 1637 | 1637 |
| Forward overhang [mm] | 888 | 897 | 897 | 897 | 888 | 888 |
| Rear overhang [mm] | 1193 | 1200 | 1200 | 1200 | 1193 | 1193 |
| Clearance [mm] | 128 | 131 | 131 | 131 | 128 | 130 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.8 | 14.7 | 14.7 | 14.7 | 14.8 | 14.8 |
| Approach angle rear [°] | 15.8 | 16.0 | 16.0 | 16.0 | 15.8 | 15.8 |
| Transition angle [°] | 11.0 | 10.3 | 10.3 | 10.3 | 11.0 | 11.3 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1069 | - | - | - | 1069 | 1069 |
| Headroom rear [mm] | 995 | - | - | - | 995 | 995 |
| Front elbow/shoulder width [mm] | 1516/1554 | - | - | - | 1516/1554 | 1516/1554 |
| Rear elbow/shoulder width [mm] | 1501/1561 | - | - | - | 1501/1561 | 1501/1561 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | - | - | - | - | 988 | - |
| Third row elbow/shoulder width [mm] | - | - | - | - | 1282/1295 | - |
| S 350d 4MATIC | S 400d | S 400d 4MATIC | long | long | long | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2925 | 2925 | 2925 | 2925 | 2925 | 2925 |
| Maximum output / speed [kW/min-1] | 210/3400-4600 | 250/3600-4400 | 250/3600-4400 | 210/3400-4600 | 210/3400-4600 | 250/3600-4400 |
| Maximum torque [Nm/min-1] | 600/1200-3200 | 700/1200-3200 | 700/1200-3200 | 600/1200-3200 | 600/1200-3200 | 700/1200-3200 |
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 |
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Rear | 4x4 | Rear | 4x4 | Rear |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | 250 |
| Acceleration 0–100 km/h [s] | 5,8 | 5,4 | 5,2 | 6,0 | 5,8 | 5,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,7-7,5 | 7,6-7,5 | 7,7-7,5 | 7,6-7,5 | 7,7-7,5 | 7,6-7,5 |
| Out of town [l] | 5,5-5,4 | 5,1-4,9 | 5,5-5,4 | 5,1-4,9 | 5,5-5,4 | 5,1-4,9 |
| Combined [l] | 6,3-6,2 | 6,0-5,9 | 6,3-6,2 | 6,0-5,9 | 6,3-6,2 | 6,0-5,9 |
| CO2 emissions [g/km] | 166-163 | 159-155 | 166-162 | 160-156 | 166-163 | 159-155 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2073 | 2036 | 2091 | 2034 | 2089 | 2056 |
| Overall weight [kg] | 2758 | 2701 | 2756 | 2734 | 2794 | 2741 |
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 | 750/2100 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 510 | 510 | 510 | 510 | 510 | 510 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 1803 | 1803 | 1803 | 1803 | 1803 | 1803 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | 25 | 25 | 25 | 25 | 25 | 25 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/55 R17 | 245/50 R18 | 245/50 R18 | 245/55 R17 | 245/55 R17 | 245/50 R18 |
| Tyre dimensions rear | 245/55 R17 | 245/50 R18 | 245/50 R18 | 245/55 R17 | 245/55 R17 | 245/50 R18 |
| Wheel size front | 8.0J x 17 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 18 ET41 |
| Wheel size rear | 8.0J x 17 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 17 ET41 | 8.0J x 17 ET41 | 8.0J x 18 ET41 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 5125 | 5125 | 5125 | 5255 | 5255 | 5255 |
| Overall width without/including mirrors [mm] | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 | 1899/2130 |
| Overall height [mm] | 1496 | 1496 | 1496 | 1494 | 1494 | 1494 |
| Wheelbase [mm] | 3035 | 3035 | 3035 | 3165 | 3165 | 3165 |
| Front wheel track [mm] | 1624 | 1624 | 1624 | 1624 | 1624 | 1624 |
| Rear wheel track [mm] | 1637 | 1637 | 1637 | 1637 | 1637 | 1637 |
| Forward overhang [mm] | 888 | 888 | 888 | 888 | 888 | 888 |
| Rear overhang [mm] | 1193 | 1193 | 1193 | 1193 | 1193 | 1193 |
| Clearance [mm] | 130 | 130 | 130 | 128 | 128 | 128 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| Approach angle rear [°] | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 | 15.8 |
| Transition angle [°] | 11.3 | 11.3 | 11.3 | 11.0 | 11.0 | 11.0 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1069 | 1069 | 1069 | 1069 | 1069 | 1069 |
| Headroom rear [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Front elbow/shoulder width [mm] | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 | 1516/1554 |
| Rear elbow/shoulder width [mm] | 1501/1561 | 1501/1561 | 1501/1561 | 1501/1561 | 1501/1561 | 1501/1561 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| long | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 6/24 | |||||
| Engine displacement [cm³] | 2925 | |||||
| Maximum output / speed [kW/min-1] | 250/3600-4400 | |||||
| Maximum torque [Nm/min-1] | 700/1200-3200 | |||||
| Bore and stroke [mm x mm] | 82.0 x 92.3 | |||||
| Compression ratio | 15.5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 9 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 250 | |||||
| Acceleration 0–100 km/h [s] | 5,2 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7,7-7,5 | |||||
| Out of town [l] | 5,5-5,4 | |||||
| Combined [l] | 6,3-6,2 | |||||
| CO2 emissions [g/km] | 166-162 | |||||
| Emission standard | Euro 6d-TEMP | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 2116 | |||||
| Overall weight [kg] | 2811 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/2100 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 510 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | 1803 | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 4-5 | |||||
| Fuel tank volume [l] | 70 | |||||
| AdBlue tank volume [l] | 25 | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | multilink | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 245/50 R18 | |||||
| Tyre dimensions rear | 245/50 R18 | |||||
| Wheel size front | 8.0J x 18 ET41 | |||||
| Wheel size rear | 8.0J x 18 ET41 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with electro-mechanical power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.9/- | |||||
| Overall length [mm] | 5255 | |||||
| Overall width without/including mirrors [mm] | 1899/2130 | |||||
| Overall height [mm] | 1494 | |||||
| Wheelbase [mm] | 3165 | |||||
| Front wheel track [mm] | 1624 | |||||
| Rear wheel track [mm] | 1637 | |||||
| Forward overhang [mm] | 888 | |||||
| Rear overhang [mm] | 1193 | |||||
| Clearance [mm] | 128 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 14.8 | |||||
| Approach angle rear [°] | 15.8 | |||||
| Transition angle [°] | 11.0 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 1069 | |||||
| Headroom rear [mm] | 995 | |||||
| Front elbow/shoulder width [mm] | 1516/1554 | |||||
| Rear elbow/shoulder width [mm] | 1501/1561 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Coupé
| S 450 4MATIC | S 560 | S 560 4MATIC | S 63 AMG S 4MATIC+ | S 65 AMG | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2019 | |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | |
| Number of cylinders/valves | 6/24 | 8/32 | 8/32 | 8/32 | 12/36 | |
| Engine displacement [cm³] | 2996 | 3982 | 3982 | 3982 | 5980 | |
| Maximum output / speed [kW/min-1] | 270/5500-6000 | 345/5250-5500 | 345/5250-5500 | 450/5500-6000 | 463/4800-5400 | |
| Maximum torque [Nm/min-1] | 500/1600-4000 | 700/2000-4000 | 700/2000-4000 | 900/2750-4500 | 1000/2300-4300 | |
| Bore and stroke [mm x mm] | 88.0 x 82.1 | 83,0 x 92,0 | 83,0 x 92,0 | 83,0 x 92,0 | 82,6 x 93,0 | |
| Compression ratio | 10.5:1 | 10.5:1 | 10.5:1 | 8.6:1 | 9,0:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | Rear | 4x4 | 4x4 | Rear | |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 7 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 250 | 250 | 250 | 250 | 250 | |
| Acceleration 0–100 km/h [s] | 5,5 | 4,6 | 4,6 | 3,5 | 4.1 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 13,2 | 14,3 | 14,2-13,9 | 16,0 | - | |
| Out of town [l] | 7,5-7,1 | 7,6-7,2 | 7,8-7,6 | 8,6 | - | |
| Combined [l] | 9,6-9,3 | 10,1-9,8 | 10,2-9,9 | 11,2 | 14.2 | |
| CO2 emissions [g/km] | 219-213 | 230-224 | 232-226 | 254 | 325 | |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 2059 | 2084 | 2139 | 2119 | - | |
| Overall weight [kg] | 2559 | 2639 | 2644 | 2584 | - | |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 400 | 400 | 400 | 400 | 400 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | 1746 | 1746 | 1746 | 1746 | 1746 | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 2 | 2 | 2 | 2 | 2 | |
| Number of seats | 4 | 4 | 4 | 4 | 4 | |
| Fuel tank volume [l] | 80 | 80 | 80 | 80 | 80 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | multilink | multilink | multilink | multilink | multilink | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 245/50 R18 | 245/50 R18 | 245/50 R18 | 255/40 R20 | 255/40 R20 | |
| Tyre dimensions rear | 245/50 R18 | 245/50 R18 | 245/50 R18 | 285/35 R20 | 285/35 R20 | |
| Wheel size front | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8,5J x 20 ET39 | 8,5J x 20 ET39 | |
| Wheel size rear | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 8.0J x 18 ET41 | 9,5J x 20 ET39 | 9,5J x 20 ET39 | |
| Brake dimensions front | - | - | - | 390 | 390 | |
| Brake dimensions rear | - | - | - | 360 | 360 | |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.9/- | 11.9/- | |
| Overall length [mm] | 5032 | 5032 | 5032 | 5051 | 5051 | |
| Overall width without/including mirrors [mm] | 1899/2108 | 1899/2108 | 1899/2108 | 1913/2108 | 1913/2108 | |
| Overall height [mm] | 1411 | 1411 | 1411 | 1428 | 1428 | |
| Wheelbase [mm] | 2945 | 2945 | 2945 | 2945 | 2945 | |
| Front wheel track [mm] | 1625 | 1625 | 1625 | 1660 | 1635 | |
| Rear wheel track [mm] | 1649 | 1649 | 1649 | 1645 | 1645 | |
| Forward overhang [mm] | 959 | 959 | 959 | - | - | |
| Rear overhang [mm] | 1128 | 1128 | 1128 | - | - | |
| Clearance [mm] | 119 | 119 | 119 | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | 11.6 | 11.6 | 11.6 | - | - | |
| Approach angle rear [°] | 15.2 | 15.2 | 15.2 | - | - | |
| Transition angle [°] | 10.9 | 10.9 | 10.9 | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 1015 | 1015 | 1015 | 1015 | 1015 | |
| Headroom rear [mm] | 933 | 933 | 933 | 933 | 933 | |
| Front elbow/shoulder width [mm] | 1449/1540 | 1449/1540 | 1449/1540 | 1449/1540 | 1449/1540 | |
| Rear elbow/shoulder width [mm] | 1305/1374 | 1305/1374 | 1305/1374 | 1305/1374 | 1305/1374 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Convertible
| S 560 | S 63 AMG S 4MATIC+ | S 65 AMG | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2019 | |||
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | |||
| Number of cylinders/valves | 8/32 | 8/32 | 12/36 | |||
| Engine displacement [cm³] | 3982 | 3982 | 5980 | |||
| Maximum output / speed [kW/min-1] | 345/5250-5500 | 450/5500-6000 | 463/4800-5400 | |||
| Maximum torque [Nm/min-1] | 700/2000-4000 | 900/2750-4500 | 1000/2300-4300 | |||
| Bore and stroke [mm x mm] | 83,0 x 92,0 | 83,0 x 92,0 | 82,6 x 93,0 | |||
| Compression ratio | 10.5:1 | 8.6:1 | 9,0:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Rear | 4x4 | Rear | |||
| Gearbox | 9 gear automatic | 9 gear automatic | 7 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 250 | 250 | 250 | |||
| Acceleration 0–100 km/h [s] | 4,6 | 3,5 | 4.1 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 14.3 | 15.6 | - | |||
| Out of town [l] | 7.9-7.5 | 9.1 | - | |||
| Combined [l] | 10.3-10.0 | 11.5 | 14.2 | |||
| CO2 emissions [g/km] | 235-229 | 263 | 325 | |||
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 2159 | 2209 | 2255 | |||
| Overall weight [kg] | 2629 | 2659 | 2625 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 350 | 350 | 350 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | 1728 | 1728 | 1728 | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 2 | 2 | 2 | |||
| Number of seats | 4 | 4 | 4 | |||
| Fuel tank volume [l] | 80 | 80 | 80 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | multilink | multilink | multilink | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 245/50 R18 | 255/40 R20 | 255/40 R20 | |||
| Tyre dimensions rear | 245/50 R18 | 285/35 R20 | 285/35 R20 | |||
| Wheel size front | 8.0J x 18 ET41 | 8,5J x 20 ET39 | 8,5J x 20 ET39 | |||
| Wheel size rear | 8.0J x 18 ET41 | 9,5J x 20 ET39 | 9,5J x 20 ET39 | |||
| Brake dimensions front | - | 390 | 390 | |||
| Brake dimensions rear | - | 360 | 360 | |||
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.6/- | 11.9/- | 11.9/- | |||
| Overall length [mm] | 5032 | 5051 | 5051 | |||
| Overall width without/including mirrors [mm] | 1899/2108 | 1913/2108 | 1913/2108 | |||
| Overall height [mm] | 1417 | 1428 | 1428 | |||
| Wheelbase [mm] | 2945 | 2945 | 2945 | |||
| Front wheel track [mm] | 1625 | 1660 | 1635 | |||
| Rear wheel track [mm] | 1649 | 1645 | 1645 | |||
| Forward overhang [mm] | 959 | - | - | |||
| Rear overhang [mm] | 1128 | - | - | |||
| Clearance [mm] | 114 | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | 11.6 | - | - | |||
| Approach angle rear [°] | 15.2 | - | - | |||
| Transition angle [°] | 10.0 | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 958 | 958 | 958 | |||
| Headroom rear [mm] | 955 | 955 | 955 | |||
| Front elbow/shoulder width [mm] | 1449/1540 | 1449/1540 | 1449/1540 | |||
| Rear elbow/shoulder width [mm] | 1258/1349 | 1258/1349 | 1258/1349 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
