Mercedes-Benz V
Date of manufacture
1/2019 – to this day (VAN)
Platform
-
Manufacturing locations
Vitoria-Gasteiz, Spain
North Charleston, USA
Fuzhou, People's Republic of China
Pune, India
Designer
-
Tags
Minivan
German cars

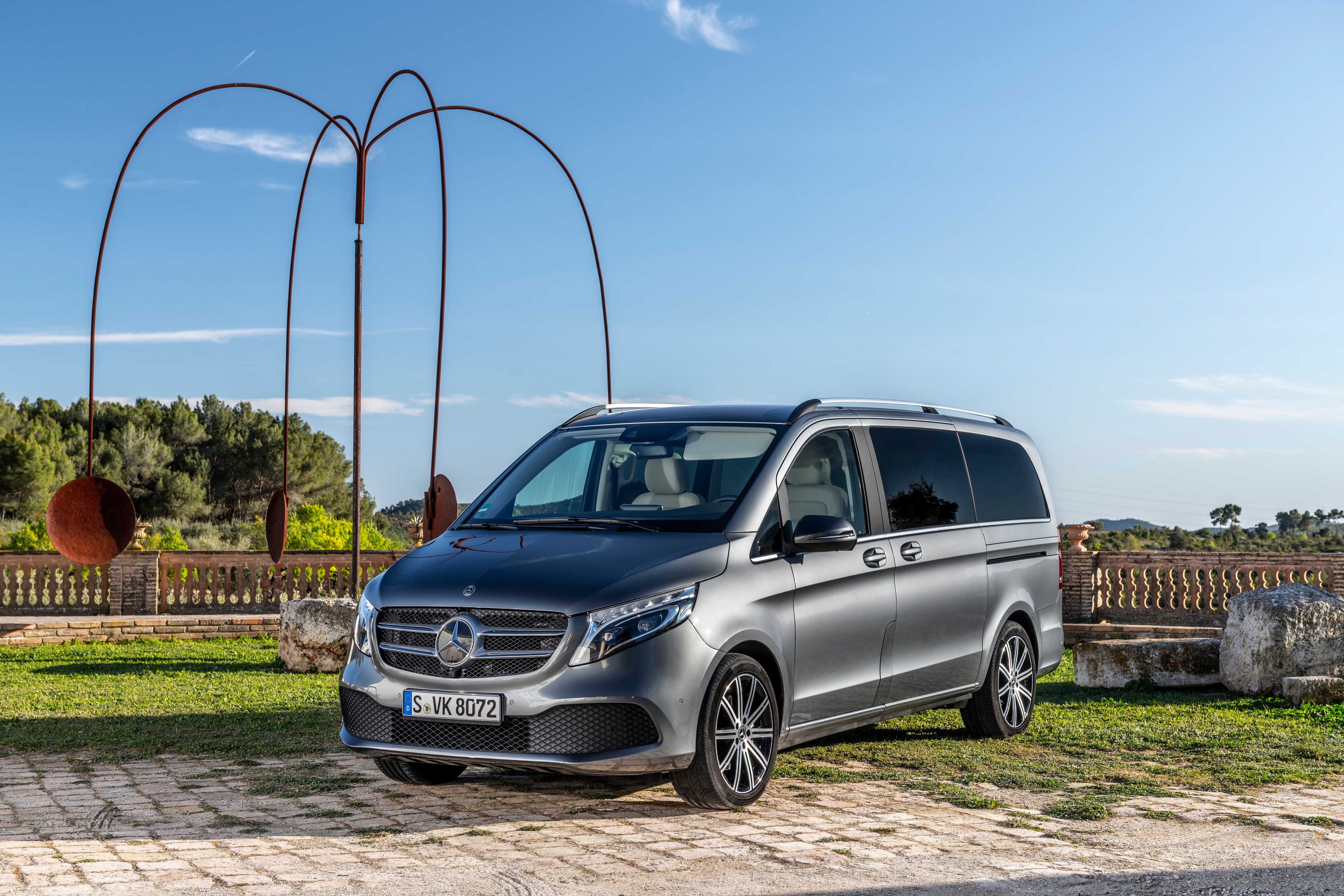

The Mercedes-Benz V is the only body variant produced since 2019 in Spain, USA, China and India. The engine range includes only diesel engines with a maximum output of 174 kW for the V 300d 4MATIC Extra Long model. It reaches a top speed of 220 km/h and accelerates from 0-100 km/h in 7.9 seconds. The V 220d Long model has the best fuel consumption of 7.1 l/100 km and CO2 emissions of 186 g/km. The car's trunk has a capacity of 1030 l and during EURONCAP safety tests it achieved a rating of 5 out of 5 according to the 2014 methodology.
Car body style
VAN
after upgrade (facelift)
Date of manufacture
1/2019 – to this dayInternal designation
W447
Technical data
VAN
| V 220d | V 220d 4MATIC | V 250d | V 250d 4MATIC | V 300d | V 300d 4MATIC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1950 | 1950 | 1950 | 1950 | 1950 | 1950 |
| Maximum output / speed [kW/min-1] | 120/4200 | 120/4200 | 140/4200 | 140/4200 | 174/4200 | 174/4200 |
| Maximum torque [Nm/min-1] | 380/1200-2400 | 380/1200-2400 | 440/1350-2400 | 440/1350-2400 | 500/1600-2400 | 500/1600-2400 |
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 |
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | 4x4 | Front | 4x4 |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 195 | 188 | 205 | 199 | 220 | 214 |
| Acceleration 0–100 km/h [s] | 11,1 | 12,3 | 9,5 | 10,5 | 7,9 | 8,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | - | - | - | - | - |
| Out of town [l] | - | - | - | - | - | - |
| Combined [l] | - | - | - | - | - | - |
| CO2 emissions [g/km] | - | - | - | - | - | - |
| Low speed [l] | 9,1 | 9,3 | 9,5 | 9,9 | 9,4 | 9,9 |
| Medium speed [l] | 7,1 | 7,8 | 7,3 | 7,8 | 7,3 | 7,8 |
| High speed [l] | 6,2 | 6,9 | 6,3 | 6,8 | 6,3 | 6,8 |
| Extra high speed [l] | 7,3 | 8,1 | 7,6 | 8,2 | 7,6 | 8,2 |
| Combined speed [l] | 7,2 | 7,8 | 7,4 | 7,9 | 7,4 | 7,9 |
| CO2 emissions [g/km] | 188 | 206 | 194 | 208 | 194 | 208 |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2220 | 2298 | 2230 | 2298 | 2226 | 2294 |
| Overall weight [kg] | 3100-3200 | 3100-3200 | 3100-3200 | 3100-3200 | 3100-3200 | 3100-3200 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 [750/2500 subject to a surcharge] | 750/2000 [750/2500 subject to a surcharge] | 750/2000 [750/2500 subject to a surcharge] | 750/2000 [750/2500 subject to a surcharge] | 750/2000 [750/2500 subject to a surcharge] | 750/2000 [750/2500 subject to a surcharge] |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 610 | 610 | 610 | 610 | 610 | 610 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1404 | 1404 | 1404 | 1404 | 1404 | 1404 |
| Boot length with rear seats folded [mm] | 2408 | 2408 | 2408 | 2408 | 2408 | 2408 |
| Boot width between wheels/max [mm] | 1205/- | 1205/- | 1205/- | 1205/- | 1205/- | 1205/- |
| Boot height to headliner/ceiling [mm] | -/1327 | -/1327 | -/1327 | -/1327 | -/1327 | -/1327 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2179 | 2179 | 2179 | 2179 | 2179 | 2179 |
| Boot opening height [mm] | 1195 | 1195 | 1195 | 1195 | 1195 | 1195 |
| Boot opening width min/max [mm] | 1337/- | 1337/- | 1337/- | 1337/- | 1337/- | 1337/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
| Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
| AdBlue tank volume [l] | 24 | 24 | 24 | 24 | 24 | 24 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/65 R16 | 205/65 R16 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 205/65 R16 | 205/65 R16 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 6,5J x 16 ET52 | 6,5J x 16 ET52 | 6,5J x 17 ET50 | 6,5J x 17 ET50 | 6,5J x 17 ET50 | 6,5J x 17 ET50 |
| Wheel size rear | 6,5J x 16 ET52 | 6,5J x 16 ET52 | 6,5J x 17 ET50 | 6,5J x 17 ET50 | 6,5J x 17 ET50 | 6,5J x 17 ET50 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.8/- | 13,1/- | 11.8/- | 13,1/- | 11,8/- | 13,1/- |
| Overall length [mm] | 4895 | 4895 | 4895 | 4895 | 4895 | 4895 |
| Overall width without/including mirrors [mm] | 1928/2249 | 1928/2249 | 1928/2249 | 1928/2249 | 1928/2249 | 1928/2249 |
| Overall height [mm] | 1907 | 1907 | 1907 | 1907 | 1907 | 1907 |
| Wheelbase [mm] | 3200 | 3200 | 3200 | 3200 | 3200 | 3200 |
| Front wheel track [mm] | 1666 | 1666 | 1666 | 1666 | 1666 | 1666 |
| Rear wheel track [mm] | 1646 | 1646 | 1646 | 1646 | 1646 | 1646 |
| Forward overhang [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Rear overhang [mm] | 800 | 800 | 800 | 800 | 800 | 800 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.1 | 14.1 | 14.1 | 14.1 | 14.1 | 14.1 |
| Approach angle rear [°] | 19.6 | 19.6 | 19.6 | 19.6 | 19.6 | 19.6 |
| Transition angle [°] | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Rating | - | - |    | - | - | - |
| Clean Air Index | - | - | 7.2/10 | - | - | - |
| Energy Efficiency Index | - | - | 1.2/10 | - | - | - |
| GHG index | - | - | 0.0/10 | - | - | - |
| V 220d Long | V 220d 4MATIC Long | V 250d Long | V 250d 4MATIC Long | V 300d Long | V 300d 4MATIC Long | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1950 | 1950 | 1950 | 1950 | 1950 | 1950 |
| Maximum output / speed [kW/min-1] | 120/4200 | 120/4200 | 140/4200 | 140/4200 | 174/4200 | 174/4200 |
| Maximum torque [Nm/min-1] | 380/1200-2400 | 380/1200-2400 | 440/1350-2400 | 440/1350-2400 | 500/1600-2400 | 500/1600-2400 |
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 |
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | 4x4 | Front | 4x4 |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 195 | 188 | 205 | 199 | 220 | 214 |
| Acceleration 0–100 km/h [s] | 11,1 | 12,3 | 9,5 | 10,5 | 7,9 | 8,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | - | - | - | - | - |
| Out of town [l] | - | - | - | - | - | - |
| Combined [l] | - | - | - | - | - | - |
| CO2 emissions [g/km] | - | - | - | - | - | - |
| Low speed [l] | 9,0 | 9,4 | 9,5 | 10,0 | 9,5 | 9,9 |
| Medium speed [l] | 7,0 | 7,8 | 7,4 | 7,9 | 7,4 | 7,9 |
| High speed [l] | 6,1 | 6,9 | 6,4 | 6,9 | 6,4 | 6,9 |
| Extra high speed [l] | 7,2 | 8,1 | 7,6 | 8,2 | 7,6 | 8,2 |
| Combined speed [l] | 7,1 | 7,9 | 7,4 | 8,0 | 7,4 | 8,0 |
| CO2 emissions [g/km] | 186 | 207 | 195 | 209 | 195 | 209 |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2250 | 2328 | 2260 | 2328 | 2256 | 2324 |
| Overall weight [kg] | 3100-3200 | 3100-3200 | 3100-3200 | 3100-3200 | 3100-3200 | 3100-3200 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 [750/2500 subject to a surcharge] | 750/2000 [750/2500 subject to a surcharge] | 750/2000 [750/2500 subject to a surcharge] | 750/2000 [750/2500 subject to a surcharge] | 750/2000 [750/2500 subject to a surcharge] | 750/2000 [750/2500 subject to a surcharge] |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 1030 | 1030 | 1030 | 1030 | 1030 | 1030 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1649 | 1649 | 1649 | 1649 | 1649 | 1649 |
| Boot length with rear seats folded [mm] | 2653 | 2653 | 2653 | 2653 | 2653 | 2653 |
| Boot width between wheels/max [mm] | 1205/- | 1205/- | 1205/- | 1205/- | 1205/- | 1205/- |
| Boot height to headliner/ceiling [mm] | -/1327 | -/1327 | -/1327 | -/1327 | -/1327 | -/1327 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2175 | 2175 | 2175 | 2175 | 2175 | 2175 |
| Boot opening height [mm] | 1195 | 1195 | 1195 | 1195 | 1195 | 1195 |
| Boot opening width min/max [mm] | 1337/- | 1337/- | 1337/- | 1337/- | 1337/- | 1337/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
| Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
| AdBlue tank volume [l] | 24 | 24 | 24 | 24 | 24 | 24 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/65 R16 | 205/65 R16 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 205/65 R16 | 205/65 R16 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 6,5J x 16 ET52 | 6,5J x 16 ET52 | 6,5J x 17 ET50 | 6,5J x 17 ET50 | 6,5J x 17 ET50 | 6,5J x 17 ET50 |
| Wheel size rear | 6,5J x 16 ET52 | 6,5J x 16 ET52 | 6,5J x 17 ET50 | 6,5J x 17 ET50 | 6,5J x 17 ET50 | 6,5J x 17 ET50 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11,8/- | 13,1/- | 11,8/- | 13,1/- | 11,8/- | 13,1/- |
| Overall length [mm] | 5140 | 5140 | 5140 | 5140 | 5140 | 5140 |
| Overall width without/including mirrors [mm] | 1928/2249 | 1928/2249 | 1928/2249 | 1928/2249 | 1928/2249 | 1928/2249 |
| Overall height [mm] | 1901 | 1901 | 1901 | 1901 | 1901 | 1901 |
| Wheelbase [mm] | 3200 | 3200 | 3200 | 3200 | 3200 | 3200 |
| Front wheel track [mm] | 1666 | 1666 | 1666 | 1666 | 1666 | 1666 |
| Rear wheel track [mm] | 1646 | 1646 | 1646 | 1646 | 1646 | 1646 |
| Forward overhang [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Rear overhang [mm] | 1045 | 1045 | 1045 | 1045 | 1045 | 1045 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.1 | 14.1 | 14.1 | 14.1 | 14.1 | 14.1 |
| Approach angle rear [°] | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 |
| Transition angle [°] | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| V 220d Extra Long | V 220d 4MATIC Extra Long | V 250d Extra Long | V 250d 4MATIC Extra Long | V 300d Extra Long | V 300d 4MATIC Extra Long | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1950 | 1950 | 1950 | 1950 | 1950 | 1950 |
| Maximum output / speed [kW/min-1] | 120/4200 | 120/4200 | 140/4200 | 140/4200 | 174/4200 | 174/4200 |
| Maximum torque [Nm/min-1] | 380/1200-2400 | 380/1200-2400 | 440/1350-2400 | 440/1350-2400 | 500/1600-2400 | 500/1600-2400 |
| Bore and stroke [mm x mm] | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 | 82.0 x 92.3 |
| Compression ratio | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | Front | 4x4 | Front | 4x4 |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic | 9 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 195 | 188 | 205 | 199 | 220 | 214 |
| Acceleration 0–100 km/h [s] | 11,1 | 12,3 | 9,5 | 10,5 | 7,9 | 8,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | - | - | - | - | - |
| Out of town [l] | - | - | - | - | - | - |
| Combined [l] | - | - | - | - | - | - |
| CO2 emissions [g/km] | - | - | - | - | - | - |
| Low speed [l] | 9,1 | 9,5 | 9,6 | 10,0 | 9,6 | 10,0 |
| Medium speed [l] | 7,1 | 7,9 | 7,4 | 8,0 | 7,4 | 8,0 |
| High speed [l] | 6,1 | 7,0 | 6,4 | 6,9 | 6,4 | 6,9 |
| Extra high speed [l] | 7,2 | 8,2 | 7,7 | 8,2 | 7,7 | 8,2 |
| Combined speed [l] | 7,1 | 7,9 | 7,5 | 8,0 | 7,5 | 8,0 |
| CO2 emissions [g/km] | 187 | 208 | 196 | 210 | 196 | 210 |
| Emission standard | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 2280 | 2358 | 2290 | 2358 | 2286 | 2354 |
| Overall weight [kg] | 3100-3200 | 3100-3200 | 3100-3200 | 3100-3200 | 3100-3200 | 3100-3200 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 [750/2500 subject to a surcharge] | 750/2000 [750/2500 subject to a surcharge] | 750/2000 [750/2500 subject to a surcharge] | 750/2000 [750/2500 subject to a surcharge] | 750/2000 [750/2500 subject to a surcharge] | 750/2000 [750/2500 subject to a surcharge] |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 1410 | 1410 | 1410 | 1410 | 1410 | 1410 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 962-1887 | 962-1887 | 962-1887 | 962-1887 | 962-1887 | 962-1887 |
| Boot length with rear seats folded [mm] | 2883 | 2883 | 2883 | 2883 | 2883 | 2883 |
| Boot width between wheels/max [mm] | 1205/- | 1205/- | 1205/- | 1205/- | 1205/- | 1205/- |
| Boot height to headliner/ceiling [mm] | -/1327 | -/1327 | -/1327 | -/1327 | -/1327 | -/1327 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | 2191 | 2191 | 2191 | 2191 | 2191 | 2191 |
| Boot opening height [mm] | 1195 | 1195 | 1195 | 1195 | 1195 | 1195 |
| Boot opening width min/max [mm] | 1337/- | 1337/- | 1337/- | 1337/- | 1337/- | 1337/- |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 |
| Fuel tank volume [l] | 57 | 57 | 57 | 57 | 57 | 57 |
| AdBlue tank volume [l] | 24 | 24 | 24 | 24 | 24 | 24 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/65 R16 | 205/65 R16 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Tyre dimensions rear | 205/65 R16 | 205/65 R16 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 |
| Wheel size front | 6,5J x 16 ET52 | 6,5J x 16 ET52 | 6,5J x 17 ET50 | 6,5J x 17 ET50 | 6,5J x 17 ET50 | 6,5J x 17 ET50 |
| Wheel size rear | 6,5J x 16 ET52 | 6,5J x 16 ET52 | 6,5J x 17 ET50 | 6,5J x 17 ET50 | 6,5J x 17 ET50 | 6,5J x 17 ET50 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12,5/- | 13,7/- | 12,5/- | 13,7/- | 12,5/- | 13,7/- |
| Overall length [mm] | 5370 | 5370 | 5370 | 5370 | 5370 | 5370 |
| Overall width without/including mirrors [mm] | 1928/2249 | 1928/2249 | 1928/2249 | 1928/2249 | 1928/2249 | 1928/2249 |
| Overall height [mm] | 1909 | 1909 | 1909 | 1909 | 1909 | 1909 |
| Wheelbase [mm] | 3430 | 3430 | 3430 | 3430 | 3430 | 3430 |
| Front wheel track [mm] | 1666 | 1666 | 1666 | 1666 | 1666 | 1666 |
| Rear wheel track [mm] | 1646 | 1646 | 1646 | 1646 | 1646 | 1646 |
| Forward overhang [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Rear overhang [mm] | 1045 | 1045 | 1045 | 1045 | 1045 | 1045 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 14.7 | 14.7 | 14.7 | 14.7 | 14.7 | 14.7 |
| Approach angle rear [°] | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 | 13.6 |
| Transition angle [°] | 10.2 | 10.2 | 10.2 | 10.2 | 10.2 | 10.2 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

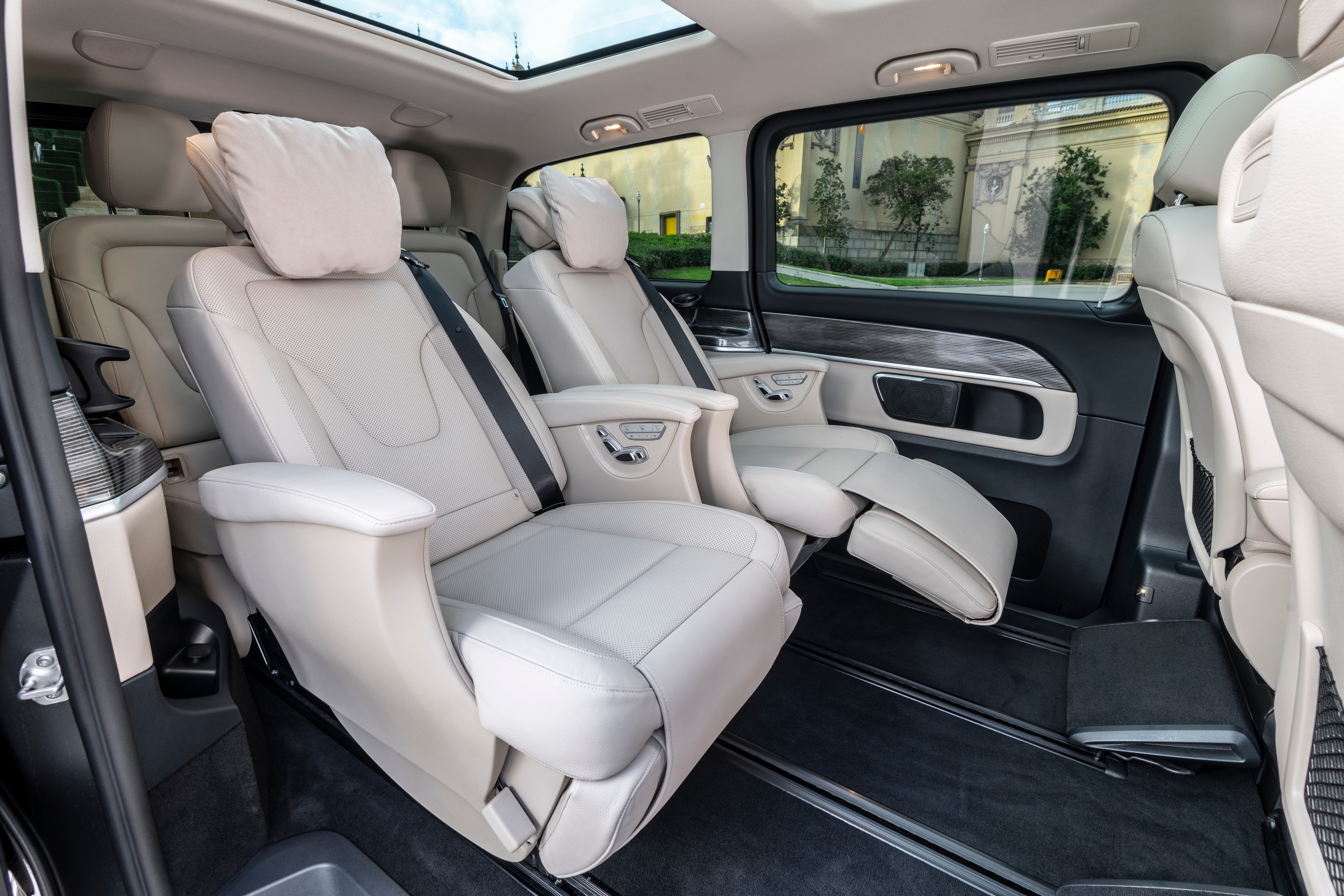

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
