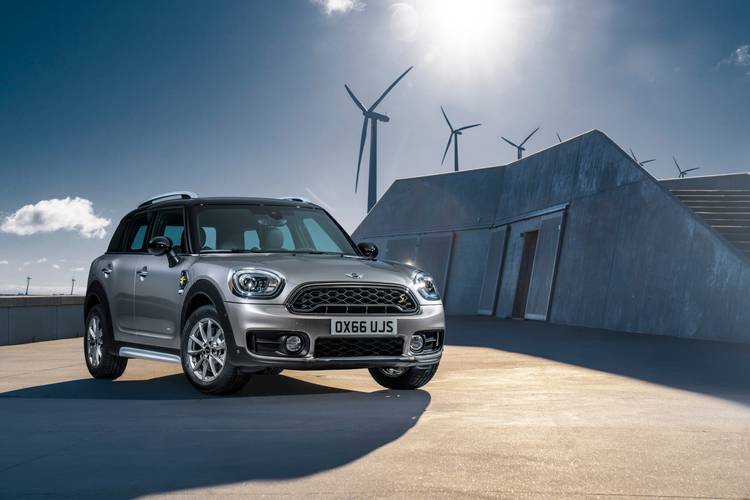

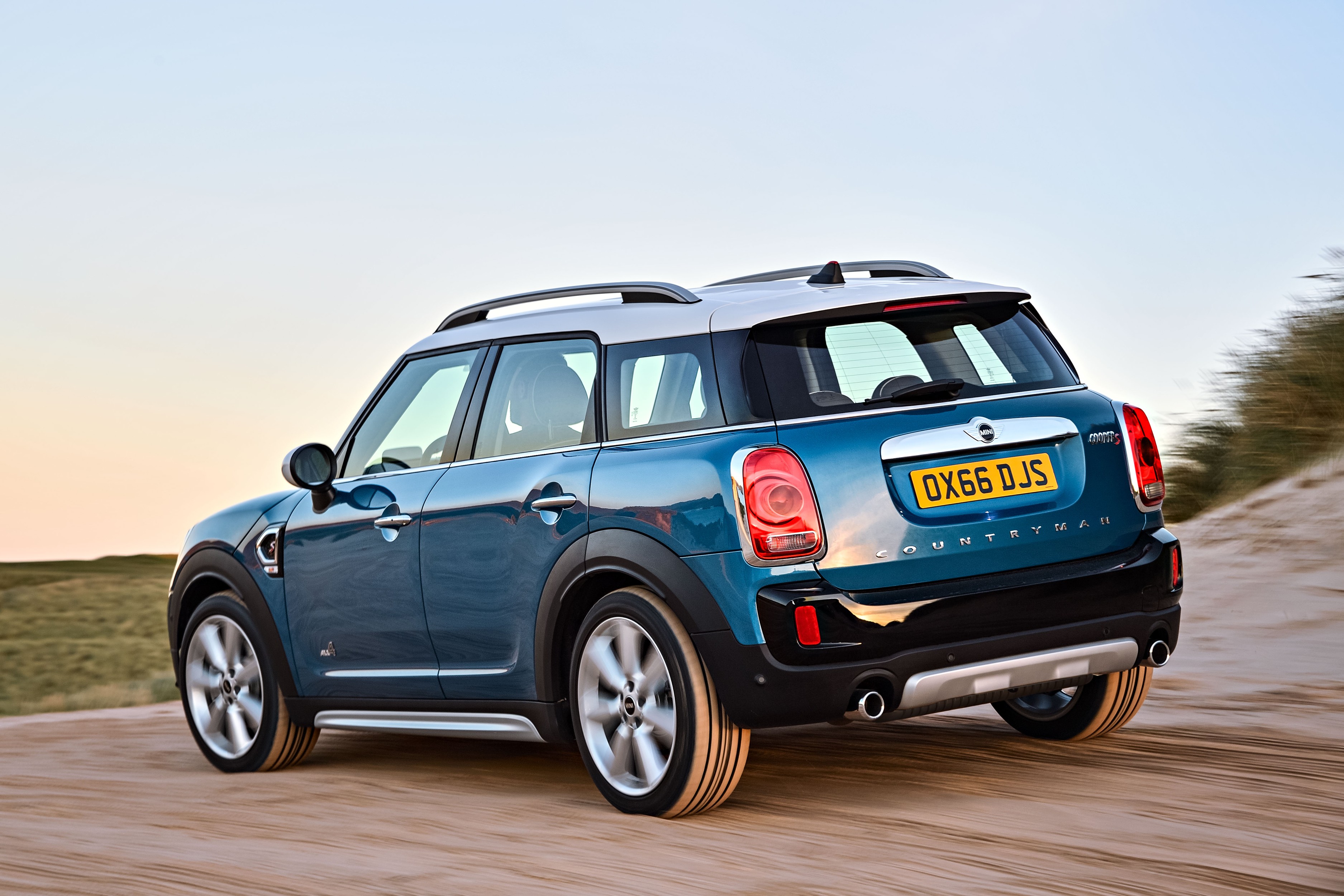

Mini Countryman
Date of manufacture
2016 – 2020 (Small SUV)
Platform
BMW UKL2
Manufacturing locations
Born, Netherlands
Designer
-
Tags
Small SUV
The Mini Countryman is a small SUV that has been produced in the Netherlands since 2016 on the BMW UKL2 platform. It offers a wide range of power units, from petrol to diesel to plug-in hybrid. The most powerful is the John Cooper Works Countryman with 170 kW, top speed of 234 km/h and best 0-100 km/h acceleration of 6.5 seconds. The most economical Cooper S E Countryman ALL4 has a fuel consumption of 2.5 l/100 km and emissions of 56 g/km. The luggage compartment holds 405 l. In the EURONCAP safety tests, the car achieved a rating of 5 out of 5 (2017 methodology).
Car body style
Small SUV
Date of manufacture
2016 – 2020Internal designation
F60Engine size
Petrol
Petrol + ElectricDiesel
Technical data
Small SUV
| One Countryman | One Countryman | One Countryman | Cooper Countryman | Cooper Countryman | Cooper Countryman | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 9/2018 | from 9/2018 to | - | from to 9/2018 | from 9/2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1499 | 1499 | 1499 | 1499 | 1499 | 1499 |
| Maximum output / speed [kW/min-1] | 75/3900-6500 | 75/4100-6000 | 75/3900-6500 | 100/4500-6500 | 100/4400-6000 | 100/4500-6500 |
| Maximum torque [Nm/min-1] | 180-190/1380-3600 | 180/1280-3600 | 190/1380-3600 | 220/1480-4100 | 220/1400-4300 | 220/1480-4100 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 |
| Oil volume [l] | 4.25 | 4.25 | 4.25 | 4.25 | 4.25 | 4.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 7 gear automatic | 6 gear manual | 6 gear automatic | 7 gear automatic |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 180 | 180 | 180 | 200-202 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 11.8-12.0 | 12.2 | 12.3 | 9.6-9.7 | 9.6 | 9.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 14.4 (5th gear) | - | - | 11,2 (5th gear) | - | - |
| City [l] | 7.2-6.7 | 6.9-6.6 | 7.3 -7.0 | 7.4 -6.8 | 6.7-6.6 | 7.2 -7.1 |
| Out of town [l] | 5.3 -4.8 | 5.2-4.9 | 5.3 -5.2 | 5.2-4.8 | 5.1-4.9 | 5.1 -5.0 |
| Combined [l] | 6.0-5.5 | 5.8-5.5 | 5.9 | 6.0-5.5 | 5.7-5.5 | 5.9 -5.8 |
| CO2 emissions [g/km] | 137 -134 | 133-126 | 135 -134 | 137-126 | 130-126 | 134 -132 |
| Emission standard | EU6 - EU6d-TEMP | EU6 | EU6-TEMP | EU6 - EU6d-TEMP | EU6 | EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1440-1455 | 1460 | 1485 | 1440-1460 | 1465 | 1490 |
| Overall weight [kg] | 1940-1950 | 1975 | 1980 | 1950-1955 | 1975 | 1985 |
| Maximum trailer weight unbraked/braked [kg] | 710/1100 | 710/1100 | 710/1100 | 715/1500 | 715/1500 | 715/1500 |
| Maximum front/rear axle load [kg] | 1005/990 | 1040/980 | 1040/ 985 | 1015/ 985 | 1045/ 980 | 1045/ 980 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75 /- | 75 /- | 75 /- | 75 /- | 75/- | 75 /- |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1390 | -/1390 | -/1390 | -/1390 | -/1390 | -/1390 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W |
| Tyre dimensions rear | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W |
| Wheel size front | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4299 | 4299 | 4299 | 4299 | 4299 | 4299 |
| Overall width without/including mirrors [mm] | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- |
| Overall height [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1585 | 1585 |
| Rear wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Forward overhang [mm] | 836 | 836 | 836 | 836 | 836 | 836 |
| Rear overhang [mm] | 793 | 793 | 793 | 793 | 793 | 793 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper Countryman ALL4 | Cooper Countryman ALL4 | Cooper S Countryman | Cooper S Countryman | Cooper S Countryman | Cooper S Countryman ALL4 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 9/2018 | from to 9/2018 | - | from 9/2018 to | from to 9/2018 | from to 9/2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1499 | 1499 | 1998 | 1998 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 100/4400-6000 | 100/4400-6000 | 141/5000-6000 | 141/5000-6000 | 141/5000-6000 | 141/5000-6000 |
| Maximum torque [Nm/min-1] | 220/1400-4300 | 220/1400-4300 | 280/1350-4600 | 280/1350-4600 | 280/1350-4600 | 280/1350-4600 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 |
| Compression ratio | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 |
| Oil volume [l] | 4.25 | 4.25 | 5.25 | 5.25 | 5.25 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 7 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 197 | 197 | 225 | 225 | 225 | 222 |
| Acceleration 0–100 km/h [s] | 9.8 | 9.8 | 7.5-7.6 | 7.5 | 7.4 | 7.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 10,9 (5th gear) | - | 8,6 (5th gear) | - | - | 9,2 (5th gear) |
| City [l] | 7.6-7.4 | 7.3-7.1 | 8.1-7.9 | 7.5 -6.8 | 7.6-7.4 | 9.0-8.8 |
| Out of town [l] | 5.5-5.3 | 5.5-5.3 | 5.7-5.2 | 5.5 -5.3 | 5.4-5.2 | 6.0-5.9 |
| Combined [l] | 6.2-6.1 | 6.1-6.0 | 6.5-6.2 | 6.0 | 6.2-6.0 | 7.1-7.0 |
| CO2 emissions [g/km] | 143-139 | 140-136 | 149-141 | 138 -136 | 141-137 | 162-159 |
| Emission standard | EU6 | EU6 | EU6 - EU6d-TEMP | EU6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1530 | 1545 | 1505-1525 | 1540 | 1535 | 1585 |
| Overall weight [kg] | 2045 | 2060 | 2020 | 2040 | 2050 | 2110 |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1700 | 745/1500 | 745/1500 | 745/1500 | 750/1800 |
| Maximum front/rear axle load [kg] | 1070/ 1030 | 1090/ 1030 | 1055/ 1000 | 1070/1000 | 1090/ 1000 | 1100/ 1050 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75 /- | 75 /- | 75/- | 75/- |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1390 | -/1390 | -/1390 | -/1390 | -/1390 | -/1390 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.32 | 0.33 | 0.33 | 0.33 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/65 R16 95W | 205/65 R16 95W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 205/65 R16 95W | 205/65 R16 95W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 | 7,5J x 17 | 7,5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4299 | 4299 | 4299 | 4299 | 4299 | 4299 |
| Overall width without/including mirrors [mm] | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- |
| Overall height [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1585 | 1585 | 1563 | 1563 | 1563 | 1563 |
| Rear wheel track [mm] | 1587 | 1587 | 1565 | 1565 | 1565 | 1565 |
| Forward overhang [mm] | 836 | 836 | 836 | 836 | 836 | 836 |
| Rear overhang [mm] | 793 | 793 | 793 | 793 | 793 | 793 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper S Countryman ALL4 | John Cooper Works Countryman | John Cooper Works Countryman | Cooper S E Countryman ALL4 | One D Countryman | One D Countryman | |
|---|---|---|---|---|---|---|
| Date of sale | from to 9/2018 | from 2017 to 9/2018 | from 2017 to 9/2018 | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1499 | 1496 | 1496 |
| Maximum output / speed [kW/min-1] | 141/5000-6000 | 170/5000 -6000 | 170/5000 -6000 | 100/4400 65/4000 el. 165 total | 85/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 280/1350-4600 | 350/1450-4500 | 350/1450-4500 | 220/1250-4300 165/0-3000 el. 385 total | 270/1750-2250 | 270/1750-2250 |
| Bore and stroke [mm x mm] | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 82.0 x 94.6 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 11.0:1 | 10.2:1 | 10.2:1 | 11.0:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.25 | 5.25 | 5.25 | 4.25 | 4.8 | 4.8 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | Front | Front |
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | 6 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 222 | 234 | 234 | 198 [125 el.] | 190 | 188 |
| Acceleration 0–100 km/h [s] | 7.2 | 6.5 | 6.5 | 6.8 | 10.9-11.2 | 11.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 7.9 (5th gear) | - | - | 11.9-12,1 (5th gear) | - |
| City [l] | 7.9-7.8 | 9.4 | 8.5 | - | 5.0-4.5 | 5.1 -5.0 |
| Out of town [l] | 5.8-5.6 | 6.2 | 6.0 | - | 4.1-3.9 | 4.4 -4.2 |
| Combined [l] | 6.6-6.4 | 7.4 | 6.9 | 2.5-2.1 [13.7-13.2 kWh] | 4.4 -4.1 | 4.6 -4.5 |
| CO2 emissions [g/km] | 150-146 | 169 | 158 | 56-49 | 115-109 | 122 -119 |
| Emission standard | EU6 | EU6 | EU6 | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP | EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | - | - | - | Lithium-ion, 7.6 kWh (6.1 net) | - | - |
| Range with fully charged battery [km] | - | - | - | 41-42 | - | - |
| Charging time | - | - | - |
| - | - |
| Number of modules/cells | - | - | - | 5/80 | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1605 | 1615 | 1630 | 1735 | 1460-1505 | 1530 |
| Overall weight [kg] | 2120 | 2130 | 2150 | 2270 | 1985-2010 | 2020 |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/1800 | - | 710-730/1500 | 730/1500 |
| Maximum front/rear axle load [kg] | 1120/ 1050 | 1115/ 1060 | 1130/ 1060 | 1115/ 1200 | 1040/1025 | 1065/1025 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | - | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75 /- | 75 /- | 75 /- |
| Boot volume [l] | 450 | 450 | 450 | 405 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1390 | -/1390 | -/1390 | -/1275 | -/1390 | -/1390 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 36 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.33 | 0.34 | 0.34 | 0.32 | 0.31 | 0.31 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 97W | 225/50 R18 99W XL | 225/50 R18 99W XL | 225/55 R17 97W | 205/65 R16 95W | 205/65 R16 95W |
| Tyre dimensions rear | 225/55 R17 97W | 225/50 R18 99W XL | 225/50 R18 99W XL | 225/55 R17 97W | 205/65 R16 95W | 205/65 R16 95W |
| Wheel size front | 7,5J x 17 | 7,5J x 18 | 7,5J x 18 | 7.5J x 17 | 7J x 16 | 7J x 16 |
| Wheel size rear | 7,5J x 17 | 7,5J x 18 | 7,5J x 18 | 7.5J x 17 | 7J x 16 | 7J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4299 | 4299 | 4299 | 4299 | 4299 | 4299 |
| Overall width without/including mirrors [mm] | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- |
| Overall height [mm] | 1557 | 1557 | 1557 | 1559 | 1557 | 1557 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1563 | 1565 | 1565 | 1563 | 1585 | 1585 |
| Rear wheel track [mm] | 1565 | 1567 | 1567 | 1565 | 1587 | 1587 |
| Forward overhang [mm] | 836 | 836 | 836 | 836 | 836 | 836 |
| Rear overhang [mm] | 793 | 793 | 793 | 793 | 793 | 793 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper D Countryman | Cooper D Countryman | Cooper D Countryman ALL4 | Cooper D Countryman ALL4 | Cooper SD Countryman | Cooper SD Countryman ALL4 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 110/4000 | 110/4000 | 110/4000 | 110/4000 | 140/4000 | 140/4000 |
| Maximum torque [Nm/min-1] | 330-350/1750-2500 | 330-350/1750-2500 | 330-350/1750-2500 | 330-350/1750-2500 | 360-400/1500-2750 | 360-400/1500-2750 |
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 |
| Oil volume [l] | 5.0-5.5 | 5.0-5.5 | 5.0-5.5 | 5.0-5.5 | 5.5 | 5.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | 4x4 |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 208 | 208 | 205 | 205 | 220 | 218 |
| Acceleration 0–100 km/h [s] | 8.9-9.1 | 8.8-9.1 | 8.8-9.0 | 8.7-9.0 | 7.7-7.9 | 7.4-7.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 9,3-9.7 (5th gear) | - | 9,3 (5th gear) | - | - | - |
| City [l] | 5.3-4.8 | 5.2-4.8 | 5.8-5.6 | 5.5-5.2 | 5.3-5.1 | 5.6-5.3 |
| Out of town [l] | 4.2-4.0 | 4.3-4.1 | 4.6-4.2 | 4.7-4.5 | 4.4-4.2 | 4.8-4.5 |
| Combined [l] | 4.6 -4.3 | 4.6-4.4 | 5.0-4.7 | 5.0-4.8 | 4.8-4.5 | 5.1-4.8 |
| CO2 emissions [g/km] | 120-113 | 122-115 | 132-124 | 131-126 | 125-119 | 133-127 |
| Emission standard | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1480-1530 | 1505-1560 | 1605 | 1625 | 1540-1585 | 1610-1650 |
| Overall weight [kg] | 2000-2045 | 2030-2075 | 2125 | 2145 | 2060-2105 | 2130-2170 |
| Maximum trailer weight unbraked/braked [kg] | 730/1500 | 730/1500 | 750/1800 | 750/1800 | 750/1500 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | 1110/1055 | 1130/ 1060 | 1110/1030 | 1130/1070 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- | 75 /- |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1390 | -/1390 | -/1390 | -/1390 | -/1390 | -/1390 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 51 | 51 | 51 | 51 | 51 | 51 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.32 | 0.32 | 0.32 | 0.33 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 225/55 R17 97W | 225/55 R17 97W |
| Tyre dimensions rear | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 205/65 R16 95W | 225/55 R17 97W | 225/55 R17 97W |
| Wheel size front | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7J x 16 | 7J x 16 | 7J x 16 | 7J x 16 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic | Electric power steering Servotronic |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- | 11.4/- |
| Overall length [mm] | 4299 | 4299 | 4299 | 4299 | 4299 | 4299 |
| Overall width without/including mirrors [mm] | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- | 1822/- |
| Overall height [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1585 | 1585 | 1585 | 1585 | 1563 | 1563 |
| Rear wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1565 | 1565 |
| Forward overhang [mm] | 836 | 836 | 836 | 836 | 836 | 836 |
| Rear overhang [mm] | 793 | 793 | 793 | 793 | 793 | 793 |
| Clearance [mm] | 165 | 165 | 165 | 165 | 165 | 165 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
