Mini Coupé & Roadster
Date of manufacture
2011 – 2015 (Coupé)
2012 – 2015 (Roadster)
Platform
-
Manufacturing locations
Oxford, United Kingdom
Designer
-
Tags
A-segment
Since 2011, the Mini Coupé & Roadster have been manufactured in the United Kingdom. The engine range includes petrol and diesel versions. The most powerful (155 kW) is the John Cooper Works Roadster, while the fastest variant is the John Cooper Works Coupé with a top speed of 240 km/h and the best acceleration from 0-100 km/h in 6.4 seconds. The most comfortable ride is offered by the Cooper SD Coupé with the lowest consumption of 4.3 l/100 km and emissions of 114 g/km. The coupé has a boot capacity of 280 l, while the roadster has 240 l.
Car body style
Coupé
Date of manufacture
2011 – 2015Internal designation
R58Roadster
Date of manufacture
2012 – 2015Internal designation
R59 Technical data

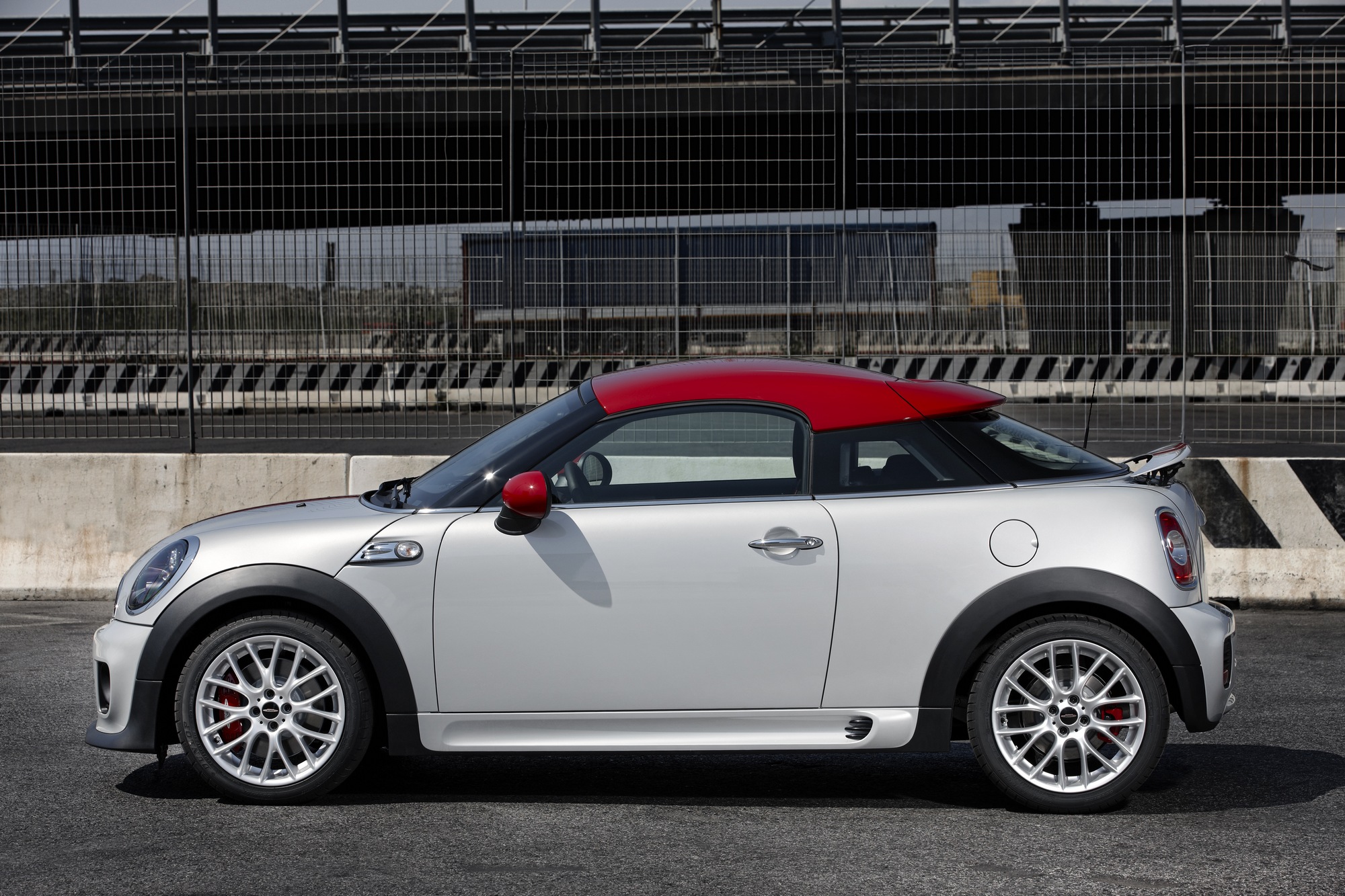

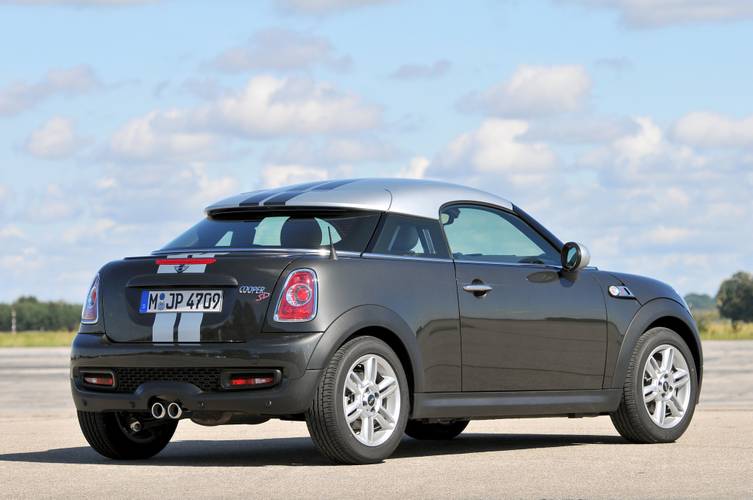

Coupé
| Cooper Coupé | Cooper Coupé | Cooper S Coupé | Cooper S Coupé | John Cooper Works Coupé | John Cooper Works Coupé | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 90/6000 | 90/6000 | 135/5500 | 135/5500 | 155/6000 | 155/6000 |
| Maximum torque [Nm/min-1] | 160/4250 | 160/4250 | 240/1600-5000 | 240/1600-5000 | 260/1850-5600 | 260/1850-5600 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 |
| Compression ratio | 11,0:1 | 11,0:1 | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 4.2 | 4.2 | 4.2 | 4.2 | - | - |
| Coolant volume [l] | 7.5 | 7.5 | 7.5 | 7.5 | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 204 | 198 | 230 | 224 | 240 | 238 |
| Acceleration 0–100 km/h [s] | 9.0 | 10.3 | 6.9 | 7.1 | 6.4 | 6.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 11.9 (5th gear) | - | 6.9 (5th gear) | - | - | - |
| City [l] | 6.9 | 8.7 | 7.3 | 8.9 | 8.8 | 10.1 |
| Out of town [l] | 4.6 | 5.1 | 5.0 | 5.0 | 5.3 | 5.3 |
| Combined [l] | 5.4 | 6.4 | 5.8 | 6.4 | 6.6 | 7.1 |
| CO2 emissions [g/km] | 127 | 150 | 136 | 149 | 153 | 165 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1165 | 1210 | 1240 | 1265 | 1250 | 1275 |
| Overall weight [kg] | 1380 | 1425 | 1455 | 1480 | 1465 | 1490 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 820/590 | 855/590 | 870/605 | 895/605 | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 280 | 280 | 280 | 280 | 280 | 280 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 2 | 2 | 2 | 2 | 2 | 2 |
| Fuel tank volume [l] | 40 | 40 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.36 | 0.36 | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 175/65 R15 84H | 175/65 R15 84H | 195/55 R16 87V | 195/55 R16 87V | 205/45 R17 84W | 205/45 R17 84W |
| Tyre dimensions rear | 175/65 R15 84H | 175/65 R15 84H | 195/55 R16 87V | 195/55 R16 87V | 205/45 R17 84W | 205/45 R17 84W |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- |
| Overall length [mm] | 3728 | 3728 | 3734 | 3734 | 3758 | 3758 |
| Overall width without/including mirrors [mm] | 1683/- | 1683/- | 1683/- | 1683/- | 1683/- | 1683/- |
| Overall height [mm] | 1378 | 1378 | 1384 | 1384 | 1385 | 1385 |
| Wheelbase [mm] | 2467 | 2467 | 2467 | 2467 | 2467 | 2467 |
| Front wheel track [mm] | 1459 | 1459 | 1453 | 1453 | 1453 | 1453 |
| Rear wheel track [mm] | 1467 | 1467 | 1461 | 1461 | 1461 | 1461 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 139 | 139 | 139 | 139 | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 975 | 975 | 975 | 975 | 975 | 975 |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper SD Coupé | Cooper SD Coupé | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1995 | 1995 | ||||
| Maximum output / speed [kW/min-1] | 105/4000 | 105/4000 | ||||
| Maximum torque [Nm/min-1] | 305/1750-2700 | 305/1750-2700 | ||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | ||||
| Compression ratio | 16,5:1 | 16,5:1 | ||||
| Oil volume [l] | 5.2 | 5.2 | ||||
| Coolant volume [l] | 6.6 | 7.0 | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 216 | 206 | ||||
| Acceleration 0–100 km/h [s] | 7.9 | 8.2 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | 7.7 (5th gear) | - | ||||
| City [l] | 5.1 | 6.9 | ||||
| Out of town [l] | 3.9 | 4.3 | ||||
| Combined [l] | 4.3 | 5.3 | ||||
| CO2 emissions [g/km] | 114 | 139 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1250 | 1270 | ||||
| Overall weight [kg] | 1465 | 1485 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | - | ||||
| Maximum front/rear axle load [kg] | 890/600 | 905/600 | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 280 | 280 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 3 | 3 | ||||
| Number of seats | 2 | 2 | ||||
| Fuel tank volume [l] | 40 | 40 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.35 | 0.35 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 195/55 R16 87V | 195/55 R16 87V | ||||
| Tyre dimensions rear | 195/55 R16 87V | 195/55 R16 87V | ||||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | ||||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | ||||
| Overall length [mm] | 3734 | 3734 | ||||
| Overall width without/including mirrors [mm] | 1683/- | 1683/- | ||||
| Overall height [mm] | 1384 | 1384 | ||||
| Wheelbase [mm] | 2467 | 2467 | ||||
| Front wheel track [mm] | 1453 | 1453 | ||||
| Rear wheel track [mm] | 1461 | 1461 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | 139 | 139 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 975 | 975 | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | -/1349 | -/1349 | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |

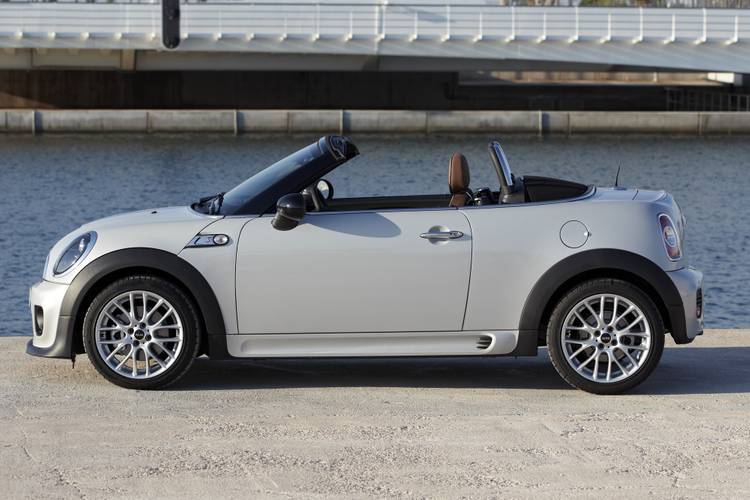

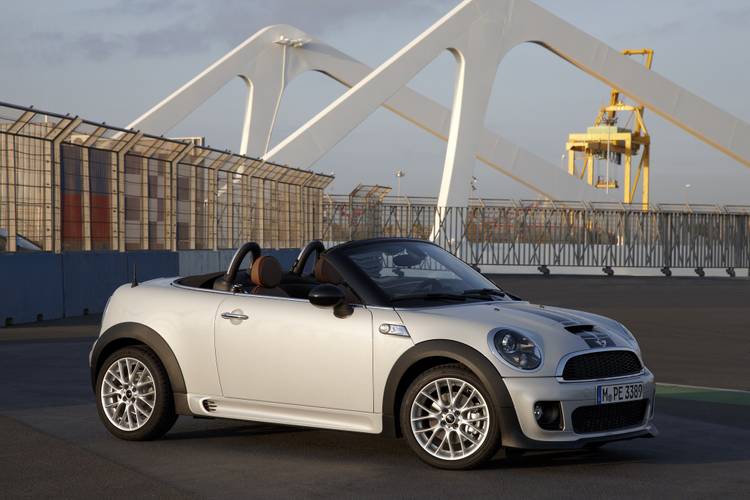

Roadster
| Cooper Roadster | Cooper Roadster | Cooper S Roadster | Cooper S Roadster | John Cooper Works Roadster | John Cooper Works Roadster | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 90/6000 | 90/6000 | 135/5500 | 135/5500 | 155/6000 | 155/6000 |
| Maximum torque [Nm/min-1] | 160/4250 | 160/4250 | 240/1600-5000 | 240/1600-5000 | 260/1850-5600 | 260/1850-5600 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 |
| Compression ratio | 11,0:1 | 11,0:1 | 10,5:1 | 10,5:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | 4.2 | 4.2 | 4.2 | 4.2 | - | - |
| Coolant volume [l] | 7.5 | 7.5 | 7.5 | 7.5 | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 199 | 192 | 227 | 222 | 237 | 235 |
| Acceleration 0–100 km/h [s] | 9.2 | 10.5 | 7.0 | 7.2 | 6.5 | 6.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 12.4 (5th gear) | - | 7.2 (5th gear) | - | - | - |
| City [l] | 7.2 | 8.9 | 7.5 | 9.1 | 9.0 | 10.4 |
| Out of town [l] | 4.9 | 5.3 | 5.1 | 5.1 | 5.5 | 5.5 |
| Combined [l] | 5.7 | 6.6 | 6.0 | 6.6 | 6.8 | 7.3 |
| CO2 emissions [g/km] | 133 | 154 | 139 | 153 | 157 | 169 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1195 | 1235 | 1260 | 1280 | 1270 | 1290 |
| Overall weight [kg] | 1410 | 1450 | 1475 | 1495 | 1485 | 1505 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 820/610 | 855/610 | 870/620 | 895/620 | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 240 | 240 | 240 | 240 | 240 | 240 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 2 | 2 | 2 | 2 | 2 | 2 |
| Fuel tank volume [l] | 40 | 40 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.35 | 0.35 | 0.37 | 0.37 | 0.36 | 0.36 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 175/65 R15 84H | 175/65 R15 84H | 195/55 R16 87V | 195/55 R16 87V | 205/45 R17 84W | 205/45 R17 84W |
| Tyre dimensions rear | 175/65 R15 84H | 175/65 R15 84H | 195/55 R16 87V | 195/55 R16 87V | 205/45 R17 84W | 205/45 R17 84W |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 280 x 22 | 280 x 22 | 294 x 22 | 294 x 22 | 316 x 22 | 316 x 22 |
| Brake dimensions rear | 259 x 10 | 259 x 10 | 259 x 10 | 259 x 10 | 280 x 10 | 280 x 10 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- |
| Overall length [mm] | 3728 | 3728 | 3734 | 3734 | 3758 | 3758 |
| Overall width without/including mirrors [mm] | 1683/- | 1683/- | 1683/- | 1683/- | 1683/- | 1683/- |
| Overall height [mm] | 1384 | 1384 | 1390 | 1390 | 1391 | 1391 |
| Wheelbase [mm] | 2467 | 2467 | 2467 | 2467 | 2467 | 2467 |
| Front wheel track [mm] | 1459 | 1459 | 1453 | 1453 | 1453 | 1453 |
| Rear wheel track [mm] | 1467 | 1467 | 1461 | 1461 | 1461 | 1461 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 134 | 134 | 134 | 134 | 134 | 134 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 | -/1349 |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper SD Roadster | Cooper SD Roadster | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1995 | 1995 | ||||
| Maximum output / speed [kW/min-1] | 105/4000 | 105/4000 | ||||
| Maximum torque [Nm/min-1] | 305/1750-2700 | 305/1750-2700 | ||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | ||||
| Compression ratio | 16,5:1 | 16,5:1 | ||||
| Oil volume [l] | 5.2 | 5.2 | ||||
| Coolant volume [l] | 6.6 | 7.0 | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 212 | 204 | ||||
| Acceleration 0–100 km/h [s] | 8.1 | 8.3 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | 8.0 (5th gear) | - | ||||
| City [l] | 5.3 | 7.1 | ||||
| Out of town [l] | 4.0 | 4.4 | ||||
| Combined [l] | 4.5 | 5.4 | ||||
| CO2 emissions [g/km] | 118 | 143 | ||||
| Emission standard | EU5 | EU5 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1275 | 1290 | ||||
| Overall weight [kg] | 1490 | 1505 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | - | ||||
| Maximum front/rear axle load [kg] | 890/620 | 905/620 | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 240 | 240 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 2 | 2 | ||||
| Number of seats | 2 | 2 | ||||
| Fuel tank volume [l] | 40 | 40 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.37 | 0.37 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 195/55 R16 87V | 195/55 R16 87V | ||||
| Tyre dimensions rear | 195/55 R16 87V | 195/55 R16 87V | ||||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | ||||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | ||||
| Brake dimensions front | 294 x 22 | 294 x 22 | ||||
| Brake dimensions rear | 259 x 10 | 259 x 10 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | ||||
| Overall length [mm] | 3734 | 3734 | ||||
| Overall width without/including mirrors [mm] | 1683/- | 1683/- | ||||
| Overall height [mm] | 1390 | 1390 | ||||
| Wheelbase [mm] | 2467 | 2467 | ||||
| Front wheel track [mm] | 1453 | 1453 | ||||
| Rear wheel track [mm] | 1461 | 1461 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | 134 | 134 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 1005 | 1005 | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | -/1349 | -/1349 | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
