Mini One & Cooper
Date of manufacture
11/2013 – 2018 (Three-door hatchback)

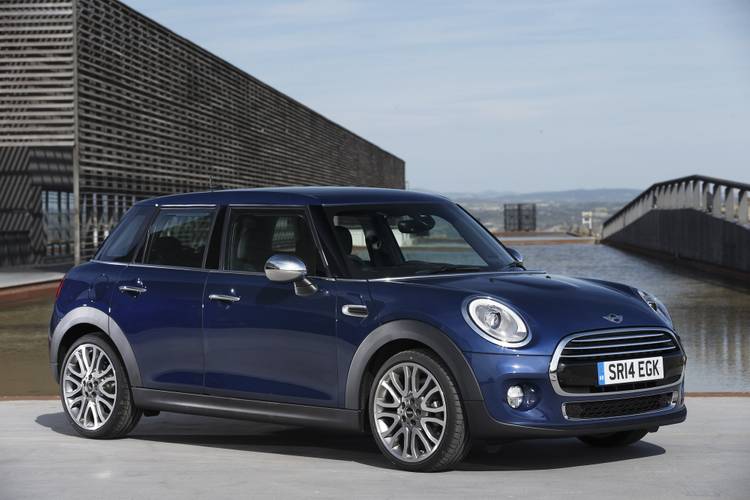

7/2014 – 2018 (Five-door hatchback)
Platform
BMW UKL1
Manufacturing locations
Oxford, United Kingdom
Born, Netherlands
Designer
-
Tags
A-segment
The Mini One & Cooper has been manufactured since 2013 and is available as a three-door hatchback or five-door hatchback. The vehicle can have a country of origin such as the United Kingdom or the Netherlands and is built on the BMW UKL1 platform. The powertrain offering includes petrol and diesel engines, with the highest power output of 170 kW in the John Cooper Works model. The maximum speed of this model reaches 246 km/h and the best acceleration 0-100 km/h in 6.1 seconds. The lowest fuel consumption of 3.4 l/100 km and emissions of 89 g/km are available in the One D version. The size of the luggage compartment in the three-door hatchback is 211 l, in the five-door hatchback 278 l. In terms of safety, the model received a rating of 4 out of 5 points from EURONCAP in 2014.
Car body style

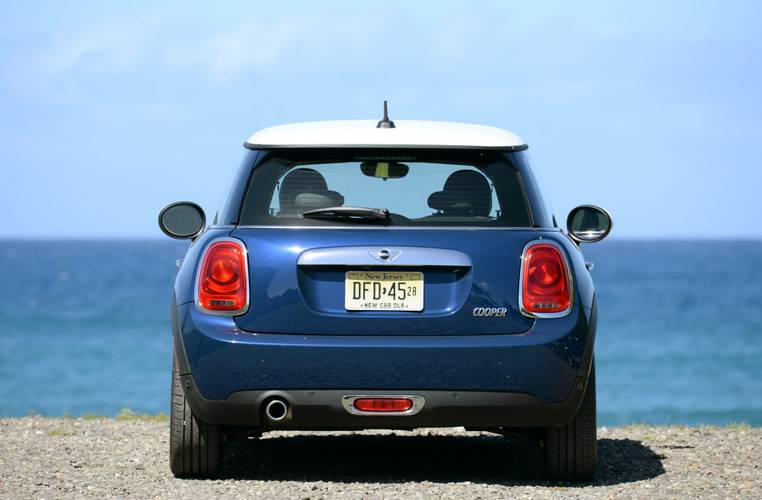

Three-door hatchback
Date of manufacture
11/2013 – 2018Internal designation
F56
Technical data
Three-door hatchback
| One First | One | One | Cooper | Cooper | Cooper S | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 |
| Engine displacement [cm³] | 1198 | 1198 | 1198 | 1499 | 1499 | 1998 |
| Maximum output / speed [kW/min-1] | 55/4000 | 75/4250-6000 | 75/4250-6000 | 100/4500-6000 | 100/4500-6000 | 141/4700-6000 |
| Maximum torque [Nm/min-1] | 150/1400 | 180/1400-4000 | 180/1400-4000 | 220/1250-4000 | 220/1250-4000 | 280/1250-4750 |
| Bore and stroke [mm x mm] | 78,0 x 86,0 | 78,0 x 86,0 | 78,0 x 86,0 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 |
| Compression ratio | 10,2:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 |
| Oil volume [l] | 4.25 | 4.25 | 4.25 | 4.25 | 4.25 | 5.0 |
| Coolant volume [l] | 4.9 | 5.3 | 5.7 | 5.3 | 5.7 | 5.8 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 175 | 195 | 195 | 210 | 210 | 235 |
| Acceleration 0–100 km/h [s] | 12.8 | 9.9 | 10.2 | 7.9 | 7.8 | 6.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 11.8 (5th gear) | - | 9.3 (5th gear) | - | 6.4 (5th gear) |
| City [l] | 6.5 | 5.7-5.9 | 5.8-5.9 | 5.7-5.8 | 5.9-6.0 | 7.6-7.7 |
| Out of town [l] | 4.2-4.3 | 4.0-4.1 | 4.2-4.3 | 3.8-3.9 | 4.0-4.1 | 4.6-4.8 |
| Combined [l] | 5.1-5.2 | 4.6-4.8 | 4.8-4.9 | 4.5-4.6 | 4.7-4.8 | 5.7-5.8 |
| CO2 emissions [g/km] | 118-120 | 108-111 | 112-114 | 105-107 | 109-112 | 133-136 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1165 | 1165 | 1195 | 1160 | 1190 | 1235 |
| Overall weight [kg] | 1570 | 1570 | 1600 | 1565 | 1595 | 1640 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 860/760 | 1090/1165 | 1120/1195 | 870/755 | 900/755 | 915/765 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 60/- | 60/- | 60/- | 60/- | 60/- | 60/- |
| Boot volume [l] | 211 | 211 | 211 | 211 | 211 | 211 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/731 | -/731 | -/731 | -/731 | -/731 | -/731 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 40 | 40 | 40 | 40 | 40 | 44 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.28 | 0.28 | 0.28 | 0.31 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 195/55 R16 87W |
| Tyre dimensions rear | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 195/55 R16 87W |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6.5J x 16 |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 3821 | 3821 | 3821 | 3821 | 3821 | 3850 |
| Overall width without/including mirrors [mm] | 1727/- | 1727/- | 1727/- | 1727/- | 1727/- | 1727/- |
| Overall height [mm] | 1414 | 1414 | 1414 | 1414 | 1414 | 1414 |
| Wheelbase [mm] | 2495 | 2495 | 2495 | 2495 | 2495 | 2495 |
| Front wheel track [mm] | 1501 | 1501 | 1501 | 1501 | 1501 | 1485 |
| Rear wheel track [mm] | 1501 | 1501 | 1501 | 1501 | 1501 | 1485 |
| Forward overhang [mm] | 749 | 749 | 749 | 749 | 749 | 757 |
| Rear overhang [mm] | 577 | 577 | 577 | 577 | 577 | 598 |
| Clearance [mm] | 124 | 124 | 124 | 124 | 124 | 124 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper S | John Cooper Works | John Cooper Works | One D | Cooper D | Cooper D | |
|---|---|---|---|---|---|---|
| Date of sale | - | from 2015 to | from 2015 to | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1496 | 1496 | 1496 |
| Maximum output / speed [kW/min-1] | 141/4700-6000 | 170/5200-6000 | 170/5200-6000 | 70/4000 | 85/4000 | 85/4000 |
| Maximum torque [Nm/min-1] | 280/1250-4750 | 320/1250-4800 | 320/1250-4800 | 220/1750 | 270/1750 | 270/1750 |
| Bore and stroke [mm x mm] | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 11,0:1 | 10,2:1 | 10,2:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 5.0 | 5.25 | 5.25 | 4.7 | 4.7 | 4.7 |
| Coolant volume [l] | 6.1 | 5.8 | 5.8 | 6.4 | 6.6 | 6.6 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
| - |
| - | - |
|
| Top speed [km/h] | 233 | 246 | 246 | 190 | 205 | 204 |
| Acceleration 0–100 km/h [s] | 6.7 | 6.3 | 6.1 | 11.0 | 9.2 | 9.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 5.6 (5th gear) | - | - | 8.9 (5th gear) | - |
| City [l] | 6.8-6.9 | 8.3-9.1 | 7.2 | 3.9-4.0 | 4.3-4.4 | 4.2-4.3 |
| Out of town [l] | 4.4-4.5 | 5.2-5.2 | 4.9 | 3.1-3.2 | 3.1-3.2 | 3.5-3.5 |
| Combined [l] | 5.2-5.4 | 6.3-6.7 | 5.7 | 3.4-3.5 | 3.5-3.6 | 3.7-3.8 |
| CO2 emissions [g/km] | 122-125 | 147-155 | 133 | 89-92 | 92-95 | 98-99 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1250 | 1280 | 1295 | 1190 | 1210 | 1225 |
| Overall weight [kg] | 1655 | 1685 | 1700 | 1595 | 1615 | 1630 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 930/765 | 935/775 | 955/775 | 890/765 | 910/755 | 925/755 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 60/- | 60/- | 60/- | 60/- | 60/- | 60/- |
| Boot volume [l] | 211 | 211 | 211 | 211 | 211 | 211 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/731 | -/731 | -/731 | -/731 | -/731 | -/731 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 44 | 44 | 44 | 44 | 44 | 44 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.34 | 0.34 | 0.28 | 0.28 | 0.28 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/55 R16 87W | 205/45 R17 88Y XL | 205/45 R17 88Y XL | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H |
| Tyre dimensions rear | 195/55 R16 87W | 205/45 R17 88Y XL | 205/45 R17 88Y XL | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H |
| Wheel size front | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Wheel size rear | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- | 10.8/- |
| Overall length [mm] | 3850 | 3874 | 3874 | 3821 | 3821 | 3821 |
| Overall width without/including mirrors [mm] | 1727/- | 1727/- | 1727/- | 1727/- | 1727/- | 1727/- |
| Overall height [mm] | 1414 | 1414 | 1414 | 1414 | 1414 | 1414 |
| Wheelbase [mm] | 2495 | 2495 | 2495 | 2495 | 2495 | 2495 |
| Front wheel track [mm] | 1485 | 1485 | 1485 | 1501 | 1501 | 1501 |
| Rear wheel track [mm] | 1485 | 1485 | 1485 | 1501 | 1501 | 1501 |
| Forward overhang [mm] | 757 | - | - | 749 | 749 | 749 |
| Rear overhang [mm] | 598 | - | - | 577 | 577 | 577 |
| Clearance [mm] | 124 | 124 | 124 | 124 | 124 | 124 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper SD | Cooper SD | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1995 | 1995 | ||||
| Maximum output / speed [kW/min-1] | 125/4000 | 125/4000 | ||||
| Maximum torque [Nm/min-1] | 360/1500-2750 | 360/1500-2750 | ||||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | ||||
| Compression ratio | 16,5:1 | 16,5:1 | ||||
| Oil volume [l] | 5.25 | 5.25 | ||||
| Coolant volume [l] | 3.3 | 3.3 | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 227 | 225 | ||||
| Acceleration 0–100 km/h [s] | 7.3 | 7.2 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | 6.5 (5th gear) | - | ||||
| City [l] | 4.9 | 4.6 | ||||
| Out of town [l] | 3.6 | 3.6 | ||||
| Combined [l] | 4.0 | 4.0 | ||||
| CO2 emissions [g/km] | 106 | 104 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1250 | 1265 | ||||
| Overall weight [kg] | 1655 | 1670 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | - | ||||
| Maximum front/rear axle load [kg] | 930/765 | 945/765 | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 60/- | 60/- | ||||
| Boot volume [l] | 211 | 211 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/731 | -/731 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 3 | 3 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | 44 | 44 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.33 | 0.33 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 195/55 R16 87W | 195/55 R16 87W | ||||
| Tyre dimensions rear | 195/55 R16 87W | 195/55 R16 87W | ||||
| Wheel size front | 6.5J x 16 | 6.5J x 16 | ||||
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.8/- | 10.8/- | ||||
| Overall length [mm] | 3821 | 3821 | ||||
| Overall width without/including mirrors [mm] | 1727/- | 1727/- | ||||
| Overall height [mm] | 1414 | 1414 | ||||
| Wheelbase [mm] | 2495 | 2495 | ||||
| Front wheel track [mm] | 1485 | 1485 | ||||
| Rear wheel track [mm] | 1485 | 1485 | ||||
| Forward overhang [mm] | 749 | 749 | ||||
| Rear overhang [mm] | 577 | 577 | ||||
| Clearance [mm] | 124 | 124 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Five-door hatchback
| One First | One | One | Cooper | Cooper | Cooper S | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 |
| Engine displacement [cm³] | 1198 | 1198 | 1198 | 1499 | 1499 | 1998 |
| Maximum output / speed [kW/min-1] | 55/4000 | 75/4250-6000 | 75/4250-6000 | 100/4500-6000 | 100/4500-6000 | 141/4700-6000 |
| Maximum torque [Nm/min-1] | 150/1400 | 180/1400-4000 | 180/1400-4000 | 220/1250-4000 | 220/1250-4000 | 280/1250-4750 |
| Bore and stroke [mm x mm] | 78,0 x 86,0 | 78,0 x 86,0 | 78,0 x 86,0 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 |
| Compression ratio | 10,2:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 |
| Oil volume [l] | 4.25 | 4.25 | 4.25 | 4.25 | 4.25 | 5.25 |
| Coolant volume [l] | 4.9 | 4.9 | 4.9 | 4.9 | 5.7 | 6.1 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 172 | 192 | 192 | 207 | 207 | 232 |
| Acceleration 0–100 km/h [s] | 13.4 | 10.1 | 10.5 | 8.2 | 8.1 | 6.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 16.5 (5th gear) | 12.8 (5th gear) | - | 9.6 (5th gear) | - | 6.7 (5th gear) |
| City [l] | 6.6 | 5.9-6.0 | 5.9-6.0 | 5.9 | 6.0-6.1 | 7.7-7.9 |
| Out of town [l] | 4.3 | 4.2 | 4.3-4.4 | 4.0-4.1 | 4.1-4.2 | 4.8-4.9 |
| Combined [l] | 5.2 | 4.8-4.9 | 4.9-5.0 | 4.7-4.8 | 4.8-4.9 | 5.9-6.0 |
| CO2 emissions [g/km] | 121 | 112-114 | 114-116 | 106-111 | 111-114 | 136-139 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1225 | 1225 | 1250 | 1220 | 1250 | 1295 |
| Overall weight [kg] | 1680 | 1680 | 1705 | 1670 | 1700 | 1750 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 900/845 | 900/845 | 925/845 | 910/835 | 940/835 | 950/850 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 278 | 278 | 278 | 278 | 278 | 278 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/941 | -/941 | -/941 | -/941 | -/941 | -/941 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 40 | 40 | 40 | 40 | 40 | 44 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.29 | 0.29 | 0.3 | 0.3 | 0.32 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 195/55 R16 87W |
| Tyre dimensions rear | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 195/55 R16 87W |
| Wheel size front | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6.5J x 16 |
| Wheel size rear | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.02/- | 11.02/- | 11.02/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 3982 | 3982 | 3982 | 3982 | 3982 | 4005 |
| Overall width without/including mirrors [mm] | 1727/- | 1727/- | 1727/- | 1727/- | 1727/- | 1727/- |
| Overall height [mm] | 1425 | 1425 | 1425 | 1425 | 1425 | 1425 |
| Wheelbase [mm] | 2567 | 2567 | 2567 | 2567 | 2567 | 2567 |
| Front wheel track [mm] | 1501 | 1501 | 1501 | 1501 | 1501 | 1501 |
| Rear wheel track [mm] | 1501 | 1501 | 1501 | 1501 | 1501 | 1501 |
| Forward overhang [mm] | 749 | 749 | 749 | 749 | 749 | 757 |
| Rear overhang [mm] | 666 | 666 | 666 | 666 | 666 | 681 |
| Clearance [mm] | 146 | 146 | 146 | 146 | 146 | 146 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper S | One D | Cooper D | Cooper D | Cooper SD | Cooper SD | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1496 | 1496 | 1496 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 141/4700-6000 | 70/4000 | 85/4000 | 85/4000 | 125/4000 | 125/4000 |
| Maximum torque [Nm/min-1] | 280/1250-4750 | 220/1750 | 270/1750 | 270/1750 | 360/1500-2750 | 360/1500-2750 |
| Bore and stroke [mm x mm] | 82,0 x 94,6 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 11,0:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 5.25 | 4.4 | 4.4 | 4.4 | - | - |
| Coolant volume [l] | 6.1 | 3.3 | 3.3 | 3.3 | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
| - | - |
| - |
|
| Top speed [km/h] | 230 | 187 | 203 | 202 | 225 | 223 |
| Acceleration 0–100 km/h [s] | 6.8 | 11.4 | 9.4 | 9.5 | 7.4 | 7.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 12.1 (5th gear) | 9.2 (5th gear) | - | 6.7 (5th gear) | - |
| City [l] | 6.9-7.0 | 4.0-4.1 | 4.4-4.5 | 4.3-4.4 | 5.0-5.1 | 4.7-4.8 |
| Out of town [l] | 4.5-4.6 | 3.2-3.3 | 3.2-3.3 | 3.5-3.6 | 3.6-3.8 | 3.7-3.8 |
| Combined [l] | 5.4-5.5 | 3.5-3.6 | 3.6-3.7 | 3.8-3.9 | 4.1-4.3 | 4.1-4.2 |
| CO2 emissions [g/km] | 125-128 | 92-94 | 95-97 | 99-102 | 109-112 | 107-109 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1315 | 1250 | 1265 | 1280 | 1305 | 1325 |
| Overall weight [kg] | 1770 | 1715 | 1720 | 1735 | 1755 | 1775 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | 970/850 | 910/850 | 1190/1265 | 1205/1280 | 950/850 | 970/850 |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 278 | 278 | 278 | 278 | 278 | 278 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/941 | -/941 | -/941 | -/941 | -/941 | -/941 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 44 | 44 | 44 | 44 | 44 | 44 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.3 | 0.3 | 0.3 | 0.33 | 0.33 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/55 R16 87W | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 195/55 R16 87W | 195/55 R16 87W |
| Tyre dimensions rear | 195/55 R16 87W | 175/65 R15 84H | 175/65 R15 84H | 175/65 R15 84H | 195/55 R16 87W | 195/55 R16 87W |
| Wheel size front | 6.5J x 16 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 16 | 5.5J x 15 | 5.5J x 15 | 5.5J x 15 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.0/- | 11.02/- | 11.0/- | 11.0/- | 11.0/- | 11.0/- |
| Overall length [mm] | 4005 | 3982 | 3982 | 3982 | 4005 | 4005 |
| Overall width without/including mirrors [mm] | 1727/- | 1727/- | 1727/- | 1727/- | 1727/- | 1727/- |
| Overall height [mm] | 1425 | 1425 | 1425 | 1425 | 1425 | 1425 |
| Wheelbase [mm] | 2567 | 2567 | 2567 | 2567 | 2567 | 2567 |
| Front wheel track [mm] | 1501 | 1501 | 1501 | 1501 | 1485 | 1485 |
| Rear wheel track [mm] | 1501 | 1501 | 1501 | 1501 | 1485 | 1485 |
| Forward overhang [mm] | 757 | 749 | 749 | 749 | 757 | 757 |
| Rear overhang [mm] | 681 | 666 | 666 | 666 | 681 | 681 |
| Clearance [mm] | 146 | 146 | 146 | 146 | 146 | 146 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
