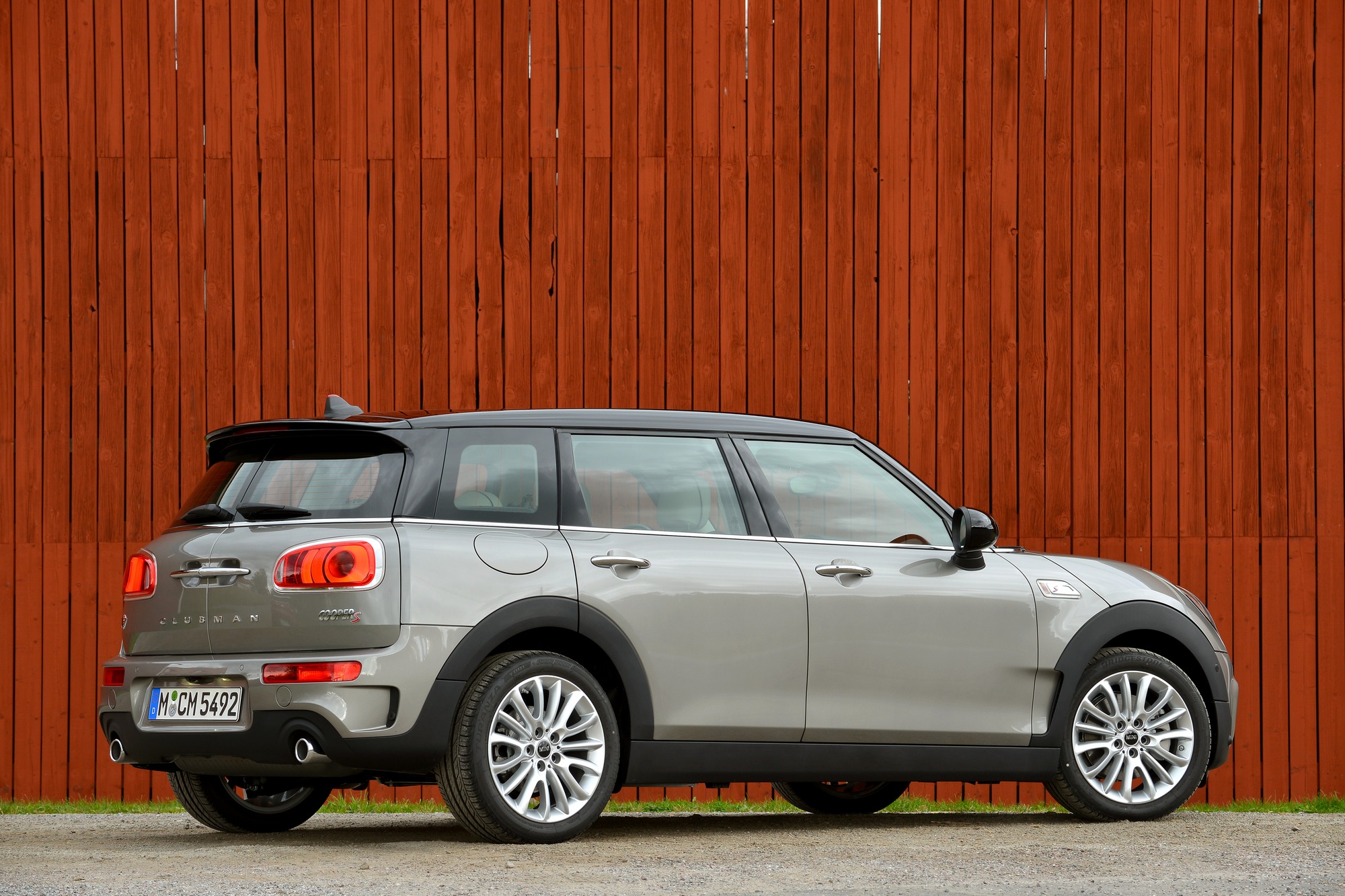

Mini One & Cooper Clubman
Date of manufacture
2015 – 2019 (Estate)
Platform
-
Manufacturing locations
Oxford, United Kingdom
Designer
-
Tags
A-segment
The new Mini One & Cooper Clubman model is available as a practical estate car. The car was first manufactured in 2015 in the United Kingdom. The engine range includes petrol and diesel engines, the most powerful model being the Cooper S ALL4 with 141 kW. The fastest version is the Cooper S, reaching a top speed of 228 km/h and the best acceleration from 0-100 km/h in 6.9 seconds. The most economical variant is the One D with 3.8 l/100 km fuel consumption and 99 g CO2/km emissions. The car's boot offers a capacity of 360 litres. The model successfully passed the EURONCAP safety tests in 2015 and achieved a rating of 4 out of 5 stars.
Car body style
Estate
Date of manufacture
2015 – 2019Internal designation
F54
Technical data
Estate
| One | One | Cooper | Cooper | Cooper S | Cooper S | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1499 | 1499 | 1499 | 1499 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 75/3900-6500 | 75/3900-6500 | 100/4500-6500 | 100/4500-6500 | 141/5000-6000 | 141/5000-6000 |
| Maximum torque [Nm/min-1] | 180-190/1200-3800 | 180-190/1200-3800 | 220/1250 | 220/1250 | 280/1250 | 280/1250 |
| Bore and stroke [mm x mm] | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 | 82,0 x 94,6 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 |
| Oil volume [l] | 4.25 | 4.25 | 4.25 | 4.25 | 5.25 | 5.25 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 185 | 185 | 205 | 205 | 228 | 228 |
| Acceleration 0–100 km/h [s] | 11,1-11,3 | 11,6-11,7 | 9,1-9,2 | 9,1-9,2 | 7,2-7,3 | 7,1-7,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,3-7,2 | 6,1-6,8 | 6,2-7,1 | 6,1-6,9 | 7,9-8,4 | 6,7-7,2 |
| Out of town [l] | 4,4-4,9 | 4,6-5,1 | 4,4-5,0 | 4,5-5,0 | 5,2-5,6 | 5,0-5,3 |
| Combined [l] | 5,1-5,8 | 5,1-5,7 | 5,1-5,8 | 5,1-5,7 | 6,2-6,6 | 5,8-5,9 |
| CO2 emissions [g/km] | 119-131 | 119-130 | 118-131 | 118-130 | 144-151 | 133-137 |
| Emission standard | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1375-1395 | 1395-1420 | 1375-1395 | 1395-1425 | 1435-1460 | 1465-1470 |
| Overall weight [kg] | 1865-1870 | 1890 | 1865-1870 | 1890 | 1920-1930 | 1945-1960 |
| Maximum trailer weight unbraked/braked [kg] | 680/1100 | 680/1100 | 680/1300 | 680/1300 | 720/1300 | 720/1300 |
| Maximum front/rear axle load [kg] | 960/ 955 | 985/950 | 960/ 955 | 990/ 950 | 1000/965 | 1020/960 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 360 | 360 | 360 | 360 | 360 | 360 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 48 | 48 | 48 | 48 | 48 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.33 | 0.32 | 0.33 | 0.34 | 0.34 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 225/45 R17 94W XL | 225/45 R17 94W XL |
| Tyre dimensions rear | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 225/45 R17 94W XL | 225/45 R17 94W XL |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | 7.5J x 17 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 17 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4253 | 4253 | 4253 | 4253 | 4253 | 4253 |
| Overall width without/including mirrors [mm] | 1800/- | 1800/- | 1800/- | 1800/- | 1800/- | 1800/- |
| Overall height [mm] | 1441 | 1441 | 1441 | 1441 | 1441 | 1441 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1564 | 1564 | 1564 | 1564 | 1560 | 1560 |
| Rear wheel track [mm] | 1565 | 1565 | 1565 | 1565 | 1561 | 1561 |
| Forward overhang [mm] | 788 | 788 | 788 | 788 | 788 | 788 |
| Rear overhang [mm] | 795 | 795 | 795 | 795 | 795 | 795 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper S ALL4 | Cooper S ALL4 | One D | One D | Cooper D | Cooper D | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1496 | 1496 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 141/5000 | 141/5000 | 85/4000 | 85/4000 | 110/4000 | 110/4000 |
| Maximum torque [Nm/min-1] | 280/1250 | 280/1250 | 270/1750-2250 | 270/1750-2250 | 330-350/1750 | 330-350/1750 |
| Bore and stroke [mm x mm] | 82,0 x 94,6 | 82,0 x 94,6 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 5.25 | 5.25 | 4.4-4.8 | 4.4-4.8 | 5.0-5.5 | 5.0-5.5 |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications |
|
| - |
| - |
|
| Top speed [km/h] | 225 | 225 | 192 | 192 | 212 | 212 |
| Acceleration 0–100 km/h [s] | 7.0 | 6.9 | 10,4-10,8 | 10,4-10,8 | 8,6-8,9 | 8,5-8,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | - | 4,4-4,7 | 4,4-4,7 | 4,8-5,1 | 4,7-4,9 |
| Out of town [l] | - | - | 3,4-4,0 | 3,6-3,9 | 3,7-4,0 | 3,8-4,1 |
| Combined [l] | 6.9-7.0 | 6.3-6.4 | 3,8-4,3 | 3,9-4,1 | 4,1-4,4 | 4,1-4,4 |
| CO2 emissions [g/km] | 159-162 | 146-149 | 99-112 | 104-109 | 109-115 | 109-115 |
| Emission standard | EU6 | EU6 | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1525 | 1535 | 1320-1445 | 1345-1460 | 1395-1470 | 1435-1505 |
| Overall weight [kg] | 2030 | 2055 | 1900-1915 | 1920-1930 | 1910-1965 | 1945-2000 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 695-700/1200 | 700/1200 | 695-710/1300 | 695-710/1300 |
| Maximum front/rear axle load [kg] | - | - | 1000/ 985 | 1020/ 980 | 1025/ 985 | 1070/ 980 |
| Maximum vertical load on the tow bar [kg] | - | - | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 360 | 360 | 360 | 360 | 360 | 360 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 | -/1250 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 48 | 48 | 48 | 48 | 48 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.34 | 0.34 | 0.31 | 0,31-0,32 | 0.31 | 0.31 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/45 R17 94W XL | 225/45 R17 94W XL | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W |
| Tyre dimensions rear | 225/45 R17 94W XL | 225/45 R17 94W XL | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W | 205/55 R16 91W |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4253 | 4253 | 4253 | 4253 | 4253 | 4253 |
| Overall width without/including mirrors [mm] | 1800/- | 1800/- | 1800/- | 1800/- | 1800/- | 1800/- |
| Overall height [mm] | 1441 | 1441 | 1441 | 1441 | 1441 | 1441 |
| Wheelbase [mm] | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
| Front wheel track [mm] | 1560 | 1560 | 1564 | 1564 | 1564 | 1564 |
| Rear wheel track [mm] | 1561 | 1561 | 1565 | 1565 | 1565 | 1565 |
| Forward overhang [mm] | 788 | 788 | 788 | 788 | 788 | 788 |
| Rear overhang [mm] | 795 | 795 | 795 | 795 | 795 | 795 |
| Clearance [mm] | 141 | 141 | 141 | 141 | 141 | 141 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper SD | Cooper SD | Cooper SD ALL4 | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1995 | 1995 | 1995 | |||
| Maximum output / speed [kW/min-1] | 140/4000 | 140/4000 | 140/4000 | |||
| Maximum torque [Nm/min-1] | 400/1750-2500 | 360-400/1750-2500 | 360-400/1750-2500 | |||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |||
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | |||
| Oil volume [l] | 5.0 | 5.0-5.5 | 5.0-5.5 | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | 4x4 | |||
| Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | |||
| Drive specifications | - |
|
| |||
| Top speed [km/h] | 225 | 225 | 222 | |||
| Acceleration 0–100 km/h [s] | 7.4 | 7,4-7,6 | 7,2-7,4 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.3-5.4 | 4,9-5,0 | 5.7 | |||
| Out of town [l] | 4.1-4.2 | 4,0-4,2 | 4.3 | |||
| Combined [l] | 4.5-4.6 | 4,3-4,5 | 4,8-4,9 | |||
| CO2 emissions [g/km] | 119-122 | 114-119 | 126-129 | |||
| Emission standard | EU6 | EU6 - EU6d-TEMP | EU6 - EU6d-TEMP | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1460 | 1480-1525 | 1540-1585 | |||
| Overall weight [kg] | 1960 | 1980-2025 | 2055-2085 | |||
| Maximum trailer weight unbraked/braked [kg] | 720/1300 | 720/1300 | 750/1500 | |||
| Maximum front/rear axle load [kg] | - | 1065/1000 | 1080/1040 | |||
| Maximum vertical load on the tow bar [kg] | - | 75 | 75 | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 360 | 360 | 360 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1250 | -/1250 | -/1250 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 48 | 48 | 48 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.33 | 0.33 | 0.33 | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 225/45 R17 94W XL | 225/45 R17 94W XL | 225/45 R17 94W XL | |||
| Tyre dimensions rear | 225/45 R17 94W XL | 225/45 R17 94W XL | 225/45 R17 94W XL | |||
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |||
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | |||
| Overall length [mm] | 4253 | 4253 | 4253 | |||
| Overall width without/including mirrors [mm] | 1800/- | 1800/- | 1800/- | |||
| Overall height [mm] | 1441 | 1441 | 1441 | |||
| Wheelbase [mm] | 2670 | 2670 | 2670 | |||
| Front wheel track [mm] | 1560 | 1560 | 1560 | |||
| Rear wheel track [mm] | 1561 | 1561 | 1561 | |||
| Forward overhang [mm] | 788 | 788 | 788 | |||
| Rear overhang [mm] | 795 | 795 | 795 | |||
| Clearance [mm] | 141 | 141 | 141 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
