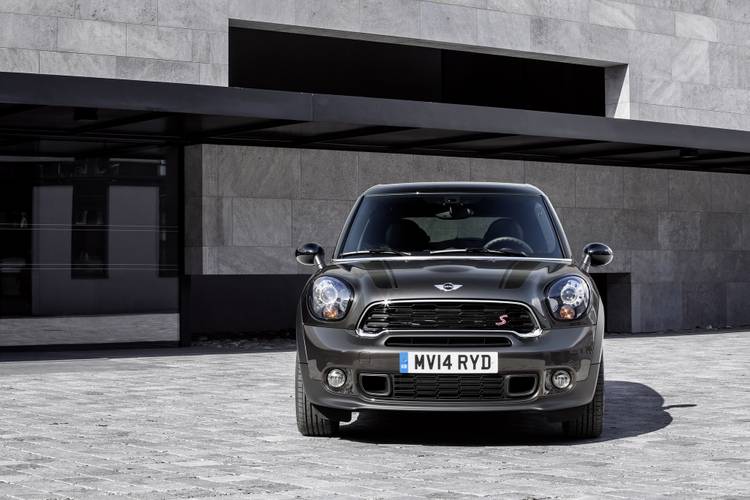

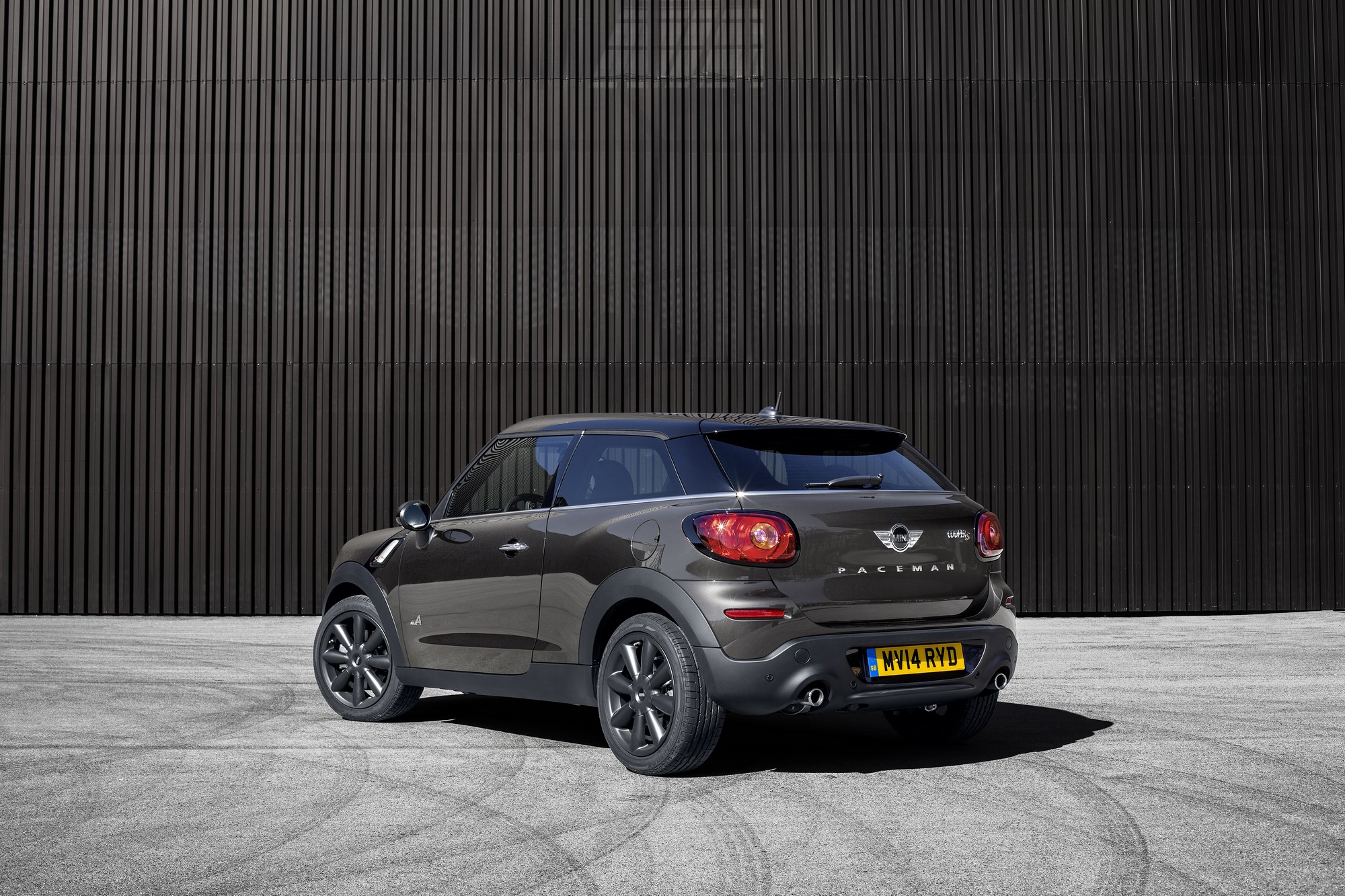

Mini Paceman
Date of manufacture
2014 – 2016 (SUV)
Platform
-
Manufacturing locations
Graz, Austria
Designer
-
Tags
A-segment
The Mini Paceman is an SUV that has been manufactured in Austria since 2014. It offers petrol and diesel engines with the highest power of 160 kW in the John Cooper Works Paceman model. The top speed of this model reaches 229 km/h and the best acceleration from 0-100 km/h takes 6.8 seconds. The most economical variant is the Cooper D Paceman with a consumption of 4.2 l/100 km and emissions of 111 g/km. The car trunk offers a capacity of 330 l.
Car body style
SUV
after upgrade (facelift)
Date of manufacture
2014 – 2016Internal designation
R61 Engine size
Petrol
Technical data
SUV
| Cooper Paceman | Cooper Paceman | Cooper Paceman ALL4 | Cooper Paceman ALL4 | Cooper S Paceman | Cooper S Paceman | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 90/6000 | 90/6000 | 90/6000 | 90/6000 | 140/5500-6500 | 140/5500-6500 |
| Maximum torque [Nm/min-1] | 160/4250 | 160/4250 | 160/4250 | 160/4250 | 240/1600-5000 | 240/1600-5000 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| Coolant volume [l] | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 193 | 186 | 188 | 186 | 220 | 216 |
| Acceleration 0–100 km/h [s] | 10.3 | 11.5 | 11.4 | 11.6 | 7.4 | 7.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 14.6 (5th gear) | - | 14.5 (5th gear) | - | 8.3 (5th gear) | - |
| City [l] | 7.3 | 9.0 | 8.2 | 9.4 | 7.5 | 9.2 |
| Out of town [l] | 5.1 | 5.6 | 5.8 | 5.7 | 5.1 | 5.4 |
| Combined [l] | 5.9 | 6.9 | 6.7 | 7.0 | 6.0 | 6.8 |
| CO2 emissions [g/km] | 137 | 159 | 156 | 164 | 139 | 157 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1330 | 1360 | 1405 | 1450 | 1380 | 1405 |
| Overall weight [kg] | 1725 | 1755 | 1810 | 1855 | 1775 | 1800 |
| Maximum trailer weight unbraked/braked [kg] | - | 500/1000 | - | 500/1000 | 500/750 | 500/1000 |
| Maximum front/rear axle load [kg] | 910 / 840 | 940 / 840 | 945 / 890 | 990 / 890 | 955 / 840 | 980 / 840 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 330 | 330 | 330 | 330 | 330 | 330 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 47 | 47 | 47 | 47 | 47 | 47 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.35 | 0.35 | 0.35 | 0.35 | 0.36 | 0.36 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/55 R17 91V | 205/55 R17 91V |
| Tyre dimensions rear | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/60 R16 92H | 205/55 R17 91V | 205/55 R17 91V |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 294 x 22 | 294 x 22 | 294 x 22 | 294 x 22 | 307 x 24 | 307 x 24 |
| Brake dimensions rear | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
| Overall length [mm] | 4109 | 4109 | 4109 | 4109 | 4114 | 4114 |
| Overall width without/including mirrors [mm] | 1786/- | 1786/- | 1786/- | 1786/- | 1786/- | 1786/- |
| Overall height [mm] | 1518 | 1518 | 1518 | 1518 | 1518 | 1518 |
| Wheelbase [mm] | 2596 | 2596 | 2596 | 2596 | 2596 | 2596 |
| Front wheel track [mm] | 1538 | 1538 | 1538 | 1538 | 1531 | 1531 |
| Rear wheel track [mm] | 1566 | 1566 | 1566 | 1566 | 1558 | 1558 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 133 | 133 | 133 | 119 | 124 | 124 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | -/1390 | -/1390 | -/1390 | -/1390 | -/1390 | -/1390 |
| Rear elbow/shoulder width [mm] | -/1351 | -/1351 | -/1351 | -/1351 | -/1351 | -/1351 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper S Paceman ALL4 | Cooper S Paceman ALL4 | John Cooper Works Paceman | John Cooper Works Paceman | Cooper D Paceman | Cooper D Paceman | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1995 |
| Maximum output / speed [kW/min-1] | 140/5500-6500 | 140/5500-6500 | 160/6000 | 160/6000 | 82/4000 | 82/4000 |
| Maximum torque [Nm/min-1] | 240/1600-5000 | 240/1600-5000 | 280/1900-5000 | 280/1900-5000 | 270/1750-2250 | 270/1750-2250 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 78,0 x 83,6 | 84,0 x 90,0 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 4.2 | 4.2 | 4.2 | 4.2 | 5.2 | 5.2 |
| Coolant volume [l] | 7.5 | 7.5 | 7.5 | 7.5 | 6.0 | 6.0 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
|
| - |
|
| Top speed [km/h] | 217 | 215 | 229 | 226 | 188 | 183 |
| Acceleration 0–100 km/h [s] | 7.6 | 8.0 | 6.8 | 6.8 | 10.8 | 11.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 9.1 (5th gear) | - | 7.6 (5th gear) | - | 11.4 (5th gear) | - |
| City [l] | 8.0 | 9.5 | 9.1 | 10.4 | 4.7 | 7.2 |
| Out of town [l] | 5.5 | 5.7 | 6.0 | 5.9 | 3.9 | 4.8 |
| Combined [l] | 6.4 | 7.1 | 7.1 | 7.5 | 4.2 | 5.6 |
| CO2 emissions [g/km] | 148 | 165 | 165 | 175 | 111 | 148 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1445 | 1470 | 1475 | 1495 | 1385 | 1405 |
| Overall weight [kg] | 1840 | 1865 | 1870 | 1890 | 1770 | 1790 |
| Maximum trailer weight unbraked/braked [kg] | 500/750 | 500/1000 | - | - | 500/800 | 500/1200 |
| Maximum front/rear axle load [kg] | 980 / 890 | 1005 / 890 | 1000 / 915 | 980 / 915 | 970 / 840 | 990 / 840 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | - | - | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 330 | 330 | 330 | 330 | 330 | 330 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 47 | 47 | 47 | 47 | 47 | 47 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.36 | 0.36 | 0.36 | 0.36 | 0.35 | 0.35 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/55 R17 91V | 205/55 R17 91V | 225/45 R18 91W | 225/45 R18 91W | 205/60 R16 92H | 205/60 R16 92H |
| Tyre dimensions rear | 205/55 R17 91V | 205/55 R17 91V | 225/45 R18 91W | 225/45 R18 91W | 205/60 R16 92H | 205/60 R16 92H |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.5J x 18 | 7.5J x 18 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.5J x 18 | 7.5J x 18 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | 307 x 24 | 307 x 24 | 307 x 24 | 307 x 24 | 294 x 22 | 294 x 22 |
| Brake dimensions rear | 280 x 10 | 280 x 10 | 296 x 10 | 296 x 10 | 280 x 10 | 280 x 10 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
| Overall length [mm] | 4114 | 4114 | 4124 | 4124 | 4109 | 4109 |
| Overall width without/including mirrors [mm] | 1786/- | 1786/- | 1786/- | 1786/- | 1786/- | 1786/- |
| Overall height [mm] | 1518 | 1518 | 1518 | 1518 | 1518 | 1518 |
| Wheelbase [mm] | 2596 | 2596 | 2596 | 2596 | 2596 | 2596 |
| Front wheel track [mm] | 1531 | 1531 | 1527 | 1527 | 1538 | 1538 |
| Rear wheel track [mm] | 1558 | 1558 | 1554 | 1554 | 1566 | 1566 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 124 | 124 | 128 | 128 | 133 | 133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | -/1390 | -/1390 | -/1390 | -/1390 | -/1390 | -/1390 |
| Rear elbow/shoulder width [mm] | -/1351 | -/1351 | -/1351 | -/1351 | -/1351 | -/1351 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cooper D Paceman ALL4 | Cooper D Paceman ALL4 | Cooper SD Paceman | Cooper SD Paceman | Cooper SD Paceman ALL4 | Cooper SD Paceman ALL4 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 82/4000 | 82/4000 | 105/4000 | 105/4000 | 105/4000 | 105/4000 |
| Maximum torque [Nm/min-1] | 270/1750-2250 | 270/1750-2250 | 305/1750-2700 | 305/1750-2700 | 305/1750-2700 | 305/1750-2700 |
| Bore and stroke [mm x mm] | 78,0 x 83,6 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 |
| Coolant volume [l] | 6.0 | 6.0 | 6.0 | 6.5 | 6.0 | 6.5 |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Front | Front | 4x4 | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 183 | 178 | 202 | 199 | 199 | 197 |
| Acceleration 0–100 km/h [s] | 11.5 | 11.8 | 9.1 | 9.3 | 9.2 | 9.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 12.4 (5th gear) | - | 9.6 (5th gear) | - | 10.2 (5th gear) | - |
| City [l] | 5.2 | 7.5 | 5.1 | 7.2 | 5.4 | 7.5 |
| Out of town [l] | 4.4 | 5.0 | 4.2 | 4.8 | 4.5 | 5.0 |
| Combined [l] | 4.7 | 5.9 | 4.5 | 5.7 | 4.8 | 5.9 |
| CO2 emissions [g/km] | 123 | 155 | 119 | 149 | 126 | 156 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1455 | 1480 | 1395 | 1420 | 1470 | 1495 |
| Overall weight [kg] | 1850 | 1875 | 1790 | 1815 | 1865 | 1890 |
| Maximum trailer weight unbraked/braked [kg] | 500/800 | 500/1200 | 500/800 | 500/1200 | 500/800 | 500/1200 |
| Maximum front/rear axle load [kg] | 990 / 890 | 1015 / 890 | 980 / 840 | 1010 / 840 | 1000 / 890 | 1025 / 890 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 330 | 330 | 330 | 330 | 330 | 330 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 | -/1080 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 47 | 47 | 47 | 47 | 47 | 47 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 205/60 R16 92H | 205/60 R16 92H | 205/55 R17 91V | 205/55 R17 91V | 205/55 R17 91V | 205/55 R17 91V |
| Tyre dimensions rear | 205/60 R16 92H | 205/60 R16 92H | 205/55 R17 91V | 205/55 R17 91V | 205/55 R17 91V | 205/55 R17 91V |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | 294 x 22 | 294 x 22 | 307 x 24 | 307 x 24 | 307 x 24 | 307 x 24 |
| Brake dimensions rear | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 | 280 x 10 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- | 11.6/- |
| Overall length [mm] | 4109 | 4109 | 4114 | 4114 | 4114 | 4114 |
| Overall width without/including mirrors [mm] | 1786/- | 1786/- | 1786/- | 1786/- | 1786/- | 1786/- |
| Overall height [mm] | 1518 | 1518 | 1518 | 1518 | 1518 | 1518 |
| Wheelbase [mm] | 2596 | 2596 | 2596 | 2596 | 2596 | 2596 |
| Front wheel track [mm] | 1538 | 1538 | 1531 | 1531 | 1531 | 1531 |
| Rear wheel track [mm] | 1566 | 1566 | 1558 | 1558 | 1558 | 1558 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 133 | 133 | 138 | 138 | 138 | 138 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | -/1390 | -/1390 | -/1390 | -/1390 | -/1390 | -/1390 |
| Rear elbow/shoulder width [mm] | -/1351 | -/1351 | -/1351 | -/1351 | -/1351 | -/1351 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
