Mitsubishi Eclipse Cross

Eclipse Cross GK 2017

Date of manufacture

10/2017 – 2021 (Medium SUV)

Platform

Mitsubishi GS

Manufacturing locations

Okazaki, Japan
Changsha, People's Republic of China

Designer

Tsunehiro Kunimoto

Tags

Compact SUV
Japanese cars
The Mitsubishi Eclipse Cross is a mid-size SUV, produced since 2017. Production takes place in Japan and China on the GS platform. The engine range includes petrol and diesel power units. The most powerful version is the 1.5 Turbo MIVEC 4WD with 120 kW and a top speed of 205 km/h. The most economical engine is the 2.2 DI-D 4WD with a fuel consumption of 6.9 l/100 km and emissions of 183 g/km. The boot capacity reaches from 378 to 485 litres. The model was tested by EURONCAP and received a rating of 5 out of 5 for safety.

Car body style

Medium SUV

Date of manufacture
10/2017 – 2021
Internal designation
GK

Euro NCAP

Test year 2017
Rating
star iconstar iconstar iconstar iconstar icon
Adults
97 %
Adults
Children
78 %
Children
Pedestrians
80 %
Pedestrians
Assist systems
71 %
Assist systems

Technical data

Medium SUV

1.5 Turbo MIVEC 1.5 Turbo MIVEC 1.5 Turbo MIVEC 4WD 2.2 DI-D 4WD
Date of sale----
Engine typeIgnition superchargedIgnition superchargedIgnition superchargedDiesel supercharged
Number of cylinders/valves4/164/164/164/16
Engine displacement [cm³]1499149914992268
Maximum output / speed [kW/min-1]
120/5500
120/5500
120/5500
109/3500
Maximum torque [Nm/min-1]
250/2400-4500
250/2400-4500
250/2400-4500
388/2000
Drive axleFrontFront4x44x4
Gearbox6 gear manual8 gear automatic8 gear automatic8 gear automatic
Top speed [km/h]205200200193
Acceleration 0–100 km/h [s]9,79,710,411.4
City [l]8,5-8,27,98,88.3
Out of town [l]6,0-5,96,6-6,47,06.1
Combined [l]7,0-6,77,1-6,97,76.9
CO2 emissions [g/km]159-154162-158175183
Combined speed [l]7,8-7,58,2-8,08,7-
CO2 emissions [g/km]177-170185-181196-
Emission standardEuro 6 - Euro 6d-TEMPEuro 6 - Euro 6d-TEMPEuro 6 - Euro 6d-TEMPEuro 6 - Euro 6d-TEMP
Standby weight [kg]1500153015951758
Overall weight [kg]2050215021502630
Maximum trailer weight unbraked/braked [kg]750/1600750/1600750/1600750/2000
Boot volume [l]378-485378-485378-485378-485
Boot volume with rear seats folded to the edge of the seats/ceiling [l]-/1159-/1159-/1159-/1159
Number of doors5555
Number of seats5555
Fuel tank volume [l]63636060
AdBlue tank volume [l]---15.6
Overall length [mm]4405440544054405
Overall width without/including mirrors [mm]1805/21661805/21661805/21661805/2166
Overall height [mm]1685168516851685
Wheelbase [mm]2670267026702670
Headroom front [mm]----
Headroom rear [mm]----
Front elbow/shoulder width [mm]----
Rear elbow/shoulder width [mm]----

Gallery

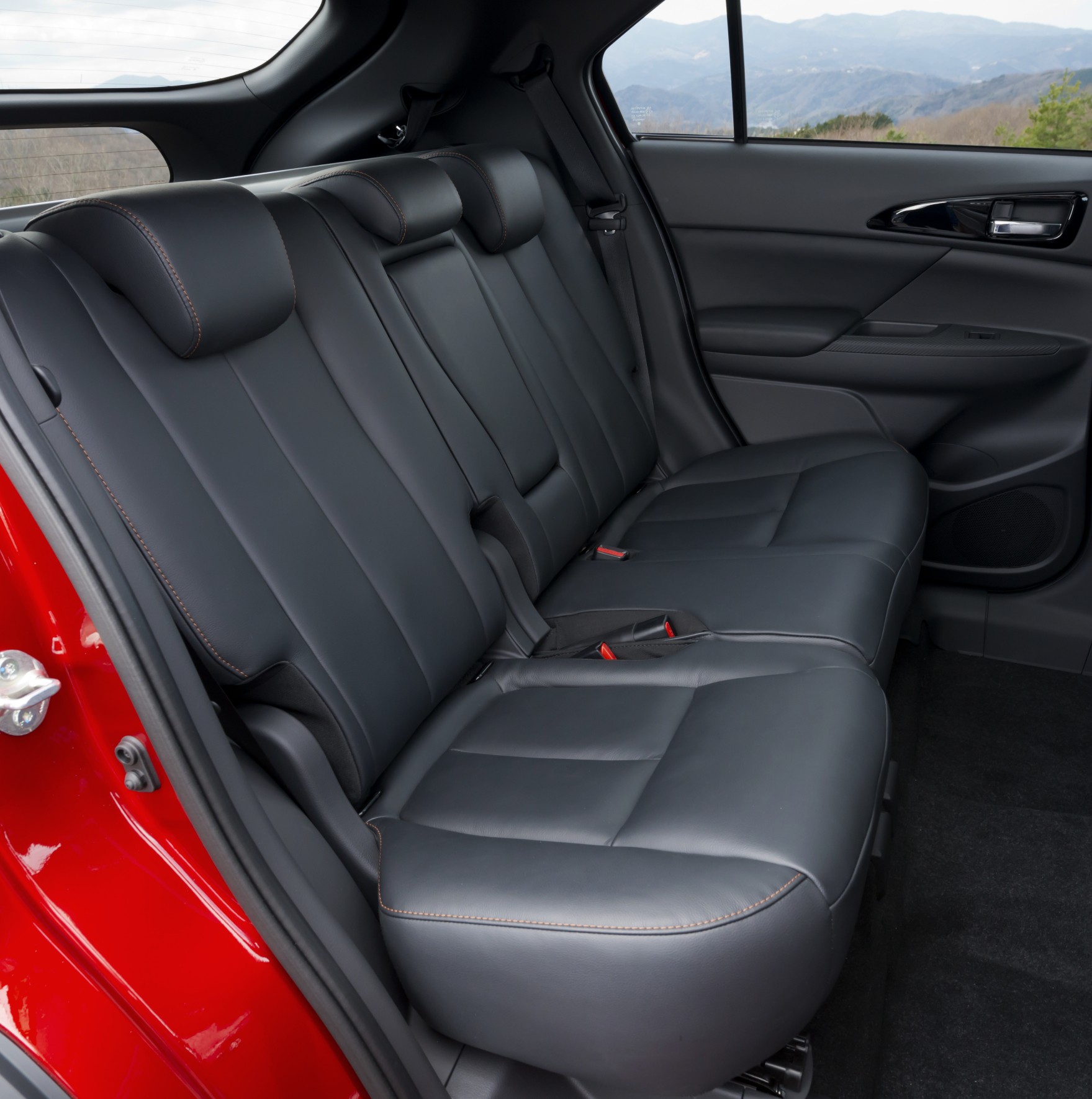

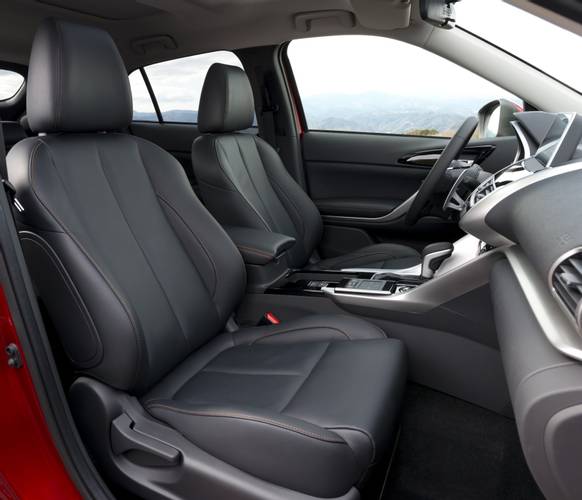

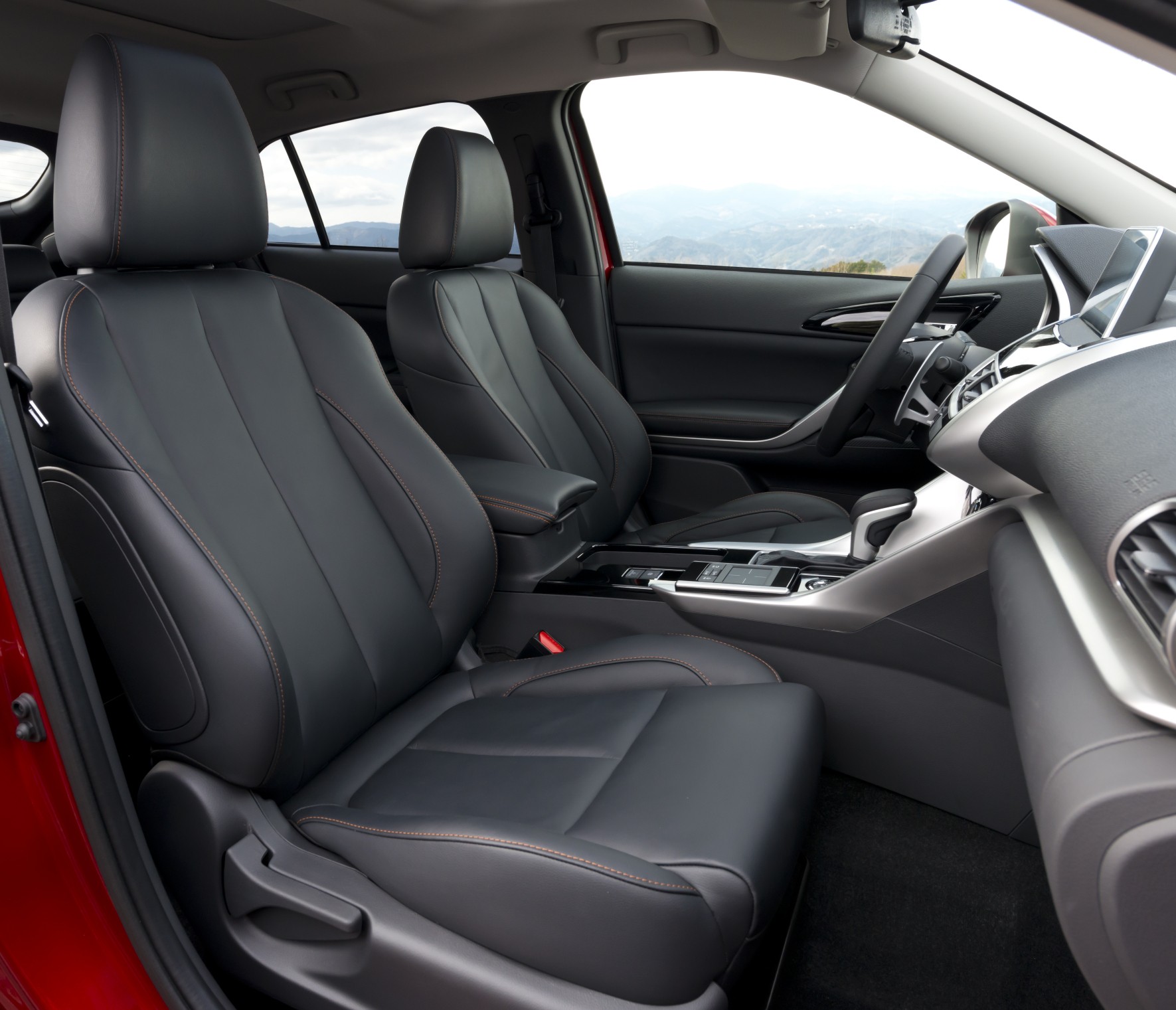

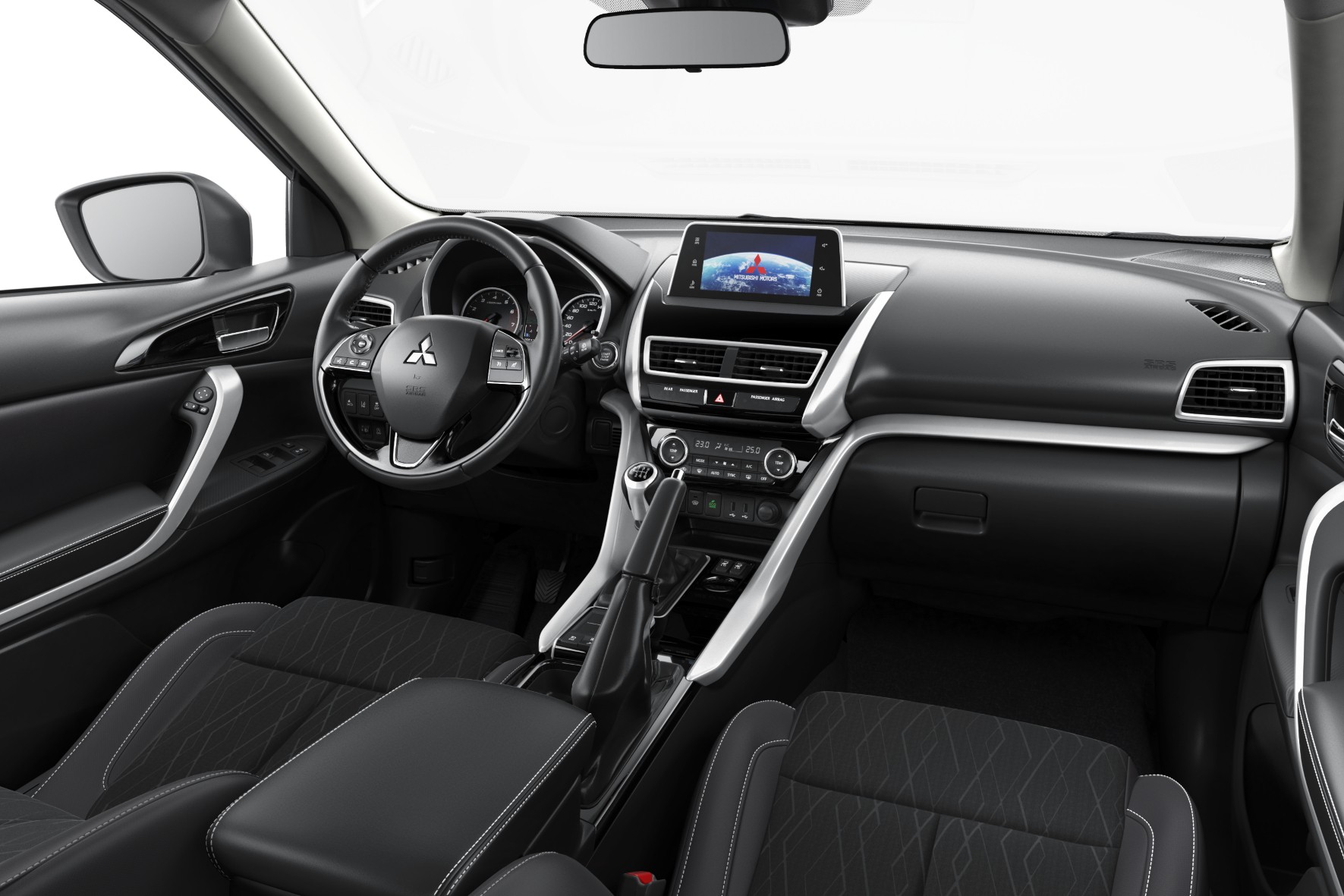

Mitsubishi Eclipse Cross GK 2018 interiorMitsubishi Eclipse Cross GK 2018 front seatsMitsubishi Eclipse Cross GK 2019 rear seats
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
