Mitsubishi Space Star
Date of manufacture
2019 – to this day (Five-door hatchback)
Platform
-
Manufacturing locations
Laem Chabang, Thailand
Designer
-
Tags
A-segment
Japanese cars

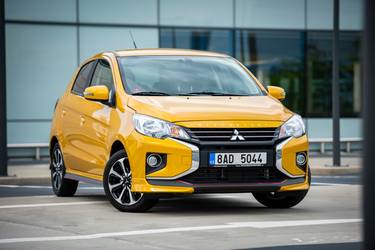

The Mitsubishi Space Star has been manufactured since 2019 and is available as a five-door hatchback. The vehicle was made in Thailand and offers only petrol engines. The most powerful 1.2 MIVEC engine has a maximum power of 59 kW and a top speed of 180 km/h. The most fuel-efficient 1.0 MIVEC engine with a fuel consumption of 4.5 l/100 km and CO2 emissions of 102 g/km provides the highest fuel savings. The car's trunk has a capacity of 235 l.
Technical data
Five-door hatchback
| 1.0 MIVEC | 1.0 MIVEC | 1.2 MIVEC | 1.2 MIVEC | 1.2 MIVEC | 1.2 MIVEC | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2021 | from to 2021 | from 2021 to | from 2021 to | from 2021 to | from to 2021 |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 | 3/12 |
| Engine displacement [cm³] | 999 | 999 | 1193 | 1193 | 1193 | 1193 |
| Maximum output / speed [kW/min-1] | 52/6000 | 52/6000 | 52/6000 | 52/6000 | 52/6000 | 59/6000 |
| Maximum torque [Nm/min-1] | 88/5000 | 88/5000 | 102/3500 | 102/3500 | 102/3500 | 106/4000 |
| Bore and stroke [mm x mm] | 75.0 x 75.4 | 75.0 x 75.4 | 75.0 x 90.0 | 75.0 x 90.0 | 75.0 x 90.0 | 75.0 x 90.0 |
| Compression ratio | 11.5:1 | 11.5:1 | 11.0:1 | 11.0:1 | 11.0:1 | 11.0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 1 gear automatic | 5 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 172 | 172 | 167 | 167 | 163 | 180 |
| Acceleration 0–100 km/h [s] | 15.7 | 15.7 | 14,1 | 14,1 | 15,8 | 12,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.2 | 5,1 | 5,4 | 5,2 | 5,2 | 5,3 |
| Out of town [l] | 4.0 | 4,1 | 4,0 | 4,2 | 4,3 | 4,4 |
| Combined [l] | 4.5 | 4,5 | 4,5 | 4,6 | 4,6 | 4,7 |
| CO2 emissions [g/km] | 102 | 102 | 104 | 105 | 105 | 108 |
| Low speed [l] | - | - | 5,9 | 5,5 | 6,3 | - |
| Medium speed [l] | - | - | 4,6 | 4,5 | 4,8 | - |
| High speed [l] | - | - | 4,4 | 4,3 | 4,6 | - |
| Extra high speed [l] | - | - | 5,4 | 5,5 | 5,9 | - |
| Combined speed [l] | - | - | 5,0 | 4,9 | 5,3 | - |
| CO2 emissions [g/km] | - | - | 113 | 112 | 121 | - |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d | Euro 6d | Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 935-946 | 945 | 940 | 950 | 985 | 950 |
| Overall weight [kg] | 1290 | 1290 | 1340 | 1340 | 1370 | 1340 |
| Maximum trailer weight unbraked/braked [kg] | - | - | 100/200 | 100/200 | 100/200 | 100/200 |
| Maximum front/rear axle load [kg] | 730/670 | 730/670 | 730/670 | 730/670 | 730/670 | 730/670 |
| Maximum vertical load on the tow bar [kg] | - | - | 25 | 25 | 25 | 25 |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | 235 | 235 | 235 | 235 | 235 | 235 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/912 | -/912 | -/912 | -/912 | -/912 | -/912 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 35 | 35 | 35 | 35 | 35 | 35 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson, coil springs, torsion stabiliser | MacPherson, coil springs, torsion stabiliser | MacPherson, coil springs, torsion stabiliser | MacPherson, coil springs, torsion stabiliser | MacPherson, coil springs, torsion stabiliser | MacPherson, coil springs, torsion stabiliser |
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar |
| Tyre dimensions front | 165/65 R14 79S | 165/65 R14 79S | 175/55 R15 | 175/55 R15 | 175/55 R15 | 175/55 R15 |
| Tyre dimensions rear | 165/65 R14 79S | 165/65 R14 79S | 175/55 R15 | 175/55 R15 | 175/55 R15 | 175/55 R15 |
| Wheel size front | 4.5J x 14 ET46 | 4.5J x 14 ET46 | 5,0J x 15 | 5,0J x 15 | 5,0J x 15 | 5,0J x 15 |
| Wheel size rear | 4.5J x 14 ET46 | 4.5J x 14 ET46 | 5,0J x 15 | 5,0J x 15 | 5,0J x 15 | 5,0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering | Rack & pinion with electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 9.2/- | 9.2/- | 9.2/- | 9.2/- | 9.2/- | 9.2/- |
| Overall length [mm] | 3845 | 3845 | 3845 | 3845 | 3845 | 3845 |
| Overall width without/including mirrors [mm] | 1665/1950 | 1665/1950 | 1665/1950 | 1665/1950 | 1665/1950 | 1665/1950 |
| Overall height [mm] | 1505 | 1505 | 1505 | 1505 | 1505 | 1505 |
| Wheelbase [mm] | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 |
| Front wheel track [mm] | 1430 | 1430 | 1430 | 1430 | 1430 | 1430 |
| Rear wheel track [mm] | 1415 | 1415 | 1415 | 1415 | 1415 | 1415 |
| Forward overhang [mm] | 795 | 795 | 795 | 795 | 795 | 795 |
| Rear overhang [mm] | 600 | 600 | 600 | 600 | 600 | 600 |
| Clearance [mm] | 150 | 150 | 150 | 150 | 150 | 150 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.2 MIVEC | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2021 | |||||
| Engine type | Petrol | |||||
| Number of cylinders/valves | 3/12 | |||||
| Engine displacement [cm³] | 1193 | |||||
| Maximum output / speed [kW/min-1] | 59/6000 | |||||
| Maximum torque [Nm/min-1] | 106/4000 | |||||
| Bore and stroke [mm x mm] | 75.0 x 90.0 | |||||
| Compression ratio | 11.0:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 1 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 173 | |||||
| Acceleration 0–100 km/h [s] | 13,5 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 5,1 | |||||
| Out of town [l] | 4,4 | |||||
| Combined [l] | 4,6 | |||||
| CO2 emissions [g/km] | 106 | |||||
| Emission standard | Euro 6d-TEMP | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 980 | |||||
| Overall weight [kg] | 1370 | |||||
| Maximum trailer weight unbraked/braked [kg] | 100/200 | |||||
| Maximum front/rear axle load [kg] | 730/670 | |||||
| Maximum vertical load on the tow bar [kg] | 25 | |||||
| Maximum load on roof/carrier [kg] | 50/- | |||||
| Boot volume [l] | 235 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/912 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 35 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson, coil springs, torsion stabiliser | |||||
| Rear suspension | twist beam axle with torsion bar | |||||
| Tyre dimensions front | 175/55 R15 | |||||
| Tyre dimensions rear | 175/55 R15 | |||||
| Wheel size front | 5,0J x 15 | |||||
| Wheel size rear | 5,0J x 15 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | Rack & pinion with electric power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 9.2/- | |||||
| Overall length [mm] | 3845 | |||||
| Overall width without/including mirrors [mm] | 1665/1950 | |||||
| Overall height [mm] | 1505 | |||||
| Wheelbase [mm] | 2450 | |||||
| Front wheel track [mm] | 1430 | |||||
| Rear wheel track [mm] | 1415 | |||||
| Forward overhang [mm] | 795 | |||||
| Rear overhang [mm] | 600 | |||||
| Clearance [mm] | 150 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
