Nissan Navara

Date of manufacture

2010 – 2015 (SUV)

Platform

Nissan F-Alpha

Manufacturing locations

Barcelona, Spain

Smyrna, USA

Cuernavaca, Mexico

Samut Prakan, Thailand

Designer

Kiyoshi Yanase

Car body style

SUV

after upgrade (facelift)

Date of manufacture

2010 – 2015

Internal designation

D40

Engine size

2.5 dCi King Cab

2.5 dCi Double Cab

2.5 dCi Double Cab Short

2.5 dCi Double Cab

3.0 dCi Double Cab Short

3.0 dCi Double Cab

Euro NCAP

Pre-2009 Rating

pre-facelift version (2008)

Adults

Children

Pedestrians

Technical data

SUV

	2.5 dCi King Cab	2.5 dCi King Cab	2.5 dCi Double Cab	2.5 dCi Double Cab Short	2.5 dCi Double Cab Short	2.5 dCi Double Cab
Date of sale	-	-	-	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	4/16	4/16	4/16	4/16	4/16
Engine displacement [cm³]	2488	2488	2488	2488	2488	2488
Maximum output / speed [kW/min-1]	106/4000	140/4000	106/4000	140/4000	140/4000	140/4000
Maximum torque [Nm/min-1]	350/1600	450/2000	350/1600	450/2000	450/2000	450/2000
Bore and stroke [mm x mm]	89,0 x 100,0	89,0 x 100,0	89,0 x 100,0	89,0 x 100,0	89,0 x 100,0	89,0 x 100,0
Compression ratio	15,0:1	15,0:1	15,0:1	15,0:1	15,0:1	15,0:1
Oil volume [l]	-	-	-	-	-	-
Coolant volume [l]	-	-	-	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter (verze EU5)	direct injection Common Rail turbocharger with variable blade geometry particulate filter	direct injection Common Rail turbocharger with variable blade geometry particulate filter (verze EU5)	direct injection Common Rail turbocharger with variable blade geometry particulate filter (verze EU5)	direct injection Common Rail turbocharger with variable blade geometry particulate filter (verze EU5)

Drive axle	4x4	4x4	4x4	4x4	4x4	4x4
Gearbox	6 gear manual	6 gear manual	6 gear manual	6 gear manual	5 gear automatic	6 gear manual
Drive specifications	all-wheel drive	all-wheel drive	all-wheel drive	all-wheel drive	all-wheel drive automatic gearbox	all-wheel drive

Top speed [km/h]	168	180	168	180	178	180
Acceleration 0–100 km/h [s]	12.8	10.8	13.1	11.1	10.7	11.1
Acceleration 0–80 km/h [s]	-	-	-	-	-	-
Acceleration 80–120 km/h [s]	-	-	-	-	-	-

City [l]	10.3	10.6-10.7	10.3	10.6-10.7	11.5-11.7	10.6-10.7
Out of town [l]	7.0	7.1-7.3	7.0	7.1-7.3	7.4-7.6	7.1-7.3
Combined [l]	8.2	8.4-8.5	8.2	8.4-8.5	8.9-9.0	8.4-8.5
CO2 emissions [g/km]	215	222-224	215	222-224	235-238	222-224

Emission standard	EU5	EU4-EU5	EU5	EU4-EU5	EU4-EU5	EU4-EU5
Standard for fuel consumption measurement	-	-	-	-	-	-
Energy class	-	-	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-	-	-
Driving noise [dB]	-	-	-	-	-	-

Standby weight [kg]	1895-1990	1895-1990	1960-2085	1960-2085	2000-2100	1960-2085
Overall weight [kg]	2805	2805	2805	2850	2850	2850
Maximum trailer weight unbraked/braked [kg]	750/3000	750/3000	750/3000	750/3000	750/3000	750/3000
Maximum front/rear axle load [kg]	-	-	-	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-	-	-	-
Maximum load on roof/carrier [kg]	-	-	-	-/56	-/56	-

Boot volume [l]	-	-	-	-	-	-
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-	-	-	-
Boot length [mm]	1861	1861	1611	1511	1511	1611
Boot length with rear seats folded [mm]	-	-	-	-	-	-
Boot width between wheels/max [mm]	-/1130	-/1130	-/1130	-/1130	-/1130	-/1130
Boot height to headliner/ceiling [mm]	-/457	-/457	-/457	-/457	-/457	-/457
Loading edge height [mm]	-	-	-	-	-	-
Height of the open boot door [mm]	-	-	-	-	-	-
Boot opening height [mm]	-	-	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-	-	-

Number of doors	4	4	4	4	4	4
Number of seats	2-4	2-4	4	5	5	5
Fuel tank volume [l]	80	80	80	80	80	80
AdBlue tank volume [l]	-	-	-	-	-	-
Air resistance [Cd]	-	-	-	-	-	-
Front suspension	double wishbone, coil springs	double wishbone, coil springs	double wishbone, coil springs	double wishbone, coil springs	double wishbone, coil springs	double wishbone, coil springs
Rear suspension	rigid with leaf springs	rigid with leaf springs	rigid with leaf springs	rigid with leaf springs	rigid with leaf springs	rigid with leaf springs
Tyre dimensions front	255/65 R17	235/70 R16	255/65 R17	235/70 R16	255/65 R17	235/70 R16
Tyre dimensions rear	255/65 R17	235/70 R16	255/65 R17	235/70 R16	255/65 R17	235/70 R16
Wheel size front	7.0JJ x 17	7.0J x 16	7.0JJ x 17	7.0J x 16	7.0JJ x 17	7.0J x 16
Wheel size rear	7.0JJ x 17	7.0J x 16	7.0JJ x 17	7.0J x 16	7.0JJ x 17	7.0J x 16
Brake dimensions front	-	-	-	-	-	-
Brake dimensions rear	-	-	-	-	-	-
Steering	Rack & pinion with power steering	Rack & pinion with power steering	Rack & pinion with power steering	Rack & pinion with power steering	Rack & pinion with power steering	Rack & pinion with power steering
Number of steering wheel turns	-	-	-	-	-	-
Turning diameter track/circumference [m]	13.3/-	13.3/-	13.3/-	13.3/-	13.3/-	13.3/-

Overall length [mm]	5222	5222	5396	5296	5296	5396
Overall width without/including mirrors [mm]	1848/-	1848/-	1848/-	1848/-	1848/-	1848/-
Overall height [mm]	1771	1771	1790	1797	1802	1790
Wheelbase [mm]	3200	3200	3200	3200	3200	3200
Front wheel track [mm]	1570	1570	1570	1570	1570	1570
Rear wheel track [mm]	1570	1570	1570	1570	1570	1570
Forward overhang [mm]	-	-	-	-	-	-
Rear overhang [mm]	-	-	-	-	-	-
Clearance [mm]	228	217	228	233	233	228
Wading depth [mm]	-	-	-	-	-	-
Approach angle front [°]	30	30	30	30	30	30
Approach angle rear [°]	24	24	24	26	26	24
Transition angle [°]	22	22	22	22	22	22
Climbing rate [°]	39	39	39	39	39	39
Maximum side tilt [°]	49.8	49.8	49.8	49.8	49.8	49.8

Headroom front [mm]	-	-	-	-	-	-
Headroom rear [mm]	-	-	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-	-	-

	2.5 dCi Double Cab	3.0 dCi Double Cab Short	3.0 dCi Double Cab
Date of sale	-	-	-
Engine type	Diesel supercharged	Diesel supercharged	Diesel supercharged
Number of cylinders/valves	4/16	6/24	6/24
Engine displacement [cm³]	2488	2991	2991
Maximum output / speed [kW/min-1]	140/4000	170/3750	170/3750
Maximum torque [Nm/min-1]	450/2000	550/1750	550/1750
Bore and stroke [mm x mm]	89,0 x 100,0	84,0 x 90,0	84,0 x 90,0
Compression ratio	15,0:1	15,0:1	15,0:1
Oil volume [l]	-	-	-
Coolant volume [l]	-	-	-
Technical specifications	direct injection Common Rail turbocharger with variable blade geometry particulate filter (verze EU5)	direct injection Common Rail turbo-supercharged particulate filter (verze EU5)	direct injection Common Rail turbo-supercharged particulate filter (verze EU5)

Drive axle	4x4	4x4	4x4
Gearbox	5 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	all-wheel drive automatic gearbox	all-wheel drive automatic gearbox	all-wheel drive automatic gearbox

Top speed [km/h]	178	195	195
Acceleration 0–100 km/h [s]	10.7	9.3	9.3
Acceleration 0–80 km/h [s]	-	-	-
Acceleration 80–120 km/h [s]	-	-	-

City [l]	11.5-11.7	12.3-12.7	12.3-12.7
Out of town [l]	7.4-7.6	7.6	7.6
Combined [l]	8.9-9.0	9.3-9.5	9.3-9.5
CO2 emissions [g/km]	235-238	246-250	246-250

Emission standard	EU4-EU5	EU4-EU5	EU4-EU5
Standard for fuel consumption measurement	-	-	-
Energy class	-	-	-
Stationary vehicle noise [dB]	-	-	-
Driving noise [dB]	-	-	-

Standby weight [kg]	2000-2100	2110-2150	2110-2150
Overall weight [kg]	2850	3010	3010
Maximum trailer weight unbraked/braked [kg]	750/3000	750/3000	750/3000
Maximum front/rear axle load [kg]	-	-	-
Maximum vertical load on the tow bar [kg]	-	-	-
Maximum load on roof/carrier [kg]	-/56	-/56	-/56

Boot volume [l]	-	-	-
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-	-	-
Boot length [mm]	1611	1511	1611
Boot length with rear seats folded [mm]	-	-	-
Boot width between wheels/max [mm]	-/1130	-/1130	-/1130
Boot height to headliner/ceiling [mm]	-/457	-/457	-/457
Loading edge height [mm]	-	-	-
Height of the open boot door [mm]	-	-	-
Boot opening height [mm]	-	-	-
Boot opening width min/max [mm]	-	-	-

Number of doors	4	4	4
Number of seats	5	5	5
Fuel tank volume [l]	80	80	80
AdBlue tank volume [l]	-	-	-
Air resistance [Cd]	-	-	-
Front suspension	double wishbone, coil springs	double wishbone, coil springs	double wishbone, coil springs
Rear suspension	rigid with leaf springs	rigid with leaf springs	rigid with leaf springs
Tyre dimensions front	255/65 R17	255/65 R18	255/65 R18
Tyre dimensions rear	255/65 R17	255/65 R18	255/65 R18
Wheel size front	7.0JJ x 17	7.0JJ x 18	7.0JJ x 18
Wheel size rear	7.0JJ x 17	7.0JJ x 18	7.0JJ x 18
Brake dimensions front	-	-	-
Brake dimensions rear	-	-	-
Steering	Rack & pinion with power steering	Rack & pinion with power steering	Rack & pinion with power steering
Number of steering wheel turns	-	-	-
Turning diameter track/circumference [m]	13.3/-	13.3/-	13.3/-

Overall length [mm]	5396	5296	5396
Overall width without/including mirrors [mm]	1848/-	1848/-	1848/-
Overall height [mm]	1802	1795	1795
Wheelbase [mm]	3200	3200	3200
Front wheel track [mm]	1570	1570	1570
Rear wheel track [mm]	1570	1570	1570
Forward overhang [mm]	-	-	-
Rear overhang [mm]	-	-	-
Clearance [mm]	228	220	220
Wading depth [mm]	-	-	-
Approach angle front [°]	30	30	30
Approach angle rear [°]	24	26	24
Transition angle [°]	22	22	22
Climbing rate [°]	39	39	39
Maximum side tilt [°]	49.8	49.8	49.8

Headroom front [mm]	-	-	-
Headroom rear [mm]	-	-	-
Front elbow/shoulder width [mm]	-	-	-
Rear elbow/shoulder width [mm]	-	-	-
Legroom front knees/total [mm]	-	-	-
Legroom rear knees/total [mm]	-	-	-

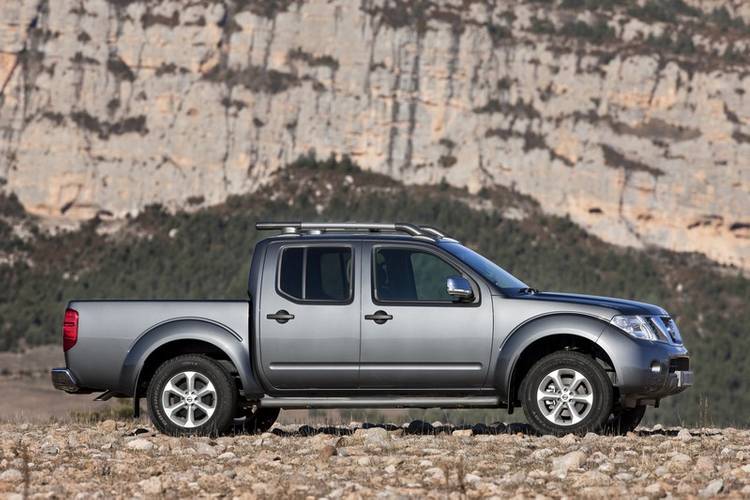

Gallery

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
