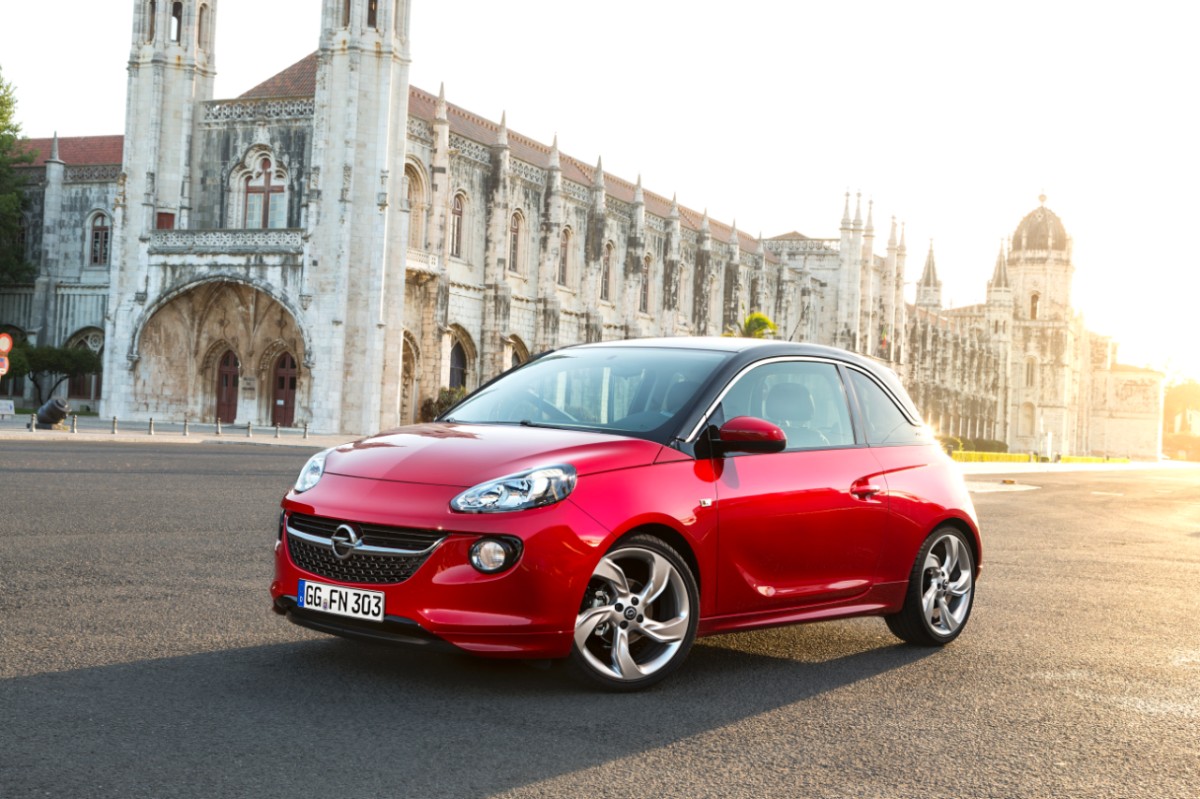

Opel Adam
Date of manufacture
1/2013 – 2019 (Three-door hatchback)
Platform
SCCS
Manufacturing locations
Eisenach, Germany
Designer
Luke Darren
Tags
A-segment
German cars
The Opel Adam is available as a three-door hatchback, manufactured since 2013 in Germany on the SCCS platform. It offers only petrol engines with a maximum power of 110 kW and the fastest version, the 1.4 Turbo Adam S, reaches a top speed of 210 km/h and accelerates from 0-100 km/h in 8.5 seconds. The most economical variant, the 1.4, has a combined fuel consumption of 4.9 l/100 km and CO2 emissions of 115 g/km. The boot offers a capacity of 170 l. The car successfully passed the EURONCAP safety tests and was rated 4 out of 5.
Car body style
Three-door hatchback
Date of manufacture
1/2013 – 2019Internal designation
Technical data
Three-door hatchback
| 1.2 | 1.2 ecoFLEX | 1.4 | 1.4 | 1.4 ecoFLEX | 1.4 LPG ecoFLEX | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2018 | - | from to 2018 | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1229 | 1229 | 1398 | 1398 | 1398 | 1398 |
| Maximum output / speed [kW/min-1] | 51/5600 | 51/5600 | 64/6000 | 64/6000 | 64/6000 | 64/6000 |
| Maximum torque [Nm/min-1] | 115/4000 | 115/4000 | 130/4000 | 130/4000 | 130/4000 | 130/4000 [124/4000 LPG] |
| Bore and stroke [mm x mm] | 73,4x72,6 | 73,4x72,6 | 73,4x82,6 | 73,4x82,6 | 73,4x82,6 | 73,4 x 82,6 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 165 | 165 | 176 | 178 | 176 | 176 |
| Acceleration 0–100 km/h [s] | 14.9 | 14.9 | 12.5 | 13.9 | 12.5 | 12.9 [13.2 LPG] |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 26,8 | 26,8 | 17,8 | - | 17,8 | 18,4 [19,9 LPG] |
| City [l] | 7,4-7,1 | 6.3-6.5 | 7,0-7,8 | 6.5 | 7,1-6,6 | 7.5-7.1 [9.6-8.8 LPG] |
| Out of town [l] | 4,7-4,2 | 4.1-4.2 | 4,9-4,4 | 4.0 | 4,9-4,2 | 4.8-4.6 [6.1-5.8 LPG] |
| Combined [l] | 5,7-5,3 | 4.9-5.0 | 5,4-5,9 | 4.9 | 5,7-5,1 | 5.8-5.4 [7.4-6.6 LPG] |
| CO2 emissions [g/km] | 131-124 | 115-118 | 124-136 | 115 | 131-119 | 132-124 [121-119 LPG] |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,8-6,3 | - | 7,0-6,4 | - | 6,8-6,3 | 6,9-6,5 [8,8-8,1 LPG] |
| CO2 emissions [g/km] | 153-142 | - | 157-145 | - | 154-143 | 156-146 [141-131 LPG] |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1011-1026 | 1011 | 1045-1060 | 1045 | 1045-1060 | 1088 |
| Overall weight [kg] | 1455-1470 | 1455 | 1465-1480 | 1465 | 1465-1480 | 1500 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | 50/- |
| Boot volume [l] | 170 | 170 | 170 | 170 | 170 | 170 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/663 | -/663 | -/663 | -/663 | -/663 | -/663 |
| Boot length [mm] | 462 | 462 | 462 | 462 | 462 | 462 |
| Boot length with rear seats folded [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | 1041 |
| Boot width between wheels/max [mm] | -/954 | -/954 | -/954 | -/954 | -/954 | -/954 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 35 | 35 | 35 | 35 | 35 | 35 [35 LPG] |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/65 R15 SL 88T | 185/65 R15 SL 88T | 195/55 R16 SL 87H | 195/55 R16 SL 87H | 195/55 R16 SL 87H | 195/55 R16 SL 87H |
| Tyre dimensions rear | 185/65 R15 SL 88T | 185/65 R15 SL 88T | 195/55 R16 SL 87H | 195/55 R16 SL 87H | 195/55 R16 SL 87H | 195/55 R16 SL 87H |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 9.8/10.2 | 9.8/10.2 | 9.8/10.2 | 9.8/10.2 | 9.8/10.2 | 9.8/10.2 |
| Overall length [mm] | 3698 | 3698 | 3698 | 3698 | 3698 | 3698 |
| Overall width without/including mirrors [mm] | 1720/1966 | 1720/1966 | 1720/1966 | 1720/1966 | 1720/1966 | 1720/1966 |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | 1484 |
| Wheelbase [mm] | 2311 | 2311 | 2311 | 2311 | 2311 | 2311 |
| Front wheel track [mm] | 1472 | 1472 | 1472 | 1472 | 1472 | 1472 |
| Rear wheel track [mm] | 1464 | 1464 | 1464 | 1464 | 1464 | 1464 |
| Forward overhang [mm] | 818 | 818 | 818 | 818 | 818 | 818 |
| Rear overhang [mm] | 569 | 569 | 569 | 569 | 569 | 569 |
| Clearance [mm] | 105 | 105 | 105 | 105 | 105 | 105 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.0 Turbo | 1.4 | 1.4 ecoFLEX | 1.0 Turbo | 1.4 Turbo Adam S | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from 2015 to | |
| Engine type | Ignition supercharged | Petrol | Petrol | Ignition supercharged | Ignition supercharged | |
| Number of cylinders/valves | 3/12 | 4/16 | 4/16 | 3/12 | 4/16 | |
| Engine displacement [cm³] | 999 | 1398 | 1398 | 999 | 1364 | |
| Maximum output / speed [kW/min-1] | 66/3700-6000 | 74/6000 | 74/6000 | 85/5000-6000 | 110/5000 | |
| Maximum torque [Nm/min-1] | 170/1800-3700 | 130/4000 | 130/4000 | 170/1800-4500 | 220/3000-4500 | |
| Bore and stroke [mm x mm] | 74,0 x 77,4 | 73,4x82,6 | 73,4x82,6 | 74,0 x 77,4 | 72,5 x 82,6 | |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 9,5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | |
| Drive specifications | - | - | - | - | - | |
| Top speed [km/h] | 180 | 185 | 185 | 196 | 210 | |
| Acceleration 0–100 km/h [s] | 11.9 | 11.5 | 11.5 | 9,9 | 8.5 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | 13,2 | 17,8 | 17,8 | 10,9 | 7,9 | |
| City [l] | 5,6-5,3 | 7,0-7,7 | 7,2-6,6 | 6,3-6,0 | 8,2-7,6 | |
| Out of town [l] | 3,6-4,5 | 5,0-4,4 | 4,1-4,9 | 4,7-4,2 | 5,3-4,9 | |
| Combined [l] | 4,9-4,2 | 5,4-6,0 | 5,0-5,7 | 5,3-4,9 | 6,4-5,9 | |
| CO2 emissions [g/km] | 112-99 | 124-136 | 118-131 | 121-112 | 145-139 | |
| Low speed [l] | - | - | - | - | - | |
| Medium speed [l] | - | - | - | - | - | |
| High speed [l] | - | - | - | - | - | |
| Extra high speed [l] | - | - | - | - | - | |
| Combined speed [l] | 6,1-5,7 | 7,0-6,4 | 6,9-6,3 | 6,1-5,7 | 7,0-6,7 | |
| CO2 emissions [g/km] | 138-129 | 158-144 | 155-142 | 139-130 | 157-151 | |
| Emission standard | EU6 | EU5-EU6 | EU5-EU6 | EU6 | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1066-1081 | 1045-1060 | 1045-1060 | 1066-1081 | 1088-1103 | |
| Overall weight [kg] | 1495-1510 | 1465-1480 | 1465-1480 | 1495-1510 | 1550-1565 | |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 50/- | 50/- | 50/- | 50/- | 50/- | |
| Boot volume [l] | 170 | 170 | 170 | 170 | 170 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/663 | -/663 | -/663 | -/663 | -/663 | |
| Boot length [mm] | 462 | 462 | 462 | 462 | 462 | |
| Boot length with rear seats folded [mm] | 1041 | 1041 | 1041 | 1041 | 1041 | |
| Boot width between wheels/max [mm] | -/954 | -/954 | -/954 | -/954 | -/954 | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 3 | 3 | 3 | 3 | 3 | |
| Number of seats | 4 | 4 | 4 | 4 | 4 | |
| Fuel tank volume [l] | 35 | 35 | 35 | 35 | 35 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |
| Tyre dimensions front | 195/55 R16 SL 87H | 195/55 R16 SL 87H | 195/55 R16 SL 87H | 195/55 R16 SL 87H | 215/45 R17 | |
| Tyre dimensions rear | 195/55 R16 SL 87H | 195/55 R16 SL 87H | 195/55 R16 SL 87H | 195/55 R16 SL 87H | 215/45 R17 | |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | - | |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | - | |
| Brake dimensions front | - | - | - | - | 308 | |
| Brake dimensions rear | - | - | - | - | 264 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 9.8/10.2 | 9.8/10.2 | 9.8/10.2 | 9.8/10.2 | 9.8/10.2 | |
| Overall length [mm] | 3698 | 3698 | 3698 | 3698 | 3708 | |
| Overall width without/including mirrors [mm] | 1720/1966 | 1720/1966 | 1720/1966 | 1720/1966 | 1720/1966 | |
| Overall height [mm] | 1484 | 1484 | 1484 | 1484 | 1484 | |
| Wheelbase [mm] | 2311 | 2311 | 2311 | 2311 | 2311 | |
| Front wheel track [mm] | 1472 | 1472 | 1472 | 1472 | 1472 | |
| Rear wheel track [mm] | 1464 | 1464 | 1464 | 1464 | 1464 | |
| Forward overhang [mm] | 818 | 818 | 818 | 818 | - | |
| Rear overhang [mm] | 569 | 569 | 569 | 569 | - | |
| Clearance [mm] | 105 | 105 | 105 | 105 | 105 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
