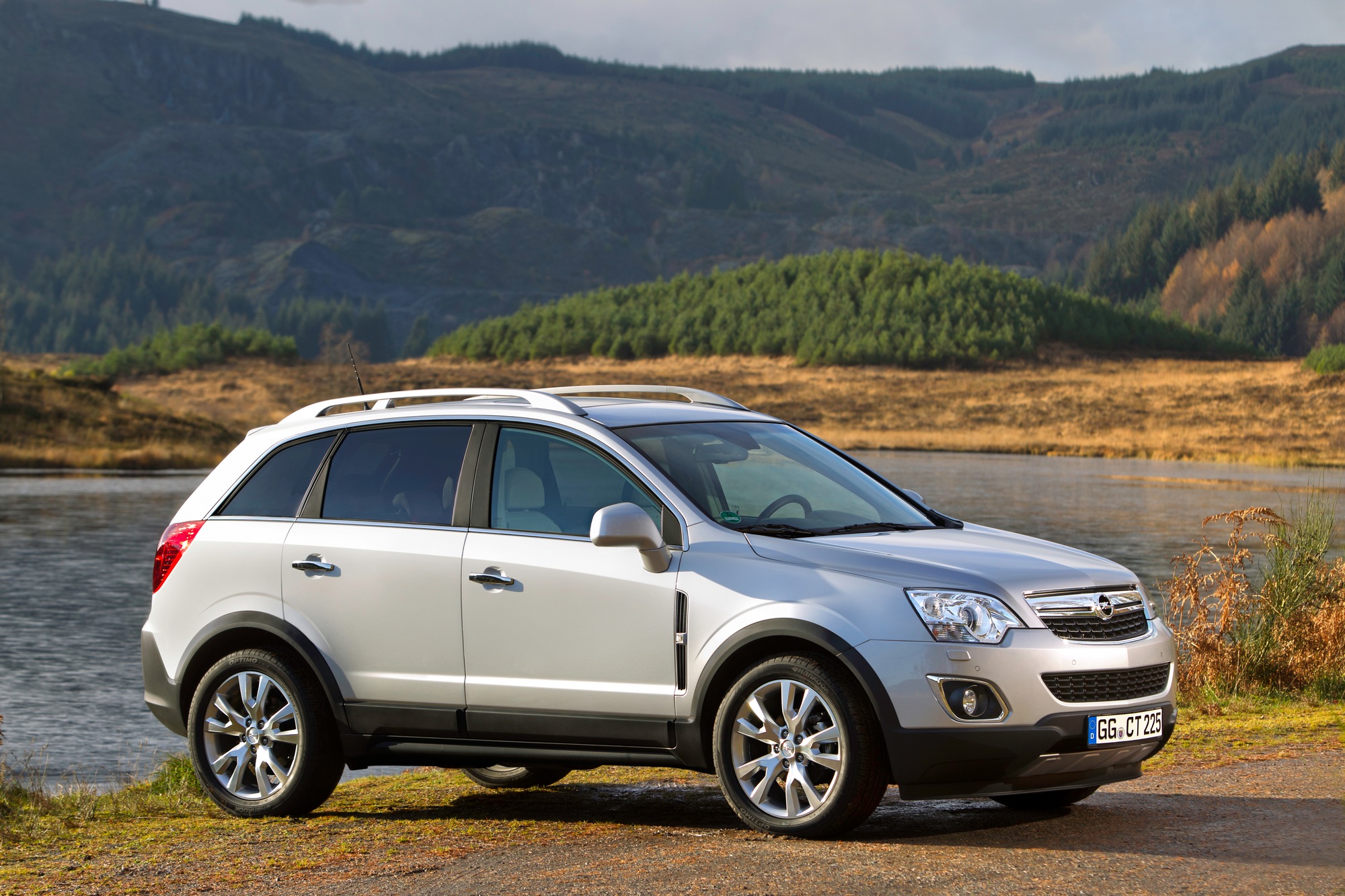

Opel Antara
Date of manufacture
2010 – 2015 (SUV)
Platform
Theta platform
Manufacturing locations
Incheon, South Korea
Ramos Arizpe, Mexico
Saint Petersburg, Russia
Designer
-
Tags
Compact SUV
German cars
The Opel Antara is an SUV that was released in 2010. The vehicle is built on the Theta platform and offers both petrol and diesel engines. The most powerful variant, the 2.2 CDTI, has 135 kW and reaches a top speed of 200 km/h with the best acceleration from 0-100 km/h in 9.7 seconds. The combined fuel consumption of this model is 6.1 l/100 km with CO2 emissions of 160 g/km. The 420-litre boot provides plenty of room for cargo. The vehicle is manufactured in countries such as South Korea, Mexico and Russia.
Car body style
SUV
after upgrade (facelift)
Date of manufacture
2010 – 2015Internal designation
L07Technical data
SUV
| 2.4 ECOTEC | 2.4 ECOTEC | 2.4 ECOTEC | 2.2 CDTI | 2.2 CDTI | 2.2 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 2384 | 2384 | 2384 | 2231 | 2231 | 2231 |
| Maximum output / speed [kW/min-1] | 123/5600 | 123/5600 | 123/5600 | 120/5600 | 120/5600 | 120/5600 |
| Maximum torque [Nm/min-1] | 230/4600 | 230/4600 | 230/4600 | 350/2000 | 350/2000 | 350/2000 |
| Bore and stroke [mm x mm] | 88,0 x 98,0 | 88,0 x 98,0 | 88,0 x 98,0 | 86,0 x 96,0 | 86,0 x 96,0 | 86,0 x 96,0 |
| Compression ratio | 10,4:1 | 10,4:1 | 10,4:1 | 16,3:1 | 16,3:1 | 16,3:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - |
|
| - |
|
|
| Top speed [km/h] | 190 | 186 | 175 | 189 | 184 | 188 |
| Acceleration 0–100 km/h [s] | 10.4 | 10.2 | 10.5 | 10.4 | 11.1 | 11.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.0 | 12.1 | 12.4 | 7.5 | 10.0 | 7.9 |
| Out of town [l] | 7.0 | 7.4 | 7.5 | 5.2 | 6.4 | 5.6 |
| Combined [l] | 8.8 | 9.0 | 9.3 | 6.1 | 7.7 | 6.4 |
| CO2 emissions [g/km] | 206 | 212 | 216 | 160 | 203 | 170 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1750 | 1750 | 1845 | 1836 | 1936 | 1911 |
| Overall weight [kg] | 2183 | 2183 | 2278 | 2505 | 2505 | 2505 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | 750/2000 | 750/1700 | 750/2000 |
| Maximum front/rear axle load [kg] | 1250/1350 | 1250/1350 | 1250/1350 | 1250/1350 | 1250/1350 | 1250/1350 |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 420 | 420 | 420 | 420 | 420 | 420 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 865/1420 | 865/1420 | 865/1420 | 865/1420 | 865/1420 | 865/1420 |
| Boot length [mm] | 928 | 928 | 928 | 928 | 928 | 928 |
| Boot length with rear seats folded [mm] | 1740 | 1740 | 1740 | 1740 | 1740 | 1740 |
| Boot width between wheels/max [mm] | 968/1320 | 968/1320 | 968/1320 | 968/1320 | 968/1320 | 968/1320 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 796 | 796 | 796 | 796 | 796 | 796 |
| Height of the open boot door [mm] | 1855 | 1855 | 1855 | 1855 | 1855 | 1855 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | 65 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/65 R17 104H | 235/65 R17 104H | 235/65 R17 104H | 235/65 R17 104H | 235/65 R17 104H | 235/65 R17 104H |
| Tyre dimensions rear | 235/65 R17 104H | 235/65 R17 104H | 235/65 R17 104H | 235/65 R17 104H | 235/65 R17 104H | 235/65 R17 104H |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.87/12.25 | 11.87/12.25 | 11.87/12.25 | 11.87/12.25 | 11.87/12.25 | 11.87/12.25 |
| Overall length [mm] | 4596 | 4596 | 4596 | 4596 | 4596 | 4596 |
| Overall width without/including mirrors [mm] | 1850/2085 | 1850/2085 | 1850/2085 | 1850/2085 | 1850/2085 | 1850/2085 |
| Overall height [mm] | 1717 | 1717 | 1717 | 1717 | 1717 | 1717 |
| Wheelbase [mm] | 2707 | 2707 | 2707 | 2707 | 2707 | 2707 |
| Front wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Rear wheel track [mm] | 1576 | 1576 | 1576 | 1576 | 1576 | 1576 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 176 | 176 | 176 | 176 | 176 | 176 |
| Wading depth [mm] | 450 | 450 | 450 | 450 | 450 | 450 |
| Approach angle front [°] | 24 | 24 | 24 | 24 | 24 | 24 |
| Approach angle rear [°] | 20 | 20 | 20 | 20 | 20 | 20 |
| Transition angle [°] | 18 | 18 | 18 | 18 | 18 | 18 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.2 CDTI | 2.0 CDTI | 2.0 CDTI | 2.2 CDTI | 2.2 CDTI | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 2231 | 1956 | 1956 | 2231 | 2231 | |
| Maximum output / speed [kW/min-1] | 120/5600 | 125/3700 | 125/3700 | 135/3800 | 135/3800 | |
| Maximum torque [Nm/min-1] | 350/2000 | 400/1750-2500 | 400/1750-2500 | 400/1750-2750 | 400/1750-2750 | |
| Bore and stroke [mm x mm] | 86,0 x 96,0 | 83,0 x 90,4 | 83,0 x 90,4 | 86,0 x 96,0 | 86,0 x 96,0 | |
| Compression ratio | 16,3:1 | 16,0:1 | 16,0:1 | 16,3:1 | 16,3:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | Front | 4x4 | 4x4 | 4x4 | |
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 182 | 192 | 195 | 200 | 191 | |
| Acceleration 0–100 km/h [s] | 11.3 | 10.0 | 10.0 | 9.7 | 11.0 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 10.5 | 9.2 | 7.6 | 7.9 | 10.5 | |
| Out of town [l] | 6.7 | 5.8 | 5.7 | 5.6 | 6.7 | |
| Combined [l] | 8.0 | 7.0 | 6.4 | 6.4 | 8.0 | |
| CO2 emissions [g/km] | 211 | 185 | 168 | 170 | 211 | |
| Emission standard | EU5 | EU6 | EU6 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1936 | - | - | 1911 | 1936 | |
| Overall weight [kg] | 2505 | - | - | 2505 | 2505 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/2000 | 750/2000 | 750/2000 | 750/1700 | |
| Maximum front/rear axle load [kg] | 1250/1350 | 1250/1350 | 1250/1350 | 1250/1350 | 1250/1350 | |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | |
| Boot volume [l] | 420 | 420 | 420 | 420 | 420 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 865/1420 | 865/1420 | 865/1420 | 865/1420 | 865/1420 | |
| Boot length [mm] | 928 | 928 | 928 | 928 | 928 | |
| Boot length with rear seats folded [mm] | 1740 | 1740 | 1740 | 1740 | 1740 | |
| Boot width between wheels/max [mm] | 968/1320 | 968/1320 | 968/1320 | 968/1320 | 968/1320 | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | 796 | 796 | 796 | 796 | 796 | |
| Height of the open boot door [mm] | 1855 | 1855 | 1855 | 1855 | 1855 | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | -/1111 | -/1111 | -/1111 | -/1111 | -/1111 | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 65 | 65 | 65 | 65 | 65 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 235/65 R17 104H | 235/65 R17 104H | 235/65 R17 104H | 235/65 R17 104H | 235/55 R18 99H | |
| Tyre dimensions rear | 235/65 R17 104H | 235/65 R17 104H | 235/65 R17 104H | 235/65 R17 104H | 235/55 R18 99H | |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 18 | |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 18 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.87/12.25 | 11.87/12.25 | 11.87/12.25 | 11.87/12.25 | 11.87/12.25 | |
| Overall length [mm] | 4596 | 4596 | 4596 | 4596 | 4596 | |
| Overall width without/including mirrors [mm] | 1850/2085 | 1850/2085 | 1850/2085 | 1850/2085 | 1850/2085 | |
| Overall height [mm] | 1717 | 1717 | 1717 | 1717 | 1717 | |
| Wheelbase [mm] | 2707 | 2707 | 2707 | 2707 | 2707 | |
| Front wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | |
| Rear wheel track [mm] | 1576 | 1576 | 1576 | 1576 | 1576 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | 176 | 176 | 176 | 176 | 176 | |
| Wading depth [mm] | 450 | 450 | 450 | 450 | 450 | |
| Approach angle front [°] | 24 | 24 | 24 | 24 | 24 | |
| Approach angle rear [°] | 20 | 20 | 20 | 20 | 20 | |
| Transition angle [°] | 18 | 18 | 18 | 18 | 18 | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
