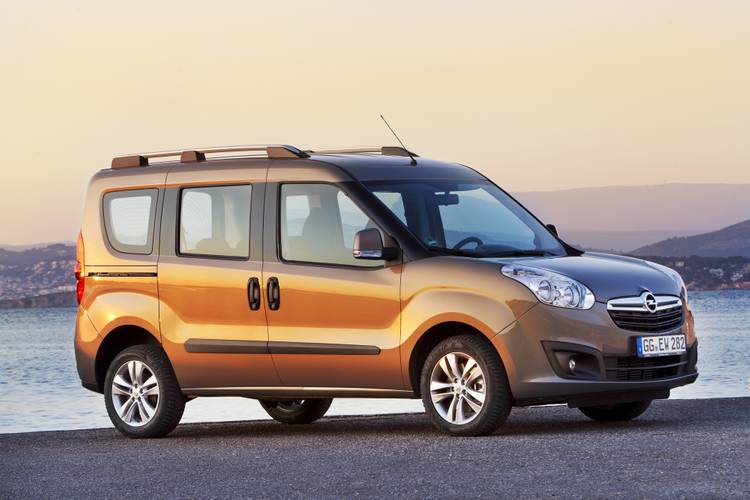

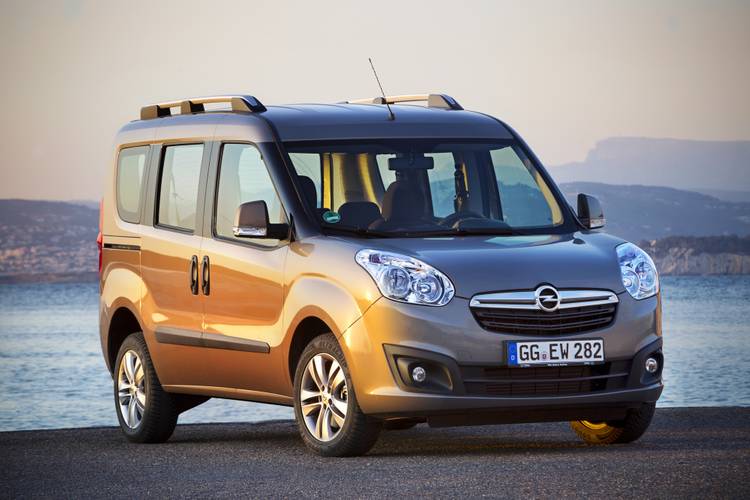

Opel Combo Tour
Date of manufacture
12/2011 – 2017 (MPV)
Platform
SCCS platform
Manufacturing locations
Bursa, Turkey
Designer
-
Tags
Mid-size MPV
German cars
The Opel Combo Tour has been available as an MPV since 2011. This model is manufactured in Turkey on the SCCS platform. The engine range includes petrol and diesel variants, with the most powerful engine being the 2.0 CDTI L1H2 producing 99 kW. The top speed is 179 km/h for the 2.0 CDTI L1H2 and the best acceleration from 0-100 km/h is 11 seconds for the 1.4 Turbo L1H1. The most fuel-efficient engine is the 1.6 CDTI L1H1 consuming 4.7 l/100 km and emitting 124 g/km. The boot capacity is 800 litres.
Car body style
MPV
Date of manufacture
12/2011 – 2017Internal designation
Combo DEngine size
PetrolDiesel
Technical data
MPV
| 1.4 L1H1 | 1.4 L1H1 | 1.4 L1H2 | 1.4 L1H2 | 1.4 Turbo L1H1 | 1.4 Turbo CNG L1H1 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1368 | 1368 | 1368 | 1368 | 1368 | 1368 |
| Maximum output / speed [kW/min-1] | 70/6000 | 70/6000 | 70/6000 | 70/6000 | 88/5000 | 88/5000 |
| Maximum torque [Nm/min-1] | 127/4500 | 127/4500 | 127/4500 | 127/4500 | 206/2000 | 206/2000 |
| Bore and stroke [mm x mm] | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 | 72,0 x 84,0 |
| Compression ratio | 11,0:1 | 11,0:1 | 11,0:1 | 11,0:1 | 9,8:1 | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
| - |
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 161 | 161 | 161 | 161 | 172 | 172 |
| Acceleration 0–100 km/h [s] | 15.4 | 15.4 | 15.4 | 15.4 | 11.0 | 12.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.0-10.3 | 9.3-9.5 | 10.0-10.3 | 9.3-9.5 | 9.5-9.7 | 9.7 [6.5 kg] |
| Out of town [l] | 5.9-6.1 | 5.9-6.1 | 5.9-6.1 | 5.9-6.1 | 5.9-6.1 | 6.1 [4.0 kg] |
| Combined [l] | 7.4-7.6 | 7.2-7.4 | 7.4-7.6 | 7.2-7.4 | 7.2-7.4 | 7.4 [4.9 kg] |
| CO2 emissions [g/km] | 172-177 | 165-171 | 172-177 | 165-171 | 169-173 | 173 [134 CNG] |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1445 | 1445 | 1505 | 1505 | 1490 | 1615 |
| Overall weight [kg] | 1975-2144 | 1975-2144 | 2045 | 2045 | 2030-2189 | 2150-2314 |
| Maximum trailer weight unbraked/braked [kg] | 500/1000 | 500/1000 | 500/1000 | 500/1000 | 500/1000 | 500/1000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | - | - | 100/- | 100/- |
| Boot volume [l] | 800 | 800 | 800 | 800 | 800 | 800 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3200 | -/3200 | -/4000 | -/4000 | -/3200 | -/3200 |
| Boot length [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Boot length with rear seats folded [mm] | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
| Boot width between wheels/max [mm] | -/1186 | -/1186 | -/1186 | -/1186 | -/1186 | -/1186 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5 | 5 | 5-7 | 5-7 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 |
| Tyre dimensions rear | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 |
| Wheel size front | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 |
| Wheel size rear | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 | 6.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.2 | -/11.2 | -/11.2 | -/11.2 | -/11.2 | -/11.2 |
| Overall length [mm] | 4390 | 4390 | 4390 | 4390 | 4390 | 4390 |
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- |
| Overall height [mm] | 1845 | 1845 | 2100 | 2100 | 1845 | 1845 |
| Wheelbase [mm] | 2755 | 2755 | 2755 | 2755 | 2755 | 2755 |
| Front wheel track [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
| Rear wheel track [mm] | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CDTI L1H1 | 1.6 CDTI L1H1 | 1.6 CDTI L1H2 | 1.6 CDTI L1H2 | 1.6 CDTI L1H1 | 1.6 CDTI L1H2 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 66/4000 | 66/4000 | 66/4000 | 66/4000 | 66/4000 | 66/4000 |
| Maximum torque [Nm/min-1] | 290/1500 | 290/1500 | 290/1500 | 290/1500 | 290/1500 | 290/1500 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear robotic manual | 5 gear robotic manual |
| Drive specifications | - | - | - | - |
|
|
| Top speed [km/h] | 158 | 158 | 158 | 158 | 158 | 158 |
| Acceleration 0–100 km/h [s] | 14.9 | 14.9 | 14.9 | 14.9 | 14.9 | 14.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.8-7.1 | 6.1-6.3 | 6.8-7.1 | 6.1-6.3 | 6.4-6.7 | 6.4-6.7 |
| Out of town [l] | 4.7-5.2 | 4.7-5.2 | 4.7-5.2 | 4.7-5.2 | 4.8-5.5 | 4.8-5.5 |
| Combined [l] | 5.4-5.9 | 5.2-5.6 | 5.4-5.9 | 5.2-5.6 | 5.4-5.9 | 5.4-5.9 |
| CO2 emissions [g/km] | 145-156 | 138-148 | 145-156 | 138-148 | 141-157 | 141-157 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1505 | 1575 | 1575 | 1505 | 1575 |
| Overall weight [kg] | 2030 | 2030 | 2115 | 2115 | 2030 | 2115 |
| Maximum trailer weight unbraked/braked [kg] | 500/1300 | 500/1300 | 500/1300 | 500/1300 | 500/1300 | 500/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | - | - | 100/- | - |
| Boot volume [l] | 800 | 800 | 800 | 800 | 800 | 800 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3200 | -/3200 | -/4000 | -/4000 | -/3200 | -/4000 |
| Boot length [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Boot length with rear seats folded [mm] | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
| Boot width between wheels/max [mm] | -/1186 | -/1186 | -/1186 | -/1186 | -/1186 | -/1186 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.2 | -/11.2 | -/11.2 | -/11.2 | -/11.2 | -/11.2 |
| Overall length [mm] | 4390 | 4390 | 4390 | 4390 | 4390 | 4390 |
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- |
| Overall height [mm] | 1845 | 1845 | 2100 | 2100 | 1845 | 2100 |
| Wheelbase [mm] | 2755 | 2755 | 2755 | 2755 | 2755 | 2755 |
| Front wheel track [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
| Rear wheel track [mm] | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CDTI L1H1 | 1.6 CDTI L1H1 | 1.6 CDTI L1H2 | 1.6 CDTI L1H2 | 2.0 CDTI L1H1 | 2.0 CDTI L1H1 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1956 | 1956 |
| Maximum output / speed [kW/min-1] | 77/4000 | 77/4000 | 77/4000 | 77/4000 | 99/3500 | 99/3500 |
| Maximum torque [Nm/min-1] | 290/1500 | 290/1500 | 290/1500 | 290/1500 | 320/1500 | 320/1500 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 83,0 x 90,5 | 83,0 x 90,5 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 164 | 164 | 164 | 164 | 179 | 179 |
| Acceleration 0–100 km/h [s] | 13.4 | 13.4 | 13.4 | 13.4 | 11.3 | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.8-7.1 | 6.1-6.3 | 6.8-7.1 | 6.1-6.3 | 7.3-7.4 | 6.7-6.8 |
| Out of town [l] | 4.7-5.2 | 4.7-5.2 | 4.7-5.2 | 4.7-5.2 | 5.1-5.5 | 5.1-5.5 |
| Combined [l] | 5.5-5.9 | 5.2-5.6 | 5.5-5.9 | 5.2-5.6 | 5.9-6.2 | 5.7-6.0 |
| CO2 emissions [g/km] | 145-156 | 138-148 | 145-156 | 138-148 | 156-163 | 150-157 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1505 | 1575 | 1575 | 1555 | 1555 |
| Overall weight [kg] | 2030 | 2030 | 2115 | 2115 | 2080 | 2080 |
| Maximum trailer weight unbraked/braked [kg] | 500/1300 | 500/1300 | 500/1300 | 500/1300 | 500/1300 | 500/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | - | - | 100/- | 100/- |
| Boot volume [l] | 800 | 800 | 800 | 800 | 800 | 800 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/3200 | -/3200 | -/4000 | -/4000 | -/3200 | -/3200 |
| Boot length [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Boot length with rear seats folded [mm] | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
| Boot width between wheels/max [mm] | -/1186 | -/1186 | -/1186 | -/1186 | -/1186 | -/1186 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 195/60 R16 | 195/60 R16 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 195/60 R16 | 195/60 R16 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 16 | 6.0J x 16 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 16 | 6.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.2 | -/11.2 | -/11.2 | -/11.2 | -/11.2 | -/11.2 |
| Overall length [mm] | 4390 | 4390 | 4390 | 4390 | 4390 | 4390 |
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- |
| Overall height [mm] | 1845 | 1845 | 2100 | 2100 | 1845 | 1845 |
| Wheelbase [mm] | 2755 | 2755 | 2755 | 2755 | 2755 | 2755 |
| Front wheel track [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
| Rear wheel track [mm] | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 CDTI L1H2 | 2.0 CDTI L1H2 | 1.6 CDTI L1H1 | 1.6 CDTI L1H1 | 1.6 CDTI L1H2 | 1.6 CDTI L1H2 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1956 | 1956 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 99/3500 | 99/3500 | 70/2500 | 70/2500 | 70/2500 | 70/2500 |
| Maximum torque [Nm/min-1] | 320/1500 | 320/1500 | 300/1750 | 300/1750 | 300/1750 | 300/1750 |
| Bore and stroke [mm x mm] | 83,0 x 90,5 | 83,0 x 90,5 | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 179 | 179 | 158-162 | 158-162 | 158-162 | 158-162 |
| Acceleration 0–100 km/h [s] | 11.3 | 11.3 | 14.3 | 14.3 | 14.3 | 14.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.3-7.4 | 6.7-6.8 | 6.5-6.9 | 5.4-6.0 | 6.5-6.9 | 5.4-6.0 |
| Out of town [l] | 5.1-5.5 | 5.1-5.5 | 4.4-5.1 | 4.3-4.9 | 4.4-5.1 | 4.3-4.9 |
| Combined [l] | 5.9-6.2 | 5.7-6.0 | 5.2-5.8 | 4.7-5.3 | 5.2-5.8 | 4.7-5.3 |
| CO2 emissions [g/km] | 156-163 | 150-157 | 137-152 | 124-140 | 137-152 | 124-140 |
| Emission standard | EU5 | EU5 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1615 | 1615 | 1505 | 1505 | 1575 | 1575 |
| Overall weight [kg] | 2155 | 2155 | 2035-2204 | 2035-2204 | 2115 | 2115 |
| Maximum trailer weight unbraked/braked [kg] | 500/1300 | 500/1300 | 500/1300 | 500/1300 | 500/1300 | 500/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | 100/- | 100/- | - | - |
| Boot volume [l] | 800 | 800 | 800 | 800 | 800 | 800 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/4000 | -/4000 | -/3200 | -/3200 | -/4000 | -/4000 |
| Boot length [mm] | 991 | 991 | 991 | 991 | 991 | 991 |
| Boot length with rear seats folded [mm] | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
| Boot width between wheels/max [mm] | -/1186 | -/1186 | -/1186 | -/1186 | -/1186 | -/1186 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 195/60 R16 | 195/60 R16 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 195/60 R16 | 195/60 R16 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 6.0J x 16 | 6.0J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 16 | 6.0J x 16 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.2 | -/11.2 | -/11.2 | -/11.2 | -/11.2 | -/11.2 |
| Overall length [mm] | 4390 | 4390 | 4390 | 4390 | 4390 | 4390 |
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- |
| Overall height [mm] | 2100 | 2100 | 1845 | 1845 | 2100 | 2100 |
| Wheelbase [mm] | 2755 | 2755 | 2755 | 2755 | 2755 | 2755 |
| Front wheel track [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
| Rear wheel track [mm] | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CDTI L2H1 | 1.6 CDTI L2H1 | 1.6 CDTI L1H1 | 1.6 CDTI L1H1 | 1.6 CDTI L1H2 | 1.6 CDTI L1H2 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 70/2500 | 70/2500 | 88/3750 | 88/3750 | 88/3750 | 88/3750 |
| Maximum torque [Nm/min-1] | 300/1750 | 300/1750 | 320/1750 | 320/1750 | 320/1750 | 320/1750 |
| Bore and stroke [mm x mm] | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 |
| Compression ratio | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 158-162 | 158-162 | 172-176 | 172-176 | 172-176 | 172-176 |
| Acceleration 0–100 km/h [s] | 14.3 | 14.3 | 13.1 | 13.1 | 13.1 | 13.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.5-6.9 | 5.4-6.0 | 6.5-6.9 | 5.4-6.0 | 6.5-6.9 | 5.4-6.0 |
| Out of town [l] | 4.4-5.1 | 4.3-4.9 | 4.4-5.1 | 4.3-4.9 | 4.4-5.1 | 4.3-4.9 |
| Combined [l] | 5.2-5.8 | 4.7-5.3 | 5.2-5.8 | 4.7-5.3 | 5.2-5.8 | 4.7-5.3 |
| CO2 emissions [g/km] | 137-152 | 124-140 | 137-152 | 124-140 | 137-152 | 124-140 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1600 | 1600 | 1505 | 1505 | 1575 | 1575 |
| Overall weight [kg] | 2104 | 2104 | 2035-2204 | 2035-2204 | 2115 | 2115 |
| Maximum trailer weight unbraked/braked [kg] | 500/1300 | 500/1300 | 500/1300 | 500/1300 | 500/1300 | 500/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | - | - |
| Boot volume [l] | 1050 | 1050 | 800 | 800 | 800 | 800 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/4200 | -/4200 | -/3200 | -/3200 | -/4000 | -/4000 |
| Boot length [mm] | 1341 | 1341 | 991 | 991 | 991 | 991 |
| Boot length with rear seats folded [mm] | 1750 | 1750 | 1400 | 1400 | 1400 | 1400 |
| Boot width between wheels/max [mm] | -/1186 | -/1186 | -/1186 | -/1186 | -/1186 | -/1186 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5-7 | 5-7 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.2 | -/11.2 | -/11.2 | -/11.2 | -/11.2 | -/11.2 |
| Overall length [mm] | 4740 | 4740 | 4390 | 4390 | 4390 | 4390 |
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- | 1832/- |
| Overall height [mm] | 1845 | 1845 | 1845 | 1845 | 2100 | 2100 |
| Wheelbase [mm] | 3105 | 3105 | 2755 | 2755 | 2755 | 2755 |
| Front wheel track [mm] | 1510 | 1510 | 1510 | 1510 | 1510 | 1510 |
| Rear wheel track [mm] | 1530 | 1530 | 1530 | 1530 | 1530 | 1530 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CDTI L2H1 | 1.6 CDTI L2H1 | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1598 | 1598 | ||||
| Maximum output / speed [kW/min-1] | 88/3750 | 88/3750 | ||||
| Maximum torque [Nm/min-1] | 320/1750 | 320/1750 | ||||
| Bore and stroke [mm x mm] | 79,7 x 80,1 | 79,7 x 80,1 | ||||
| Compression ratio | 16,0:1 | 16,0:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear manual | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 172-176 | 172-176 | ||||
| Acceleration 0–100 km/h [s] | 13.1 | 13.1 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 6.5-6.9 | 5.4-6.0 | ||||
| Out of town [l] | 4.4-5.1 | 4.3-4.9 | ||||
| Combined [l] | 5.2-5.8 | 4.7-5.3 | ||||
| CO2 emissions [g/km] | 137-152 | 124-140 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1600 | 1600 | ||||
| Overall weight [kg] | 2104 | 2104 | ||||
| Maximum trailer weight unbraked/braked [kg] | 500/1300 | 500/1300 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 1050 | 1050 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/4200 | -/4200 | ||||
| Boot length [mm] | 1341 | 1341 | ||||
| Boot length with rear seats folded [mm] | 1750 | 1750 | ||||
| Boot width between wheels/max [mm] | -/1186 | -/1186 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 60 | 60 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 185/65 R15 | 185/65 R15 | ||||
| Tyre dimensions rear | 185/65 R15 | 185/65 R15 | ||||
| Wheel size front | 6.0J x 15 | 6.0J x 15 | ||||
| Wheel size rear | 6.0J x 15 | 6.0J x 15 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | -/11.2 | -/11.2 | ||||
| Overall length [mm] | 4740 | 4740 | ||||
| Overall width without/including mirrors [mm] | 1832/- | 1832/- | ||||
| Overall height [mm] | 1845 | 1845 | ||||
| Wheelbase [mm] | 3105 | 3105 | ||||
| Front wheel track [mm] | 1510 | 1510 | ||||
| Rear wheel track [mm] | 1530 | 1530 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
