Opel Corsa
Date of manufacture
2006 – 2010 (Three-door hatchback)
2006 – 2010 (Five-door hatchback)
Platform
SCCS platform
Manufacturing locations
Eisenach, Germany
Zaragoza, Spain
Designer
Niels Loeb
Tags
B-segment
German cars
The Opel Corsa is available in two body styles - three-door hatchback and five-door hatchback. It has been produced since 2006 and can be built in Germany or Spain on the SCCS platform. It offers petrol and diesel engines, with the most powerful version being the 1.6 Turbo OPC with 141 kW and the fastest version being the 1.6 Turbo OPC reaching 225 km/h. The best acceleration 0-100 km/h (7.2 seconds) is offered by the same model and the most comfortable driver will also be pleased with the most economical version 1.3 CDTI EcoFlex with a combined consumption of 3.7 l/100 km and CO2 emissions of 98 g/km. The luggage space for both variants is 285 liters and the safety of the car has been tested by EURONCAP, resulting in a rating of 5 out of 5.
Car body style
Three-door hatchback
Date of manufacture
2006 – 2010Internal designation
Corsa D S07Five-door hatchback

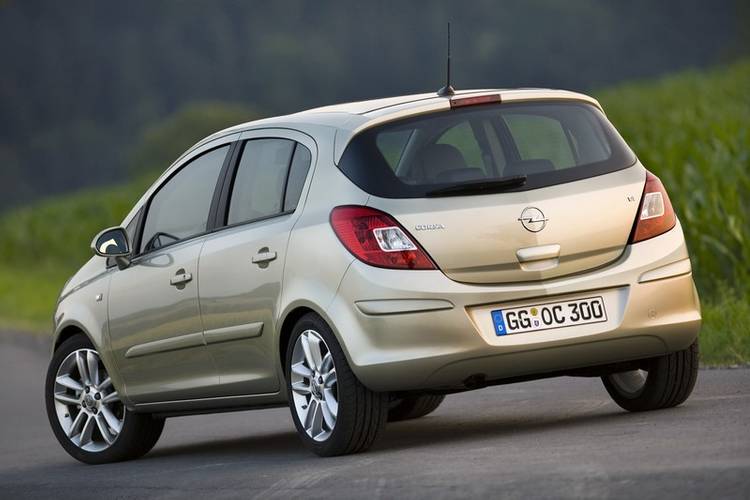

Date of manufacture
2006 – 2010Internal designation
Corsa D S07
Technical data
Three-door hatchback
| 1.0 Twinport | 1.0 Twinport | 1.2 Twinport | 1.2 Twinport | 1.2 Twinport | 1.2 Twinport | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 998 | 998 | 1229 | 1229 | 1229 | 1229 |
| Maximum output / speed [kW/min-1] | 44/5600 | 48/5300 | 59/5600 | 59/5600 | 63/5600 | 63/5600 |
| Maximum torque [Nm/min-1] | 88/3800 | 90/4000 | 110/4000 | 110/4000 | 115/4000 | 115/4000 |
| Bore and stroke [mm x mm] | 73,4 x 78,6 | 73,4 x 78,6 | 73,4 x 72,6 | 73,4 x 72,6 | 73,4 x 72,6 | 73,4 x 72,6 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - | - |
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear robotic manual |
| Drive specifications | - | - | - |
| - |
|
| Top speed [km/h] | 150 | 150 | 168 | 168 | 172 | 172 |
| Acceleration 0–100 km/h [s] | 18.2 | 18.2 | 13.9 | 15.4 | 13.6 | 14.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.3 | 6.3 | 7.7 | 7.6 | 6.9 | 6.5 |
| Out of town [l] | 4.6 | 4.2 | 4.7 | 4.6 | 4.4 | 4.2 |
| Combined [l] | 5.6 | 5.0 | 5.8 | 5.7 | 5.3 | 5.1 |
| CO2 emissions [g/km] | 134 | 117 | 139 | 137 | 124 | 119 |
| Emission standard | EU4 | EU5 | EU4 | EU4 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
| Overall weight [kg] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 285 | 285 | 285 | 285 | 285 | 285 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot length [mm] | 703 | 703 | 703 | 703 | 703 | 703 |
| Boot length with rear seats folded [mm] | 1348 | 1348 | 1348 | 1348 | 1348 | 1348 |
| Boot width between wheels/max [mm] | -/944 | -/944 | -/944 | -/944 | -/944 | -/944 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/70 R14 | 185/70 R14 | 185/70 R14 | 185/70 R14 | 185/70 R14 | 185/70 R14 |
| Tyre dimensions rear | 185/70 R14 | 185/70 R14 | 185/70 R14 | 185/70 R14 | 185/70 R14 | 185/70 R14 |
| Wheel size front | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 |
| Wheel size rear | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 |
| Overall length [mm] | 3999 | 3999 | 3999 | 3999 | 3999 | 3999 |
| Overall width without/including mirrors [mm] | 1713/1944 | 1713/1944 | 1713/1944 | 1713/1944 | 1713/1944 | 1713/1944 |
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Wheelbase [mm] | 2511 | 2511 | 2511 | 2511 | 2511 | 2511 |
| Front wheel track [mm] | 1485 | 1485 | 1485 | 1485 | 1485 | 1485 |
| Rear wheel track [mm] | 1478 | 1478 | 1478 | 1478 | 1478 | 1478 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 Twinport | 1.4 Twinport | 1.4 Twinport | 1.4 Twinport | 1.6 Turbo GSI | 1.6 Turbo GSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1364 | 1364 | 1364 | 1364 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 66/5600 | 66/5600 | 74/6000 | 74/6000 | 110/5850 | 110/5000 |
| Maximum torque [Nm/min-1] | 125/4000 | 125/4000 | 130/4000 | 130/4000 | 230/1950-5850 | 210/1850-5000 |
| Bore and stroke [mm x mm] | 73,4 x 82,6 | 73,4 x 82,6 | 73,4 x 82,6 | 73,4 x 82,6 | 79,0 x 81,5 | 79,0 x 81,5 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 4 gear automatic | 5 gear manual | 4 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 173 | 166 | 180 | 172 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 12.4 | 14.8 | 11.9 | 13.9 | 8.1 | 8.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7 | 8.5-8.7 | 7.0 | 7.5 | 10.5 | 9.7 |
| Out of town [l] | 4.7 | 5.3-5.7 | 4.6 | 4.7 | 6.4 | 5.9 |
| Combined [l] | 5.8 | 6.5-6.8 | 5.5 | 5.7 | 7.9 | 7.3 |
| CO2 emissions [g/km] | 139 | 154-163 | 129 | 134 | 189 | 171 |
| Emission standard | EU4 | EU4 | EU5 | EU5 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
| Overall weight [kg] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 285 | 285 | 285 | 285 | 285 | 285 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot length [mm] | 703 | 703 | 703 | 703 | 703 | 703 |
| Boot length with rear seats folded [mm] | 1348 | 1348 | 1348 | 1348 | 1348 | 1348 |
| Boot width between wheels/max [mm] | -/944 | -/944 | -/944 | -/944 | -/944 | -/944 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/70 R14 | 185/65 R15 | 185/70 R14 | 185/65 R15 | 215/45 R17 | 215/45 R17 |
| Tyre dimensions rear | 185/70 R14 | 185/65 R15 | 185/70 R14 | 185/65 R15 | 215/45 R17 | 215/45 R17 |
| Wheel size front | 5.5J x 14 | 6.0J x 15 | 5.5J x 14 | 6.0J x 15 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 5.5J x 14 | 6.0J x 15 | 5.5J x 14 | 6.0J x 15 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 |
| Overall length [mm] | 3999 | 3999 | 3999 | 3999 | 3999 | 3999 |
| Overall width without/including mirrors [mm] | 1713/1944 | 1713/1944 | 1713/1944 | 1713/1944 | 1713/1944 | 1713/1944 |
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Wheelbase [mm] | 2511 | 2511 | 2511 | 2511 | 2511 | 2511 |
| Front wheel track [mm] | 1485 | 1485 | 1485 | 1485 | 1485 | 1485 |
| Rear wheel track [mm] | 1478 | 1478 | 1478 | 1478 | 1478 | 1478 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

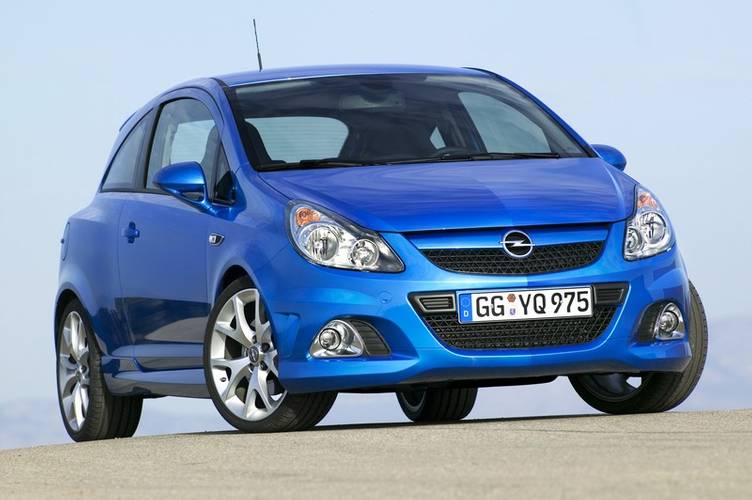

| 1.6 Turbo OPC | 1.6 Turbo OPC | 1.3 CDTI | 1.3 CDTI | 1.3 CDTI | 1.3 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1248 | 1248 | 1248 | 1248 |
| Maximum output / speed [kW/min-1] | 141/5850 | 141/5850 | 55/4000 | 55/4000 | 66/4000 | 66/4000 |
| Maximum torque [Nm/min-1] | 230/1950-5850 | 230/1950-5850 | 170/1750-2500 | 170/1750-2500 | 200/1750-2500 | 200/1750-2500 |
| Bore and stroke [mm x mm] | 79,0 x 81,5 | 79,0 x 81,5 | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 225 | 225 | 163 | 163 | 172 | 172 |
| Acceleration 0–100 km/h [s] | 7.2 | 7.2 | 14.5 | 14.5 | 12.7 | 14.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.5 | 9.8 | 5.7 | 5.4 | 6.2-6.3 | 6.0 |
| Out of town [l] | 6.4 | 5.9 | 3.8 | 3.7 | 4.0-4.1 | 4.0 |
| Combined [l] | 7.9 | 7.3 | 4.5 | 4.3 | 4.8-4.9 | 4.7 |
| CO2 emissions [g/km] | 190 | 172 | 119 | 114 | 127-130 | 125 |
| Emission standard | EU4 | EU5 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
| Overall weight [kg] | 1545 | 1545 | 1545 | 1545 | 1545 | 1545 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 285 | 285 | 285 | 285 | 285 | 285 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot length [mm] | 703 | 703 | 703 | 703 | 703 | 703 |
| Boot length with rear seats folded [mm] | 1348 | 1348 | 1348 | 1348 | 1348 | 1348 |
| Boot width between wheels/max [mm] | -/944 | -/944 | -/944 | -/944 | -/944 | -/944 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/45 R17 | 215/45 R17 | 185/70 R14 | 185/70 R14 | 185/65 R15 | 185/65 R15 |
| Tyre dimensions rear | 215/45 R17 | 215/45 R17 | 185/70 R14 | 185/70 R14 | 185/65 R15 | 185/65 R15 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 5.5J x 14 | 5.5J x 14 | 6J x 15 | 6J x 15 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 5.5J x 14 | 5.5J x 14 | 6J x 15 | 6J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 |
| Overall length [mm] | 3999 | 3999 | 3999 | 3999 | 3999 | 3999 |
| Overall width without/including mirrors [mm] | 1713/1944 | 1713/1944 | 1713/1944 | 1713/1944 | 1713/1944 | 1713/1944 |
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Wheelbase [mm] | 2511 | 2511 | 2511 | 2511 | 2511 | 2511 |
| Front wheel track [mm] | 1485 | 1485 | 1485 | 1485 | 1485 | 1485 |
| Rear wheel track [mm] | 1478 | 1478 | 1478 | 1478 | 1478 | 1478 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.3 CDTI EcoFlex | 1.7 CDTI | 1.7 CDTI | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1248 | 1686 | 1686 | |||
| Maximum output / speed [kW/min-1] | 70/4000 | 92/4000 | 96/4000 | |||
| Maximum torque [Nm/min-1] | 190/1750-3250 | 280/2300 | 280/2300 | |||
| Bore and stroke [mm x mm] | 69,6 x 82,0 | 79,0 x 86,0 | 79,0 x 86,0 | |||
| Compression ratio | - | - | - | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 5 gear manual | 6 gear manual | 6 gear manual | |||
| Drive specifications | - | - | - | |||
| Top speed [km/h] | 177 | 195 | 195 | |||
| Acceleration 0–100 km/h [s] | 12.3 | 9.9 | 9.9 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 4.6 | 6.2 | 6.2 | |||
| Out of town [l] | 3.2 | 4.0 | 4.0 | |||
| Combined [l] | 3.7 | 4.8 | 4.8 | |||
| CO2 emissions [g/km] | 98 | 130 | 130 | |||
| Emission standard | EU4 | EU4 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1100 | 1100 | 1100 | |||
| Overall weight [kg] | 1545 | 1545 | 1545 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | |||
| Boot volume [l] | 285 | 285 | 285 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1050 | -/1050 | -/1050 | |||
| Boot length [mm] | 703 | 703 | 703 | |||
| Boot length with rear seats folded [mm] | 1348 | 1348 | 1348 | |||
| Boot width between wheels/max [mm] | -/944 | -/944 | -/944 | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 3 | 3 | 3 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | - | - | - | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 185/70 R14 | 195/55 R16 | 195/55 R16 | |||
| Tyre dimensions rear | 185/70 R14 | 195/55 R16 | 195/55 R16 | |||
| Wheel size front | 5.5J x 14 | 6.0J x 16 | 6.0J x 16 | |||
| Wheel size rear | 5.5J x 14 | 6.0J x 16 | 6.0J x 16 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | |||
| Overall length [mm] | 3999 | 3999 | 3999 | |||
| Overall width without/including mirrors [mm] | 1713/1944 | 1713/1944 | 1713/1944 | |||
| Overall height [mm] | 1488 | 1488 | 1488 | |||
| Wheelbase [mm] | 2511 | 2511 | 2511 | |||
| Front wheel track [mm] | 1485 | 1485 | 1485 | |||
| Rear wheel track [mm] | 1478 | 1478 | 1478 | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Five-door hatchback
| 1.0 Twinport | 1.0 Twinport | 1.2 Twinport | 1.2 Twinport | 1.2 Twinport | 1.2 Twinport | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 998 | 998 | 1229 | 1229 | 1229 | 1229 |
| Maximum output / speed [kW/min-1] | 44/5600 | 48/5300 | 59/5600 | 59/5600 | 63/5600 | 63/5600 |
| Maximum torque [Nm/min-1] | 88/3800 | 90/4000 | 110/4000 | 110/4000 | 115/4000 | 115/4000 |
| Bore and stroke [mm x mm] | 73,4 x 78,6 | 73,4 x 78,6 | 73,4 x 72,6 | 73,4 x 72,6 | 73,4 x 72,6 | 73,4 x 72,6 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - | - | - |
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear robotic manual | 5 gear manual | 5 gear robotic manual |
| Drive specifications | - | - | - |
| - |
|
| Top speed [km/h] | 150 | 150 | 168 | 168 | 172 | 172 |
| Acceleration 0–100 km/h [s] | 18.2 | 18.2 | 13.9 | 15.4 | 13.6 | 14.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.3 | 6.3 | 7.7 | 7.6 | 6.9 | 6.5 |
| Out of town [l] | 4.6 | 4.2 | 4.7 | 4.6 | 4.4 | 4.2 |
| Combined [l] | 5.6 | 5.0 | 5.8 | 5.7 | 5.3 | 5.1 |
| CO2 emissions [g/km] | 134 | 117 | 139 | 137 | 124 | 119 |
| Emission standard | EU4 | EU5 | EU4 | EU4 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1145 | 1145 | 1145 | 1145 | 1145 | 1145 |
| Overall weight [kg] | 1565 | 1565 | 1565 | 1565 | 1565 | 1565 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 285 | 285 | 285 | 285 | 285 | 285 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot length [mm] | 703 | 703 | 703 | 703 | 703 | 703 |
| Boot length with rear seats folded [mm] | 1348 | 1348 | 1348 | 1348 | 1348 | 1348 |
| Boot width between wheels/max [mm] | -/944 | -/944 | -/944 | -/944 | -/944 | -/944 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/70 R14 | 185/70 R14 | 185/70 R14 | 185/70 R14 | 185/70 R14 | 185/70 R14 |
| Tyre dimensions rear | 185/70 R14 | 185/70 R14 | 185/70 R14 | 185/70 R14 | 185/70 R14 | 185/70 R14 |
| Wheel size front | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 |
| Wheel size rear | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 | 5.5J x 14 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 |
| Overall length [mm] | 3999 | 3999 | 3999 | 3999 | 3999 | 3999 |
| Overall width without/including mirrors [mm] | 1737/1944 | 1737/1944 | 1737/1944 | 1737/1944 | 1737/1944 | 1737/1944 |
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Wheelbase [mm] | 2511 | 2511 | 2511 | 2511 | 2511 | 2511 |
| Front wheel track [mm] | 1485 | 1485 | 1485 | 1485 | 1485 | 1485 |
| Rear wheel track [mm] | 1478 | 1478 | 1478 | 1478 | 1478 | 1478 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 Twinport | 1.4 Twinport | 1.4 Twinport | 1.4 Twinport | 1.6 Turbo GSI | 1.6 Turbo GSI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1364 | 1364 | 1364 | 1364 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 66/5600 | 66/5600 | 74/6000 | 74/6000 | 110/5850 | 110/5000 |
| Maximum torque [Nm/min-1] | 125/4000 | 125/4000 | 130/4000 | 130/4000 | 230/1950-5850 | 210/1850-5000 |
| Bore and stroke [mm x mm] | 73,4 x 82,6 | 73,4 x 82,6 | 73,4 x 82,6 | 73,4 x 82,6 | 79,0 x 81,5 | 79,0 x 81,5 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 4 gear automatic | 5 gear manual | 4 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - |
| - | - |
| Top speed [km/h] | 173 | 166 | 180 | 172 | 210 | 210 |
| Acceleration 0–100 km/h [s] | 12.4 | 14.8 | 11.9 | 13.9 | 8.1 | 8.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7 | 8.5-8.7 | 7.0 | 7.5 | 10.5 | 9.7 |
| Out of town [l] | 4.7 | 5.3-5.7 | 4.6 | 4.7 | 6.4 | 5.9 |
| Combined [l] | 5.8 | 6.5-6.8 | 5.5 | 5.7 | 7.9 | 7.3 |
| CO2 emissions [g/km] | 139 | 154-163 | 129 | 134 | 189 | 171 |
| Emission standard | EU4 | EU4 | EU5 | EU5 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1145 | 1145 | 1145 | 1145 | 1145 | 1145 |
| Overall weight [kg] | 1565 | 1565 | 1565 | 1565 | 1565 | 1565 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 285 | 285 | 285 | 285 | 285 | 285 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot length [mm] | 703 | 703 | 703 | 703 | 703 | 703 |
| Boot length with rear seats folded [mm] | 1348 | 1348 | 1348 | 1348 | 1348 | 1348 |
| Boot width between wheels/max [mm] | -/944 | -/944 | -/944 | -/944 | -/944 | -/944 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/70 R14 | 185/65 R15 | 185/70 R14 | 185/65 R15 | 215/45 R17 | 215/45 R17 |
| Tyre dimensions rear | 185/70 R14 | 185/65 R15 | 185/70 R14 | 185/65 R15 | 215/45 R17 | 215/45 R17 |
| Wheel size front | 5.5J x 14 | 6.0J x 15 | 5.5J x 14 | 6.0J x 15 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 5.5J x 14 | 6.0J x 15 | 5.5J x 14 | 6.0J x 15 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 |
| Overall length [mm] | 3999 | 3999 | 3999 | 3999 | 3999 | 3999 |
| Overall width without/including mirrors [mm] | 1737/1944 | 1737/1944 | 1737/1944 | 1737/1944 | 1737/1944 | 1737/1944 |
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Wheelbase [mm] | 2511 | 2511 | 2511 | 2511 | 2511 | 2511 |
| Front wheel track [mm] | 1485 | 1485 | 1485 | 1485 | 1485 | 1485 |
| Rear wheel track [mm] | 1478 | 1478 | 1478 | 1478 | 1478 | 1478 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.3 CDTI | 1.3 CDTI | 1.3 CDTI | 1.3 CDTI | 1.3 CDTI EcoFlex | 1.7 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1248 | 1248 | 1248 | 1248 | 1248 | 1686 |
| Maximum output / speed [kW/min-1] | 55/4000 | 55/4000 | 66/4000 | 66/4000 | 70/4000 | 92/4000 |
| Maximum torque [Nm/min-1] | 170/1750-2500 | 170/1750-2500 | 200/1750-2500 | 200/1750-2500 | 190/1750-3250 | 280/2300 |
| Bore and stroke [mm x mm] | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 | 69,6 x 82,0 | 79,0 x 86,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear automatic | 5 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 163 | 163 | 172 | 172 | 177 | 195 |
| Acceleration 0–100 km/h [s] | 14.5 | 14.5 | 12.7 | 14.2 | 12.3 | 9.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.7 | 5.4 | 6.2-6.3 | 6.0 | 4.6 | 6.2 |
| Out of town [l] | 3.8 | 3.7 | 4.0-4.1 | 4.0 | 3.2 | 4.0 |
| Combined [l] | 4.5 | 4.3 | 4.8-4.9 | 4.7 | 3.7 | 4.8 |
| CO2 emissions [g/km] | 119 | 114 | 127-130 | 125 | 98 | 130 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1145 | 1145 | 1145 | 1145 | 1145 | 1145 |
| Overall weight [kg] | 1565 | 1565 | 1565 | 1565 | 1565 | 1565 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |
| Boot volume [l] | 285 | 285 | 285 | 285 | 285 | 285 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 | -/1050 |
| Boot length [mm] | 703 | 703 | 703 | 703 | 703 | 703 |
| Boot length with rear seats folded [mm] | 1348 | 1348 | 1348 | 1348 | 1348 | 1348 |
| Boot width between wheels/max [mm] | -/944 | -/944 | -/944 | -/944 | -/944 | -/944 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | - | - | - | - | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 185/70 R14 | 185/70 R14 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 195/55 R16 |
| Tyre dimensions rear | 185/70 R14 | 185/70 R14 | 185/65 R15 | 185/65 R15 | 185/65 R15 | 195/55 R16 |
| Wheel size front | 5.5J x 14 | 5.5J x 14 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 16 |
| Wheel size rear | 5.5J x 14 | 5.5J x 14 | 6.0J x 15 | 6.0J x 15 | 6.0J x 15 | 6.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 | 10.2/10.55 |
| Overall length [mm] | 3999 | 3999 | 3999 | 3999 | 3999 | 3999 |
| Overall width without/including mirrors [mm] | 1737/1944 | 1737/1944 | 1737/1944 | 1737/1944 | 1737/1944 | 1737/1944 |
| Overall height [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Wheelbase [mm] | 2511 | 2511 | 2511 | 2511 | 2511 | 2511 |
| Front wheel track [mm] | 1485 | 1485 | 1485 | 1485 | 1485 | 1485 |
| Rear wheel track [mm] | 1478 | 1478 | 1478 | 1478 | 1478 | 1478 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.7 CDTI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1686 | |||||
| Maximum output / speed [kW/min-1] | 96/4000 | |||||
| Maximum torque [Nm/min-1] | 280/2300 | |||||
| Bore and stroke [mm x mm] | 79,0 x 86,0 | |||||
| Compression ratio | - | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear manual | |||||
| Drive specifications | - | |||||
| Top speed [km/h] | 195 | |||||
| Acceleration 0–100 km/h [s] | 9.9 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 6.2 | |||||
| Out of town [l] | 4.0 | |||||
| Combined [l] | 4.8 | |||||
| CO2 emissions [g/km] | 130 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1145 | |||||
| Overall weight [kg] | 1565 | |||||
| Maximum trailer weight unbraked/braked [kg] | - | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | 75/- | |||||
| Boot volume [l] | 285 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1050 | |||||
| Boot length [mm] | 703 | |||||
| Boot length with rear seats folded [mm] | 1348 | |||||
| Boot width between wheels/max [mm] | -/944 | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | - | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | twist beam axle with trailing arms | |||||
| Tyre dimensions front | 195/55 R16 | |||||
| Tyre dimensions rear | 195/55 R16 | |||||
| Wheel size front | 6.0J x 16 | |||||
| Wheel size rear | 6.0J x 16 | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 10.2/10.55 | |||||
| Overall length [mm] | 3999 | |||||
| Overall width without/including mirrors [mm] | 1737/1944 | |||||
| Overall height [mm] | 1488 | |||||
| Wheelbase [mm] | 2511 | |||||
| Front wheel track [mm] | 1485 | |||||
| Rear wheel track [mm] | 1478 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
