Opel Grandland X
Date of manufacture
2017 – 2021 (Medium SUV)
Platform
PSA EMP2 platform
Manufacturing locations
Sochaux, France
Eisenach, Germany
Designer
-
Tags
Compact SUV
German cars
The new Opel Grandland X is a mid-size SUV that has been manufactured since 2017. It can be manufactured in France or Germany and is built on the PSA EMP2 platform. This model also has hybrid and plug-in hybrid variants. Available power units include petrol, diesel and hybrid. The most powerful engine is the 1.6 Turbo S/S PHEV with a maximum power of 221 kW (235 hp) and the best acceleration from 0-100 km/h in 6.1 seconds. The lowest fuel consumption is 1.4 l/100 km and emissions reach 32 g/km. The boot capacity is 390 l and the model has received 5 stars out of 5 possible in the EURONCAP safety tests according to the 2017 methodology.
Car body style
Medium SUV
Date of manufacture
2017 – 2021Internal designation
-Engine size
Technical data
Medium SUV
| 1.2 TURBO S/S | 1.2 TURBO S/S | 1.6 Turbo S/S | 1.6 Turbo S/S PHEV | 1.6 Turbo S/S PHEV | 1.5 CDTI S/S | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2020 | from 2020 to | from 2020 to | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric | Diesel supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1199 | 1199 | 1598 | 1598 | 1598 | 1499 |
| Maximum output / speed [kW/min-1] | 96/5500 | 96/5500 | 133/5500 | 133/6000 combustion 81 el. 165 total | 147/6000 combustion 81 el. 83 el. 221 total | 74/3500 |
| Maximum torque [Nm/min-1] | 230/1750 | 230/1750 | 250/1750 | 300/3000 combustion 360 total | 300/3000 combustion 520 total | 250/1750 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 75,0 x 90,5 | 77.0 x 85.0 | 77.0 x 85.0 | 77.0 x 85.0 | 75.0 x 84,8 |
| Compression ratio | 10,5:1 | 10,5:1 | 10.2:1 | 10.2:1 | 10.2:1 | 16.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | 4x4 | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications | - |
|
|
|
| - |
| Top speed [km/h] | 188-197 | 188-196 | 222 | 225 [135 el.] | 235 [135 el.] | 178 |
| Acceleration 0–100 km/h [s] | 10,1-11,1 | 10,3-10,9 | 8.0 | 8.9 | 6.1 | 13.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 9,9-11,6 | - | - | - | - | 13.5 |
| City [l] | 6,1-6,0 | 6,3-5,6 | 7,2-7,1 | - | - | 4.6 |
| Out of town [l] | 4,9-4,4 | 4,9-4,4 | 5,0-4,9 | - | - | 3.8 |
| Combined [l] | 5,3-5,0 | 5,3-4,9 | 5,8-5,7 | 1.7-1.5 | 1.6-1.5 | 4.1 |
| CO2 emissions [g/km] | 121-114 | 121-111 | 132-130 | 37-35 | 36-34 | 107 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 7,3-6,2 | 7,7-6,5 | 8,0-7,1 | 1.5-1.4 [16.1-15.6 kWh] | 1.4-1.3 [15.9-15.3 kWh] | - |
| CO2 emissions [g/km] | 164-141 | 175-146 | 181-161 | 34-31 | 32-29 | - |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | 240-400 | 240-400 | - |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 13.2 kWh | Lithium-Ionen-Akkumulator, 13.2 kWh | - |
| Range with fully charged battery [km] | - | - | - | 57-55 | 59-57 | - |
| Charging time | - | - | - |
|
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1275-1370 | 1295-1395 | 1425 | 1810 | 1875 | 1320 |
| Overall weight [kg] | 1930 | 1953-1960 | 2000 | 2285 | 2350 | 2000 |
| Maximum trailer weight unbraked/braked [kg] | 600-670/1350-1400 | 600-680/1100-1200 | 600/1600 | 600/1250 | 600/1250 | 600/1200 |
| Maximum front/rear axle load [kg] | 1100/1100 | 1100/1100 | 1100/1100 | - | - | - |
| Maximum vertical load on the tow bar [kg] | 70 | 70 | 70 | 70 | 70 | 70 |
| Maximum load on roof/carrier [kg] | 85/- | 85/- | 85/- | 85/- | 85/- | 85/- |
| Boot volume [l] | 514 | 514 | 514 | 390 | 390 | 514 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1652 | -/1652 | -/1652 | -/1528 | -/1528 | -/1652 |
| Boot length [mm] | 873 | 873 | 873 | 873 | 873 | 873 |
| Boot length with rear seats folded [mm] | 1696 | 1696 | 1696 | 1696 | 1696 | 1696 |
| Boot width between wheels/max [mm] | 1053/- | 1053/- | 1053/- | 1053/- | 1053/- | 1053/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 866 | 866 | 866 | 866 | 866 | 866 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 659 | 659 | 659 | 659 | 659 | 659 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 53 | 53 | 53 | 43 | 43 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | 17 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/70 R16 | 215/70 R16 | 215/70 R16 | 225/55 R18 | 225/55 R18 | 215/70 R16 |
| Tyre dimensions rear | 215/70 R16 | 215/70 R16 | 215/70 R16 | 225/55 R18 | 225/55 R18 | 215/70 R16 |
| Wheel size front | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 18 | 7.5J x 18 | 7.0J x 16 |
| Wheel size rear | 7.0J x 16 | 7.0J x 16 | 7.0J x 16 | 7.5J x 18 | 7.5J x 18 | 7.0J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | -/11.05 | -/11.05 | -/11.05 | -/11.05 | -/11.05 | -/11.05 |
| Overall length [mm] | 4477 | 4477 | 4477 | 4477 | 4477 | 4477 |
| Overall width without/including mirrors [mm] | 1856/2098 | 1856/2098 | 1856/2098 | 1856/2098 | 1856/2098 | 1856/2098 |
| Overall height [mm] | 1609 | 1609 | 1609 | 1609 | 1609 | 1609 |
| Wheelbase [mm] | 2675 | 2675 | 2675 | 2675 | 2675 | 2675 |
| Front wheel track [mm] | 1595 | 1595 | 1595 | 1595 | 1595 | 1595 |
| Rear wheel track [mm] | 1610 | 1610 | 1610 | 1610 | 1610 | 1610 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 188 | 188 | 188 | 188 | 188 | 188 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CDTI S/S | 1.6 CDTI S/S | 1.5 CDTI S/S | 1.5 CDTI S/S | 2.0 CDTI S/S | ||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from 2018 to | from 2018 to | from 2018 to 2020 | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1560 | 1560 | 1499 | 1499 | 1999 | |
| Maximum output / speed [kW/min-1] | 88/3750 | 88/3750 | 96/3750 | 96/3750 | 130/3750 | |
| Maximum torque [Nm/min-1] | 300/1750 | 300/1750 | 300/1750 | 300/1750 | 400/2000 | |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 75.0 x 84,8 | 75.0 x 84,8 | 85.0 x 88.0 | |
| Compression ratio | 17,0:1 | 17,0:1 | 16.5:1 | 16.5:1 | 16.7:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | |
| Drive specifications | - |
| - |
|
| |
| Top speed [km/h] | 189 | 185 | 192 | 192 | 211-214 | |
| Acceleration 0–100 km/h [s] | 11,8 | 12,2 | 10,9 | 12,3 | 9,1-9,5 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | 10,5 | - | 11,3 | - | - | |
| City [l] | 4,7 | 4,9 | 4,4-4,7 | 4,5-4,1 | 5,3-5,3 | |
| Out of town [l] | 3,5 | 4,0 | 3,9-3,6 | 4,0-3,6 | 4,6-4,5 | |
| Combined [l] | 4,0 | 4,3 | 4,2-3,9 | 4,2-3,8 | 4,9-4,8 | |
| CO2 emissions [g/km] | 104 | 112 | 110-102 | 109-99 | 128-126 | |
| Low speed [l] | - | - | - | - | - | |
| Medium speed [l] | - | - | - | - | - | |
| High speed [l] | - | - | - | - | - | |
| Extra high speed [l] | - | - | - | - | - | |
| Combined speed [l] | - | - | 5,7-5,0 | 5,8-4,9 | 6,7-6,0 | |
| CO2 emissions [g/km] | - | - | 149-130 | 152-129 | 175-157 | |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1317 | 1355 | 1360-1435 | 1380-1455 | 1500 | |
| Overall weight [kg] | 2000 | 2020 | 2000 | 2000 | 2090 | |
| Maximum trailer weight unbraked/braked [kg] | 690/1400 | 710/1200 | 600/1500 | 600/1300 | 750/2000 | |
| Maximum front/rear axle load [kg] | 1100/1100 | 1100/1100 | - | - | 1100/1100 | |
| Maximum vertical load on the tow bar [kg] | 70 | 70 | 70 | 70 | 70 | |
| Maximum load on roof/carrier [kg] | 85/- | 85/- | 85/- | 85/- | 85/- | |
| Boot volume [l] | 514 | 514 | 514 | 514 | 514 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1652 | -/1652 | -/1652 | -/1652 | -/1652 | |
| Boot length [mm] | 873 | 873 | 873 | 873 | 873 | |
| Boot length with rear seats folded [mm] | 1696 | 1696 | 1696 | 1696 | 1696 | |
| Boot width between wheels/max [mm] | 1053/- | 1053/- | 1053/- | 1053/- | 1053/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | 866 | 866 | 866 | 866 | 866 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | 659 | 659 | 659 | 659 | 659 | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | |
| AdBlue tank volume [l] | 17 | 17 | 17 | 17 | 17 | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |
| Tyre dimensions front | 215/70 R16 | 215/65 R17 | 215/70 R16 | 215/70 R16 | 225/55 R18 | |
| Tyre dimensions rear | 215/70 R16 | 215/65 R17 | 215/70 R16 | 215/70 R16 | 225/55 R18 | |
| Wheel size front | 7.0J x 16 | 7.0J x 17 | 7.0J x 16 | 7.0J x 16 | 7.5J x 18 | |
| Wheel size rear | 7.0J x 16 | 7.0J x 17 | 7.0J x 16 | 7.0J x 16 | 7.5J x 18 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | -/11.05 | -/11.05 | -/11.05 | -/11.05 | -/11.05 | |
| Overall length [mm] | 4477 | 4477 | 4477 | 4477 | 4477 | |
| Overall width without/including mirrors [mm] | 1856/2098 | 1856/2098 | 1856/2098 | 1856/2098 | 1856/2098 | |
| Overall height [mm] | 1609 | 1609 | 1609 | 1609 | 1609 | |
| Wheelbase [mm] | 2675 | 2675 | 2675 | 2675 | 2675 | |
| Front wheel track [mm] | 1595 | 1595 | 1595 | 1595 | 1595 | |
| Rear wheel track [mm] | 1610 | 1610 | 1610 | 1610 | 1610 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | 188 | 188 | 188 | 188 | 188 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

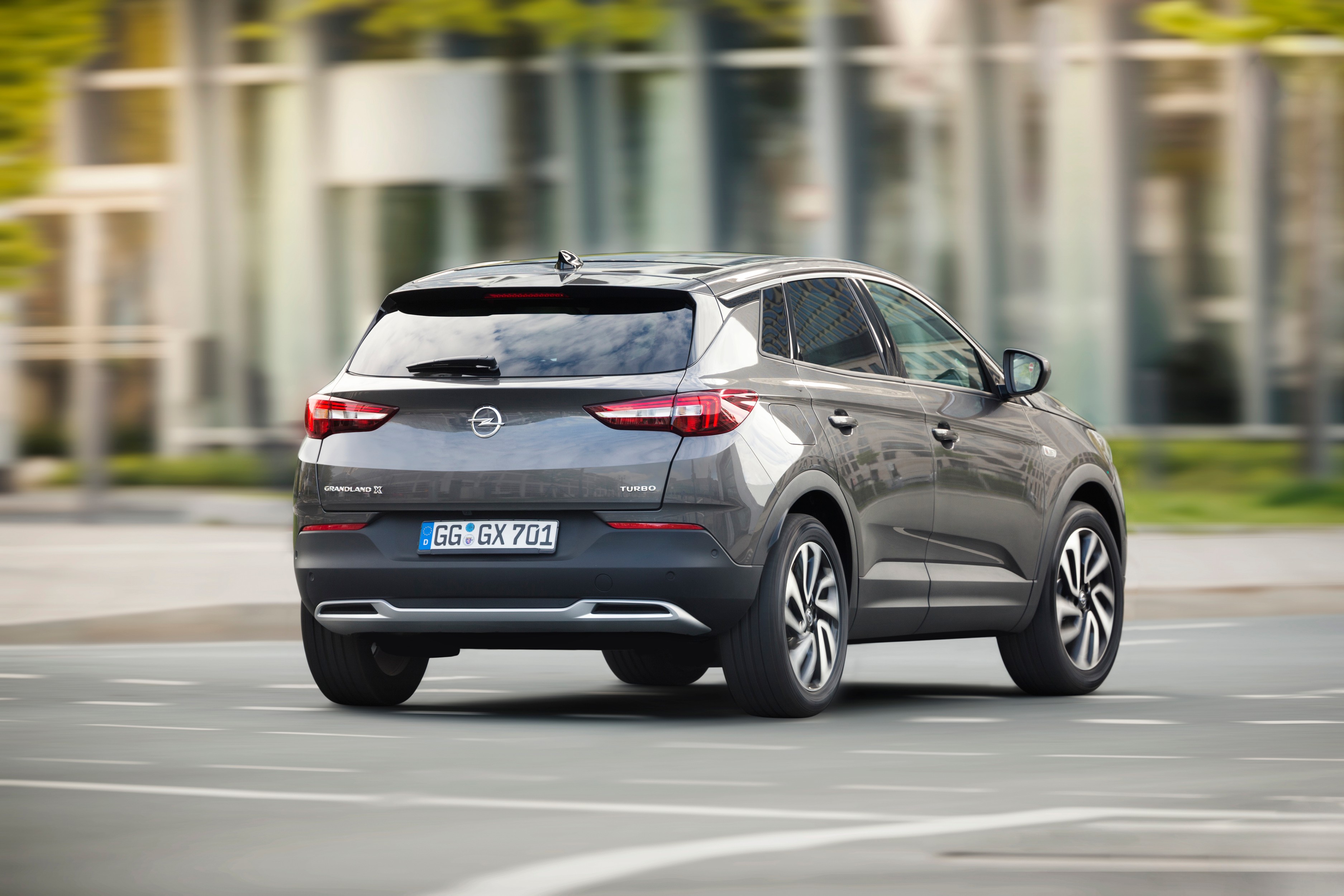

Gallery
