Opel Insignia
Date of manufacture
2017 – 2020 (Liftback)
2017 – 2020 (Estate)
Platform
E2XX
Manufacturing locations
Rüsselsheim am Main, Germany
Shanghai, People's Republic of China
Designer
Mark Adams
Malcolm Ward
Tags
D-segment
German cars
Opel Insignia is a modern car, which is available in two body styles - liftback and estate. The car was launched in 2017 and is built on the E2XX platform. It offers a wide range of engines, from petrol to diesel. The most powerful model is the 2.0 Turbo 4x4 GSi with 191 kW of power and the fastest version can reach a top speed of 250 km/h. The 0-100 km/h acceleration can be achieved in 7.3 seconds with the 2.0 Turbo 4x4. The lowest fuel consumption of 4 l/100 km is provided by the 1.6 CDTI ECOTEC and the CO2 emissions are 105 g/km. The liftback offers a cargo volume of 490 l and the estate 560 l. The car passed the EURONCAP safety tests in 2017 and received a rating of 5 out of 5.
Car body style

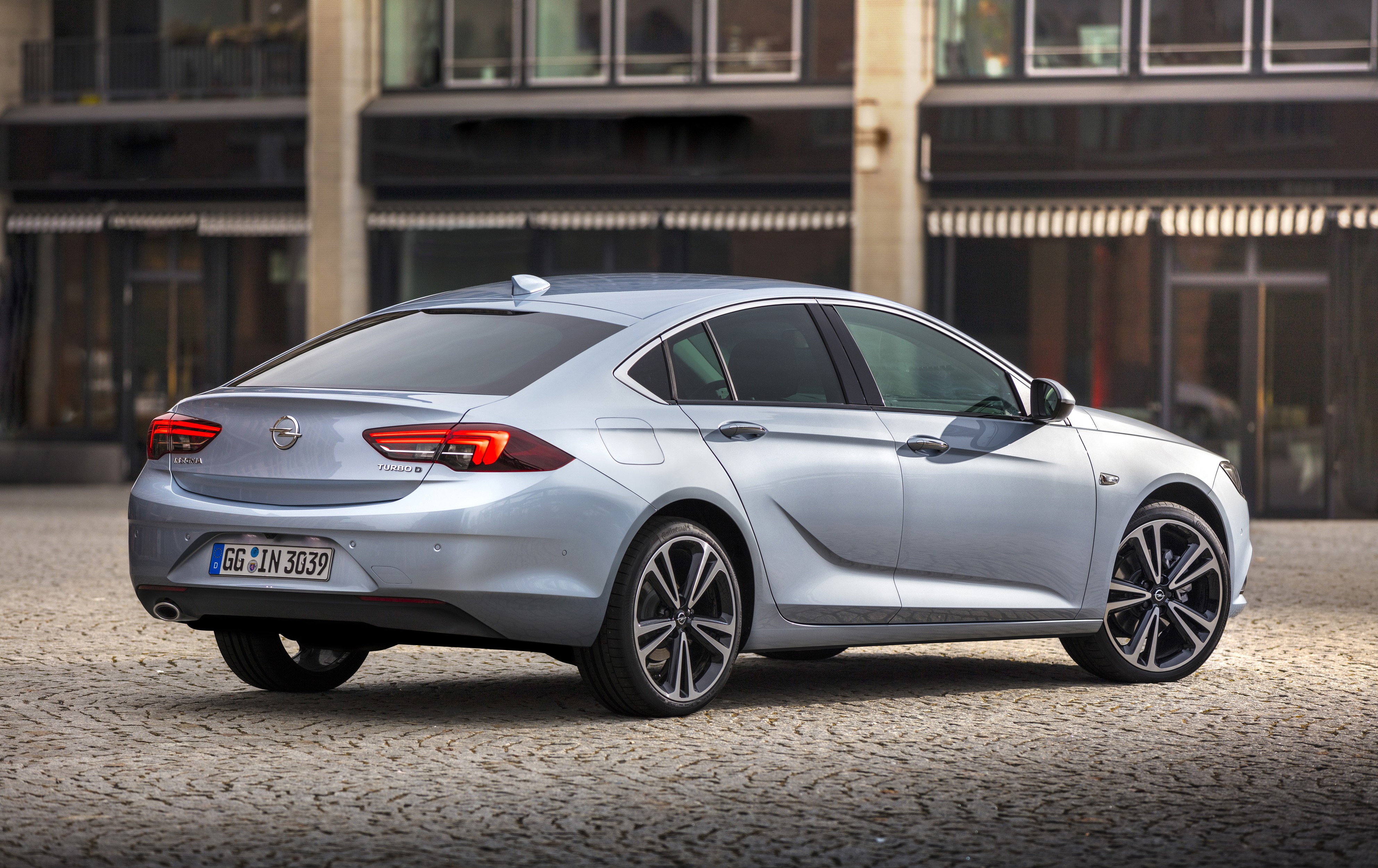

Liftback (Grand Sport)
Date of manufacture
2017 – 2020Internal designation

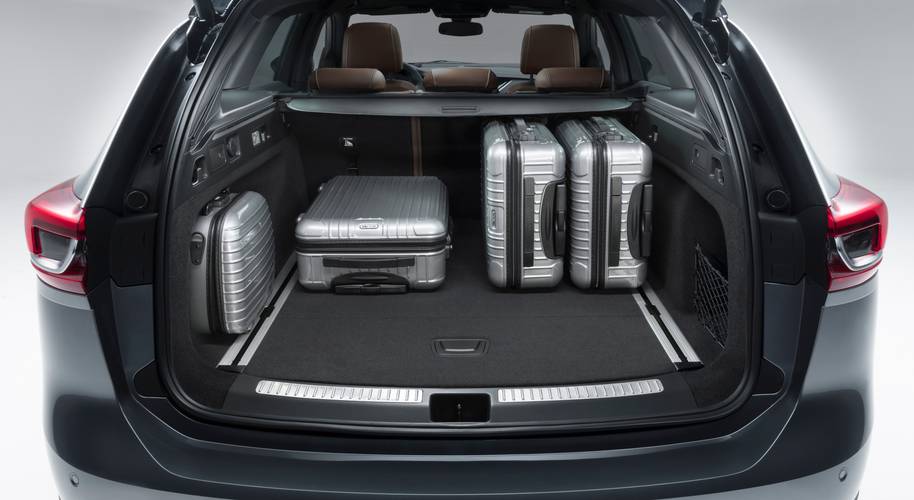

Z18Estate (Sports Tourer)
Date of manufacture
2017 – 2020Internal designation
Z18Engine size
Petrol
Diesel
Technical data
Liftback (Grand Sport)
| 1.5 Turbo S/S | 1.5 Turbo S/S ECOTEC | 1.5 Turbo S/S | 1.5 Turbo S/S | 1.5 Turbo S/S ECOTEC | 1.6 Turbo S/S | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2018 | - | - | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1490 | 1490 | 1490 | 1490 | 1490 | 1598 |
| Maximum output / speed [kW/min-1] | 103/5600 | 103/5600 | 121/5600 | 121/5600 | 121/5600 | 147/5500 |
| Maximum torque [Nm/min-1] | 250/2000-4100 | 250/2000-4100 | 250/2000-4500 | 250/2000-4500 | 250/2000-4500 | 280/1650-4500 |
| Bore and stroke [mm x mm] | 74.0 x 86.6 | 74.0 x 86.6 | 74.0 x 86.6 | 74.0 x 86.6 | 74.0 x 86.6 | 79.0 x 81.5 |
| Compression ratio | 10.1:1 | 10.1:1 | 10.1:1 | 10.1:1 | 10.1:1 | 9.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 210 | 213 | 222 | 218 | 225 | 235 |
| Acceleration 0–100 km/h [s] | 9,9 | 9,9 | 8,9 | 9,4 | 8,9 | 7,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 10,6 | 10,4 | 9,6 | - | 9,4 | 8,4 |
| City [l] | 7,5-6,9 | 7,3 | 7,3-6,9 | 7,7-7,3 | 7,3 | 8,0-7,7 |
| Out of town [l] | 4,9-4,7 | 4,7 | 5,2-4,7 | 5,3-4,9 | 4,8 | 5,3-5,1 |
| Combined [l] | 5,9-5,5 | 5,7 | 6,0-5,5 | 6,1-5,8 | 5,7 | 6,3-6,0 |
| CO2 emissions [g/km] | 133-126 | 129 | 136-126 | 141-135 | 130 | 145-138 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,9-6,2 | - | 7,0-6,3 | 7,5-6,9 | - | 7,0-6,8 |
| CO2 emissions [g/km] | 158-141 | - | 159-144 | 171-157 | - | 158-155 |
| Emission standard | Euro 6 - Euro 6d-TEMP | Euro 6 | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1365-1366 | 1381 | 1366 | 1397 | 1397 | 1428 |
| Overall weight [kg] | 2015 | 2000 | 2015 | 2040 | 2005 | 2090 |
| Maximum trailer weight unbraked/braked [kg] | 700/1405 | 700/1405 | 700/1405 | 700/1405 | 700/1405 | 750/1410 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 60 | 60 | 60 | 60 | 60 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 |
| Boot length [mm] | 1133 | 1133 | 1133 | 1133 | 1133 | 1133 |
| Boot length with rear seats folded [mm] | 1940 | 1940 | 1940 | 1940 | 1940 | 1940 |
| Boot width between wheels/max [mm] | 1030/1444 | 1030/1444 | 1030/1444 | 1030/1444 | 1030/1444 | 1030/1444 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/55 R17 | 215/60 R16 | 225/55 R17 | 215/55 R17 | 245/45 R18 |
| Tyre dimensions rear | 215/60 R16 | 215/55 R17 | 215/60 R16 | 225/55 R17 | 215/55 R17 | 245/45 R18 |
| Wheel size front | 6.5J x 16 | 7.0J x 17 | 6.5J x 16 | 7.5J x 17 | 7.0J x 17 | 8.5J x 18 |
| Wheel size rear | 6.5J x 16 | 7.0J x 17 | 6.5J x 16 | 7.5J x 17 | 7.0J x 17 | 8.5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 |
| Overall length [mm] | 4897 | 4897 | 4897 | 4897 | 4897 | 4897 |
| Overall width without/including mirrors [mm] | 1863/2093 | 1863/2093 | 1863/2093 | 1863/2093 | 1863/2093 | 1863/2093 |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1455 | 1455 |
| Wheelbase [mm] | 2829 | 2829 | 2829 | 2829 | 2829 | 2829 |
| Front wheel track [mm] | 1607 | 1607 | 1607 | 1607 | 1607 | 1607 |
| Rear wheel track [mm] | 1610 | 1610 | 1610 | 1610 | 1610 | 1610 |
| Forward overhang [mm] | 990 | 990 | 990 | 990 | 990 | 990 |
| Rear overhang [mm] | 1078 | 1078 | 1078 | 1078 | 1078 | 1078 |
| Clearance [mm] | 124 | 124 | 124 | 124 | 124 | 124 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 Turbo S/S | 2.0 Turbo 4x4 | 2.0 Turbo 4x4 GSi | 1.6 CDTI | 1.6 CDTI ECOTEC | 1.6 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from to 2018 | from to 2018 | - | from to 2018 | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1998 | 1998 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 147/5500 | 191/5500 | 191/5500 | 81/3500 | 81/3500 | 100/3500-4000 |
| Maximum torque [Nm/min-1] | 280/1650-4500 | 400/3000-4000 | 400/3000-4000 | 300/1750-2000 | 300/1750-2000 | 320/2000-2250 |
| Bore and stroke [mm x mm] | 79.0 x 81.5 | 86,0 x 86,0 | 86,0 x 86,0 | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 |
| Compression ratio | 9.5:1 | 9,5:1 | 9,5:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
| - | - | - |
| Top speed [km/h] | 232 | 250 | 250 | 205 | 201 | 211 |
| Acceleration 0–100 km/h [s] | 8,0 | 7,3 | 7,3 | 11,6-11,8 | 11,6 | 10,5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | 10,5-10,7 | 10,7 | 8,9 |
| City [l] | 8,4-8,0 | 11,2 | 11,2 | 4,9-5,2 | 4,6 | 5,8-5,1 |
| Out of town [l] | 5,6-5,3 | 7,1 | 7,1 | 3,8-3,9 | 3,6 | 4,2-3,9 |
| Combined [l] | 6,6-6,3 | 8,6 | 8,6 | 4,2-4,4 | 4,0 | 4,8-4,3 |
| CO2 emissions [g/km] | 153-145 | 197 | 197 | 110-116 | 105 | 126-114 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 7,7-7,2 | - | - | 5,2-4,9 | - | 5,7-5,2 |
| CO2 emissions [g/km] | 175-163 | - | - | 137-129 | - | 150-137 |
| Emission standard | Euro 6d-TEMP | Euro 6 | Euro 6 | Euro 6 - Euro 6d-TEMP | Euro 6 | Euro 6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1447 | 1574 | 1608 | 1412-1428 | 1428 | 1428 |
| Overall weight [kg] | 2110 | 2245 | 2220 | 2035-2060 | 2035 | 2070 |
| Maximum trailer weight unbraked/braked [kg] | 750/1450 | 750/2200 | 750/2200 | 720/1405 | 720/1405 | 730-750/1405 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 60 | 60 | 60 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 |
| Boot length [mm] | 1133 | 1133 | 1133 | 1133 | 1133 | 1133 |
| Boot length with rear seats folded [mm] | 1940 | 1940 | 1940 | 1940 | 1940 | 1940 |
| Boot width between wheels/max [mm] | 1030/1444 | 1030/1444 | 1030/1444 | 1030/1444 | 1030/1444 | 1030/1444 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | 15 | 15 | 15 |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/45 R18 | 245/45 R18 | 245/45 R18 | 215/60 R16 | 215/55 R17 | 215/60 R16 |
| Tyre dimensions rear | 245/45 R18 | 245/45 R18 | 245/45 R18 | 215/60 R16 | 215/55 R17 | 215/60 R16 |
| Wheel size front | 8.5J x 18 | 8.5J x 18 | 8.5J x 18 | 6.5J x 16 | 7.0J x 17 | 6.5J x 16 |
| Wheel size rear | 8.5J x 18 | 8.5J x 18 | 8.5J x 18 | 6.5J x 16 | 7.0J x 17 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 |
| Overall length [mm] | 4897 | 4897 | 4910 | 4897 | 4897 | 4897 |
| Overall width without/including mirrors [mm] | 1863/2093 | 1863/2093 | 1941/2093 | 1863/2093 | 1863/2093 | 1863/2093 |
| Overall height [mm] | 1455 | 1455 | 1445 | 1455 | 1455 | 1455 |
| Wheelbase [mm] | 2829 | 2829 | 2829 | 2829 | 2829 | 2829 |
| Front wheel track [mm] | 1607 | 1607 | 1607 | 1607 | 1607 | 1607 |
| Rear wheel track [mm] | 1610 | 1610 | 1610 | 1610 | 1610 | 1610 |
| Forward overhang [mm] | 990 | 990 | 1000 | 990 | 990 | 990 |
| Rear overhang [mm] | 1078 | 1078 | 1081 | 1078 | 1078 | 1078 |
| Clearance [mm] | 124 | 124 | 124 | 124 | 124 | 124 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CDTI | 2.0 CDTI | 2.0 CDTI | 2.0 CDTI 4x4 | 2.0 CDTI BiTurbo 4x4 | 2.0 CDTI BiTurbo 4x4 GSi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1956 | 1956 | 1956 | 1956 | 1956 |
| Maximum output / speed [kW/min-1] | 100/3500-4000 | 125/3750 | 125/3750 | 125/3750 | 154/4000 | 154/4000 |
| Maximum torque [Nm/min-1] | 320/2000-2250 | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 480/1500 | 480/1500 |
| Bore and stroke [mm x mm] | 79,7 x 80,1 | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 |
| Compression ratio | 16,0:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | 4x4 | 4x4 | 4x4 |
| Gearbox | 6 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic |
| Drive specifications |
| - |
|
|
|
|
| Top speed [km/h] | 203-205 | 226 | 223 | 223 | 233 | 233 |
| Acceleration 0–100 km/h [s] | 10,9 | 8,7 | 8,9 | 9,7 | 7,9 | 7,8-7,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 7,3 | - | 7,3 | - | - |
| City [l] | 7,0-6,1 | 6,9-6,6 | 7,1-7,3 | 7,8-8,1 | 9,3-8,7 | 8,9-9,4 |
| Out of town [l] | 4,5-4,6 | 4,3-4,6 | 4,7-4,5 | 5,1-5,0 | 5,7-5,5 | 5,8-6,1 |
| Combined [l] | 5,5-5,1 | 5,5-5,2 | 5,6-5,5 | 6,2-6,0 | 7,0-6,9 | 7,1-7,3 |
| CO2 emissions [g/km] | 144-134 | 144-136 | 147-145 | 163-158 | 184-181 | 187-192 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,3-5,9 | 6,0-5,6 | 6,6-6,2 | 6,7-6,4 | 7,8-7,3 | 7,7-7,6 |
| CO2 emissions [g/km] | 164-155 | 158-147 | 172-161 | 176-166 | 204-192 | 202-198 |
| Emission standard | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1447 | 1507 | 1538 | 1608 | 1658 | 1697 |
| Overall weight [kg] | 2095 | 2185 | 2220 | 2280 | 2340 | 2315 |
| Maximum trailer weight unbraked/braked [kg] | 730-750/1300 | 750/1950 | 750/1700-1950 | 750/2200 | 750/1805 | 750/1805 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 60 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 |
| Boot length [mm] | 1133 | 1133 | 1133 | 1133 | 1133 | 1133 |
| Boot length with rear seats folded [mm] | 1940 | 1940 | 1940 | 1940 | 1940 | 1940 |
| Boot width between wheels/max [mm] | 1030/1444 | 1030/1444 | 1030/1444 | 1030/1444 | 1030/1444 | 1030/1444 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | 15 | 15 | 15 | 15 | 15 | 15 |
| Air resistance [Cd] | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 | 0.26 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 245/45 R18 | 245/45 R18 |
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 225/55 R17 | 245/45 R18 | 245/45 R18 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 | 8.5J x 18 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 | 8.5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 |
| Overall length [mm] | 4897 | 4897 | 4897 | 4897 | 4897 | 4910 |
| Overall width without/including mirrors [mm] | 1863/2093 | 1863/2093 | 1863/2093 | 1863/2093 | 1863/2093 | 1941/2093 |
| Overall height [mm] | 1455 | 1455 | 1455 | 1455 | 1455 | 1445 |
| Wheelbase [mm] | 2829 | 2829 | 2829 | 2829 | 2829 | 2829 |
| Front wheel track [mm] | 1607 | 1607 | 1607 | 1607 | 1607 | 1607 |
| Rear wheel track [mm] | 1610 | 1610 | 1610 | 1610 | 1610 | 1610 |
| Forward overhang [mm] | 990 | 990 | 990 | 990 | 990 | 1000 |
| Rear overhang [mm] | 1078 | 1078 | 1078 | 1078 | 1078 | 1081 |
| Clearance [mm] | 124 | 124 | 124 | 124 | 124 | 124 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Estate (Sports Tourer)
| 1.5 Turbo S/S | 1.5 Turbo S/S ECOTEC | 1.5 Turbo S/S | 1.5 Turbo S/S | 1.5 Turbo S/S ECOTEC | 1.6 Turbo S/S | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2018 | - | - | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1490 | 1490 | 1490 | 1490 | 1490 | 1598 |
| Maximum output / speed [kW/min-1] | 103/5600 | 103/5600 | 121/5600 | 121/5600 | 121/5600 | 147/5500 |
| Maximum torque [Nm/min-1] | 250/2000-4100 | 250/2000-4100 | 250/2000-4500 | 250/2000-4500 | 250/2000-4500 | 280/1650-4500 |
| Bore and stroke [mm x mm] | 74.0 x 86.6 | 74.0 x 86.6 | 74.0 x 86.6 | 74.0 x 86.6 | 74.0 x 86.6 | 79.0 x 81.5 |
| Compression ratio | 10.1:1 | 10.1:1 | 10.1:1 | 10.1:1 | 10.1:1 | 9.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 207 | 210 | 218 | 214 | 221 | 232 |
| Acceleration 0–100 km/h [s] | 10,2 | 10,2 | 9,2 | 9,6 | 9,2 | 7,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 10,8 | 10,6 | 9,8 | - | 9,8 | 8,6 |
| City [l] | 7,7-7,1 | 7,6 | 7,6-6,9 | 8,1-7,7 | 7,5 | 8,3-8,0 |
| Out of town [l] | 4,9-4,8 | 4,8 | 5,2-4,7 | 5,4-5,2 | 4,9 | 5,6-5,3 |
| Combined [l] | 6,0-5,6 | 5,8 | 6,1-5,6 | 6,4-6,1 | 5,8 | 6,6-6,3 |
| CO2 emissions [g/km] | 136-128 | 132 | 139-128 | 147-140 | 133 | 151-145 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 7,1-6,5 | - | 7,2-6,5 | 7,6-7,1 | - | 7,1-6,9 |
| CO2 emissions [g/km] | 162-147 | - | 164-149 | 174-161 | - | 161-158 |
| Emission standard | Euro 6 - Euro 6d-TEMP | Euro 6 | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1412 | 1412 | 1412 | 1447 | 1428 | 1462 |
| Overall weight [kg] | 2080 | 2080 | 2085 | 2110 | 2090 | 2130 |
| Maximum trailer weight unbraked/braked [kg] | 730/1405 | 730/1405 | 730/1405 | 730/1405 | 730/1405 | 750/1410 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1665 | -/1665 | -/1665 | -/1665 | -/1665 | -/1665 |
| Boot length [mm] | 1178 | 1178 | 1178 | 1178 | 1178 | 1178 |
| Boot length with rear seats folded [mm] | 2005 | 2005 | 2005 | 2005 | 2005 | 2005 |
| Boot width between wheels/max [mm] | 1030/1451 | 1030/1451 | 1030/1451 | 1030/1451 | 1030/1451 | 1030/1451 |
| Boot height to headliner/ceiling [mm] | 384/794 | 384/794 | 384/794 | 384/794 | 384/794 | 384/794 |
| Loading edge height [mm] | 630 | 630 | 630 | 630 | 630 | 630 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 771 | 771 | 771 | 771 | 771 | 771 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 | 215/55 R17 | 225/55 R17 | 225/55 R17 | 215/55 R17 | 245/45 R18 |
| Tyre dimensions rear | 215/60 R16 | 215/55 R17 | 225/55 R17 | 225/55 R17 | 215/55 R17 | 245/45 R18 |
| Wheel size front | 6.5J x 16 | 7.0J x 17 | 7.5J x 17 | 7.5J x 17 | 7.0J x 17 | 8.5J x 18 |
| Wheel size rear | 6.5J x 16 | 7.0J x 17 | 7.5J x 17 | 7.5J x 17 | 7.0J x 17 | 8.5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 |
| Overall length [mm] | 4986 | 4986 | 4986 | 4986 | 4986 | 4986 |
| Overall width without/including mirrors [mm] | 1863/2093 | 1863/2093 | 1863/2093 | 1863/2093 | 1863/2093 | 1863/2093 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2829 | 2829 | 2829 | 2829 | 2829 | 2829 |
| Front wheel track [mm] | 1607 | 1607 | 1607 | 1607 | 1607 | 1607 |
| Rear wheel track [mm] | 1610 | 1610 | 1610 | 1610 | 1610 | 1610 |
| Forward overhang [mm] | 990 | 990 | 990 | 990 | 990 | 990 |
| Rear overhang [mm] | 1167 | 1167 | 1167 | 1167 | 1167 | 1167 |
| Clearance [mm] | 123 | 123 | 123 | 123 | 1863123 | 123 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 Turbo S/S | 2.0 Turbo 4x4 | 2.0 Turbo 4x4 GSi | 1.5 Turbo S/S Country Tourer | 1.5 Turbo S/S Country Tourer | 1.5 Turbo S/S Country Tourer | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1998 | 1998 | 1490 | 1490 | 1490 |
| Maximum output / speed [kW/min-1] | 147/5500 | 191/5500 | 191/5500 | 103/5600 | 121/5600 | 121/5600 |
| Maximum torque [Nm/min-1] | 280/1650-4500 | 400/3000-4000 | 400/3000-4000 | 250/2000-4100 | 250/2000-4500 | 250/2000-4500 |
| Bore and stroke [mm x mm] | 79.0 x 81.5 | 86,0 x 86,0 | 86,0 x 86,0 | 74.0 x 86.6 | 74.0 x 86.6 | 74.0 x 86.6 |
| Compression ratio | 9.5:1 | 9,5:1 | 9,5:1 | 10.1:1 | 10.1:1 | 10.1:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | 4x4 | 4x4 | Front | Front | Front |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
|
|
| - | - |
|
| Top speed [km/h] | 230 | 245 | 245 | 203 | 213 | 210 |
| Acceleration 0–100 km/h [s] | 8,2 | 7,5 | 7,5 | 10,5 | 9,5 | 9,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | 11,4 | 10,4 | - |
| City [l] | 8,6-8,2 | 11,5 | 11,5 | 7,8 | 7,9 | 7,9 |
| Out of town [l] | 5,6-5,4 | 7,1 | 7,1 | 5,4 | 5,6 | 5,7 |
| Combined [l] | 6,7-6,4 | 8,7 | 8,7 | 6,3 | 6,5 | 6,5 |
| CO2 emissions [g/km] | 154-147 | 199 | 199 | 144 | 147 | 149 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 7,9-7,3 | - | - | - | - | - |
| CO2 emissions [g/km] | 179-166 | - | - | - | - | - |
| Emission standard | Euro 6d-TEMP | Euro 6 | Euro 6 | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1477 | 1608 | 1641 | 1447 | 1447 | 1477 |
| Overall weight [kg] | 2165 | 2295 | 2275 | 2080 | 2085 | 2110 |
| Maximum trailer weight unbraked/braked [kg] | 750/1450 | 750/2200 | 750/2200 | 730/1405 | 730/1405 | 730/1405 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1665 | -/1665 | -/1665 | -/1665 | -/1665 | -/1665 |
| Boot length [mm] | 1178 | 1178 | 1178 | 1178 | 1178 | 1178 |
| Boot length with rear seats folded [mm] | 2005 | 2005 | 2005 | 2005 | 2005 | 2005 |
| Boot width between wheels/max [mm] | 1030/1451 | 1030/1451 | 1030/1451 | 1030/1451 | 1030/1451 | 1030/1451 |
| Boot height to headliner/ceiling [mm] | 384/794 | 384/794 | 384/794 | 384/794 | 384/794 | 384/794 |
| Loading edge height [mm] | 630 | 630 | 620 | 655 | 655 | 655 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 771 | 771 | 771 | 771 | 771 | 771 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/45 R18 | 245/45 R18 | 245/45 R18 | 235/50 R18 | 235/50 R18 | 235/50 R18 |
| Tyre dimensions rear | 245/45 R18 | 245/45 R18 | 245/45 R18 | 235/50 R18 | 235/50 R18 | 235/50 R18 |
| Wheel size front | 8.5J x 18 | 8.5J x 18 | 8.5J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 |
| Wheel size rear | 8.5J x 18 | 8.5J x 18 | 8.5J x 18 | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 |
| Overall length [mm] | 4986 | 4986 | 4998 | 5004 | 5004 | 5004 |
| Overall width without/including mirrors [mm] | 1863/2093 | 1863/2093 | 1941/2093 | 1871/2093 | 1871/2093 | 1871/2093 |
| Overall height [mm] | 1500 | 1500 | 1490 | 1525 | 1525 | 1525 |
| Wheelbase [mm] | 2829 | 2829 | 2829 | 2829 | 2829 | 2829 |
| Front wheel track [mm] | 1607 | 1607 | 1607 | 1607 | 1607 | 1607 |
| Rear wheel track [mm] | 1610 | 1610 | 1610 | 1610 | 1610 | 1610 |
| Forward overhang [mm] | 990 | 990 | 1000 | 1002 | 1002 | 1002 |
| Rear overhang [mm] | 1167 | 1167 | 1169 | 1173 | 1173 | 1173 |
| Clearance [mm] | 123 | 123 | 2093123 | 146 | 146 | 146 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 Turbo S/S Country Tourer | 1.6 Turbo S/S Country Tourer | 2.0 Turbo 4x4 Country Tourer | 1.6 CDTI | 1.6 CDTI | 1.6 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from 2018 to | from to 2018 | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1998 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 147/5500 | 147/5500 | 191/5500 | 81/3500 | 100/3500-4000 | 100/3500-4000 |
| Maximum torque [Nm/min-1] | 280/1650-4500 | 280/1650-4500 | 400/3000-4000 | 300/1750-2000 | 320/2000-2250 | 320/2000-2250 |
| Bore and stroke [mm x mm] | 79.0 x 81.5 | 79.0 x 81.5 | 86,0 x 86,0 | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 |
| Compression ratio | 9.5:1 | 9.5:1 | 9,5:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | Front | Front |
| Gearbox | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
|
| - | - |
|
| Top speed [km/h] | 227 | 227 | 242 | 201-202 | 208-212 | 202-204 |
| Acceleration 0–100 km/h [s] | 8,4 | 8,4 | 7,7 | 11,6-11,8 | 10,7 | 11,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | 10,5-10,7 | 9,2 | - |
| City [l] | 8,6 | 8,6 | 11,5 | 5,0-5,4 | 6,0-5,4 | 7,0-6,2 |
| Out of town [l] | 5,6 | 5,6 | 7,4 | 3,8-4,2 | 4,5-4,0 | 4,7-4,6 |
| Combined [l] | 6,7 | 6,7 | 8,9 | 4,3-4,6 | 5,0-4,5 | 5,5-5,2 |
| CO2 emissions [g/km] | 156 | 156 | 203 | 112-121 | 132-119 | 146-137 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 8,0-7,7 | 8,0-7,7 | - | 5,4-5,1 | 5,9-5,4 | 6,4-6,0 |
| CO2 emissions [g/km] | 181-175 | 181-175 | - | 142-134 | 154-140 | 168-158 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6 | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1507 | 1507 | 1624 | 1447 | 1462 | 1492 |
| Overall weight [kg] | 2160 | 2160 | 2280 | 2125 | 2135-2140 | 2160-2165 |
| Maximum trailer weight unbraked/braked [kg] | 750/1410 | 750/1450 | 750/2200 | 750/1405 | 750/1405 | 750/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1665 | -/1665 | -/1665 | -/1665 | -/1665 | -/1665 |
| Boot length [mm] | 1178 | 1178 | 1178 | 1178 | 1178 | 1178 |
| Boot length with rear seats folded [mm] | 2005 | 2005 | 2005 | 2005 | 2005 | 2005 |
| Boot width between wheels/max [mm] | 1030/1451 | 1030/1451 | 1030/1451 | 1030/1451 | 1030/1451 | 1030/1451 |
| Boot height to headliner/ceiling [mm] | 384/794 | 384/794 | 384/794 | 384/794 | 384/794 | 384/794 |
| Loading edge height [mm] | 655 | 655 | 655 | 630 | 630 | 630 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 771 | 771 | 771 | 771 | 771 | 771 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | 15 | 15 | 15 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/50 R18 | 235/50 R18 | 235/50 R18 | 215/60 R16 | 215/60 R16 | 225/55 R17 |
| Tyre dimensions rear | 235/50 R18 | 235/50 R18 | 235/50 R18 | 215/60 R16 | 215/60 R16 | 225/55 R17 |
| Wheel size front | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 6.5J x 16 | 6.5J x 16 | 7.5J x 17 |
| Wheel size rear | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | 6.5J x 16 | 6.5J x 16 | 7.5J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 |
| Overall length [mm] | 5004 | 5004 | 5004 | 4986 | 4986 | 4986 |
| Overall width without/including mirrors [mm] | 1871/2093 | 1871/2093 | 1871/2093 | 1863/2093 | 1863/2093 | 1863/2093 |
| Overall height [mm] | 1525 | 1525 | 1525 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2829 | 2829 | 2829 | 2829 | 2829 | 2829 |
| Front wheel track [mm] | 1607 | 1607 | 1607 | 1607 | 1607 | 1607 |
| Rear wheel track [mm] | 1610 | 1610 | 1610 | 1610 | 1610 | 1610 |
| Forward overhang [mm] | 1002 | 1002 | 1002 | 990 | 990 | 990 |
| Rear overhang [mm] | 1173 | 1173 | 1173 | 1167 | 1167 | 1167 |
| Clearance [mm] | 146 | 146 | 146 | 123 | 123 | 123 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 CDTI | 2.0 CDTI | 2.0 CDTI 4x4 | 2.0 CDTI BiTurbo 4x4 | 2.0 CDTI BiTurbo 4x4 GSi | 2.0 CDTI Country Tourer | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1956 | 1956 | 1956 | 1956 | 1956 | 1956 |
| Maximum output / speed [kW/min-1] | 125/3750 | 125/3750 | 125/3750 | 154/4000 | 154/4000 | 125/3750 |
| Maximum torque [Nm/min-1] | 400/1750-2500 | 400/1750-2500 | 400/1750-2500 | 480/1500 | 480/1500 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 |
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | 4x4 | 4x4 | Front |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic | 8 gear automatic | 6 gear manual |
| Drive specifications | - |
|
|
|
| - |
| Top speed [km/h] | 223 | 220 | 218-220 | 228-231 | 231 | 220 |
| Acceleration 0–100 km/h [s] | 8,9 | 9,2 | 9,9 | 8,0-8,2 | 7,9-8,0 | 9,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 7,5 | - | 7,5 | - | - | 8,2 |
| City [l] | 7,3-6,9 | 7,4-7,1 | 7,8-8,3 | 9,4-8,8 | 8,9-9,4 | 7,0-7,3 |
| Out of town [l] | 4,3-4,7 | 4,9-4,7 | 5,5-5,0 | 5,9-5,6 | 5,8-6,1 | 4,7 |
| Combined [l] | 5,6-5,3 | 5,7-5,6 | 6,5-6,0 | 7,1-7,0 | 7,1-7,3 | 5,5-5,7 |
| CO2 emissions [g/km] | 148-139 | 150-148 | 172-159 | 187-184 | 188-192 | 145-150 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,2-5,7 | 6,7-6,3 | 6,9-6,5 | 7,9-7,4 | 8,0-7,7 | 6,3-6,0 |
| CO2 emissions [g/km] | 162-150 | 176-164 | 180-169 | 207-193 | 208-201 | 164-158 |
| Emission standard | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1558 | 1591 | 1641 | 1697 | 1732 | 1591 |
| Overall weight [kg] | 2240 | 2270 | 2330 | 2390 | 2370 | 2240 |
| Maximum trailer weight unbraked/braked [kg] | 750/1950 | 750/1700-1950 | 750/2200 | 750/1805 | 750/1805 | 750/1950 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 90 | 90 | 90 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1665 | -/1665 | -/1665 | -/1665 | -/1665 | -/1665 |
| Boot length [mm] | 1178 | 1178 | 1178 | 1178 | 1178 | 1178 |
| Boot length with rear seats folded [mm] | 2005 | 2005 | 2005 | 2005 | 2005 | 2005 |
| Boot width between wheels/max [mm] | 1030/1451 | 1030/1451 | 1030/1451 | 1030/1451 | 1030/1451 | 1030/1451 |
| Boot height to headliner/ceiling [mm] | 384/794 | 384/794 | 384/794 | 384/794 | 384/794 | 384/794 |
| Loading edge height [mm] | 630 | 630 | 630 | 630 | 620 | 655 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 771 | 771 | 771 | 771 | 771 | 771 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | 15 | 15 | 15 | 15 | 15 | 15 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 225/55 R17 | 225/55 R17 | 225/55 R17 | 245/45 R18 | 245/45 R18 | 235/50 R18 |
| Tyre dimensions rear | 225/55 R17 | 225/55 R17 | 225/55 R17 | 245/45 R18 | 245/45 R18 | 235/50 R18 |
| Wheel size front | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 | 8.5J x 18 | 8.0J x 18 |
| Wheel size rear | 7.5J x 17 | 7.5J x 17 | 7.5J x 17 | 8.5J x 18 | 8.5J x 18 | 8.0J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 |
| Overall length [mm] | 4986 | 4986 | 4986 | 4986 | 4998 | 5004 |
| Overall width without/including mirrors [mm] | 1863/2093 | 1863/2093 | 1863/2093 | 1863/2093 | 1941/2093 | 1871/2093 |
| Overall height [mm] | 1500 | 1500 | 1500 | 1500 | 1490 | 1525 |
| Wheelbase [mm] | 2829 | 2829 | 2829 | 2829 | 2829 | 2829 |
| Front wheel track [mm] | 1607 | 1607 | 1607 | 1607 | 1607 | 1607 |
| Rear wheel track [mm] | 1610 | 1610 | 1610 | 1610 | 1610 | 1610 |
| Forward overhang [mm] | 990 | 990 | 990 | 990 | 1000 | 1002 |
| Rear overhang [mm] | 1167 | 1167 | 1167 | 1167 | 1169 | 1173 |
| Clearance [mm] | 123 | 123 | 123 | 123 | 123 | 146 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 CDTI Country Tourer | 2.0 CDTI 4x4 Country Tourer | 2.0 CDTI BiTurbo 4x4 Country Tourer | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1956 | 1956 | 1956 | |||
| Maximum output / speed [kW/min-1] | 125/3750 | 125/3750 | 154/4000 | |||
| Maximum torque [Nm/min-1] | 400/1750-2500 | 400/1750-2500 | 480/1500 | |||
| Bore and stroke [mm x mm] | 83,0 x 90,4 | 83,0 x 90,4 | 83,0 x 90,4 | |||
| Compression ratio | 16,5:1 | 16,5:1 | 16,5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | 4x4 | 4x4 | |||
| Gearbox | 8 gear automatic | 6 gear manual | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 218 | 218 | 228 | |||
| Acceleration 0–100 km/h [s] | 9,4 | 9,9 | 8,2 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | 8,2 | - | |||
| City [l] | 7,2-7,5 | 7,8-8,3 | 8,8-9,4 | |||
| Out of town [l] | 4,9-5,0 | 5,3-5,5 | 5,8-5,9 | |||
| Combined [l] | 5,8-6,0 | 6,2-6,5 | 7,1-7,2 | |||
| CO2 emissions [g/km] | 151-157 | 164-172 | 188 | |||
| Low speed [l] | - | - | - | |||
| Medium speed [l] | - | - | - | |||
| High speed [l] | - | - | - | |||
| Extra high speed [l] | - | - | - | |||
| Combined speed [l] | 6,8-6,5 | 7,0-6,7 | 8,0-7,7 | |||
| CO2 emissions [g/km] | 177-171 | 182-176 | 209-202 | |||
| Emission standard | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1591 | 1641 | 1732 | |||
| Overall weight [kg] | 2270 | 2330 | 2380 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1700-1950 | 750/2200 | 750/1805 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | |||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | |||
| Boot volume [l] | 560 | 560 | 560 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1665 | -/1665 | -/1665 | |||
| Boot length [mm] | 1178 | 1178 | 1178 | |||
| Boot length with rear seats folded [mm] | 2005 | 2005 | 2005 | |||
| Boot width between wheels/max [mm] | 1030/1451 | 1030/1451 | 1030/1451 | |||
| Boot height to headliner/ceiling [mm] | 384/794 | 384/794 | 384/794 | |||
| Loading edge height [mm] | 655 | 655 | 655 | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | 771 | 771 | 771 | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 62 | 62 | 62 | |||
| AdBlue tank volume [l] | 15 | 15 | 15 | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 235/50 R18 | 235/50 R18 | 235/50 R18 | |||
| Tyre dimensions rear | 235/50 R18 | 235/50 R18 | 235/50 R18 | |||
| Wheel size front | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | |||
| Wheel size rear | 8.0J x 18 | 8.0J x 18 | 8.0J x 18 | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | |||
| Overall length [mm] | 5004 | 5004 | 5004 | |||
| Overall width without/including mirrors [mm] | 1871/2093 | 1871/2093 | 1871/2093 | |||
| Overall height [mm] | 1525 | 1525 | 1525 | |||
| Wheelbase [mm] | 2829 | 2829 | 2829 | |||
| Front wheel track [mm] | 1607 | 1607 | 1607 | |||
| Rear wheel track [mm] | 1610 | 1610 | 1610 | |||
| Forward overhang [mm] | 1002 | 1002 | 1002 | |||
| Rear overhang [mm] | 1173 | 1173 | 1173 | |||
| Clearance [mm] | 146 | 146 | 146 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
