Opel Insignia
Date of manufacture
9/2020 – to this day (Liftback)
9/2020 – to this day (Estate)
Platform
E2XX
Manufacturing locations
Rüsselsheim am Main, Germany
Shanghai, People's Republic of China
Designer
Mark Adams
Malcolm Ward
Tags
D-segment
German cars
The body styles of the Opel Insignia model are liftback and combi. The car has been produced since 2020. The car can have a country of origin such as Germany or the People's Republic of China. The car is built on the E2XX platform. The powertrain offering includes petrol and diesel engines. The highest power is achieved by the 2.0 Turbo 4x4 GSi (169 kW). The highest speed of 237 km/h is achieved by the 2.0 Turbo 4x4 GSi version. The best acceleration 0-100 km/h in 7.4 seconds is achieved by the 2.0 Turbo 4x4 GSi model. The most fuel-efficient version is the 2.0 CDTI with a combined fuel consumption of 5.1 l/100 km and CO2 emissions of 134 g/km. The liftback body car has a luggage compartment volume of 490 l. The combi body car offers a trunk size of 560 l. The car passed the EURONCAP safety tests in 2017 and received a rating of 5 out of 5.
Car body style
Liftback (Grand Sport)
after upgrade (facelift)
Date of manufacture
9/2020 – to this dayInternal designation
Z18Engine size

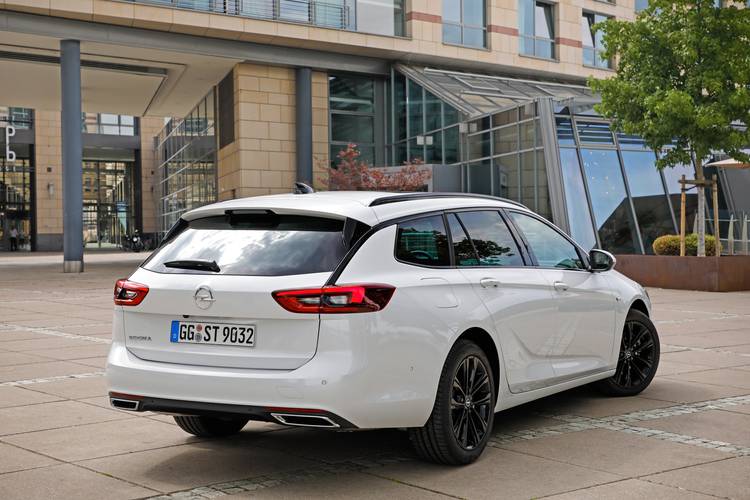

Estate (Sports Tourer)
after upgrade (facelift)
Date of manufacture
9/2020 – to this dayInternal designation
Z18Engine size
Technical data
Liftback (Grand Sport)
| 2.0 Turbo | 2.0 Turbo | 2.0 Turbo 4x4 GSi | 1.5 CDTI | 1.5 CDTI | 2.0 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 3/12 | 3/12 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1496 | 1496 | 1995 |
| Maximum output / speed [kW/min-1] | 125/4250-6000 | 147/4250-6000 | 169/5000 | 90/3500 | 90/3500 | 128/3500 |
| Maximum torque [Nm/min-1] | 350/1500-4000 | 350/1500-4000 | 350/1500-4000 | 300/1750-2500 | 300/1750-2500 | 380/1500-2750 |
| Bore and stroke [mm x mm] | 83.0 x 92.3 | 83.0 x 92.3 | 83.0 x 92.3 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 10.0:1 | 10.0:1 | 10.0:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | Front | Front |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 228 | 235 | 237 | 205 | 200 | 228 |
| Acceleration 0–100 km/h [s] | 8,7 | 7,7 | 7,4 | 11,4 | 12,2 | 8,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8,2-7,9 | 8,1-8,1 | 8,8 | 4,7-4,5 | 5,3-5,0 | 5,5-5,3 |
| Out of town [l] | 5,6-5,4 | 5,6-5,4 | 5,9 | 3,6-3,3 | 3,8-3,6 | 3,7-3,4 |
| Combined [l] | 6,6-6,4 | 6,6-6,4 | 7,0 | 4,0-3,8 | 4,3-4,1 | 4,3-4,1 |
| CO2 emissions [g/km] | 150-145 | 150-145 | 159 | 105-99 | 113-109 | 114-108 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 7,9-7,3 | 7,9-7,3 | 8,5-8,4 | 5,1-4,6 | 5,4-4,9 | 5,1-4,6 |
| CO2 emissions [g/km] | 179-166 | 179-166 | 192-189 | 134-121 | 141-129 | 134-121 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1595 | 1595 | 1725 | 1505 | 1595 | 1590 |
| Overall weight [kg] | 2160 | 2160 | 2240 | 2110 | 2140 | 2160 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 730/1500 | 730/1500 | 750/1950 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 490 | 490 | 490 | 490 | 490 | 490 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 | -/1450 |
| Boot length [mm] | 1133 | 1133 | 1133 | 1133 | 1133 | 1133 |
| Boot length with rear seats folded [mm] | 1940 | 1940 | 1940 | 1940 | 1940 | 1940 |
| Boot width between wheels/max [mm] | 1030/1444 | 1030/1444 | 1030/1444 | 1030/1444 | 1030/1444 | 1030/1444 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 557 | 557 | 557 | 557 | 557 | 557 |
| Boot opening width min/max [mm] | 1048 | 1048 | 1048 | 1048 | 1048 | 1048 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | 15 | 15 | 15 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R17 | 245/45 R18 | 245/35 R20 | 215/55 R17 | 215/55 R17 | 245/45 R18 |
| Tyre dimensions rear | 215/55 R17 | 245/45 R18 | 245/35 R20 | 215/55 R17 | 215/55 R17 | 245/45 R18 |
| Wheel size front | 7.0J x 17 | 8.5J x 18 | 8.5J x 20 | 7.0J x 17 | 7.0J x 17 | 8.5J x 18 |
| Wheel size rear | 7.0J x 17 | 8.5J x 18 | 8.5J x 20 | 7.0J x 17 | 7.0J x 17 | 8.5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 |
| Overall length [mm] | 4897 | 4897 | 4910 | 4897 | 4897 | 4897 |
| Overall width without/including mirrors [mm] | 1863/2093 | 1863/2093 | 1941/2093 | 1863/2093 | 1863/2093 | 1863/2093 |
| Overall height [mm] | 1455 | 1455 | 1445 | 1455 | 1455 | 1455 |
| Wheelbase [mm] | 2829 | 2829 | 2829 | 2829 | 2829 | 2829 |
| Front wheel track [mm] | 1607 | 1607 | 1607 | 1607 | 1607 | 1607 |
| Rear wheel track [mm] | 1610 | 1610 | 1610 | 1610 | 1610 | 1610 |
| Forward overhang [mm] | 990 | 990 | 1000 | 990 | 990 | 990 |
| Rear overhang [mm] | 1078 | 1078 | 1081 | 1078 | 1078 | 1078 |
| Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 CDTI | 2.0 CDTI 4x4 | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1995 | 1995 | ||||
| Maximum output / speed [kW/min-1] | 128/3500 | 128/3500 | ||||
| Maximum torque [Nm/min-1] | 380/1500-2750 | 380/1500-2750 | ||||
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | ||||
| Compression ratio | 15.5:1 | 15.5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 225 | 223 | ||||
| Acceleration 0–100 km/h [s] | 8,9 | 8,9 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5,6-5,5 | 6,7-6,5 | ||||
| Out of town [l] | 3,8-3,6 | 4,6-4,3 | ||||
| Combined [l] | 4,4-4,3 | 5,4-5,1 | ||||
| CO2 emissions [g/km] | 116-112 | 141-135 | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | 5,4-5,0 | 6,4-5,9 | ||||
| CO2 emissions [g/km] | 141-131 | 168-155 | ||||
| Emission standard | Euro 6d | Euro 6d | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1615 | 1710 | ||||
| Overall weight [kg] | 2200 | 2290 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1650 | 750/1625 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 490 | 490 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1450 | -/1450 | ||||
| Boot length [mm] | 1133 | 1133 | ||||
| Boot length with rear seats folded [mm] | 1940 | 1940 | ||||
| Boot width between wheels/max [mm] | 1030/1444 | 1030/1444 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | 557 | 557 | ||||
| Boot opening width min/max [mm] | 1048 | 1048 | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 62 | 62 | ||||
| AdBlue tank volume [l] | 15 | 15 | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 245/45 R18 | 245/45 R18 | ||||
| Tyre dimensions rear | 245/45 R18 | 245/45 R18 | ||||
| Wheel size front | 8.5J x 18 | 8.5J x 18 | ||||
| Wheel size rear | 8.5J x 18 | 8.5J x 18 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.14/11.74 | 11.14/11.74 | ||||
| Overall length [mm] | 4897 | 4897 | ||||
| Overall width without/including mirrors [mm] | 1863/2093 | 1863/2093 | ||||
| Overall height [mm] | 1455 | 1455 | ||||
| Wheelbase [mm] | 2829 | 2829 | ||||
| Front wheel track [mm] | 1607 | 1607 | ||||
| Rear wheel track [mm] | 1610 | 1610 | ||||
| Forward overhang [mm] | 990 | 990 | ||||
| Rear overhang [mm] | 1078 | 1078 | ||||
| Clearance [mm] | 92 | 92 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Estate (Sports Tourer)
| 2.0 Turbo | 2.0 Turbo | 2.0 Turbo 4x4 GSi | 1.5 CDTI | 1.5 CDTI | 2.0 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 3/12 | 3/12 | 4/16 |
| Engine displacement [cm³] | 1998 | 1998 | 1998 | 1496 | 1496 | 1995 |
| Maximum output / speed [kW/min-1] | 125/4250-6000 | 147/4250-6000 | 169/5000 | 90/3500 | 90/3500 | 128/3500 |
| Maximum torque [Nm/min-1] | 350/1500-4000 | 350/1500-4000 | 350/1500-4000 | 300/1750-2500 | 300/1750-2500 | 380/1500-2750 |
| Bore and stroke [mm x mm] | 83.0 x 92.3 | 83.0 x 92.3 | 83.0 x 92.3 | 84.0 x 90.0 | 84.0 x 90.0 | 84.0 x 90.0 |
| Compression ratio | 10.0:1 | 10.0:1 | 10.0:1 | 15.5:1 | 15.5:1 | 15.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | 4x4 | Front | Front | Front |
| Gearbox | 9 gear automatic | 9 gear automatic | 9 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
|
|
| - |
| - |
| Top speed [km/h] | 225 | 233 | 235 | 202 | 197 | 225 |
| Acceleration 0–100 km/h [s] | 8,9 | 7,9 | 7,6 | 11,6 | 12,4 | 8,9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8,2-7,9 | 8,1-8,1 | 8,8 | 4,9-4,7 | 5,2-5,1 | 5,5-5,3 |
| Out of town [l] | 5,7-5,5 | 5,8-5,5 | 6,0 | 3,8-3,5 | 3,8-3,7 | 3,8-3,5 |
| Combined [l] | 6,6-6,4 | 6,6-6,4 | 7,0 | 4,3-4,2 | 4,3-4,2 | 4,4-4,2 |
| CO2 emissions [g/km] | 151-146 | 151-146 | 161 | 110-104 | 113-111 | 116-109 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 8,1-7,5 | 8,1-7,5 | 8,7-8,5 | 5,3-4,8 | 5,4-5,1 | 5,3-4,8 |
| CO2 emissions [g/km] | 184-170 | 184-170 | 198-193 | 140-126 | 142-133 | 138-124 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1615 | 1615 | 1735 | 1585 | 1610 | 1610 |
| Overall weight [kg] | 2215 | 2215 | 2290 | 2175 | 2200 | 2205 |
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/2000 | 750/2000 | 750/1625 | 750/1450 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 90 | 90 | 90 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 560 | 560 | 560 | 560 | 560 | 560 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1665 | -/1665 | -/1665 | -/1665 | -/1665 | -/1665 |
| Boot length [mm] | 1178 | 1178 | 1178 | 1178 | 1178 | 1178 |
| Boot length with rear seats folded [mm] | 2005 | 2005 | 2005 | 2005 | 2005 | 2005 |
| Boot width between wheels/max [mm] | 1030/1451 | 1030/1451 | 1030/1451 | 1030/1451 | 1030/1451 | 1030/1451 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 630 | 630 | 620 | 630 | 630 | 630 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 711 | 711 | 711 | 711 | 711 | 711 |
| Boot opening width min/max [mm] | 1029 | 1029 | 1029 | 1029 | 1029 | 1029 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 62 | 62 | 62 | 62 | 62 | 62 |
| AdBlue tank volume [l] | - | - | - | 15 | 15 | 15 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/55 R17 | 245/45 R18 | 245/35 R20 | 215/55 R17 | 215/55 R17 | 245/45 R18 |
| Tyre dimensions rear | 215/55 R17 | 245/45 R18 | 245/35 R20 | 215/55 R17 | 215/55 R17 | 245/45 R18 |
| Wheel size front | 7.0J x 17 | 8.5J x 18 | 8.5J x 20 | 7.0J x 17 | 7.0J x 17 | 8.5J x 18 |
| Wheel size rear | 7.0J x 17 | 8.5J x 18 | 8.5J x 20 | 7.0J x 17 | 7.0J x 17 | 8.5J x 18 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 | 11.14/11.74 |
| Overall length [mm] | 4986 | 4986 | 4998 | 4986 | 4986 | 4986 |
| Overall width without/including mirrors [mm] | 1863/2093 | 1863/2093 | 1941/2093 | 1863/2093 | 1863/2093 | 1863/2093 |
| Overall height [mm] | 1500 | 1500 | 1490 | 1500 | 1500 | 1500 |
| Wheelbase [mm] | 2829 | 2829 | 2829 | 2829 | 2829 | 2829 |
| Front wheel track [mm] | 1607 | 1607 | 1607 | 1607 | 1607 | 1607 |
| Rear wheel track [mm] | 1610 | 1610 | 1610 | 1610 | 1610 | 1610 |
| Forward overhang [mm] | 990 | 990 | 1000 | 990 | 990 | 990 |
| Rear overhang [mm] | 1167 | 1167 | 1169 | 1167 | 1167 | 1167 |
| Clearance [mm] | 92 | 92 | 92 | 92 | 92 | 92 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 CDTI | 2.0 CDTI 4x4 | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1995 | 1995 | ||||
| Maximum output / speed [kW/min-1] | 128/3500 | 128/3500 | ||||
| Maximum torque [Nm/min-1] | 380/1500-2750 | 380/1500-2750 | ||||
| Bore and stroke [mm x mm] | 84.0 x 90.0 | 84.0 x 90.0 | ||||
| Compression ratio | 15.5:1 | 15.5:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 222 | 220 | ||||
| Acceleration 0–100 km/h [s] | 9,1 | 9,1 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5,6-5,5 | 6,7-6,5 | ||||
| Out of town [l] | 3,8-3,7 | 4,7-4,4 | ||||
| Combined [l] | 4,5-4,3 | 5,4-5,2 | ||||
| CO2 emissions [g/km] | 118-114 | 142-136 | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | 5,5-5,1 | 6,6-6,0 | ||||
| CO2 emissions [g/km] | 144-133 | 142-136 | ||||
| Emission standard | Euro 6d | Euro 6d | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1615 | 1735 | ||||
| Overall weight [kg] | 2245 | 2330 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1625 | 750/1550 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | ||||
| Maximum load on roof/carrier [kg] | 100/- | 100/- | ||||
| Boot volume [l] | 560 | 560 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1665 | -/1665 | ||||
| Boot length [mm] | 1178 | 1178 | ||||
| Boot length with rear seats folded [mm] | 2005 | 2005 | ||||
| Boot width between wheels/max [mm] | 1030/1451 | 1030/1451 | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | 630 | 630 | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | 711 | 711 | ||||
| Boot opening width min/max [mm] | 1029 | 1029 | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 62 | 62 | ||||
| AdBlue tank volume [l] | 15 | 15 | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 245/45 R18 | 245/45 R18 | ||||
| Tyre dimensions rear | 245/45 R18 | 245/45 R18 | ||||
| Wheel size front | 8.5J x 18 | 8.5J x 18 | ||||
| Wheel size rear | 8.5J x 18 | 8.5J x 18 | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.14/11.74 | 11.14/11.74 | ||||
| Overall length [mm] | 4986 | 4986 | ||||
| Overall width without/including mirrors [mm] | 1863/2093 | 1863/2093 | ||||
| Overall height [mm] | 1500 | 1500 | ||||
| Wheelbase [mm] | 2829 | 2829 | ||||
| Front wheel track [mm] | 1607 | 1607 | ||||
| Rear wheel track [mm] | 1610 | 1610 | ||||
| Forward overhang [mm] | 990 | 990 | ||||
| Rear overhang [mm] | 1167 | 1167 | ||||
| Clearance [mm] | 92 | 92 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
