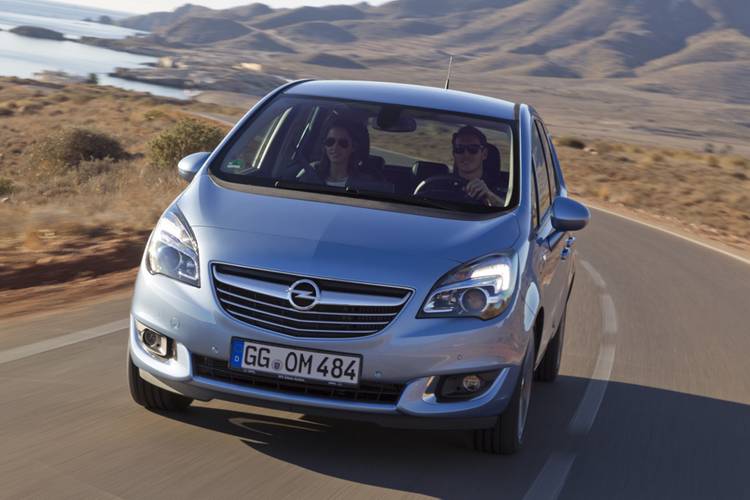

Opel Meriva
Date of manufacture
1/2014 – 2017 (MPV)
Platform
SCCS platform
Manufacturing locations
Zaragoza, Spain
Designer
Niels Loeb
Tags
Small MPV
German cars
The Opel Meriva is a popular MPV manufactured since 2014 and built on the SCCS platform. The car is available with a wide range of petrol and diesel engines, reaching a maximum power of 103 kW in the 1.4 Turbo model. The fastest version is the 1.6 CDTI with a top speed of 197 km/h and 0-100 km/h acceleration in 9.9 seconds. The most fuel-efficient variant is the 1.6 CDTI ecoFlex with a combined consumption of 3.8 l/100 km and CO2 emissions of 99 g/km. The trunk size is 400 l. The car was tested in the EURONCAP safety area and achieved an overall rating of 5 out of 5 points.
Car body style
Technical data
MPV
| 1.4 | 1.4 | 1.4 Turbo | 1.4 Turbo | 1.4 Turbo LPG | 1.4 Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1398 | 1398 | 1364 | 1364 | 1364 | 1364 |
| Maximum output / speed [kW/min-1] | 74/6000 | 74/6000 | 88/4800-6000 | 88/4800-6000 | 88/4800-6000 | 88/4800-6000 |
| Maximum torque [Nm/min-1] | 130/4000 | 130/4000 | 175/1750-4800 | 175/1750-4800 | 175/1750-4800 | 175/1750-4800 |
| Bore and stroke [mm x mm] | 73,4 x 82,6 | 73,4 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 |
| Compression ratio | 10,5:1 | 10,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 177 | 177 | 188 | 188 | 188 [188 LPG] | 188 |
| Acceleration 0–100 km/h [s] | 14.0 | 14.0 | 11.3 | 11.3 | 11.5 [11.8 LPG] | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.6 | 6.9 | 7.8 | 6.7 | 7.8 [9.7 LPG] | 7.9 |
| Out of town [l] | 5.0 | 4.9 | 4.8 | 4.4 | 4.7 [5.9 LPG] | 5.1 |
| Combined [l] | 6.0 | 5.6 | 5.9 | 5.3 | 5.8 [7.3 LPG] | 6.1 |
| CO2 emissions [g/km] | 140 | 132 | 139 | 124 | 137 [119 LPG] | 144 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1286 | 1286 | 1318 | 1318 | 1396 | 1318 |
| Overall weight [kg] | 1890 | 1890 | 1915 | 1915 | 1950 | 1915 |
| Maximum trailer weight unbraked/braked [kg] | 670/70 | 670/70 | 680/1150 | 680/1150 | 680/1050 | 680/1150 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 60/- | 60/- | 60/- | 60/- | 60/- | 60/- |
| Boot volume [l] | 400 | 400 | 400 | 400 | 400 | 400 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
| Boot length [mm] | 815 | 815 | 815 | 815 | 815 | 815 |
| Boot length with rear seats folded [mm] | 1642 | 1642 | 1642 | 1642 | 1642 | 1642 |
| Boot width between wheels/max [mm] | -/1038 | -/1038 | -/1038 | -/1038 | -/1038 | -/1038 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 791 | 791 | 791 | 791 | 791 | 791 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 [34 LPG] | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 |
| Wheel size front | 6.5J x 15 | 6.5J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Wheel size rear | 6.5J x 15 | 6.5J x 15 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 |
| Overall length [mm] | 4300 | 4300 | 4300 | 4300 | 4300 | 4300 |
| Overall width without/including mirrors [mm] | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 |
| Overall height [mm] | 1615 | 1615 | 1615 | 1615 | 1615 | 1615 |
| Wheelbase [mm] | 2644 | 2644 | 2644 | 2644 | 2644 | 2644 |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Rear wheel track [mm] | 1509 | 1509 | 1509 | 1509 | 1509 | 1509 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 123 | 123 | 123 | 123 | 123 | 123 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 Turbo | 1.4 Turbo | 1.4 Turbo | 1.4 Turbo | 1.3 CDTI | 1.3 CDTI EcoFlex | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1364 | 1364 | 1364 | 1364 | 1248 | 1248 |
| Maximum output / speed [kW/min-1] | 88/4800-6000 | 103/4900-6000 | 103/4900-6000 | 103/4900-6000 | 55/4000 | 70/4000 |
| Maximum torque [Nm/min-1] | 175/1750-4800 | 200/1850-4900 | 200/1850-4900 | 200/1850-4900 | 180/1750-2500 | 180/1750-3500 |
| Bore and stroke [mm x mm] | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 | 69,6 x 82,0 | 69,6 x 82,0 |
| Compression ratio | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 16,8:1 | 16,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 5 gear manual | 5 gear manual |
| Drive specifications |
| - | - |
| - | - |
| Top speed [km/h] | 185 | 196 | 196 | 193 | 160 | 168 |
| Acceleration 0–100 km/h [s] | 11.9 | 10.1 | 10.1 | 11.1 | 16.9 | 13.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.3 | 8.4 | 7.9 | 9.3 | 5.6 | 4.8 |
| Out of town [l] | 5.5 | 5.2 | 5.1 | 5.5 | 4.2 | 3.7 |
| Combined [l] | 6.9 | 6.3 | 6.1 | 6.9 | 4.7 | 4.1 |
| CO2 emissions [g/km] | 163 | 149 | 144 | 163 | 124 | 109 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1396 | 1318 | 1318 | 1396 | 1408 | 1408 |
| Overall weight [kg] | 1980 | 1950 | 1950 | 1980 | 1965 | 1800 |
| Maximum trailer weight unbraked/braked [kg] | 720/1300 | 680/1300 | 680/1300 | 720/1300 | 680/1000 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 60/- | 60/- | 60/- | 60/- | 60/- | 60/- |
| Boot volume [l] | 400 | 400 | 400 | 400 | 400 | 400 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 |
| Boot length [mm] | 815 | 815 | 815 | 815 | 815 | 815 |
| Boot length with rear seats folded [mm] | 1642 | 1642 | 1642 | 1642 | 1642 | 1642 |
| Boot width between wheels/max [mm] | -/1038 | -/1038 | -/1038 | -/1038 | -/1038 | -/1038 |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | 669 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 791 | 791 | 791 | 791 | 791 | 791 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | 54 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 15 | 6.5J x 15 |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 15 | 6.5J x 15 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 |
| Overall length [mm] | 4300 | 4300 | 4300 | 4300 | 4300 | 4300 |
| Overall width without/including mirrors [mm] | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 |
| Overall height [mm] | 1615 | 1615 | 1615 | 1615 | 1615 | 1615 |
| Wheelbase [mm] | 2644 | 2644 | 2644 | 2644 | 2644 | 2644 |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | 1488 |
| Rear wheel track [mm] | 1509 | 1509 | 1509 | 1509 | 1509 | 1509 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 123 | 123 | 123 | 123 | 123 | 123 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CDTI | 1.7 CDTI | 1.6 CDTI | 1.6 CDTI ecoFlex | 1.6 CDTI | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1598 | 1686 | 1598 | 1598 | 1598 | |
| Maximum output / speed [kW/min-1] | 70/3500 | 81/4000 | 81/3500 | 81/3500 | 100/3500-4000 | |
| Maximum torque [Nm/min-1] | 280/1500-1750 | 280/1750-2500 | 300/1750-2000 | 300/1750-2000 | 320/2000 | |
| Bore and stroke [mm x mm] | 79,7 x 80,1 | 79,0 x 86,0 | 79,7 x 80,1 | 79,7 x 80,1 | 79,7 x 80,1 | |
| Compression ratio | 16,0:1 | 16,5:1 | 16,0:1 | 16,0:1 | 16,0:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | |
| Drive specifications | - |
| - | - | - | |
| Top speed [km/h] | 174 | 178 | 185 | 185 | 197 | |
| Acceleration 0–100 km/h [s] | 13.8 | 12.9 | 12.5 | 12.5 | 9.9 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 4.5 | 7.9 | 4.5 | 4.1 | 4.8 | |
| Out of town [l] | 3.7 | 5.0 | 3.7 | 3.6 | 4.2 | |
| Combined [l] | 4.0 | 6.1 | 4.0 | 3.8 | 4.4 | |
| CO2 emissions [g/km] | 105 | 160 | 105 | 99 | 116 | |
| Emission standard | EU6 | EU5 | EU6 | EU6 | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1428 | 1518 | 1428 | 1428 | 1428 | |
| Overall weight [kg] | 2025 | 2060 | 2025 | 2025 | 2025 | |
| Maximum trailer weight unbraked/braked [kg] | 730/1050 | 740/1200 | 730/1050 | 730/1050 | 730/1150 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 60/- | 60/- | 60/- | 60/- | 60/- | |
| Boot volume [l] | 400 | 400 | 400 | 400 | 400 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1500 | -/1500 | -/1500 | -/1500 | -/1500 | |
| Boot length [mm] | 815 | 815 | 815 | 815 | 815 | |
| Boot length with rear seats folded [mm] | 1642 | 1642 | 1642 | 1642 | 1642 | |
| Boot width between wheels/max [mm] | -/1038 | -/1038 | -/1038 | -/1038 | -/1038 | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | 669 | 669 | 669 | 669 | 669 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | 791 | 791 | 791 | 791 | 791 | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 54 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | |
| Tyre dimensions front | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Tyre dimensions rear | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Wheel size front | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
| Wheel size rear | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | 6.5J x 16 | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | 11.06/11.48 | |
| Overall length [mm] | 4300 | 4300 | 4300 | 4300 | 4300 | |
| Overall width without/including mirrors [mm] | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 | 1812/1994 | |
| Overall height [mm] | 1615 | 1615 | 1615 | 1615 | 1615 | |
| Wheelbase [mm] | 2644 | 2644 | 2644 | 2644 | 2644 | |
| Front wheel track [mm] | 1488 | 1488 | 1488 | 1488 | 1488 | |
| Rear wheel track [mm] | 1509 | 1509 | 1509 | 1509 | 1509 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | 123 | 123 | 123 | 123 | 123 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
