Opel Zafira
Date of manufacture
2016 – 2019 (MPV)
Platform
Delta II
Manufacturing locations
Bochum, Germany
Rüsselsheim am Main, Germany
Designer
Quentin Huber
Tags
Mid-size MPV
German cars

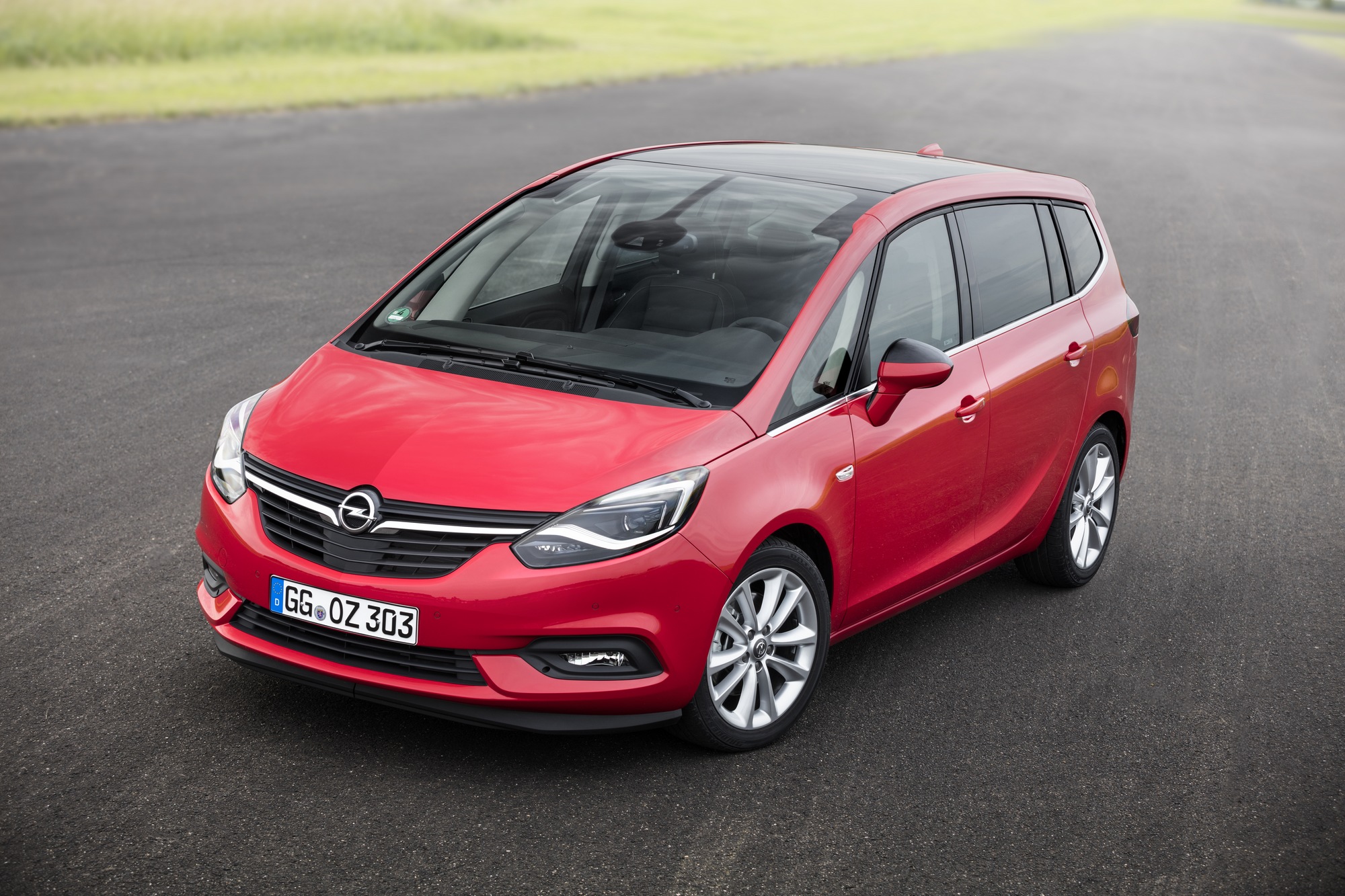

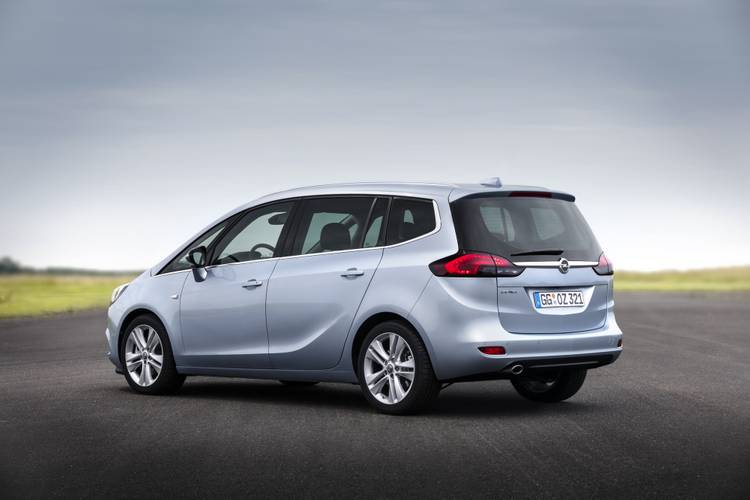

Opel Zafira is an MPV produced by the German carmaker since 2016. It is built on the Delta II platform and offers a wide range of petrol and diesel engines. The most powerful model is the 1.6 Turbo with 147 kW, which reaches a top speed of 220 km/h and the best acceleration 0-100 km/h in 8.8 seconds. The 2.0 CDTI has the lowest fuel consumption of 4.5 l/100 km and emissions of 119 g/km. The car's trunk has a capacity of 710 l and in terms of safety, the Opel Zafira received a 5 out of 5 rating from EURONCAP as early as 2011.
Car body style
Technical data
MPV
| 1.4 Turbo | 1.4 Turbo | 1.4 Turbo | 1.6 Turbo | 1.6 Turbo | 1.4 Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from 2018 to | from 2018 to | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1364 | 1364 | 1364 | 1598 | 1598 | 1364 |
| Maximum output / speed [kW/min-1] | 88/4200-6000 | 88/4200-6000 | 103/4900-6000 | 100/4000-6000 | 100/4000-6000 | 103/4900-6000 |
| Maximum torque [Nm/min-1] | 200/1850-4200 | 200/1850-4200 | 200/1850-4900 | 240/1650-3500 | 240/1650-3500 | 200/1850-4900 |
| Bore and stroke [mm x mm] | 72,5 x 82,6 | 72,5 x 82,6 | 72,5 x 82,6 | 79,0 x 81,5 | 79,0 x 81,5 | 72,5 x 82,6 |
| Compression ratio | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 190 | 192 | 200 | 195 | 190 | 202 |
| Acceleration 0–100 km/h [s] | 11.9 | 11.8 | 10.8 | 11,3 | 11,8 | 10.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | 10,9 | - | - |
| City [l] | 8.0-8.4 | 7.6-8.0 | 8.0-8.4 | 9,3-8,8 | 10,1-9,8 | 7.6-8.0 |
| Out of town [l] | 5.5-5.8 | 5.3-5.6 | 5.5-5.8 | 6,5-5,9 | 6,6-6,0 | 5.3-5.6 |
| Combined [l] | 6.1-6.7 | 6.1-6.5 | 6.1-6.7 | 7,5-7,0 | 7,9-7,4 | 6.1-6.5 |
| CO2 emissions [g/km] | 150-158 | 144-152 | 150-158 | 172-160 | 182-170 | 144-152 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | 8,5-7,5 | 9,2-8,1 | - |
| CO2 emissions [g/km] | - | - | - | 192-170 | 209-184 | - |
| Emission standard | EU6 | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1628 | 1628 | 1628 | 1589 | 1626 | 1628 |
| Overall weight [kg] | 2285 | 2295 | 2285 | 2335 | 2370 | 2295 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | 750/1500 | 750/1500 | 750/1650 | 750/1450 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 710 [152 seven seats] | 710 [152 seven seats] | 710 [152 seven seats] | 710 [152 seven seats] | 710 [152 seven seats] | 710 [152 seven seats] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1860 | -/1860 | -/1860 | -/1860 | -/1860 | -/1860 |
| Boot length [mm] | 1094 | 1094 | 1094 | 1094 | 1094 | 1094 |
| Boot length with rear seats folded [mm] | 1842 | 1842 | 1842 | 1842 | 1842 | 1842 |
| Boot width between wheels/max [mm] | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 |
| Boot height to headliner/ceiling [mm] | 456/900 | 456/900 | 456/900 | 456/900 | 456/900 | 456/900 |
| Loading edge height [mm] | 654 | 654 | 654 | 654 | 654 | 654 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 840 | 840 | 840 | 840 | 840 | 840 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/11.9 | 11.4/11.9 | 11.4/11.9 | 11.4/11.9 | 11.4/11.9 | 11.4/11.9 |
| Overall length [mm] | 4666 | 4666 | 4666 | 4666 | 4666 | 4666 |
| Overall width without/including mirrors [mm] | 1884/2100 | 1884/2100 | 1884/2100 | 1884/2100 | 1884/2100 | 1884/2100 |
| Overall height [mm] | 1660 | 1660 | 1660 | 1660 | 1660 | 1660 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 123 | 123 | 123 | 123 | 123 | 123 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 Turbo | 1.4 Turbo LPG | 1.6 Turbo CNG | 1.6 Turbo | 1.6 Turbo | 1.6 Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from 2018 to | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1364 | 1364 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 103/4900-6000 | 103/4900-6000 | 110/5000 | 125/4750-6000 | 125/6000 | 147/5500 |
| Maximum torque [Nm/min-1] | 200/1850-4900 | 200/1850-4900 | 210/2300 | 280/1650-4500 | 260/1650-3200 | 280/1650-5000 |
| Bore and stroke [mm x mm] | 72,5 x 82,6 | 72,5 x 82,6 | 79,0 x 81,5 | 79,0 x 81,5 | 79,0 x 81,5 | 79,0 x 81,5 |
| Compression ratio | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - | - | - |
| - |
| Top speed [km/h] | 197 | 195 | 200 | 211 | 208 | 220 |
| Acceleration 0–100 km/h [s] | 10.9 | 11.8 | 11.5 | 9,5 | 9.6 | 8.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | 8,9 | - | - |
| City [l] | 8.5-9.3 | 7.9-8.4 [10.9-11.7 LPG] | 6.5-6.7 kg | 9,5-8,8 | 10.1-10.4 | 8.4-8.8 |
| Out of town [l] | 5.3-5.6 | 5.5-6.0 [7.1-7.7 LPG] | 3.7-3.9 kg | 6,2-5,9 | 6.2-6.5 | 5.9-6.2 |
| Combined [l] | 6.5-6.9 | 6.4-6.9 [8.5-9.2 LPG] | 4.7-5.0 kg | 7,4-7,0 | 7.6-7.9 | 6.8-7.2 |
| CO2 emissions [g/km] | 150-160 | 148-159 [139-149 LPG] | 129-136 kg | 170-160 | 176-182 | 160-168 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | - | - | 8,5-7,7 | - | - |
| CO2 emissions [g/km] | - | - | - | 193-174 | - | - |
| Emission standard | EU6 | EU6 | EU6 | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1628 | 1679 | 1716 | 1589 | 1701 | 1664 |
| Overall weight [kg] | 2315 | 2330 | 2355 | 2335 | 2370 | 2335 |
| Maximum trailer weight unbraked/braked [kg] | 750/1650 | 750/1400 | 750/1650 | 750/1650 | 750/1650 | 750/1650 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 710 [152 seven seats] | 710 [152 seven seats] | 710 [152 seven seats] | 710 [152 seven seats] | 710 [152 seven seats] | 710 [152 seven seats] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1860 | -/1860 | -/1860 | -/1860 | -/1860 | -/1860 |
| Boot length [mm] | 1094 | 1094 | 1094 | 1094 | 1094 | 1094 |
| Boot length with rear seats folded [mm] | 1842 | 1842 | 1842 | 1842 | 1842 | 1842 |
| Boot width between wheels/max [mm] | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 |
| Boot height to headliner/ceiling [mm] | 456/900 | 456/900 | 456/900 | 456/900 | 456/900 | 456/900 |
| Loading edge height [mm] | 654 | 654 | 654 | 654 | 654 | 654 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 840 | 840 | 840 | 840 | 840 | 840 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 58 | 58 [86.6 LPG] | 15 [25 CNG] | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms, Watts linkage, torsion bar | - | - | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/11.9 | 11.4/11.9 | 11.4/11.9 | 11.4/11.9 | 11.4/11.9 | 11.4/11.9 |
| Overall length [mm] | 4666 | 4666 | 4666 | 4666 | 4666 | 4666 |
| Overall width without/including mirrors [mm] | 1884/2100 | 1884/2100 | 1884/2100 | 1884/2100 | 1884/2100 | 1884/2100 |
| Overall height [mm] | 1660 | 1660 | 1660 | 1660 | 1660 | 1660 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 123 | 123 | 123 | 123 | 123 | 123 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 CDTI | 2.0 CDTI | 2.0 CDTI | 1.6 CDTI | 2.0 CDTI | 2.0 CDTI | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from to 2017 | from to 2018 | from 2018 to | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1956 | 1956 | 1598 | 1956 | 1956 |
| Maximum output / speed [kW/min-1] | 88/4000 | 96/4000 | 96/3750 | 100/3750-4000 | 125/3750 | 125/3750 |
| Maximum torque [Nm/min-1] | 320/2000 | 300/1750-2500 | 300/1500-2750 | 320/2000 | 400/1750-2500 | 400/1750-2500 |
| Bore and stroke [mm x mm] | 79,7 x 80,1 | 83,0 x 90,4 | 83,0 x 90,4 | 79,7 x 80,1 | 83,0 x 90,4 | 83,0 x 90,4 |
| Compression ratio | 16,0:1 | 16,5:1 | 16,0:1 | 16,0:1 | 16,5:1 | 16,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - |
| - | - |
|
| Top speed [km/h] | 190 | 193 | 192-195 | 211 | 208-211 | 190-205 |
| Acceleration 0–100 km/h [s] | 12,7 | 11.4 | 11,6-12,2 | 10,4 | 9.8 | 10,1-12,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 11,4 | - | 10,9 | - | 8,9 | - |
| City [l] | 6,2-5,8 | 5.3 | 5,6-8,2 | 9,6-9,2 | 6,1-7,3 | 8,0-10,3 |
| Out of town [l] | 4,9-4,4 | 4.0 | 4,5-4,9 | 5,6-5,4 | 4,2-5,1 | 4,5-5,5 |
| Combined [l] | 5,4-5,0 | 4.5 | 5,0-6,1 | 7,0-6,9 | 4,9-55,8 | 5,8-7,0 |
| CO2 emissions [g/km] | 142-130 | 119 | 130-161 | 183-182 | 129-154 | 153-183 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,4-5,7 | - | 6,3,-5,6 | 7,5-7,1 | 6,8-6,4 | 7,5-7,1 |
| CO2 emissions [g/km] | 168-149 | - | 165-147 | 195-186 | 177-167 | 195-186 |
| Emission standard | Euro 6 - Euro 6d-TEMP | EU6 | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP | Euro 6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1626 | 1716 | 1626-1788 | 1713 | 1658-1748 | 1713-1803 |
| Overall weight [kg] | 2380 | 2340 | 2380-2450 | 2470 | 2445-2455 | 2470 |
| Maximum trailer weight unbraked/braked [kg] | 750/1600 | 750/1400 | 750/1650 | 750/1650 | 750/1650 | 750/1650 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 710 [152 seven seats] | 710 [152 seven seats] | 710 [152 seven seats] | 710 [152 seven seats] | 710 [152 seven seats] | 710 [152 seven seats] |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1860 | -/1860 | -/1860 | -/1860 | -/1860 | -/1860 |
| Boot length [mm] | 1094 | 1094 | 1094 | 1094 | 1094 | 1094 |
| Boot length with rear seats folded [mm] | 1842 | 1842 | 1842 | 1842 | 1842 | 1842 |
| Boot width between wheels/max [mm] | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 | -/1057 |
| Boot height to headliner/ceiling [mm] | 456/900 | 456/900 | 456/900 | 456/900 | 456/900 | 456/900 |
| Loading edge height [mm] | 654 | 654 | 654 | 654 | 654 | 654 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 840 | 840 | 840 | 840 | 840 | 840 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 58 | 58 | 58 | 58 | 58 | 58 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar | twist beam axle with trailing arms, Watts linkage, torsion bar |
| Tyre dimensions front | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Tyre dimensions rear | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 | 225/50 R17 |
| Wheel size front | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Wheel size rear | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 | 7.0J x 17 |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.4/11.9 | 11.4/11.9 | 11.4/11.9 | 11.4/11.9 | 11.4/11.9 | 11.4/11.9 |
| Overall length [mm] | 4666 | 4666 | 4666 | 4666 | 4666 | 4666 |
| Overall width without/including mirrors [mm] | 1884/2100 | 1884/2100 | 1884/2100 | 1884/2100 | 1884/2100 | 1884/2100 |
| Overall height [mm] | 1660 | 1660 | 1660 | 1660 | 1660 | 1660 |
| Wheelbase [mm] | 2760 | 2760 | 2760 | 2760 | 2760 | 2760 |
| Front wheel track [mm] | 1584 | 1584 | 1584 | 1584 | 1584 | 1584 |
| Rear wheel track [mm] | 1588 | 1588 | 1588 | 1588 | 1588 | 1588 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 123 | 123 | 123 | 123 | 123 | 123 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
