Peugeot 207
Date of manufacture
2006 – 2009 (Three-door hatchback)
2006 – 2009 (Five-door hatchback)
2007 – 2009 (Estate)
2007 – 2009 (Convertible)
Platform
PSA PF1 platform
Manufacturing locations
Poissy, France
Madrid, Spain
Trnava, Slovakia
Designer
-
Tags
B-segment
French cars
The Peugeot 207 is a passenger car that has been manufactured since 2006 in France, Spain and Slovakia. It is based on the PSA PF1 platform and offers petrol and diesel engines with a maximum power of 128 kW (model 207 RC). The most powerful model reaches a speed of 220 km/h and the most economical model has a consumption of 4.4 l/100 km and CO2 emissions of 117 g/km. The Peugeot 207 is available in four body styles - three-door hatchback, five-door hatchback, estate and convertible. The luggage compartment volume varies depending on the body type - 267 l for the three-door version, 428 l for the estate and 187-449 l for the convertible. The car was tested by EURONCAP and received a rating of 5 out of 5.
Car body style
Three-door hatchback
Date of manufacture
2006 – 2009Internal designation
WA, WCEngine size

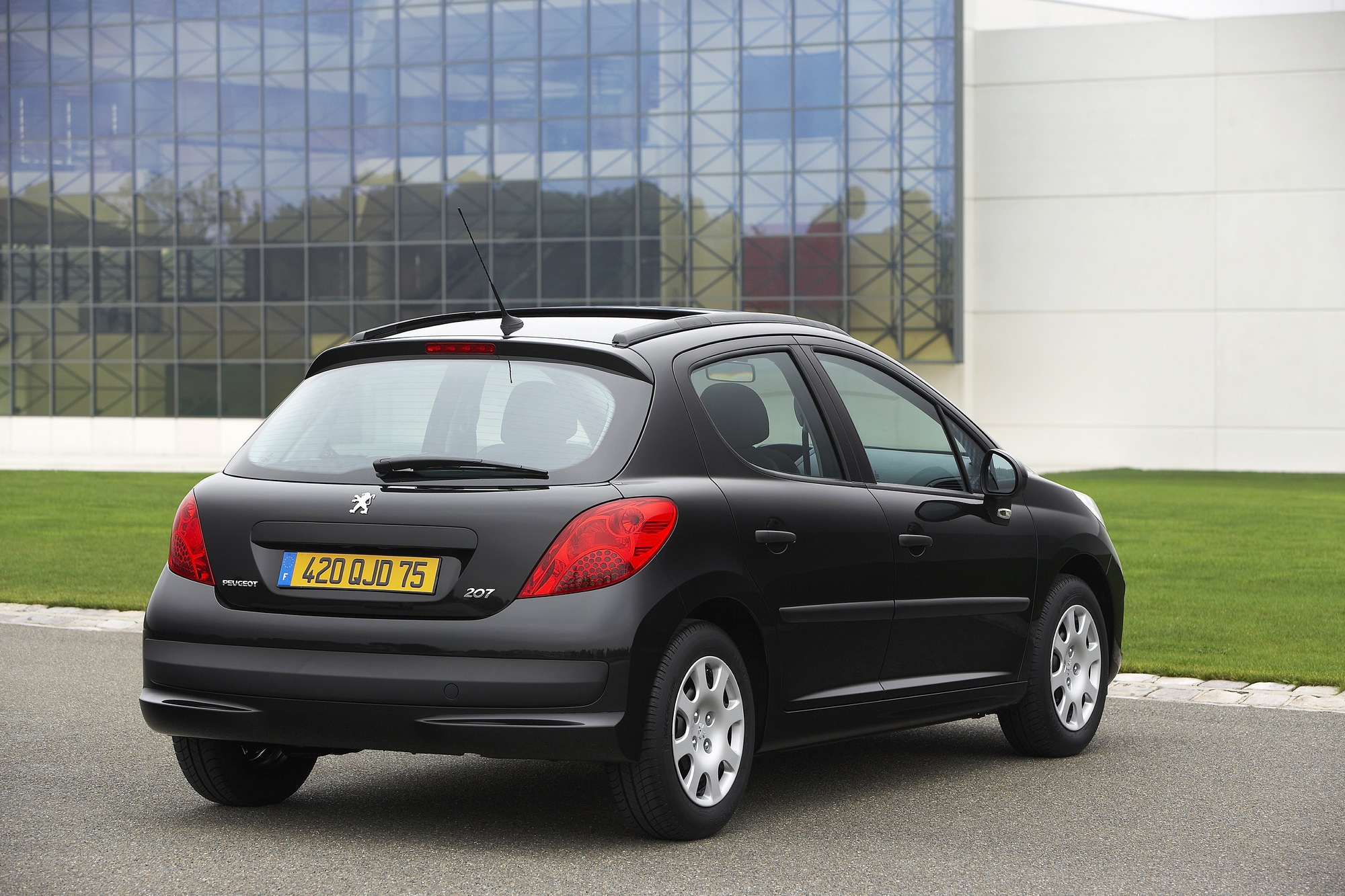

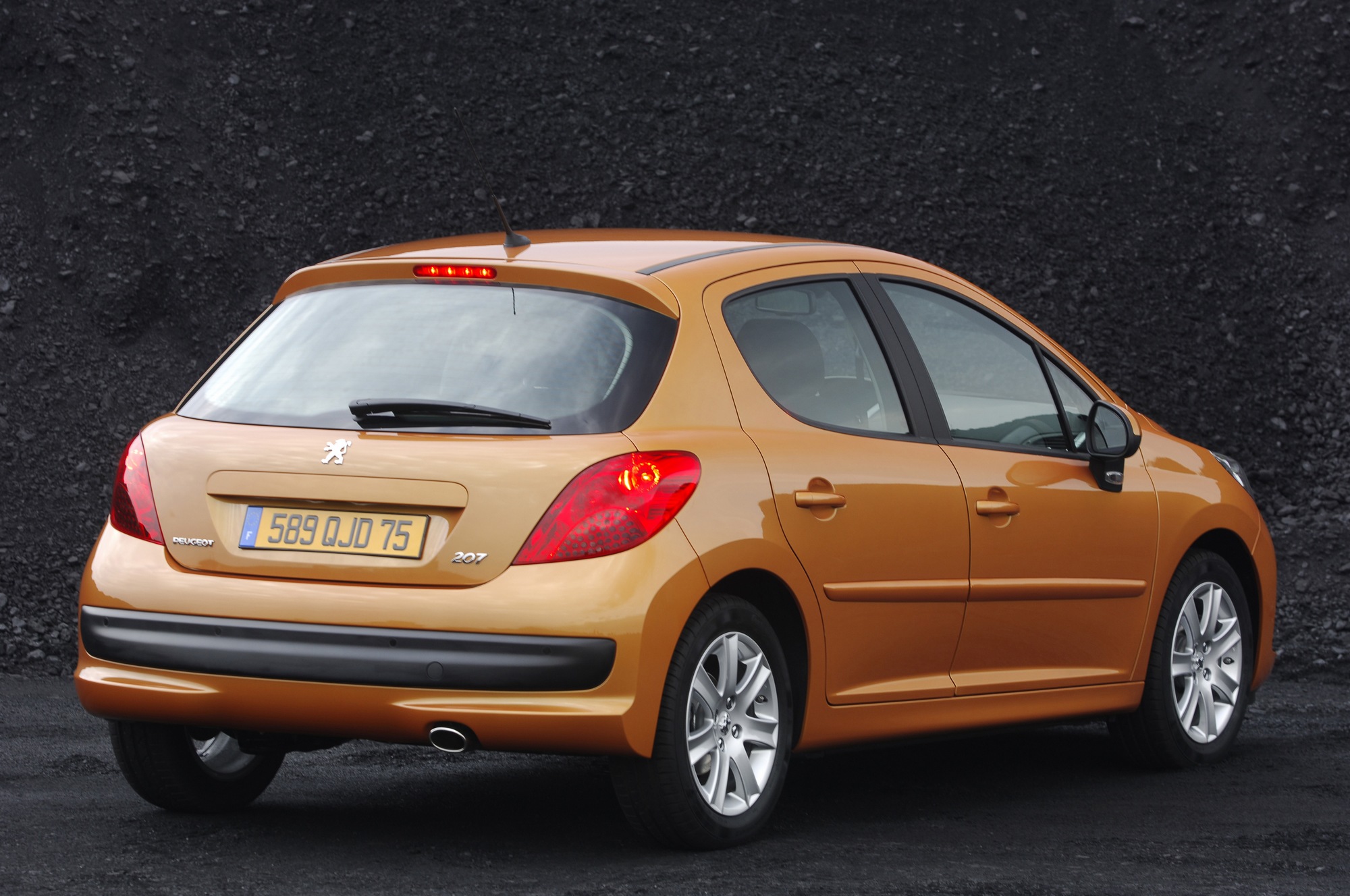

Five-door hatchback
Date of manufacture
2006 – 2009Internal designation
WA, WCEngine size

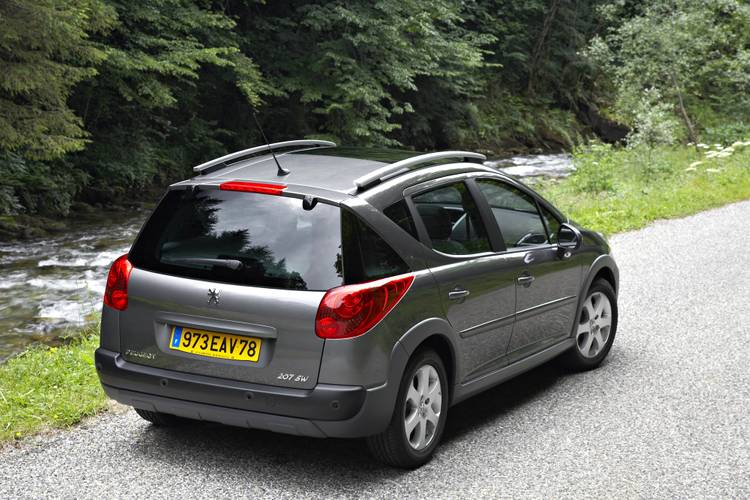

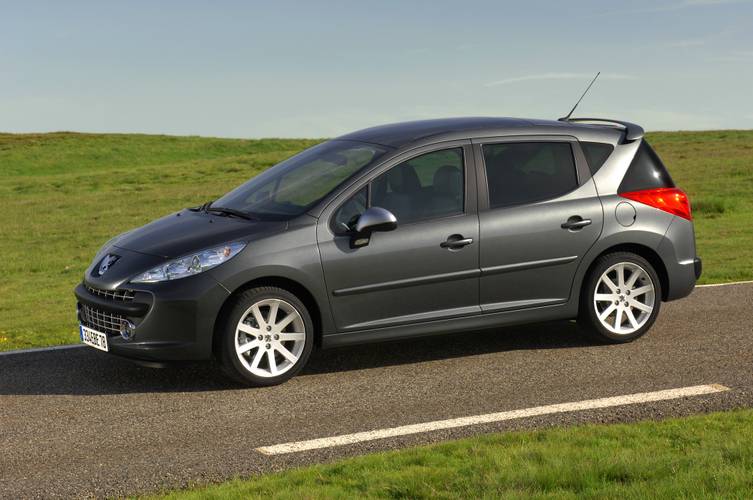

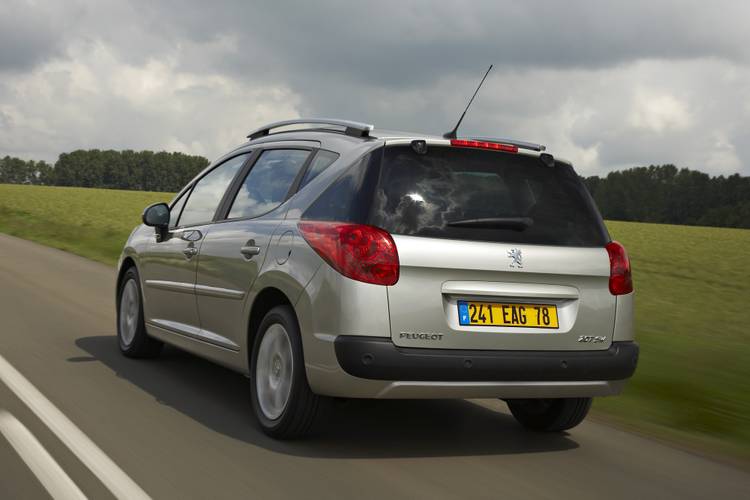

Estate (SW)
Date of manufacture
2007 – 2009Internal designation
WKEngine size
Convertible (CC)
Date of manufacture
2007 – 2009Internal designation
WDEngine size
Technical data
Three-door hatchback
| 1.4 | 1.4 16V VTi | 1.6 16V VTi | 1.6 16V VTi | 1.6 16V THP | 207 RC | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1360 | 1397 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 54/5400 | 70/6000 | 88/6000 | 88/6000 | 110/5800 | 128/6000 |
| Maximum torque [Nm/min-1] | 118/3300 | 136/4000 | 160/4250 | 160/4250 | 240/1400 | 240/1600 |
| Bore and stroke [mm x mm] | 75,0 x 77,0 | 77,0 x 75,0 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 4 gear automatic | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 170 | 185 | 200 | 195 | 210 | 220 |
| Acceleration 0–100 km/h [s] | 13.9 | 11.5 | 9.6 | 11.4 | 8.1 | 7.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | 8.1 | 8.4 | 9.8 | 9.3 | 9.9 |
| Out of town [l] | 5.0 | 5.0 | 4.8 | 5.5 | 5.6 | 5.7 |
| Combined [l] | 6.3 | 6.1 | 6.1 | 6.1 | 7.0 | 7.2 |
| CO2 emissions [g/km] | 150 | 145 | 145 | 167 | 166 | 171 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1213 | 1240 | 1275 | 1296 | 1327 | 1325 |
| Overall weight [kg] | 1580 | 1640 | 1640 | 1678 | 1700 | 1600 |
| Maximum trailer weight unbraked/braked [kg] | 600/950 | 600/1150 | 600/1150 | 600/1150 | 600/1150 | 600/1080 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 267 | 267 | 267 | 267 | 267 | 270 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 185/65 R15 T | 185/65 R15 T | 185/65 R15 H | 185/65 R15 H | 195/55 R16 Y | 205/45 R17 |
| Tyre dimensions rear | 185/65 R15 T | 185/65 R15 T | 185/65 R15 H | 185/65 R15 H | 195/55 R16 Y | 205/45 R17 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4030 | 4030 | 4030 | 4030 | 4030 | 4030 |
| Overall width without/including mirrors [mm] | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- |
| Overall height [mm] | 1470 | 1470 | 1470 | 1470 | 1470 | 1470 |
| Wheelbase [mm] | 2540 | 2540 | 2540 | 2540 | 2540 | 2540 |
| Front wheel track [mm] | - | - | - | - | - | - |
| Rear wheel track [mm] | - | - | - | - | - | - |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 HDI | 1.6 HDI | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1398 | 1560 | ||||
| Maximum output / speed [kW/min-1] | 50/4000 | 66/4000 | ||||
| Maximum torque [Nm/min-1] | 160/2000 | 215/1750 | ||||
| Bore and stroke [mm x mm] | 73,7 x 82,0 | 75,0 x 88,3 | ||||
| Compression ratio | - | - | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 5 gear manual | 5 gear manual | ||||
| Drive specifications | - | - | ||||
| Top speed [km/h] | 166 | 182 | ||||
| Acceleration 0–100 km/h [s] | 15.1 | 11.5 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5.7 | 5.7 | ||||
| Out of town [l] | 3.7 | 3.7 | ||||
| Combined [l] | 4.4 | 4.4 | ||||
| CO2 emissions [g/km] | 117 | 117 | ||||
| Emission standard | EU4 | EU4 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1251 | 1272 | ||||
| Overall weight [kg] | 1620 | 1680 | ||||
| Maximum trailer weight unbraked/braked [kg] | 600/1150 | 600/1150 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 267 | 267 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 3 | 3 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 50 | 50 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | torsion bar | torsion bar | ||||
| Tyre dimensions front | 185/65 R15 T | 185/65 R15 T | ||||
| Tyre dimensions rear | 185/65 R15 T | 185/65 R15 T | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | - | - | ||||
| Overall length [mm] | 4030 | 4030 | ||||
| Overall width without/including mirrors [mm] | 1748/- | 1748/- | ||||
| Overall height [mm] | 1470 | 1470 | ||||
| Wheelbase [mm] | 2540 | 2540 | ||||
| Front wheel track [mm] | - | - | ||||
| Rear wheel track [mm] | - | - | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Five-door hatchback
| 1.4 | 1.4 | 1.4 16V VTi | 1.6 16V VTi | 1.6 16V VTi | 1.6 16V THP | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1360 | 1360 | 1397 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 54/5400 | 65/5250 | 70/6000 | 88/6000 | 88/6000 | 110/5800 |
| Maximum torque [Nm/min-1] | 118/3300 | 133/3250 | 136/4000 | 160/4250 | 160/4250 | 240/1400 |
| Bore and stroke [mm x mm] | 75,0 x 77,0 | 75,0 x 77,0 | 77,0 x 75,0 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - | - |
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear robotic manual | 5 gear manual | 5 gear manual | 4 gear automatic | 5 gear manual |
| Drive specifications | - |
| - | - |
| - |
| Top speed [km/h] | 170 | 180 | 185 | 200 | 195 | 210 |
| Acceleration 0–100 km/h [s] | 13.9 | 14.0 | 11.5 | 9.6 | 11.4 | 8.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.4 | 7.9 | 8.1 | 8.4 | 9.8 | 9.3 |
| Out of town [l] | 5.0 | 5.2 | 5.0 | 4.8 | 5.5 | 5.6 |
| Combined [l] | 6.3 | 6.2 | 6.1 | 6.1 | 6.1 | 7.0 |
| CO2 emissions [g/km] | 150 | 146 | 145 | 145 | 167 | 166 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1223 | 1241 | 1253 | 1275 | 1296 | 1327 |
| Overall weight [kg] | 1620 | 1650 | 1640 | 1650 | 1678 | 1700 |
| Maximum trailer weight unbraked/braked [kg] | 600/950 | 600/1150 | 600/1150 | 600/1150 | 600/1150 | 600/1150 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 267 | 267 | 267 | 267 | 267 | 267 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 185/65 R15 T | 185/65 R15 T | 185/65 R15 T | 185/65 R15 H | 185/65 R15 H | 195/55 R16 Y |
| Tyre dimensions rear | 185/65 R15 T | 185/65 R15 T | 185/65 R15 T | 185/65 R15 H | 185/65 R15 H | 195/55 R16 Y |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4030 | 4030 | 4030 | 4030 | 4030 | 4030 |
| Overall width without/including mirrors [mm] | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- |
| Overall height [mm] | 1479 | 1479 | 1479 | 1479 | 1479 | 1479 |
| Wheelbase [mm] | 2540 | 2540 | 2540 | 2540 | 2540 | 2540 |
| Front wheel track [mm] | - | - | - | - | - | - |
| Rear wheel track [mm] | - | - | - | - | - | - |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.4 HDI | 1.6 HDI | 1.6 HDI | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1398 | 1560 | 1560 | |||
| Maximum output / speed [kW/min-1] | 50/4000 | 66/4000 | 80/4000 | |||
| Maximum torque [Nm/min-1] | 160/2000 | 215/1750 | 240/1750 | |||
| Bore and stroke [mm x mm] | 73,7 x 82,0 | 75,0 x 88,3 | 75,0 x 88,3 | |||
| Compression ratio | - | - | - | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | |||
| Drive specifications | - | - | - | |||
| Top speed [km/h] | 166 | 182 | 193 | |||
| Acceleration 0–100 km/h [s] | 15.1 | 11.5 | 10.1 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 5.7 | 5.7 | 6.0 | |||
| Out of town [l] | 3.7 | 3.7 | 4.1 | |||
| Combined [l] | 4.4 | 4.4 | 4.7 | |||
| CO2 emissions [g/km] | 117 | 117 | 124 | |||
| Emission standard | EU4 | EU4 | EU4 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1261 | 1280 | 1328 | |||
| Overall weight [kg] | 1660 | 1700 | 1710 | |||
| Maximum trailer weight unbraked/braked [kg] | 600/1150 | 600/1150 | 600/1150 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 267 | 267 | 270 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 50 | 50 | 50 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | torsion bar | torsion bar | torsion bar | |||
| Tyre dimensions front | 185/65 R15 T | 185/65 R15 T | 195/55 R16 Y | |||
| Tyre dimensions rear | 185/65 R15 T | 185/65 R15 T | 195/55 R16 Y | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | - | - | - | |||
| Overall length [mm] | 4030 | 4030 | 4030 | |||
| Overall width without/including mirrors [mm] | 1748/- | 1748/- | 1748/- | |||
| Overall height [mm] | 1479 | 1479 | 1479 | |||
| Wheelbase [mm] | 2540 | 2540 | 2540 | |||
| Front wheel track [mm] | - | - | - | |||
| Rear wheel track [mm] | - | - | - | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | - | - | - | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | - | - | - | |||
| Headroom rear [mm] | - | - | - | |||
| Front elbow/shoulder width [mm] | - | - | - | |||
| Rear elbow/shoulder width [mm] | - | - | - | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Estate (SW)
| 1.4 | 1.4 16V VTi | 1.6 16V VTi | 1.6 16V VTi | 1.6 HDI | 1.6 HDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1360 | 1397 | 1598 | 1598 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 54/5400 | 70/6000 | 88/6000 | 88/6000 | 66/4000 | 80/4000 |
| Maximum torque [Nm/min-1] | 118/3300 | 136/4000 | 160/4250 | 160/4250 | 215/1750 | 240/1750 |
| Bore and stroke [mm x mm] | 75,0 x 77,0 | 77,0 x 75,0 | 77,0 x 75,0 | 77,0 x 75,0 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 4 gear automatic | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 170 | 185 | 200 | 195 | 182 | 193 |
| Acceleration 0–100 km/h [s] | 14.2 | 11.8 | 9.6 | 11.5 | 11.8 | 10.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.8 | 8.2 | 8.6 | 9.8 | 5.7 | 6.1 |
| Out of town [l] | 5.3 | 5.2 | 5.0 | 5.5 | 3.9 | 4.4 |
| Combined [l] | 6.5 | 6.3 | 6.2 | 7.0 | 4.5 | 5.0 |
| CO2 emissions [g/km] | 155 | 150 | 150 | 167 | 119 | 131 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1271 | 1290 | 1302 | 1335 | 1339 | 1350 |
| Overall weight [kg] | 1642 | 1691 | 1705 | 1737 | 1741 | 1758 |
| Maximum trailer weight unbraked/braked [kg] | 600/1045 | 600/1150 | 600/1150 | 600/1150 | 600/1150 | 600/1150 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 428 | 428 | 428 | 428 | 428 | 428 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1433 | -/1433 | -/1433 | -/1433 | -/1433 | -/1433 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | 50 | 50 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar | torsion bar |
| Tyre dimensions front | 185/65 R15 T | 185/65 R15 T | 185/65 R15 H | 185/65 R15 H | 185/65 R15 H | 185/65 R15 H |
| Tyre dimensions rear | 185/65 R15 T | 185/65 R15 T | 185/65 R15 H | 185/65 R15 H | 185/65 R15 H | 185/65 R15 H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4149 | 4149 | 4149 | 4149 | 4149 | 4149 |
| Overall width without/including mirrors [mm] | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- | 1748/- |
| Overall height [mm] | 1519 | 1519 | 1519 | 1519 | 1519 | 1519 |
| Wheelbase [mm] | 2540 | 2540 | 2540 | 2540 | 2540 | 2540 |
| Front wheel track [mm] | - | - | - | - | - | - |
| Rear wheel track [mm] | - | - | - | - | - | - |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Convertible (CC)
| 1.6 16V VTi | 1.6 16V VTi | 1.6 16V THP | 1.6 HDI | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Petrol | Petrol | Ignition supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1560 | ||
| Maximum output / speed [kW/min-1] | 88/6000 | 88/6000 | 110/5800 | 80/4000 | ||
| Maximum torque [Nm/min-1] | 160/4250 | 160/4250 | 240/1400 | 240/1750 | ||
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 75,0 x 88,3 | ||
| Compression ratio | - | - | - | - | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 5 gear manual | 4 gear automatic | 5 gear manual | 5 gear manual | ||
| Drive specifications | - |
| - | - | ||
| Top speed [km/h] | 200 | 195 | 210 | 193 | ||
| Acceleration 0–100 km/h [s] | 10.7 | 12.6 | 8.6 | 10.9 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 8.8 | 10.0 | 9.6 | 6.2 | ||
| Out of town [l] | 5.3 | 5.7 | 5.8 | 4.3 | ||
| Combined [l] | 6.5 | 7.2 | 7.2 | 5.0 | ||
| CO2 emissions [g/km] | 155 | 173 | 171 | 130 | ||
| Emission standard | EU4 | EU4 | EU4 | EU4 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | - | - | - | - | ||
| Overall weight [kg] | 1720 | 1765 | 1760 | 1785 | ||
| Maximum trailer weight unbraked/braked [kg] | 600/1040 | 600/1060 | 600/1070 | 600/1070 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 187-449 | 187-449 | 187-449 | 187-449 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 2 | 2 | 2 | 2 | ||
| Number of seats | 4 | 4 | 4 | 4 | ||
| Fuel tank volume [l] | 50 | 50 | 50 | 50 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | torsion bar | torsion bar | torsion bar | torsion bar | ||
| Tyre dimensions front | 195/55 R16 V | 195/55 R16 V | 205/45 R17 V/W | 205/45 R17 V/W | ||
| Tyre dimensions rear | 195/55 R16 V | 195/55 R16 V | 205/45 R17 V/W | 205/45 R17 V/W | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | - | - | - | - | ||
| Overall length [mm] | 4037 | 4037 | 4037 | 4037 | ||
| Overall width without/including mirrors [mm] | 1750/- | 1750/- | 1750/- | 1750/- | ||
| Overall height [mm] | 1397 | 1397 | 1397 | 1397 | ||
| Wheelbase [mm] | 2540 | 2540 | 2540 | 2540 | ||
| Front wheel track [mm] | - | - | - | - | ||
| Rear wheel track [mm] | - | - | - | - | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |

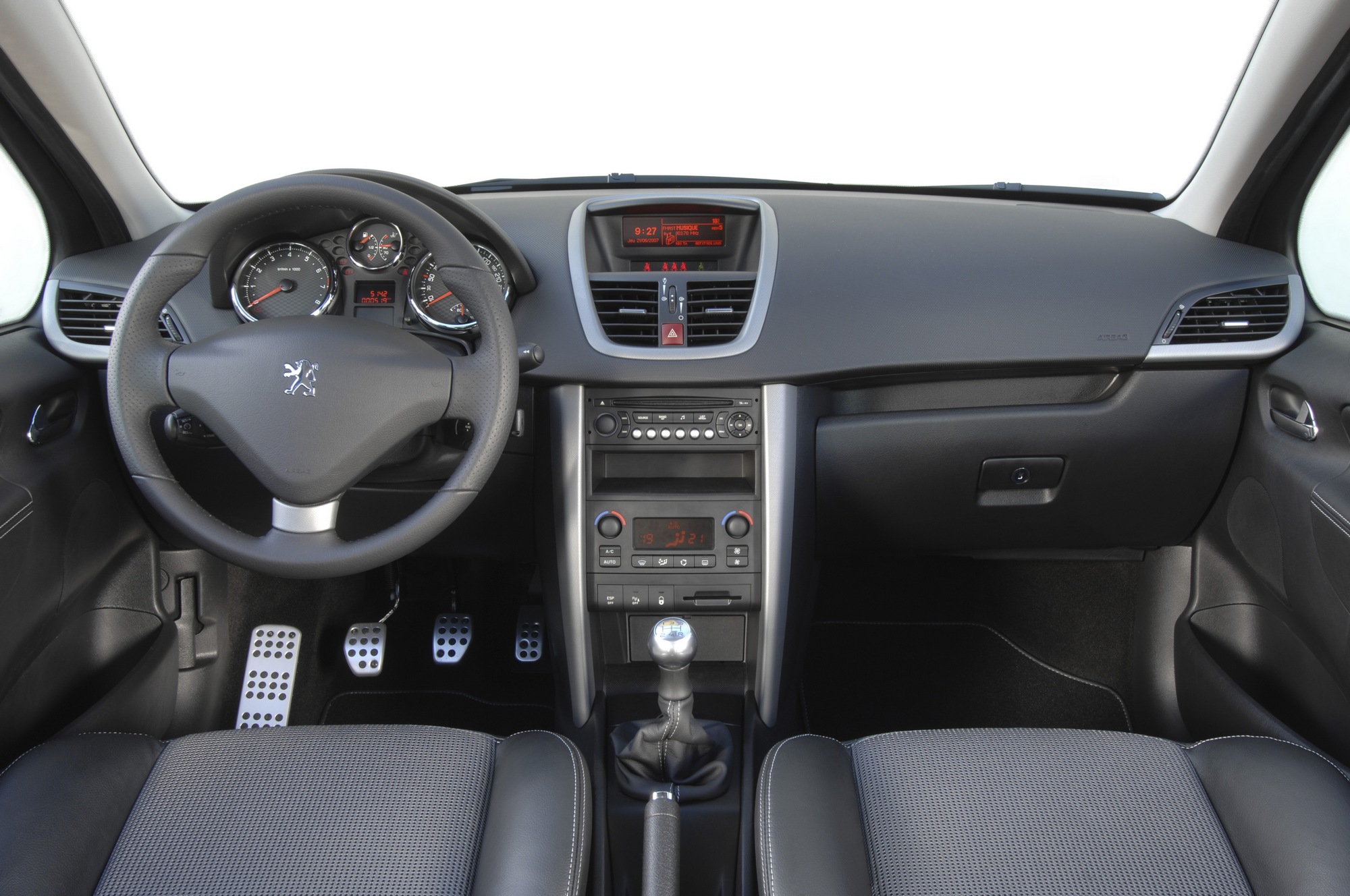

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
