Peugeot 3008
Date of manufacture
9/2016 – 2020 (SUV)
Platform
PSA EMP2
Manufacturing locations
Sochaux, France
Chengdu, People's Republic of China
Designer
Gilles Vidal
Tags
Compact SUV
French cars
The Peugeot 3008 is available as an SUV. This model has been manufactured since 2016 and can be produced in France and the People's Republic of China. It is built on the PSA EMP2 platform and offers petrol, diesel and plug-in hybrid engines. The most powerful version is the HYBRID4 with a maximum power of 220 kW. The model 1.6 PureTech 180 reaches a maximum speed of 219 km/h. The most economical variant is the HYBRID4 with a combined consumption of 1.2 l/100 km and CO2 emissions of 30 g/km. The trunk has a capacity of 520 l. In 2016, this car was tested according to EURONCAP, where it received a rating of 5 out of 5 for safety.
Car body style
SUV
Date of manufacture
9/2016 – 2020Internal designation
P84
Technical data
SUV
| 1.2 PureTech 130 | 1.2 PureTech | 1.2 PureTech 130 | 1.6 THP | 1.6 THP | 1.6 PureTech 180 | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2018 | from 2018 to | from to 2018 | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1199 | 1199 | 1199 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 96/5500 | 96/5500 | 96/5500 | 121/6000 | 121/6000 | 133/5500 |
| Maximum torque [Nm/min-1] | 230/1750 | 230/1750 | 230/1750 | 240/1400 | 240/1400 | 250/1650 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 8 gear automatic | 6 gear automatic | 6 gear automatic | 8 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 188 | 188 | 188 | 201 | 201 | 219 |
| Acceleration 0–100 km/h [s] | 9,5-10,8 | 10.5 | 9,7 | 8.9 | 8.9 | 8,0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,1-6,9 | 6.3-6.9 | 6.1-6,0 | 9.8-10.1 | 7.3-7.6 | 7,2-7.0 |
| Out of town [l] | 4,7-4,9 | 4.7-5.1 | 4.8-4,7 | 5.3-5.7 | 4.8-5.1 | 4,9-4.8 |
| Combined [l] | 5,2-5,5 | 5.2-5.5 | 5,2-5.1 | 7.0-7.3 | 5.7-6.0 | 5,8-5.6 |
| CO2 emissions [g/km] | 119-124 | 120-129 | 120-117 | 156-165 | 129-136 | 131-128 |
| Emission standard | EU6 - Euro 6d | EU6 | Euro 6d-TEMP - Euro 6d | EU6 | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1325-1395 | 1345-1580 | 1395 | 1475 | 1375-1599 | 1505 |
| Overall weight [kg] | 1910 | 1930 | 1940 | 1950 | 1950 | 1960 |
| Maximum trailer weight unbraked/braked [kg] | 660-690/1400 | 670/1200 | 690/1150 | 600/600 | 685/1550 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 80 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |

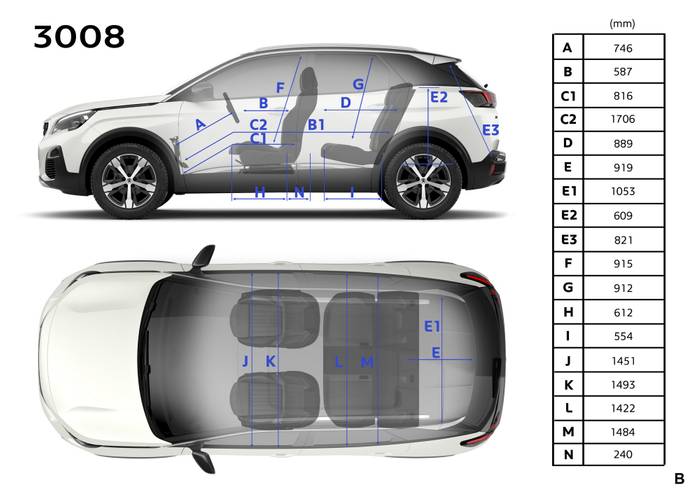

| Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1482 | -/1482 | -/1482 | -/1482 | -/1482 | -/1482 |
| Boot length [mm] | 919 | 919 | 919 | 919 | 919 | 919 |
| Boot length with rear seats folded [mm] | 1861 | 1861 | 1861 | 1861 | 1861 | 1861 |
| Boot width between wheels/max [mm] | 1053/- | 1053/- | 1053/- | 1053/- | 1053/- | 1053/- |
| Boot height to headliner/ceiling [mm] | 609/- | 609/- | 609/- | 609/- | 609/- | 609/- |
| Loading edge height [mm] | 700 | 700 | 700 | 700 | 700 | 700 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 225/55 R18 90H | 215/65 R17 92V |
| Tyre dimensions rear | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 225/55 R18 90H | 215/65 R17 92V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- |

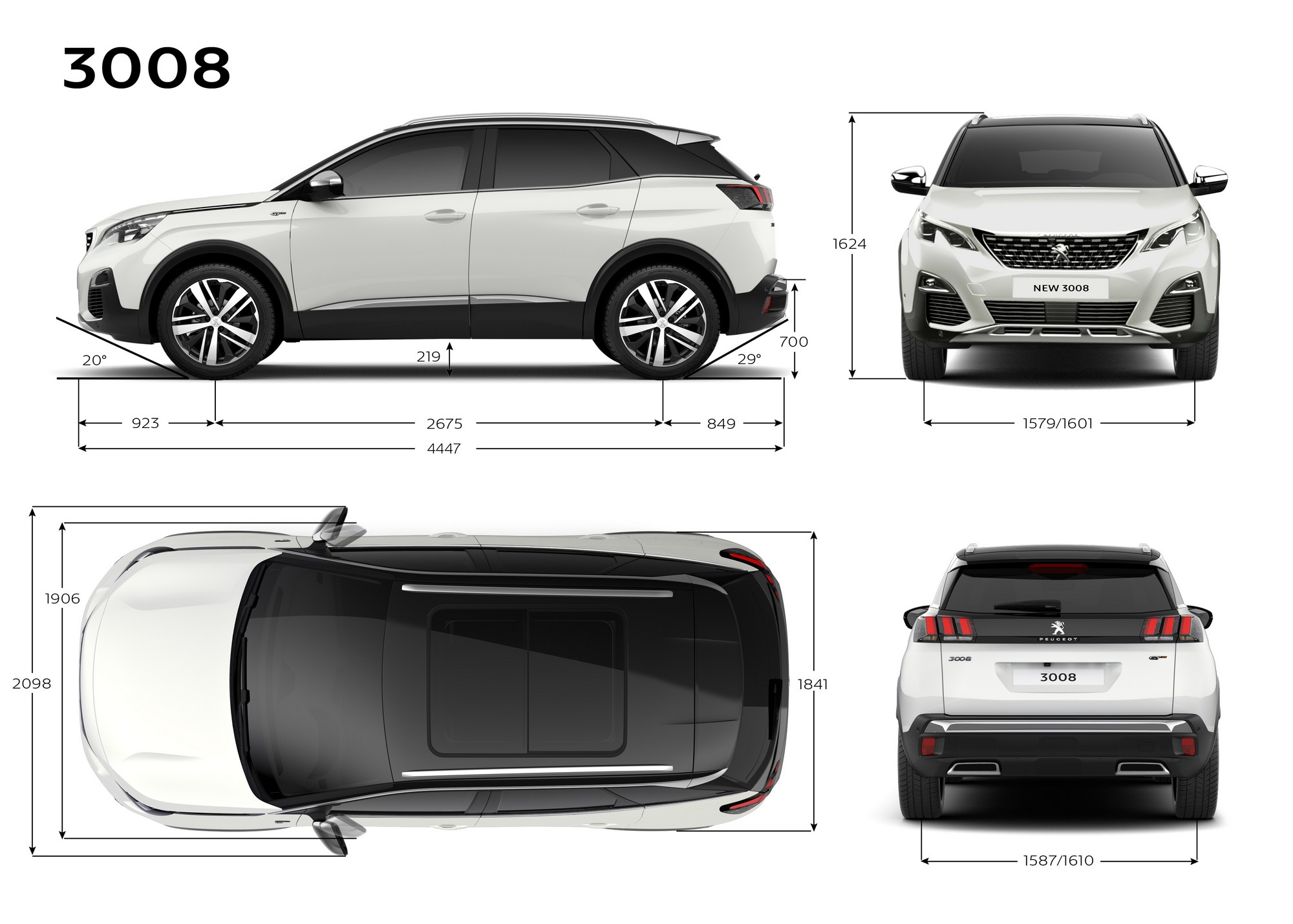

| Overall length [mm] | 4447 | 4447 | 4447 | 4447 | 4447 | 4447 |
| Overall width without/including mirrors [mm] | 1841/2098 | 1841/2098 | 1841/2098 | 1841/2098 | 1841/2098 | 1841/2098 |
| Overall height [mm] | 1624 | 1624 | 1624 | 1624 | 1624 | 1624 |
| Wheelbase [mm] | 2675 | 2675 | 2675 | 2675 | 2675 | 2675 |
| Front wheel track [mm] | 1579 | 1579 | 1579 | 1579 | 1579 | 1579 |
| Rear wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Forward overhang [mm] | 923 | 923 | 923 | 923 | 923 | 923 |
| Rear overhang [mm] | 849 | 849 | 849 | 849 | 849 | 849 |
| Clearance [mm] | 219 | 219 | 219 | 219 | 219 | 219 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 20 | 20 | 20 | 20 | 20 | 20 |
| Approach angle rear [°] | 29 | 29 | 29 | 29 | 29 | 29 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 915 | 915 | 915 | 915 | 915 | 915 |
| Headroom rear [mm] | 912 | 912 | 912 | 912 | 912 | 912 |
| Front elbow/shoulder width [mm] | 1493/1451 | 1493/1451 | 1493/1451 | 1493/1451 | 1493/1451 | 1493/1451 |
| Rear elbow/shoulder width [mm] | 1484/1422 | 1484/1422 | 1484/1422 | 1484/1422 | 1484/1422 | 1484/1422 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| HYBRID4 | 1.6 BlueHDi | 1.6 BlueHDi | 1.5 BlueHDi 130 | 1.5 BlueHDi 130 | 2.0 BlueHDi | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from to 2018 | from to 2018 | from 2018 to | from 2018 to | from to 2018 |
| Engine type | Petrol supercharged + Electric | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1560 | 1560 | 1499 | 1499 | 1997 |
| Maximum output / speed [kW/min-1] | 147/6000 combustion 81/2500 el. 83/14000 el. 220 total | 88/3500 | 88/3500 | 96/3750 | 96/3750 | 110/4000 |
| Maximum torque [Nm/min-1] | 300/3000 combustion 320 el. 166 el. 520 total | 300/1750 | 300/1750 | 300/1750 | 300/1750 | 370/2000 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 75,0 x 88,3 | 75,0 x 88,3 | 75 x 84,8 | 75 x 84,8 | 85,0 x 88,0 |
| Compression ratio | - | 17,0:1 | 17,0:1 | 16.5:1 | 16.5:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | Front | Front | Front | Front |
| Gearbox | 8 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 235 [135 el.] | 189 | 185 | 192 | 192 | 207 |
| Acceleration 0–100 km/h [s] | 5.9 | 11.2 | 11.6 | 10,8 | 11,5 | 9.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | 4.7-4.9 | 4.7-4.9 | 4.7-4,6 | 4,4 | 5.1-5.4 |
| Out of town [l] | - | 3.5-3.9 | 3.9-4.1 | 3,8-3.7 | 3,9-3.8 | 4.0-4.3 |
| Combined [l] | 1.5 | 4.0-4.3 | 4.2-4.4 | 4.2-4,1 | 4,1-4.0 | 4.4-4.7 |
| CO2 emissions [g/km] | 34 | 104-111 | 108-114 | 108-106 | 107-105 | 114-121 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 1.7-1.2 [17.4 kWh] | - | - | - | - | - |
| CO2 emissions [g/km] | 32-30 | - | - | - | - | - |
| Emission standard | Euro 6d | EU6 | EU6 | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 13.2 kWh | - | - | - | - | - |
| Range with fully charged battery [km] | 55 [WLTP] | - | - | - | - | - |
| Charging time |
| - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1915-2016 | 1375 | 1390 | 1492 | 1505 | 1500 |
| Overall weight [kg] | 2330 | 1970 | 1990 | 1980 | 2000 | 2050 |
| Maximum trailer weight unbraked/braked [kg] | 750/1250 | 685/1500 | 695/1300 | 745/1500 | 750/1300 | 745/2000 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 64 | 80 | 80 | 80 | 80 | 80 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 520 | 520 | 520 | 520 | 520 | 520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1482 | -/1482 | -/1482 | -/1482 | -/1482 | -/1482 |
| Boot length [mm] | 919 | 919 | 919 | 919 | 919 | 919 |
| Boot length with rear seats folded [mm] | 1861 | 1861 | 1861 | 1861 | 1861 | 1861 |
| Boot width between wheels/max [mm] | 1053/- | 1053/- | 1053/- | 1053/- | 1053/- | 1053/- |
| Boot height to headliner/ceiling [mm] | 609/- | 609/- | 609/- | 609/- | 609/- | 609/- |
| Loading edge height [mm] | 700 | 700 | 700 | 700 | 700 | 700 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 43 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 |
| AdBlue tank volume [l] | - | - | - | 17 | 17 | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R19 91V | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H |
| Tyre dimensions rear | 205/55 R19 91V | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- | 10.7/- |
| Overall length [mm] | 4447 | 4447 | 4447 | 4447 | 4447 | 4447 |
| Overall width without/including mirrors [mm] | 1841/2098 | 1841/2098 | 1841/2098 | 1841/2098 | 1841/2098 | 1841/2098 |
| Overall height [mm] | 1624 | 1624 | 1624 | 1624 | 1624 | 1624 |
| Wheelbase [mm] | 2675 | 2675 | 2675 | 2675 | 2675 | 2675 |
| Front wheel track [mm] | 1579 | 1579 | 1579 | 1579 | 1579 | 1579 |
| Rear wheel track [mm] | 1587 | 1587 | 1587 | 1587 | 1587 | 1587 |
| Forward overhang [mm] | 923 | 923 | 923 | 923 | 923 | 923 |
| Rear overhang [mm] | 849 | 849 | 849 | 849 | 849 | 849 |
| Clearance [mm] | 219 | 219 | 219 | 219 | 219 | 219 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 20 | 20 | 20 | 20 | 20 | 20 |
| Approach angle rear [°] | 29 | 29 | 29 | 29 | 29 | 29 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 915 | 915 | 915 | 915 | 915 | 915 |
| Headroom rear [mm] | 912 | 912 | 912 | 912 | 912 | 912 |
| Front elbow/shoulder width [mm] | 1493/1451 | 1493/1451 | 1493/1451 | 1493/1451 | 1493/1451 | 1493/1451 |
| Rear elbow/shoulder width [mm] | 1484/1422 | 1484/1422 | 1484/1422 | 1484/1422 | 1484/1422 | 1484/1422 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Rating | - | - | - | - |    | - |
| Clean Air Index | - | - | - | - | 4.3/10 | - |
| Energy Efficiency Index | - | - | - | - | 5.3/10 | - |
| GHG index | - | - | - | - | 2.8/10 | - |
| 2.0 BlueHDi 180 | 2.0 BlueHDi | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from to 2018 | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1997 | 1997 | ||||
| Maximum output / speed [kW/min-1] | 130/3750 | 133/3750 | ||||
| Maximum torque [Nm/min-1] | 400/2000 | 400/2000 | ||||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | ||||
| Compression ratio | - | - | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 8 gear automatic | 6 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 215 | 207 | ||||
| Acceleration 0–100 km/h [s] | 9,0 | 8.9 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 5,3-5.2 | 5.5 | ||||
| Out of town [l] | 4,7-4.5 | 4.4 | ||||
| Combined [l] | 4,9-4.8 | 4.8 | ||||
| CO2 emissions [g/km] | 129-125 | 124 | ||||
| Emission standard | Euro 6d-TEMP | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1555 | 1540 | ||||
| Overall weight [kg] | 2090 | 2090 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/2000 | 750/1700 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 80 | 80 | ||||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | ||||
| Boot volume [l] | 520 | 520 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1482 | -/1482 | ||||
| Boot length [mm] | 919 | 919 | ||||
| Boot length with rear seats folded [mm] | 1861 | 1861 | ||||
| Boot width between wheels/max [mm] | 1053/- | 1053/- | ||||
| Boot height to headliner/ceiling [mm] | 609/- | 609/- | ||||
| Loading edge height [mm] | 700 | 700 | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 52.5 | 52.5 | ||||
| AdBlue tank volume [l] | 17 | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 225/55 R18 91V | 235/50 R19 91V | ||||
| Tyre dimensions rear | 225/55 R18 91V | 235/50 R19 91V | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | - | - | ||||
| Brake dimensions rear | - | - | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | ||||
| Overall length [mm] | 4447 | 4447 | ||||
| Overall width without/including mirrors [mm] | 1841/2098 | 1841/2098 | ||||
| Overall height [mm] | 1624 | 1624 | ||||
| Wheelbase [mm] | 2675 | 2675 | ||||
| Front wheel track [mm] | 1579 | 1579 | ||||
| Rear wheel track [mm] | 1587 | 1587 | ||||
| Forward overhang [mm] | 923 | 923 | ||||
| Rear overhang [mm] | 849 | 849 | ||||
| Clearance [mm] | 219 | 219 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 20 | 20 | ||||
| Approach angle rear [°] | 29 | 29 | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 915 | 915 | ||||
| Headroom rear [mm] | 912 | 912 | ||||
| Front elbow/shoulder width [mm] | 1493/1451 | 1493/1451 | ||||
| Rear elbow/shoulder width [mm] | 1484/1422 | 1484/1422 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |

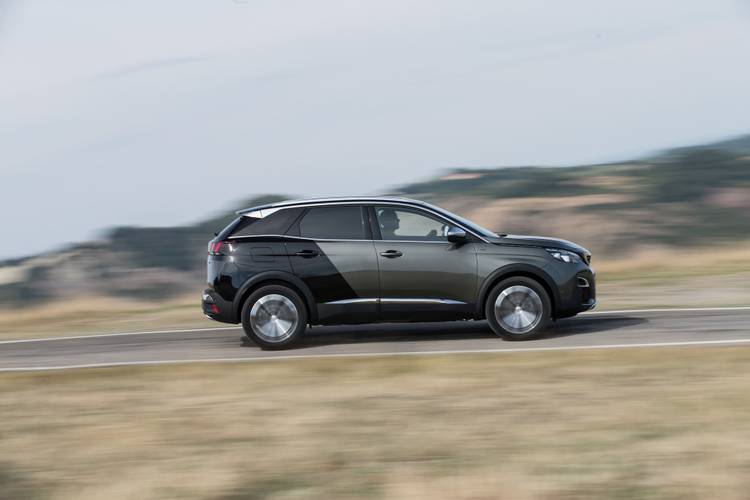

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
