Peugeot 308
Date of manufacture
2007 – 2009 (Three-door hatchback)
2007 – 2011 (Five-door hatchback)
2008 – 2011 (Estate)
2009 – 2011 (Convertible)
Platform
PSA PF2
Manufacturing locations
Sochaux, France
Mulhouse, France
Wuhan, People's Republic of China
Designer
Stéphan Peureux
Tags
C-segment
French cars
The Peugeot 308 has been manufactured in France and the People's Republic of China since 2007. It offers a wide range of body styles, such as a three-door hatchback, five-door hatchback, estate and cabriolet. It is based on the PSA PF2 platform and offers petrol and diesel engines. The most powerful model is the 1.6 THP with 147 kW of maximum power, the fastest model reaches a speed of 237 km/h and the most economical version, the 1.6 HDI, has a consumption of 4.4 l/100 km and CO2 emissions of 115 g/km. The luggage compartment of the five-door hatchback version is 442 l, of the three-door version 442 l, of the estate 674 l and of the cabriolet 266-465 l. In 2009, the Peugeot 308 underwent the EURONCAP safety test and received a rating of 5 out of 5.
Car body style
Three-door hatchback
Date of manufacture
2007 – 2009Internal designation
T7Five-door hatchback
Date of manufacture
2007 – 2011Internal designation

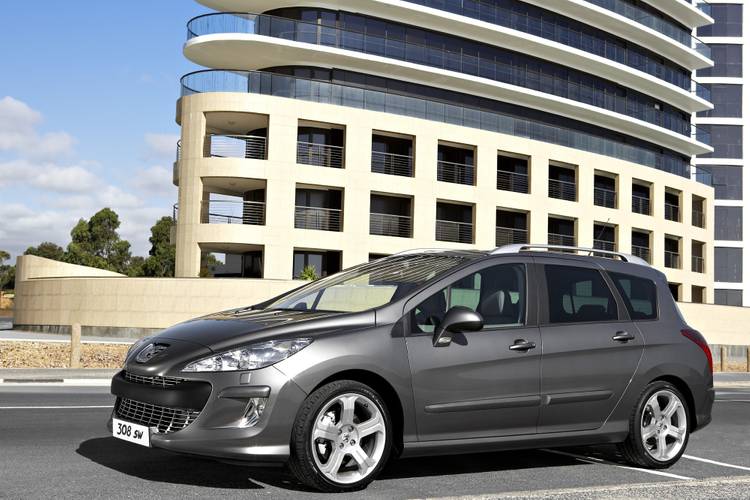

T7Estate (SW)
Date of manufacture
2008 – 2011Internal designation

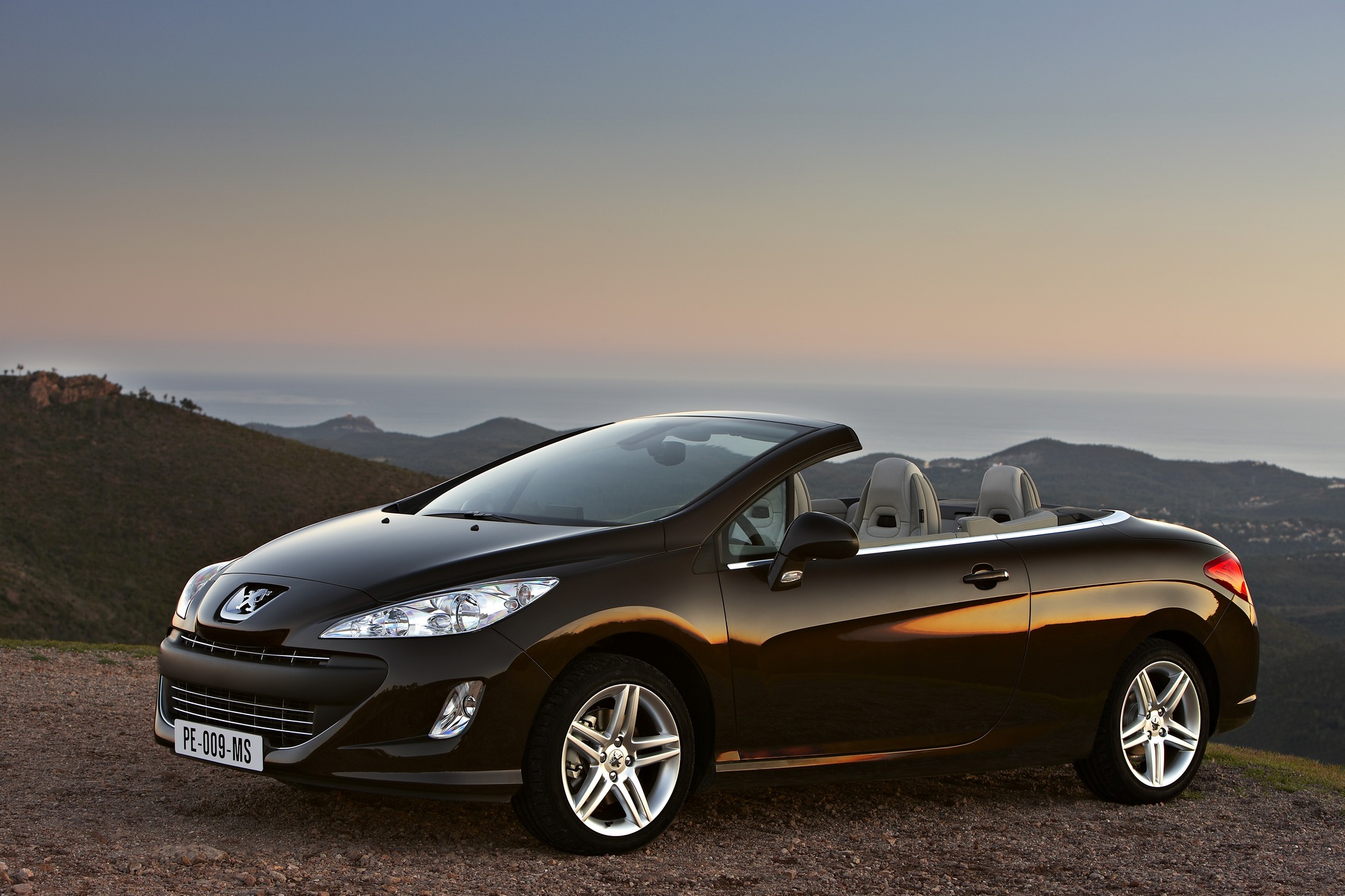

T7Convertible (CC)
Date of manufacture
2009 – 2011Internal designation
T7Engine size
Technical data
Three-door hatchback
| 1.4 16V VTi | 1.6 16V | 1.6 16V | 1.6 THP | 1.6 THP | 1.6 HDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1397 | 1598 | 1598 | 1598 | 1598 | 1560 |
| Maximum output / speed [kW/min-1] | 70/6000 | 88/6000 | 88/6000 | 110/5800 | 128/6000 | 66/4000 |
| Maximum torque [Nm/min-1] | 136/4000 | 160/4250 | 160/4250 | 240/1400 | 240/1600 | 215/1750 |
| Bore and stroke [mm x mm] | 77,0 x 75,0 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 75,0 x 88,3 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 4 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 182 | 195 | 188 | 213 | 225 | 180 |
| Acceleration 0–100 km/h [s] | 12.7 | 10.8 | 13.0 | 8.8 | 8.3 | 12.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.0 | 9.3 | 10.3 | 10.3 | 10.7 | 5.8 |
| Out of town [l] | 5.2 | 5.2 | 5.7 | 5.5 | 5.7 | 3.8 |
| Combined [l] | 6.5 | 6.7 | 7.3 | 7.2 | 7.6 | 4.5 |
| CO2 emissions [g/km] | 155 | 159 | 174 | 171 | 180 | 120 |
| Emission standard | EU4 | EU4 | EU4 | EU4 | EU4 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1337 | 1352 | 1377 | 1389 | 1446 | 1368 |
| Overall weight [kg] | 1749 | 1802 | 1812 | 1815 | 1835 | 1792 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 442 | 442 | 442 | 442 | 442 | 442 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1398 | -/1398 | -/1398 | -/1398 | -/1398 | -/1398 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 H | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 225/45 R17 W | 195/65 R15 H |
| Tyre dimensions rear | 195/65 R15 H | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 225/45 R17 W | 195/65 R15 H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4276 | 4276 | 4276 | 4276 | 4276 | 4276 |
| Overall width without/including mirrors [mm] | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- |
| Overall height [mm] | 1519 | 1519 | 1519 | 1519 | 1519 | 1519 |
| Wheelbase [mm] | 2608 | 2608 | 2608 | 2608 | 2608 | 2608 |
| Front wheel track [mm] | 1526 | 1526 | 1526 | 1526 | 1526 | 1526 |
| Rear wheel track [mm] | 1521 | 1521 | 1521 | 1521 | 1521 | 1521 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 HDI | 1.6 HDI | 2.0 HDI | 2.0 HDI | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | ||
| Engine displacement [cm³] | 1560 | 1560 | 1997 | 1997 | ||
| Maximum output / speed [kW/min-1] | 80/4000 | 80/4000 | 100/4000 | 100/4000 | ||
| Maximum torque [Nm/min-1] | 240/1750 | 240/1750 | 320/2000 | 320/2000 | ||
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 | ||
| Compression ratio | - | - | - | - | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | ||
| Drive specifications | - |
| - |
| ||
| Top speed [km/h] | 190 | 190 | 206 | 200 | ||
| Acceleration 0–100 km/h [s] | 11.4 | 11.3 | 10.1 | 10.6 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 6.3-6.6 | 5.9 | 7.2 | 9.4 | ||
| Out of town [l] | 4.1-4.2 | 4.1 | 4.5 | 5.3 | ||
| Combined [l] | 4.9-5.1 | 4.7 | 5.5 | 6.8 | ||
| CO2 emissions [g/km] | 130-134 | 125 | 146 | 180 | ||
| Emission standard | EU4 | EU4 | EU4 | EU4 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1388 | 1399 | 1483 | 1509 | ||
| Overall weight [kg] | 1835 | 1849 | 1910 | 1935 | ||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 442 | 442 | 442 | 442 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1398 | -/1398 | -/1398 | -/1398 | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 3 | 3 | 3 | 3 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | ||
| Tyre dimensions front | 205/55 R16 V | 205/55 R16 V | 215/55 R16 V | 215/55 R16 V | ||
| Tyre dimensions rear | 205/55 R16 V | 205/55 R16 V | 215/55 R16 V | 215/55 R16 V | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | - | - | - | - | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | - | - | - | - | ||
| Overall length [mm] | 4276 | 4276 | 4276 | 4276 | ||
| Overall width without/including mirrors [mm] | 1815/- | 1815/- | 1815/- | 1815/- | ||
| Overall height [mm] | 1519 | 1519 | 1519 | 1519 | ||
| Wheelbase [mm] | 2608 | 2608 | 2608 | 2608 | ||
| Front wheel track [mm] | 1526 | 1526 | 1526 | 1526 | ||
| Rear wheel track [mm] | 1521 | 1521 | 1521 | 1521 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |

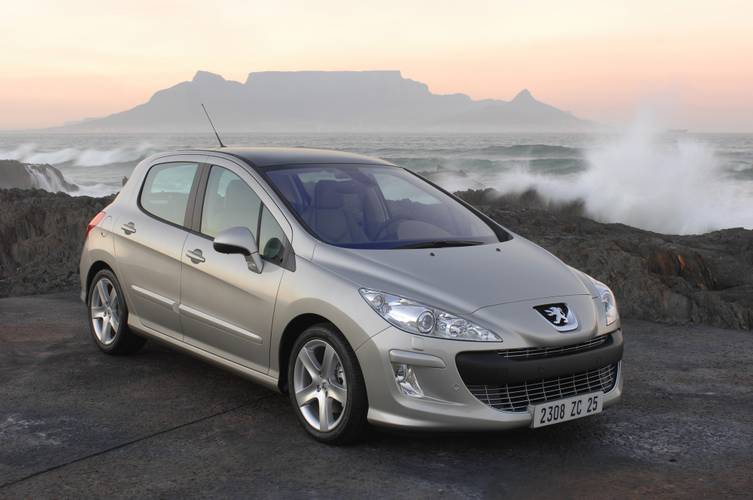

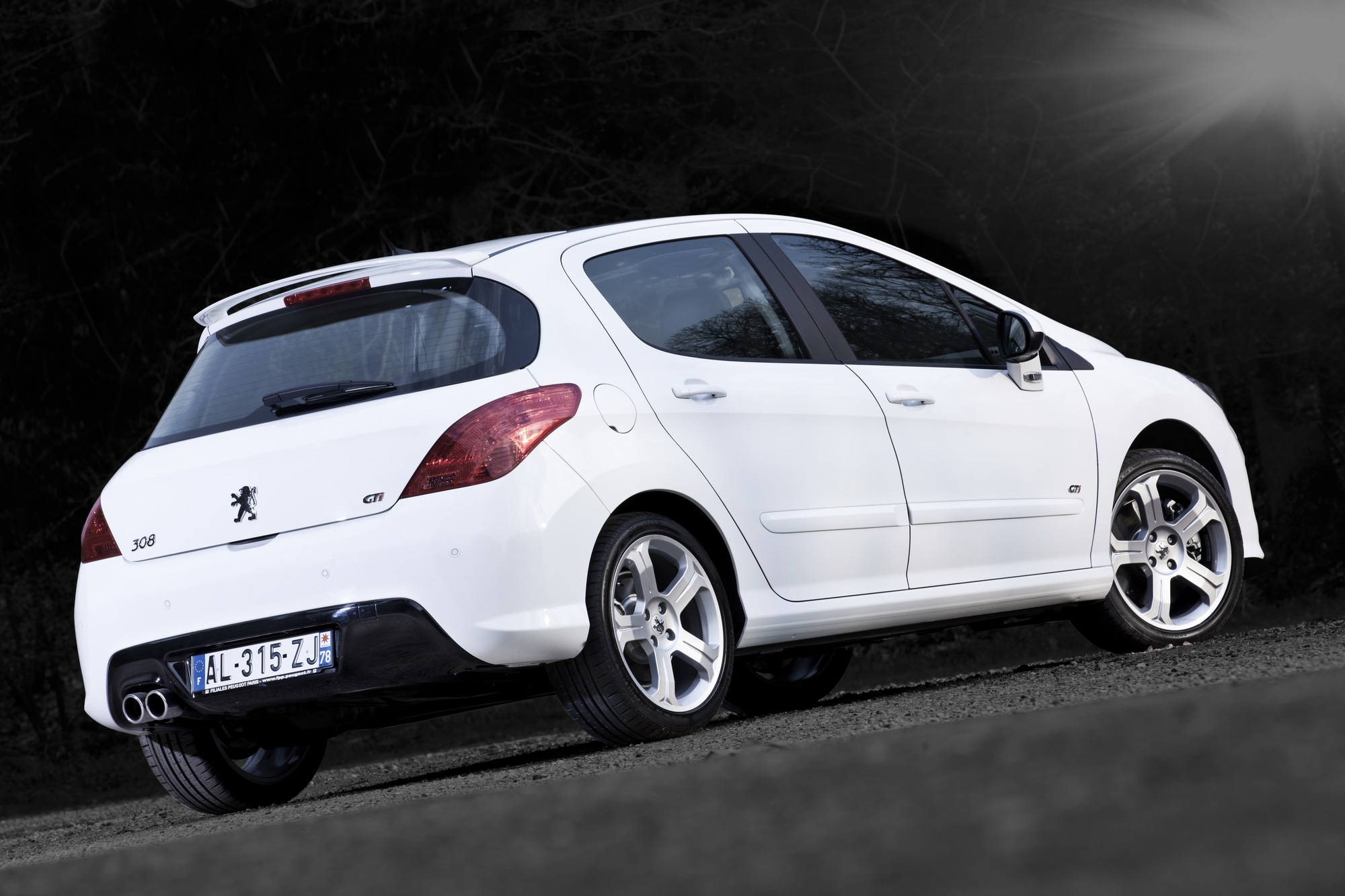

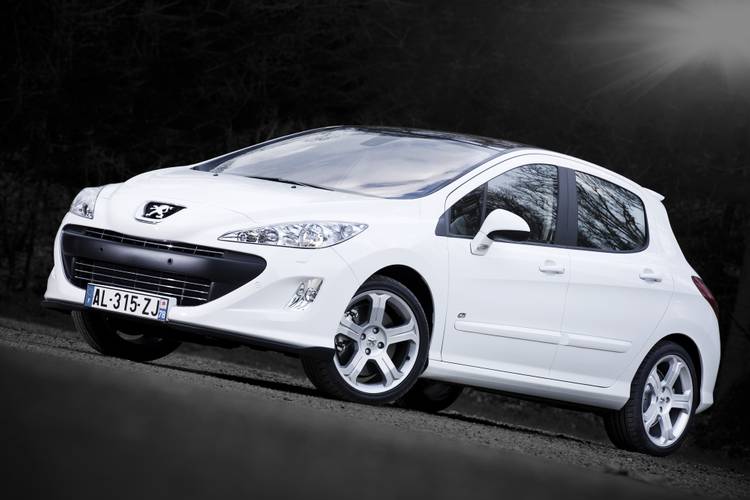

Five-door hatchback
| 1.4 16V VTi | 1.4 16V VTi | 1.6 16V | 1.6 16V | 1.6 THP | 1.6 THP | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1397 | 1397 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 70/6000 | 72/6000 | 88/6000 | 88/6000 | 110/5800 | 115/6000 |
| Maximum torque [Nm/min-1] | 136/4000 | 136/4000 | 160/4250 | 160/4250 | 240/1400 | 240/1400 |
| Bore and stroke [mm x mm] | 77,0 x 75,0 | 77,0 x 75,0 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 4 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 182 | 182 | 195 | 188 | 213 | 214 |
| Acceleration 0–100 km/h [s] | 12.7 | 12.7 | 10.8 | 13.0 | 8.8 | 8.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.0 | 8.4 | 9.3 | 10.1-10.3 | 10.3 | 9.4 |
| Out of town [l] | 5.2 | 5.1 | 5.1-5.2 | 5.7 | 5.5 | 5.2 |
| Combined [l] | 6.5 | 6.3 | 6.6-6.7 | 7.3 | 7.2 | 6.7 |
| CO2 emissions [g/km] | 155 | 144 | 152-159 | 168-174 | 171 | 155 |
| Emission standard | EU4 | EU5 | EU4-EU5 | EU4-EU5 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1346 | 1346 | 1362 | 1387 | 1415 | 1390 |
| Overall weight [kg] | 1760 | 1780 | 1815 | 1835 | 1840 | 1840 |
| Maximum trailer weight unbraked/braked [kg] | 670/1450 | 670/1450 | 680/1500 | 690/1500 | 705/1700 | 695/1650 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 442 | 442 | 442 | 442 | 442 | 442 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1398 | -/1398 | -/1398 | -/1398 | -/1398 | -/1398 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 H | 195/65 R15 H | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V |
| Tyre dimensions rear | 195/65 R15 H | 195/65 R15 H | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4276 | 4276 | 4276 | 4276 | 4276 | 4276 |
| Overall width without/including mirrors [mm] | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- |
| Overall height [mm] | 1519 | 1519 | 1519 | 1519 | 1519 | 1519 |
| Wheelbase [mm] | 2608 | 2608 | 2608 | 2608 | 2608 | 2608 |
| Front wheel track [mm] | 1526 | 1526 | 1526 | 1526 | 1526 | 1526 |
| Rear wheel track [mm] | 1521 | 1521 | 1521 | 1521 | 1521 | 1521 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 THP | 1.6 THP | 1.6 THP GTi | 1.6 HDI | 1.6 HDI | 1.6 HDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1560 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 115/6000 | 128/6000 | 147/5800 | 66/4000 | 68/4000 | 80/4000 |
| Maximum torque [Nm/min-1] | 240/1400 | 240/1600 | 275/1700 | 215/1750 | 215/1750 | 240/1750 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
| - | - | - | - | - |
| Top speed [km/h] | 212 | 225 | 237 | 180 | 181 | 190 |
| Acceleration 0–100 km/h [s] | 9.1 | 8.3 | 7.7 | 12.6 | 12.4 | 11.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.2 | 10.7 | 9.2 | 5.8 | 5.3 | 6.3-6.6 |
| Out of town [l] | 5.7 | 5.7 | 5.5 | 3.8 | 3.8 | 4.1-4.2 |
| Combined [l] | 7.7 | 7.6 | 6.9 | 4.5 | 4.4 | 4.9-5.1 |
| CO2 emissions [g/km] | 176 | 180 | 159 | 120 | 115 | 130-134 |
| Emission standard | EU5 | EU4 | EU5 | EU4 | EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1443 | 1471 | 1474 | 1378 | 1410 | 1412 |
| Overall weight [kg] | 1870 | 1855 | 1850 | 1804 | 1815 | 1860 |
| Maximum trailer weight unbraked/braked [kg] | 720/1650 | 735/1650 | - | 685/1520 | 685/1300 | 705/1520 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 442 | 442 | 442 | 442 | 442 | 442 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1398 | -/1398 | -/1398 | -/1398 | -/1398 | -/1398 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 225/45 R17 W | 225/45 R17 W | 225/40 R18 W | 195/65 R15 H | 195/65 R15 H | 205/55 R16 V |
| Tyre dimensions rear | 225/45 R17 W | 225/45 R17 W | 225/40 R18 W | 195/65 R15 H | 195/65 R15 H | 205/55 R16 V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4276 | 4276 | 4276 | 4276 | 4276 | 4276 |
| Overall width without/including mirrors [mm] | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- |
| Overall height [mm] | 1519 | 1519 | 1519 | 1519 | 1519 | 1519 |
| Wheelbase [mm] | 2608 | 2608 | 2608 | 2608 | 2608 | 2608 |
| Front wheel track [mm] | 1526 | 1526 | 1526 | 1526 | 1526 | 1526 |
| Rear wheel track [mm] | 1521 | 1521 | 1521 | 1521 | 1521 | 1521 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 HDI | 1.6 HDI | 1.6 HDI | 2.0 HDI | 2.0 HDI | 2.0 HDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1560 | 1560 | 1560 | 1997 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 80/4000 | 82/3600 | 82/3600 | 100/4000 | 100/4000 | 103/4000 |
| Maximum torque [Nm/min-1] | 240/1750 | 270/1750 | 270/1750 | 320/2000 | 320/2000 | 320/2000 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear robotic manual | 6 gear manual | 6 gear robotic manual | 6 gear manual | 6 gear automatic | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 190 | 192 | 194 | 206 | 200 | 205 |
| Acceleration 0–100 km/h [s] | 11.3 | 11.4 | 11.4 | 10.1 | 10.6 | 10.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.9 | 5.9 | 5.4 | 7.2 | 9.4 | 7.0 |
| Out of town [l] | 4.1 | 4.1 | 4.0 | 4.5 | 5.3 | 4.3 |
| Combined [l] | 4.7 | 4.8 | 4.5 | 5.5 | 6.8 | 5.3 |
| CO2 emissions [g/km] | 125 | 124 | 119 | 146 | 180 | 139 |
| Emission standard | EU4 | EU5 | EU5 | EU4 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1409 | 1470 | 1462 | 1496 | 1522 | 1512 |
| Overall weight [kg] | 1861 | 1860 | 1860 | 1921 | 1947 | 1921 |
| Maximum trailer weight unbraked/braked [kg] | 700/1520 | 695/1500 | 695/1500 | 745/1700 | 750/1650 | 745/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 442 | 442 | 442 | 442 | 442 | 442 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1398 | -/1398 | -/1398 | -/1398 | -/1398 | -/1398 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 225/40 R18 W | 225/40 R18 W | 225/40 R18 W |
| Tyre dimensions rear | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 225/40 R18 W | 225/40 R18 W | 225/40 R18 W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4276 | 4276 | 4276 | 4276 | 4276 | 4276 |
| Overall width without/including mirrors [mm] | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- |
| Overall height [mm] | 1519 | 1519 | 1519 | 1519 | 1519 | 1519 |
| Wheelbase [mm] | 2608 | 2608 | 2608 | 2608 | 2608 | 2608 |
| Front wheel track [mm] | 1526 | 1526 | 1526 | 1526 | 1526 | 1526 |
| Rear wheel track [mm] | 1521 | 1521 | 1521 | 1521 | 1521 | 1521 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 HDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1997 | |||||
| Maximum output / speed [kW/min-1] | 120/3750 | |||||
| Maximum torque [Nm/min-1] | 340/2000 | |||||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | |||||
| Compression ratio | - | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 202 | |||||
| Acceleration 0–100 km/h [s] | 9.6 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 8.3 | |||||
| Out of town [l] | 5.2 | |||||
| Combined [l] | 6.3 | |||||
| CO2 emissions [g/km] | 164 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1543 | |||||
| Overall weight [kg] | 1960 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 442 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1398 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 60 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.29 | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | twist beam axle with trailing arms | |||||
| Tyre dimensions front | 225/40 R18 W | |||||
| Tyre dimensions rear | 225/40 R18 W | |||||
| Wheel size front | - | |||||
| Wheel size rear | - | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | - | |||||
| Overall length [mm] | 4276 | |||||
| Overall width without/including mirrors [mm] | 1815/- | |||||
| Overall height [mm] | 1519 | |||||
| Wheelbase [mm] | 2608 | |||||
| Front wheel track [mm] | 1526 | |||||
| Rear wheel track [mm] | 1521 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | - | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Estate (SW)
| 1.4 16V VTi Break | 1.4 16V VTi Break | 1.6 16V Break | 1.6 16V SW | 1.6 16V SW | 1.6 THP SW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1397 | 1397 | 1598 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 70/6000 | 72/6000 | 88/6000 | 88/6000 | 88/6000 | 110/5800 |
| Maximum torque [Nm/min-1] | 136/4000 | 136/4000 | 160/4250 | 160/4250 | 160/4250 | 240/1400 |
| Bore and stroke [mm x mm] | 77,0 x 75,0 | 77,0 x 75,0 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 4 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 178 | 182 | 188 | 188 | 182 | 209 |
| Acceleration 0–100 km/h [s] | 13.4 | 13.4 | 11.5 | 12.0 | 14.0 | 9.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.3 | 8.6 | 9.1-9.4 | 9.3-9.8 | 10.4-10.7 | 10.6 |
| Out of town [l] | 5.3 | 5.3 | 4.9-5.3 | 5.5-5.6 | 5.9-6.1 | 5.8 |
| Combined [l] | 6.7 | 6.5 | 6.4-6.7 | 6.9-7.1 | 7.5-7.7 | 7.5 |
| CO2 emissions [g/km] | 159 | 149 | 147-160 | 159-169 | 173-182 | 177 |
| Emission standard | EU4 | EU5 | EU4-EU5 | EU4-EU5 | EU4-EU5 | EU4 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1426 | 1395 | 1395 | 1481 | 1505 | 1561 |
| Overall weight [kg] | 1920 | 1920 | 1922 | 2100 | 2130 | 2130 |
| Maximum trailer weight unbraked/braked [kg] | 710/1350 | 695/1100 | 695/1500 | 740/1400 | 750/1100 | 750/1650 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 674 | 674 | 674 | 674 | 674 | 674 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2149 | -/2149 | -/2149 | -/2149 | -/2149 | -/2149 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 H | 195/65 R15 H | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V |
| Tyre dimensions rear | 195/65 R15 H | 195/65 R15 H | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4500 | 4500 | 4500 | 4500 | 4500 | 4500 |
| Overall width without/including mirrors [mm] | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- |
| Overall height [mm] | 1566 | 1566 | 1566 | 1566 | 1566 | 1566 |
| Wheelbase [mm] | 2708 | 2708 | 2708 | 2708 | 2708 | 2708 |
| Front wheel track [mm] | 1526 | 1526 | 1526 | 1526 | 1526 | 1526 |
| Rear wheel track [mm] | 1521 | 1521 | 1521 | 1521 | 1521 | 1521 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 THP SW | 1.6 THP SW | 1.6 HDI Break | 1.6 HDI SW | 1.6 HDI Break | 1.6 HDI SW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1598 | 1598 | 1560 | 1560 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 115/6000 | 128/6000 | 66/4000 | 66/4000 | 68/4000 | 68/4000 |
| Maximum torque [Nm/min-1] | 240/1400 | 240/1600 | 215/1750 | 215/1750 | 215/1750 | 215/1750 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 211 | 215 | 174 | 174 | 176 | 176 |
| Acceleration 0–100 km/h [s] | 9.5 | 9.0 | 13.3 | 14.0 | 13.3 | 13.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.9 | 10.9 | 6.0 | 5.9 | 5.7 | 5.7 |
| Out of town [l] | 5.6 | 6.0 | 4.0 | 4.0 | 4.1 | 4.1 |
| Combined [l] | 7.1 | 7.8 | 4.7 | 4.7 | 4.7 | 4.7 |
| CO2 emissions [g/km] | 165 | 185 | 125 | 125 | 123 | 123 |
| Emission standard | EU5 | EU4 | EU4 | EU4 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1556 | 1599 | 1453 | 1542 | 1464 | 1576 |
| Overall weight [kg] | 2130 | 2130 | 1948 | 2100 | 1948 | 2100 |
| Maximum trailer weight unbraked/braked [kg] | 750/1400 | - | 725/1500 | 750/1400 | 725/1300 | 750/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 674 | 674 | 674 | 674 | 674 | 674 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2149 | -/2149 | -/2149 | -/2149 | -/2149 | -/2149 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 V | 225/45 R17 W | 195/65 R15 H | 195/65 R15 H | 195/65 R15 H | 195/65 R15 H |
| Tyre dimensions rear | 205/55 R16 V | 225/45 R17 W | 195/65 R15 H | 195/65 R15 H | 195/65 R15 H | 195/65 R15 H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4500 | 4500 | 4500 | 4500 | 4500 | 4500 |
| Overall width without/including mirrors [mm] | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- |
| Overall height [mm] | 1566 | 1566 | 1566 | 1566 | 1566 | 1566 |
| Wheelbase [mm] | 2708 | 2708 | 2708 | 2708 | 2708 | 2708 |
| Front wheel track [mm] | 1526 | 1526 | 1526 | 1526 | 1526 | 1526 |
| Rear wheel track [mm] | 1521 | 1521 | 1521 | 1521 | 1521 | 1521 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 HDI Break | 1.6 HDI SW | 1.6 HDI Break | 1.6 HDI SW | 2.0 HDI SW | 2.0 HDI SW | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1560 | 1560 | 1560 | 1560 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 80/4000 | 80/4000 | 82/3600 | 82/3600 | 100/4000 | 103/4000 |
| Maximum torque [Nm/min-1] | 240/1750 | 240/1750 | 270/1750 | 270/1750 | 320/2000 | 320/2000 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - | - | - | - |
| Top speed [km/h] | 185 | 185 | 187 | 187 | 201 | 201 |
| Acceleration 0–100 km/h [s] | 11.9 | 12.5 | 11.9 | 12.5 | 11.1 | 11.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.2 | 6.8 | 6.1 | 6.7 | 7.6 | 7.8 |
| Out of town [l] | 4.0 | 4.4 | 4.0 | 4.7 | 4.9 | 4.8 |
| Combined [l] | 4.8 | 5.3 | 4.8 | 5.4 | 5.9 | 5.9 |
| CO2 emissions [g/km] | 125 | 139 | 124 | 139 | 155 | 155 |
| Emission standard | EU4 | EU4 | EU5 | EU5 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1482 | 1570 | 1485 | 1601 | 1650 | 1677 |
| Overall weight [kg] | 1967 | 2150 | 1970 | 2150 | 2215 | 2215 |
| Maximum trailer weight unbraked/braked [kg] | 740/1500 | 750/1400 | 740/1400 | 750/1250 | 750/1650 | 750/1650 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 674 | 674 | 674 | 674 | 674 | 674 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2149 | -/2149 | -/2149 | -/2149 | -/2149 | -/2149 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 215/55 R16 V | 215/55 R16 V |
| Tyre dimensions rear | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 205/55 R16 V | 215/55 R16 V | 215/55 R16 V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4500 | 4500 | 4500 | 4500 | 4500 | 4500 |
| Overall width without/including mirrors [mm] | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- | 1815/- |
| Overall height [mm] | 1566 | 1566 | 1566 | 1566 | 1566 | 1566 |
| Wheelbase [mm] | 2708 | 2708 | 2708 | 2708 | 2708 | 2708 |
| Front wheel track [mm] | 1526 | 1526 | 1526 | 1526 | 1526 | 1526 |
| Rear wheel track [mm] | 1521 | 1521 | 1521 | 1521 | 1521 | 1521 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Convertible (CC)
| 1.6 16V VTi | 1.6 16V THP | 1.6 16V THP | 1.6 THP | 1.6 HDI | 2.0 HDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1560 | 1997 |
| Maximum output / speed [kW/min-1] | 88/6000 | 115/6000 | 115/6000 | 147/5800 | 82/3600 | 103/4000 |
| Maximum torque [Nm/min-1] | 160/4250 | 240/1400 | 240/1400 | 275/1700 | 270/1750 | 320/2000 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 75,0 x 88,3 | 85,0 x 88,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - | - |
| - | - | - |
| Top speed [km/h] | 197 | 215 | 212 | 237 | 192 | 208 |
| Acceleration 0–100 km/h [s] | 12.5 | 9.6 | 9.8 | 8.3 | 12.2 | 10.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.5 | 10.0 | 10.7 | 9.3 | 6.6 | 7.8 |
| Out of town [l] | 5.7 | 5.5 | 5.8 | 5.6 | 4.6 | 4.8 |
| Combined [l] | 7.1 | 7.2 | 7.7 | 7.0 | 5.3 | 5.9 |
| CO2 emissions [g/km] | 164 | 167 | 179 | 162 | 138 | 155 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1555 | 1590 | 1605 | 1655 | 1600 | 1674 |
| Overall weight [kg] | 1885 | 1940 | 1970 | 1984 | 1925 | 2020 |
| Maximum trailer weight unbraked/braked [kg] | 750/1200 | 750/1400 | 750/1270 | 750/800 | 750/1200 | 750/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 266-465 | 266-465 | 266-465 | 266-465 | 266-465 | 266-465 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/55 R16 V | 225/45 R17 W | 225/45 R17 W | 225/40 R18 W | 215/55 R16 V | 215/55 R16 V |
| Tyre dimensions rear | 215/55 R16 V | 225/45 R17 W | 225/45 R17 W | 225/40 R18 W | 215/55 R16 V | 215/55 R16 V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | - | - | - |
| Overall length [mm] | 4440 | 4440 | 4440 | 4440 | 4440 | 4440 |
| Overall width without/including mirrors [mm] | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- | 1817/- |
| Overall height [mm] | 1427 | 1427 | 1427 | 1427 | 1427 | 1427 |
| Wheelbase [mm] | 2608 | 2608 | 2608 | 2608 | 2608 | 2608 |
| Front wheel track [mm] | 1526 | 1526 | 1526 | 1526 | 1526 | 1526 |
| Rear wheel track [mm] | 1521 | 1521 | 1521 | 1521 | 1521 | 1521 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
