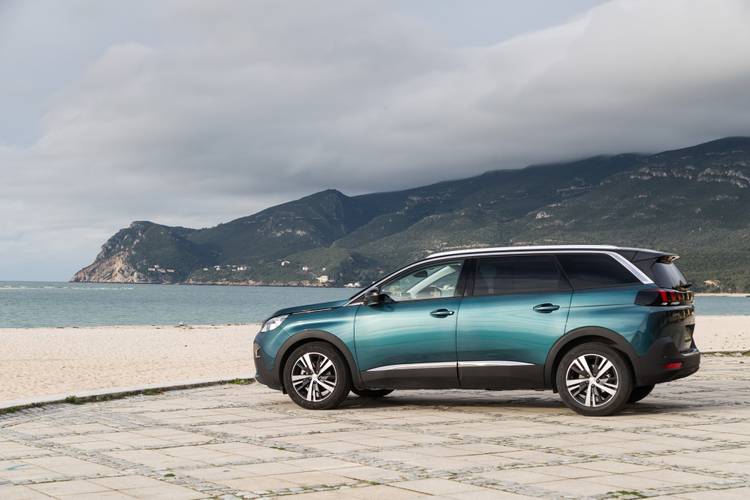

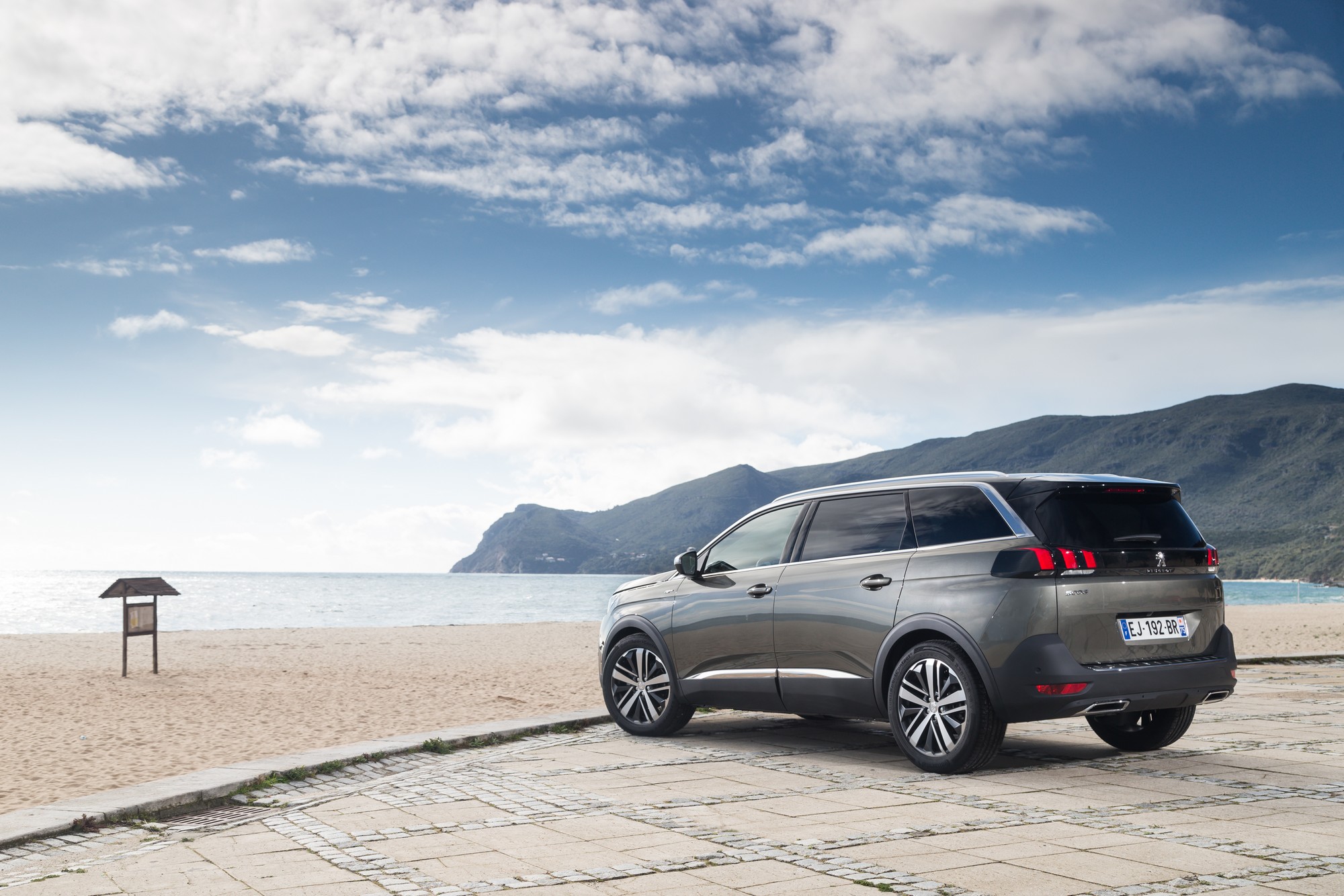

Peugeot 5008
Date of manufacture
1/2017 – 2020 (SUV)
Platform
PSA EMP2
Manufacturing locations
Rennes, France
Chengdu, People's Republic of China
Designer
Sandeep Bhambra
Tags
Compact SUV
French cars
The Peugeot 5008 is an SUV that has been manufactured in France and China since 2017. The vehicle is based on the PSA EMP2 platform and offers petrol and diesel engines. The most powerful model is the 2.0 BlueHDi with 133 kW, the fastest version 1.6 PureTech 180 reaches a speed of 218 km/h. The most economical model is the 1.5 BlueHDi 130 with 3.8 l/100 km and CO2 emissions of 101 g/km. The trunk size is 702 liters. The Peugeot 5008 has been tested in the EURONCAP safety area and has achieved a rating of 5 out of 5 points.
Car body style
SUV
Date of manufacture
1/2017 – 2020Internal designation
T87
Technical data
SUV
| 1.2 PureTech 130 | 1.2 PureTech | 1.2 PureTech 130 | 1.6 THP | 1.6 THP | 1.6 PureTech 180 | |
|---|---|---|---|---|---|---|
| Date of sale | - | from to 2018 | from 2018 to | from to 2018 | from to 2018 | from 2018 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1199 | 1199 | 1199 | 1598 | 1598 | 1598 |
| Maximum output / speed [kW/min-1] | 96/5500 | 96/5500 | 96/5500 | 121/6000 | 121/6000 | 133/5500 |
| Maximum torque [Nm/min-1] | 230/1750 | 230/1750 | 230/1750 | 240/1400 | 240/1400 | 250/1650 |
| Bore and stroke [mm x mm] | 75,0 x 90,5 | 75,0 x 90,5 | 75,0 x 90,5 | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 8 gear automatic | 6 gear automatic | 6 gear automatic | 8 gear automatic |
| Drive specifications | - |
|
|
|
|
|
| Top speed [km/h] | 188 | 188 | 196 | 201 | 206 | 218 |
| Acceleration 0–100 km/h [s] | 9,9-10,9 | 10.4 | 10,2 | 9.2 | 9.2 | 8,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6,2-6,9 | 6.7-6.9 | 5,8-6,0 | 9.8-10.1 | 7.5-7.8 | 7,2 |
| Out of town [l] | 4,5-4,8 | 4.7-5.1 | 4,6-4,8 | 5.3-5.7 | 5.0-5.3 | 4,9 |
| Combined [l] | 5,2-5,5 | 5.5-5.7 | 5,0-5,2 | 7.0-7.3 | 5.8-6.1 | 5,7 |
| CO2 emissions [g/km] | 117-1215 | 122-129 | 115-119 | 156-165 | 133-140 | 131 |
| Emission standard | EU6 - Euro 6d | EU6 | Euro 6d-TEMP - Euro 6d | EU6 | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1385-1679 | 1392-1644 | 1505-1676 | 1500 | 1440-1681 | 1505-1709 |
| Overall weight [kg] | 2120-2130 | 2130 | 2160 | 2160 | 2160 | 2180 |
| Maximum trailer weight unbraked/braked [kg] | 690/1200-1280 | 690/1000 | 750/950 | 600/600 | 720/1350 | 750/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 72 | 72 | 72 | 72 | 72 | 72 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 702 | 702 | 702 | 702 | 702 | 702 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1940 | -/1940 | -/1940 | -/1940 | -/1940 | -/1940 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 345 | 1153 | 345 | 1153 | 1153 | 1153 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1172/- | 1172/- | 1172/- | 1172/- | 1172/- | 1172/- |
| Boot height to headliner/ceiling [mm] | 553/931 | 553/931 | 553/931 | 553/931 | 553/931 | 553/931 |
| Loading edge height [mm] | 676 | 676 | 676 | 676 | 676 | 676 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 2048 | 2048 | 2048 | 2048 | 2048 | 2048 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 56 | 56 | 56 | 56 | 56 | 56 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 225/55 R18 92V |
| Tyre dimensions rear | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 225/55 R18 92V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- |
| Overall length [mm] | 4641 | 4641 | 4641 | 4641 | 4641 | 4641 |
| Overall width without/including mirrors [mm] | 1844/2098 | 1844/2098 | 1844/2098 | 1844/2098 | 1844/2098 | 1844/2098 |
| Overall height [mm] | 1640 | 1640 | 1640 | 1640 | 1640 | 1640 |
| Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
| Front wheel track [mm] | 1593 | 1593 | 1593 | 1593 | 1593 | 1593 |
| Rear wheel track [mm] | 1601 | 1601 | 1601 | 1601 | 1601 | 1601 |
| Forward overhang [mm] | 926 | 926 | 926 | 926 | 926 | 926 |
| Rear overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Clearance [mm] | 236 | 236 | 236 | 236 | 236 | 236 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 19 | 19 | 19 | 19 | 19 | 19 |
| Approach angle rear [°] | 28 | 28 | 28 | 28 | 28 | 28 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 915 | 915 | 915 | 915 | 915 | 915 |
| Headroom rear [mm] | 889 | 889 | 889 | 889 | 889 | 889 |
| Front elbow/shoulder width [mm] | 1487/1453 | 1487/1453 | 1487/1453 | 1487/1453 | 1487/1453 | 1487/1453 |
| Rear elbow/shoulder width [mm] | 1505/1432 | 1505/1432 | 1505/1432 | 1505/1432 | 1505/1432 | 1505/1432 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 820 | 820 | 820 | 820 | 820 | 820 |
| Third row elbow/shoulder width [mm] | 1264/1198 | 1264/1198 | 1264/1198 | 1264/1198 | 1264/1198 | 1264/1198 |
| 1.6 BlueHDi | 1.6 BlueHDi | 1.5 BlueHDi 130 | 1.5 BlueHDi 130 | 2.0 BlueHDi | 2.0 BlueHDi 180 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | - | from 2018 to | from to 2018 | from 2018 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1560 | 1560 | 1499 | 1499 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 88/3500 | 88/3500 | 96/3750 | 96/3750 | 110/4000 | 130/3750 |
| Maximum torque [Nm/min-1] | 300/1750 | 300/1750 | 300/1750 | 300/1750 | 370/2000 | 400/2000 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 75,0 x 88,3 | 75 x 84,8 | 75 x 84,8 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | 17,0:1 | 17,0:1 | 16.5:1 | 16.5:1 | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 8 gear automatic | 6 gear manual | 8 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 182 | 185 | 191 | 190 | 207 | 208 |
| Acceleration 0–100 km/h [s] | 11.4 | 11.9 | 11.1 | 11,8 | 10.8 | 9,2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.5-4.8 | 4.9-5.1 | 4,4-4,8 | 4,1-4,5 | 5.3-5.6 | 5,3 |
| Out of town [l] | 3.9-4.2 | 4.0-4.2 | 3,6-3,9 | 3.7-3,9 | 4.2-4.4 | 4,7 |
| Combined [l] | 4.2-4.4 | 4.3-4.6 | 3.9-4,3 | 3.8-4,1 | 4.6-4.8 | 4,9 |
| CO2 emissions [g/km] | 108-115 | 112-118 | 102-111 | 101-109 | 118-128 | 129 |
| Emission standard | EU6 | EU6 | EU6 - Euro 6d | Euro 6d-TEMP - Euro 6d | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1440 | 1455-1722 | 1505-1772 | 1505-1737 | 1565-1747 | 1615-1782 |
| Overall weight [kg] | 2190 | 2200 | 2190 | 2210 | 2230 | 2280 |
| Maximum trailer weight unbraked/braked [kg] | 720/1300 | 720/1100 | 750/1300 | 750/1200 | 750/1800 | 750/1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 72 | 72 | 72 | 72 | 72 | 72 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 702 | 702 | 702 | 702 | 702 | 702 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1940 | -/1940 | -/1940 | -/1940 | -/1940 | -/1940 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1153 | 1153 | 1153 | 1153 | 1153 | 1153 |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | 1172/- | 1172/- | 1172/- | 1172/- | 1172/- | 1172/- |
| Boot height to headliner/ceiling [mm] | 553/931 | 553/931 | 553/931 | 553/931 | 553/931 | 553/931 |
| Loading edge height [mm] | 676 | 676 | 676 | 676 | 676 | 676 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 2048 | 2048 | 2048 | 2048 | 2048 | 2048 |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 56 | 56 | 56 | 56 | 56 | 56 |
| AdBlue tank volume [l] | 17 | 17 | 17 | 17 | 17 | 17 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 225/55 R18 91V |
| Tyre dimensions rear | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 215/65 R17 90H | 225/55 R18 91V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- |
| Overall length [mm] | 4641 | 4641 | 4641 | 4641 | 4641 | 4641 |
| Overall width without/including mirrors [mm] | 1844/2098 | 1844/2098 | 1844/2098 | 1844/2098 | 1844/2098 | 1844/2098 |
| Overall height [mm] | 1640 | 1640 | 1640 | 1640 | 1640 | 1640 |
| Wheelbase [mm] | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
| Front wheel track [mm] | 1593 | 1593 | 1593 | 1593 | 1593 | 1593 |
| Rear wheel track [mm] | 1601 | 1601 | 1601 | 1601 | 1601 | 1601 |
| Forward overhang [mm] | 926 | 926 | 926 | 926 | 926 | 926 |
| Rear overhang [mm] | 875 | 875 | 875 | 875 | 875 | 875 |
| Clearance [mm] | 236 | 236 | 236 | 236 | 236 | 236 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 19 | 19 | 19 | 19 | 19 | 19 |
| Approach angle rear [°] | 28 | 28 | 28 | 28 | 28 | 28 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 915 | 915 | 915 | 915 | 915 | 915 |
| Headroom rear [mm] | 889 | 889 | 889 | 889 | 889 | 889 |
| Front elbow/shoulder width [mm] | 1487/1453 | 1487/1453 | 1487/1453 | 1487/1453 | 1487/1453 | 1487/1453 |
| Rear elbow/shoulder width [mm] | 1505/1432 | 1505/1432 | 1505/1432 | 1505/1432 | 1505/1432 | 1505/1432 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 820 | 820 | 820 | 820 | 820 | 820 |
| Third row elbow/shoulder width [mm] | 1264/1198 | 1264/1198 | 1264/1198 | 1264/1198 | 1264/1198 | 1264/1198 |
| 2.0 BlueHDi | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 1997 | |||||
| Maximum output / speed [kW/min-1] | 133/3750 | |||||
| Maximum torque [Nm/min-1] | 400/2000 | |||||
| Bore and stroke [mm x mm] | 85,0 x 88,0 | |||||
| Compression ratio | - | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 208 | |||||
| Acceleration 0–100 km/h [s] | 9.1 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 5.5 | |||||
| Out of town [l] | 4.4 | |||||
| Combined [l] | 4.8 | |||||
| CO2 emissions [g/km] | 124 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1605-1797 | |||||
| Overall weight [kg] | 2280 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1500 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | 72 | |||||
| Maximum load on roof/carrier [kg] | 80/- | |||||
| Boot volume [l] | 702 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1940 | |||||
| Boot volume, third row of seats [l] | - | |||||
| Boot volume, third row seats folded [l] | - | |||||
| Boot length [mm] | 1153 | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | 1172/- | |||||
| Boot height to headliner/ceiling [mm] | 553/931 | |||||
| Loading edge height [mm] | 676 | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | 2048 | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 5-7 | |||||
| Fuel tank volume [l] | 56 | |||||
| AdBlue tank volume [l] | 17 | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | twist beam axle with trailing arms | |||||
| Tyre dimensions front | 235/50 R19 91V | |||||
| Tyre dimensions rear | 235/50 R19 91V | |||||
| Wheel size front | - | |||||
| Wheel size rear | - | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.2/- | |||||
| Overall length [mm] | 4641 | |||||
| Overall width without/including mirrors [mm] | 1844/2098 | |||||
| Overall height [mm] | 1640 | |||||
| Wheelbase [mm] | 2840 | |||||
| Front wheel track [mm] | 1593 | |||||
| Rear wheel track [mm] | 1601 | |||||
| Forward overhang [mm] | 926 | |||||
| Rear overhang [mm] | 875 | |||||
| Clearance [mm] | 236 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 19 | |||||
| Approach angle rear [°] | 28 | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 915 | |||||
| Headroom rear [mm] | 889 | |||||
| Front elbow/shoulder width [mm] | 1487/1453 | |||||
| Rear elbow/shoulder width [mm] | 1505/1432 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - | |||||
| Third row of seats, headroom [mm] | 820 | |||||
| Third row elbow/shoulder width [mm] | 1264/1198 |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
