Peugeot 508
Date of manufacture
7/2014 – 2018 (Sedan)
7/2014 – 2018 (Estate)
Platform
PSA PF3
Manufacturing locations
Rennes, France
Wuhan, People's Republic of China
Designer
-
Tags
D-segment
French cars
The Peugeot 508 is a modern car that has been manufactured in France and China since 2014. It is built on the PSA PF3 platform and offers a wide range of engines - from petrol to hybrid. The most powerful engine is the 2.2 HDI with 150 kW of power and a maximum speed of 234 km/h. The most economical version, the 1.6 BlueHDI, has a fuel consumption of 3.8 l/100 km and emissions of 100 g/km. The car also boasts luggage compartment sizes of 550 l (for the estate) and 515 l (for the saloon). In 2011, it underwent EURONCAP safety tests, where it achieved a rating of 5 out of 5.
Car body style
Sedan
after upgrade (facelift)
Date of manufacture
7/2014 – 2018Internal designation
Estate (SW)
after upgrade (facelift)
Date of manufacture
7/2014 – 2018Internal designation
Engine size
Technical data
Sedan
| 1.6 VTi | 1.6 THP | 1.6 THP | 1.6 e-HDI | 1.6 e-HDI | 1.6 BlueHDI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2016 | from to 2016 | from to 2016 | from to 2016 | from to 2016 | from to 2016 |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1560 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 88/6000 | 121/6000 | 121/6000 | 84/3600 | 84/3600 | 88/3500 |
| Maximum torque [Nm/min-1] | 160/4250 | 240/1400 | 240/1400 | 270/1750 | 270/1750 | 300/1750 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear robotic manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear robotic manual | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 203 | 210 | 210 | 200 | 200 | 202 |
| Acceleration 0–100 km/h [s] | 11.5 | 8.6 | 8.9 | 11.3 | 11.9 | 11.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7 | 7.7 | 7.5 | 5.1 | 4.6 | 4.6 |
| Out of town [l] | 4.6 | 4.7 | 4.8 | 3.7 | 3.7 | 3.3 |
| Combined [l] | 5.8 | 5.8 | 5.8 | 4.2 | 4.0 | 3.8 |
| CO2 emissions [g/km] | 134 | 134 | 134 | 111 | 104 | 99 |
| Emission standard | EU5 | EU6 | EU6 | EU5 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1560 | 1580 | 1580 | 1560 | 1560 | 1485 |
| Overall weight [kg] | 2005 | 1995 | 1995 | 2005 | 2005 | 2025 |
| Maximum trailer weight unbraked/braked [kg] | 740/1475 | 735/1875 | 735/1875 | 740/1475 | 740/1475 | 740/1475 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |

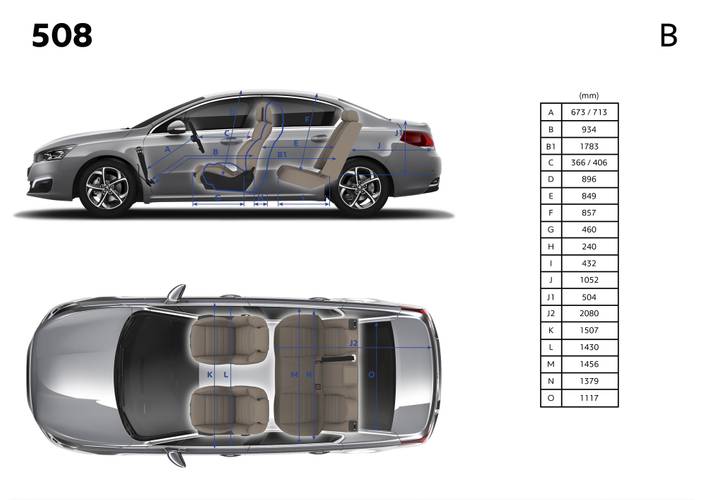

| Boot volume [l] | 515 | 515 | 515 | 515 | 515 | 515 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 958/- | 958/- | 958/- | 958/- | 958/- | 958/- |
| Boot length [mm] | 1052 | 1052 | 1052 | 1052 | 1052 | 1052 |
| Boot length with rear seats folded [mm] | 2080 | 2080 | 2080 | 2080 | 2080 | 2080 |
| Boot width between wheels/max [mm] | -/1117 | -/1117 | -/1117 | -/1117 | -/1117 | -/1117 |
| Boot height to headliner/ceiling [mm] | -/504 | -/504 | -/504 | -/504 | -/504 | -/504 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 72 | 72 | 72 | 72 | 72 | 72 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H |
| Tyre dimensions rear | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 4830 | 4830 | 4830 | 4830 | 4830 | 4830 |
| Overall width without/including mirrors [mm] | 1828/2068 | 1828/2068 | 1828/2068 | 1828/2068 | 1828/2068 | 1828/2068 |
| Overall height [mm] | 1456 | 1456 | 1456 | 1456 | 1456 | 1456 |
| Wheelbase [mm] | 2817 | 2817 | 2817 | 2817 | 2817 | 2817 |
| Front wheel track [mm] | 1579 | 1579 | 1579 | 1579 | 1579 | 1579 |
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Forward overhang [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Rear overhang [mm] | 1012 | 1012 | 1012 | 1012 | 1012 | 1012 |
| Clearance [mm] | 146 | 146 | 146 | 146 | 146 | 146 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 896 | 896 | 896 | 896 | 896 | 896 |
| Headroom rear [mm] | 857 | 857 | 857 | 857 | 857 | 857 |
| Front elbow/shoulder width [mm] | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 |
| Rear elbow/shoulder width [mm] | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 BlueHDI | 2.0 HDI | 2.0 BlueHDI | 2.0 HDI | 2.0 HDI | 2.0 BlueHDI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2016 | from to 2016 | - | from to 2016 | from to 2016 | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1560 | 1997 | 1997 | 1997 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 88/3500 | 103/4000 | 110/4000 | 120/3750 | 120/3750 | 133/3750 |
| Maximum torque [Nm/min-1] | 300/1750 | 320/2000 | 370/2000 | 340/2000 | 340/2000 | 400/2000 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
| - | - | - |
|
|
| Top speed [km/h] | 201 | 210 | 210 | 226 | 225 | 230 |
| Acceleration 0–100 km/h [s] | 11.0 | 9.8 | 8.9 | 8.6 | 9.2 | 8.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.5 | 6.7 | 4.9 | 6.7 | 7.2 | 5.0 |
| Out of town [l] | 3.6 | 3.9 | 3.8 | 3.9 | 4.3 | 3.8 |
| Combined [l] | 3.9 | 4.9 | 4.2 | 4.9 | 5.4 | 4.2 |
| CO2 emissions [g/km] | 102 | 129 | 109 | 129 | 140 | 110 |
| Emission standard | EU6 | EU5 | EU6 | EU5 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1500 | 1630 | 1670 | 1630 | 1675 | 1720 |
| Overall weight [kg] | 2045 | 2075 | 2125 | 2075 | 2105 | 2165 |
| Maximum trailer weight unbraked/braked [kg] | 740/1175 | 750/1875 | 750/1875 | 750/1875 | 750/1375 | 750/1575 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 515 | 515 | 515 | 515 | 515 | 515 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 958/- | 958/- | 958/- | 958/- | 958/- | 958/- |
| Boot length [mm] | 1052 | 1052 | 1052 | 1052 | 1052 | 1052 |
| Boot length with rear seats folded [mm] | 2080 | 2080 | 2080 | 2080 | 2080 | 2080 |
| Boot width between wheels/max [mm] | -/1117 | -/1117 | -/1117 | -/1117 | -/1117 | -/1117 |
| Boot height to headliner/ceiling [mm] | -/504 | -/504 | -/504 | -/504 | -/504 | -/504 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 72 | 72 | 72 | 72 | 72 | 72 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 V | 215/60 R16 V | 215/55 R17 V |
| Tyre dimensions rear | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 V | 215/60 R16 V | 215/55 R17 V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 4830 | 4830 | 4830 | 4830 | 4830 | 4830 |
| Overall width without/including mirrors [mm] | 1828/2068 | 1828/2068 | 1828/2068 | 1828/2068 | 1828/2068 | 1828/2068 |
| Overall height [mm] | 1456 | 1456 | 1456 | 1456 | 1456 | 1456 |
| Wheelbase [mm] | 2817 | 2817 | 2817 | 2817 | 2817 | 2817 |
| Front wheel track [mm] | 1579 | 1579 | 1579 | 1579 | 1579 | 1579 |
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Forward overhang [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Rear overhang [mm] | 1012 | 1012 | 1012 | 1012 | 1012 | 1012 |
| Clearance [mm] | 146 | 146 | 146 | 146 | 146 | 146 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 896 | 896 | 896 | 896 | 896 | 896 |
| Headroom rear [mm] | 857 | 857 | 857 | 857 | 857 | 857 |
| Front elbow/shoulder width [mm] | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 |
| Rear elbow/shoulder width [mm] | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.2 HDI | ||||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/16 | |||||
| Engine displacement [cm³] | 2179 | |||||
| Maximum output / speed [kW/min-1] | 150/3500 | |||||
| Maximum torque [Nm/min-1] | 450/2750 | |||||
| Bore and stroke [mm x mm] | 85,0 x 96,0 | |||||
| Compression ratio | - | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 234 | |||||
| Acceleration 0–100 km/h [s] | 8.2 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 7.0 | |||||
| Out of town [l] | 4.4 | |||||
| Combined [l] | 5.3 | |||||
| CO2 emissions [g/km] | 140 | |||||
| Emission standard | EU5 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1736 | |||||
| Overall weight [kg] | 2155 | |||||
| Maximum trailer weight unbraked/braked [kg] | 750/1975 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 515 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 958/- | |||||
| Boot length [mm] | 1052 | |||||
| Boot length with rear seats folded [mm] | 2080 | |||||
| Boot width between wheels/max [mm] | -/1117 | |||||
| Boot height to headliner/ceiling [mm] | -/504 | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 4 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 72 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | double wishbone | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 235/45 R18 W | |||||
| Tyre dimensions rear | 235/45 R18 W | |||||
| Wheel size front | - | |||||
| Wheel size rear | - | |||||
| Brake dimensions front | - | |||||
| Brake dimensions rear | - | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | - | |||||
| Overall length [mm] | 4830 | |||||
| Overall width without/including mirrors [mm] | 1828/2068 | |||||
| Overall height [mm] | 1456 | |||||
| Wheelbase [mm] | 2815 | |||||
| Front wheel track [mm] | - | |||||
| Rear wheel track [mm] | - | |||||
| Forward overhang [mm] | 1001 | |||||
| Rear overhang [mm] | 1012 | |||||
| Clearance [mm] | 146 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 896 | |||||
| Headroom rear [mm] | 857 | |||||
| Front elbow/shoulder width [mm] | 1507/1430 | |||||
| Rear elbow/shoulder width [mm] | 1456/1379 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Estate (SW)
| 1.6 VTi | 1.6 THP | 1.6 THP | 1.6 e-HDI | 1.6 e-HDI | 1.6 BlueHDI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 | from to 2018 |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1560 | 1560 | 1560 |
| Maximum output / speed [kW/min-1] | 88/6000 | 121/6000 | 121/6000 | 84/3600 | 84/3600 | 88/3500 |
| Maximum torque [Nm/min-1] | 160/4250 | 240/1400 | 240/1400 | 270/1750 | 270/1750 | 300/1750 |
| Bore and stroke [mm x mm] | 77,0 x 85,8 | 77,0 x 85,8 | 77,0 x 85,8 | 75,0 x 88,3 | 75,0 x 88,3 | 75,0 x 88,3 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear robotic manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear robotic manual | 6 gear manual |
| Drive specifications |
| - |
| - |
| - |
| Top speed [km/h] | 200 | 210 | 210 | 197 | 194 | 199 |
| Acceleration 0–100 km/h [s] | 11.8 | 8.8 | 9.1 | 11.6 | 12.3 | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.7 | 7.8 | 7.4 | 5.2 | 4.6 | 4.8 |
| Out of town [l] | 4.7 | 4.8 | 4.9 | 3.8 | 3.7 | 3.4 |
| Combined [l] | 5.8 | 5.8 | 5.8 | 4.3 | 4.0 | 3.8 |
| CO2 emissions [g/km] | 135 | 135 | 135 | 112 | 105 | 100 |
| Emission standard | EU5 | EU6 | EU6 | EU5 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1545 | 1615 | 1630 | 1609 | 1609 | 1505 |
| Overall weight [kg] | 2055 | 2080 | 2100 | 2100 | 2100 | 2120 |
| Maximum trailer weight unbraked/braked [kg] | 740/1575 | 745/1775 | 750/1775 | 750/1375 | 750/1375 | 750/1375 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 550 | 550 | 550 | 550 | 550 | 550 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1118/1598 | 1118/1598 | 1118/1598 | 1118/1598 | 1118/1598 | 1118/1598 |
| Boot length [mm] | 1060 | 1060 | 1060 | 1060 | 1060 | 1060 |
| Boot length with rear seats folded [mm] | 2120 | 2120 | 2120 | 2120 | 2120 | 2120 |
| Boot width between wheels/max [mm] | -/1115 | -/1115 | -/1115 | -/1115 | -/1115 | -/1115 |
| Boot height to headliner/ceiling [mm] | -/886 | -/886 | -/886 | -/886 | -/886 | -/886 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 72 | 72 | 72 | 72 | 72 | 72 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H |
| Tyre dimensions rear | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 4829 | 4829 | 4829 | 4829 | 4829 | 4829 |
| Overall width without/including mirrors [mm] | 1828/2068 | 1828/2068 | 1828/2068 | 1828/2068 | 1828/2068 | 1828/2068 |
| Overall height [mm] | 1476 | 1476 | 1476 | 1476 | 1476 | 1476 |
| Wheelbase [mm] | 2817 | 2817 | 2817 | 2817 | 2817 | 2817 |
| Front wheel track [mm] | 1579 | 1579 | 1579 | 1579 | 1579 | 1579 |
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Forward overhang [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Rear overhang [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Clearance [mm] | 148 | 148 | 148 | 148 | 148 | 148 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Front elbow/shoulder width [mm] | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 |
| Rear elbow/shoulder width [mm] | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.6 BlueHDI | 2.0 HDI | 2.0 BlueHDI | 2.0 HDI | 2.0 HDI | 2.0 BlueHDI | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | - | from to 2018 | from to 2018 | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1560 | 1997 | 1997 | 1997 | 1997 | 1997 |
| Maximum output / speed [kW/min-1] | 88/3500 | 103/4000 | 110/4000 | 120/3750 | 120/3750 | 133/3750 |
| Maximum torque [Nm/min-1] | 300/1750 | 320/2000 | 370/2000 | 340/2000 | 340/2000 | 400/2000 |
| Bore and stroke [mm x mm] | 75,0 x 88,3 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 |
| Compression ratio | - | - | - | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
| - | - | - |
|
|
| Top speed [km/h] | 198 | 210 | 210 | 222 | 223 | 226 |
| Acceleration 0–100 km/h [s] | 11.2 | 10.1 | 9.1 | 9.5 | 9.5 | 8.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 4.7 | 6.7 | 5.0 | 6.7 | 7.3 | 5.1 |
| Out of town [l] | 3.8 | 4.0 | 3.8 | 4.0 | 4.5 | 4.0 |
| Combined [l] | 4.2 | 5.0 | 4.2 | 5.0 | 5.5 | 4.4 |
| CO2 emissions [g/km] | 108 | 130 | 110 | 130 | 144 | 114 |
| Emission standard | EU6 | EU5 | EU6 | EU5 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1520 | 1681 | 1705 | 1681 | 1710 | 1760 |
| Overall weight [kg] | 2140 | 2140 | 2200 | 2140 | 2180 | 2240 |
| Maximum trailer weight unbraked/braked [kg] | 750/1075 | 750/1775 | 750/1775 | 750/1775 | 750/1475 | 750/1475 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 550 | 550 | 550 | 550 | 550 | 550 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1118/1598 | 1118/1598 | 1118/1598 | 1118/1598 | 1118/1598 | 1118/1598 |
| Boot length [mm] | 1060 | 1060 | 1060 | 1060 | 1060 | 1060 |
| Boot length with rear seats folded [mm] | 2120 | 2120 | 2120 | 2120 | 2120 | 2120 |
| Boot width between wheels/max [mm] | -/1115 | -/1115 | -/1115 | -/1115 | -/1115 | -/1115 |
| Boot height to headliner/ceiling [mm] | -/886 | -/886 | -/886 | -/886 | -/886 | -/886 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 72 | 72 | 72 | 72 | 72 | 72 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 V | 215/60 R16 V | 215/55 R17 V |
| Tyre dimensions rear | 215/60 R16 H | 215/60 R16 H | 215/60 R16 H | 215/60 R16 V | 215/60 R16 V | 215/55 R17 V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 4829 | 4829 | 4829 | 4829 | 4829 | 4829 |
| Overall width without/including mirrors [mm] | 1828/2068 | 1828/2068 | 1828/2068 | 1828/2068 | 1828/2068 | 1828/2068 |
| Overall height [mm] | 1476 | 1476 | 1476 | 1476 | 1476 | 1476 |
| Wheelbase [mm] | 2817 | 2817 | 2817 | 2817 | 2817 | 2817 |
| Front wheel track [mm] | 1579 | 1579 | 1579 | 1579 | 1579 | 1579 |
| Rear wheel track [mm] | 1552 | 1552 | 1552 | 1552 | 1552 | 1552 |
| Forward overhang [mm] | 1001 | 1001 | 1001 | 1001 | 1001 | 1001 |
| Rear overhang [mm] | 1011 | 1011 | 1011 | 1011 | 1011 | 1011 |
| Clearance [mm] | 148 | 148 | 148 | 148 | 148 | 148 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 916 | 916 | 916 | 916 | 916 | 916 |
| Headroom rear [mm] | 914 | 914 | 914 | 914 | 914 | 914 |
| Front elbow/shoulder width [mm] | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 | 1507/1430 |
| Rear elbow/shoulder width [mm] | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 | 1456/1379 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.2 HDI | 508 RXH 2.0 BlueHDI | 508 RXH 2.0 HDi HYbrid4 | ||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2015 | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged + Electric | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 2179 | 1997 | 1997 | |||
| Maximum output / speed [kW/min-1] | 150/3500 | 133/3750 | 120/3850 combustion 27/2500 el. 147 total | |||
| Maximum torque [Nm/min-1] | 450/2750 | 400/2000 | 300/1750 combustion 200/1290 el. 450 total | |||
| Bore and stroke [mm x mm] | 85,0 x 96,0 | 85,0 x 88,0 | 85,0 x 88,0 | |||
| Compression ratio | - | - | - | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | 4x4 | |||
| Gearbox | 6 gear automatic | 6 gear automatic | 6 gear robotic manual | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 232 | 220 | 213 | |||
| Acceleration 0–100 km/h [s] | 8.4 | 8.9 | 8.8 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 7.4 | 5.2 | 4.0 | |||
| Out of town [l] | 4.5 | 4.2 | 4.9 | |||
| Combined [l] | 5.5 | 4.6 | 4.6 | |||
| CO2 emissions [g/km] | 144 | 119 | 109 | |||
| Emission standard | EU5 | EU6 | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| System voltage [V] | - | - | - | |||
| Battery type and capacity | - | - | Nickel-metal hydride | |||
| Range with fully charged battery [km] | - | - | - | |||
| Charging time | - | - | - | |||
| Number of modules/cells | - | - | - | |||
| Battery weight [kg] | - | - | - | |||
| Charger | - | - | - | |||
| Standby weight [kg] | 1780 | 1790 | 1910 | |||
| Overall weight [kg] | 2280 | 2240 | 2325 | |||
| Maximum trailer weight unbraked/braked [kg] | 750/1875 | 750/1475 | 750/1100 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 550 | 550 | 423 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 1118/1598 | 1118/1598 | 973/1439 | |||
| Boot length [mm] | 1060 | 1060 | 1021 | |||
| Boot length with rear seats folded [mm] | 2120 | 2120 | - | |||
| Boot width between wheels/max [mm] | -/1115 | -/1115 | -/1113 | |||
| Boot height to headliner/ceiling [mm] | -/886 | 508/886 | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 72 | 72 | 72 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | double wishbone | MacPherson | MacPherson | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 235/45 R18 W | 245/45 R18V | 245/45 R18V | |||
| Tyre dimensions rear | 235/45 R18 W | 245/45 R18V | 245/45 R18V | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | - | - | - | |||
| Brake dimensions rear | - | - | - | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | - | 11.9/- | - | |||
| Overall length [mm] | 4829 | 4828 | 4828 | |||
| Overall width without/including mirrors [mm] | 1828/2068 | 1864/2068 | 1864/2068 | |||
| Overall height [mm] | 1476 | 1521 | 1521 | |||
| Wheelbase [mm] | 2815 | 2817 | 2817 | |||
| Front wheel track [mm] | - | 1592 | 1592 | |||
| Rear wheel track [mm] | - | 1564 | 1564 | |||
| Forward overhang [mm] | 1001 | 992 | 992 | |||
| Rear overhang [mm] | 1011 | 1019 | 1019 | |||
| Clearance [mm] | 148 | 184 | 184 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 916 | 916 | 916 | |||
| Headroom rear [mm] | 914 | 914 | 914 | |||
| Front elbow/shoulder width [mm] | 1507/1430 | 1507/1430 | 1507/1430 | |||
| Rear elbow/shoulder width [mm] | 1456/1379 | 1456/1379 | 1456/1379 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
