Peugeot Traveller
Date of manufacture
2016 – to this day (Large MPV)
Platform
PSA EMP2
Manufacturing locations
Lieu-Saint-Amand, France
Kaluga, Russia
Designer
-
Tags
Large MPV
French cars

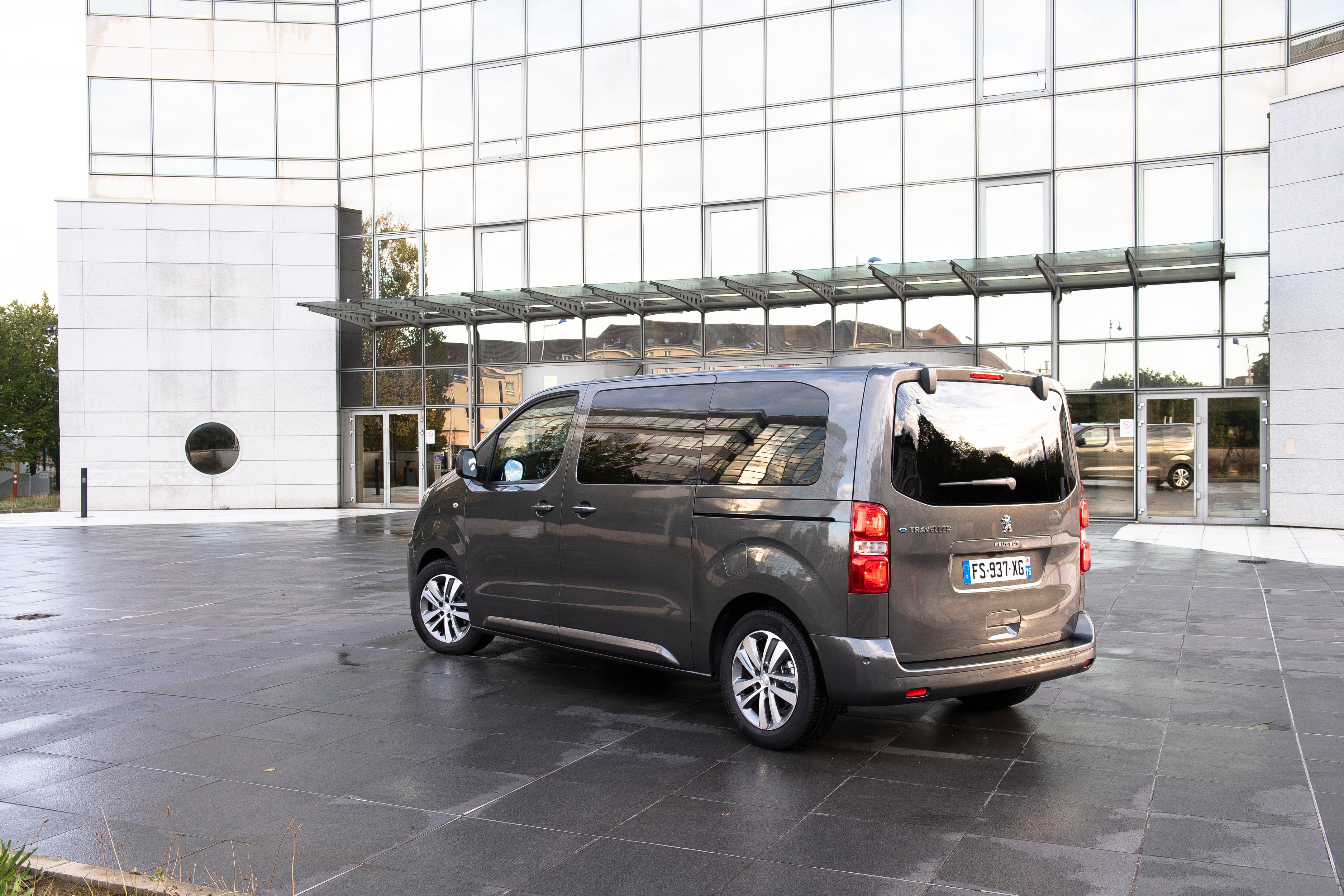

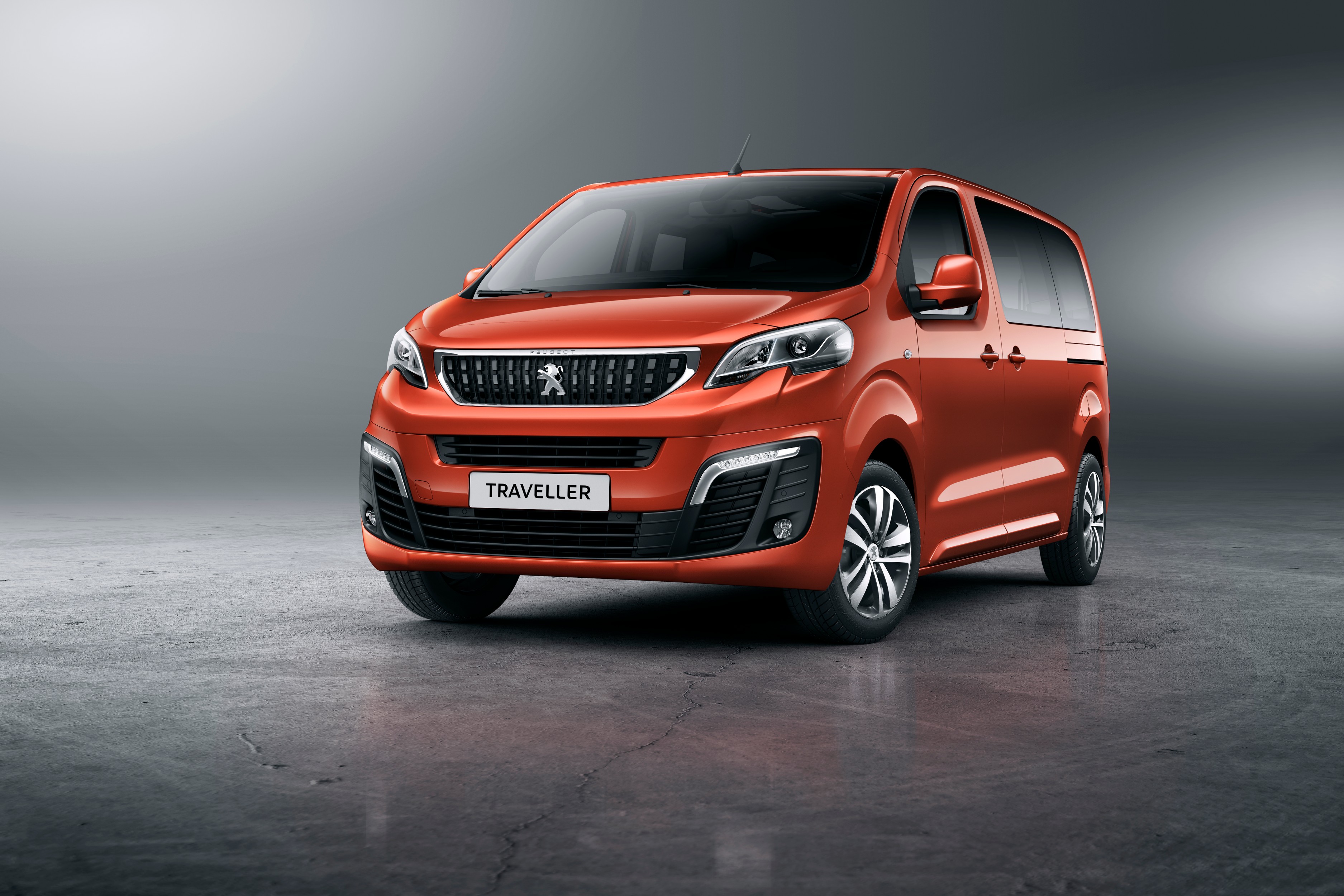

The Peugeot Traveller is a large MPV manufactured since 2016 in France and Russia. The vehicle is based on the PSA EMP2 platform and offers a wide range of engines, including diesel and electric powertrains. The most powerful version 2.0 BlueHDi 180 L3 produces 130 kW, while the fastest variant 2.0 BlueHDi 180 L2 has a top speed of 185 km/h. The most fuel-efficient model 1.5 BlueHDi 120 L2 consumes 4.8 l/100 km with CO2 emissions of 126 g/km. The car's trunk has a capacity of 1624 liters. The Peugeot Traveller has been successfully tested in the EURONCAP safety area and has received a rating of 5 out of 5 points.
Car body style
Large MPV
Date of manufacture
2016 – to this dayInternal designation
-Engine size
ElectricDiesel
Technical data
Large MPV
| e-TRAVELLER 136 L2 50 kWh | e-TRAVELLER 136 L2 75 kWh | e-TRAVELLER 136 L3 50 kWh | e-TRAVELLER 136 L3 75 kWh | 1.6 BlueHDi 115 L1 | 1.5 BlueHDi 120 L1 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from to 2018 | from 2018 to |
| Engine type | Electric | Electric | Electric | Electric | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | - | - | - | - | 4/8 | 4/16 |
| Engine displacement [cm³] | - | - | - | - | 1560 | 1499 |
| Maximum output / speed [kW/min-1] | 100 | 100 | 100 | 100 | 85/3500 | 88/3500 |
| Maximum torque [Nm/min-1] | 260 | 260 | 260 | 260 | 300/1750 | 300/1750 |
| Bore and stroke [mm x mm] | - | - | - | - | 75,0 x 88,3 | 75 x 84,8 |
| Compression ratio | - | - | - | - | 17,0:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 1 gear automatic | 1 gear automatic | 1 gear automatic | 1 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
| - | - |
| Top speed [km/h] | 130 | 130 | 130 | 130 | 160 | 160 |
| Acceleration 0–100 km/h [s] | 13.1 | 14.3 | 13.1 | 14.3 | 13.5 | 12.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | - | - | - | - | 5.5 | 5.2 |
| Out of town [l] | - | - | - | - | 4.9 | 4.7 |
| Combined [l] | - | - | - | - | 5.1 | 4.9 |
| CO2 emissions [g/km] | - | - | - | - | 133 | 129 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 26.1 kWh | 27.8 kWh | 26.4 kWh | 27.9 kWh | - | 6.9-6.2 |
| CO2 emissions [g/km] | - | - | - | - | - | 180-163 |
| Emission standard | - | - | - | - | Euro 6 | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | - |
| Battery type and capacity | Lithium-Ionen-Akkumulator, 50 kWh | Lithium-Ionen-Akkumulator, 75 kWh | Lithium-Ionen-Akkumulator, 50 kWh | Lithium-Ionen-Akkumulator, 75 kWh | - | - |
| Range with fully charged battery [km] | 225 [WLTP] | 322 [WLTP] | 224 [WLTP] | 320 [WLTP] | - | - |
| Charging time |
|
|
|
| - | - |
| Number of modules/cells | 18/216 | - | 18/216 | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1969-2316 | 2140-2487 | 1989-2336 | 2167-2514 | 1611 | 1709 |
| Overall weight [kg] | 2950 | 3100 | 2965 | 3100 | 2635 | 2650 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | 750/1800 | 750/1400-1800 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 1624 | 1624 | 2011 | 2011 | 1356 | 1356 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 3061/3968 | 3061/3968 | 3497/4554 | 3497/4554 | 2625/3397 | 2625/3397 |
| Boot length [mm] | 522 | 522 | 872 | 872 | 192 | 192 |
| Boot length with rear seats folded [mm] | 2413 | 2413 | 2763 | 2763 | 2063 | 2063 |
| Boot width between wheels/max [mm] | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 |
| Boot height to headliner/ceiling [mm] | -/1337 | -/1337 | -/1339 | -/1339 | -/1334 | -/1334 |
| Loading edge height [mm] | 584-653 | 584-653 | 584-664 | 584-664 | 587-610 | 587-610 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 1181 | 1181 | 1181 | 1181 | 1177 | 1177 |
| Boot opening width min/max [mm] | -/1212 | -/1212 | -/1212 | -/1212 | -/1229 | -/1229 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-9 | 5-9 | 5-9 | 5-9 | 5-9 | 5-9 |
| Fuel tank volume [l] | - | - | - | - | - | 70 |
| AdBlue tank volume [l] | - | - | - | - | 20 | 20 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 225/55 R17 101Y | 225/55 R17 101Y | 225/55 R17 101Y | 225/55 R17 101Y | 215/65 R16C 98R | 225/55 R17 101W |
| Tyre dimensions rear | 225/55 R17 101Y | 225/55 R17 101Y | 225/55 R17 101Y | 225/55 R17 101Y | 215/65 R16C 98R | 225/55 R17 101W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.9/- | 12.9/- | 12.9/- | 12.9/- | - | - |
| Overall length [mm] | 4959 | 4959 | 5308 | 5308 | 4606 | 4606 |
| Overall width without/including mirrors [mm] | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 |
| Overall height [mm] | 1890 | 1890 | 1890 | 1890 | 1890 | 1890 |
| Wheelbase [mm] | 3275 | 3275 | 3275 | 3275 | 2925 | 2925 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Rear overhang [mm] | 803 | 803 | 1153 | 1153 | 803 | 803 |
| Clearance [mm] | 157 | 157 | 157 | 157 | 157 | 157 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 BlueHDi 150 L1 | 2.0 BlueHDi 180 L1 | 2.0 BlueHDi 180 L1 | 1.6 BlueHDi 115 L2 | 1.5 BlueHDi 120 L2 | 2.0 BlueHDi 145 L2 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2018 | from 2018 to 2020 | from to 2018 | from 2018 to | from 2020 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1560 | 1499 | 1997 |
| Maximum output / speed [kW/min-1] | 110/4000 | 130/3750 | 130/3750 | 85/3500 | 88/3500 | 106/3700 |
| Maximum torque [Nm/min-1] | 370/2000 | 400/2000 | 400/2000 | 300/1750 | 300/1750 | 370/2000 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 75,0 x 88,3 | 75 x 84,8 | 85,0 x 88,0 |
| Compression ratio | - | - | - | 17,0:1 | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - |
|
| - | - | - |
| Top speed [km/h] | 170-183 | 170 | 170-185 | 160 | 160-172 | 185 |
| Acceleration 0–100 km/h [s] | 10.3-11.7 | 9.8-10.5 | 8.8 | 13.5 | 12.0 | - |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.9 | 6.4-6.1 | 7.4 | 5.6 | 6,4-5.2 | 5,7 |
| Out of town [l] | 5.3 | 5.7-5.4 | 5.4 | 5.0 | 4.6-4,4 | 4,9 |
| Combined [l] | 5.5 | 6.0-5.7 | 6.1 | 5.2 | 5,1-4.8 | 5,2 |
| CO2 emissions [g/km] | 143 | 159-151 | 162 | 137 | 136-126 | 138 |
| Emission standard | Euro 6 - Euro 6d | Euro 6 | Euro 6d | Euro 6 | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1672-1869 | 1703-1895 | 1802 | 1647 | 1734-2156 | 1793-2213 |
| Overall weight [kg] | 2700-2695 | 2725-2740 | 2745 | 2680-2830 | 2700-2830 | 2760 |
| Maximum trailer weight unbraked/braked [kg] | 750/2300 | 750/2000 | 750/2300 | 750/1800-2000 | 750/1400-2500 | 750/1900 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | 84 | 84 |
| Maximum load on roof/carrier [kg] | - | - | - | - | 150/- | 150/- |
| Boot volume [l] | 1356 | 1356 | 1356 | 1624 | 1624 | 1624 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 2625/3397 | 2625/3397 | 2625/3397 | 3061/3968 | 3061/3968 | 3061/3968 |
| Boot length [mm] | 192 | 192 | 192 | 522 | 522 | 522 |
| Boot length with rear seats folded [mm] | 2063 | 2063 | 2063 | 2413 | 2413 | 2413 |
| Boot width between wheels/max [mm] | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 |
| Boot height to headliner/ceiling [mm] | -/1334 | -/1334 | -/1334 | -/1337 | -/1337 | -/1337 |
| Loading edge height [mm] | 587-610 | 587-610 | 587-610 | 584-653 | 584-653 | 584-653 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 1177 | 1177 | 1177 | 1181 | 1181 | 1181 |
| Boot opening width min/max [mm] | -/1229 | -/1229 | -/1229 | -/1212 | -/1212 | -/1212 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-9 | 5-9 | 5-9 | 5-9 | 5-9 | 5-9 |
| Fuel tank volume [l] | - | 69 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | 20 | 20 | 20 | 20 | 20 | 20 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 225/55 R17 101W | 215/60 R17C 98R | 225/55 R17 101W | 215/65 R16C 98R | 225/55 R17 101W | 225/55 R17 101W |
| Tyre dimensions rear | 225/55 R17 101W | 215/60 R17C 98R | 225/55 R17 101W | 215/65 R16C 98R | 225/55 R17 101W | 225/55 R17 101W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | - | - | - | 12.9/- | 12.9/- | 12.9/- |
| Overall length [mm] | 4606 | 4606 | 4606 | 4959 | 4959 | 4959 |
| Overall width without/including mirrors [mm] | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 |
| Overall height [mm] | 1890 | 1890 | 1890 | 1890 | 1890 | 1890 |
| Wheelbase [mm] | 2925 | 2925 | 2925 | 3275 | 3275 | 3275 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Rear overhang [mm] | 803 | 803 | 803 | 803 | 803 | 803 |
| Clearance [mm] | 157 | 157 | 157 | 157 | 157 | 157 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 BlueHDi 145 L2 | 2.0 BlueHDi 150 L2 | 2.0 BlueHDi 180 L2 | 2.0 BlueHDi 180 L2 | 1.6 BlueHDi 115 L3 | 1.5 BlueHDi 120 L3 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from to 2020 | from to 2018 | from 2018 to | from to 2018 | from 2018 to |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | 1560 | 1499 |
| Maximum output / speed [kW/min-1] | 106/3700 | 110/4000 | 130/3750 | 130/3750 | 85/3500 | 88/3500 |
| Maximum torque [Nm/min-1] | 370/2000 | 370/2000 | 400/2000 | 400/2000 | 300/1750 | 300/1750 |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 75,0 x 88,3 | 75 x 84,8 |
| Compression ratio | - | - | - | - | 17,0:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 8 gear automatic | 6 gear manual | 6 gear automatic | 8 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications |
| - |
|
| - | - |
| Top speed [km/h] | 185 | 185 | 170 | 185 | 160 | 172 |
| Acceleration 0–100 km/h [s] | - | 10.8-11.7 | 9.8-10.5 | - | 13.5 | 12.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,5 | 6.3-5.9 | 6.4 | 7.4-5,4 | 5.6 | 5.3 |
| Out of town [l] | 4,8 | 5.1-4.9 | 5.7 | 5.4-4,8 | 5.0 | 4.7 |
| Combined [l] | 5,0 | 5.6-5.3 | 6.0 | 6.1-5,0 | 5.2 | 4.9 |
| CO2 emissions [g/km] | 133 | 146-139 | 159 | 161-133 | 137 | 130 |
| Emission standard | Euro 6d | Euro 6 - Euro 6d | Euro 6 | Euro 6d | Euro 6 | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1839-2251 | 1801-2179 | 17744-1953 | 1839-2251 | 1688 | 1735 |
| Overall weight [kg] | 2800 | 2750-3100 | 3000 | 2800-3100 | 2730-2830 | 1780-3100 |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/2300-2500 | 750/2200 | 750/1900-2500 | 750/1800-2000 | 750/2300-2500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 84 | 72 | 84 | 84 | - | - |
| Maximum load on roof/carrier [kg] | 150/- | 150/- | 150/- | 150/- | - | - |
| Boot volume [l] | 1624 | 1624 | 1624 | 1624 | 2011 | 2011 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 3061/3968 | 3061/3968 | 3061/3968 | 3061/3968 | 3497/4554 | 3497/4554 |
| Boot length [mm] | 522 | 522 | 522 | 522 | 872 | 872 |
| Boot length with rear seats folded [mm] | 2413 | 2413 | 2413 | 2413 | 2763 | 2763 |
| Boot width between wheels/max [mm] | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 |
| Boot height to headliner/ceiling [mm] | -/1337 | -/1337 | -/1337 | -/1337 | -/1339 | -/1339 |
| Loading edge height [mm] | 584-653 | 584-653 | 584-653 | 584-653 | 584-664 | 584-664 |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | 1181 | 1181 | 1181 | 1181 | 1181 | 1181 |
| Boot opening width min/max [mm] | -/1212 | -/1212 | -/1212 | -/1212 | -/1212 | -/1212 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-9 | 5-9 | 5-9 | 5-9 | 5-9 | 5-9 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | 20 | 20 | 20 | 20 | 20 | 20 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 225/55 R17 101W | 225/55 R17 101W | 215/60 R17C 98R | 225/55 R17 101W | 215/65 R16C 98R | 225/55 R17 101W |
| Tyre dimensions rear | 225/55 R17 101W | 225/55 R17 101W | 215/60 R17C 98R | 225/55 R17 101W | 215/65 R16C 98R | 225/55 R17 101W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | - | - | - | - | - | - |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 12.9/- | 12.9/- | 12.9/- | 12.9/- | 12.9/- | 12.9/- |
| Overall length [mm] | 4959 | 4959 | 4959 | 4959 | 5308 | 5308 |
| Overall width without/including mirrors [mm] | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 |
| Overall height [mm] | 1890 | 1890 | 1890 | 1890 | 1890 | 1890 |
| Wheelbase [mm] | 3275 | 3275 | 3275 | 3275 | 3275 | 3275 |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | 1627 |
| Rear wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | 881 |
| Rear overhang [mm] | 803 | 803 | 803 | 803 | 1153 | 1153 |
| Clearance [mm] | 157 | 157 | 157 | 157 | 157 | 157 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 BlueHDi 145 L3 | 2.0 BlueHDi 145 L3 | 2.0 BlueHDi 150 L3 | 2.0 BlueHDi 180 L3 | 2.0 BlueHDi 180 L3 | ||
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from 2020 to | from to 2020 | from to 2018 | from 2018 to | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1997 | 1997 | 1997 | 1997 | 1997 | |
| Maximum output / speed [kW/min-1] | 106/3700 | 106/3700 | 110/4000 | 130/3750 | 130/3750 | |
| Maximum torque [Nm/min-1] | 370/2000 | 370/2000 | 370/2000 | 400/2000 | 400/2000 | |
| Bore and stroke [mm x mm] | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | 85,0 x 88,0 | |
| Compression ratio | - | - | - | - | - | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 8 gear automatic | 6 gear manual | 6 gear automatic | 8 gear automatic | |
| Drive specifications | - |
| - |
|
| |
| Top speed [km/h] | 185 | 185 | 170-183 | 170 | 170-185 | |
| Acceleration 0–100 km/h [s] | - | - | 10.8-11.7 | 10.8-10.5 | - | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5,7 | 5,5 | 6.6-5.9 | 6.6-6.3 | 7.7-5,4 | |
| Out of town [l] | 5,0 | 4,8 | 5.4-5.1 | 5.8-5.5 | 5.7-4,9 | |
| Combined [l] | 5,2 | 5,1 | 5.8-5.5 | 6.2-5.9 | 6.4-5,1 | |
| CO2 emissions [g/km] | 138 | 133 | 154-145 | 163-155 | 170-133 | |
| Emission standard | Euro 6d | Euro 6d | Euro 6 - Euro 6d | Euro 6 | Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1823-2246 | 1842-2257 | 1834-2212 | 1986-1988 | 1842-2257 | |
| Overall weight [kg] | 2790 | 2830 | 2785-3100 | 2850-3000 | 2800-3100 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1900 | 750/1900 | 750/2300-2500 | 750/2000-2200 | 750/1900-2500 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 92 | 92 | 92 | - | 92 | |
| Maximum load on roof/carrier [kg] | 150/- | 150/- | 150/- | - | 150/- | |
| Boot volume [l] | 2011 | 2011 | 2011 | 2011 | 2011 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | 3497/4554 | 3497/4554 | 3497/4554 | 3497/4554 | 3497/4554 | |
| Boot length [mm] | 872 | 872 | 872 | 872 | 872 | |
| Boot length with rear seats folded [mm] | 2763 | 2763 | 2763 | 2763 | 2763 | |
| Boot width between wheels/max [mm] | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | 1228/1618 | |
| Boot height to headliner/ceiling [mm] | -/1339 | -/1339 | -/1339 | -/1339 | -/1339 | |
| Loading edge height [mm] | 584-664 | 584-664 | 584-664 | 584-664 | 584-664 | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | 1181 | 1181 | 1181 | 1181 | 1181 | |
| Boot opening width min/max [mm] | -/1212 | -/1212 | -/1212 | -/1212 | -/1212 | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5-9 | 5-9 | 5-9 | 5-9 | 5-9 | |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | |
| AdBlue tank volume [l] | 20 | 20 | 20 | 20 | 20 | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |
| Tyre dimensions front | 225/55 R17 101W | 225/55 R17 101W | 225/55 R17 101W | 215/60 R17C 98R | 225/55 R17 101W | |
| Tyre dimensions rear | 225/55 R17 101W | 225/55 R17 101W | 225/55 R17 101W | 215/60 R17C 98R | 225/55 R17 101W | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | - | - | - | - | - | |
| Brake dimensions rear | - | - | - | - | - | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 12.9/- | 12.9/- | 12.9/- | 12.9/- | 12.9/- | |
| Overall length [mm] | 5308 | 5308 | 5308 | 5308 | 5308 | |
| Overall width without/including mirrors [mm] | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 | 1920/2204 | |
| Overall height [mm] | 1890 | 1890 | 1890 | 1890 | 1890 | |
| Wheelbase [mm] | 3275 | 3275 | 3275 | 3275 | 3275 | |
| Front wheel track [mm] | 1627 | 1627 | 1627 | 1627 | 1627 | |
| Rear wheel track [mm] | 1600 | 1600 | 1600 | 1600 | 1600 | |
| Forward overhang [mm] | 881 | 881 | 881 | 881 | 881 | |
| Rear overhang [mm] | 1153 | 1153 | 1153 | 1153 | 1153 | |
| Clearance [mm] | 157 | 157 | 157 | 157 | 157 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

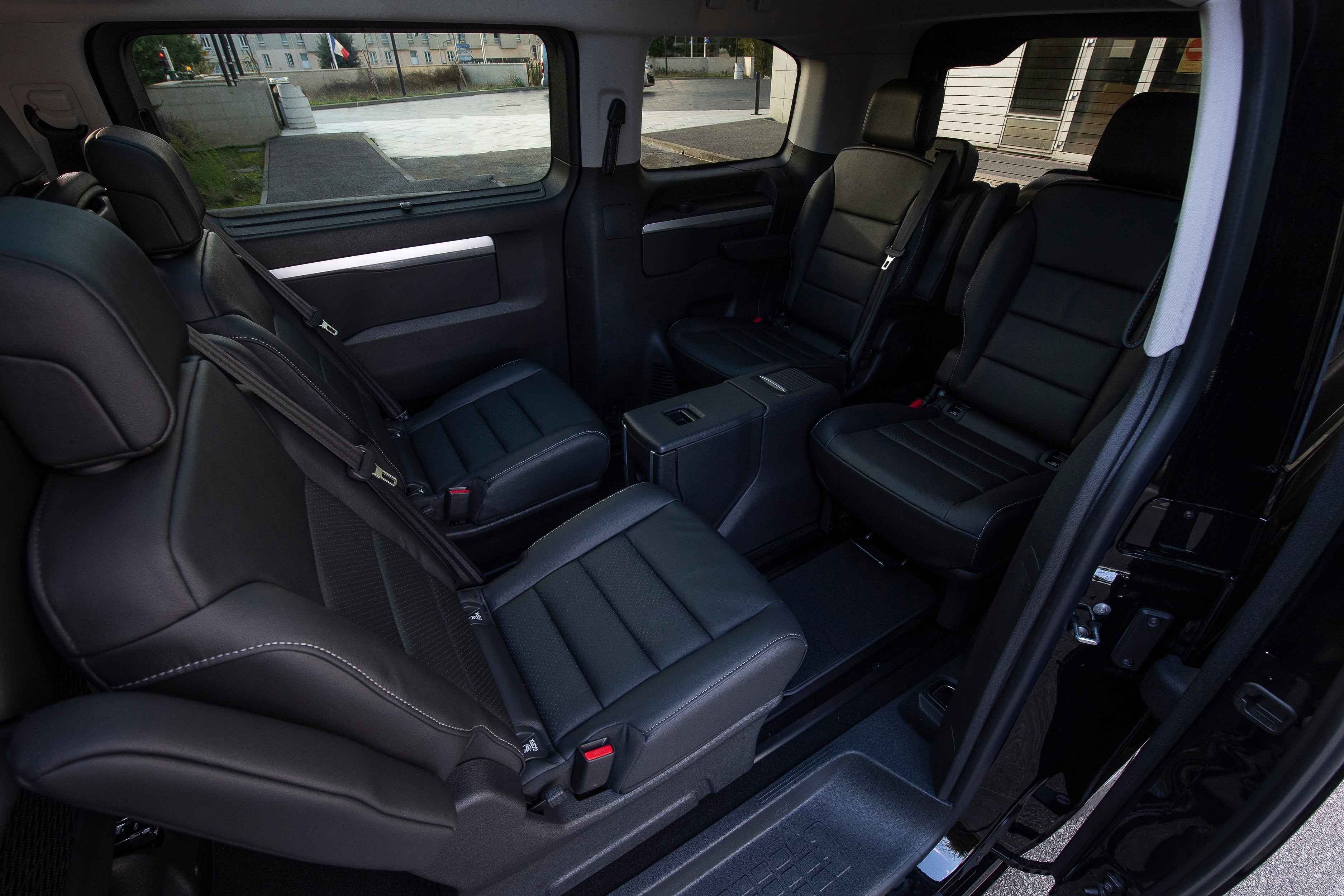

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
