Porsche 718
Date of manufacture
6/2016 – to this day (Roadster)
6/2016 – to this day (Coupé)
Platform
-
Manufacturing locations
Osnabrück, Germany
Designer
Tony Hatter
Tags
S-segment
German cars
The Porsche 718 is available as a roadster and coupe since 2016. The car is manufactured in Germany with a range of petrol engines. The most powerful engine is the Cayman GT4 with 309 kW, which reaches a top speed of 304 km/h. The fastest acceleration 0-100 km/h is achieved by the Boxster GTS 4.0 with a four-second time. The most economical variant is the Boxster GTS with a combined consumption of 8.2 l/100 km and CO2 emissions of 186 g/km. The roadster has a luggage compartment volume of 150+122 l, while the coupe version is 150+275 l.
Car body style
Roadster (Boxster)
Date of manufacture
6/2016 – to this dayInternal designation
982Coupé (Cayman)
Date of manufacture
6/2016 – to this dayInternal designation
982Technical data

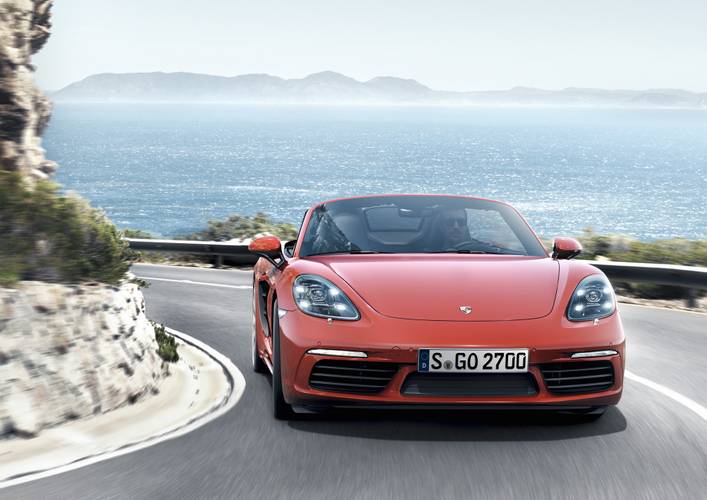

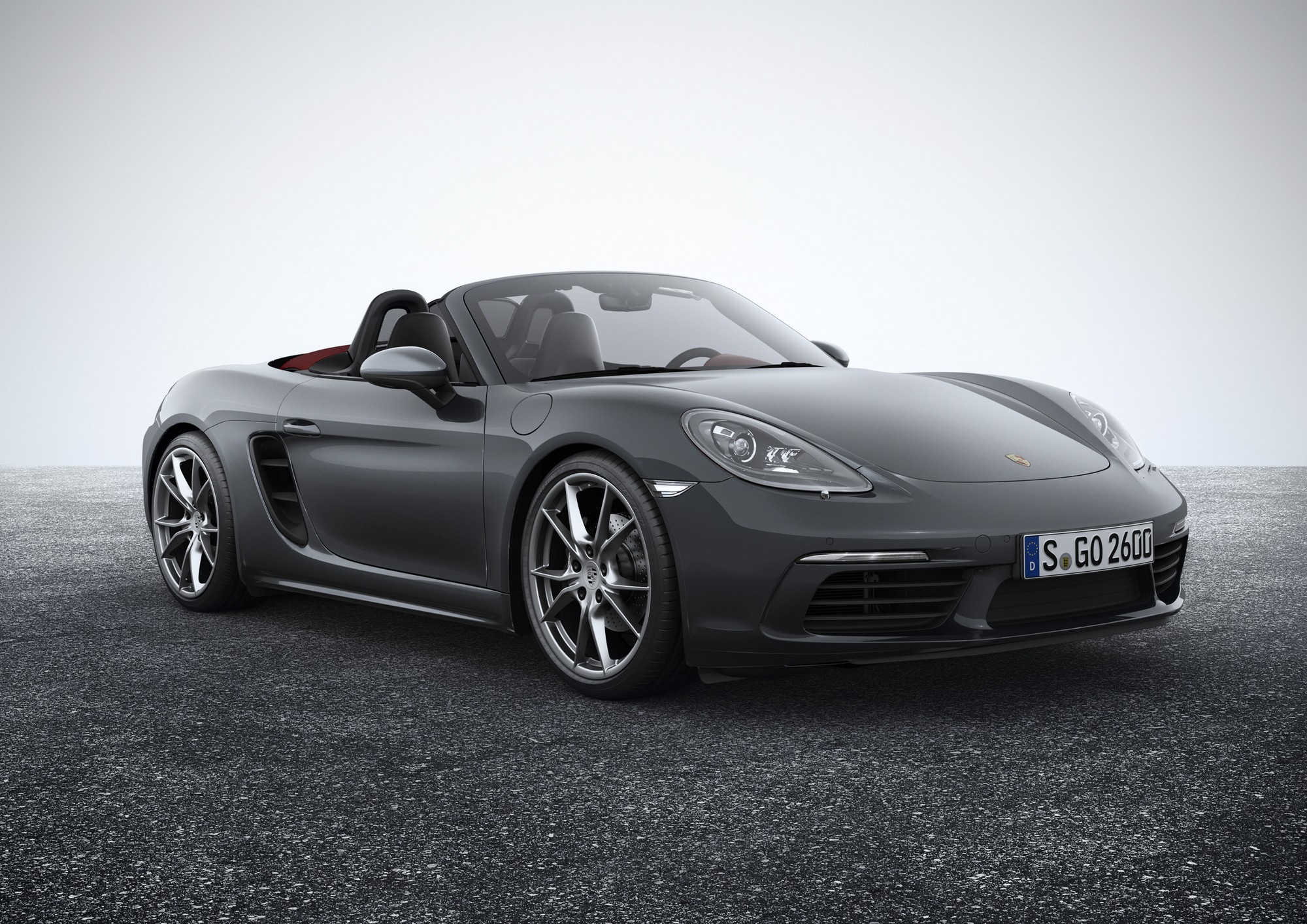

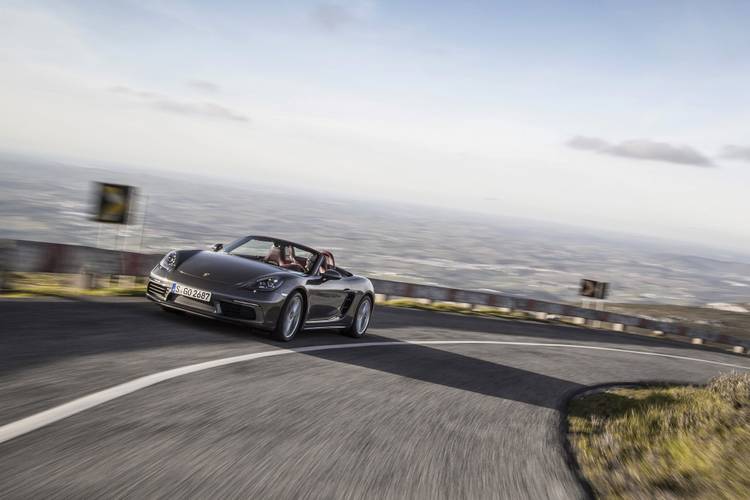

Roadster (Boxster)
| Boxster | Boxster | Boxster T | Boxster T | Boxster S | Boxster S | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2019 to | from 2019 to | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1988 | 1988 | 1988 | 1988 | 2497 | 2497 |
| Maximum output / speed [kW/min-1] | 220/6500 | 220/6500 | 220/6500 | 220/6500 | 257/6500 | 257/6500 |
| Maximum torque [Nm/min-1] | 380/1950-4500 | 380/1950-4500 | 380/1950-4500 | 380/1950-4500 | 420/1900-4500 | 420/1900-4500 |
| Bore and stroke [mm x mm] | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 102,0 x 76,4 | 102,0 x 76,4 |
| Compression ratio | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 275 | 275 | 275 | 275 | 285 | 285 |
| Acceleration 0–100 km/h [s] | 5.1 | 4.9 [4.7 Sport Chrono Paket] | 5.1 | 4.9 [4.7 Sport Chrono Paket] | 4.6 | 4.4 [4.2 Sport Chrono Paket] |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 5.6 (5th gear) | 3.2 | 3.2 | 3.2 | 5.0 (5th gear) | 2.8 |
| City [l] | 11.8-9.9 | 10.6-9.0 | 11.8 | 10.9 | 12.9-10.7 | 12.4-9.5 |
| Out of town [l] | 6.9-6.0 | 6.6-5.7 | 6.9 | 6.5 | 7.6-6.5 | 7.0-6.0 |
| Combined [l] | 8.7-7.4 | 8.1-6.9 | 8.7 | 8.1 | 9.6-8.1 | 8.8-7.3 |
| CO2 emissions [g/km] | 199-168 | 185-158 | 200 | 185 | 218-184 | 200-167 |
| Low speed [l] | 14.1 | 14.1 | 14.1 | 14.1 | 15.8 | 15.4 |
| Medium speed [l] | 9.3 | 9.0 | 9.3 | 9.0 | 10.0 | 9.6 |
| High speed [l] | 8.1 | 7.6 | 8.1 | 7.7 | 8.7 | 8.3 |
| Extra high speed [l] | 8.7 | 7.9 | 8.7 | 8.0 | 9.3 | 8.6 |
| Combined speed [l] | 9.7-9.4 | 9.2-8.9 | 9.6-9.4 | 9.2-8.9 | 10.4-10.1 | 9.9-9.6 |
| CO2 emissions [g/km] | 220-212 | 209-201 | 218-213 | 208-202 | 235-229 | 224-218 |
| Emission standard | EU6 - Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1410 | 1440 | 1425 | 1455 | 1430 | 1460 |
| Overall weight [kg] | 1655 | 1685 | 1655 | 1685 | 1665 | 1695 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 150+125 | 150+125 | 150+122 | 150+122 | 150+122 | 150+122 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 2 | 2 | 2 | 2 | 2 | 2 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 64 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.31 | 0.3 | 0.3 | 0.32 | 0.32 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Tyre dimensions front | 235/45 ZR18 | 235/45 ZR18 | 235/35 ZR 20 | 235/35 ZR 20 | 235/40 ZR19 | 235/40 ZR19 |
| Tyre dimensions rear | 265/45 ZR18 | 265/45 ZR18 | 265/35 ZR 20 | 265/35 ZR 20 | 265/40 ZR19 | 265/40 ZR19 |
| Wheel size front | 8.0J x 18 ET57 | 8.0J x 18 ET57 | 8 J x 20 ET 57 | 8 J x 20 ET 57 | 8.0J x 19 ET57 | 8.0J x 19 ET57 |
| Wheel size rear | 9.5J x 18 ET49 | 9.5J x 18 ET49 | 10 J x 20 ET 45 | 10 J x 20 ET 45 | 10.0J x 19 ET45 | 10.0J x 19 ET45 |
| Brake dimensions front | 330 x 28 | 330 x 28 | 330 x 28 | 330 x 28 | 330 x 34 | 330 x 34 |
| Brake dimensions rear | 299 x 20 | 299 x 20 | 299 x 20 | 299 x 20 | 299 x 20 | 299 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.98/- | 11.98/- | 10.98/- | 10.98/- | 11.98/- | 11.98/- |
| Overall length [mm] | 4379 | 4379 | 4379 | 4379 | 4379 | 4379 |
| Overall width without/including mirrors [mm] | 1801/1994 | 1801/1994 | 1801/1994 | 1801/1994 | 1801/1994 | 1801/1994 |
| Overall height [mm] | 1281 | 1281 | 1264 | 1264 | 1280 | 1280 |
| Wheelbase [mm] | 2475 | 2475 | 2475 | 2475 | 2475 | 2475 |
| Front wheel track [mm] | 1515 | 1515 | 1528 | 1528 | 1515 | 1515 |
| Rear wheel track [mm] | 1532 | 1532 | 1534 | 1534 | 1540 | 1540 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

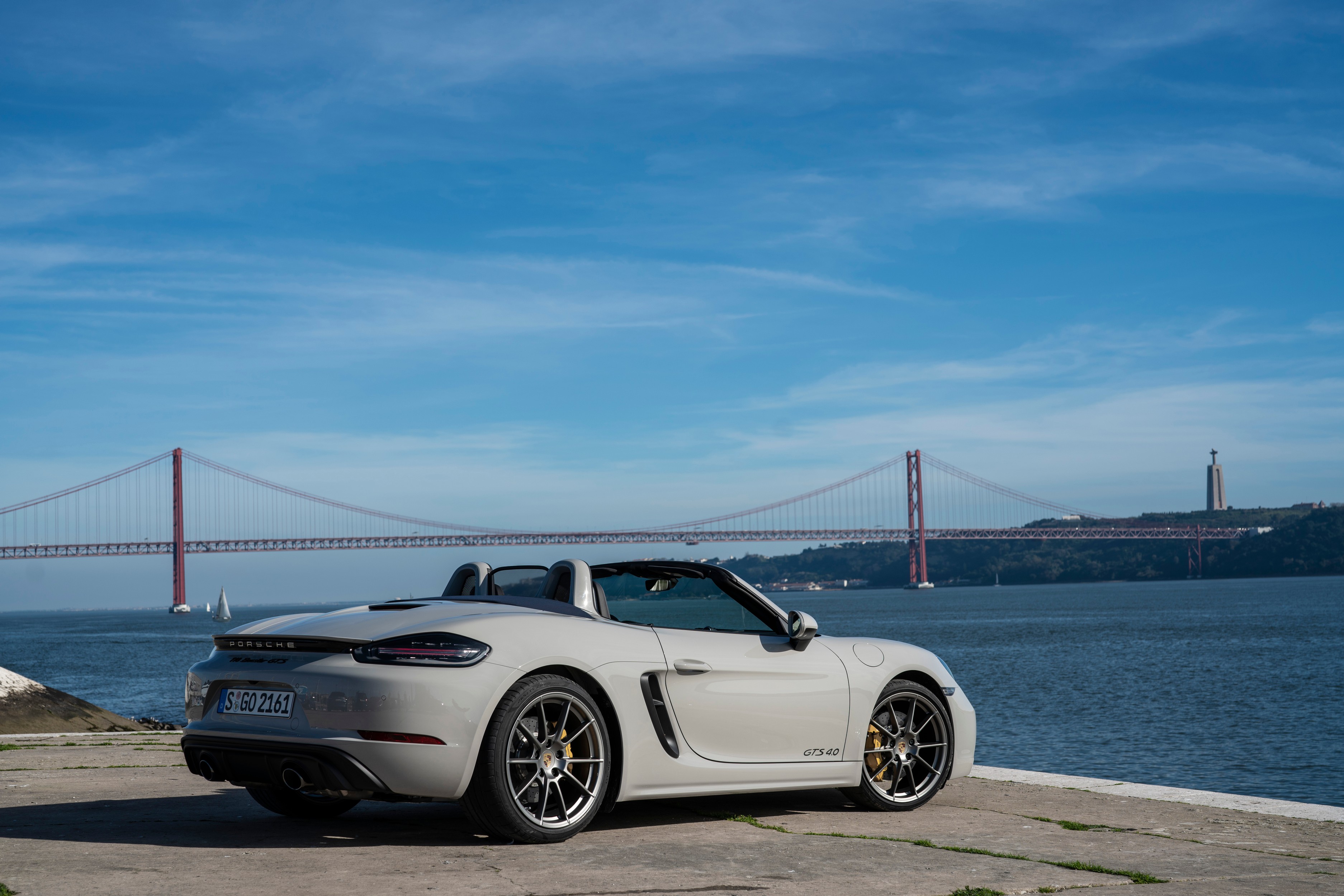

| Boxster GTS | Boxster GTS | Boxster GTS 4.0 | Boxster GTS 4.0 | Spyder | ||
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to 2019 | from 2017 to 2019 | from 2020 to | from 2020 to | from 2019 to | |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Petrol | |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 2497 | 2497 | 3995 | 3995 | 3995 | |
| Maximum output / speed [kW/min-1] | 269/6500 | 269/6500 | 294/7000 | 294/7000 | 309/7600 | |
| Maximum torque [Nm/min-1] | 420/1900-5500 | 420/1900-5000 | 430/5500 | 430/5500 | 420/5000-6800 | |
| Bore and stroke [mm x mm] | 102,0 x 76,4 | 102,0 x 76,4 | 102.0 x 81.5 | 102.0 x 81.5 | 102.0 x 81.5 | |
| Compression ratio | - | - | 13.0:1 | 13.0:1 | 13.0:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Rear | Rear | Rear | Rear | Rear | |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | |
| Drive specifications | - |
| - |
| - | |
| Top speed [km/h] | 290 | 290 | 293 | 288 | 301 | |
| Acceleration 0–100 km/h [s] | 4.6 | 4.3 [4.1 Sport Chrono Paket] | 4.5 | 4.0 | 4.4 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | 2.6 | 2.6 | 2.5 | |
| City [l] | 12.3 | 10.9 | 14.7 | 13.0 | 15.6-15.0 | |
| Out of town [l] | 7.0 | 6.6 | 8.5 | 7.6 | 8.5-8.1 | |
| Combined [l] | 9.0 | 8.2 | 10.8 | 9.6 | 10.9 | |
| CO2 emissions [g/km] | 205 | 186 | 246 | 219 | 249 | |
| Low speed [l] | - | - | 17.4 | 15.7 | 17.5 | |
| Medium speed [l] | - | - | 11.1 | 9.8 | 11.0 | |
| High speed [l] | - | - | 9.4 | 9.0 | 9.3 | |
| Extra high speed [l] | - | - | 9.6 | 9.3 | 10.3 | |
| Combined speed [l] | - | - | 10.9 | 10.1 | 11.1 | |
| CO2 emissions [g/km] | - | - | 247 | 230 | 251 | |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d | Euro 6d | Euro 6d-TEMP - Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1450 | 1480 | 1480 | 1510 | 1495 | |
| Overall weight [kg] | 1675 | 1705 | 1700 | 1730 | 1720 | |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | 75/- | 75/- | 75/- | |
| Boot volume [l] | 150+125 | 150+125 | 150 + 120 | 150 + 120 | 150 + 120 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 2 | 2 | 2 | 2 | 2 | |
| Number of seats | 2 | 2 | 2 | 2 | 2 | |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 64 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | 0.31 | 0.31 | 0.34 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Tyre dimensions front | 235/35 ZR 20 | 235/35 ZR 20 | 235/35 ZR 20 | 235/35 ZR 20 | 245/35 ZR20 95Y | |
| Tyre dimensions rear | 265/35 ZR 20 | 265/35 ZR 20 | 265/35 ZR 20 | 265/35 ZR 20 | 295/30 ZR20 101Y | |
| Wheel size front | 8 J x 20 ET 57 | 8 J x 20 ET 57 | 8,5 J × 20 ET 57 | 8,5 J × 20 ET 57 | 8.5 J x 20 ET 61 | |
| Wheel size rear | 10 J x 20 ET 45 | 10 J x 20 ET 45 | 10,5 J × 20 ET 47 | 10,5 J × 20 ET 47 | 11 J x 20 ET 50 | |
| Brake dimensions front | 330 x 34 | 330 x 34 | 350 x 34 | 350 x 34 | 380 x 34 | |
| Brake dimensions rear | 299 x 20 | 299 x 20 | 330 x 28 | 330 x 28 | 380 x 30 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.4/- | |
| Overall length [mm] | 4379 | 4379 | 4405 | 4405 | 4456 | |
| Overall width without/including mirrors [mm] | 1801/1994 | 1801/1994 | 1801/1994 | 1801/1994 | 1801/1994 | |
| Overall height [mm] | 1272 | 1272 | 1262 | 1262 | 1258 | |
| Wheelbase [mm] | 2475 | 2475 | 2475 | 2475 | 2484 | |
| Front wheel track [mm] | - | - | 1527 | 1527 | 1538 | |
| Rear wheel track [mm] | - | - | 1535 | 1535 | 15344 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

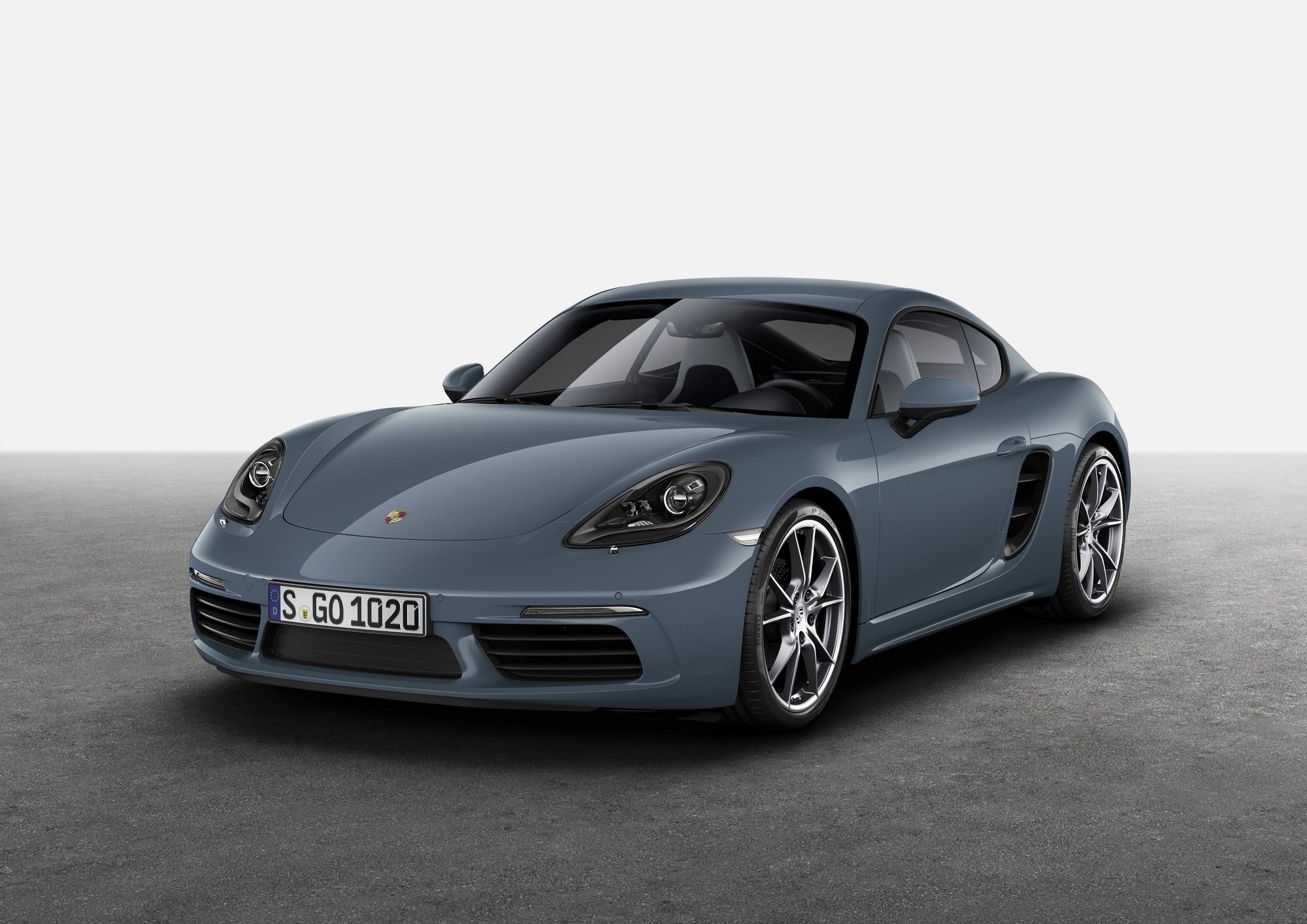

Coupé (Cayman)
| Cayman | Cayman | Cayman T | Cayman T | Cayman S | Cayman S | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2019 to | from 2019 to | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1988 | 1988 | 1988 | 1988 | 2497 | 2497 |
| Maximum output / speed [kW/min-1] | 220/6500 | 220/6500 | 220/6500 | 220/6500 | 257/6500 | 257/6500 |
| Maximum torque [Nm/min-1] | 380/1950-4500 | 380/1950-4500 | 380/1950-4500 | 380/1950-4500 | 420/1900-4500 | 420/1900-4500 |
| Bore and stroke [mm x mm] | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 102,0 x 76,4 | 102,0 x 76,4 |
| Compression ratio | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | Rear | Rear |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 275 | 275 | 275 | 275 | 285 | 285 |
| Acceleration 0–100 km/h [s] | 5.1 | 4.9 [4.7 Sport Chrono Paket] | 5.1 | 4.9 [4.7 Sport Chrono Paket] | 4.6 | 4.4 [4.2 Sport Chrono Paket] |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 3.2 | 3.2 | 3.2 | 3.2 | 2.8 | 2.8 |
| City [l] | 11.8-9.9 | 10.6-9.0 | 11.8 | 10.8 | 13.0-10.7 | 12.3-9.5 |
| Out of town [l] | 6.9-6.0 | 6.6-5.7 | 6.9 | 6.5 | 7.5-6.5 | 7.0-6.0 |
| Combined [l] | 8.7-7.4 | 8.1-6.9 | 8.7 | 8.1 | 9.6-8.1 | 8.8-7.3 |
| CO2 emissions [g/km] | 199-168 | 185-158 | 200 | 185 | 218-184 | 200-167 |
| Low speed [l] | 14.1 | 14.1 | 14.1 | 14.1 | 15.8 | 15.4 |
| Medium speed [l] | 9.3 | 9.0 | 9.3 | 9.0 | 9.9 | 9.6 |
| High speed [l] | 8.0 | 7.6 | 8.1 | 7.6 | 8.6 | 8.3 |
| Extra high speed [l] | 8.7 | 7.9 | 8.7 | 7.9 | 9.2 | 8.5 |
| Combined speed [l] | 9.7-9.3 | 9.2-8.9 | 9.6-9.4 | 9.1-8.9 | 10.3-10.1 | 9.9-9.6 |
| CO2 emissions [g/km] | 220-212 | 208-201 | 218-213 | 207-202 | 235-228 | 224-217 |
| Emission standard | EU6 - Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d-TEMP - Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1410 | 1440 | 1425 | 1455 | 1430 | 1460 |
| Overall weight [kg] | 1655 | 1685 | 1655 | 1685 | 1665 | 1695 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 150+275 | 150+275 | 150+275 | 150+275 | 150+275 | 150+275 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 2 | 2 | 2 | 2 | 2 | 2 |
| Fuel tank volume [l] | 54 | 54 | 54 | 54 | 64 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.31 | 0.31 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Tyre dimensions front | 235/45 ZR18 | 235/45 ZR18 | 235/35 ZR 20 | 235/35 ZR 20 | 235/40 ZR19 | 235/40 ZR19 |
| Tyre dimensions rear | 265/45 ZR18 | 265/45 ZR18 | 265/35 ZR 20 | 265/35 ZR 20 | 265/40 ZR19 | 265/40 ZR19 |
| Wheel size front | 8.0J x 18 ET57 | 8.0J x 18 ET57 | 8 J x 20 ET 57 | 8 J x 20 ET 57 | 8.0J x 19 ET57 | 8.0J x 19 ET57 |
| Wheel size rear | 9.5J x 18 ET49 | 9.5J x 18 ET49 | 10 J x 20 ET 45 | 10 J x 20 ET 45 | 10.0J x 19 ET45 | 10.0J x 19 ET45 |
| Brake dimensions front | 330 x 28 | 330 x 28 | 330 x 28 | 330 x 28 | 330 x 34 | 330 x 34 |
| Brake dimensions rear | 299 x 20 | 299 x 20 | 299 x 20 | 299 x 20 | 299 x 20 | 299 x 20 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.98/- | 11.98/- | 10.98/- | 10.98/- | 11.98/- | 11.98/- |
| Overall length [mm] | 4379 | 4379 | 4379 | 4379 | 4379 | 4379 |
| Overall width without/including mirrors [mm] | 1801/1994 | 1801/1994 | 1801/1994 | 1801/1994 | 1801/1994 | 1801/1994 |
| Overall height [mm] | 1295 | 1295 | 1276 | 1276 | 1295 | 1295 |
| Wheelbase [mm] | 2475 | 2475 | 2475 | 2475 | 2475 | 2475 |
| Front wheel track [mm] | 1515 | 1515 | 1528 | 1528 | 1515 | 1515 |
| Rear wheel track [mm] | 1532 | 1532 | 1534 | 1534 | 1540 | 1540 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Cayman GTS | Cayman GTS | Cayman GTS 4.0 | Cayman GTS 4.0 | Cayman GT4 | ||
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to 2019 | from 2017 to 2019 | from 2020 to | from 2020 to | from 2019 to | |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Petrol | |
| Number of cylinders/valves | 4/16 | 4/16 | 6/24 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 2497 | 2497 | 3995 | 3995 | 3995 | |
| Maximum output / speed [kW/min-1] | 269/6500 | 269/6500 | 294/7000 | 294/7000 | 309/7600 | |
| Maximum torque [Nm/min-1] | 420/1900-5500 | 420/1900-5000 | 430/5500 | 430/5500 | 420/5000-6800 | |
| Bore and stroke [mm x mm] | 102,0 x 76,4 | 102,0 x 76,4 | 102.0 x 81.5 | 102.0 x 81.5 | 102.0 x 81.5 | |
| Compression ratio | - | - | 13.0:1 | 13.0:1 | 13.0:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Rear | Rear | Rear | Rear | Rear | |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | |
| Drive specifications | - |
| - |
| - | |
| Top speed [km/h] | 290 | 290 | 293 | 288 | 304 | |
| Acceleration 0–100 km/h [s] | 4.6 | 4.3 [4.1 Sport Chrono Paket] | 4.5 | 4.0 | 4.4 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | 2.6 | 2.6 | 2.5 | |
| City [l] | 12.3 | 10.9 | 14.7 | 13.0 | 15.6-15.0 | |
| Out of town [l] | 7.0 | 6.6 | 8.5 | 7.6 | 8.5-8.1 | |
| Combined [l] | 9.0 | 8.2 | 10.8 | 9.6 | 10.9 | |
| CO2 emissions [g/km] | 205 | 186 | 246 | 219 | 249 | |
| Low speed [l] | - | - | 17.4 | 15.7 | 17.5 | |
| Medium speed [l] | - | - | 11.1 | 9.8 | 11.0 | |
| High speed [l] | - | - | 9.4 | 9.0 | 9.3 | |
| Extra high speed [l] | - | - | 9.6 | 9.3 | 10.3 | |
| Combined speed [l] | - | - | 10.9 | 10.1 | 11.1 | |
| CO2 emissions [g/km] | - | - | 247 | 230 | 251 | |
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | Euro 6d | Euro 6d | Euro 6d-TEMP - Euro 6d | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1450 | 1480 | 1480 | 1510 | 1495 | |
| Overall weight [kg] | 1675 | 1705 | 1700 | 1730 | 1750 | |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | 75/- | 75/- | 75/- | |
| Boot volume [l] | 150+275 | 150+275 | 150 + 270 | 150 + 270 | 150 + 270 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 3 | 3 | 2 | 2 | 2 | |
| Number of seats | 2 | 2 | 2 | 2 | 2 | |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 64 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | 0.31 | 0.31 | 0.34 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Tyre dimensions front | 235/35 ZR 20 | 235/35 ZR 20 | 235/35 ZR 20 | 235/35 ZR 20 | 245/35 ZR20 95Y | |
| Tyre dimensions rear | 265/35 ZR 20 | 265/35 ZR 20 | 265/35 ZR 20 | 265/35 ZR 20 | 295/30 ZR20 101Y | |
| Wheel size front | 8 J x 20 ET 57 | 8 J x 20 ET 57 | 8,5 J × 20 ET 57 | 8,5 J × 20 ET 57 | 8.5 J x 20 ET 61 | |
| Wheel size rear | 10 J x 20 ET 45 | 10 J x 20 ET 45 | 10,5 J × 20 ET 47 | 10,5 J × 20 ET 47 | 11 J x 20 ET 50 | |
| Brake dimensions front | 330 x 34 | 330 x 34 | 350 x 34 | 350 x 34 | 380 x 34 | |
| Brake dimensions rear | 299 x 20 | 299 x 20 | 330 x 28 | 330 x 28 | 380 x 30 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.0/- | 11.0/- | 11.0/- | 11.0/- | 11.4/- | |
| Overall length [mm] | 4393 | 4393 | 4405 | 4405 | 4456 | |
| Overall width without/including mirrors [mm] | 1801/1994 | 1801/1994 | 1801/1994 | 1801/1994 | 1801/1994 | |
| Overall height [mm] | 1286 | 1286 | 1276 | 1276 | 1269 | |
| Wheelbase [mm] | 2475 | 2475 | 2475 | 2475 | 2484 | |
| Front wheel track [mm] | - | - | 1527 | 1527 | 1538 | |
| Rear wheel track [mm] | - | - | 1535 | 1535 | 15344 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
