Porsche 911
Date of manufacture
2011 – 2015 (Coupé)
2012 – 2015 (Convertible)
Platform
-
Manufacturing locations
Stuttgart, Germany
Designer
Michael Mauer
Tags
Supersport
German cars
The Porsche 911 has been produced since 2011 and its country of manufacture is Germany. The engine range consists only of petrol engines. The most powerful model is the Porsche 911 Turbo S with 412 kW, which reaches a top speed of 318 km/h and the best acceleration from 0-100 km/h in 3.1 seconds. The model Carrera has the lowest fuel consumption of 8.2 l/100 km and CO2 emissions of 191 g/km. The body versions of this car are coupe and cabriolet, both offering a luggage compartment volume of 125 l.
Car body style
Coupé
Date of manufacture
2011 – 2015Internal designation
991Convertible
Date of manufacture
2012 – 2015Internal designation
991Technical data
Coupé
| 911 Carrera | 911 Carrera | 911 Carrera 4 | 911 Carrera 4 | 911 Carrera S | 911 Carrera S | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 3436 | 3436 | 3436 | 3436 | 3800 | 3800 |
| Maximum output / speed [kW/min-1] | 257/7400 | 257/7400 | 257/7400 | 257/7400 | 294/7400 | 294/7400 |
| Maximum torque [Nm/min-1] | 390/5600 | 390/5600 | 390/5600 | 390/5600 | 440/5600 | 440/5600 |
| Bore and stroke [mm x mm] | 97,0 x 77,5 | 97,0 x 77,5 | 97,0 x 77,5 | 97,0 x 77,5 | 102,0 x 77,5 | 102,0 x 77,5 |
| Compression ratio | 12,5:1 | 12,5:1 | 12,5:1 | 12,5:1 | 12,5:1 | 12,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
| Gearbox | 7 gear manual | 7 gear automatic | 7 gear manual | 7 gear automatic | 7 gear manual | 7 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 289 | 287 | 285 | 283 | 304 | 302 |
| Acceleration 0–100 km/h [s] | 4.8 | 4.6 [4.4 Sport Chrono Paket] | 4.9 | 4.7 [4.5 Sport Chrono Paket] | 4.5 | 4.3 [4.1 Sport Chrono Paket] |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.4 | 11.3 | 12.9 | 11.7 | 13.3 | 12.1 |
| Out of town [l] | 7.0 | 6.6 | 7.4 | 6.8 | 7.3 | 6.7 |
| Combined [l] | 9.0 | 8.2 | 9.3 | 8.6 | 9.5 | 8.7 |
| CO2 emissions [g/km] | 212 | 191 | 218 | 200 | 223 | 202 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1475 | 1495 | 1525 | 1545 | 1490 | 1510 |
| Overall weight [kg] | 1795 | 1815 | 1845 | 1865 | 1830 | 1850 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 145 | 145 | 125 | 125 | 145 | 145 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 64 | 64 | 68 | 68 | 64 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.3 | 0.3 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/40 ZR19 | 235/40 ZR19 | 235/40 ZR19 | 235/40 ZR19 | 245/35 ZR20 | 245/35 ZR20 |
| Tyre dimensions rear | 285/35 ZR19 | 285/35 ZR19 | 295/35 ZR19 | 295/35 ZR19 | 295/30 ZR20 | 295/30 ZR20 |
| Wheel size front | 8.5J x 19 ET54 | 8.5J x 19 ET54 | 8.5J x 19 ET54 | 8.5J x 19 ET54 | 8.5J x 20 ET51 | 8.5J x 20 ET51 |
| Wheel size rear | 11.0J x 19 ET69 | 11.0J x 19 ET69 | 11.0J x 19 ET48 | 11.0J x 19 ET48 | 11.0J x 20 ET70 | 11.0J x 20 ET70 |
| Brake dimensions front | 330 | 330 | 330 | 330 | 340 | 340 |
| Brake dimensions rear | 330 | 330 | 330 | 330 | 330 | 330 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4491 | 4491 | 4491 | 4491 | 4491 | 4491 |
| Overall width without/including mirrors [mm] | 1808/- | 1808/- | 1852/- | 1852/- | 1808/- | 1808/- |
| Overall height [mm] | 1303 | 1303 | 1300 | 1300 | 1295 | 1295 |
| Wheelbase [mm] | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 |
| Front wheel track [mm] | - | - | - | - | - | - |
| Rear wheel track [mm] | - | - | - | - | - | - |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 911 Carrera 4S | 911 Carrera 4S | 911 GT3 | 911 Turbo | 911 Turbo S | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Petrol | Petrol | Petrol | Ignition supercharged | Ignition supercharged | |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | |
| Engine displacement [cm³] | 3800 | 3800 | 3799 | 3800 | 3800 | |
| Maximum output / speed [kW/min-1] | 294/7400 | 294/7400 | 350/8250 | 383/6000-6500 | 412/6500-6750 | |
| Maximum torque [Nm/min-1] | 440/5600 | 440/5600 | 440/6250 | 660/1950-5000 | 700/2100-4250 | |
| Bore and stroke [mm x mm] | 102,0 x 77,5 | 102,0 x 77,5 | 102,0 x 77,5 | 102,0 x 77,5 | 102,0 x 77,5 | |
| Compression ratio | 12,5:1 | 12,5:1 | 12,9:1 | 9,8:1 | 9,8:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | 4x4 | 4x4 | Rear | 4x4 | 4x4 | |
| Gearbox | 7 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | |
| Drive specifications |
|
|
|
|
| |
| Top speed [km/h] | 299 | 297 | 315 | 315 | 318 | |
| Acceleration 0–100 km/h [s] | 4.5 | 4.3 [4.1 Sport Chrono Paket] | 3.5 | 3.4 [3.2 Sport Plus] | 3.1 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 13.8 | 12.4 | 18.9 | 13.2 | 13.2 | |
| Out of town [l] | 7.6 | 7.0 | 8.9 | 7.7 | 7.7 | |
| Combined [l] | 9.9 | 9.1 | 12.4 | 9.7 | 9.7 | |
| CO2 emissions [g/km] | 233 | 212 | 289 | 227 | 227 | |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5 | EU5-EU6 | EU5-EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1540 | 1560 | 1505 | 1670 | 1680 | |
| Overall weight [kg] | 1875 | 1895 | 1720 | 1990 | 1990 | |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 125 | 125 | 125 | 115 | 115 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | - | - | - | - | - | |
| Boot length with rear seats folded [mm] | - | - | - | - | - | |
| Boot width between wheels/max [mm] | - | - | - | - | - | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 2 | 2 | 2 | 2 | 2 | |
| Number of seats | 4 | 4 | 2 | 4 | 4 | |
| Fuel tank volume [l] | 68 | 68 | 64 | 68 | 68 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | 0.3 | 0.3 | 0.33 | 0.31 | 0.31 | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | |
| Tyre dimensions front | 245/35 ZR20 | 245/35 ZR20 | 245/35 ZR20 | 245/35 ZR20 | 245/35 ZR20 | |
| Tyre dimensions rear | 305/30 ZR20 | 305/30 ZR20 | 305/30 ZR20 | 305/30 ZR20 | 305/30 ZR20 | |
| Wheel size front | 8.5J x 20 ET51 | 8.5J x 20 ET51 | 9.0J x 20 ET55 | 8.5J x 20 ET51 | 9.0J x 20 ET51 | |
| Wheel size rear | 11.0J x 20 ET52 | 11.0J x 20 ET52 | 12.0J x 20 ET47 | 11.0J x 20 ET56 | 11.5J x 20 ET56 | |
| Brake dimensions front | 340 | 340 | 380 x 34 | 380 x 34 | 410 x 36 | |
| Brake dimensions rear | 330 | 330 | 380 x 30 | 380 x 30 | 390 x 32 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 10.6/- | 10.6/- | |
| Overall length [mm] | 4491 | 4491 | 4545 | 4506 | 4506 | |
| Overall width without/including mirrors [mm] | 1852/- | 1852/- | 1852/- | 1880/- | 1880/- | |
| Overall height [mm] | 1296 | 1296 | 1269 | 1296 | 1296 | |
| Wheelbase [mm] | 2450 | 2450 | 2457 | 2450 | 2450 | |
| Front wheel track [mm] | - | - | - | 1541 | 1541 | |
| Rear wheel track [mm] | - | - | - | 1590 | 1590 | |
| Forward overhang [mm] | - | - | - | - | - | |
| Rear overhang [mm] | - | - | - | - | - | |
| Clearance [mm] | - | - | - | - | - | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | - | - | - | - | - | |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

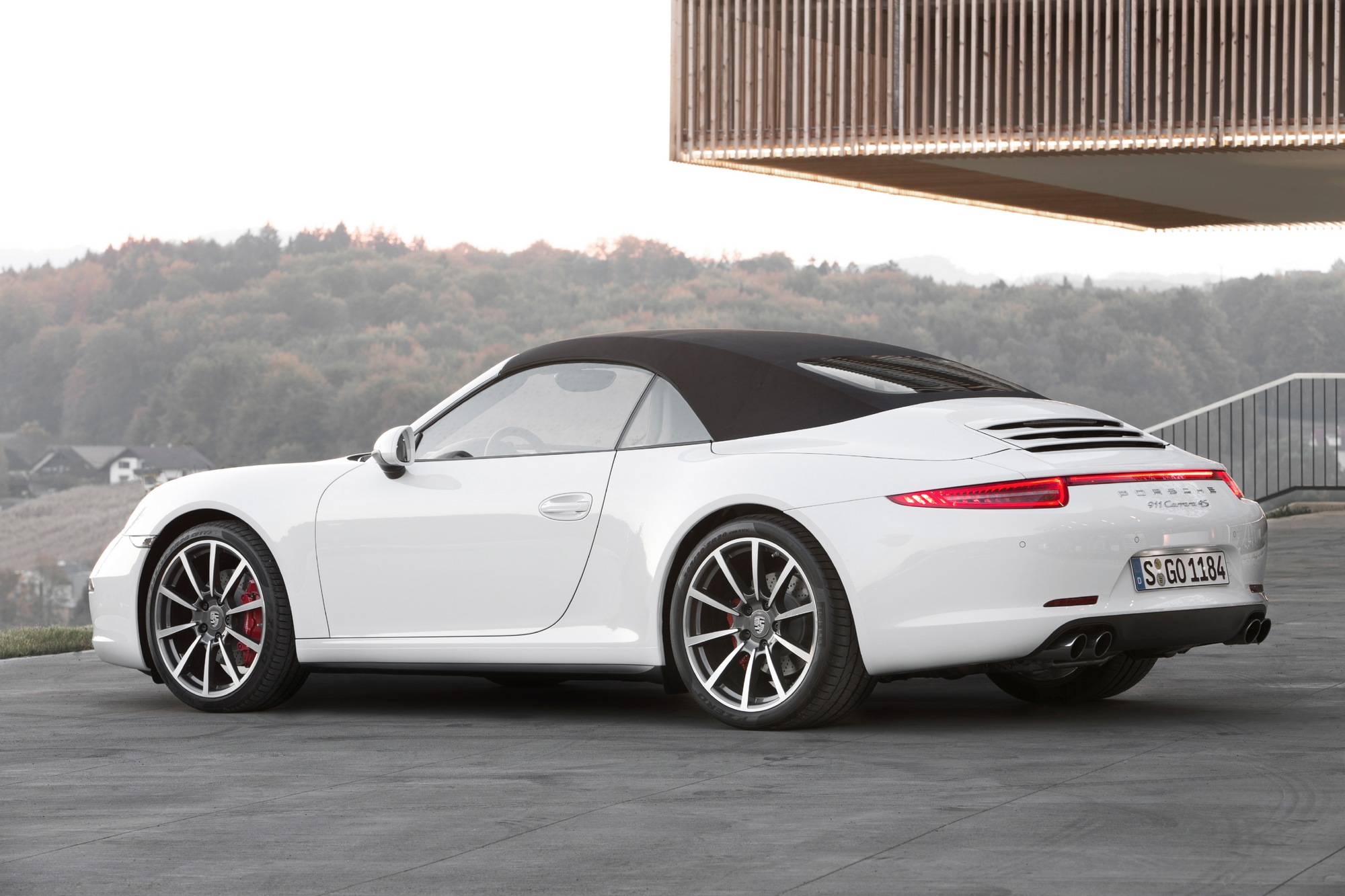

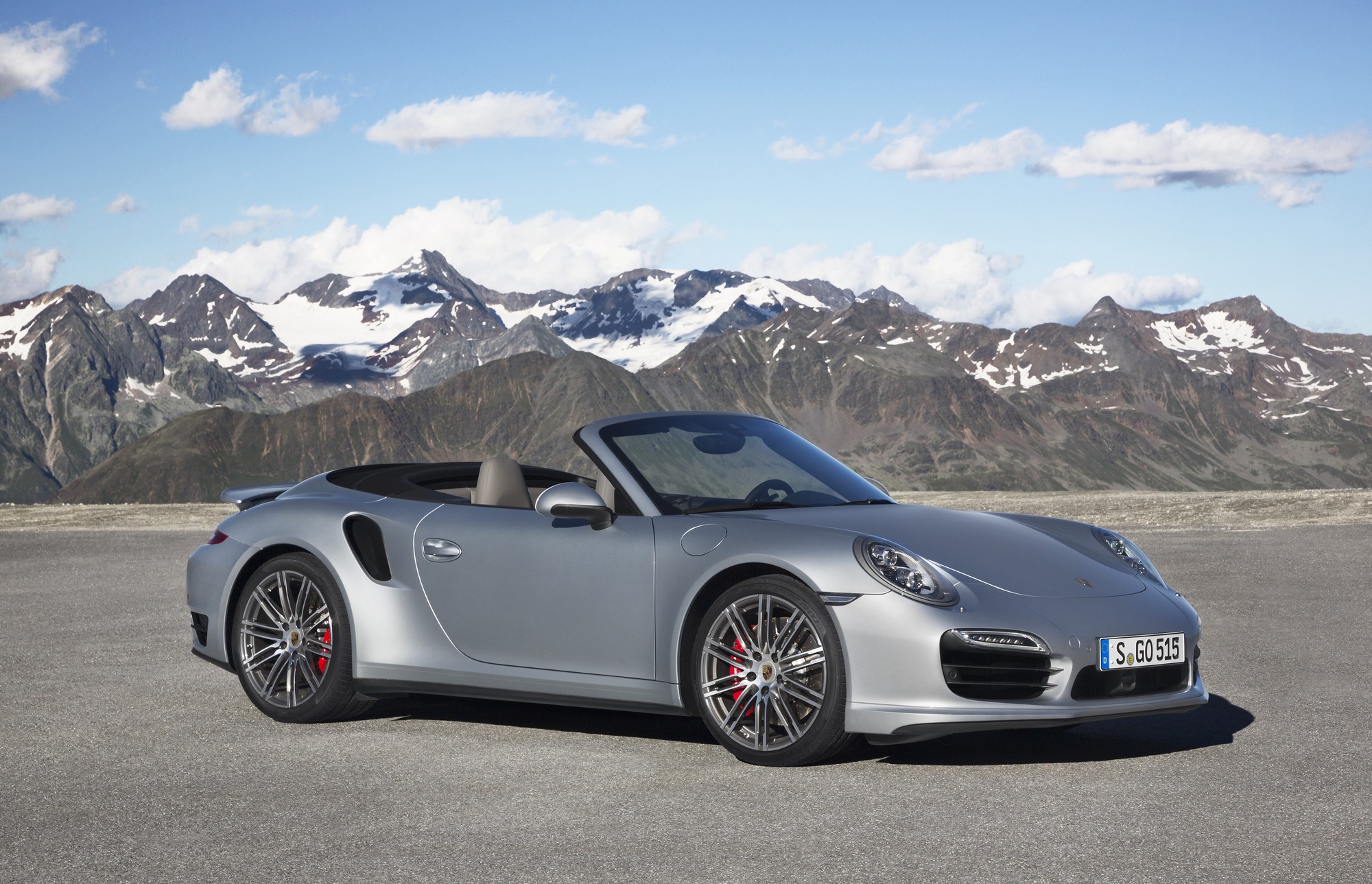

Convertible
| 911 Carrera | 911 Carrera | 911 Carrera 4 | 911 Carrera 4 | 911 Carrera S | 911 Carrera S | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Petrol | Petrol |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 3436 | 3436 | 3436 | 3436 | 3800 | 3800 |
| Maximum output / speed [kW/min-1] | 257/7400 | 257/7400 | 257/7400 | 257/7400 | 294/7400 | 294/7400 |
| Maximum torque [Nm/min-1] | 390/5600 | 390/5600 | 390/5600 | 390/5600 | 440/5600 | 440/5600 |
| Bore and stroke [mm x mm] | 97,0 x 77,5 | 97,0 x 77,5 | 97,0 x 77,5 | 97,0 x 77,5 | 102,0 x 77,5 | 102,0 x 77,5 |
| Compression ratio | 12,5:1 | 12,5:1 | 12,5:1 | 12,5:1 | 12,5:1 | 12,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
| Gearbox | 7 gear manual | 7 gear automatic | 7 gear manual | 7 gear automatic | 7 gear manual | 7 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 286 | 284 | 282 | 280 | 301 | 299 |
| Acceleration 0–100 km/h [s] | 5.0 | 4.8 [4.6 Sport Chrono Paket] | 5.1 | 4.9 [4.7 Sport Chrono Paket] | 4.7 | 4.5 [4.3 Sport Chrono Paket] |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.7 | 11.5 | 13.1 | 11.8 | 13.6 | 12.2 |
| Out of town [l] | 7.2 | 6.7 | 7.5 | 6.9 | 7.5 | 6.9 |
| Combined [l] | 9.2 | 8.4 | 9.5 | 8.7 | 9.7 | 8.9 |
| CO2 emissions [g/km] | 216 | 195 | 223 | 202 | 228 | 207 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1545 | 1565 | 1595 | 1615 | 1560 | 1580 |
| Overall weight [kg] | 1850 | 1870 | 1900 | 1920 | 1885 | 1905 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 145 | 145 | 125 | 125 | 145 | 145 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 64 | 64 | 68 | 68 | 64 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.31 | 0.31 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/40 ZR19 | 235/40 ZR19 | 235/40 ZR19 | 235/40 ZR19 | 245/35 ZR20 | 245/35 ZR20 |
| Tyre dimensions rear | 285/35 ZR19 | 285/35 ZR19 | 295/35 ZR19 | 295/35 ZR19 | 295/30 ZR20 | 295/30 ZR20 |
| Wheel size front | 8.5J x 19 ET54 | 8.5J x 19 ET54 | 8.5J x 19 ET54 | 8.5J x 19 ET54 | 8.5J x 20 ET51 | 8.5J x 20 ET51 |
| Wheel size rear | 11.0J x 19 ET69 | 11.0J x 19 ET69 | 11.0J x 19 ET48 | 11.0J x 19 ET48 | 11.0J x 20 ET70 | 11.0J x 20 ET70 |
| Brake dimensions front | 330 | 330 | 330 | 330 | 340 | 340 |
| Brake dimensions rear | 330 | 330 | 330 | 330 | 330 | 330 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4491 | 4491 | 4491 | 4491 | 4491 | 4491 |
| Overall width without/including mirrors [mm] | 1808/- | 1808/- | 1852/- | 1852/- | 1808/- | 1808/- |
| Overall height [mm] | 1299 | 1299 | 1300 | 1300 | 1292 | 1292 |
| Wheelbase [mm] | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 |
| Front wheel track [mm] | - | - | - | - | - | - |
| Rear wheel track [mm] | - | - | - | - | - | - |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 911 Carrera 4S | 911 Carrera 4S | 911 Turbo | 911 Turbo S | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | ||
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | ||
| Engine displacement [cm³] | 3800 | 3800 | 3800 | 3800 | ||
| Maximum output / speed [kW/min-1] | 294/7400 | 294/7400 | 383/6000-6500 | 412/6500-6750 | ||
| Maximum torque [Nm/min-1] | 440/5600 | 440/5600 | 660/1950-5000 | 700/2100-4250 | ||
| Bore and stroke [mm x mm] | 102,0 x 77,5 | 102,0 x 77,5 | 102,0 x 77,5 | 102,0 x 77,5 | ||
| Compression ratio | 12,5:1 | 12,5:1 | 9,8:1 | 9,8:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | ||
| Gearbox | 7 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic | ||
| Drive specifications |
|
|
|
| ||
| Top speed [km/h] | 296 | 294 | 315 | 318 | ||
| Acceleration 0–100 km/h [s] | 4.7 | 4.5 [4.3 Sport Chrono Paket] | 3.5 [3.3 Sport Plus] | 3.2 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 13.9 | 12.5 | 13.4 | 13.4 | ||
| Out of town [l] | 7.7 | 7.1 | 7.8 | 7.8 | ||
| Combined [l] | 10.0 | 9.2 | 9.9 | 9.9 | ||
| CO2 emissions [g/km] | 235 | 214 | 231 | 231 | ||
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1610 | 1630 | 1740 | 1750 | ||
| Overall weight [kg] | 1935 | 1955 | 2045 | 2045 | ||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 125 | 125 | 115 | 115 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | - | - | - | - | ||
| Boot length with rear seats folded [mm] | - | - | - | - | ||
| Boot width between wheels/max [mm] | - | - | - | - | ||
| Boot height to headliner/ceiling [mm] | - | - | - | - | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 2 | 2 | 2 | 2 | ||
| Number of seats | 4 | 4 | 4 | 4 | ||
| Fuel tank volume [l] | 68 | 68 | 68 | 68 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.31 | 0.31 | 0.31 | 0.31 | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | multilink | multilink | multilink | multilink | ||
| Tyre dimensions front | 245/35 ZR20 | 245/35 ZR20 | 245/35 ZR20 | 245/35 ZR20 | ||
| Tyre dimensions rear | 305/30 ZR20 | 305/30 ZR20 | 305/30 ZR20 | 305/30 ZR20 | ||
| Wheel size front | 8.5J x 20 ET51 | 8.5J x 20 ET51 | 8.5J x 20 ET51 | 9.0J x 20 ET51 | ||
| Wheel size rear | 11.0J x 20 ET52 | 11.0J x 20 ET52 | 11.0J x 20 ET56 | 11.5J x 20 ET56 | ||
| Brake dimensions front | 340 | 340 | 380 x 34 | 410 x 36 | ||
| Brake dimensions rear | 330 | 330 | 380 x 30 | 390 x 32 | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 10.6/- | 10.6/- | ||
| Overall length [mm] | 4491 | 4491 | 4506 | 4506 | ||
| Overall width without/including mirrors [mm] | 1852/- | 1852/- | 1880/- | 1880/- | ||
| Overall height [mm] | 1294 | 1294 | 1292 | 1292 | ||
| Wheelbase [mm] | 2450 | 2450 | 2450 | 2450 | ||
| Front wheel track [mm] | - | - | 1541 | 1541 | ||
| Rear wheel track [mm] | - | - | 1590 | 1590 | ||
| Forward overhang [mm] | - | - | - | - | ||
| Rear overhang [mm] | - | - | - | - | ||
| Clearance [mm] | - | - | - | - | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | - | - | - | - | ||
| Headroom rear [mm] | - | - | - | - | ||
| Front elbow/shoulder width [mm] | - | - | - | - | ||
| Rear elbow/shoulder width [mm] | - | - | - | - | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
