Porsche 911
Date of manufacture
2015 – 12/2019 (Coupé)
2015 – 12/2019 (Convertible)
Platform
-
Manufacturing locations
Stuttgart, Germany
Designer
Michael Mauer
Tags
S-segment
German cars
The Porsche 911 Coupe and Cabriolet models have been manufactured in Germany since 2015. The engine range includes only petrol engines with the most powerful model being the GT2 RS, which has a power output of 515 kW. The fastest version is the GT2 RS, which can reach a top speed of 340 km/h and has the best acceleration from 0-100 km/h in 2.8 seconds. The most comfortable version is the Carrera with a combined fuel consumption of 7.4 l/100 km and CO2 emissions of 169 g/km. The Coupe model offers a boot capacity of 125 l, as does the Cabriolet model.
Car body style
Coupé
after upgrade (facelift)
Date of manufacture
2015 – 12/2019Internal designation
991.2Convertible
after upgrade (facelift)
Date of manufacture
2015 – 12/2019Internal designation
991.2Technical data
Coupé
| Carrera | Carrera | Carrera T | Carrera T | Carrera 4 | Carrera 4 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2017 to | from 2017 to | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2981 | 2981 | 2981 | 2981 | 2981 | 2981 |
| Maximum output / speed [kW/min-1] | 272/6500 | 272/6500 | 272/6500 | 272/6500 | 272/6500 | 272/6500 |
| Maximum torque [Nm/min-1] | 450/1700-5000 | 450/1700-5000 | 450/1700-5000 | 450/1700-5000 | 450/1700-5000 | 450/1700-5000 |
| Bore and stroke [mm x mm] | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 7 gear manual | 7 gear automatic | 7 gear manual | 7 gear automatic | 7 gear manual | 7 gear automatic |
| Drive specifications | - |
| - |
|
|
|
| Top speed [km/h] | 295 | 293 | 293 | 291 | 292 | 290 |
| Acceleration 0–100 km/h [s] | 4.6 | 4.4 [4.2 Sport Chrono Paket] | 4.5 | 4.2 | 4.5 | 4.3 [4.1 Sport Chrono Paket] |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.7 | 9.9 | 13.5 | 11.5 | 12.2 | 10.1 |
| Out of town [l] | 6.3 | 6.0 | 7.1 | 6.8 | 6.7 | 6.3 |
| Combined [l] | 8.3 | 7.4 | 9.5 | 8.5 | 8.7 | 7.7 |
| CO2 emissions [g/km] | 190 | 169 | 215 | 193 | 201 | 177 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 | 1525 | 1500 | 1520 | 1555 | 1575 |
| Overall weight [kg] | 1875 | 1890 | 1875 | 1890 | 1925 | 1940 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 145 | 145 | 145 | 145 | 125 | 125 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 64 | 64 | 64 | 64 | 68 | 68 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.29 | 0.29 | 0.31 | 0.31 | 0.29 | 0.29 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/40 ZR19 | 235/40 ZR19 | 245/35 ZR 20 | 245/35 ZR 20 | 235/40 ZR19 | 235/40 ZR19 |
| Tyre dimensions rear | 295/35 ZR19 | 295/35 ZR19 | 305/30 ZR 20 | 305/30 ZR 20 | 295/35 ZR19 | 295/35 ZR19 |
| Wheel size front | 8.5J x 19 ET50 | 8.5J x 19 ET50 | 8,5 J x 20 ET49 | 8,5 J x 20 ET49 | 8.5J x 19 ET50 | 8.5J x 19 ET50 |
| Wheel size rear | 11.5J x 19 ET76 | 11.5J x 19 ET76 | 11,5 J x 20 ET76 | 11,5 J x 20 ET76 | 11.5J x 19 ET56 | 11.5J x 19 ET56 |
| Brake dimensions front | 330 x 34 | 330 x 34 | - | - | 330 x 34 | 330 x 34 |
| Brake dimensions rear | 330 x 28 | 330 x 28 | - | - | 330 x 28 | 330 x 28 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.1/- | 11.1/- | 11.2/- | 11.2/- |
| Overall length [mm] | 4499 | 4499 | 4527 | 4527 | 4499 | 4499 |
| Overall width without/including mirrors [mm] | 1808/1978 | 1808/1978 | 1808/1978 | 1808/1978 | 1852/1978 | 1852/1978 |
| Overall height [mm] | 1294 | 1294 | 1285 | 1285 | 1295 | 1295 |
| Wheelbase [mm] | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 |
| Front wheel track [mm] | 1541 | 1541 | - | - | 1541 | 1541 |
| Rear wheel track [mm] | 1518 | 1518 | - | - | 1558 | 1558 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Targa 4 | Targa 4 | Carrera S | Carrera S | Carrera 4S | Carrera 4S | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2981 | 2981 | 2981 | 2981 | 2981 | 2981 |
| Maximum output / speed [kW/min-1] | 272/6500 | 272/6500 | 309/6500 | 309/6500 | 309/6500 | 309/6500 |
| Maximum torque [Nm/min-1] | 450/1700-5000 | 450/1700-5000 | 500/1700-5000 | 500/1700-5000 | 500/1700-5000 | 500/1700-5000 |
| Bore and stroke [mm x mm] | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 7 gear manual | 7 gear automatic | 7 gear manual | 7 gear automatic | 7 gear manual | 7 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 289 | 287 | 308 | 306 | 305 | 303 |
| Acceleration 0–100 km/h [s] | 4.7 | 4.5 [4.3 Sport Chrono Paket] | 4.3 | 4.1 [3.9 Sport Chrono Paket] | 4.2 | 4.0 [3.8 Sport Chrono Paket] |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.4 | 10.3 | 12.2 | 10.1 | 12.4 | 10.3 |
| Out of town [l] | 6.9 | 6.5 | 6.6 | 6.4 | 6.8 | 6.6 |
| Combined [l] | 8.9 | 7.9 | 8.7 | 7.7 | 8.9 | 7.9 |
| CO2 emissions [g/km] | 206 | 182 | 199 | 174 | 204 | 180 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1645 | 1665 | 1515 | 1535 | 1565 | 1585 |
| Overall weight [kg] | 2000 | 2015 | 1900 | 1915 | 1950 | 1965 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 125 | 125 | 145 | 145 | 125 | 125 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 68 | 68 | 64 | 64 | 68 | 68 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/40 ZR19 | 235/40 ZR19 | 245/35 ZR20 | 245/35 ZR20 | 245/35 ZR20 | 245/35 ZR20 |
| Tyre dimensions rear | 295/35 ZR19 | 295/35 ZR19 | 305/30 ZR20 | 305/30 ZR20 | 305/30 ZR20 | 305/30 ZR20 |
| Wheel size front | 8.5J x 19 ET50 | 8.5J x 19 ET50 | 8.5J x 20 ET49 | 8.5J x 20 ET49 | 8.5J x 20 ET49 | 8.5J x 20 ET49 |
| Wheel size rear | 11.5J x 19 ET56 | 11.5J x 19 ET56 | 11.5J x 20 ET76 | 11.5J x 20 ET76 | 11.5J x 20 ET56 | 11.5J x 20 ET56 |
| Brake dimensions front | 330 x 34 | 330 x 34 | 350 x 34 | 350 x 34 | 350 x 34 | 350 x 34 |
| Brake dimensions rear | 330 x 28 | 330 x 28 | 330 x 28 | 330 x 28 | 330 x 28 | 330 x 28 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- |
| Overall length [mm] | 4499 | 4499 | 4499 | 4499 | 4499 | 4499 |
| Overall width without/including mirrors [mm] | 1852/1978 | 1852/1978 | 1808/- | 1808/- | 1852/1978 | 1852/1978 |
| Overall height [mm] | 1288 | 1288 | 1296 | 1295 | 1298 | 1298 |
| Wheelbase [mm] | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 |
| Front wheel track [mm] | 1541 | 1541 | 1543 | 1543 | 1543 | 1543 |
| Rear wheel track [mm] | 1558 | 1558 | 1518 | 1518 | 1558 | 1558 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Targa 4S | Targa 4S | Carrera GTS | Carrera GTS | Carrera 4 GTS | Carrera 4 GTS | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2017 to | from 2017 to | from 2017 to | from 2017 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2981 | 2981 | 2981 | 2981 | 2981 | 2981 |
| Maximum output / speed [kW/min-1] | 309/6500 | 309/6500 | 331/6500 | 331/6500 | 331/6500 | 331/6500 |
| Maximum torque [Nm/min-1] | 500/1700-5000 | 500/1700-5000 | 550/2150-5000 | 550/2150-5000 | 550/2150-5000 | 550/2150-5000 |
| Bore and stroke [mm x mm] | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 7 gear manual | 7 gear automatic | 7 gear manual | 7 gear automatic | 7 gear manual | 7 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 303 | 301 | 312 | 310 | 310 | 308 |
| Acceleration 0–100 km/h [s] | 4.4 | 4.2 [4.0 Sport Chrono Paket] | 4,1 | 3,7 | 4,0 | 3,6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.6 | 10.4 | 12,9 | 10,7 | 13,0 | 10,9 |
| Out of town [l] | 6.8 | 6.7 | 7,3 | 6,9 | 7,4 | 7,1 |
| Combined [l] | 9.0 | 8.0 | 9,4 | 8,3 | 9,5 | 8,5 |
| CO2 emissions [g/km] | 208 | 184 | 212 | 188 | 216 | 192 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1655 | 1675 | 1525 | 1545 | 1570 | 1590 |
| Overall weight [kg] | 2025 | 2040 | 1920 | 1935 | 1950 | 1965 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 125 | 125 | 145 | 145 | 125 | 125 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 68 | 68 | 64 | 64 | 67 | 67 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0,31 | 0,31 | 0,31 | 0,31 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/35 ZR20 | 245/35 ZR20 | 245/35 ZR 20 | 245/35 ZR 20 | 245/35 ZR 20 | 245/35 ZR 20 |
| Tyre dimensions rear | 305/30 ZR20 | 305/30 ZR20 | 305/30 ZR 20 | 305/30 ZR 20 | 305/30 ZR 20 | 305/30 ZR 20 |
| Wheel size front | 8.5J x 20 ET49 | 8.5J x 20 ET49 | 9 J x 20 ET51 | 9 J x 20 ET51 | 9 J x 20 ET51 | 9 J x 20 ET51 |
| Wheel size rear | 11.5J x 20 ET56 | 11.5J x 20 ET56 | 11.5J x 20 ET76 | 11.5J x 20 ET76 | 11.5J x 20 ET56 | 11.5J x 20 ET56 |
| Brake dimensions front | 350 x 34 | 350 x 34 | 12 J x 20 ET63 | 12 J x 20 ET63 | 12 J x 20 ET63 | 12 J x 20 ET63 |
| Brake dimensions rear | 330 x 28 | 330 x 28 | 330 x 28 | 330 x 28 | 330 x 28 | 330 x 28 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4499 | 4499 | 4528 | 4528 | 4528 | 4528 |
| Overall width without/including mirrors [mm] | 1852/1978 | 1852/1978 | 1852/1978 | 1852/1978 | 1852/1978 | 1852/1978 |
| Overall height [mm] | 1293 | 1291 | 1284 | 1284 | 1284 | 1284 |
| Wheelbase [mm] | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 |
| Front wheel track [mm] | 1543 | 1543 | - | - | - | - |
| Rear wheel track [mm] | 1558 | 1558 | - | - | - | - |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Targa 4 GTS | Targa 4 GTS | GT3 | GT3 | GT3 RS | Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to | from 2017 to | from 2017 to | from 2017 to | from to 2017 | - |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Petrol | Petrol | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2981 | 2981 | 3996 | 3996 | 3996 | 3800 |
| Maximum output / speed [kW/min-1] | 331/6500 | 331/6500 | 368/8250 | 368/8250 | 368/8250 | 397/6400 |
| Maximum torque [Nm/min-1] | 550/2150-5000 | 550/2150-5000 | 460/6250 | 460/6250 | 460/6250 | 660/1950-5000 710/2250 overboost |
| Bore and stroke [mm x mm] | 91,0 x 76,4 | 91,0 x 76,4 | - | - | - | 102,0 x 77,5 |
| Compression ratio | 10,0:1 | 10,0:1 | - | - | - | 9,8:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | Rear | 4x4 |
| Gearbox | 7 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 308 | 306 | 320 | 318 | 310 | 320 |
| Acceleration 0–100 km/h [s] | 4.1 | 3.7 | 3.9 | 3.4 | 3.3 | 3.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | 2.0 (5th gear) | - | - |
| City [l] | 13.3 | 11.2 | 19.7 | 19.4 | 19.2 | 11.8 |
| Out of town [l] | 7.6 | 7.3 | 8.8 | 8.8 | 8.9 | 7.5 |
| Combined [l] | 9.7 | 8.7 | 12.9 | 12.7 | 12.7 | 9.1 |
| CO2 emissions [g/km] | 220 | 196 | 290 | 288 | 296 | 212 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1660 | 1680 | 1488 | 1505 | 1495 | 1670 |
| Overall weight [kg] | 2025 | 2040 | 1760 | 1777 | 1720 | 2010 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 125 | 125 | 125 | 125 | 125 | 115 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 2 | 2 | 2 | 4 |
| Fuel tank volume [l] | 67 | 67 | 64 | 64 | 64 | 68 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.32 | 0.32 | 0.33 | 0.33 | 0.34 | 0.31 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/35 ZR 20 | 245/35 ZR 20 | 245/35 ZR20 | 245/35 ZR20 | 265/35 ZR20 | 245/35 ZR20 |
| Tyre dimensions rear | 305/30 ZR 20 | 305/30 ZR 20 | 305/30 ZR20 | 305/30 ZR20 | 325/30 ZR21 | 305/30 ZR20 |
| Wheel size front | 9 J x 20 ET51 | 9 J x 20 ET51 | 9 J x 20 ET55 | 9 J x 20 ET55 | 9.5J x 20 | 9.0J x 20 ET51 |
| Wheel size rear | 11.5J x 20 ET56 | 11.5J x 20 ET56 | 12 J x 20 ET47 | 12 J x 20 ET47 | 12.5J x 21 | 11.5J x 20 ET56 |
| Brake dimensions front | 12 J x 20 ET63 | 12 J x 20 ET63 | - | - | 410 | 380 x 34 |
| Brake dimensions rear | 330 x 28 | 330 x 28 | - | - | 390 | 380 x 30 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 10.6/- |
| Overall length [mm] | 4528 | 4528 | 4562 | 4562 | 4545 | 4507 |
| Overall width without/including mirrors [mm] | 1852/1978 | 1852/1978 | 1852/1978 | 1852/1978 | 1880/- | 1880/1978 |
| Overall height [mm] | 1291 | 1291 | 1271 | 1271 | 1291 | 1297 |
| Wheelbase [mm] | 2450 | 2450 | 2457 | 2457 | 2456 | 2450 |
| Front wheel track [mm] | - | - | - | - | - | 1541 |
| Rear wheel track [mm] | - | - | - | - | - | 1590 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Turbo S | GT2 RS | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | from 2018 to 2022 | ||||
| Engine type | Ignition supercharged | Ignition supercharged | ||||
| Number of cylinders/valves | 6/24 | 6/24 | ||||
| Engine displacement [cm³] | 3800 | 3800 | ||||
| Maximum output / speed [kW/min-1] | 427/6750 | 515/7000 | ||||
| Maximum torque [Nm/min-1] | 700/2100-4250 750/2250 overboost | 750/2500-4500 | ||||
| Bore and stroke [mm x mm] | 102,0 x 77,5 | 102,0 x 77,5 | ||||
| Compression ratio | 9,8:1 | 9,0:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 7 gear automatic | 7 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 330 | 340 | ||||
| Acceleration 0–100 km/h [s] | 2.9 | 2.8 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 11.8 | - | ||||
| Out of town [l] | 7.5 | - | ||||
| Combined [l] | 9.1 | - | ||||
| CO2 emissions [g/km] | 212 | - | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1675 | 1545 | ||||
| Overall weight [kg] | 1990 | 1830 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | - | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 115 | 115 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 2 | 2 | ||||
| Number of seats | 4 | 2 | ||||
| Fuel tank volume [l] | 68 | 64 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.31 | 0.35 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 245/35 ZR20 | 265/35 ZR20 | ||||
| Tyre dimensions rear | 305/30 ZR20 | 325/30 ZR21 | ||||
| Wheel size front | 9.0J x 20 ET51 | 9,5 J x 20 ET 50 | ||||
| Wheel size rear | 11.5J x 20 ET56 | 12,5 J x 21 ET 48 | ||||
| Brake dimensions front | 410 x 36 | 410 x 36 | ||||
| Brake dimensions rear | 390 x 32 | 390 x 32 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | ||||
| Overall length [mm] | 4507 | 4549 | ||||
| Overall width without/including mirrors [mm] | 1880/1978 | 1880/1978 | ||||
| Overall height [mm] | 1297 | 1297 | ||||
| Wheelbase [mm] | 2450 | 2453 | ||||
| Front wheel track [mm] | 1541 | - | ||||
| Rear wheel track [mm] | 1590 | - | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Convertible
| Carrera Cabrio | Carrera Cabrio | Carrera 4 Cabrio | Carrera 4 Cabrio | Carrera S Cabrio | Carrera S Cabrio | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2981 | 2981 | 2981 | 2981 | 2981 | 2981 |
| Maximum output / speed [kW/min-1] | 272/6500 | 272/6500 | 272/6500 | 272/6500 | 309/6500 | 309/6500 |
| Maximum torque [Nm/min-1] | 450/1700-5000 | 450/1700-5000 | 450/1700-5000 | 450/1700-5000 | 500/1700-5000 | 500/1700-5000 |
| Bore and stroke [mm x mm] | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | Rear | 4x4 | 4x4 | Rear | Rear |
| Gearbox | 7 gear manual | 7 gear automatic | 7 gear manual | 7 gear automatic | 7 gear manual | 7 gear automatic |
| Drive specifications | - |
|
|
| - |
|
| Top speed [km/h] | 292 | 290 | 289 | 287 | 306 | 304 |
| Acceleration 0–100 km/h [s] | 4.8 | 4.6 [4.4 Sport Chrono Paket] | 4.7 | 4.5 [4.3 Sport Chrono Paket] | 4.5 | 4.3 [4.1 Sport Chrono Paket] |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.9 | 9.9 | 12.4 | 10.3 | 12.3 | 10.2 |
| Out of town [l] | 6.5 | 6.2 | 6.9 | 6.5 | 6.7 | 6.5 |
| Combined [l] | 8.5 | 7.5 | 8.9 | 7.9 | 8.8 | 7.8 |
| CO2 emissions [g/km] | 195 | 172 | 206 | 182 | 202 | 178 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1575 | 1595 | 1625 | 1645 | 1585 | 1605 |
| Overall weight [kg] | 1925 | 1940 | 1975 | 1990 | 1950 | 1965 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 145 | 145 | 125 | 125 | 145 | 145 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 64 | 64 | 68 | 68 | 64 | 64 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 235/40 ZR19 | 235/40 ZR19 | 235/40 ZR19 | 235/40 ZR19 | 245/35 ZR20 | 245/35 ZR20 |
| Tyre dimensions rear | 295/35 ZR19 | 295/35 ZR19 | 295/35 ZR19 | 295/35 ZR19 | 305/30 ZR20 | 305/30 ZR20 |
| Wheel size front | 8.5J x 19 ET50 | 8.5J x 19 ET50 | 8.5J x 19 ET50 | 8.5J x 19 ET50 | 8.5J x 20 ET49 | 8.5J x 20 ET49 |
| Wheel size rear | 11.5J x 19 ET76 | 11.5J x 19 ET76 | 11.5J x 19 ET56 | 11.5J x 19 ET56 | 11.5J x 20 ET76 | 11.5J x 20 ET76 |
| Brake dimensions front | 330 x 34 | 330 x 34 | 330 x 34 | 330 x 34 | 350 x 34 | 350 x 34 |
| Brake dimensions rear | 330 x 28 | 330 x 28 | 330 x 28 | 330 x 28 | 330 x 28 | 330 x 28 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- | 11.2/- |
| Overall length [mm] | 4499 | 4499 | 4499 | 4499 | 4499 | 4499 |
| Overall width without/including mirrors [mm] | 1808/1978 | 1808/1978 | 1852/1978 | 1852/1978 | 1808/1978 | 1808/1978 |
| Overall height [mm] | 1289 | 1289 | 1290 | 1290 | 1291 | 1290 |
| Wheelbase [mm] | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 |
| Front wheel track [mm] | 1541 | 1541 | 1541 | 1541 | 1543 | 1543 |
| Rear wheel track [mm] | 1518 | 1518 | 1558 | 1558 | 1518 | 1518 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Carrera 4S Cabrio | Carrera 4S Cabrio | Carrera GTS Cabrio | Carrera GTS Cabrio | Carrera 4 GTS Cabrio | Carrera 4 GTS Cabrio | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from 2017 to | from 2017 to | from 2017 to | from 2017 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2981 | 2981 | 2981 | 2981 | 2981 | 2981 |
| Maximum output / speed [kW/min-1] | 309/6500 | 309/6500 | 331/6500 | 331/6500 | 331/6500 | 331/6500 |
| Maximum torque [Nm/min-1] | 500/1700-5000 | 500/1700-5000 | 550/2150-5000 | 550/2150-5000 | 550/2150-5000 | 550/2150-5000 |
| Bore and stroke [mm x mm] | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 | 91,0 x 76,4 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | Rear | Rear | 4x4 | 4x4 |
| Gearbox | 7 gear manual | 7 gear automatic | 7 gear manual | 7 gear automatic | 7 gear manual | 7 gear automatic |
| Drive specifications |
|
| - |
|
|
|
| Top speed [km/h] | 303 | 301 | 310 | 308 | 308 | 306 |
| Acceleration 0–100 km/h [s] | 4.4 | 4.2 [4.0 Sport Chrono Paket] | 4,2 | 3,8 | 4,1 | 3,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 12.6 | 10.4 | 12,9 | 10,8 | 13,3 | 11,2 |
| Out of town [l] | 6.8 | 6.7 | 7,3 | 7,0 | 7,6 | 7,3 |
| Combined [l] | 9.0 | 8.0 | 9,4 | 8,4 | 9,7 | 8,7 |
| CO2 emissions [g/km] | 208 | 184 | 214 | 190 | 220 | 196 |
| Emission standard | EU6 | EU6 | EU6 | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1635 | 1655 | 1595 | 1615 | 1640 | 1660 |
| Overall weight [kg] | 2000 | 2015 | 1970 | 1985 | 2000 | 2015 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 125 | 125 | 145 | 145 | 125 | 125 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 68 | 68 | 64 | 64 | 67 | 67 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0,32 | 0,32 | 0,32 | 0,32 |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/35 ZR20 | 245/35 ZR20 | 245/35 ZR 20 | 245/35 ZR 20 | 245/35 ZR 20 | 245/35 ZR 20 |
| Tyre dimensions rear | 305/30 ZR20 | 305/30 ZR20 | 305/30 ZR 20 | 305/30 ZR 20 | 305/30 ZR 20 | 305/30 ZR 20 |
| Wheel size front | 8.5J x 20 ET49 | 8.5J x 20 ET49 | 9 J x 20 ET51 | 9 J x 20 ET51 | 9 J x 20 ET51 | 9 J x 20 ET51 |
| Wheel size rear | 11.5J x 20 ET56 | 11.5J x 20 ET56 | 12 J x 20 ET63 | 12 J x 20 ET63 | 12 J x 20 ET63 | 12 J x 20 ET63 |
| Brake dimensions front | 350 x 34 | 350 x 34 | - | - | - | - |
| Brake dimensions rear | 330 x 28 | 330 x 28 | - | - | - | - |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/- | 11.2/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4499 | 4499 | 4528 | 4528 | 4528 | 4528 |
| Overall width without/including mirrors [mm] | 1852/1978 | 1852/1978 | 1852/1978 | 1852/1978 | 1852/1978 | 1852/1978 |
| Overall height [mm] | 1293 | 1292 | 1291 | 1291 | 1293 | 1293 |
| Wheelbase [mm] | 2450 | 2450 | 2450 | 2450 | 2450 | 2450 |
| Front wheel track [mm] | 1543 | 1543 | - | - | - | - |
| Rear wheel track [mm] | 1558 | 1558 | - | - | - | - |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |

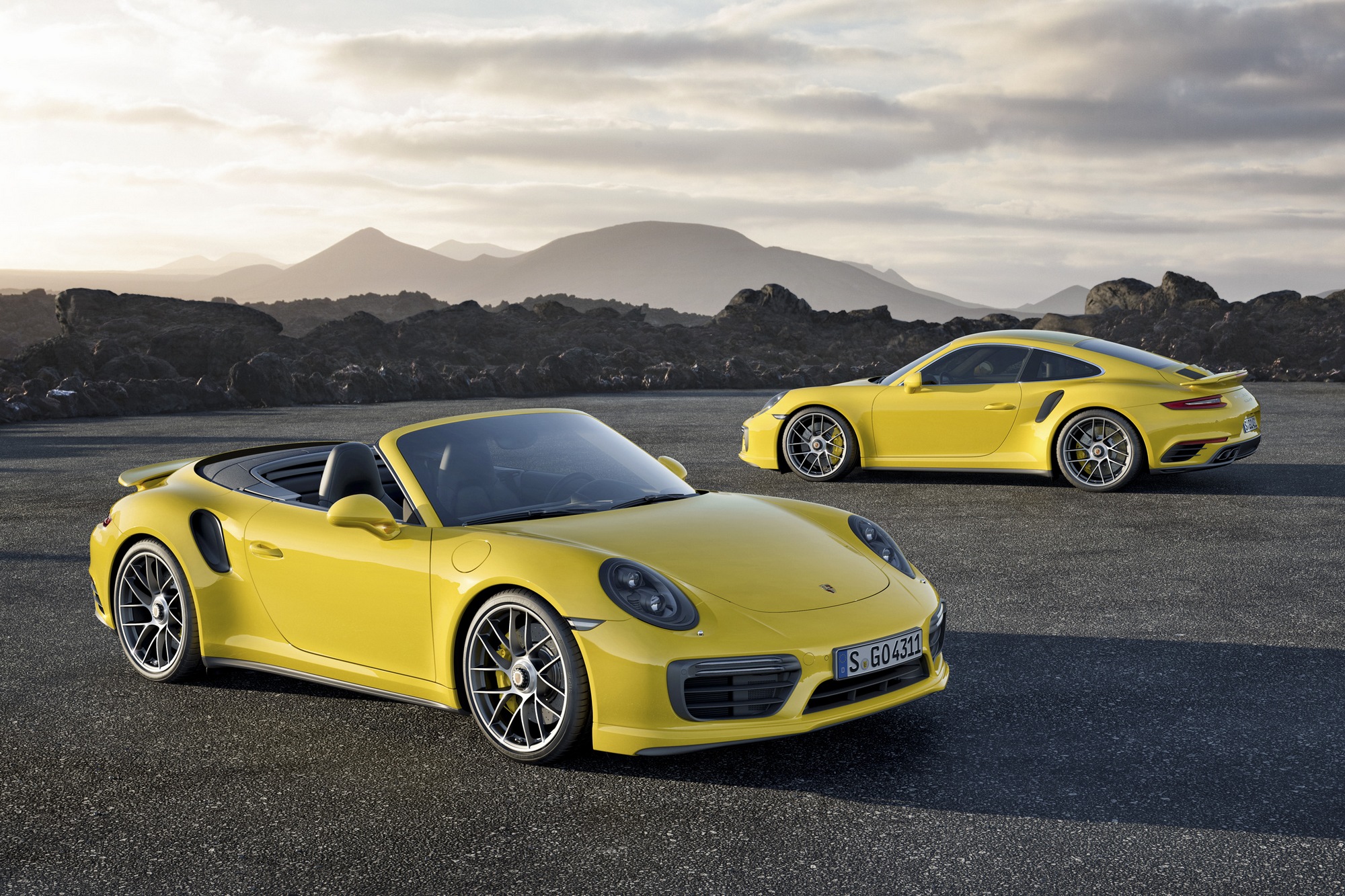

| Turbo Cabrio | Turbo S Cabrio | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Ignition supercharged | Ignition supercharged | ||||
| Number of cylinders/valves | 6/24 | 6/24 | ||||
| Engine displacement [cm³] | 3800 | 3800 | ||||
| Maximum output / speed [kW/min-1] | 397/6400 | 427/6750 | ||||
| Maximum torque [Nm/min-1] | 660/1950-5000 710/2250 overboost | 700/2100-4250 750/2250 overboost | ||||
| Bore and stroke [mm x mm] | 102,0 x 77,5 | 102,0 x 77,5 | ||||
| Compression ratio | 9,8:1 | 9,8:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 7 gear automatic | 7 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 320 | 330 | ||||
| Acceleration 0–100 km/h [s] | 3.1 | 3.0 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | - | - | ||||
| City [l] | 12.1 | 12.1 | ||||
| Out of town [l] | 7.6 | 7.6 | ||||
| Combined [l] | 9.3 | 9.3 | ||||
| CO2 emissions [g/km] | 216 | 216 | ||||
| Emission standard | EU6 | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1740 | 1745 | ||||
| Overall weight [kg] | 2065 | 2045 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | - | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 115 | 115 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 2 | 2 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | 68 | 68 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.32 | 0.32 | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 245/35 ZR20 | 245/35 ZR20 | ||||
| Tyre dimensions rear | 305/30 ZR20 | 305/30 ZR20 | ||||
| Wheel size front | 9.0J x 20 ET51 | 9.0J x 20 ET51 | ||||
| Wheel size rear | 11.5J x 20 ET56 | 11.5J x 20 ET56 | ||||
| Brake dimensions front | 380 x 34 | 410 x 36 | ||||
| Brake dimensions rear | 380 x 30 | 390 x 32 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 10.6/- | 10.6/- | ||||
| Overall length [mm] | 4507 | 4507 | ||||
| Overall width without/including mirrors [mm] | 1880/1978 | 1880/1978 | ||||
| Overall height [mm] | 1294 | 1294 | ||||
| Wheelbase [mm] | 2450 | 2450 | ||||
| Front wheel track [mm] | 1541 | 1541 | ||||
| Rear wheel track [mm] | 1590 | 1590 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
