Porsche Macan

Date of manufacture

8/2018 – 2021 (Medium SUV)

Platform

VW Group MLB

Manufacturing locations

Leipzig, Germany

Designer

Michael Mauer

Car body style

Medium SUV

after upgrade (facelift) (I.)

Date of manufacture

8/2018 – 2021

Internal designation

95B

Engine size

Euro NCAP

Test year 2014

pre-facelift version (2014)

Technical data

Medium SUV

	Macan	Macan S	Macan GTS	Macan Turbo
Date of sale	-	-	from 2019 to	from 2019 to
Engine type	Ignition supercharged	Ignition supercharged	Ignition supercharged	Ignition supercharged
Number of cylinders/valves	4/16	6/24	6/24	6/24
Engine displacement [cm³]	1984	2995	2894	2894
Maximum output / speed [kW/min-1]	180/5000-6750	260/5400-6400	280/5200-6700	324/5700-6600
Maximum torque [Nm/min-1]	370/1600-4500	480/1360-4800	520/1750-5000	550/1800-5500
Bore and stroke [mm x mm]	82,5 x 92,8	84.5 x 89.0	84.5 x 86.0	84.5 x 86.0
Compression ratio	9,6:1	11.2:1	10.5:1	10.5:1
Oil volume [l]	-	-	-	-
Coolant volume [l]	-	-	-	-
Technical specifications	direct injection DFI turbo-supercharged variable timing of intake and exhaust valves variable lift of exhaust valves Gasoline Particulate Filter start&stop system	direct injection turbo-supercharged variable timing of intake and exhaust valves VarioCam Plus variable lift of intake valves Gasoline Particulate Filter start&stop system	direct injection supercharging by twin turbochargers variable timing of intake and exhaust valves VarioCam Plus variable lift of intake valves Gasoline Particulate Filter start&stop system	direct injection supercharging by twin turbochargers variable timing of intake and exhaust valves VarioCam Plus variable lift of intake valves Gasoline Particulate Filter start&stop system

Drive axle	4x4	4x4	4x4	4x4
Gearbox	7 gear automatic	7 gear automatic	7 gear automatic	7 gear automatic
Drive specifications	automatically controlled all-wheel drive PTM dual-clutch automatic gearbox PDK	automatically controlled all-wheel drive PTM seven-speed dual-clutch automatic gearbox PDK	automatically controlled all-wheel drive PTM seven-speed dual-clutch automatic gearbox PDK	automatically controlled all-wheel drive PTM seven-speed dual-clutch automatic gearbox PDK

Top speed [km/h]	225	254	261	270
Acceleration 0–100 km/h [s]	6.7 [6.5 Sport Plus]	5.3 [5.1 Sport Plus]	4.9 [4.7 Sport Plus]	4.5 [4.3 Sport Plus]
Acceleration 0–80 km/h [s]	-	-	-	-
Acceleration 80–120 km/h [s]	4.9	3.6	3.3	2.9

City [l]	9.5	11.3	12.1	12.1
Out of town [l]	7.3	7.5	8.0	8.3
Combined [l]	8.1	8.9	9.5	9.7
CO2 emissions [g/km]	185	204	216	222

Low speed [l]	14.0-12.7	16.4-14.9	16.3-15.7	16.2-15.6
Medium speed [l]	10.8-9.6	11.5-10.7	11.5-10.9	11.8-11.2
High speed [l]	9.7-8.6	10.2-9.6	10.5-9.9	10.4-10.0
Extra high speed [l]	11.0-10.6	11.7-11.0	11.5-11.0	11.9-11.3
Combined speed [l]	11.0-10.0	11.8-11.0	11.8-11.3	12.0-11.4
CO2 emissions [g/km]	249-227	269-251	268-255	273-260

Emission standard	Euro 6d-TEMP	Euro 6d-TEMP	Euro 6d	Euro 6d-TEMP - Euro 6d
Standard for fuel consumption measurement	-	-	-	-
Energy class	-	-	-	-
Stationary vehicle noise [dB]	-	-	-	-
Driving noise [dB]	-	-	-	-

Standby weight [kg]	1870	1940	1985	2020
Overall weight [kg]	2510	2580	2580	2580
Maximum trailer weight unbraked/braked [kg]	750/2000	750/2400	750/2400	750/2400
Maximum front/rear axle load [kg]	-	-	-	-
Maximum vertical load on the tow bar [kg]	80	96	96	96
Maximum load on roof/carrier [kg]	75/-	75/-	75/-	75/-

Boot volume [l]	488	488	488	500
Boot volume with rear seats folded to the edge of the seats/ceiling [l]	-/1503	-/1503	-/1503	-/1500
Boot length [mm]	-	-	-	-
Boot length with rear seats folded [mm]	-	-	-	-
Boot width between wheels/max [mm]	-	-	-	-
Boot height to headliner/ceiling [mm]	-	-	-	-
Loading edge height [mm]	-	-	-	-
Height of the open boot door [mm]	-	-	-	-
Boot opening height [mm]	-	-	-	-
Boot opening width min/max [mm]	-	-	-	-

Number of doors	5	5	5	5
Number of seats	5	5	5	5
Fuel tank volume [l]	65 [75 subject to a surcharge]	65 [75 subject to a surcharge]	65	75
AdBlue tank volume [l]	-	-	-	-
Air resistance [Cd]	0.35	0.36	0.36	0.37
Front suspension	five-link	five-link	five-link	five-link
Rear suspension	multilink	multilink	multilink	multilink
Tyre dimensions front	235/60 R18 103W	235/60 R18 103W	265/45 R20 104Y	265/45 R20 104Y
Tyre dimensions rear	255/55 R18 105W	255/55 R18 105 W	295/40 R20 106Y	295/40 R20 106Y
Wheel size front	8J x 18 ET21	8J x 18 ET 21	9J x 20 ET26	9J x 20 ET 26
Wheel size rear	8J x 18 ET21	9J x 18 ET 21	10J x 20 ET19	10J x 20 ET 19
Brake dimensions front	345 x 30	360 x 36	-	390 x 38
Brake dimensions rear	330 x 22	330 x 22	-	356 x 28
Steering	-	-	-	-
Number of steering wheel turns	-	-	-	-
Turning diameter track/circumference [m]	11.96/-	11.96/-	11.96/-	11.96/-

Overall length [mm]	4696	4696	4686	4684
Overall width without/including mirrors [mm]	1923/2098	1923/2098	1926/2098	1926/2098
Overall height [mm]	1624	1624	1609	1624
Wheelbase [mm]	2807	2807	2807	2807
Front wheel track [mm]	1655	1655	1650	1645
Rear wheel track [mm]	1651	1651	1658	1655
Forward overhang [mm]	-	-	-	-
Rear overhang [mm]	-	-	-	-
Clearance [mm]	190-205	190-205	180-190	205 [190-230 subject to a surcharge]
Wading depth [mm]	300	300	285	300 [340 subject to a surcharge]
Approach angle front [°]	16.9-23.6	16.9-23.6	21.5-22.1	23.8-23.6 [25.7-25.3 subject to a surcharge]
Approach angle rear [°]	16.9-23.6	16.9-23.6	21.5-22.1	23.8-23.6 [25.7-25.3 subject to a surcharge]
Transition angle [°]	16.9	16.9	15.7	16.9 [18.8 subject to a surcharge]
Climbing rate [°]	-	-	-	-
Maximum side tilt [°]	-	-	-	-

Headroom front [mm]	-	-	-	-
Headroom rear [mm]	-	-	-	-
Front elbow/shoulder width [mm]	-	-	-	-
Rear elbow/shoulder width [mm]	-	-	-	-
Legroom front knees/total [mm]	-	-	-	-
Legroom rear knees/total [mm]	-	-	-	-

Gallery

Porsche Macan 95B facelift 2018 interior

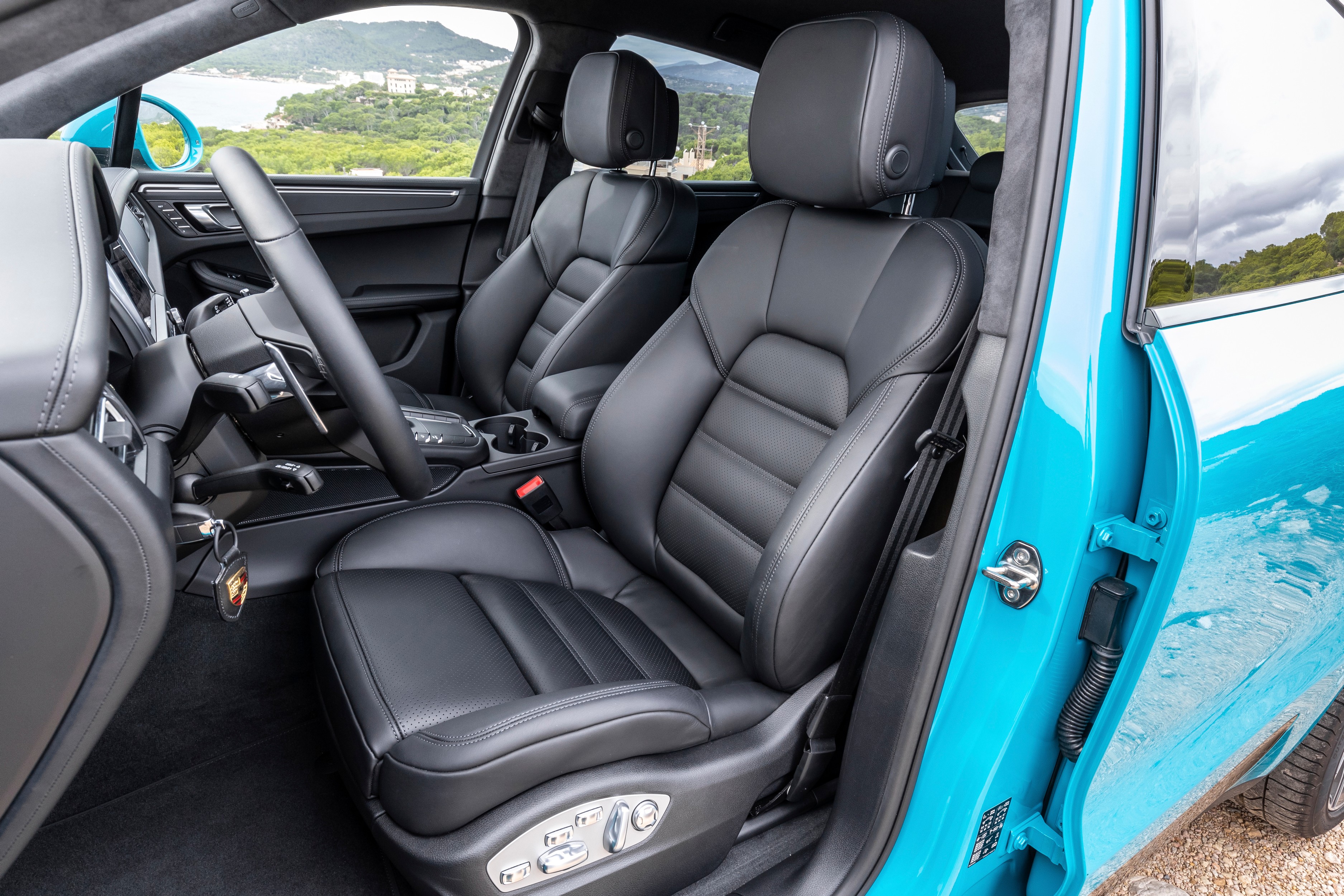

Porsche Macan 95B facelift 2019 front seats

Porsche Macan 95B facelift 2020 rear seats

Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.

Please always refer to the vehicle registration document or your authorised dealer for exact details.
