Porsche Panamera
Date of manufacture
2013 – 8/2016 (Liftback)
Platform
-
Manufacturing locations
Leipzig, Germany
Designer
Michael Mauer
Tags
F-segment
German cars
The Porsche Panamera has been available as a liftback since 2013. The German-made car offers a wide range of engines, including petrol, diesel and hybrid. The most powerful model is the Panamera Turbo S with 419 kW, which can reach a top speed of 310 km/h and the best acceleration from 0-100 km/h in 3.8 seconds. The most comfortable ride is provided by the Panamera S E-Hybrid with the lowest combined fuel consumption of 3.1 l/100 km and CO2 emissions of 71 g/km. The luggage compartment has a capacity of 335 l.
Car body style
Liftback
after upgrade (facelift)
Date of manufacture
2013 – 8/2016Internal designation
970 Engine size
PetrolPetrol + Electric
Diesel
Technical data
Liftback
| Panamera | Panamera 4 | Panamera S | Panamera 4S | Panamera GTS | Panamera Turbo | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Ignition supercharged | Ignition supercharged | Petrol | Ignition supercharged |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 |
| Engine displacement [cm³] | 3605 | 3605 | 2997 | 2997 | 4806 | 4806 |
| Maximum output / speed [kW/min-1] | 228/6200 | 228/6200 | 309/6000 | 309/6000 | 324/6700 | 382/6000 |
| Maximum torque [Nm/min-1] | 400/3750 | 400/3750 | 520/1750-5000 | 520/1750-5000 | 520/3500 | 700/2250-4500 [770 overboost] |
| Bore and stroke [mm x mm] | 96,0 x 83,0 | 96,0 x 83,0 | 96,0 x 69,0 | 96,0 x 69,0 | 96,0 x 83,0 | 96,0 x 83,0 |
| Compression ratio | 12,5:1 | 12,5:1 | 9,8:1 | 9,8:1 | 12,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | Rear | 4x4 | 4x4 | 4x4 |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic | 7 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 259 | 257 | 287 | 286 | 288 | 303 |
| Acceleration 0–100 km/h [s] | 6.3 [6.0 Sport Chrono Paket] | 6.1 [5.8 Sport Chrono Paket] | 5.1 [4.8 Sport Chrono Paket] | 4.8 [4.5 Sport Chrono Paket] | 4.4 | 4.2 [4.0 Sport Chrono Paket] |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 11.4 | 11.6 | 12.1 | 12.4 | 15.2 | 17.0 |
| Out of town [l] | 6.9 | 7.2 | 7.1 | 7.3 | 7.5 | 8.4 |
| Combined [l] | 8.5 | 8.8 | 8.9 | 9.1 | 10.3 | 11.5 |
| CO2 emissions [g/km] | 199 | 206 | 207 | 211 | 239 | 270 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1845 | 1895 | 1885 | 1945 | 2000 | 2045 |
| Overall weight [kg] | 2380 | 2420 | 2415 | 2450 | 2500 | 2500 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | - | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 445 | 445 | 445 | 445 | 445 | 432 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1263 | -/1263 | -/1263 | -/1263 | -/1263 | -/1250 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 80 | 80 | 80 | 100 | 100 | 100 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 245/50 ZR18 | 245/50 ZR18 | 245/50 ZR18 | 245/50 ZR18 | 255/45 ZR19 | 255/45 ZR19 |
| Tyre dimensions rear | 275/45 ZR18 | 275/45 ZR18 | 275/45 ZR18 | 275/45 ZR18 | 285/40 ZR19 | 285/40 ZR19 |
| Wheel size front | 8.0J x 18 ET59 | 8.0J x 18 ET59 | 8.0J x 18 ET59 | 8.0J x 18 ET59 | 9.0J x 19 ET60 | 9.0J x 19 ET60 |
| Wheel size rear | 9.0J x 18 ET53 | 9.0J x 18 ET53 | 9.0J x 18 ET53 | 9.0J x 18 ET53 | 10.0J x 19 ET61 | 10.0J x 19 ET61 |
| Brake dimensions front | 360 x 36 | 360 x 36 | 360 x 36 | 360 x 36 | 390 x 38 | 390 x 38 |
| Brake dimensions rear | 330 x 28 | 330 x 28 | 330 x 28 | 330 x 28 | 350 x 28 | 350 x 28 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 5015 | 5015 | 5015 | 5015 | 5015 | 5015 |
| Overall width without/including mirrors [mm] | 1931/2114 | 1931/2114 | 1931/2114 | 1931/2114 | 1931/2114 | 1931/2114 |
| Overall height [mm] | 1418 | 1418 | 1418 | 1418 | 1408 | 1418 |
| Wheelbase [mm] | 2920 | 2920 | 2920 | 2920 | 2920 | 2920 |
| Front wheel track [mm] | 1658 | 1658 | 1658 | 1658 | 1656 | 1656 |
| Rear wheel track [mm] | 1662 | 1662 | 1662 | 1662 | 1656 | 1646 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 143 | 143 | 143 | 143 | 133 | 144 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 965 | 965 | 965 | 965 | 965 | 965 |
| Headroom rear [mm] | 970 | 970 | 970 | 970 | 970 | 970 |
| Front elbow/shoulder width [mm] | -/1317 | -/1317 | -/1317 | -/1317 | -/1317 | -/1317 |
| Rear elbow/shoulder width [mm] | -/1313 | -/1313 | -/1313 | -/1313 | -/1313 | -/1313 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Panamera Turbo S | Panamera S E-Hybrid | Panamera Diesel | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Ignition supercharged | Petrol supercharged + Electric | Diesel supercharged | |||
| Number of cylinders/valves | 8/32 | 6/24 | 6/24 | |||
| Engine displacement [cm³] | 4806 | 2995 | 2967 | |||
| Maximum output / speed [kW/min-1] | 419/6000 | 245/5500-6500 combustion 70/2200-2600 el. 306/5500 total | 221/4000 | |||
| Maximum torque [Nm/min-1] | 750/2250-5000 [800 overboost] | 440/3000-5250 combustion 310/1700 el. 590/1250-4000 total | 650/1750-2500 | |||
| Bore and stroke [mm x mm] | 96,0 x 83,0 | 84,5 x 89,0 | 84,5 x 89,1 | |||
| Compression ratio | 10,5:1 | 10,5:1 | 16,8:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | 4x4 | Rear | Rear | |||
| Gearbox | 7 gear automatic | 8 gear automatic | 8 gear automatic | |||
| Drive specifications |
|
|
| |||
| Top speed [km/h] | 310 | 270 | 259 | |||
| Acceleration 0–100 km/h [s] | 3.8 | 5.5 | 6.0 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 14.9 | - | 7.7 | |||
| Out of town [l] | 7.8 | - | 5.6 | |||
| Combined [l] | 10.4 | 3.1 [16.2 kWh] | 6.4 | |||
| CO2 emissions [g/km] | 242 | 71 | 159 | |||
| Emission standard | EU5-EU6 | EU5-EU6 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| System voltage [V] | - | - | - | |||
| Battery type and capacity | - | Lithium-Ionen-Akkumulator, 9.4 kWh | - | |||
| Range with fully charged battery [km] | - | 36 | - | |||
| Charging time | - |
| - | |||
| Number of modules/cells | - | - | - | |||
| Battery weight [kg] | - | - | - | |||
| Charger | - | - | - | |||
| Standby weight [kg] | 2070 | 2170 | 1975 | |||
| Overall weight [kg] | 2500 | 2580 | 2500 | |||
| Maximum trailer weight unbraked/braked [kg] | - | - | - | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 432 | 335 | 445 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1250 | -/1153 | -/1263 | |||
| Boot length [mm] | - | - | - | |||
| Boot length with rear seats folded [mm] | - | - | - | |||
| Boot width between wheels/max [mm] | - | - | - | |||
| Boot height to headliner/ceiling [mm] | - | - | - | |||
| Loading edge height [mm] | - | - | - | |||
| Height of the open boot door [mm] | - | - | - | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | - | - | - | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 4 | 4 | 4 | |||
| Fuel tank volume [l] | 100 | 80 | 80 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | 0.32 | 0.29 | 0.3 | |||
| Front suspension | double wishbone | double wishbone | double wishbone | |||
| Rear suspension | multilink | multilink | multilink | |||
| Tyre dimensions front | 255/40 ZR20 | 245/50 ZR18 | 245/50 ZR18 | |||
| Tyre dimensions rear | 295/35 ZR20 | 275/45 ZR18 | 275/45 ZR18 | |||
| Wheel size front | 9.5J x 20 ET65 | 8.0J x 18 ET59 | 8.0J x 18 ET59 | |||
| Wheel size rear | 11.0J x 20 ET68 | 9.0J x 18 ET53 | 9.0J x 18 ET53 | |||
| Brake dimensions front | 420 x 40 | 360 x 36 | 360 x 36 | |||
| Brake dimensions rear | 350 x 28 | 330 x 28 | 330 x 28 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | |||
| Overall length [mm] | 5015 | 5015 | 5015 | |||
| Overall width without/including mirrors [mm] | 1931/2114 | 1931/2114 | 1931/2114 | |||
| Overall height [mm] | 1418 | 1418 | 1418 | |||
| Wheelbase [mm] | 2920 | 2920 | 2920 | |||
| Front wheel track [mm] | 1656 | 1658 | 1658 | |||
| Rear wheel track [mm] | 1642 | 1662 | 1662 | |||
| Forward overhang [mm] | - | - | - | |||
| Rear overhang [mm] | - | - | - | |||
| Clearance [mm] | 144 | 143 | 143 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 965 | 965 | 965 | |||
| Headroom rear [mm] | 970 | 970 | 970 | |||
| Front elbow/shoulder width [mm] | -/1317 | -/1317 | -/1317 | |||
| Rear elbow/shoulder width [mm] | -/1313 | -/1313 | -/1313 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |

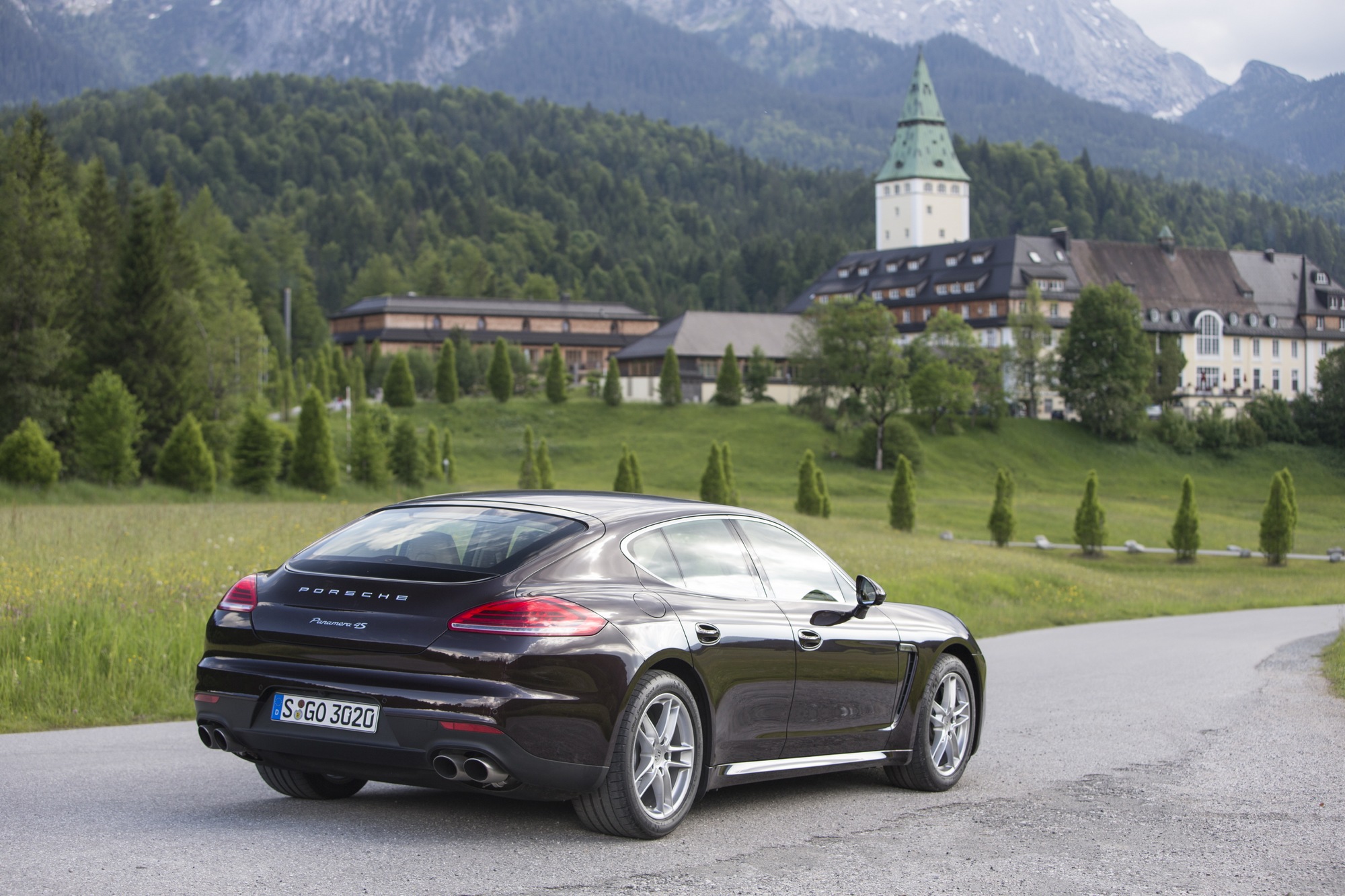

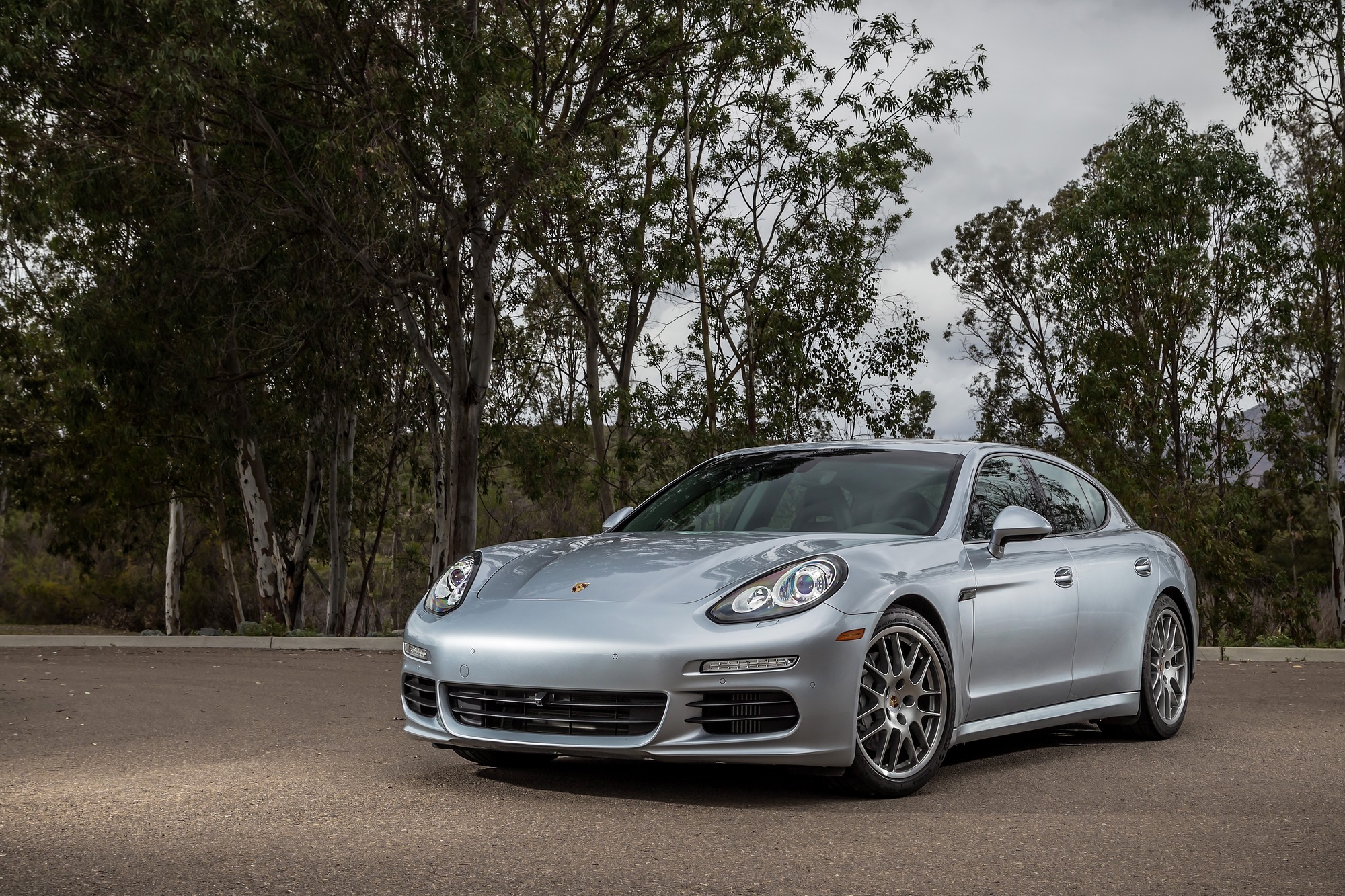

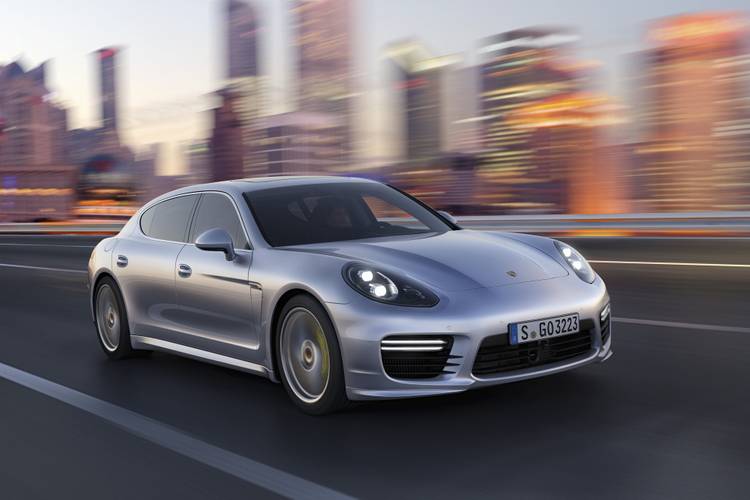

Gallery
