Porsche Panamera
Date of manufacture
2020 – to this day (Liftback)
2020 – to this day (Estate)
Platform
-
Manufacturing locations
Leipzig, Germany
Designer
Michael Mauer
Tags
F-segment
German cars
The Porsche Panamera has been produced since 2020 in two body styles - liftback and estate. The car is made in Germany with a range of petrol and hybrid engines. The most powerful model, the Panamera Turbo S E-Hybrid, produces 515 kW of power and has a top speed of 315 km/h. The fastest acceleration from 0-100 km/h is 3.1 seconds, achieved by the Panamera Turbo S. The most fuel-efficient version, the Panamera 4 E-Hybrid, has a fuel consumption of 2.5 l/100 km and emissions of 57 g/km. The liftback offers a luggage capacity of 495 l, while the estate offers 515 l.
Car body style

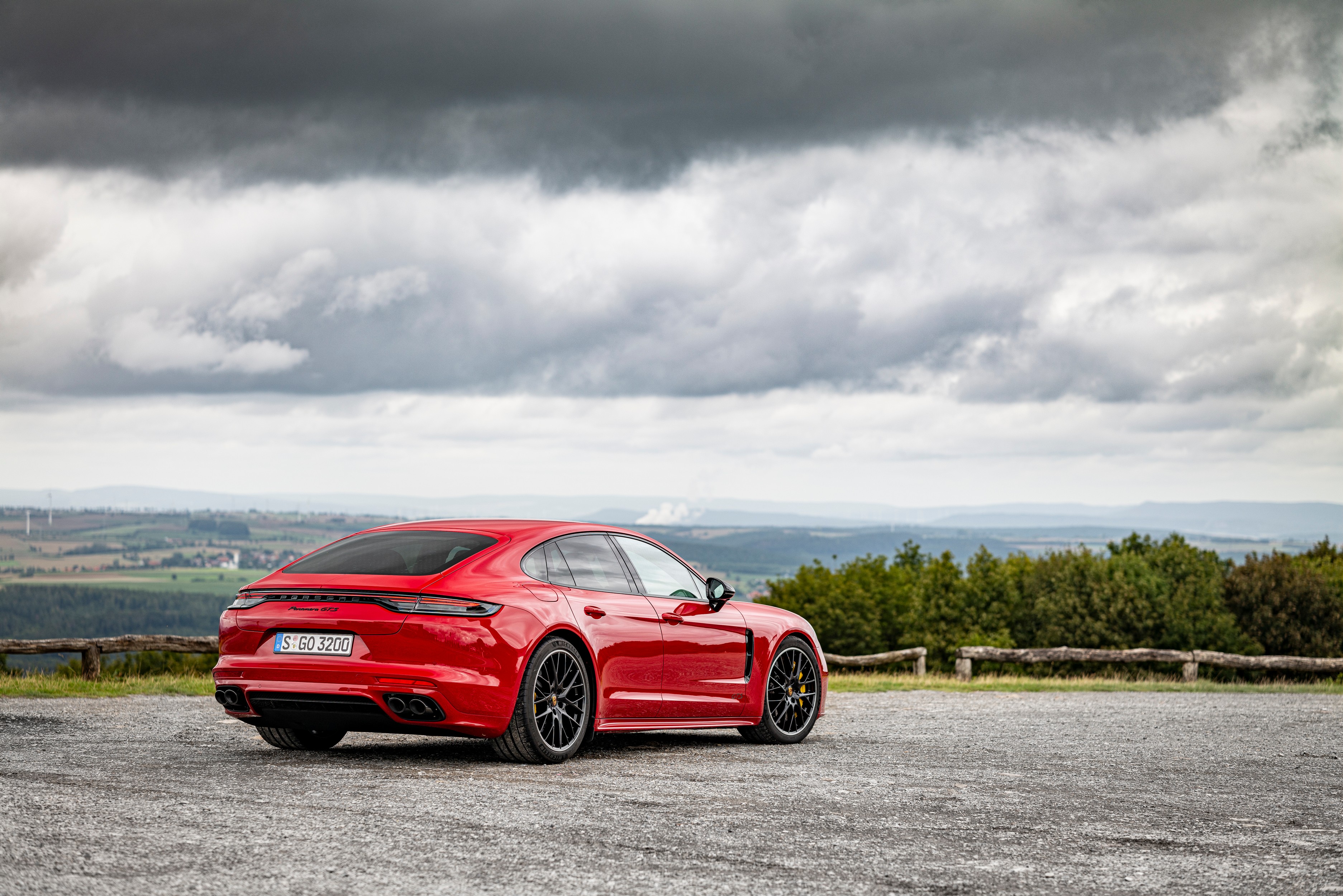

Liftback
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
971Engine size

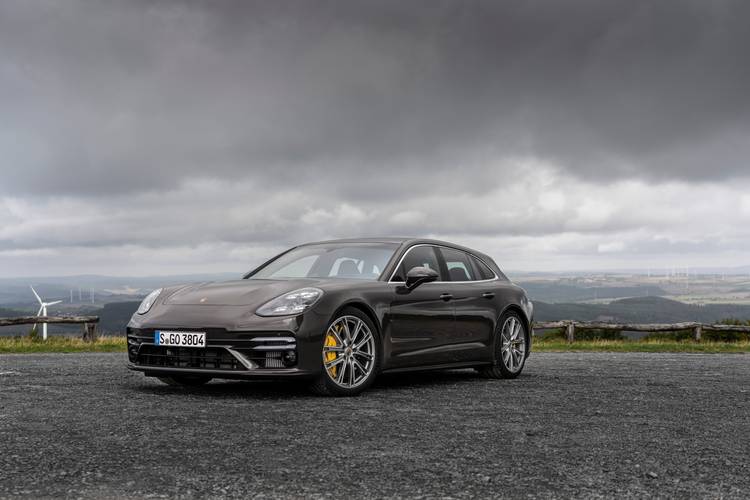

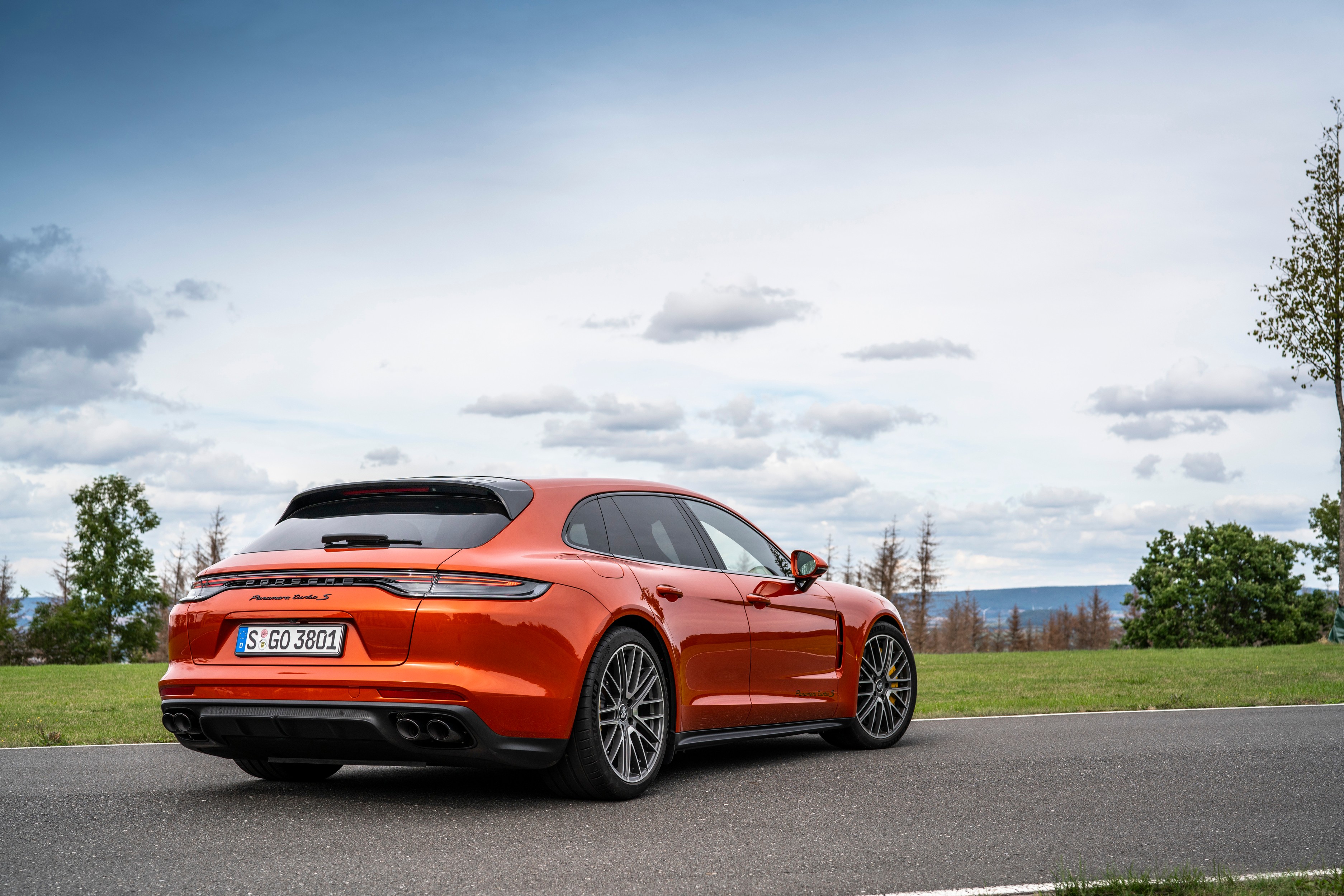

Estate (Sport Turismo)
after upgrade (facelift)
Date of manufacture
2020 – to this dayInternal designation
971Engine size
Technical data
Liftback
| Panamera | Panamera 4 | Panamera 4S | Panamera GTS | Panamera Turbo S | Panamera 4 E-Hybrid | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric |
| Number of cylinders/valves | 6/24 | 6/24 | 6/24 | 8/32 | 8/32 | 6/24 |
| Engine displacement [cm³] | 2894 | 2894 | 2894 | 3996 | 3996 | 2894 |
| Maximum output / speed [kW/min-1] | 243/5400-6400 | 243/5400-6400 | 324/5650-6600 | 353/6500 | 463/6000 | 243/5400-6400 total 100/2800 el. 340/5000-6250 total |
| Maximum torque [Nm/min-1] | 450/1800-5000 | 450/1800-5000 | 550/2000-5500 | 620/1800-4000 | 820/2300-4500 | 450/1800-5000 combustion 400/100-2300 el. 700/1000-4300 total |
| Bore and stroke [mm x mm] | 84,5 x 86,0 | 84,5 x 86,0 | 84,5 x 86,0 | 86,0 x 86,0 | 86,0 x 86,0 | 84,5 x 86,0 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,1:1 | 9.7:1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Rear | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 270 | 268 | 295 | 300 | 315 | 280 [140 el.] |
| Acceleration 0–100 km/h [s] | 5.6 [5.4 Sport Plus] | 5.3 [5.1 Sport Plus] | 4.3 [4.1 Sport Plus] | 3.9 | 3.1 | 4.4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 3.7 | 3.8 | 2.8 | 2.7 | 2.1 | 3.0 |
| City [l] | 11.4-11.1 | 11.6-11.4 | 11.6-11.3 | 15.4 | 14.9-14.8 | - |
| Out of town [l] | 7.5-7.0 | 7.3-7.1 | 7.5-7.4 | 8.2-8.0 | 8.5-8.4 | - |
| Combined [l] | 8.8-8.6 | 8.8-8.7 | 9.0-8.8 | 10.9-10.7 | 10.8-10.7 | 2.1 [17.5-17.0 kWh] |
| CO2 emissions [g/km] | 201-197 | 202-199 | 205-201 | 249-244 | 247-245 | 49-47 |
| Low speed [l] | 15.2 | 16.1 | 15.7 | 20.5 | 20.9 | - |
| Medium speed [l] | 10.6 | 10.7 | 10.3 | 12.7 | 13.0 | - |
| High speed [l] | 8.7 | 8.9 | 9.0 | 10.3 | 10.8 | - |
| Extra high speed [l] | 9.4 | 9.3 | 9.5 | 10.3 | 11.3 | - |
| Combined speed [l] | 11.4-10.2 | 11.3-10.4 | 11.3-10.3 | 13.1-12.1 | 13.2-12.8 | 2.5-2.0 [24.4-22.6 kWh] |
| CO2 emissions [g/km] | 258-232 | 257-235 | 256-234 | 296-275 | 298-290 | 57-45 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | - | 374 |
| Battery type and capacity | - | - | - | - | - | Lithium-ion, 17.9 kWh (14.3 net) |
| Range with fully charged battery [km] | - | - | - | - | - | 52-56 [WLTP] |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1935 | 1975 | 1990 | 2095 | 2155 | 2285 |
| Overall weight [kg] | 2515 | 2460 | 2505 | 2585 | 2585 | 2710 |
| Maximum trailer weight unbraked/braked [kg] | 750/2200 | 750/2200 | 750/2200 | 750/2200 | 750/2200 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | - |
| Boot volume [l] | 495 | 495 | 495 | 495 | 467 | 403 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1334 | -/1334 | -/1334 | -/1334 | -/1306 | -/1242 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 | 4 | 4 | 4 | 4 | 4 |
| Fuel tank volume [l] | 75 [90 subject to a surcharge] | 75 [90 subject to a surcharge] | 75 [90 subject to a surcharge] | 90 | 90 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.28 | 0.28 | 0.27 | 0.29 | 0.29 | 0.28 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 265/45 ZR19 | 265/45 ZR19 | 265/45 ZR19 | 275/40 ZR20 | 275/35 ZR21 | 265/45 ZR19 |
| Tyre dimensions rear | 295/40 ZR19 | 295/40 ZR19 | 295/40 ZR19 | 315/35 ZR20 | 325/30 ZR21 | 295/40 ZR19 |
| Wheel size front | 9J x 19 ET64 | 9J x 19 ET64 | 9.0J x 19 ET64 | 9.5 J x 20 ET 71 | 9.5J x 21 ET71 | 9.0J x 19 ET64 |
| Wheel size rear | 10.5 x 19 ET62 | 10.5 x 19 ET62 | 10.5 x 19 ET62 | 11.5 J x 20 ET 68 | 11.5J x 21 ET69 | 10.5 x 19 ET62 |
| Brake dimensions front | 350 x 34 | 350 x 34 | 360 x 36 | 390 x 38 | 420 x 40 | 390 x 38 |
| Brake dimensions rear | 330 x 28 | 330 x 28 | 330 x 28 | 365 x 28 | 410 x 32 | 365 x 28 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.4/- | 11.9/- |
| Overall length [mm] | 5049 | 5049 | 5049 | 5053 | 5049 | 5049 |
| Overall width without/including mirrors [mm] | 1937/2165 | 1937/2165 | 1937/2165 | 1937/2165 | 1937/2165 | 1937/2165 |
| Overall height [mm] | 1423 | 1423 | 1423 | 1417 | 1427 | 1423 |
| Wheelbase [mm] | 2950 | 2950 | 2950 | 2950 | 2950 | 2950 |
| Front wheel track [mm] | 1671 | 1671 | 1671 | 1657 | 1657 | 1671 |
| Rear wheel track [mm] | 1651 | 1651 | 1651 | 1639 | 1637 | 1651 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 134 | 134 | 133 | 128 | 138 | 133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 |
| Approach angle rear [°] | 16.6 | 16.6 | 16.6 | 16.6 | 16.6 | 16.6 |
| Transition angle [°] | 12.4 | 12.4 | 12.4 | 11 | 11 | 11 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Panamera 4S E-Hybrid | Panamera Turbo S E-Hybrid | |||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | ||||
| Engine type | Petrol supercharged + Electric | Petrol supercharged + Electric | ||||
| Number of cylinders/valves | 6/24 | 8/32 | ||||
| Engine displacement [cm³] | 2894 | 3996 | ||||
| Maximum output / speed [kW/min-1] | 324/5650-6600 total 100/2800 el. 412/5750-6800 total | 420/5750-6000 total 100/2800 el. 515/6000 total | ||||
| Maximum torque [Nm/min-1] | 550/2000-5500 combustion 400/100-2300 el. 750/1400-4500 total | 770/2100-4500 combustion 400/100-2300 el. 870/1500-5500 total | ||||
| Bore and stroke [mm x mm] | 84,5 x 86,0 | 86,0 x 86,0 | ||||
| Compression ratio | 10.5:1 | 10,1:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | 4x4 | 4x4 | ||||
| Gearbox | 8 gear automatic | 8 gear automatic | ||||
| Drive specifications |
|
| ||||
| Top speed [km/h] | 298 [140 el.] | 315 [140 el.] | ||||
| Acceleration 0–100 km/h [s] | 3.7 | 3.2 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | 2.4 | 2.1 | ||||
| City [l] | - | - | ||||
| Out of town [l] | - | - | ||||
| Combined [l] | 2.0 [18.1-17.4 kWh] | 2.7 [21.8 kWh] | ||||
| CO2 emissions [g/km] | 51-47 | 62 | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | 2.8-2.2 [24.5-22.6 kWh] | 2.9-2.7 [24.6-24.0 kWh] | ||||
| CO2 emissions [g/km] | 64-50 | 66-62 | ||||
| Emission standard | Euro 6d | Euro 6d | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| System voltage [V] | 374 | 374 | ||||
| Battery type and capacity | Lithium-ion, 17.9 kWh (14.3 net) | Lithium-ion, 17.9 kWh (14.3 net) | ||||
| Range with fully charged battery [km] | 49-54 [WLTP] | 49-50 [WLTP] | ||||
| Charging time | - | - | ||||
| Number of modules/cells | - | - | ||||
| Battery weight [kg] | - | - | ||||
| Charger | - | - | ||||
| Standby weight [kg] | 2300 | 2425 | ||||
| Overall weight [kg] | 2750 | 2810 | ||||
| Maximum trailer weight unbraked/braked [kg] | - | - | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 403 | 403 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1242 | -/1242 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | - | - | ||||
| Boot width between wheels/max [mm] | - | - | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | - | - | ||||
| Height of the open boot door [mm] | - | - | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | - | - | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 4 | 4 | ||||
| Fuel tank volume [l] | 80 | 80 | ||||
| AdBlue tank volume [l] | - | - | ||||
| Air resistance [Cd] | 0.28 | 0.29 | ||||
| Front suspension | double wishbone | double wishbone | ||||
| Rear suspension | multilink | multilink | ||||
| Tyre dimensions front | 275/40 ZR20 | 275/35 ZR21 103Y | ||||
| Tyre dimensions rear | 315/35 ZR20 | 315/30 ZR21 108Y | ||||
| Wheel size front | 9.5 J x 20 ET71 | 9,5J x 21 ET71 | ||||
| Wheel size rear | 11.5 J x 20 ET68 | 11,5J x 21 ET69 | ||||
| Brake dimensions front | 410 x 38 | 420 x 40 | ||||
| Brake dimensions rear | 365 x 28 | 410 x 32 | ||||
| Steering | - | - | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.8/- | 11.4/- | ||||
| Overall length [mm] | 5049 | 5049 | ||||
| Overall width without/including mirrors [mm] | 1937/2165 | 1937/2165 | ||||
| Overall height [mm] | 1423 | 1427 | ||||
| Wheelbase [mm] | 2950 | 2950 | ||||
| Front wheel track [mm] | 1671 | 1657 | ||||
| Rear wheel track [mm] | 1651 | 1637 | ||||
| Forward overhang [mm] | - | - | ||||
| Rear overhang [mm] | - | - | ||||
| Clearance [mm] | 133 | 138 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | 12.6 | 12.9 | ||||
| Approach angle rear [°] | 16.6 | 16.8 | ||||
| Transition angle [°] | 11 | 11.1 | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | - | - | ||||
| Headroom rear [mm] | - | - | ||||
| Front elbow/shoulder width [mm] | - | - | ||||
| Rear elbow/shoulder width [mm] | - | - | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | - | - |
Estate (Sport Turismo)
| Panamera 4 | Panamera 4S | Panamera GTS | Panamera Turbo S | Panamera 4 E-Hybrid | Panamera 4S E-Hybrid | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol supercharged + Electric | Petrol supercharged + Electric |
| Number of cylinders/valves | 6/24 | 6/24 | 8/32 | 8/32 | 6/24 | 6/24 |
| Engine displacement [cm³] | 2894 | 2894 | 3996 | 3996 | 2894 | 2894 |
| Maximum output / speed [kW/min-1] | 243/5400-6400 | 324/5650-6600 | 353/6500 | 463/6000 | 243/5400-6400 total 100/2800 el. 340/5000-6250 total | 324/5650-6600 total 100/2800 el. 412/5750-6800 total |
| Maximum torque [Nm/min-1] | 450/1800-5000 | 550/2000-5500 | 620/1800-4000 | 820/2300-4500 | 450/1800-5000 combustion 400/100-2300 el. 700/1000-4300 total | 550/2000-5500 combustion 400/100-2300 el. 750/1400-4500 total |
| Bore and stroke [mm x mm] | 84,5 x 86,0 | 84,5 x 86,0 | 86,0 x 86,0 | 86,0 x 86,0 | 84,5 x 86,0 | 84,5 x 86,0 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,1:1 | 9.7:1 | 10.5:1 | 10.5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 | 4x4 |
| Gearbox | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic | 8 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 263 | 289 | 292 | 315 | 280 [140 el.] | 293 [140 el.] |
| Acceleration 0–100 km/h [s] | 5.3 [5.1 Sport Plus] | 4.3 [4.1 Sport Plus] | 3.9 | 3.1 | 4.4 | 3.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 3.9 | 2.8 | 2.7 | 2.1 | 3.0 | 2.4 |
| City [l] | 11.4-11.2 | 11.7-11.5 | 15.5-15.4 | 15.0-14.9 | - | - |
| Out of town [l] | 7.8-7.5 | 7.7-7.6 | 8.5-8.3 | 8.8-8.7 | - | - |
| Combined [l] | 9.0-8.9 | 9.2-9.1 | 11.1-10.9 | 11.1-11.0 | 2.3-2.2 [18.2-17.5 kWh] | 2.2-2.1 [19.3-17.4 kWh] |
| CO2 emissions [g/km] | 205-202 | 210-207 | 253-248 | 253-251 | 49-47 | 52-49 |
| Low speed [l] | 16.2 | 15.8 | 20.6 | 21.2 | - | - |
| Medium speed [l] | 10.8 | 10.5 | 12.7 | 13.2 | - | - |
| High speed [l] | 9.1 | 9.3 | 10.5 | 11.0 | - | - |
| Extra high speed [l] | 9.7 | 10.0 | 10.7 | 11.5 | - | - |
| Combined speed [l] | 11.5-10.6 | 11.5-10.7 | 13.2-12.3 | 13.3-13.0 | 2.7-2.1 [24.9-23.1 kWh] | 3.0-2.4 [24.9-23.1 kWh] |
| CO2 emissions [g/km] | 260-241 | 260-242 | 300-280 | 302-295 | 60-49 | 67-55 |
| Emission standard | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | - | 374 | 374 |
| Battery type and capacity | - | - | - | - | Lithium-ion, 17.9 kWh (14.3 net) | Lithium-ion, 17.9 kWh (14.3 net) |
| Range with fully charged battery [km] | - | - | - | - | 51-55 [WLTP] | 49-53 [WLTP] |
| Charging time | - | - | - | - | - | - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | - | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 2005 | 2015 | 2115 | 2210 | 2300 | 2315 |
| Overall weight [kg] | 2510 | 2540 | 2615 | 2610 | 2735 | 2760 |
| Maximum trailer weight unbraked/braked [kg] | 750/2200 | 750/2200 | 750/2200 | 750/2200 | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | - | - |
| Boot volume [l] | 515 | 515 | 515 | 487 | 418 | 418 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1384 | -/1384 | -/1384 | -/1356 | -/1287 | -/1287 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 | 4 or 5 |
| Fuel tank volume [l] | 75 [90 subject to a surcharge] | 75 [90 subject to a surcharge] | 90 | 90 | 80 | 80 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.31 | 0.32 | 0.32 | 0.32 | 0.32 | 0.32 |
| Front suspension | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone | double wishbone |
| Rear suspension | multilink | multilink | multilink | multilink | multilink | multilink |
| Tyre dimensions front | 265/45 ZR19 | 265/45 ZR19 | 275/40 ZR20 | 275/35 ZR21 | 265/45 ZR19 | 275/40 ZR20 |
| Tyre dimensions rear | 295/40 ZR19 | 295/40 ZR19 | 315/35 ZR20 | 325/30 ZR21 | 295/40 ZR19 | 315/35 ZR20 |
| Wheel size front | 9J x 19 ET64 | 9.0J x 19 ET64 | 9.5 J x 20 ET 71 | 9.5J x 21 ET71 | 9.0J x 19 ET64 | 9.5 J x 20 ET71 |
| Wheel size rear | 10.5 x 19 ET62 | 10.5 x 19 ET62 | 11.5 J x 20 ET 68 | 11.5J x 21 ET69 | 10.5 x 19 ET62 | 11.5 J x 20 ET68 |
| Brake dimensions front | 390 x 38 | 390 x 38 | 390 x 38 | 420 x 40 | 390 x 38 | 410 x 38 |
| Brake dimensions rear | 365 x 28 | 365 x 28 | 365 x 28 | 410 x 32 | 365 x 28 | 365 x 28 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.4/- | 11.9/- | 11.8/- |
| Overall length [mm] | 5049 | 5049 | 5053 | 5049 | 5049 | 5049 |
| Overall width without/including mirrors [mm] | 1937/2165 | 1937/2165 | 1937/2165 | 1937/2165 | 1937/2165 | 1937/2165 |
| Overall height [mm] | 1428 | 1428 | 1422 | 1432 | 1428 | 1428 |
| Wheelbase [mm] | 2950 | 2950 | 2950 | 2950 | 2950 | 2950 |
| Front wheel track [mm] | 1671 | 1671 | 1657 | 1657 | 1671 | 1671 |
| Rear wheel track [mm] | 1651 | 1651 | 1639 | 1637 | 1651 | 1651 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | 134 | 133 | 128 | 138 | 133 | 133 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 | 12.6 |
| Approach angle rear [°] | 16.6 | 16.6 | 16.6 | 16.6 | 16.6 | 16.6 |
| Transition angle [°] | 12.4 | 12.4 | 11 | 11 | 11 | 11 |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | - | - | - | - | - | - |
| Rear elbow/shoulder width [mm] | - | - | - | - | - | - |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Panamera Turbo S E-Hybrid | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Petrol supercharged + Electric | |||||
| Number of cylinders/valves | 8/32 | |||||
| Engine displacement [cm³] | 3996 | |||||
| Maximum output / speed [kW/min-1] | 420/5750-6000 total 100/2800 el. 515/6000 total | |||||
| Maximum torque [Nm/min-1] | 770/2100-4500 combustion 400/100-2300 el. 870/1500-5500 total | |||||
| Bore and stroke [mm x mm] | 86,0 x 86,0 | |||||
| Compression ratio | 10,1:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | 4x4 | |||||
| Gearbox | 8 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 315 [140 el.] | |||||
| Acceleration 0–100 km/h [s] | 3.2 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | 2.1 | |||||
| City [l] | - | |||||
| Out of town [l] | - | |||||
| Combined [l] | 2.8 [22.8 kWh] | |||||
| CO2 emissions [g/km] | 63 | |||||
| Low speed [l] | - | |||||
| Medium speed [l] | - | |||||
| High speed [l] | - | |||||
| Extra high speed [l] | - | |||||
| Combined speed [l] | 3.0-2.9 [24.9-24.4 kWh] | |||||
| CO2 emissions [g/km] | 69-65 | |||||
| Emission standard | Euro 6d | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| System voltage [V] | 374 | |||||
| Battery type and capacity | Lithium-ion, 17.9 kWh (14.3 net) | |||||
| Range with fully charged battery [km] | 49-50 [WLTP] | |||||
| Charging time | - | |||||
| Number of modules/cells | - | |||||
| Battery weight [kg] | - | |||||
| Charger | - | |||||
| Standby weight [kg] | 2440 | |||||
| Overall weight [kg] | 2840 | |||||
| Maximum trailer weight unbraked/braked [kg] | - | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 418 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1287 | |||||
| Boot length [mm] | - | |||||
| Boot length with rear seats folded [mm] | - | |||||
| Boot width between wheels/max [mm] | - | |||||
| Boot height to headliner/ceiling [mm] | - | |||||
| Loading edge height [mm] | - | |||||
| Height of the open boot door [mm] | - | |||||
| Boot opening height [mm] | - | |||||
| Boot opening width min/max [mm] | - | |||||
| Number of doors | 5 | |||||
| Number of seats | 4 or 5 | |||||
| Fuel tank volume [l] | 80 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | 0.32 | |||||
| Front suspension | double wishbone | |||||
| Rear suspension | multilink | |||||
| Tyre dimensions front | 275/35 ZR21 103Y | |||||
| Tyre dimensions rear | 315/30 ZR21 108Y | |||||
| Wheel size front | 9,5J x 21 ET71 | |||||
| Wheel size rear | 11,5J x 21 ET69 | |||||
| Brake dimensions front | 420 x 40 | |||||
| Brake dimensions rear | 410 x 32 | |||||
| Steering | - | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 11.4/- | |||||
| Overall length [mm] | 5049 | |||||
| Overall width without/including mirrors [mm] | 1937/2165 | |||||
| Overall height [mm] | 1432 | |||||
| Wheelbase [mm] | 2950 | |||||
| Front wheel track [mm] | 1657 | |||||
| Rear wheel track [mm] | 1637 | |||||
| Forward overhang [mm] | - | |||||
| Rear overhang [mm] | - | |||||
| Clearance [mm] | 138 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | 12.9 | |||||
| Approach angle rear [°] | 16.8 | |||||
| Transition angle [°] | 11.1 | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | - | |||||
| Headroom rear [mm] | - | |||||
| Front elbow/shoulder width [mm] | - | |||||
| Rear elbow/shoulder width [mm] | - | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
