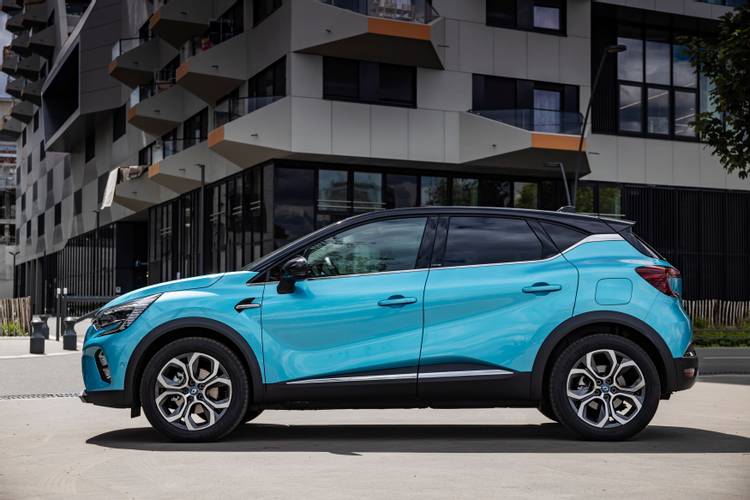

Renault Captur
Date of manufacture
2019 – to this day (Small SUV)
Platform
Renault–Nissan CMF-B
Manufacturing locations
Valladolid, Spain
Wuhan, People's Republic of China
Designer
-
Tags
Small SUV
French cars
Renault Captur is a small SUV produced by the French automotive giant since 2019. The car is built on the Renault-Nissan CMF-B platform and is manufactured in Spain and China. Its engine range includes petrol, diesel and hybrid variants, the most powerful being the E-TECH 160 with 117 kW. The highest speed is reached by the TCe 160 (204 km/h) and the lowest consumption is 1.7 l/100 km for the E-TECH 160 with CO2 emissions of 37 g/km. The Renault Captur's trunk has a capacity of 379 liters. During the EURONCAP safety tests in 2019, this model received a rating of 5 out of 5.
Car body style
Small SUV
Date of manufacture
2019 – to this dayInternal designation
JB/JEEngine size
Technical data
Small SUV
| TCe 90 | TCe 100 | TCe 100 LPG | TCe 130 | TCe 130 | TCe 140 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from to 2020 | - | from to 2020 | from to 2020 | from 2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 999 | 999 | 999 | 1333 | 1333 | 1333 |
| Maximum output / speed [kW/min-1] | 67/4600 | 74/5000 | 74/5000 | 96/5000 | 96/5000 | 103/4500 |
| Maximum torque [Nm/min-1] | 160/2000 | 160/2750 | 170/2000 | 240/1600 | 240/1600 | 260/1750 |
| Bore and stroke [mm x mm] | 72,2 x 81,3 | 72,2 x 81,3 | 72,2 x 81,3 | 72,2 x 81,2 | 72,2 x 81,2 | 72,2 x 81,2 |
| Compression ratio | - | - | - | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - | - | - |
| - |
| Top speed [km/h] | 168 | 173 | - | 195 | 193 | 196 |
| Acceleration 0–100 km/h [s] | 14.0 | 13,3 | - | 10,6 | 9,6 | 10,3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 11.5 (4th gear) | 12.0 (4th gear) | - | 8.3 (4th gear) | 8.1 | 7.2 (4th gear) |
| City [l] | 6.8-6.5 | 6,3-6,0 | 7,2-6.9 [8.2 LPG] | 7.2-7.0 | 7.5 | 7.4-7.3 |
| Out of town [l] | 4.8-4.6 | 4,6-4,5 | 5,1-4,8 [5.9-5.7 LPG] | 5.1-4.9 | 5.1 | 4.9-4.8 |
| Combined [l] | 5.5-5.3 | 5,2-5,1 | 5.7-5.4 [6.8-6.6 LPG] | 5,6-5,4 | 5.5-5.7 | 5.8-5.7 |
| CO2 emissions [g/km] | 126-121 | 119-116 | 131-123 [110-107 LPG] | 127-123 | 125-129 | 133-130 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6.2-5.8 | - | - | 6.3 | 6.3-6.2 | 6.1-5.7 |
| CO2 emissions [g/km] | 141-130 | - | - | 143-141 | 141 | 138-129 |
| Emission standard | Euro 6d | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1306 | 1265-1391 | 1316-1420 | 1309-1415 | 1334-1456 | 1352 |
| Overall weight [kg] | 1753 | 1751 | 1780 | 1775 | 1816 | 1799 |
| Maximum trailer weight unbraked/braked [kg] | 645/1200 | 630/1200 | 655/1200 | 650/1200 | 665/1200 | 660/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | - | 75 | - | - | 75 |
| Maximum load on roof/carrier [kg] | 80/- | - | 80/- | - | - | 80/- |
| Boot volume [l] | 422-536 | 422-536 | 422-536 | 422-536 | 422-536 | 422-536 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1275 | -/1275 | -/1275 | -/1275 | -/1275 | -/1275 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | 1571 | 1571 | 1571 | 1571 | 1571 | 1571 |
| Boot width between wheels/max [mm] | 973/- | 973/- | 973/- | 973/- | 973/- | 973/- |
| Boot height to headliner/ceiling [mm] | 366/586 | 366/586 | 366/586 | 366/586 | 366/586 | 366/586 |
| Loading edge height [mm] | 776 | 776 | 776 | 776 | 776 | 776 |
| Height of the open boot door [mm] | 2041 | 2041 | 2041 | 2041 | 2041 | 2041 |
| Boot opening height [mm] | 612 | 612 | 612 | 612 | 612 | 612 |
| Boot opening width min/max [mm] | 936/1023 | 936/1023 | 936/1023 | 936/1023 | 936/1023 | 936/1023 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 48 | 48 | 48 | 48 | 48 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/65 R16 98 H | 215/65 R16 98 H | 215/65 R16 98 H | 215/65 R16 98 H | 215/60 R17 96 H | 215/65 R16 98 H |
| Tyre dimensions rear | 215/65 R16 98 H | 215/65 R16 98 H | 215/65 R16 98 H | 215/65 R16 98 H | 215/60 R17 96 H | 215/65 R16 98 H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 |
| Brake dimensions rear | 9" drum | 9" drum | 9" drum | 9" drum | 9" drum | 9" drum |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | 2.63 | 2.63 | 2.63 | 2.63 | 2.63 | 2.63 |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4227 | 4227 | 4227 | 4227 | 4227 | 4227 |
| Overall width without/including mirrors [mm] | 1797/2003 | 1797/2003 | 1797/2003 | 1797/2003 | 1797/2003 | 1797/2003 |
| Overall height [mm] | 1576 | 1576 | 1576 | 1576 | 1576 | 1576 |
| Wheelbase [mm] | 2639 | 2639 | 2639 | 2639 | 2639 | 2639 |
| Front wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Forward overhang [mm] | 876 | 876 | 876 | 876 | 876 | 876 |
| Rear overhang [mm] | 712 | 712 | 712 | 712 | 712 | 712 |
| Clearance [mm] | 174 | 174 | 174 | 174 | 174 | 174 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 889 | 889 | 889 | 889 | 889 | 889 |
| Headroom rear [mm] | 849 | 849 | 849 | 849 | 849 | 849 |
| Front elbow/shoulder width [mm] | 1385/1371 | 1385/1371 | 1385/1371 | 1385/1371 | 1385/1371 | 1385/1371 |
| Rear elbow/shoulder width [mm] | 1390/1340 | 1390/1340 | 1390/1340 | 1390/1340 | 1390/1340 | 1390/1340 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 221/- | 221/- | 221/- | 221/- | 221/- | 221/- |
| Rating | - | - | - |   | - | - |
| Clean Air Index | - | - | - | 5.1/10 | - | - |
| Energy Efficiency Index | - | - | - | 5.3/10 | - | - |
| GHG index | - | - | - | 4.7/10 | - | - |
| TCe 140 | TCe 155 | TCe 160 | E-TECH 145 | E-TECH 160 | Blue dCi 95 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2020 to | from to 2020 | from 2020 to | from 2020 to | from 2020 to | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Petrol + Electric | Petrol + Electric | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1333 | 1333 | 1333 | 1598 | 1598 | 1461 |
| Maximum output / speed [kW/min-1] | 103/4500 | 113/5500 | 116/5500 | 69/5600 combustion 36 el. 15 starter-generator 105 total | 68/5600 combustion 51 el. 25 starter-generator 117 total | 70/3750 |
| Maximum torque [Nm/min-1] | 260/1750 | 270/1800 | 270/1800 | 144/3200 combustion 205 el. 50 starter-generator | 144/3200 combustion 205 el. 50 starter-generator | 240/1750 |
| Bore and stroke [mm x mm] | 72,2 x 81,2 | 72,2 x 81,2 | 72,2 x 81,2 | - | - | 76,0 x 80,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | - | - | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 7 gear automatic | 7 gear automatic | 7 gear automatic | 2+4 gear automatic | 2+4 gear automatic | 6 gear manual |
| Drive specifications |
|
|
|
|
| - |
| Top speed [km/h] | 196 | 202 | 204 | 170 | 173 [135 el.] | - |
| Acceleration 0–100 km/h [s] | 9,2 | 8,6 | 8,5 | 10.6 | 10.1 | - |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 7.7 | 7.3 | 6.5 | - | 7.5 | - |
| City [l] | 6.6-6.5 | 7,5-7,3 | - | - | - | 4.6 |
| Out of town [l] | 4.8-4.6 | 5,1-4,8 | - | - | - | 3.7 |
| Combined [l] | 5.4-5.3 | 5,6-5,4 | - | 5.1-5.0 | 1.7-1.4 [18.3-17.3 kWh] | 4.0 |
| CO2 emissions [g/km] | 124-121 | 127-122 | - | 115-113 | 37-32 | 106 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6.3-5.8 | - | 6.3-5.9 | - | - | - |
| CO2 emissions [g/km] | 143-134 | - | 143-134 | - | - | - |
| Emission standard | Euro 6d | Euro 6d-TEMP | Euro 6d | Euro 6d | Euro 6d | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| System voltage [V] | - | - | - | 230 | 400 | - |
| Battery type and capacity | - | - | - | Lithium-Ionen-Akkumulator, 1.2 kWh | Lithium-Ionen-Akkumulator, 9.8 kWh | - |
| Range with fully charged battery [km] | - | - | - | - | 50 [WLTP] | - |
| Charging time | - | - | - | - |
| - |
| Number of modules/cells | - | - | - | - | - | - |
| Battery weight [kg] | - | - | - | - | 105 | - |
| Charger | - | - | - | - | - | - |
| Standby weight [kg] | 1387 | 1341-1451 | 1387 | 1363 | 1625 | 1360 |
| Overall weight [kg] | 1834 | 1811 | 1834 | 1896 | 2060 | 2843 |
| Maximum trailer weight unbraked/braked [kg] | 700/1200 | 670/1200 | 700/1200 | 715/750 | 650/750 | -/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | - | 75 | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | - | 80/- | - | - | - |
| Boot volume [l] | 422-536 | 422-536 | 422-536 | 440 | 379 | 406-520 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1275 | -/1275 | -/1275 | - | - | -/1275 |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | 1571 | 1571 | 1571 | 1571 | 1571 | 1571 |
| Boot width between wheels/max [mm] | 973/- | 973/- | 973/- | 973/- | 973/- | 973/- |
| Boot height to headliner/ceiling [mm] | 366/586 | 366/586 | 366/586 | - | - | 366/586 |
| Loading edge height [mm] | 776 | 776 | 776 | 776 | 776 | 776 |
| Height of the open boot door [mm] | 2041 | 2041 | 2041 | 2041 | 2041 | 2041 |
| Boot opening height [mm] | 612 | 612 | 612 | 612 | 612 | 612 |
| Boot opening width min/max [mm] | 936/1023 | 936/1023 | 936/1023 | 936/1023 | 936/1023 | 936/1023 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 48 | 48 | 48 | 39 | 39 | - |
| AdBlue tank volume [l] | - | - | - | - | - | 13 |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 215/65 R16 98 H | 215/60 R17 96 H | 215/65 R16 98 H | 215/60 R17 96 H | 215/60 R17 96 H | 215/65 R16 98 H |
| Tyre dimensions rear | 215/65 R16 98 H | 215/60 R17 96 H | 215/65 R16 98 H | 215/60 R17 96 H | 215/60 R17 96 H | 215/65 R16 98 H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 |
| Brake dimensions rear | 9" drum | 9" drum | 9" drum | 9" drum | 9" drum | 9" drum |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | 2.63 | 2.63 | 2.63 | 2.63 | 2.63 | 2.63 |
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- | 11.1/- |
| Overall length [mm] | 4227 | 4227 | 4227 | 4227 | 4227 | 4227 |
| Overall width without/including mirrors [mm] | 1797/2003 | 1797/2003 | 1797/2003 | 1797/2003 | 1797/2003 | 1797/2003 |
| Overall height [mm] | 1576 | 1576 | 1576 | 1576 | 1576 | 1576 |
| Wheelbase [mm] | 2639 | 2639 | 2639 | 2639 | 2639 | 2639 |
| Front wheel track [mm] | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Forward overhang [mm] | 876 | 876 | 876 | 876 | 876 | 876 |
| Rear overhang [mm] | 712 | 712 | 712 | 712 | 712 | 712 |
| Clearance [mm] | 174 | 174 | 174 | 174 | 174 | 174 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 889 | 889 | 889 | 889 | 889 | 889 |
| Headroom rear [mm] | 849 | 849 | 849 | 849 | 849 | 849 |
| Front elbow/shoulder width [mm] | 1385/1371 | 1385/1371 | 1385/1371 | 1385/1371 | 1385/1371 | 1385/1371 |
| Rear elbow/shoulder width [mm] | 1390/1340 | 1390/1340 | 1390/1340 | 1390/1340 | 1390/1340 | 1390/1340 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 221/- | 221/- | 221/- | 221/- | 221/- | 221/- |
| Rating | - | - | - | - |  | - |
| Clean Air Index | - | - | - | - | 5.7/10 | - |
| Energy Efficiency Index | - | - | - | - | 6.8/10 | - |
| GHG index | - | - | - | - | 6.1/10 | - |
| Blue dCi 115 | Blue dCi 115 | |||||
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/8 | 4/8 | ||||
| Engine displacement [cm³] | 1461 | 1461 | ||||
| Maximum output / speed [kW/min-1] | 85/3750 | 85/3750 | ||||
| Maximum torque [Nm/min-1] | 260/2000 | 260/2000 | ||||
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | ||||
| Compression ratio | - | - | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 7 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 187 | 186 | ||||
| Acceleration 0–100 km/h [s] | 11.9 | 11.0 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | 8.6 (4th gear) | 8.2 | ||||
| City [l] | 4.9 | 4.4 | ||||
| Out of town [l] | 3.9 | 3.9 | ||||
| Combined [l] | 4.8-4.2 | 4.8-4.1 | ||||
| CO2 emissions [g/km] | 125-111 | 125-108 | ||||
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1490 | 1517 | ||||
| Overall weight [kg] | 1850 | 1877 | ||||
| Maximum trailer weight unbraked/braked [kg] | 685/1200 | 700/1200 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | - | - | ||||
| Maximum load on roof/carrier [kg] | - | - | ||||
| Boot volume [l] | 406-520 | 406-520 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1275 | -/1275 | ||||
| Boot length [mm] | - | - | ||||
| Boot length with rear seats folded [mm] | 1571 | 1571 | ||||
| Boot width between wheels/max [mm] | 973/- | 973/- | ||||
| Boot height to headliner/ceiling [mm] | 366/586 | 366/586 | ||||
| Loading edge height [mm] | 776 | 776 | ||||
| Height of the open boot door [mm] | 2041 | 2041 | ||||
| Boot opening height [mm] | 612 | 612 | ||||
| Boot opening width min/max [mm] | 936/1023 | 936/1023 | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 46 | 46 | ||||
| AdBlue tank volume [l] | 13 | 13 | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 215/65 R16 98 H | 215/65 R16 98 H | ||||
| Tyre dimensions rear | 215/65 R16 98 H | 215/65 R16 98 H | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | 280 x 24 | 280 x 24 | ||||
| Brake dimensions rear | 9" drum | 9" drum | ||||
| Steering | Electric variable power steering | Electric variable power steering | ||||
| Number of steering wheel turns | 2.63 | 2.63 | ||||
| Turning diameter track/circumference [m] | 11.1/- | 11.1/- | ||||
| Overall length [mm] | 4227 | 4227 | ||||
| Overall width without/including mirrors [mm] | 1797/2003 | 1797/2003 | ||||
| Overall height [mm] | 1576 | 1576 | ||||
| Wheelbase [mm] | 2639 | 2639 | ||||
| Front wheel track [mm] | 1560 | 1560 | ||||
| Rear wheel track [mm] | 1547 | 1547 | ||||
| Forward overhang [mm] | 876 | 876 | ||||
| Rear overhang [mm] | 712 | 712 | ||||
| Clearance [mm] | 174 | 174 | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 889 | 889 | ||||
| Headroom rear [mm] | 849 | 849 | ||||
| Front elbow/shoulder width [mm] | 1385/1371 | 1385/1371 | ||||
| Rear elbow/shoulder width [mm] | 1390/1340 | 1390/1340 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | 221/- | 221/- |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
