Renault Clio
Date of manufacture
2012 – 2016 (Five-door hatchback)
2013 – 2016 (Estate)
Platform
Alliance B
Manufacturing locations
Flins-sur-Seine, France
Bursa, Turkey
Novo Mesto, Slovenia
Designer
Laurens van den Acker
Tags
B-segment
French cars
Renault Clio is built on the Alliance B platform and is manufactured in France, Turkey and Slovenia since 2012. The range of power units includes petrol and diesel engines, the most powerful model being the 1.6 Turbo R.S Trophy with a maximum of 162 kW. The top speed of this model is 235 km/h and 0-100 km/h in 6.6 seconds. The most economical version is the Energy dCi 90 with a combined consumption of 3.3 l/100 km and CO2 emissions of 85 g/km. The luggage compartment of the five-door hatchback has a capacity of 300 l, and the estate 443 l. In terms of safety, the Renault Clio achieves a rating of 5 out of 5 according to EURONCAP in 2012.
Car body style

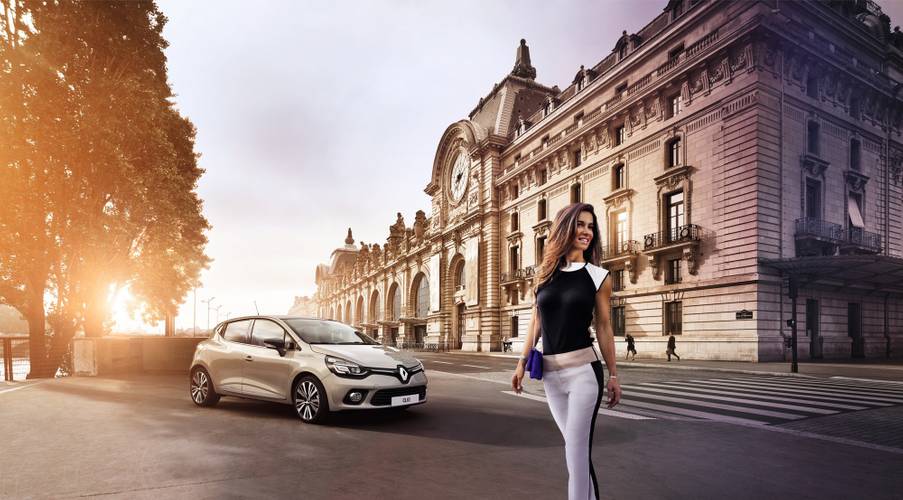

Five-door hatchback
Date of manufacture
2012 – 2016Internal designation

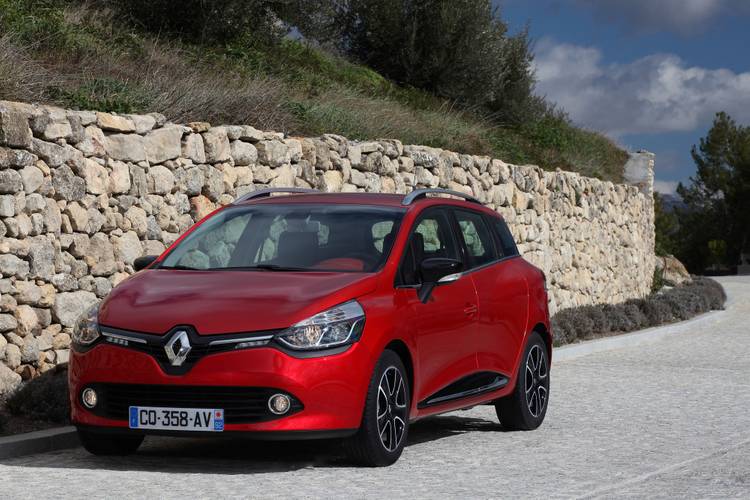

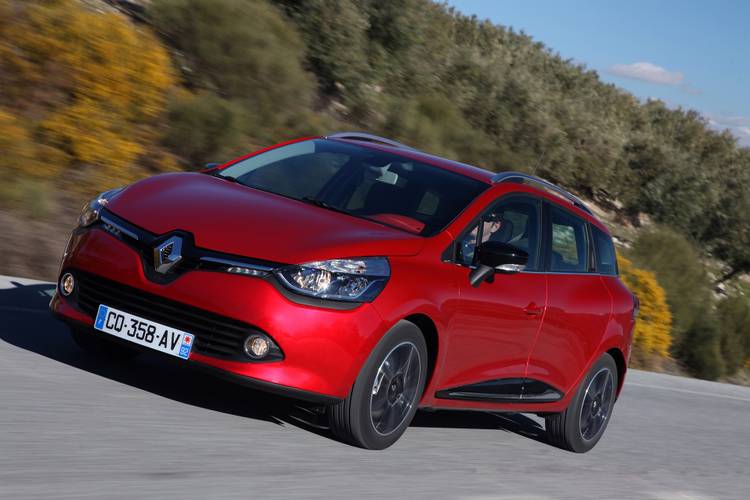

BHEstate (Grandtour)
Date of manufacture
2013 – 2016Internal designation
KH
Technical data
Five-door hatchback
| 1.2 16V | TCe 90 | Energy TCe 90 | Energy TCe 120 | 1.6 Turbo R.S | 1.6 Turbo R.S | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | from 2014 to | from 2014 to |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 3/12 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1149 | 898 | 898 | 1197 | 1618 | 1618 |
| Maximum output / speed [kW/min-1] | 54/5500 | 66/5000 [71 overboost] | 66/5000 [71 overboost] | 87/5500 | 147/6050 | 147/6050 |
| Maximum torque [Nm/min-1] | 107/4250 | 140/2500 [150 overboost] | 140/2500 [150 overboost] | 205/2000 | 260/2000 | 260/2000 |
| Bore and stroke [mm x mm] | 69,0 x 76,8 | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 | 79,7 x 81,1 | 79,7 x 81,1 |
| Compression ratio | - | 9,5:1 | 9,5:1 | 10,0:1 | 9,5:1 | 9,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear automatic | 6 gear automatic |
| Drive specifications | - | - | - |
|
|
|
| Top speed [km/h] | 167 | 182 | 182 | 199 | 230 | 230 |
| Acceleration 0–100 km/h [s] | 14.5 | 12.2 | 12.2 | 9.2 | 6.7 | 6.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2 | 6.3 | 5.7 | 6.8 | 8.1 | 7.6 |
| Out of town [l] | 4.7 | 4.3 | 4.1 | 4.5 | 5.1 | 5.1 |
| Combined [l] | 5.5 | 5.0 | 4.7 | 5.4 | 6.3 | 5.9 |
| CO2 emissions [g/km] | 127 | 114 | 105 | 120 | 144 | 133 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1055 | 1092 | 1092 | 1154 | 1279 | 1279 |
| Overall weight [kg] | 1566 | 1600 | 1600 | 1664 | 1711 | 1711 |
| Maximum trailer weight unbraked/braked [kg] | 525/1200 | 545/1200 | 545/1200 | 575/1200 | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 300 | 300 | 300 | 300 | 300 | 300 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1146 | -/1146 | -/1146 | -/1146 | -/1146 | -/1146 |
| Boot length [mm] | 649 | 649 | 649 | 649 | 649 | 649 |
| Boot length with rear seats folded [mm] | 1388 | 1388 | 1388 | 1388 | 1388 | 1388 |
| Boot width between wheels/max [mm] | 1011/- | 1011/- | 1011/- | 1011/- | 1011/- | 1011/- |
| Boot height to headliner/ceiling [mm] | 558/- | 558/- | 558/- | 558/- | 558/- | 558/- |
| Loading edge height [mm] | 716 | 716 | 716 | 716 | 716 | 716 |
| Height of the open boot door [mm] | 1920 | 1920 | 1920 | 1920 | 1920 | 1920 |
| Boot opening height [mm] | 550 | 550 | 550 | 550 | 550 | 550 |
| Boot opening width min/max [mm] | 770/1038 | 770/1038 | 770/1038 | 770/1038 | 770/1038 | 770/1038 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar |
| Tyre dimensions front | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H | 205/45 R17 88Y | 205/45 R17 88Y |
| Tyre dimensions rear | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H | 205/45 R17 88Y | 205/45 R17 88Y |
| Wheel size front | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 | 7.0J x 17 ET44 | 7.0J x 17 ET44 |
| Wheel size rear | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 | 7.0J x 17 ET44 | 7.0J x 17 ET44 |
| Brake dimensions front | 258 x 22 | 258 x 22 | 258 x 22 | 258 x 22 | 320 x 28 | 320 x 28 |
| Brake dimensions rear | - | - | - | - | 260 x 8 | 260 x 8 |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.9/11.3 | 10.9/11.3 |
| Overall length [mm] | 4062 | 4062 | 4062 | 4062 | 4090 | 4090 |
| Overall width without/including mirrors [mm] | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 |
| Overall height [mm] | 1448 | 1448 | 1448 | 1448 | 1432 | 1432 |
| Wheelbase [mm] | 2589 | 2589 | 2589 | 2589 | 2589 | 2589 |
| Front wheel track [mm] | 1506 | 1506 | 1506 | 1498 | 1504 | 1504 |
| Rear wheel track [mm] | 1506 | 1506 | 1506 | 1498 | 1500 | 1500 |
| Forward overhang [mm] | 851 | 851 | 851 | 851 | 866 | 866 |
| Rear overhang [mm] | 622 | 622 | 622 | 622 | 635 | 635 |
| Clearance [mm] | 120 | 120 | 120 | 120 | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Headroom rear [mm] | 847 | 847 | 847 | 847 | 847 | 847 |
| Front elbow/shoulder width [mm] | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 |
| Rear elbow/shoulder width [mm] | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 140/- | 140/- | 140/- | 140/- | 140/- | 140/- |
| 1.6 Turbo R.S Trophy | dCi 75 | Energy dCi 75 | dCi 90 | Energy dCi 90 | dCi 90 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2014 to | - | - | - | - | - |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1618 | 1461 | 1461 | 1461 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 162/6050 | 55/4000 | 55/4000 | 66/4000 | 66/4000 | 66/4000 |
| Maximum torque [Nm/min-1] | 280/2000 | 200/1750 | 200/1750 | 220/1750 | 220/1750 | 220/1750 |
| Bore and stroke [mm x mm] | 79,7 x 81,1 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | 9,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic |
| Drive specifications |
| - | - | - | - |
|
| Top speed [km/h] | 235 | 168 | 174 | 181 | 180 | 176 |
| Acceleration 0–100 km/h [s] | 6.6 | 14.3 | 14.0 | 12.0 | 12.0 | 12.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.6 | 4.3 | 3.5 | 4.3 | 3.5-4.1 | 4.3 |
| Out of town [l] | 5.1 | 3.2 | 3.1 | 3.2 | 3.1-3.3 | 3.3 |
| Combined [l] | 5.9 | 3.6 | 3.3 | 3.6 | 3.3-3.6 | 3.7 |
| CO2 emissions [g/km] | 133 | 95 | 85 | 95 | 85-93 | 95 |
| Emission standard | EU6 | EU5 | EU6 | EU5 | EU5-EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1279 | 1146 | 1162 | 1146 | 1146-1162 | 1227 |
| Overall weight [kg] | 1711 | 1651 | 1670 | 1658 | 1658-1670 | 1708 |
| Maximum trailer weight unbraked/braked [kg] | - | 570/1200 | 580/1200 | 570/1200 | 580/1200 | 610/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 300 | 300 | 300 | 300 | 300 | 300 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1146 | -/1146 | -/1146 | -/1146 | -/1146 | -/1146 |
| Boot length [mm] | 649 | 649 | 649 | 649 | 649 | 649 |
| Boot length with rear seats folded [mm] | 1388 | 1388 | 1388 | 1388 | 1388 | 1388 |
| Boot width between wheels/max [mm] | 1011/- | 1011/- | 1011/- | 1011/- | 1011/- | 1011/- |
| Boot height to headliner/ceiling [mm] | 558/- | 558/- | 558/- | 558/- | 558/- | 558/- |
| Loading edge height [mm] | 716 | 716 | 716 | 716 | 716 | 716 |
| Height of the open boot door [mm] | 1920 | 1920 | 1920 | 1920 | 1920 | 1920 |
| Boot opening height [mm] | 550 | 550 | 550 | 550 | 550 | 550 |
| Boot opening width min/max [mm] | 770/1038 | 770/1038 | 770/1038 | 770/1038 | 770/1038 | 770/1038 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar |
| Tyre dimensions front | 205/40 R18 86Y | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H |
| Tyre dimensions rear | 205/40 R18 86Y | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H |
| Wheel size front | 7.5J x 18 ET55 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 |
| Wheel size rear | 7.5J x 18 ET55 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 |
| Brake dimensions front | 320 x 28 | 258 x 22 | 258 x 22 | 258 x 22 | 258 x 22 | 258 x 22 |
| Brake dimensions rear | 260 x 8 | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.9/11.3 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 |
| Overall length [mm] | 4090 | 4062 | 4062 | 4062 | 4062 | 4062 |
| Overall width without/including mirrors [mm] | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 |
| Overall height [mm] | 1420 | 1448 | 1448 | 1448 | 1448 | 1448 |
| Wheelbase [mm] | 2584 | 2589 | 2589 | 2589 | 2589 | 2589 |
| Front wheel track [mm] | 1496 | 1506 | 1506 | 1506 | 1506 | 1506 |
| Rear wheel track [mm] | 1495 | 1506 | 1506 | 1506 | 1506 | 1506 |
| Forward overhang [mm] | 866 | 851 | 851 | 851 | 851 | 851 |
| Rear overhang [mm] | 635 | 622 | 622 | 622 | 622 | 622 |
| Clearance [mm] | - | 120 | 120 | 120 | 120 | 120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Headroom rear [mm] | 847 | 847 | 847 | 847 | 847 | 847 |
| Front elbow/shoulder width [mm] | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 |
| Rear elbow/shoulder width [mm] | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 140/- | 140/- | 140/- | 140/- | 140/- | 140/- |
| Energy dCi 90 | ||||||
|---|---|---|---|---|---|---|
| Date of sale | - | |||||
| Engine type | Diesel supercharged | |||||
| Number of cylinders/valves | 4/8 | |||||
| Engine displacement [cm³] | 1461 | |||||
| Maximum output / speed [kW/min-1] | 66/4000 | |||||
| Maximum torque [Nm/min-1] | 220/1750 | |||||
| Bore and stroke [mm x mm] | 76,0 x 80,5 | |||||
| Compression ratio | 15,5:1 | |||||
| Oil volume [l] | - | |||||
| Coolant volume [l] | - | |||||
| Technical specifications |
| |||||
| Drive axle | Front | |||||
| Gearbox | 6 gear automatic | |||||
| Drive specifications |
| |||||
| Top speed [km/h] | 176 | |||||
| Acceleration 0–100 km/h [s] | 12.9 | |||||
| Acceleration 0–80 km/h [s] | - | |||||
| Acceleration 80–120 km/h [s] | - | |||||
| City [l] | 3.9 | |||||
| Out of town [l] | 3.3 | |||||
| Combined [l] | 3.5 | |||||
| CO2 emissions [g/km] | 85 | |||||
| Emission standard | EU6 | |||||
| Standard for fuel consumption measurement | - | |||||
| Energy class | - | |||||
| Stationary vehicle noise [dB] | - | |||||
| Driving noise [dB] | - | |||||
| Standby weight [kg] | 1228 | |||||
| Overall weight [kg] | 1717 | |||||
| Maximum trailer weight unbraked/braked [kg] | 610/1200 | |||||
| Maximum front/rear axle load [kg] | - | |||||
| Maximum vertical load on the tow bar [kg] | - | |||||
| Maximum load on roof/carrier [kg] | - | |||||
| Boot volume [l] | 300 | |||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1146 | |||||
| Boot length [mm] | 649 | |||||
| Boot length with rear seats folded [mm] | 1388 | |||||
| Boot width between wheels/max [mm] | 1011/- | |||||
| Boot height to headliner/ceiling [mm] | 558/- | |||||
| Loading edge height [mm] | 716 | |||||
| Height of the open boot door [mm] | 1920 | |||||
| Boot opening height [mm] | 550 | |||||
| Boot opening width min/max [mm] | 770/1038 | |||||
| Number of doors | 5 | |||||
| Number of seats | 5 | |||||
| Fuel tank volume [l] | 45 | |||||
| AdBlue tank volume [l] | - | |||||
| Air resistance [Cd] | - | |||||
| Front suspension | MacPherson | |||||
| Rear suspension | twist beam axle with trailing arms and torsion bar | |||||
| Tyre dimensions front | 195/55 R16 87H | |||||
| Tyre dimensions rear | 195/55 R16 87H | |||||
| Wheel size front | 6.5J x 16 ET44 | |||||
| Wheel size rear | 6.5J x 16 ET44 | |||||
| Brake dimensions front | 258 x 22 | |||||
| Brake dimensions rear | - | |||||
| Steering | Electric variable power steering | |||||
| Number of steering wheel turns | - | |||||
| Turning diameter track/circumference [m] | 10.6/11.0 | |||||
| Overall length [mm] | 4062 | |||||
| Overall width without/including mirrors [mm] | 1732/1945 | |||||
| Overall height [mm] | 1448 | |||||
| Wheelbase [mm] | 2589 | |||||
| Front wheel track [mm] | 1506 | |||||
| Rear wheel track [mm] | 1506 | |||||
| Forward overhang [mm] | 851 | |||||
| Rear overhang [mm] | 622 | |||||
| Clearance [mm] | 120 | |||||
| Wading depth [mm] | - | |||||
| Approach angle front [°] | - | |||||
| Approach angle rear [°] | - | |||||
| Transition angle [°] | - | |||||
| Climbing rate [°] | - | |||||
| Maximum side tilt [°] | - | |||||
| Headroom front [mm] | 880 | |||||
| Headroom rear [mm] | 847 | |||||
| Front elbow/shoulder width [mm] | 1363/1370 | |||||
| Rear elbow/shoulder width [mm] | 1378/1307 | |||||
| Legroom front knees/total [mm] | - | |||||
| Legroom rear knees/total [mm] | 140/- |
Estate (Grandtour)
| 1.2 16V | TCe 90 | Energy TCe 90 | Energy TCe 120 | dCi 75 | Energy dCi 75 | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 3/12 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1149 | 898 | 898 | 1197 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 54/5500 | 66/5000 [71 overboost] | 66/5000 [71 overboost] | 87/5500 | 55/4000 | 55/4000 |
| Maximum torque [Nm/min-1] | 107/4250 | 140/2500 [150 overboost] | 140/2500 [150 overboost] | 205/2000 | 200/1750 | 200/1750 |
| Bore and stroke [mm x mm] | 69,0 x 76,8 | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | - | 9,5:1 | 9,5:1 | 10,0:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear automatic | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 167 | 182 | 182 | 199 | 168 | 174 |
| Acceleration 0–100 km/h [s] | 14.5 | 12.2 | 12.2 | 9.2 | 14.3 | 14.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2 | 6.3 | 5.7 | 6.8 | 4.3 | 3.5 |
| Out of town [l] | 4.7 | 4.3 | 4.1 | 4.5 | 3.2 | 3.1 |
| Combined [l] | 5.5 | 5.0 | 4.7 | 5.4 | 3.6 | 3.3 |
| CO2 emissions [g/km] | 127 | 114 | 105 | 120 | 95 | 85 |
| Emission standard | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5-EU6 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1141 | 1164 | 1164 | 1239 | 1194 | 1260 |
| Overall weight [kg] | 1606 | 1629 | 1629 | 1705 | 1703 | 1711 |
| Maximum trailer weight unbraked/braked [kg] | 570/1200 | 580/1200 | 580/1200 | 615/1200 | 595/1200 | 630/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 443 | 443 | 443 | 443 | 443 | 443 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1380 | -/1380 | -/1380 | -/1380 | -/1380 | -/1380 |
| Boot length [mm] | 830 | 830 | 830 | 830 | 830 | 830 |
| Boot length with rear seats folded [mm] | 1616 | 1616 | 1616 | 1616 | 1616 | 1616 |
| Boot width between wheels/max [mm] | 1011/- | 1011/- | 1011/- | 1011/- | 1011/- | 1011/- |
| Boot height to headliner/ceiling [mm] | 575/- | 575/- | 575/- | 575/- | 575/- | 575/- |
| Loading edge height [mm] | 604 | 604 | 604 | 604 | 604 | 604 |
| Height of the open boot door [mm] | 2087 | 2087 | 2087 | 2087 | 2087 | 2087 |
| Boot opening height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Boot opening width min/max [mm] | 800/1038 | 800/1038 | 800/1038 | 800/1038 | 800/1038 | 800/1038 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar |
| Tyre dimensions front | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H | 185/65 R15 88T | 185/65 R15 88T |
| Tyre dimensions rear | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H | 185/65 R15 88T | 185/65 R15 88T |
| Wheel size front | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 | 6.0J x 15 ET40 | 6.0J x 15 ET40 |
| Wheel size rear | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 | 6.0J x 15 ET40 | 6.0J x 15 ET40 |
| Brake dimensions front | 258 x 22 | 258 x 22 | 258 x 22 | 258 x 22 | 258 x 22 | 258 x 22 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 |
| Overall length [mm] | 4267 | 4267 | 4267 | 4267 | 4267 | 4267 |
| Overall width without/including mirrors [mm] | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 |
| Overall height [mm] | 1445 | 1445 | 1445 | 1445 | 1445 | 1445 |
| Wheelbase [mm] | 2589 | 2589 | 2589 | 2589 | 2589 | 2589 |
| Front wheel track [mm] | 1506 | 1506 | 1506 | 1498 | 1506 | 1506 |
| Rear wheel track [mm] | 1506 | 1506 | 1506 | 1498 | 1506 | 1506 |
| Forward overhang [mm] | 853 | 853 | 853 | 853 | 853 | 853 |
| Rear overhang [mm] | 825 | 825 | 825 | 825 | 825 | 825 |
| Clearance [mm] | 120 | 120 | 120 | 120 | 120 | 120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Headroom rear [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Front elbow/shoulder width [mm] | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 |
| Rear elbow/shoulder width [mm] | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 140/- | 140/- | 140/- | 140/- | 140/- | 140/- |
| dCi 90 | Energy dCi 90 | dCi 90 | Energy dCi 90 | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | ||
| Engine displacement [cm³] | 1461 | 1461 | 1461 | 1461 | ||
| Maximum output / speed [kW/min-1] | 66/4000 | 66/4000 | 66/4000 | 66/4000 | ||
| Maximum torque [Nm/min-1] | 220/1750 | 220/1750 | 220/1750 | 220/1750 | ||
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | ||
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 5 gear manual | 5 gear manual | 6 gear automatic | 6 gear automatic | ||
| Drive specifications | - | - |
|
| ||
| Top speed [km/h] | 181 | 180 | 176 | 176 | ||
| Acceleration 0–100 km/h [s] | 12.0 | 12.0 | 12.9 | 12.9 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 4.3 | 3.5-4.0 | 4.3 | 3.9 | ||
| Out of town [l] | 3.2 | 3.1-3.2 | 3.3 | 3.3 | ||
| Combined [l] | 3.6 | 3.3-3.4 | 3.7 | 3.5 | ||
| CO2 emissions [g/km] | 95 | 85-90 | 95 | 85 | ||
| Emission standard | EU5 | EU5-EU6 | EU5 | EU6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1196 | 1196-1260 | 1255 | 1276 | ||
| Overall weight [kg] | 1711 | 1711 | 1741 | 1734 | ||
| Maximum trailer weight unbraked/braked [kg] | 595/1200 | 630/1200 | 625/1200 | 635/1200 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 443 | 443 | 443 | 443 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1380 | -/1380 | -/1380 | -/1380 | ||
| Boot length [mm] | 830 | 830 | 830 | 830 | ||
| Boot length with rear seats folded [mm] | 1616 | 1616 | 1616 | 1616 | ||
| Boot width between wheels/max [mm] | 1011/- | 1011/- | 1011/- | 1011/- | ||
| Boot height to headliner/ceiling [mm] | 575/- | 575/- | 575/- | 575/- | ||
| Loading edge height [mm] | 604 | 604 | 604 | 604 | ||
| Height of the open boot door [mm] | 2087 | 2087 | 2087 | 2087 | ||
| Boot opening height [mm] | 685 | 685 | 685 | 685 | ||
| Boot opening width min/max [mm] | 800/1038 | 800/1038 | 800/1038 | 800/1038 | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | ||
| Tyre dimensions front | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H | 195/55 R16 87H | ||
| Tyre dimensions rear | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H | 195/55 R16 87H | ||
| Wheel size front | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 | 6.5J x 16 ET44 | ||
| Wheel size rear | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 | 6.5J x 16 ET44 | ||
| Brake dimensions front | 258 x 22 | 258 x 22 | 258 x 22 | 258 x 22 | ||
| Brake dimensions rear | - | - | - | - | ||
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | ||
| Overall length [mm] | 4267 | 4267 | 4267 | 4267 | ||
| Overall width without/including mirrors [mm] | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 | ||
| Overall height [mm] | 1445 | 1445 | 1445 | 1445 | ||
| Wheelbase [mm] | 2589 | 2589 | 2589 | 2589 | ||
| Front wheel track [mm] | 1506 | 1506 | 1506 | 1506 | ||
| Rear wheel track [mm] | 1506 | 1506 | 1506 | 1506 | ||
| Forward overhang [mm] | 853 | 853 | 853 | 853 | ||
| Rear overhang [mm] | 825 | 825 | 825 | 825 | ||
| Clearance [mm] | 120 | 120 | 120 | 120 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 880 | 880 | 880 | 880 | ||
| Headroom rear [mm] | 862 | 862 | 862 | 862 | ||
| Front elbow/shoulder width [mm] | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 | ||
| Rear elbow/shoulder width [mm] | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | 140/- | 140/- | 140/- | 140/- |

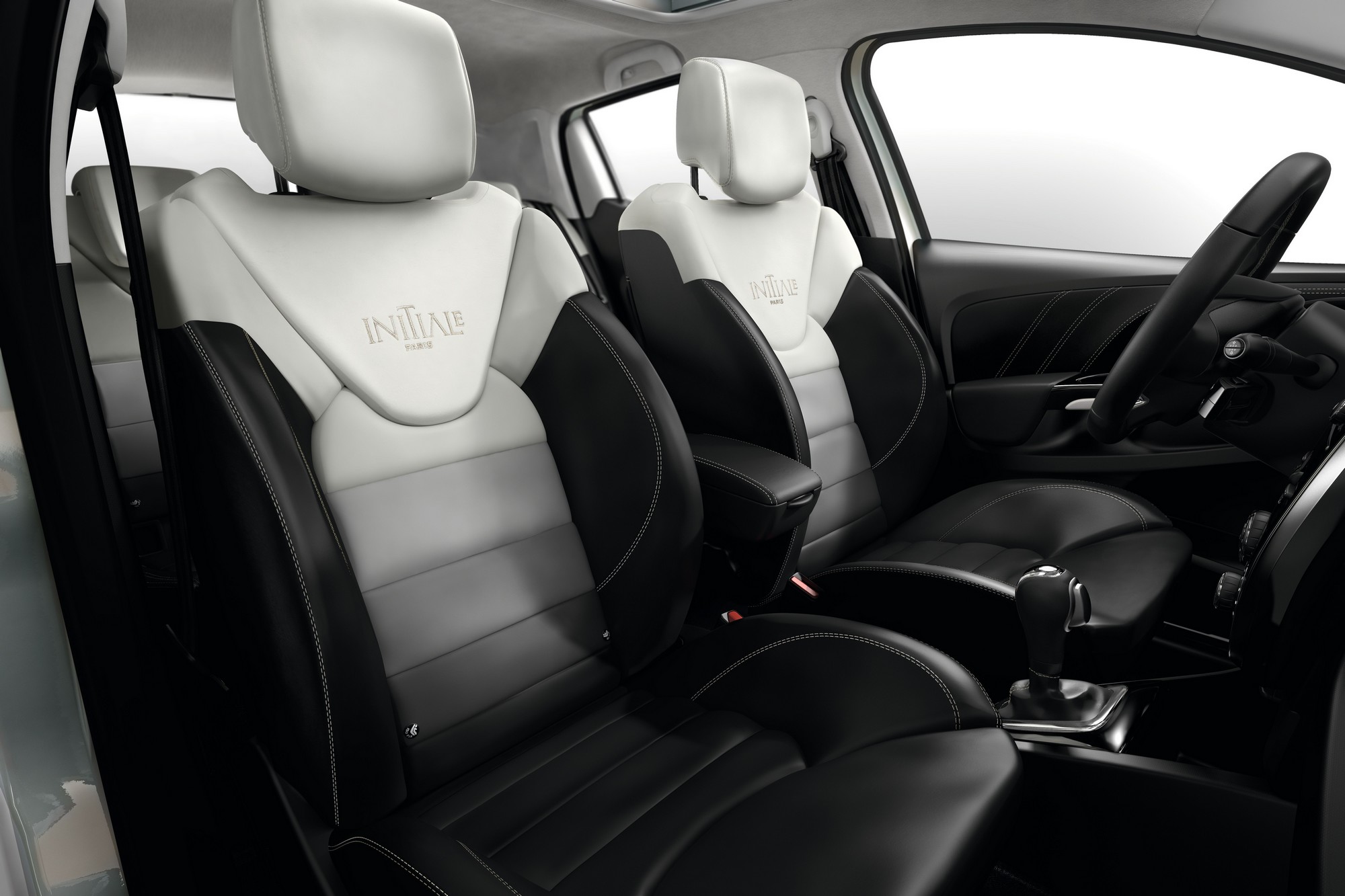

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
