Renault Clio
Date of manufacture
2016 – 2019 (Five-door hatchback)
2016 – 2019 (Estate)
Platform
Alliance B
Manufacturing locations
Flins-sur-Seine, France
Bursa, Turkey
Novo Mesto, Slovenia
Designer
Laurens van den Acker
Tags
B-segment
French cars
The Renault Clio is available in two body styles - five-door hatchback and estate. This car has been manufactured since 2016 in France, Turkey and Slovenia on the Alliance B platform. The engine range includes petrol and diesel engines with the highest power output of 162 kW from the 1.6 Turbo R.S Trophy unit. The fastest version has a top speed of 235 km/h and the best acceleration from 0-100 km/h in 6.6 seconds. The most economical model, the Energy dCi 110, has a combined fuel consumption of 3.5 l/100 km and CO2 emissions of 90 g/km. The estate version has a volume of 443 l, while the five-door hatchback has 300 l. The Renault Clio underwent EURONCAP safety tests in 2012 and received a rating of 5 out of 5.
Car body style

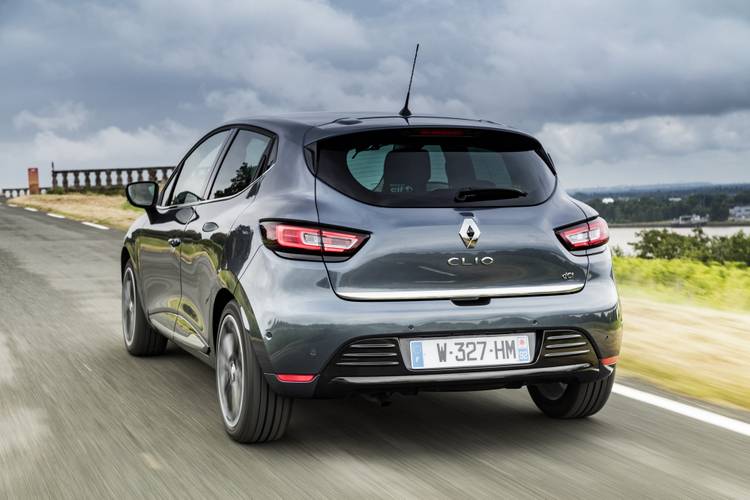

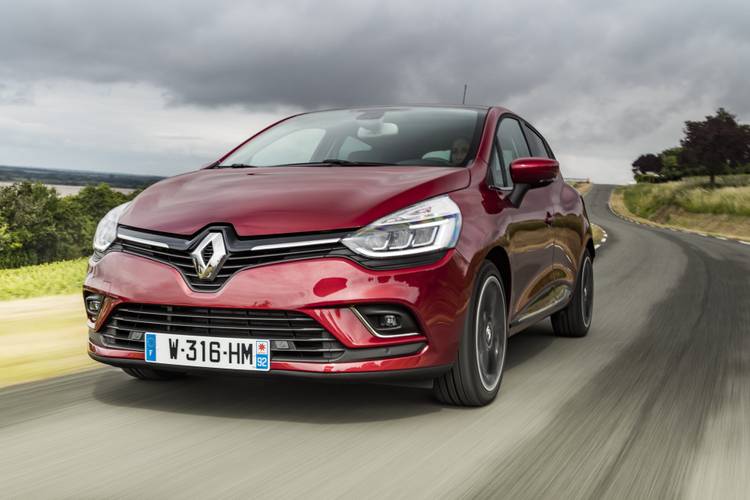

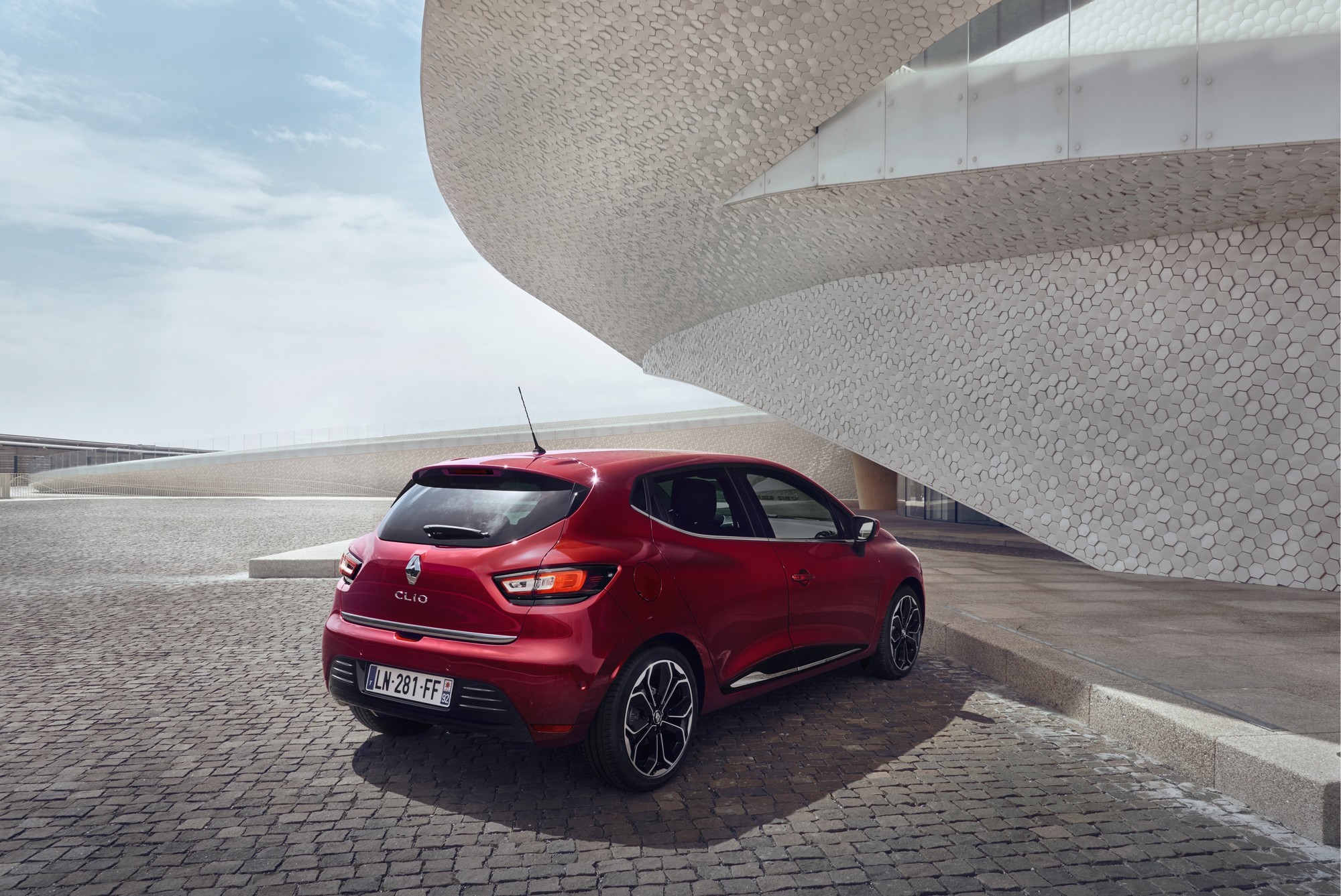

Five-door hatchback
after upgrade (facelift)
Date of manufacture
2016 – 2019Internal designation
BHEstate (Grandtour)
after upgrade (facelift)
Date of manufacture
2016 – 2019Internal designation
KH
Technical data
Five-door hatchback
| 1.2 16V | Energy TCe 75 | TCe 90 | Energy TCe 90 | Energy TCe 120 | Energy TCe 120 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2018 | - | from to 2018 | from to 2018 |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1149 | 898 | 898 | 898 | 1197 | 1197 |
| Maximum output / speed [kW/min-1] | 54/5500 | 56/5500 | 66/5000 [71 overboost] | 66/5000 [71 overboost] | 87/5500 | 87/5500 |
| Maximum torque [Nm/min-1] | 107/4250 | 120/2500 | 140/2500 [150 overboost] | 140/2500 [150 overboost] | 205/2000 | 205/2000 |
| Bore and stroke [mm x mm] | 69,0 x 76,8 | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 |
| Compression ratio | - | 9,5:1 | 9,5:1 | 9,5:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 167 | 178 | 178 | 180 | 199 | 199 |
| Acceleration 0–100 km/h [s] | 14.5 | 12.3 | 12.9 | 12.2 | 9.0 | 9.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2 | 6.5-6.3 | 6.3 | 6.5-5.7 | 6.8 | 6.8 |
| Out of town [l] | 4.7 | 4.4-4.2 | 4.3 | 4.4-4.1 | 4.5 | 4.5 |
| Combined [l] | 5.6 | 5.2-5.0 | 5.0 | 5.2-4.7 | 5.3 | 5.4 |
| CO2 emissions [g/km] | 127 | 118-113 | 114 | 118-105 | 118 | 120 |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1134 | 1165 | 1157 | 1157-1165 | 1165 | 1165 |
| Overall weight [kg] | 1564 | 1630 | 1621 | 1621-1630 | 1659 | 1659 |
| Maximum trailer weight unbraked/braked [kg] | 565/1200 | 580/1200 | 575/1200 | 575-580/1200 | 580/1200 | 580/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 300 | 300 | 300 | 300 | 300 | 300 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1146 | -/1146 | -/1146 | -/1146 | -/1146 | -/1146 |
| Boot length [mm] | 649 | 649 | 649 | 649 | 649 | 649 |
| Boot length with rear seats folded [mm] | 1388 | 1388 | 1388 | 1388 | 1388 | 1388 |
| Boot width between wheels/max [mm] | 1011/- | 1011/- | 1011/- | 1011/- | 1011/- | 1011/- |
| Boot height to headliner/ceiling [mm] | 558/- | 558/- | 558/- | 558/- | 558/- | 558/- |
| Loading edge height [mm] | 716 | 716 | 716 | 716 | 716 | 716 |
| Height of the open boot door [mm] | 1920 | 1920 | 1920 | 1920 | 1920 | 1920 |
| Boot opening height [mm] | 550 | 550 | 550 | 550 | 550 | 550 |
| Boot opening width min/max [mm] | 770/1038 | 770/1038 | 770/1038 | 770/1038 | 770/1038 | 770/1038 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar |
| Tyre dimensions front | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H | 195/55 R16 87H |
| Tyre dimensions rear | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H | 195/55 R16 87H |
| Wheel size front | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 | 6.5J x 16 ET44 |
| Wheel size rear | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 | 6.5J x 16 ET44 |
| Brake dimensions front | 258 x 22 | 258 x 22 | 258 x 22 | 258 x 22 | 258 x 22 | 258 x 22 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 |
| Overall length [mm] | 4062 | 4062 | 4062 | 4062 | 4062 | 4062 |
| Overall width without/including mirrors [mm] | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 |
| Overall height [mm] | 1448 | 1448 | 1448 | 1448 | 1448 | 1448 |
| Wheelbase [mm] | 2589 | 2589 | 2589 | 2589 | 2589 | 2589 |
| Front wheel track [mm] | 1506 | 1506 | 1506 | 1506 | 1498 | 1498 |
| Rear wheel track [mm] | 1506 | 1506 | 1506 | 1506 | 1498 | 1498 |
| Forward overhang [mm] | 851 | 851 | 851 | 851 | 851 | 851 |
| Rear overhang [mm] | 622 | 622 | 622 | 622 | 622 | 622 |
| Clearance [mm] | 120 | 120 | 120 | 120 | 120 | 120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Headroom rear [mm] | 847 | 847 | 847 | 847 | 847 | 847 |
| Front elbow/shoulder width [mm] | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 |
| Rear elbow/shoulder width [mm] | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 140/- | 140/- | 140/- | 140/- | 140/- | 140/- |
| 1.6 Turbo R.S | 1.6 Turbo R.S Trophy | Energy dCi 75 | Energy dCi 90 | Energy dCi 110 | ||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | - | - | from to 2018 | |
| Engine type | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 | |
| Engine displacement [cm³] | 1618 | 1618 | 1461 | 1461 | 1461 | |
| Maximum output / speed [kW/min-1] | 147/6050 | 162/6050 | 55/4000 | 66/4000 | 81/4000 | |
| Maximum torque [Nm/min-1] | 260/2000 | 280/2000 | 200/1750 | 220/1750 | 260/1750 | |
| Bore and stroke [mm x mm] | 79,7 x 81,1 | 79,7 x 81,1 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | |
| Compression ratio | 9,5:1 | 9,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear automatic | 6 gear automatic | 5 gear manual | 5 gear manual | 6 gear manual | |
| Drive specifications |
|
| - | - | - | |
| Top speed [km/h] | 230 | 235 | 168 | 180-181 | 194 | |
| Acceleration 0–100 km/h [s] | 6.7 | 6.6 | 14.3 | 11.8-12.0 | 11.2 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 7.6 | 7.6 | 4.5-3.5 | 4.8-3.5 | 3.8 | |
| Out of town [l] | 5.1 | 5.1 | 3.8-3.1 | 3.8-3.1 | 3.3 | |
| Combined [l] | 5.9 | 5.9 | 4.1-3.3 | 4.1-3.3 | 3.5 | |
| CO2 emissions [g/km] | 133 | 133 | 108-85 | 108-85 | 90 | |
| Emission standard | EU6 | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1279 | 1279 | 1165-1234 | 1165-1235 | 1279 | |
| Overall weight [kg] | 1711 | 1711 | 1683-1695 | 1695-1700 | 1706 | |
| Maximum trailer weight unbraked/braked [kg] | - | - | 580-615/1200 | 580-615/1200 | 635/1200 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 300 | 300 | 300 | 300 | 300 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1146 | -/1146 | -/1146 | -/1146 | -/1146 | |
| Boot length [mm] | 649 | 649 | 649 | 649 | 649 | |
| Boot length with rear seats folded [mm] | 1388 | 1388 | 1388 | 1388 | 1388 | |
| Boot width between wheels/max [mm] | 1011/- | 1011/- | 1011/- | 1011/- | 1011/- | |
| Boot height to headliner/ceiling [mm] | 558/- | 558/- | 558/- | 558/- | 558/- | |
| Loading edge height [mm] | 716 | 716 | 716 | 716 | 716 | |
| Height of the open boot door [mm] | 1920 | 1920 | 1920 | 1920 | 1920 | |
| Boot opening height [mm] | 550 | 550 | 550 | 550 | 550 | |
| Boot opening width min/max [mm] | 770/1038 | 770/1038 | 770/1038 | 770/1038 | 770/1038 | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | |
| Tyre dimensions front | 205/45 R17 88Y | 205/40 R18 86Y | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H | |
| Tyre dimensions rear | 205/45 R17 88Y | 205/40 R18 86Y | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H | |
| Wheel size front | 7.0J x 17 ET44 | 7.5J x 18 ET55 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 | |
| Wheel size rear | 7.0J x 17 ET44 | 7.5J x 18 ET55 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 | |
| Brake dimensions front | 320 x 28 | 320 x 28 | 258 x 22 | 258 x 22 | 258 x 22 | |
| Brake dimensions rear | 260 x 8 | 260 x 8 | - | - | - | |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.9/11.3 | 10.9/11.3 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | |
| Overall length [mm] | 4090 | 4090 | 4062 | 4062 | 4062 | |
| Overall width without/including mirrors [mm] | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 | |
| Overall height [mm] | 1432 | 1420 | 1448 | 1448 | 1448 | |
| Wheelbase [mm] | 2589 | 2584 | 2589 | 2589 | 2589 | |
| Front wheel track [mm] | 1504 | 1496 | 1506 | 1506 | 1506 | |
| Rear wheel track [mm] | 1500 | 1495 | 1506 | 1506 | 1506 | |
| Forward overhang [mm] | 866 | 866 | 851 | 851 | 851 | |
| Rear overhang [mm] | 635 | 635 | 622 | 622 | 622 | |
| Clearance [mm] | - | - | 120 | 120 | 120 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 880 | 880 | 880 | 880 | 880 | |
| Headroom rear [mm] | 847 | 847 | 847 | 847 | 847 | |
| Front elbow/shoulder width [mm] | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 | |
| Rear elbow/shoulder width [mm] | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | 140/- | 140/- | 140/- | 140/- | 140/- |
Estate (Grandtour)
| 1.2 16V | Energy TCe 75 | TCe 90 | Energy TCe 90 | Energy TCe 120 | Energy TCe 120 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2018 | - | from to 2018 | from to 2018 |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 3/12 | 3/12 | 3/12 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1149 | 898 | 898 | 898 | 1197 | 1197 |
| Maximum output / speed [kW/min-1] | 54/5500 | 56/5500 | 66/5000 [71 overboost] | 66/5000 [71 overboost] | 87/5500 | 87/5500 |
| Maximum torque [Nm/min-1] | 107/4250 | 120/2500 | 140/2500 [150 overboost] | 140/2500 [150 overboost] | 205/2000 | 205/2000 |
| Bore and stroke [mm x mm] | 69,0 x 76,8 | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 | 72,2 x 73,1 |
| Compression ratio | - | 9,5:1 | 9,5:1 | 9,5:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 167 | 178 | 178 | 178-180 | 199 | 199 |
| Acceleration 0–100 km/h [s] | 14.5 | 12.3 | 12.9 | 12.1-12.2 | 9.0 | 9.2 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7.2 | 6.5-6.3 | 6.3 | 6.5-5.7 | 6.8 | 6.8 |
| Out of town [l] | 4.7 | 4.4-4.3 | 4.3 | 4.4-4.1 | 4.5 | 4.5 |
| Combined [l] | 5.6 | 5.2-5.0 | 5.0 | 5.2-4.7 | 5.3 | 5.4 |
| CO2 emissions [g/km] | 127 | 118-113 | 114 | 118-105 | 118 | 120 |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | EU6 - Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1141 | 1198 | 1163 | 1163-1198 | 1243 | 1270 |
| Overall weight [kg] | 1607 | 1639 | 1639 | 1639 | 1668 | 1695 |
| Maximum trailer weight unbraked/braked [kg] | 570/1200 | 595/1200 | 580/1200 | 580-595/1200 | 620/1200 | 635/1200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 443 | 443 | 443 | 443 | 443 | 443 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1380 | -/1380 | -/1380 | -/1380 | -/1380 | -/1380 |
| Boot length [mm] | 830 | 830 | 830 | 830 | 830 | 830 |
| Boot length with rear seats folded [mm] | 1616 | 1616 | 1616 | 1616 | 1616 | 1616 |
| Boot width between wheels/max [mm] | 1011/- | 1011/- | 1011/- | 1011/- | 1011/- | 1011/- |
| Boot height to headliner/ceiling [mm] | 575/- | 575/- | 575/- | 575/- | 575/- | 575/- |
| Loading edge height [mm] | 604 | 604 | 604 | 604 | 604 | 604 |
| Height of the open boot door [mm] | 2087 | 2087 | 2087 | 2087 | 2087 | 2087 |
| Boot opening height [mm] | 685 | 685 | 685 | 685 | 685 | 685 |
| Boot opening width min/max [mm] | 800/1038 | 800/1038 | 800/1038 | 800/1038 | 800/1038 | 800/1038 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 45 | 45 | 45 | 45 | 45 | 45 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar |
| Tyre dimensions front | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H | 195/55 R16 87H |
| Tyre dimensions rear | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H | 195/55 R16 87H |
| Wheel size front | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 | 6.5J x 16 ET44 |
| Wheel size rear | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 | 6.5J x 16 ET44 |
| Brake dimensions front | 258 x 22 | 258 x 22 | 258 x 22 | 258 x 22 | 258 x 22 | 258 x 22 |
| Brake dimensions rear | - | - | - | - | - | - |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 |
| Overall length [mm] | 4267 | 4267 | 4267 | 4267 | 4267 | 4267 |
| Overall width without/including mirrors [mm] | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 | 1732/1945 |
| Overall height [mm] | 1445 | 1445 | 1445 | 1445 | 1445 | 1445 |
| Wheelbase [mm] | 2589 | 2589 | 2589 | 2589 | 2589 | 2589 |
| Front wheel track [mm] | 1506 | 1506 | 1506 | 1506 | 1498 | 1498 |
| Rear wheel track [mm] | 1506 | 1506 | 1506 | 1506 | 1498 | 1498 |
| Forward overhang [mm] | 853 | 853 | 853 | 853 | 853 | 853 |
| Rear overhang [mm] | 825 | 825 | 825 | 825 | 825 | 825 |
| Clearance [mm] | 120 | 120 | 120 | 120 | 120 | 120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 880 | 880 | 880 | 880 | 880 | 880 |
| Headroom rear [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Front elbow/shoulder width [mm] | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 | 1363/1370 |
| Rear elbow/shoulder width [mm] | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 | 1378/1307 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 140/- | 140/- | 140/- | 140/- | 140/- | 140/- |
| Energy dCi 75 | Energy dCi 90 | Energy dCi 110 | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2018 | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | |||
| Engine displacement [cm³] | 1461 | 1461 | 1461 | |||
| Maximum output / speed [kW/min-1] | 55/4000 | 66/4000 | 81/4000 | |||
| Maximum torque [Nm/min-1] | 200/1750 | 220/1750 | 260/1750 | |||
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | |||
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | |||
| Drive specifications | - | - | - | |||
| Top speed [km/h] | 168 | 180-181 | 194 | |||
| Acceleration 0–100 km/h [s] | 14.3 | 11.8-12.0 | 11.2 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 4.5-3.5 | 4.5-3.5 | 3.8 | |||
| Out of town [l] | 3.8-3.1 | 3.8-3.1 | 3.3 | |||
| Combined [l] | 4.1-3.3 | 4.1-3.3 | 3.5 | |||
| CO2 emissions [g/km] | 108-85 | 108-85 | 90 | |||
| Emission standard | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP | EU6 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1257-1264 | 1257-1261 | 1280 | |||
| Overall weight [kg] | 1702-1707 | 1702-1704 | 1716 | |||
| Maximum trailer weight unbraked/braked [kg] | 625-630/1200 | 625-630/1200 | 640/1200 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 443 | 443 | 443 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1380 | -/1380 | -/1380 | |||
| Boot length [mm] | 830 | 830 | 830 | |||
| Boot length with rear seats folded [mm] | 1616 | 1616 | 1616 | |||
| Boot width between wheels/max [mm] | 1011/- | 1011/- | 1011/- | |||
| Boot height to headliner/ceiling [mm] | 575/- | 575/- | 575/- | |||
| Loading edge height [mm] | 604 | 604 | 604 | |||
| Height of the open boot door [mm] | 2087 | 2087 | 2087 | |||
| Boot opening height [mm] | 685 | 685 | 685 | |||
| Boot opening width min/max [mm] | 800/1038 | 800/1038 | 800/1038 | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 45 | 45 | 45 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | |||
| Tyre dimensions front | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H | |||
| Tyre dimensions rear | 185/65 R15 88T | 185/65 R15 88T | 195/55 R16 87H | |||
| Wheel size front | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 | |||
| Wheel size rear | 6.0J x 15 ET40 | 6.0J x 15 ET40 | 6.5J x 16 ET44 | |||
| Brake dimensions front | 258 x 22 | 258 x 22 | 258 x 22 | |||
| Brake dimensions rear | - | - | - | |||
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 10.6/11.0 | 10.6/11.0 | 10.6/11.0 | |||
| Overall length [mm] | 4267 | 4267 | 4267 | |||
| Overall width without/including mirrors [mm] | 1732/1945 | 1732/1945 | 1732/1945 | |||
| Overall height [mm] | 1445 | 1445 | 1445 | |||
| Wheelbase [mm] | 2589 | 2589 | 2589 | |||
| Front wheel track [mm] | 1506 | 1506 | 1506 | |||
| Rear wheel track [mm] | 1506 | 1506 | 1506 | |||
| Forward overhang [mm] | 853 | 853 | 853 | |||
| Rear overhang [mm] | 825 | 825 | 825 | |||
| Clearance [mm] | 120 | 120 | 120 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 880 | 880 | 880 | |||
| Headroom rear [mm] | 862 | 862 | 862 | |||
| Front elbow/shoulder width [mm] | 1363/1370 | 1363/1370 | 1363/1370 | |||
| Rear elbow/shoulder width [mm] | 1378/1307 | 1378/1307 | 1378/1307 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | 140/- | 140/- | 140/- |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
