Renault Grand Scénic
Date of manufacture
2016 – to this day (Medium SUV)
Platform
Renault-Nissan CMF
Manufacturing locations
Douai, France
Designer
Jérémie Sommer
Maxime Pinol
Tags
Mid-size MPV
French cars
The Renault Grand Scénic is a mid-sized SUV manufactured in France since 2016. It is built on the Renault-Nissan CMF platform and offers a wide range of petrol and diesel engines, the most powerful of which is the TCe 160 with 120 kW. This is also the fastest version, reaching a top speed of 208 km/h. The most efficient Energy dCi 110 has a fuel consumption of 4 l/100 km and emissions of 104 g/km. The luggage compartment has a capacity of 718/189 l. In EURONCAP safety tests, the car achieved a rating of 5 out of 5 according to the 2016 methodology.
Car body style
Medium SUV
Date of manufacture
2016 – to this dayInternal designation
-
Technical data
Medium SUV
| Energy TCe 115 | TCe 115 | Energy TCe 130 | TCe 140 | TCe 140 | TCe 160 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2017 | from 2018 to | from to 2018 | from 2018 to | from 2018 to | from 2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1198 | 1333 | 1198 | 1333 | 1333 | 1333 |
| Maximum output / speed [kW/min-1] | 85/4500 | 85/4500 | 96/5500 | 103/4500 | 103/4500 | 116/5500 |
| Maximum torque [Nm/min-1] | 190/2000 | 240/1600 | 205/2000 | 260/1750 | 240/1600 | 270/1800 |
| Bore and stroke [mm x mm] | 72,2 x 73,1 | 72.2 x 81.4 | 72,2 x 73,1 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 |
| Compression ratio | 10,0:1 | 10,5:1 | 10,0:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications | - | - | - | - |
|
|
| Top speed [km/h] | 183 | 179-190 | 188 | 192-197 | 192-199 | 200 |
| Acceleration 0–100 km/h [s] | 12.4-13.0 | 11,3-11,7 | 11,4-11,9 | 10,1-10,6 | 9,9-10,5 | 9.5-10.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 9.5-10.4 (4th gear) | - | 8.4-9.2 (4th gear) | 8.4-9.2 | 8.0-8.7 |
| City [l] | 7.5 | 7,1-7,7 | 7,5 | 7,1-7,6 | 6,8-9,2 | - |
| Out of town [l] | 5.3 | 4,8-5,3 | 5,3 | 4,8-5,3 | 4,8-6,0 | - |
| Combined [l] | 6.1 | 5,6-6,2 | 6,1 | 5,6-6,2 | 5,5-7,1 | - |
| CO2 emissions [g/km] | 136 | 125-141 | 136 | 125-141 | 124-162 | - |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | 6.8-6.3 | - | 6.8-6.3 | 6.9-6.5 | 6.9-6.5 |
| CO2 emissions [g/km] | - | 154-143 | - | 154-143 | 156-147 | 156-146 |
| Emission standard | EU6 | Euro 6d-TEMP - Euro 6d | EU6 | Euro 6 - Euro 6d-TEMP - Euro 6d | Euro 6 - Euro 6d-TEMP - Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1505 [1570 seven seats] | 1505-1679 [1556--1679 seven seats] | 1505 [1560 seven seats] | 1505 [1570 seven seats] | 1565 [1594 seven seats] | 1531-1616 |
| Overall weight [kg] | 2160 [2244 seven seats] | 2064-2 217 [2242 seven seats] | 2170 [2252 seven seats] | 2065 [2243 seven seats] | 2092 [2271 seven seats] | 2139 [2229 seven seats] |
| Maximum trailer weight unbraked/braked [kg] | 750/1500-1850 | 745-750/1500-1850 | 750/1500-1850 | 750/1500-1850 | 750/1500-1850 | 750/1500-1850 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 718/189 | 718/189 | 718/189 | 718/189 | 718/189 | 718/189 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1963 [- | -/1963 [- | -/1963 [- | -/1963 [- | -/1963 [- | -/1963 [- |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1074 [419 seven seats] | 1074 [419 seven seats] | 1074 [419 seven seats] | 1074 [419 seven seats] | 1074 [419 seven seats] | 1074 [419 seven seats] |
| Boot length with rear seats folded [mm] | 1963 | 1963 | 1963 | 1963 | 1963 | 1963 |
| Boot width between wheels/max [mm] | 1095/- | 1095/- | 1095/- | 1095/- | 1095/- | 1095/- |
| Boot height to headliner/ceiling [mm] | 570/- | 570/- | 570/- | 570/- | 570/- | 570/- |
| Loading edge height [mm] | 680 | 680 | 680 | 680 | 680 | 680 |
| Height of the open boot door [mm] | 2073 | 2073 | 2073 | 2073 | 2073 | 2073 |
| Boot opening height [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Boot opening width min/max [mm] | 1036/1087 | 1036/1087 | 1036/1087 | 1036/1087 | 1036/1087 | 1036/1087 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H |
| Tyre dimensions rear | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 |
| Brake dimensions rear | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.18/- | 11.18/- | 11.18/- | 11.18/- | 11.18/- | 11.18/- |
| Overall length [mm] | 4634 | 4634 | 4634 | 4634 | 4634 | 4634 |
| Overall width without/including mirrors [mm] | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 |
| Overall height [mm] | 1655 | 1655 | 1655 | 1655 | 1655 | 1655 |
| Wheelbase [mm] | 2804 | 2804 | 2804 | 2804 | 2804 | 2804 |
| Front wheel track [mm] | 1602 | 1602 | 1602 | 1602 | 1602 | 1602 |
| Rear wheel track [mm] | 1596 | 1596 | 1596 | 1596 | 1596 | 1596 |
| Forward overhang [mm] | 931 | 931 | 931 | 931 | 931 | 931 |
| Rear overhang [mm] | 899 | 899 | 899 | 899 | 899 | 899 |
| Clearance [mm] | 117 | 117 | 117 | 117 | 117 | 117 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 918 | 918 | 918 | 918 | 918 | 918 |
| Headroom rear [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Front elbow/shoulder width [mm] | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 |
| Rear elbow/shoulder width [mm] | 1478/1399 | 1478/1399 | 1478/1399 | 1478/1399 | 1478/1399 | 1478/1399 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 255/- | 255/- | 255/- | 255/- | 255/- | 255/- |
| Third row of seats, headroom [mm] | 814 | 814 | 814 | 814 | 814 | 814 |
| Third row elbow/shoulder width [mm] | 1275/1218 | 1275/1218 | 1275/1218 | 1275/1218 | 1275/1218 | 1275/1218 |
| TCe 160 | TCe 160 | TCe 160 | TCe 160 | Energy dCi 110 | Energy dCi 110 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from 2018 to 2018 | from 2018 to 2018 | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1333 | 1333 | 1333 | 1333 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 117/5500 | 117/5500 | 120/5500 | 120/5500 | 81/4000 | 81/4000 |
| Maximum torque [Nm/min-1] | 260/1750 | 270/1800 | 260/1750 | 260/1800 | 260/1750 | 250/1750 |
| Bore and stroke [mm x mm] | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 207 | 208 | 197 | 197 | 183 | 183 |
| Acceleration 0–100 km/h [s] | 10,2 | 9,5 | 10,2-10,5 | 9,2-9,3 | 12,4 | 12,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,6-7,7 | 7,2-8,6 | 7,1 | 6,8 | 4,4 | 4,2 |
| Out of town [l] | 5,0-5.3 | 5.0-5.8 | 4,8 | 4,8 | 3,8 | 3,9 |
| Combined [l] | 6,1-6,2 | 5,8-6,8 | 5,6 | 5,5 | 4,0 | 4,0 |
| CO2 emissions [g/km] | 139-141 | 132-156 | 125 | 124 | 104 | 104 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6 | Euro 6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1683 | 1678 | 1505 [1570 seven seats] | 1565 [1594 seven seats] | 1578 [1607 seven seats] | 1602 [1615 seven seats] |
| Overall weight [kg] | 2221 | 2168 | 2084 [2247 seven seats] | 2092 [2271 seven seats] | 2200 [2298 seven seats] | 2250 [2306 seven seats] |
| Maximum trailer weight unbraked/braked [kg] | 745/1500-1800 | 750/1500-1800 | 750/1500-1850 | 750/1850 | 750/1850 | 750/1850 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 718/189 | 718/189 | 718/189 | 718/189 | 718/189 | 718/189 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1963 [- | -/1963 [- | -/1963 [- | -/1963 [- | -/1963 [- | -/1963 [- |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1074 [419 seven seats] | 1074 [419 seven seats] | 1074 [419 seven seats] | 1074 [419 seven seats] | 1074 [419 seven seats] | 1074 [419 seven seats] |
| Boot length with rear seats folded [mm] | 1963 | 1963 | 1963 | 1963 | 1963 | 1963 |
| Boot width between wheels/max [mm] | 1095/- | 1095/- | 1095/- | 1095/- | 1095/- | 1095/- |
| Boot height to headliner/ceiling [mm] | 570/- | 570/- | 570/- | 570/- | 570/- | 570/- |
| Loading edge height [mm] | 680 | 680 | 680 | 680 | 680 | 680 |
| Height of the open boot door [mm] | 2073 | 2073 | 2073 | 2073 | 2073 | 2073 |
| Boot opening height [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Boot opening width min/max [mm] | 1036/1087 | 1036/1087 | 1036/1087 | 1036/1087 | 1036/1087 | 1036/1087 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H |
| Tyre dimensions rear | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 |
| Brake dimensions rear | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.18/- | 11.18/- | 11.18/- | 11.18/- | 11.18/- | 11.18/- |
| Overall length [mm] | 4634 | 4634 | 4634 | 4634 | 4634 | 4634 |
| Overall width without/including mirrors [mm] | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 |
| Overall height [mm] | 1655 | 1655 | 1655 | 1655 | 1655 | 1655 |
| Wheelbase [mm] | 2804 | 2804 | 2804 | 2804 | 2804 | 2804 |
| Front wheel track [mm] | 1602 | 1602 | 1602 | 1602 | 1602 | 1602 |
| Rear wheel track [mm] | 1596 | 1596 | 1596 | 1596 | 1596 | 1596 |
| Forward overhang [mm] | 931 | 931 | 931 | 931 | 931 | 931 |
| Rear overhang [mm] | 899 | 899 | 899 | 899 | 899 | 899 |
| Clearance [mm] | 117 | 117 | 117 | 117 | 117 | 117 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 918 | 918 | 918 | 918 | 918 | 918 |
| Headroom rear [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Front elbow/shoulder width [mm] | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 |
| Rear elbow/shoulder width [mm] | 1478/1399 | 1478/1399 | 1478/1399 | 1478/1399 | 1478/1399 | 1478/1399 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 255/- | 255/- | 255/- | 255/- | 255/- | 255/- |
| Third row of seats, headroom [mm] | 814 | 814 | 814 | 814 | 814 | 814 |
| Third row elbow/shoulder width [mm] | 1275/1218 | 1275/1218 | 1275/1218 | 1275/1218 | 1275/1218 | 1275/1218 |
| Blue dCi 120 | Blue dCi 120 | Energy dCi 130 | Blue dCi 150 | Blue dCi 150 | Energy dCi 160 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to 2020 | from 2018 to 2020 | from to 2018 | from 2018 to 2020 | from 2018 to 2020 | from to 2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1749 | 1749 | 1598 | 1749 | 1749 | 1598 |
| Maximum output / speed [kW/min-1] | 88/3500 | 88/3500 | 96/4000 | 110/3500 | 110/3500 | 118/4000 |
| Maximum torque [Nm/min-1] | 300/1750 | 300/1750 | 320/1750 | 340/1750 | 340/1750 | 360/1750 |
| Bore and stroke [mm x mm] | 80.0 x 87.0 | 80.0 x 87.0 | 80,0 x 79,5 | 80.0 x 87.0 | 80.0 x 87.0 | 80,0 x 79,5 |
| Compression ratio | 15,4:1 | 15,4:1 | 15,4:1 | 15,4:1 | 15,4:1 | 15,4:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications | - |
| - | - |
|
|
| Top speed [km/h] | 193 | N/C | 190 | 208 | 200 | 200 |
| Acceleration 0–100 km/h [s] | 14,5 | N/C | 11,4 | 12,4 | 10.6 | 10,7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5,8-5,9 | 5,5-5,8 | 5,3 | 5,8-5,9 | 5.9-5.7 | 5,3 |
| Out of town [l] | 4,2-4,3 | 4,3-4,3 | 4,2 | 4,2-4,3 | 4.3 | 4,4 |
| Combined [l] | 4,8-4,9 | 4,8-4,9 | 4,6 | 4,8-4,9 | 4,8-4,9 | 4,7 |
| CO2 emissions [g/km] | 127-129 | 126-129 | 119 | 127-129 | 127-129 | 122 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1800 | 1831 | 1615 [1676 seven seats] | 1801 | 1830 | 1719 [1735 seven seats] |
| Overall weight [kg] | 2290 | 2321 | 2270 [2354 seven seats] | 2291 | 2320 | 2340 [2378 seven seats] |
| Maximum trailer weight unbraked/braked [kg] | 1800/750 | 1800/750 | 750/1850 | 1800/750 | 1800/750 | 750/1850 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 718/189 | 718/189 | 718/189 | 718/189 | 718/189 | 718/189 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1963 [- | -/1963 [- | -/1963 [- | -/1963 [- | -/1963 [- | -/1963 [- |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | 1074 [419 seven seats] | 1074 [419 seven seats] | 1074 [419 seven seats] | 1074 [419 seven seats] | 1074 [419 seven seats] | 1074 [419 seven seats] |
| Boot length with rear seats folded [mm] | 1963 | 1963 | 1963 | 1963 | 1963 | 1963 |
| Boot width between wheels/max [mm] | 1095/- | 1095/- | 1095/- | 1095/- | 1095/- | 1095/- |
| Boot height to headliner/ceiling [mm] | 570/- | 570/- | 570/- | 570/- | 570/- | 570/- |
| Loading edge height [mm] | 680 | 680 | 680 | 680 | 680 | 680 |
| Height of the open boot door [mm] | 2073 | 2073 | 2073 | 2073 | 2073 | 2073 |
| Boot opening height [mm] | 787 | 787 | 787 | 787 | 787 | 787 |
| Boot opening width min/max [mm] | 1036/1087 | 1036/1087 | 1036/1087 | 1036/1087 | 1036/1087 | 1036/1087 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 53 | 53 | 53 | 53 | 53 | 53 |
| AdBlue tank volume [l] | 17 | 17 | - | 17 | 17 | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H |
| Tyre dimensions rear | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 |
| Brake dimensions rear | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.18/- | 11.18/- | 11.18/- | 11.18/- | 11.18/- | 11.18/- |
| Overall length [mm] | 4634 | 4634 | 4634 | 4634 | 4634 | 4634 |
| Overall width without/including mirrors [mm] | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 |
| Overall height [mm] | 1655 | 1655 | 1655 | 1655 | 1655 | 1655 |
| Wheelbase [mm] | 2804 | 2804 | 2804 | 2804 | 2804 | 2804 |
| Front wheel track [mm] | 1602 | 1602 | 1602 | 1602 | 1602 | 1602 |
| Rear wheel track [mm] | 1596 | 1596 | 1596 | 1596 | 1596 | 1596 |
| Forward overhang [mm] | 931 | 931 | 931 | 931 | 931 | 931 |
| Rear overhang [mm] | 899 | 899 | 899 | 899 | 899 | 899 |
| Clearance [mm] | 117 | 117 | 117 | 117 | 117 | 117 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 918 | 918 | 918 | 918 | 918 | 918 |
| Headroom rear [mm] | 878 | 878 | 878 | 878 | 878 | 878 |
| Front elbow/shoulder width [mm] | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 |
| Rear elbow/shoulder width [mm] | 1478/1399 | 1478/1399 | 1478/1399 | 1478/1399 | 1478/1399 | 1478/1399 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 255/- | 255/- | 255/- | 255/- | 255/- | 255/- |
| Third row of seats, headroom [mm] | 814 | 814 | 814 | 814 | 814 | 814 |
| Third row elbow/shoulder width [mm] | 1275/1218 | 1275/1218 | 1275/1218 | 1275/1218 | 1275/1218 | 1275/1218 |

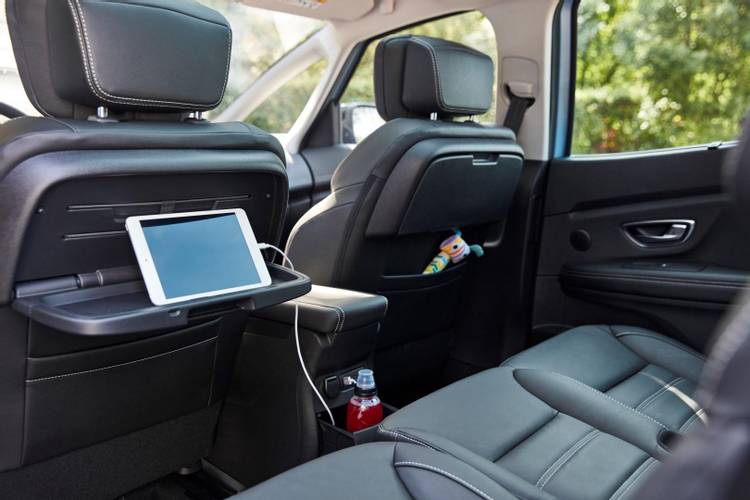

Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
