Renault Kadjar
Date of manufacture
3/2015 – 2018 (SUV)
Platform
Renault-Nissan CMF C/D
Manufacturing locations
Palencia, Spain
Wuhan, People's Republic of China
Designer
Bertrand Grisard
Tags
Compact SUV
French cars
The Renault Kadjar has been manufactured since 2015 as an SUV. The car can come from different countries, such as Spain or the People's Republic of China, and is built on the Renault-Nissan CMF C/D platform. The engine range includes petrol and diesel versions, from the weakest Energy dCi 110 with a combined consumption of 3.8 l/100 km and CO2 emissions of 99 g/km to the strongest Energy TCe 165 with 120 kW of power. The fastest version TCe 160 reaches a top speed of 207 km/h with the best acceleration 0-100 km/h in 9.2 seconds. The Renault Kadjar also offers generous luggage space of 472 liters and safety is confirmed by the 5 out of 5 rating awarded by EURONCAP in 2015.
Car body style
SUV
Date of manufacture
3/2015 – 2018Internal designation
Technical data
SUV
| Energy TCe 130 | Energy TCe 130 | TCe 140 | TCe 160 | Energy TCe 165 | Energy dCi 110 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from 2018 to | from 2018 to | from 2017 to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1197 | 1197 | 1333 | 1333 | 1618 | 1461 |
| Maximum output / speed [kW/min-1] | 96/5500 | 96/5500 | 103/4500 | 117/5500 | 120/5600 | 81/4000 |
| Maximum torque [Nm/min-1] | 205/2000 | 205/2000 | 260/1750 | 260/1750 | 240/2000 | 260/1750 |
| Bore and stroke [mm x mm] | 72,2 x 73,1 | 72,2 x 73,1 | 72.2 x 81.4 | 72.2 x 81.4 | 79,7 x 81,1 | 76,0 x 80,5 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,5:1 | 10,5:1 | - | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications | - |
| - | - | - | - |
| Top speed [km/h] | 192 | 192 | 196 | 207 | 205 | 182 |
| Acceleration 0–100 km/h [s] | 10.1 | 10.7 | 9.4 | 9.4 | 9.2 | 11.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.8-7.0 | 6.4-6.9 | 7.5-7.4 | 7.5-7.4 | 8.0-7.7 | 4.1-4.2 |
| Out of town [l] | 4.9-5.1 | 4.9-5.4 | 5.1-5.0 | 5.1-5.0 | 5.1-5.0 | 3.6-3.8 |
| Combined [l] | 5.6-5.8 | 5.5-5.8 | 6.0-5.9 | 6.0-5.9 | 6.2-6.0 | 3.8-3.9 |
| CO2 emissions [g/km] | 126-130 | 123-132 | 136-134 | 136-134 | 139-134 | 99-103 |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1381-1395 | 1395-1448 | 1407-1498 | 1407-1498 | 1451-1465 | 1455-1469 |
| Overall weight [kg] | 1853-1866 | 1903-1911 | 1880 | 1880 | 1928-1934 | 1916-1924 |
| Maximum trailer weight unbraked/braked [kg] | 690/1500 | 695/1500 | 750/1800 | 750/1800 | 725-730/1800 | 725/1350 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | 75/- |

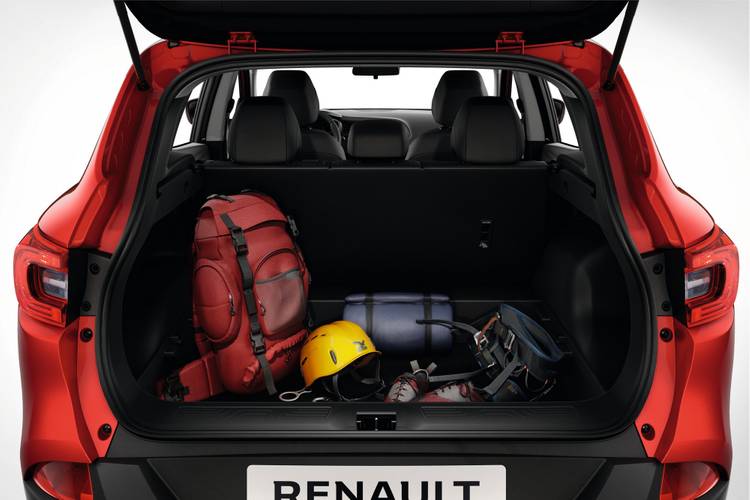

| Boot volume [l] | 472 | 472 | 472 | 472 | 472 | 472 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1478 | -/1478 | -/1478 | -/1478 | -/1478 | -/1478 |
| Boot length [mm] | 864 | 864 | 864 | 864 | 864 | 864 |
| Boot length with rear seats folded [mm] | 1620 | 1620 | 1620 | 1620 | 1620 | 1620 |
| Boot width between wheels/max [mm] | 1099/- | 1099/- | 1099/- | 1099/- | 1099/- | 1099/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 761 | 761 | 761 | 761 | 761 | 761 |
| Height of the open boot door [mm] | 2069 | 2069 | 2069 | 2069 | 2069 | 2069 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 55 | 55 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | multilink | multilink | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar |
| Tyre dimensions front | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/60 R17 | 215/65 R16 | 215/60 R17 |
| Tyre dimensions rear | 215/65 R16 | 215/65 R16 | 215/65 R16 | 215/60 R17 | 215/65 R16 | 215/60 R17 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 296 x 26 | 296 x 26 | 296 x 26 | 296 x 26 | 296 x 26 | 296 x 26 |
| Brake dimensions rear | 290 x 13 | 290 x 13 | 290 x 13 | 290 x 13 | 290 x 13 | 290 x 13 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.72/- | 10.72/- | 10.72/- | 10.72/- | 10.72/- | 10.72/- |
| Overall length [mm] | 4449 | 4449 | 4449 | 4449 | 4449 | 4449 |
| Overall width without/including mirrors [mm] | 1836/2058 | 1836/2058 | 1836/2058 | 1836/2058 | 1836/2058 | 1836/2058 |
| Overall height [mm] | 1607 | 1607 | 1607 | 1607 | 1607 | 1607 |
| Wheelbase [mm] | 2646 | 2646 | 2646 | 2646 | 2646 | 2646 |
| Front wheel track [mm] | 1556 | 1556 | 1556 | 1556 | 1556 | 1556 |
| Rear wheel track [mm] | 1542 | 1542 | 1542 | 1542 | 1542 | 1542 |
| Forward overhang [mm] | 897 | 897 | 897 | 897 | 897 | 897 |
| Rear overhang [mm] | 906 | 906 | 906 | 906 | 906 | 906 |
| Clearance [mm] | 200 | 200 | 200 | 200 | 200 | 200 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | 18 | 18 | 18 | 18 | 18 | 18 |
| Approach angle rear [°] | 28 | 28 | 28 | 28 | 28 | 28 |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 905 | 905 | 905 | 905 | 905 | 905 |
| Headroom rear [mm] | 910 | 910 | 910 | 910 | 910 | 910 |
| Front elbow/shoulder width [mm] | 1480/- | 1480/- | 1480/- | 1480/- | 1480/- | 1480/- |
| Rear elbow/shoulder width [mm] | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 220/- | 220/- | 220/- | 220/- | 220/- | 220/- |
| Energy dCi 110 | Blue dCi 120 | Energy dCi 130 | Energy dCi 130 | Energy dCi 130 | ||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2018 | from 2017 to 2018 | from to 2018 | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1461 | 1461 | 1598 | 1598 | 1598 | |
| Maximum output / speed [kW/min-1] | 81/4000 | 85/3750 | 96/4000 | 96/4000 | 96/4000 | |
| Maximum torque [Nm/min-1] | 250/1750 | 260/2000 | 320/1750 | 320/1750 | 320/1750 | |
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | 80,0 x 79,5 | 80,0 x 79,5 | 80,0 x 79,5 | |
| Compression ratio | 15,5:1 | 15.2:1 | 15,4:1 | 15,4:1 | 15,4:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | 4x4 | |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | 1 gear automatic | 6 gear manual | |
| Drive specifications |
| - | - |
|
| |
| Top speed [km/h] | 181 | 193 | 190 | 189 | 190 | |
| Acceleration 0–100 km/h [s] | 11.7 | 11.7 | 9.9 | 11.1 | 10.5 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 3.8-4.0 | 5.1-4.9 | 5.0-5.1 | 5.6 | 5.4-5.5 | |
| Out of town [l] | 3.8-3.9 | 4.1-4.0 | 3.9-4.1 | 4.7 | 4.4-4.6 | |
| Combined [l] | 3.8-3.9 | 4.5-4.3 | 4.3-4.5 | 5.0 | 4.8-4.9 | |
| CO2 emissions [g/km] | 99-103 | 121-115 | 113-117 | 130 | 126-129 | |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | EU6 | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1482-1496 | 1501-1592 | 1490-1504 | 1505 | 1611 | |
| Overall weight [kg] | 1943-1951 | 1974 | 1964-1972 | 1973 | 2050-2059 | |
| Maximum trailer weight unbraked/braked [kg] | 740/1450 | 750/1350 | 745/1800 | 750/1800 | 750/1800 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | 75/- | 75/- | 75/- | 75/- | 75/- | |
| Boot volume [l] | 472 | 472 | 472 | 472 | 472 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1478 | -/1478 | -/1478 | -/1478 | -/1478 | |
| Boot length [mm] | 864 | 864 | 864 | 864 | 864 | |
| Boot length with rear seats folded [mm] | 1620 | 1620 | 1620 | 1620 | 1620 | |
| Boot width between wheels/max [mm] | 1099/- | 1099/- | 1099/- | 1099/- | 1099/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | 761 | 761 | 761 | 761 | 761 | |
| Height of the open boot door [mm] | 2069 | 2069 | 2069 | 2069 | 2069 | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 55 | 55 | 55 | 55 | 65 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | twist beam axle with trailing arms and torsion bar | multilink | twist beam axle with trailing arms and torsion bar | twist beam axle with trailing arms and torsion bar | multilink | |
| Tyre dimensions front | 215/60 R17 | 215/60 R17 | 215/60 R17 | 225/45 R19 | 215/60 R17 | |
| Tyre dimensions rear | 215/60 R17 | 215/60 R17 | 215/60 R17 | 225/45 R19 | 215/60 R17 | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | 296 x 26 | 296 x 26 | 296 x 26 | - | 296 x 26 | |
| Brake dimensions rear | 290 x 13 | 290 x 13 | 290 x 13 | - | 290 x 13 | |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.72/- | 10.72/- | 10.72/- | 10.72/- | 10.72/- | |
| Overall length [mm] | 4449 | 4449 | 4449 | 4449 | 4449 | |
| Overall width without/including mirrors [mm] | 1836/2058 | 1836/2058 | 1836/2058 | 1836/2058 | 1836/2058 | |
| Overall height [mm] | 1607 | 1607 | 1607 | 1607 | 1607 | |
| Wheelbase [mm] | 2646 | 2646 | 2646 | 2646 | 2646 | |
| Front wheel track [mm] | 1556 | 1556 | 1556 | 1556 | 1556 | |
| Rear wheel track [mm] | 1542 | 1542 | 1542 | 1542 | 1542 | |
| Forward overhang [mm] | 897 | 897 | 897 | 897 | 897 | |
| Rear overhang [mm] | 906 | 906 | 906 | 906 | 906 | |
| Clearance [mm] | 200 | 200 | 200 | 200 | 200 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | 18 | 18 | 18 | 18 | 18 | |
| Approach angle rear [°] | 28 | 28 | 28 | 28 | 28 | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 905 | 905 | 905 | 905 | 905 | |
| Headroom rear [mm] | 910 | 910 | 910 | 910 | 910 | |
| Front elbow/shoulder width [mm] | 1480/- | 1480/- | 1480/- | 1480/- | 1480/- | |
| Rear elbow/shoulder width [mm] | 1455/- | 1455/- | 1455/- | 1455/- | 1455/- | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | 220/- | 220/- | 220/- | 220/- | 220/- |
Gallery
