Renault Kangoo
Date of manufacture
2008 – 2013 (MPV)
Platform
Renault C
Manufacturing locations
Maubeuge, France
Designer
-
Tags
Small MPV
French cars
Renault Kangoo is the only body variant of the MPV that has been produced since 2008 in France on the Renault C platform. The engine range includes petrol and diesel engines, with the most powerful model being the 1.5 dCi with 80 kW of power. The fastest version is the 1.5 dCi with a top speed of 170 km/h and the best acceleration from 0-100 km/h is achieved by the 1.6 16V Be Pop with 12.1 seconds. The most fuel-efficient version is the 1.5 dCi with a combined consumption of 5.2 l/100 km and CO2 emissions of 140 g/km. The boot capacity is 660 litres and during EURONCAP safety tests, this vehicle scored 4 out of 5 points.
Car body style
Technical data
MPV
| 1.6 8V | 1.6 16V | 1.6 16V Be Pop | 1.6 16V | 1.5 dCi | 1.5 dCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Petrol | Petrol | Petrol | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1598 | 1598 | 1598 | 1598 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 64/5500 | 78/5750 | 78/5750 | 78/5750 | 50/3750 | 55/3750 |
| Maximum torque [Nm/min-1] | 128/3750 | 148/3750 | 148/3750 | 148/3750 | 185/1750 | 180/1750 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 79,5 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | 9,5:1 | 10,0:1 | 10,0:1 | 10,0:1 | 15,9:1 | 15,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications | - |
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 5 gear manual | 5 gear manual | 4 gear automatic | 5 gear manual | 5 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 158 | 170 | 170 | 155 | 147 | 151 |
| Acceleration 0–100 km/h [s] | 15.8 | 13.0 | 12.1 | 14.3 | 19.6 | 17.5 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.6 | 10.6 | 10.4 | 11.3 | 5.8 | 5.9 |
| Out of town [l] | 6.7 | 6.3 | 6.1 | 6.5 | 4.9 | 4.8 |
| Combined [l] | 8.1 | 7.9 | 7.7 | 8.3 | 5.2 | 5.2 |
| CO2 emissions [g/km] | 192 | 191 | 186 | 195 | 138 | 137 |
| Emission standard | EU4 | EU4-EU5 | EU4 | EU5 | EU4 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | - | 1248 | - | 1287 | - | 1235 |
| Overall weight [kg] | 1923 | 1917-1924 | 1837 | 1949 | 1954 | 1918 |
| Maximum trailer weight unbraked/braked [kg] | 737/1010 | 620-737/1050 | 718/1050 | 640/1050 | 732/1002 | 620/1050 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 660 | 660 | 170-230 | 660 | 660 | 660 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2866 | -/2866 | -/1700 | -/2866 | -/2866 | -/2866 |
| Boot length [mm] | 937 | 937 | - | 937 | 937 | 937 |
| Boot length with rear seats folded [mm] | 1803 | 1803 | - | 1803 | 1803 | 1803 |
| Boot width between wheels/max [mm] | -/1121 | -/1121 | - | -/1121 | -/1121 | -/1121 |
| Boot height to headliner/ceiling [mm] | -/1115 | -/1115 | - | -/1115 | -/1115 | -/1115 |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 4-5 | 4-5 | 3 | 4-5 | 4-5 | 4-5 |
| Number of seats | 5 | 5 | 4 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 280 | 280 | 280 | 280 | 280 | 280 |
| Brake dimensions rear | 274 | 274 | 274 | 274 | 274 | 274 |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | - | 10.7/- | 10.7/- | 10.7/- |
| Overall length [mm] | 4213 | 4213 | 3871 | 4213 | 4213 | 4213 |
| Overall width without/including mirrors [mm] | 1829/2133 | 1829/2133 | 1519/1533 | 1829/2133 | 1829/2133 | 1829/2133 |
| Overall height [mm] | 1898 | 1898 | 1835 | 1898 | 1898 | 1898 |
| Wheelbase [mm] | 2697 | 2697 | 2313 | 2697 | 2697 | 2697 |
| Front wheel track [mm] | 1521 | 1521 | - | 1521 | 1521 | 1521 |
| Rear wheel track [mm] | 1533 | 1533 | - | 1533 | 1533 | 1533 |
| Forward overhang [mm] | 807 | 807 | - | 807 | 807 | 807 |
| Rear overhang [mm] | 709 | 709 | - | 709 | 709 | 709 |
| Clearance [mm] | 151 | 151 | - | 151 | 151 | 151 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | - | - | - | - | - | - |
| Headroom rear [mm] | - | - | - | - | - | - |
| Front elbow/shoulder width [mm] | 1510/1464 | 1510/1464 | - | 1510/1464 | 1510/1464 | 1510/1464 |
| Rear elbow/shoulder width [mm] | 1539/1511 | 1539/1511 | - | 1539/1511 | 1539/1511 | 1539/1511 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 dCi | 1.5 dCi | 1.5 dCi | 1.5 dCi Be Pop | 1.5 dCi | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | |
| Engine displacement [cm³] | 1461 | 1461 | 1461 | 1461 | 1461 | |
| Maximum output / speed [kW/min-1] | 63/3750 | 66/3750 | 78/4000 | 78/4000 | 80/4000 | |
| Maximum torque [Nm/min-1] | 200/1750 | 200/1750 | 240/2000 | 240/2000 | 240/2000 | |
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | |
| Compression ratio | 15,9:1 | 15,2:1 | 15,9:1 | 15,9:1 | 15,9:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 5 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | |
| Drive specifications | - | - | - | - | - | |
| Top speed [km/h] | 158 | 158 | 170 | 169 | 170 | |
| Acceleration 0–100 km/h [s] | 16.0 | 16.0 | 13.0 | 12.3 | 13.0 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5.9 | 5.9 | 6.4 | 6.3 | 6.2 | |
| Out of town [l] | 5.0 | 4.8 | 5.0 | 4.9 | 4.8 | |
| Combined [l] | 5.3 | 5.2 | 5.5 | 5.4 | 5.3 | |
| CO2 emissions [g/km] | 140 | 140 | 146 | 142 | 140 | |
| Emission standard | EU4 | EU5 | EU4 | EU4 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | - | 1243 | 1430 | - | 1261 | |
| Overall weight [kg] | 1954 | 1936 | 1944 | 1870 | 1962 | |
| Maximum trailer weight unbraked/braked [kg] | 732/1010 | 650/1050 | 750/1050 | 734/1050 | 630/1050 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 660 | 660 | 660 | 170-230 | 660 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2866 | -/2866 | -/2866 | -/1700 | -/2866 | |
| Boot length [mm] | 937 | 937 | 937 | - | 937 | |
| Boot length with rear seats folded [mm] | 1803 | 1803 | 1803 | - | 1803 | |
| Boot width between wheels/max [mm] | -/1121 | -/1121 | -/1121 | - | -/1121 | |
| Boot height to headliner/ceiling [mm] | -/1115 | -/1115 | -/1115 | - | -/1115 | |
| Loading edge height [mm] | - | - | - | - | - | |
| Height of the open boot door [mm] | - | - | - | - | - | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | - | - | - | - | - | |
| Number of doors | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | |
| Number of seats | 5 | 5 | 5 | 4 | 5 | |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | 195/65 R15 | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | 280 | 280 | 280 | 280 | 280 | |
| Brake dimensions rear | 274 | 274 | 274 | 274 | 274 | |
| Steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | Electric variable power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 10.7/- | 10.7/- | 10.7/- | - | 10.7/- | |
| Overall length [mm] | 4213 | 4213 | 4213 | 4213 | 4213 | |
| Overall width without/including mirrors [mm] | 1829/2133 | 1829/2133 | 1829/2133 | 1519/1533 | 1829/2133 | |
| Overall height [mm] | 1898 | 1898 | 1898 | 1835 | 1898 | |
| Wheelbase [mm] | 2697 | 2697 | 2697 | 2313 | 2697 | |
| Front wheel track [mm] | 1521 | 1521 | 1521 | - | 1521 | |
| Rear wheel track [mm] | 1533 | 1533 | 1533 | - | 1533 | |
| Forward overhang [mm] | 807 | 807 | 807 | - | 807 | |
| Rear overhang [mm] | 709 | 709 | 709 | - | 709 | |
| Clearance [mm] | 151 | 151 | 151 | - | 151 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | - | - | - | - | - | |
| Headroom rear [mm] | - | - | - | - | - | |
| Front elbow/shoulder width [mm] | 1510/1464 | 1510/1464 | 1510/1464 | - | 1510/1464 | |
| Rear elbow/shoulder width [mm] | 1539/1511 | 1539/1511 | 1539/1511 | - | 1539/1511 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |

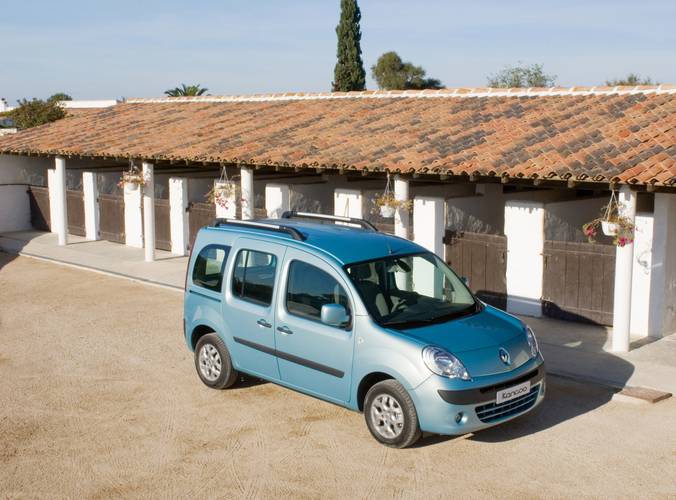

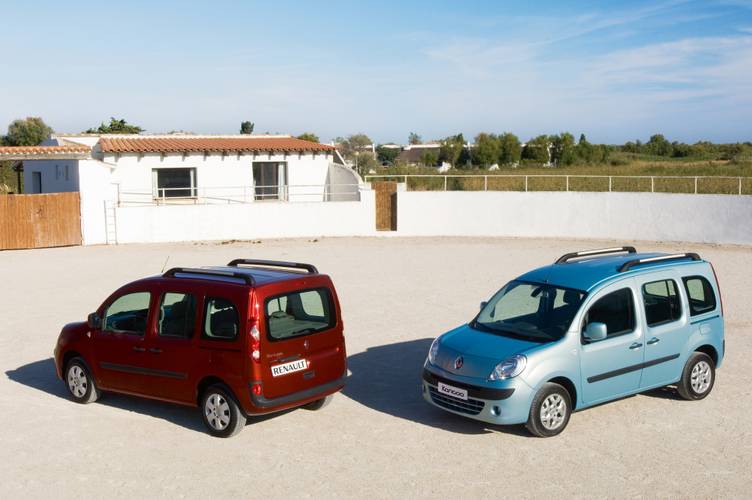

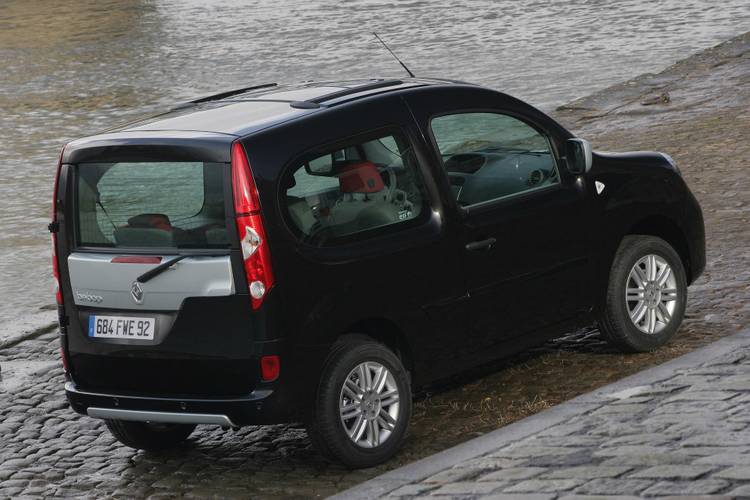

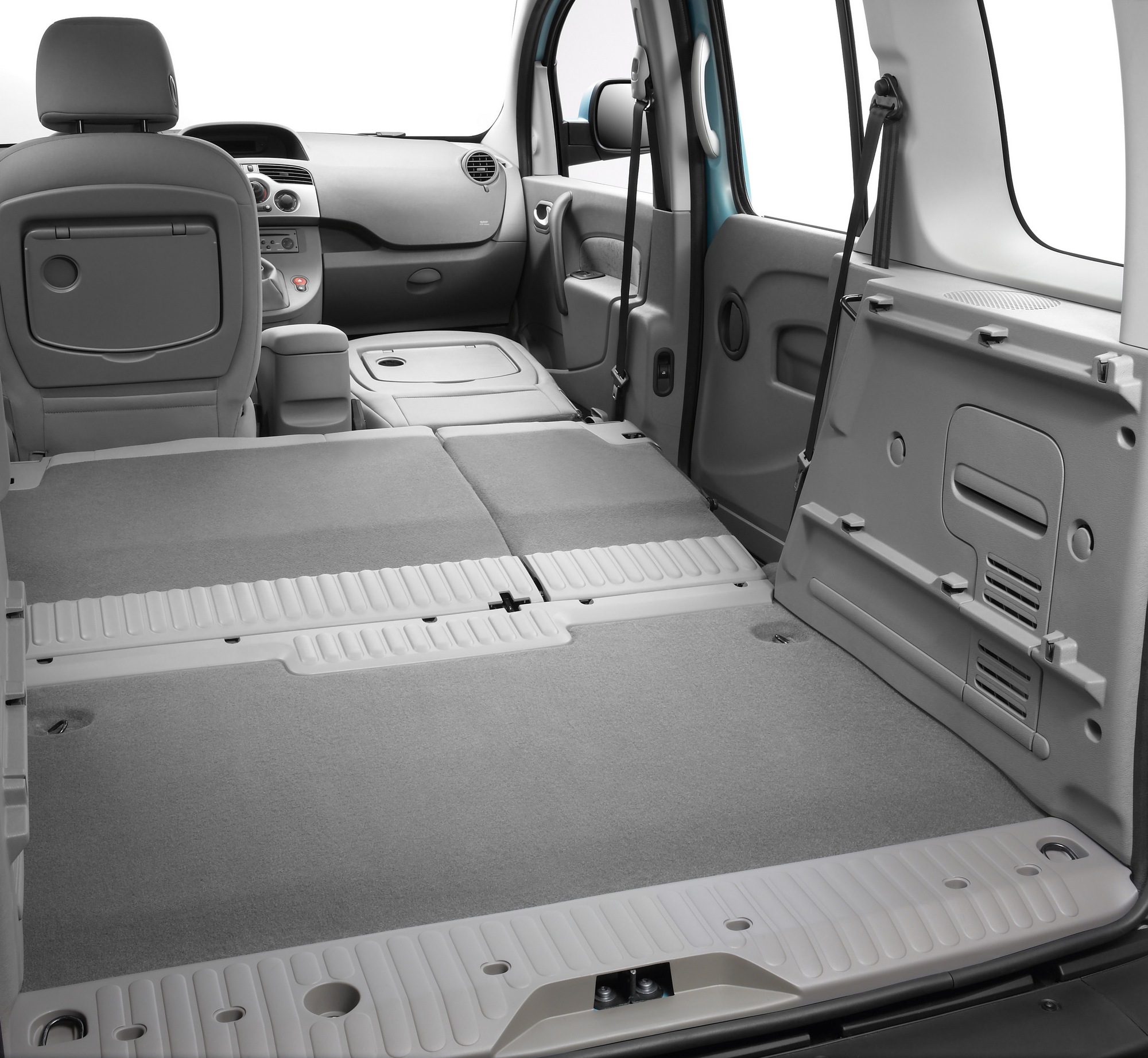

Gallery
