Renault Laguna
Date of manufacture
2010 – 2015 (Liftback)
2010 – 2015 (Estate)
2012 – 2015 (Coupé)
Platform
Renault/Nissan D
Manufacturing locations
Sandouville, France
Designer
-
Tags
D-segment
French cars
Renault Laguna is a modern car manufactured since 2010, boasting three different body styles - liftback, estate and coupe. The Renault/Nissan D platform provides the car with top-notch dynamics and safety. The engine range includes petrol and diesel units, the most powerful being the 3.0 dCi V6 with 173 kW, reaching a top speed of 242 km/h and the best 0-100 km/h acceleration in 7.3 seconds. The most fuel-efficient engine is the 1.5 dCi ESM with 109 g/km emissions and 4.2 l/100 km consumption. The car has passed EURONCAP safety tests and received a 5 out of 5 rating. The luggage space varies depending on the body type - 450 l for the liftback, 508 l for the estate and 423 l for the coupe.

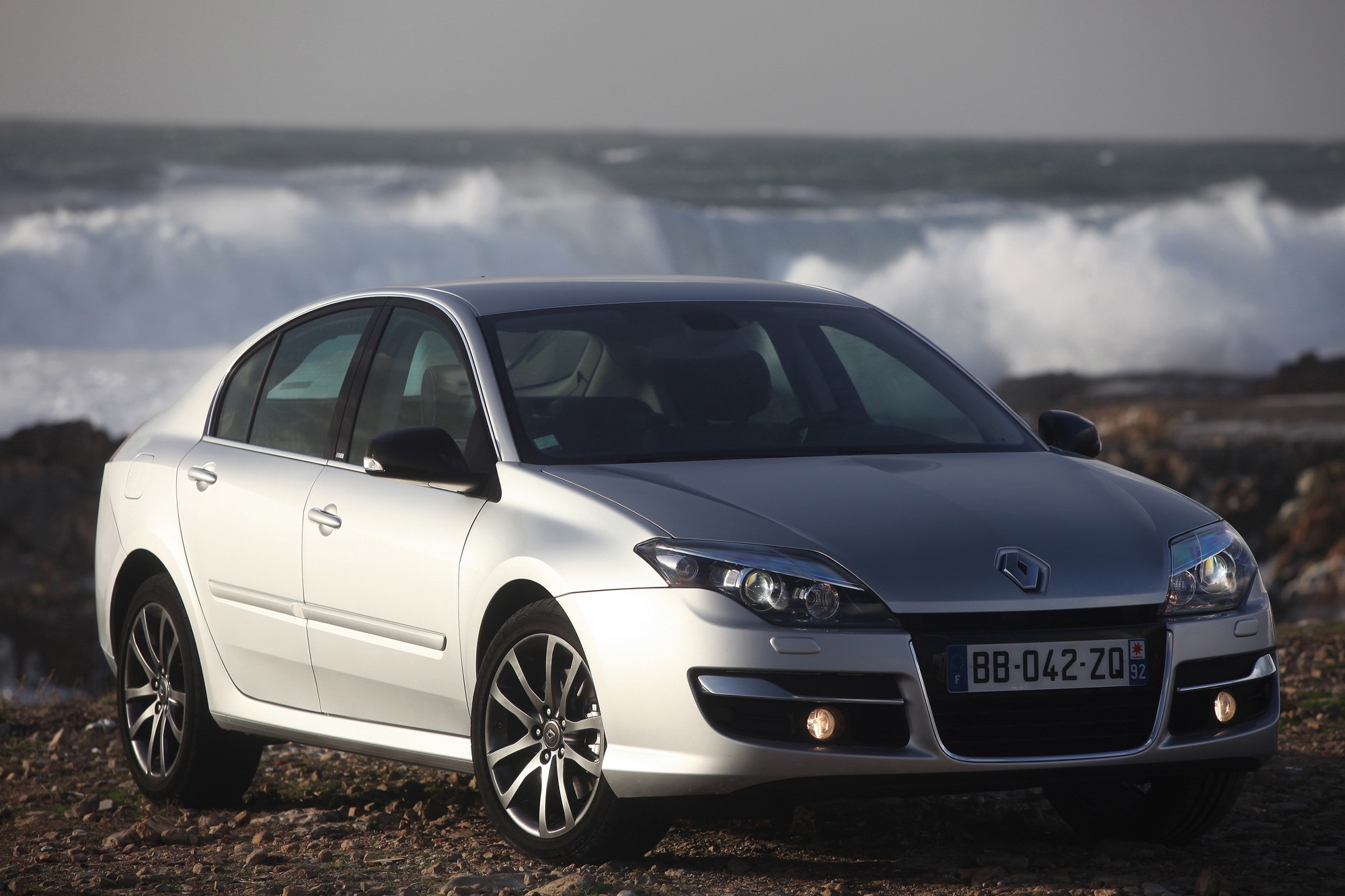

Car body style
Liftback
after upgrade (facelift)
Date of manufacture
2010 – 2015Internal designation
X91 Estate (Grandtour)
after upgrade (facelift)
Date of manufacture
2010 – 2015Internal designation
X91 Coupé
after upgrade (facelift)
Date of manufacture
2012 – 2015Internal designation
X91 Engine size
Technical data
Liftback
| 2.0 16V | 1.5 dCi | 1.5 dCi ESM | 1.5 dCi ESM | 2.0 dCi | 2.0 dCi ESM | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1461 | 1461 | 1461 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 103/6000 | 81/4000 | 81/4000 | 81/4000 | 96/4000 | 96/4000 |
| Maximum torque [Nm/min-1] | 195/3750 | 240/2000 | 240/2000 | 240/2000 | 320/2000 | 320/2000 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 10,2:1 | 15,2:1 | 15,2:1 | 15,2:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 210 | 193 | 193 | 193 | 206 | 206 |
| Acceleration 0–100 km/h [s] | 9.1 | 11.9 | 11.9 | 12.9 | 10.5 | 10.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.1 [14.5 E85] | 5.9 | 4.9 | 5.1 | 6.8 | 6.3 |
| Out of town [l] | 6.1 [8.6 E85] | 4.0 | 3.7 | 3.9 | 4.4 | 4.0 |
| Combined [l] | 7.5 [10.7 E85] | 4.7 | 4.2 | 4.3 | 5.2 | 4.8 |
| CO2 emissions [g/km] | 173 [171 E85] | 120 | 109 | 113 | 136 | 126 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1453 | 1473 | 1473 | 1512 | 1567 | 1567 |
| Overall weight [kg] | 1919 | 1936 | 1936 | 1958 | 2025 | 2025 |
| Maximum trailer weight unbraked/braked [kg] | 650/1300 | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1377 | -/1377 | -/1377 | -/1377 | -/1377 | -/1377 |
| Boot length [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Boot length with rear seats folded [mm] | 1805 | 1805 | 1805 | 1805 | 1805 | 1805 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | 470/- | 470/- | 470/- | 470/- | 470/- | 470/- |
| Loading edge height [mm] | 711 | 711 | 711 | 711 | 711 | 711 |
| Height of the open boot door [mm] | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 870/910 | 870/910 | 870/910 | 870/910 | 870/910 | 870/910 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/60 R 16 | 195/60 R16 | 195/60 R16 | 195/60 R16 | 205/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 195/60 R 16 | 195/60 R16 | 195/60 R16 | 195/60 R16 | 205/60 R16 | 205/60 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 296 | 280 | 280 | 280 | 296 | 296 |
| Brake dimensions rear | 300 | 300 | 300 | 300 | 300 | 300 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 |
| Overall length [mm] | 4695 | 4695 | 4695 | 4695 | 4695 | 4695 |
| Overall width without/including mirrors [mm] | 1811/2060 | 1811/2060 | 1811/2060 | 1811/2060 | 1811/2060 | 1811/2060 |
| Overall height [mm] | 1445 | 1445 | 1445 | 1445 | 1445 | 1445 |
| Wheelbase [mm] | 2756 | 2756 | 2756 | 2756 | 2756 | 2756 |
| Front wheel track [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Rear wheel track [mm] | 1512 | 1512 | 1512 | 1512 | 1512 | 1512 |
| Forward overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Rear overhang [mm] | 926 | 926 | 926 | 926 | 926 | 926 |
| Clearance [mm] | 120 | 120 | 120 | 120 | 120 | 120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Headroom rear [mm] | 842 | 842 | 842 | 842 | 842 | 842 |
| Front elbow/shoulder width [mm] | 1487/1440 | 1487/1440 | 1487/1440 | 1487/1440 | 1487/1440 | 1487/1440 |
| Rear elbow/shoulder width [mm] | 1490/1400 | 1490/1400 | 1490/1400 | 1490/1400 | 1490/1400 | 1490/1400 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 220/- | 220/- | 220/- | 220/- | 220/- | 220/- |
| Energy 2.0 dCi | 2.0 dCi | 2.0 dCi ESM | Energy 2.0 dCi | Energy 2.0 dCi | 2.0 dCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 96/4000 | 110/4000 | 110/4000 | 110/4000 | 127/3750 | 127/3750 |
| Maximum torque [Nm/min-1] | 320/2000 | 340/2000 | 340/2000 | 340/2000 | 380/2000 | 360/2000 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 206 | 210 | 210 | 210 | 210 | 220 |
| Acceleration 0–100 km/h [s] | 10.5 | 9.5 | 9.5 | 9.5 | 8.8 | 9.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.5 | 6.8 | 6.3 | 5.5 | 5.5 | 8.2 |
| Out of town [l] | 4.0 | 4.4 | 4.0 | 4.0 | 4.0 | 5.2 |
| Combined [l] | 4.5 | 5.2 | 4.8 | 4.5 | 4.5 | 6.2 |
| CO2 emissions [g/km] | 118 | 136 | 126 | 118 | 118 | 163 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1567 | 1567 | 1567 | 1567 | 1567 | 1603 |
| Overall weight [kg] | 2025 | 2025 | 2025 | 2025 | 2025 | 2076 |
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 450 | 450 | 450 | 450 | 450 | 450 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1377 | -/1377 | -/1377 | -/1377 | -/1377 | -/1377 |
| Boot length [mm] | 1005 | 1005 | 1005 | 1005 | 1005 | 1005 |
| Boot length with rear seats folded [mm] | 1805 | 1805 | 1805 | 1805 | 1805 | 1805 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | 470/- | 470/- | 470/- | 470/- | 470/- | 470/- |
| Loading edge height [mm] | 711 | 711 | 711 | 711 | 711 | 711 |
| Height of the open boot door [mm] | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 870/910 | 870/910 | 870/910 | 870/910 | 870/910 | 870/910 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/60 R16 | 205/60 R16 | 215/50 R17 | 205/60 R16 | 225/45 R18 | 215/50 R17 |
| Tyre dimensions rear | 205/60 R16 | 205/60 R16 | 215/50 R17 | 205/60 R16 | 225/45 R18 | 215/50 R17 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 296 | 296 | 296 | 296 | 320 | 320 |
| Brake dimensions rear | 300 | 300 | 300 | 300 | 300 | 300 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 |
| Overall length [mm] | 4695 | 4695 | 4695 | 4695 | 4695 | 4695 |
| Overall width without/including mirrors [mm] | 1811/2060 | 1811/2060 | 1811/2060 | 1811/2060 | 1811/2060 | 1811/2060 |
| Overall height [mm] | 1445 | 1445 | 1445 | 1445 | 1445 | 1445 |
| Wheelbase [mm] | 2756 | 2756 | 2756 | 2756 | 2756 | 2756 |
| Front wheel track [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Rear wheel track [mm] | 1512 | 1512 | 1512 | 1512 | 1512 | 1512 |
| Forward overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Rear overhang [mm] | 926 | 926 | 926 | 926 | 926 | 926 |
| Clearance [mm] | 120 | 120 | 120 | 120 | 120 | 120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Headroom rear [mm] | 842 | 842 | 842 | 842 | 842 | 842 |
| Front elbow/shoulder width [mm] | 1487/1440 | 1487/1440 | 1487/1440 | 1487/1440 | 1487/1440 | 1487/1440 |
| Rear elbow/shoulder width [mm] | 1490/1400 | 1490/1400 | 1490/1400 | 1490/1400 | 1490/1400 | 1490/1400 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 220/- | 220/- | 220/- | 220/- | 220/- | 220/- |
| 2.0 dCi ESM | 2.0 dCi | 2.0 dCi ESM | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1995 | 1995 | 1995 | |||
| Maximum output / speed [kW/min-1] | 127/3750 | 131/3750 | 131/3750 | |||
| Maximum torque [Nm/min-1] | 360/2000 | 400/2000 | 400/2000 | |||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |||
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | |||
| Drive specifications |
| - | - | |||
| Top speed [km/h] | 220 | 222 | 219 | |||
| Acceleration 0–100 km/h [s] | 9.8 | 8.5 | 8.6 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 7.4 | 7.7 | 7.1 | |||
| Out of town [l] | 4.8 | 4.7 | 4.6 | |||
| Combined [l] | 5.7 | 5.7 | 5.5 | |||
| CO2 emissions [g/km] | 150 | 150 | 144 | |||
| Emission standard | EU5 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1603 | 1586 | 1586 | |||
| Overall weight [kg] | 2076 | 2045 | 2045 | |||
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | 650/1500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 450 | 450 | 450 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1377 | -/1377 | -/1377 | |||
| Boot length [mm] | 1005 | 1005 | 1005 | |||
| Boot length with rear seats folded [mm] | 1805 | 1805 | 1805 | |||
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | |||
| Boot height to headliner/ceiling [mm] | 470/- | 470/- | 470/- | |||
| Loading edge height [mm] | 711 | 711 | 711 | |||
| Height of the open boot door [mm] | 1900 | 1900 | 1900 | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | 870/910 | 870/910 | 870/910 | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 66 | 66 | 66 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 215/50 R17 | 215/50 R17 | 215/50 R17 | |||
| Tyre dimensions rear | 215/50 R17 | 215/50 R17 | 215/50 R17 | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | 296 | 320 | 296 | |||
| Brake dimensions rear | 300 | 300 | 300 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 | |||
| Overall length [mm] | 4695 | 4695 | 4695 | |||
| Overall width without/including mirrors [mm] | 1811/2060 | 1811/2060 | 1811/2060 | |||
| Overall height [mm] | 1445 | 1445 | 1445 | |||
| Wheelbase [mm] | 2756 | 2756 | 2756 | |||
| Front wheel track [mm] | 1557 | 1557 | 1557 | |||
| Rear wheel track [mm] | 1512 | 1512 | 1512 | |||
| Forward overhang [mm] | 1014 | 1014 | 1014 | |||
| Rear overhang [mm] | 926 | 926 | 926 | |||
| Clearance [mm] | 120 | 120 | 120 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 890 | 890 | 890 | |||
| Headroom rear [mm] | 842 | 842 | 842 | |||
| Front elbow/shoulder width [mm] | 1487/1440 | 1487/1440 | 1487/1440 | |||
| Rear elbow/shoulder width [mm] | 1490/1400 | 1490/1400 | 1490/1400 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | 220/- | 220/- | 220/- |
Estate (Grandtour)
| 2.0 16V | 1.5 dCi | 1.5 dCi ESM | 1.5 dCi ESM | 2.0 dCi | 2.0 dCi ESM | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | 4/8 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1997 | 1461 | 1461 | 1461 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 103/6000 | 81/4000 | 81/4000 | 81/4000 | 96/4000 | 96/4000 |
| Maximum torque [Nm/min-1] | 195/3750 | 240/2000 | 240/2000 | 240/2000 | 320/2000 | 320/2000 |
| Bore and stroke [mm x mm] | 84,0 x 90,1 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 10,2:1 | 15,2:1 | 15,2:1 | 15,2:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 205 | 188 | 188 | 188 | 202 | 202 |
| Acceleration 0–100 km/h [s] | 9.3 | 12.2 | 12.2 | 13.2 | 11.0 | 10.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 10.2 [14.5 E85] | 5.9 | 4.9 | 5.1 | 6.8 | 6.3 |
| Out of town [l] | 6.2 [8.6 E85] | 4.1 | 3.8 | 4.0 | 4.4 | 4.0 |
| Combined [l] | 7.6 [10.7 E85] | 4.7 | 4.2 | 4.4 | 5.2 | 4.8 |
| CO2 emissions [g/km] | 175 [171 E85] | 123 | 110 | 115 | 136 | 126 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1473 | 1493 | 1493 | 1549 | 1584 | 1584 |
| Overall weight [kg] | 1940 | 1957 | 1957 | 1983 | 2025 | 2025 |
| Maximum trailer weight unbraked/braked [kg] | 650/1300 | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 508 | 508 | 508 | 508 | 508 | 508 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1593 | -/1593 | -/1593 | -/1593 | -/1593 | -/1593 |
| Boot length [mm] | 1120 | 1120 | 1120 | 1120 | 1120 | 1120 |
| Boot length with rear seats folded [mm] | 1910 | 1910 | 1910 | 1910 | 1910 | 1910 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | 436/- | 436/- | 436/- | 436/- | 436/- | 436/- |
| Loading edge height [mm] | 546 | 546 | 546 | 546 | 546 | 546 |
| Height of the open boot door [mm] | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 890/1030 | 890/1030 | 890/1030 | 890/1030 | 890/1030 | 890/1030 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 | 205/60 R16 |
| Tyre dimensions rear | 205/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 | 195/60 R16 | 205/60 R16 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 296 | 280 | 280 | 280 | 296 | 296 |
| Brake dimensions rear | 300 | 300 | 300 | 300 | 300 | 300 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 |
| Overall length [mm] | 4803 | 4803 | 4803 | 4803 | 4803 | 4803 |
| Overall width without/including mirrors [mm] | 1811/2060 | 1811/2060 | 1811/2060 | 1811/2060 | 1811/2060 | 1811/2060 |
| Overall height [mm] | 1445 | 1445 | 1445 | 1445 | 1445 | 1445 |
| Wheelbase [mm] | 2756 | 2756 | 2756 | 2756 | 2756 | 2756 |
| Front wheel track [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Rear wheel track [mm] | 1512 | 1512 | 1512 | 1512 | 1512 | 1512 |
| Forward overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Clearance [mm] | 120 | 120 | 120 | 120 | 120 | 120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Headroom rear [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Front elbow/shoulder width [mm] | 1487/1440 | 1487/1440 | 1487/1440 | 1487/1440 | 1487/1440 | 1487/1440 |
| Rear elbow/shoulder width [mm] | 1490/1400 | 1490/1400 | 1490/1400 | 1490/1400 | 1490/1400 | 1490/1400 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Energy 2.0 dCi | 2.0 dCi | 2.0 dCi ESM | Energy 2.0 dCi | Energy 2.0 dCi | 2.0 dCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1995 | 1995 | 1995 | 1995 | 1995 | 1995 |
| Maximum output / speed [kW/min-1] | 96/4000 | 110/4000 | 110/4000 | 110/4000 | 127/3750 | 127/3750 |
| Maximum torque [Nm/min-1] | 320/2000 | 340/2000 | 340/2000 | 340/2000 | 380/2000 | 360/2000 |
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 |
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 202 | 210 | 210 | 210 | 210 | 215 |
| Acceleration 0–100 km/h [s] | 10.8 | 10.0 | 10.0 | 10.0 | 9.3 | 9.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 5.5 | 6.8 | 6.3 | 5.5 | 5.5 | 8.2 |
| Out of town [l] | 4.0 | 4.4 | 4.0 | 4.1 | 4.1 | 5.3 |
| Combined [l] | 4.5 | 5.2 | 4.8 | 4.6 | 4.6 | 6.3 |
| CO2 emissions [g/km] | 118 | 136 | 126 | 120 | 120 | 165 |
| Emission standard | EU5 | EU5 | EU5 | EU5 | EU5 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1584 | 1584 | 1584 | 1584 | 1584 | 1628 |
| Overall weight [kg] | 2025 | 2025 | 2025 | 2025 | 2051 | 2107 |
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1500 | 650/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 508 | 508 | 508 | 508 | 508 | 508 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1593 | -/1593 | -/1593 | -/1593 | -/1593 | -/1593 |
| Boot length [mm] | 1120 | 1120 | 1120 | 1120 | 1120 | 1120 |
| Boot length with rear seats folded [mm] | 1910 | 1910 | 1910 | 1910 | 1910 | 1910 |
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- | 1000/- |
| Boot height to headliner/ceiling [mm] | 436/- | 436/- | 436/- | 436/- | 436/- | 436/- |
| Loading edge height [mm] | 546 | 546 | 546 | 546 | 546 | 546 |
| Height of the open boot door [mm] | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 890/1030 | 890/1030 | 890/1030 | 890/1030 | 890/1030 | 890/1030 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | 66 | 66 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/60 R16 | 215/50 R17 | 215/50 R17 | 205/60 R16 | 225/45 R18 | 215/50 R17 |
| Tyre dimensions rear | 205/60 R16 | 215/50 R17 | 215/50 R17 | 205/60 R16 | 225/45 R18 | 215/50 R17 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 296 | 296 | 296 | 296 | 320 | 320 |
| Brake dimensions rear | 300 | 300 | 300 | 300 | 300 | 300 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 |
| Overall length [mm] | 4803 | 4803 | 4803 | 4803 | 4803 | 4803 |
| Overall width without/including mirrors [mm] | 1811/2060 | 1811/2060 | 1811/2060 | 1811/2060 | 1811/2060 | 1811/2060 |
| Overall height [mm] | 1445 | 1445 | 1445 | 1445 | 1445 | 1445 |
| Wheelbase [mm] | 2756 | 2756 | 2756 | 2756 | 2756 | 2756 |
| Front wheel track [mm] | 1557 | 1557 | 1557 | 1557 | 1557 | 1557 |
| Rear wheel track [mm] | 1512 | 1512 | 1512 | 1512 | 1512 | 1512 |
| Forward overhang [mm] | 1014 | 1014 | 1014 | 1014 | 1014 | 1014 |
| Rear overhang [mm] | 1031 | 1031 | 1031 | 1031 | 1031 | 1031 |
| Clearance [mm] | 120 | 120 | 120 | 120 | 120 | 120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Headroom rear [mm] | 895 | 895 | 895 | 895 | 895 | 895 |
| Front elbow/shoulder width [mm] | 1487/1440 | 1487/1440 | 1487/1440 | 1487/1440 | 1487/1440 | 1487/1440 |
| Rear elbow/shoulder width [mm] | 1490/1400 | 1490/1400 | 1490/1400 | 1490/1400 | 1490/1400 | 1490/1400 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 2.0 dCi ESM | 2.0 dCi | 2.0 dCi ESM | ||||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | |||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | |||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | |||
| Engine displacement [cm³] | 1995 | 1995 | 1995 | |||
| Maximum output / speed [kW/min-1] | 127/3750 | 131/3750 | 131/3750 | |||
| Maximum torque [Nm/min-1] | 360/2000 | 400/2000 | 400/2000 | |||
| Bore and stroke [mm x mm] | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | |||
| Compression ratio | 15,5:1 | 15,5:1 | 15,5:1 | |||
| Oil volume [l] | - | - | - | |||
| Coolant volume [l] | - | - | - | |||
| Technical specifications |
|
|
| |||
| Drive axle | Front | Front | Front | |||
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear manual | |||
| Drive specifications |
| - | - | |||
| Top speed [km/h] | 215 | 222 | 214 | |||
| Acceleration 0–100 km/h [s] | 10.0 | 8.5 | 8.8 | |||
| Acceleration 0–80 km/h [s] | - | - | - | |||
| Acceleration 80–120 km/h [s] | - | - | - | |||
| City [l] | 7.4 | 7.7 | 7.2 | |||
| Out of town [l] | 4.8 | 4.8 | 4.6 | |||
| Combined [l] | 5.8 | 5.8 | 5.6 | |||
| CO2 emissions [g/km] | 152 | 152 | 145 | |||
| Emission standard | EU5 | EU5 | EU5 | |||
| Standard for fuel consumption measurement | - | - | - | |||
| Energy class | - | - | - | |||
| Stationary vehicle noise [dB] | - | - | - | |||
| Driving noise [dB] | - | - | - | |||
| Standby weight [kg] | 1628 | 1597 | 1597 | |||
| Overall weight [kg] | 2107 | 2075 | 2075 | |||
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | 650/1500 | |||
| Maximum front/rear axle load [kg] | - | - | - | |||
| Maximum vertical load on the tow bar [kg] | - | - | - | |||
| Maximum load on roof/carrier [kg] | - | - | - | |||
| Boot volume [l] | 508 | 508 | 508 | |||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1593 | -/1593 | -/1593 | |||
| Boot length [mm] | 1120 | 1120 | 1120 | |||
| Boot length with rear seats folded [mm] | 1910 | 1910 | 1910 | |||
| Boot width between wheels/max [mm] | 1000/- | 1000/- | 1000/- | |||
| Boot height to headliner/ceiling [mm] | 436/- | 436/- | 436/- | |||
| Loading edge height [mm] | 546 | 546 | 546 | |||
| Height of the open boot door [mm] | 1900 | 1900 | 1900 | |||
| Boot opening height [mm] | - | - | - | |||
| Boot opening width min/max [mm] | 890/1030 | 890/1030 | 890/1030 | |||
| Number of doors | 5 | 5 | 5 | |||
| Number of seats | 5 | 5 | 5 | |||
| Fuel tank volume [l] | 66 | 66 | 66 | |||
| AdBlue tank volume [l] | - | - | - | |||
| Air resistance [Cd] | - | - | - | |||
| Front suspension | MacPherson | MacPherson | MacPherson | |||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |||
| Tyre dimensions front | 215/50 R17 | 215/50 R17 | 215/50 R17 | |||
| Tyre dimensions rear | 215/50 R17 | 215/50 R17 | 215/50 R17 | |||
| Wheel size front | - | - | - | |||
| Wheel size rear | - | - | - | |||
| Brake dimensions front | 320 | 320 | 320 | |||
| Brake dimensions rear | 300 | 300 | 300 | |||
| Steering | - | - | - | |||
| Number of steering wheel turns | - | - | - | |||
| Turning diameter track/circumference [m] | 11.05/11.64 | 11.05/11.64 | 11.05/11.64 | |||
| Overall length [mm] | 4803 | 4803 | 4803 | |||
| Overall width without/including mirrors [mm] | 1811/2060 | 1811/2060 | 1811/2060 | |||
| Overall height [mm] | 1445 | 1445 | 1445 | |||
| Wheelbase [mm] | 2756 | 2756 | 2756 | |||
| Front wheel track [mm] | 1557 | 1557 | 1557 | |||
| Rear wheel track [mm] | 1512 | 1512 | 1512 | |||
| Forward overhang [mm] | 1014 | 1014 | 1014 | |||
| Rear overhang [mm] | 1031 | 1031 | 1031 | |||
| Clearance [mm] | 120 | 120 | 120 | |||
| Wading depth [mm] | - | - | - | |||
| Approach angle front [°] | - | - | - | |||
| Approach angle rear [°] | - | - | - | |||
| Transition angle [°] | - | - | - | |||
| Climbing rate [°] | - | - | - | |||
| Maximum side tilt [°] | - | - | - | |||
| Headroom front [mm] | 890 | 890 | 890 | |||
| Headroom rear [mm] | 895 | 895 | 895 | |||
| Front elbow/shoulder width [mm] | 1487/1440 | 1487/1440 | 1487/1440 | |||
| Rear elbow/shoulder width [mm] | 1490/1400 | 1490/1400 | 1490/1400 | |||
| Legroom front knees/total [mm] | - | - | - | |||
| Legroom rear knees/total [mm] | - | - | - |
Coupé
| 2.0T 16V | 2.0 dCi ESM | 2.0 dCi | 3.0 dCi V6 | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 6/24 | ||
| Engine displacement [cm³] | 1998 | 1995 | 1995 | 2993 | ||
| Maximum output / speed [kW/min-1] | 150/5000 | 127/3750 | 131/3750 | 173/3750 | ||
| Maximum torque [Nm/min-1] | 300/3000 | 360/2000 | 400/2000 | 450/1500 | ||
| Bore and stroke [mm x mm] | 82,7 x 93,0 | 84,0 x 90,0 | 84,0 x 90,0 | 84,0 x 90,0 | ||
| Compression ratio | - | 15,5:1 | 15,5:1 | 15,0:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear automatic | ||
| Drive specifications | - |
| - |
| ||
| Top speed [km/h] | 232 | 221 | 223 | 242 | ||
| Acceleration 0–100 km/h [s] | 7.8 | 9.6 | 8.5 | 7.3 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 10.8 | 7.4 | 8.6 | 10.0-10.6 | ||
| Out of town [l] | 6.5 | 4.8 | 5.5 | 5.6-5.7 | ||
| Combined [l] | 8.0 | 5.7 | 6.5 | 7.1-7.2 | ||
| CO2 emissions [g/km] | 185 | 150 | 172 | 185-192 | ||
| Emission standard | EU5 | EU5 | EU5 | EU5 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1503 | 1597 | 1614 | 1705 | ||
| Overall weight [kg] | 1923 | 2017 | 1997 | 2050 | ||
| Maximum trailer weight unbraked/braked [kg] | 650/1500 | 650/1500 | 650/1500 | 650/1500 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 423 | 423 | 423 | 423 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | ||
| Boot length [mm] | 1000 | 1000 | 1000 | 1000 | ||
| Boot length with rear seats folded [mm] | 1800 | 1800 | 1800 | 1800 | ||
| Boot width between wheels/max [mm] | -/1000 | -/1000 | -/1000 | -/1000 | ||
| Boot height to headliner/ceiling [mm] | -/450 | -/450 | -/450 | -/450 | ||
| Loading edge height [mm] | - | - | - | - | ||
| Height of the open boot door [mm] | - | - | - | - | ||
| Boot opening height [mm] | - | - | - | - | ||
| Boot opening width min/max [mm] | - | - | - | - | ||
| Number of doors | 2 | 2 | 2 | 2 | ||
| Number of seats | 4 | 4 | 4 | 4 | ||
| Fuel tank volume [l] | 66 | 66 | 66 | 66 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | 0.307 | 0.307 | 0.307 | 0.307 | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | ||
| Tyre dimensions front | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 | ||
| Tyre dimensions rear | 225/45 R18 | 225/45 R18 | 225/45 R18 | 225/45 R18 | ||
| Wheel size front | - | - | - | - | ||
| Wheel size rear | - | - | - | - | ||
| Brake dimensions front | 320 | 320 | 320 | 320 | ||
| Brake dimensions rear | 300 | 300 | 300 | 300 | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 11.1/11.6 | 11.1/11.6 | 11.1/11.6 | 11.1/11.6 | ||
| Overall length [mm] | 4643 | 4643 | 4643 | 4643 | ||
| Overall width without/including mirrors [mm] | 1812/2082 | 1812/2082 | 1812/2082 | 1812/2082 | ||
| Overall height [mm] | 1401 | 1401 | 1401 | 1401 | ||
| Wheelbase [mm] | 2693 | 2693 | 2693 | 2693 | ||
| Front wheel track [mm] | 1547 | 1547 | 1547 | 1547 | ||
| Rear wheel track [mm] | 1542 | 1542 | 1542 | 1542 | ||
| Forward overhang [mm] | 1019 | 1019 | 1019 | 1019 | ||
| Rear overhang [mm] | 931 | 931 | 931 | 931 | ||
| Clearance [mm] | 120 | 120 | 120 | 120 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 847 | 847 | 847 | 847 | ||
| Headroom rear [mm] | 815 | 815 | 815 | 815 | ||
| Front elbow/shoulder width [mm] | 1495/1433 | 1495/1433 | 1495/1433 | 1495/1433 | ||
| Rear elbow/shoulder width [mm] | 1440/1366 | 1440/1366 | 1440/1366 | 1440/1366 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
