Renault Mégane
Date of manufacture
2013 – 8/2016 (Three-door hatchback)
2013 – 2015 (Five-door hatchback)
2013 – 2016 (Estate)
Platform
Renault C
Manufacturing locations
Palencia, Spain
Douai, France
Bursa, Turkey
Designer
-
Tags
C-segment
French cars
The Renault Megane car body variants are three-door hatchback, five-door hatchback and estate. The car has been in production since 2013. The car is manufactured in countries such as Spain, France and Turkey. The car is built on the Renault C platform. The engine range has petrol and diesel engines. The most powerful (201 kW) is the R.S Trophy model. The highest speed of 255 km/h is achieved by the R.S Trophy version. The best acceleration 0-100 km/h in 5.8 seconds is the R.S Trophy model. The lowest combined consumption of 3.5 l/100 km is the Energy 1.5 dCi model. CO2 emissions are 90 g/km. The three-door hatchback body model has a luggage compartment volume of 344 l. The estate car offers a boot volume of 491 l. The five-door hatchback body model offers a boot volume of 372 l. The car was tested in the safety area in 2014 and achieved an overall rating of 4 out of 5 according to EURONCAP.
Car body style

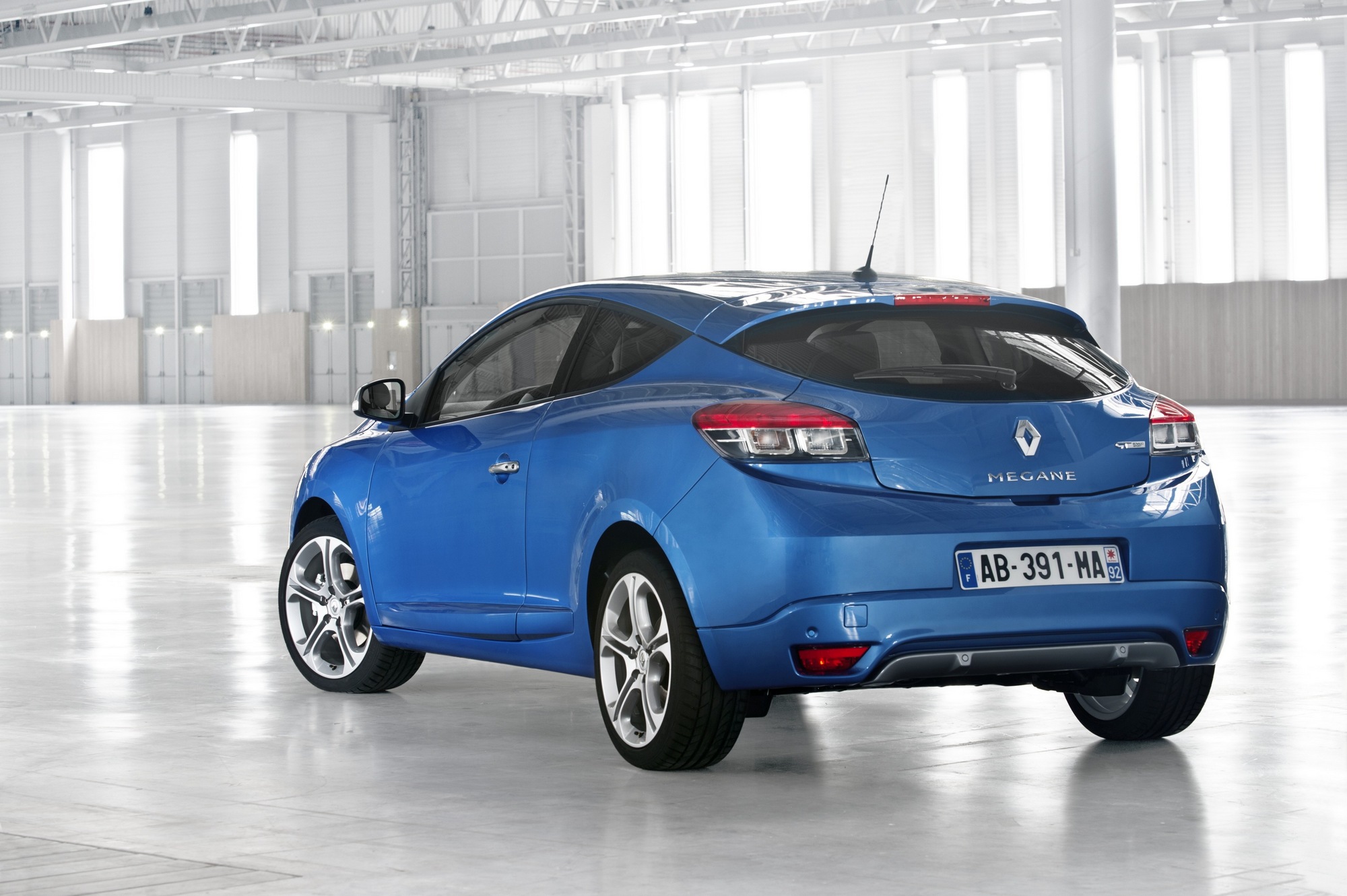

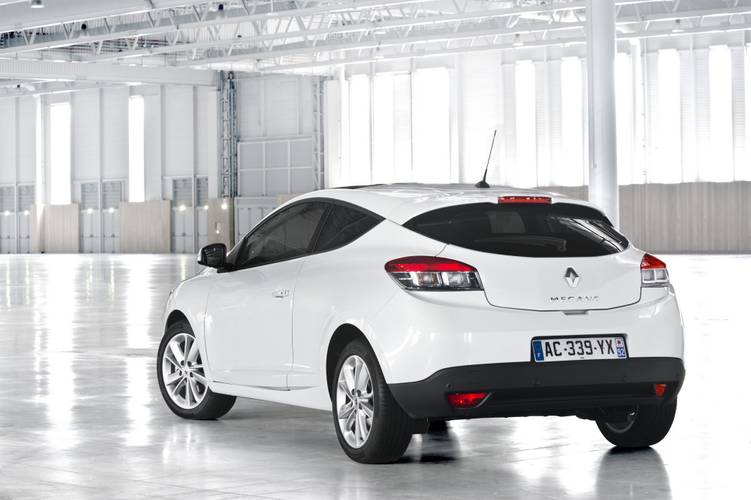

Three-door hatchback
after upgrade (facelift) (II.)
Date of manufacture
2013 – 8/2016Internal designation
X95Five-door hatchback
after upgrade (facelift) (II.)
Date of manufacture
2013 – 2015Internal designation
X95Estate (Grandtour)
after upgrade (facelift) (II.)
Date of manufacture
2013 – 2016Internal designation
X95
Technical data
Three-door hatchback
| 1.6 16V | Energy 1.2 TCe | Energy 1.2 TCe | 1.2 TCe | R.S | R.S | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1598 | 1197 | 1197 | 1197 | 1998 | 1998 |
| Maximum output / speed [kW/min-1] | 81/6000 | 85/4500 | 97/5500 | 97/5500 | 195/5500 | 201/5500 |
| Maximum torque [Nm/min-1] | 151/4250 | 190/2000 | 205/2000 | 205/2000 | 360/3000-5000 | 360/3000-5000 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 72,2 x 73,2 | 72,2 x 73,2 | 72,2 x 73,2 | 82,7 x 93,0 | 82,7 x 93,0 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 9,0:1 | 9,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 190 | 190 | 200 | 200 | 254 | 254 |
| Acceleration 0–100 km/h [s] | 10.5 | 10.9 | 9.7 | 9.7 | 6.0 | 6.0 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.4 | 6.4-6.5 | 6.7 | 6.9-7.6 | 9.8 | 9.8 |
| Out of town [l] | 5.5 | 4.6-4.7 | 4.6 | 4.7-4.8 | 6.2 | 6.2 |
| Combined [l] | 6.9 | 5.3 | 5.6 | 5.6-5.8 | 7.5 | 7.5 |
| CO2 emissions [g/km] | 159 | 119 | 124 | 129-130 | 174 | 174 |
| Emission standard | EU5 | EU5-EU6 | EU5 | EU5-EU6 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1280 | 1280 | 1280 | 1280 | 1462 | 1462 |
| Overall weight [kg] | 1746 | 1774 | 1772 | 1772 | 1835 | 1835 |
| Maximum trailer weight unbraked/braked [kg] | 640/1300 | 640/1300 | 635/1300 | 635/1300 | - | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 344 | 344 | 344 | 344 | 344 | 344 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/991 | -/991 | -/991 | -/991 | -/991 | -/991 |
| Boot length [mm] | 510 | 510 | 510 | 510 | 510 | 510 |
| Boot length with rear seats folded [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Boot width between wheels/max [mm] | -/1152 | -/1152 | -/1152 | -/1152 | -/1152 | -/1152 |
| Boot height to headliner/ceiling [mm] | 510/- | 510/- | 510/- | 510/- | 510/- | 510/- |
| Loading edge height [mm] | 804 | 804 | 804 | 804 | 830 | 830 |
| Height of the open boot door [mm] | 2000 | 2000 | 2000 | 2000 | 1990 | 1990 |
| Boot opening height [mm] | 484 | 484 | 484 | 484 | 463 | 463 |
| Boot opening width min/max [mm] | 940/980 | 940/980 | 940/980 | 940/980 | 940/980 | 940/980 |
| Number of doors | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar |
| Tyre dimensions front | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/40 R18 | 225/40 R18 |
| Tyre dimensions rear | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 225/40 R18 | 225/40 R18 |
| Wheel size front | 6.5J x 15 ET43 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 7.5J x 18 ET49 | 7.5J x 18 ET49 |
| Wheel size rear | 6.5J x 15 ET43 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 7.5J x 18 ET49 | 7.5J x 18 ET49 |
| Brake dimensions front | 280 | 280 | 280 | 280 | 340 | 340 |
| Brake dimensions rear | 260 | 260 | 260 | 260 | 290 | 290 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.95/- | 10.95/- | 10.95/- | 10.95/- | 11.35/- | 11.35/- |
| Overall length [mm] | 4312 | 4312 | 4312 | 4312 | 4312 | 4312 |
| Overall width without/including mirrors [mm] | 1804/2037 | 1804/2037 | 1804/2037 | 1804/2037 | 1848/2037 | 1848/2037 |
| Overall height [mm] | 1423 | 1423 | 1423 | 1423 | 1423 | 1423 |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | 2640 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1590 | 1590 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1550 | 1550 |
| Forward overhang [mm] | 880 | 880 | 880 | 880 | 860 | 860 |
| Rear overhang [mm] | 797 | 797 | 797 | 797 | 803 | 803 |
| Clearance [mm] | 120 | 120 | 120 | 120 | 120 | 120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 873 | 873 | 873 | 873 | 873 | 873 |
| Headroom rear [mm] | 832 | 832 | 832 | 832 | 832 | 832 |
| Front elbow/shoulder width [mm] | 1480/1420 | 1480/1420 | 1480/1420 | 1480/1420 | 1480/1420 | 1480/1420 |
| Rear elbow/shoulder width [mm] | 1400/1266 | 1400/1266 | 1400/1266 | 1400/1266 | 1400/1266 | 1400/1266 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| R.S Trophy | 1.5 dCi | Energy 1.5 dCi | 1.5 dCi | Energy 1.6 dCi | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/8 | 4/8 | 4/8 | 4/16 | |
| Engine displacement [cm³] | 1998 | 1461 | 1461 | 1461 | 1598 | |
| Maximum output / speed [kW/min-1] | 201/5500 | 81/4000 | 81/4000 | 81/4000 | 96/4000 | |
| Maximum torque [Nm/min-1] | 360/3000-5000 | 240/1750 | 240/1750 | 240/1750 | 320/1750 | |
| Bore and stroke [mm x mm] | 82,7 x 93,0 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 80,0 x 79,5 | |
| Compression ratio | 9,0:1 | 15,2:1 | 15,2:1 | 15,2:1 | 15,4:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | |
| Drive specifications | - | - | - |
| - | |
| Top speed [km/h] | 255 | 190 | 190 | 190 | 200 | |
| Acceleration 0–100 km/h [s] | 5.8 | 10.8 | 12.1 | 11.7 | 9.8 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 9.8 | 5.1 | 3.9 | 4.7-5.1 | 4.5-4.8 | |
| Out of town [l] | 6.2 | 4.0 | 3.2-3.4 | 3.63.7 | 3.6-3.7 | |
| Combined [l] | 7.5 | 4.4 | 3.5-3.6 | 4.0-4.2 | 4.0 | |
| CO2 emissions [g/km] | 174 | 114 | 90-93 | 104-110 | 104 | |
| Emission standard | EU5 | EU5 | EU5-EU6 | EU5-EU6 | EU5-EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1462 | 1280 | 1280 | 1280 | 1395 | |
| Overall weight [kg] | 1835 | 1795 | 1805 | 1829 | 1849 | |
| Maximum trailer weight unbraked/braked [kg] | - | 635/1300 | 635/1300 | 635/1300 | 695/1300 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 344 | 344 | 344 | 344 | 344 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/991 | -/991 | -/991 | -/991 | -/991 | |
| Boot length [mm] | 510 | 510 | 510 | 510 | 510 | |
| Boot length with rear seats folded [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | |
| Boot width between wheels/max [mm] | -/1152 | -/1152 | -/1152 | -/1152 | -/1152 | |
| Boot height to headliner/ceiling [mm] | 510/- | 510/- | 510/- | 510/- | 510/- | |
| Loading edge height [mm] | 830 | 804 | 804 | 804 | 804 | |
| Height of the open boot door [mm] | 1990 | 2000 | 2000 | 2000 | 2000 | |
| Boot opening height [mm] | 463 | 484 | 484 | 484 | 484 | |
| Boot opening width min/max [mm] | 940/980 | 940/980 | 940/980 | 940/980 | 940/980 | |
| Number of doors | 3 | 3 | 3 | 3 | 3 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | |
| Tyre dimensions front | 235/40 R18 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Tyre dimensions rear | 235/40 R18 | 205/55 R16 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Wheel size front | - | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | |
| Wheel size rear | - | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | |
| Brake dimensions front | 340 | 280 | 280 | 280 | 280 | |
| Brake dimensions rear | 290 | 260 | 260 | 260 | 260 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.35/- | 10.95/- | 10.95/- | 10.95/- | 10.95/- | |
| Overall length [mm] | 4312 | 4312 | 4312 | 4312 | 4312 | |
| Overall width without/including mirrors [mm] | 1848/2037 | 1804/2037 | 1804/2037 | 1804/2037 | 1804/2037 | |
| Overall height [mm] | 1423 | 1423 | 1423 | 1423 | 1423 | |
| Wheelbase [mm] | 2640 | 2640 | 2640 | 2640 | 2640 | |
| Front wheel track [mm] | 1590 | 1546 | 1546 | 1546 | 1546 | |
| Rear wheel track [mm] | 1550 | 1547 | 1547 | 1547 | 1547 | |
| Forward overhang [mm] | 860 | 880 | 880 | 880 | 880 | |
| Rear overhang [mm] | 803 | 797 | 797 | 797 | 797 | |
| Clearance [mm] | 120 | 120 | 120 | 120 | 120 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 873 | 873 | 873 | 873 | 873 | |
| Headroom rear [mm] | 832 | 832 | 832 | 832 | 832 | |
| Front elbow/shoulder width [mm] | 1480/1420 | 1480/1420 | 1480/1420 | 1480/1420 | 1480/1420 | |
| Rear elbow/shoulder width [mm] | 1400/1266 | 1400/1266 | 1400/1266 | 1400/1266 | 1400/1266 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Five-door hatchback
| 1.6 16V | Energy 1.2 TCe | Energy 1.2 TCe | 1.2 TCe | 1.5 dCi | Energy 1.5 dCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1598 | 1197 | 1197 | 1197 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 81/6000 | 85/4500 | 97/5500 | 97/5500 | 70/4000 | 70/4000 |
| Maximum torque [Nm/min-1] | 151/4250 | 190/2000 | 205/2000 | 205/2000 | 240/1750 | 240/1750 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 72,2 x 73,2 | 72,2 x 73,2 | 72,2 x 73,2 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 15,2:1 | 15,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 190 | 190 | 200 | 200 | 190 | 190 |
| Acceleration 0–100 km/h [s] | 10.5 | 10.9 | 9.7 | 10.0 | 12.3 | 12.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.4 | 6.4-6.5 | 6.7 | 6.9-7.6 | 4.9 | 3.9 |
| Out of town [l] | 5.5 | 4.6-4.7 | 4.6 | 4.8-4.7 | 3.5 | 3.4 |
| Combined [l] | 6.9 | 5.3 | 5.6 | 5.6-5.8 | 4.1 | 3.6 |
| CO2 emissions [g/km] | 159 | 119 | 124 | 129-130 | 106 | 93 |
| Emission standard | EU5 | EU5-EU6 | EU5 | EU5-EU6 | EU5 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1290 | 1280 | 1280 | 1280 | 1280 | 1280 |
| Overall weight [kg] | 1762 | 1787 | 1772 | 1795 | 1795 | 1795 |
| Maximum trailer weight unbraked/braked [kg] | 640/1300 | 640/1300 | 635/1300 | 635/1300 | 635/1300 | 635/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 372 | 372 | 372 | 372 | 372 | 372 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1162 | -/1162 | -/1162 | -/1162 | -/1162 | -/1162 |
| Boot length [mm] | 862 | 862 | 862 | 862 | 862 | 862 |
| Boot length with rear seats folded [mm] | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Boot width between wheels/max [mm] | -/1152 | -/1152 | -/1152 | -/1152 | -/1152 | -/1152 |
| Boot height to headliner/ceiling [mm] | 510/- | 510/- | 510/- | 510/- | 510/- | 510/- |
| Loading edge height [mm] | 749 | 749 | 749 | 749 | 749 | 749 |
| Height of the open boot door [mm] | 1989 | 1989 | 1989 | 1989 | 1989 | 1989 |
| Boot opening height [mm] | 575 | 575 | 575 | 575 | 575 | 575 |
| Boot opening width min/max [mm] | 941/1067 | 941/1067 | 941/1067 | 941/1067 | 941/1067 | 941/1067 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 195/65 R15 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 195/65 R15 | 195/65 R15 |
| Wheel size front | 6.5J x 15 ET43 | 6.5J x 15 ET43 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 15 ET43 | 6.5J x 15 ET43 |
| Wheel size rear | 6.5J x 15 ET43 | 6.5J x 15 ET43 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 15 ET43 | 6.5J x 15 ET43 |
| Brake dimensions front | 280 | 280 | 280 | 280 | 280 | 280 |
| Brake dimensions rear | 260 | 260 | 260 | 260 | 260 | 260 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 10.95/- | 10.95/- | 10.95/- | 10.95/- | 10.95/- | 10.95/- |
| Overall length [mm] | 4302 | 4302 | 4302 | 4302 | 4302 | 4302 |
| Overall width without/including mirrors [mm] | 1808/2037 | 1808/2037 | 1808/2037 | 1808/2037 | 1808/2037 | 1808/2037 |
| Overall height [mm] | 1471 | 1471 | 1471 | 1471 | 1471 | 1471 |
| Wheelbase [mm] | 2641 | 2641 | 2641 | 2641 | 2641 | 2641 |
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | 1546 | 1546 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Forward overhang [mm] | 870 | 870 | 870 | 870 | 870 | 870 |
| Rear overhang [mm] | 792 | 792 | 792 | 792 | 792 | 792 |
| Clearance [mm] | 120 | 120 | 120 | 120 | 120 | 120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Headroom rear [mm] | 884 | 884 | 884 | 884 | 884 | 884 |
| Front elbow/shoulder width [mm] | 1476/1418 | 1476/1418 | 1476/1418 | 1476/1418 | 1476/1418 | 1476/1418 |
| Rear elbow/shoulder width [mm] | 1417/1363 | 1417/1363 | 1417/1363 | 1417/1363 | 1417/1363 | 1417/1363 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| 1.5 dCi | Energy 1.5 dCi | 1.5 dCi | Energy 1.6 dCi | |||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | ||
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | ||
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/16 | ||
| Engine displacement [cm³] | 1461 | 1461 | 1461 | 1598 | ||
| Maximum output / speed [kW/min-1] | 81/4000 | 81/4000 | 81/4000 | 96/4000 | ||
| Maximum torque [Nm/min-1] | 240/1750 | 260/1750 | 240/1750 | 320/1750 | ||
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 80,0 x 79,5 | ||
| Compression ratio | 15,2:1 | 15,2:1 | 15,2:1 | 15,4:1 | ||
| Oil volume [l] | - | - | - | - | ||
| Coolant volume [l] | - | - | - | - | ||
| Technical specifications |
|
|
|
| ||
| Drive axle | Front | Front | Front | Front | ||
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | ||
| Drive specifications | - | - |
| - | ||
| Top speed [km/h] | 190 | 190 | 190 | 200 | ||
| Acceleration 0–100 km/h [s] | 10.8 | 12.1 | 11.7 | 9.8 | ||
| Acceleration 0–80 km/h [s] | - | - | - | - | ||
| Acceleration 80–120 km/h [s] | - | - | - | - | ||
| City [l] | 5.1 | 3.9 | 4.7-5.1 | 4.5-4.8 | ||
| Out of town [l] | 4.0 | 3.4 | 3.6-3.7 | 3.6-3.7 | ||
| Combined [l] | 4.4 | 3.6 | 4.0-4.2 | 4.0 | ||
| CO2 emissions [g/km] | 114 | 93 | 104-110 | 104 | ||
| Emission standard | EU5 | EU6 | EU5-EU6 | EU5-EU6 | ||
| Standard for fuel consumption measurement | - | - | - | - | ||
| Energy class | - | - | - | - | ||
| Stationary vehicle noise [dB] | - | - | - | - | ||
| Driving noise [dB] | - | - | - | - | ||
| Standby weight [kg] | 1290 | 1280 | 1365 | 1395 | ||
| Overall weight [kg] | 1797 | 1805 | 1845 | 1859 | ||
| Maximum trailer weight unbraked/braked [kg] | 640/1300 | 635/1300 | 680/1300 | 695/1300 | ||
| Maximum front/rear axle load [kg] | - | - | - | - | ||
| Maximum vertical load on the tow bar [kg] | - | - | - | - | ||
| Maximum load on roof/carrier [kg] | - | - | - | - | ||
| Boot volume [l] | 372 | 372 | 372 | 372 | ||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1162 | -/1162 | -/1162 | -/1162 | ||
| Boot length [mm] | 862 | 862 | 862 | 862 | ||
| Boot length with rear seats folded [mm] | 1550 | 1550 | 1550 | 1550 | ||
| Boot width between wheels/max [mm] | -/1152 | -/1152 | -/1152 | -/1152 | ||
| Boot height to headliner/ceiling [mm] | 510/- | 510/- | 510/- | 510/- | ||
| Loading edge height [mm] | 749 | 749 | 749 | 749 | ||
| Height of the open boot door [mm] | 1989 | 1989 | 1989 | 1989 | ||
| Boot opening height [mm] | 575 | 575 | 575 | 575 | ||
| Boot opening width min/max [mm] | 941/1067 | 941/1067 | 941/1067 | 941/1067 | ||
| Number of doors | 5 | 5 | 5 | 5 | ||
| Number of seats | 5 | 5 | 5 | 5 | ||
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | ||
| AdBlue tank volume [l] | - | - | - | - | ||
| Air resistance [Cd] | - | - | - | - | ||
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | ||
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | ||
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | ||
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | ||
| Wheel size front | 6.5J x 15 ET43 | 6.5J x 15 ET43 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | ||
| Wheel size rear | 6.5J x 15 ET43 | 6.5J x 15 ET43 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | ||
| Brake dimensions front | 280 | 280 | 280 | 280 | ||
| Brake dimensions rear | 260 | 260 | 260 | 260 | ||
| Steering | - | - | - | - | ||
| Number of steering wheel turns | - | - | - | - | ||
| Turning diameter track/circumference [m] | 10.95/- | 10.95/- | 10.95/- | 10.95/- | ||
| Overall length [mm] | 4302 | 4302 | 4302 | 4302 | ||
| Overall width without/including mirrors [mm] | 1808/2037 | 1808/2037 | 1808/2037 | 1808/2037 | ||
| Overall height [mm] | 1471 | 1471 | 1471 | 1471 | ||
| Wheelbase [mm] | 2641 | 2641 | 2641 | 2641 | ||
| Front wheel track [mm] | 1546 | 1546 | 1546 | 1546 | ||
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | ||
| Forward overhang [mm] | 870 | 870 | 870 | 870 | ||
| Rear overhang [mm] | 792 | 792 | 792 | 792 | ||
| Clearance [mm] | 120 | 120 | 120 | 120 | ||
| Wading depth [mm] | - | - | - | - | ||
| Approach angle front [°] | - | - | - | - | ||
| Approach angle rear [°] | - | - | - | - | ||
| Transition angle [°] | - | - | - | - | ||
| Climbing rate [°] | - | - | - | - | ||
| Maximum side tilt [°] | - | - | - | - | ||
| Headroom front [mm] | 890 | 890 | 890 | 890 | ||
| Headroom rear [mm] | 884 | 884 | 884 | 884 | ||
| Front elbow/shoulder width [mm] | 1476/1418 | 1476/1418 | 1476/1418 | 1476/1418 | ||
| Rear elbow/shoulder width [mm] | 1417/1363 | 1417/1363 | 1417/1363 | 1417/1363 | ||
| Legroom front knees/total [mm] | - | - | - | - | ||
| Legroom rear knees/total [mm] | - | - | - | - |
Estate (Grandtour)
| 1.6 16V | Energy 1.2 TCe | Energy 1.2 TCe | 1.2 TCe | Energy 2.0 TCe | 1.5 dCi | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | - |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1598 | 1197 | 1197 | 1197 | 1998 | 1461 |
| Maximum output / speed [kW/min-1] | 81/6000 | 85/4500 | 97/5500 | 97/5500 | 162/5500 | 70/4000 |
| Maximum torque [Nm/min-1] | 151/4250 | 190/2000 | 205/2000 | 205/2000 | 340/2400 | 240/1750 |
| Bore and stroke [mm x mm] | 79,5 x 80,5 | 72,2 x 73,2 | 72,2 x 73,2 | 72,2 x 73,2 | 82,7 x 93,0 | 76,0 x 80,5 |
| Compression ratio | 10,0:1 | 10,0:1 | 10,0:1 | 10,0:1 | 8,6:1 | 15,2:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 5 gear manual |
| Drive specifications | - | - | - |
| - | - |
| Top speed [km/h] | 190 | 190 | 200 | 200 | 240 | 190 |
| Acceleration 0–100 km/h [s] | 10.8 | 11.2 | 10.0 | 10.0 | 7.6 | 12.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 9.4 | 6.4-6.5 | 6.7 | 6.9-7.6 | 9.6-9.9 | 4.9 |
| Out of town [l] | 5.5 | 4.6-4.7 | 4.6 | 4.7-4.8 | 6.0-6.1 | 3.5 |
| Combined [l] | 6.9 | 5.3 | 5.6 | 5.6-5.8 | 7.3-7.5 | 4.1 |
| CO2 emissions [g/km] | 159 | 119 | 124 | 129-130 | 167-169 | 106 |
| Emission standard | EU5 | EU5-EU6 | EU5 | EU5-EU6 | EU5-EU6 | EU5 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1342 | 1359 | 1351 | 1359 | 1463 | 1377 |
| Overall weight [kg] | 1824 | 1835 | 1837 | 1835 | 1884 | 1857 |
| Maximum trailer weight unbraked/braked [kg] | 670/1500 | 675/1500 | 675/1500 | 675/1500 | 695/1600 | 685/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | - |
| Boot volume [l] | 491 | 491 | 491 | 491 | 491 | 491 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1567 | -/1567 | -/1567 | -/1567 | -/1567 | -/1567 |
| Boot length [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Boot length with rear seats folded [mm] | 1850 | 1850 | 1850 | 1850 | 1850 | 1850 |
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 561 | 561 | 561 | 561 | 561 | 561 |
| Height of the open boot door [mm] | 2019 | 2019 | 2019 | 2019 | 2019 | 2019 |
| Boot opening height [mm] | 750 | 750 | 750 | 750 | 750 | 750 |
| Boot opening width min/max [mm] | 905/1070 | 905/1070 | 905/1070 | 905/1070 | 905/1070 | 905/1070 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | 60 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 205/55 R16 | 195/65 R15 | 225/40 R18 | 195/65 R15 |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 205/55 R16 | 195/65 R15 | 225/40 R18 | 195/65 R15 |
| Wheel size front | 6.5J x 15 ET43 | 6.5J x 15 ET43 | 6.5J x 16 ET47 | 6.5J x 15 ET43 | 7.5J x 18 ET49 | 6.5J x 15 ET43 |
| Wheel size rear | 6.5J x 15 ET43 | 6.5J x 15 ET43 | 6.5J x 16 ET47 | 6.5J x 15 ET43 | 7.5J x 18 ET49 | 6.5J x 15 ET43 |
| Brake dimensions front | 280 | 280 | 280 | 280 | 320 | 280 |
| Brake dimensions rear | 260 | 260 | 260 | 260 | 260 | 260 |
| Steering | - | - | - | - | - | - |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.95/- | 11.95/- | 11.95/- | 11.95/- | 11.95/- | 11.95/- |
| Overall length [mm] | 4567 | 4567 | 4567 | 4567 | 4567 | 4567 |
| Overall width without/including mirrors [mm] | 1804/2037 | 1804/2037 | 1804/2037 | 1804/2037 | 1804/2037 | 1804/2037 |
| Overall height [mm] | 1507 | 1507 | 1507 | 1507 | 1507 | 1507 |
| Wheelbase [mm] | 2703 | 2703 | 2703 | 2703 | 2703 | 2703 |
| Front wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | 1543 |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | 1547 |
| Forward overhang [mm] | 870 | 870 | 870 | 870 | 870 | 870 |
| Rear overhang [mm] | 994 | 994 | 994 | 994 | 994 | 994 |
| Clearance [mm] | 120 | 120 | 120 | 120 | 120 | 120 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 890 | 890 | 890 | 890 | 890 | 890 |
| Headroom rear [mm] | 884 | 884 | 884 | 884 | 884 | 884 |
| Front elbow/shoulder width [mm] | 1475/1418 | 1475/1418 | 1475/1418 | 1475/1418 | 1475/1418 | 1475/1418 |
| Rear elbow/shoulder width [mm] | 1418/1379 | 1418/1379 | 1418/1379 | 1418/1379 | 1418/1379 | 1418/1379 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Energy 1.5 dCi | 1.5 dCi | Energy 1.5 dCi | 1.5 dCi | Energy 1.6 dCi | ||
|---|---|---|---|---|---|---|
| Date of sale | - | - | - | - | - | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/16 | |
| Engine displacement [cm³] | 1461 | 1461 | 1461 | 1461 | 1598 | |
| Maximum output / speed [kW/min-1] | 70/4000 | 81/4000 | 81/4000 | 81/4000 | 96/4000 | |
| Maximum torque [Nm/min-1] | 240/1750 | 240/1750 | 240/1750 | 240/1750 | 320/1750 | |
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 80,0 x 79,5 | |
| Compression ratio | 15,2:1 | 15,2:1 | 15,2:1 | 15,2:1 | 15,4:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 5 gear manual | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | |
| Drive specifications | - | - | - |
| - | |
| Top speed [km/h] | 190 | 190 | 190 | 190 | 200 | |
| Acceleration 0–100 km/h [s] | 12.6 | 11.1 | 12.4 | 12.1 | 10.1 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 3.9 | 5.1 | 3.9 | 4.7-5.1 | 4.5-4.8 | |
| Out of town [l] | 3.4 | 4.0 | 3.2-3.4 | 3.6-3.7 | 3.6-3.7 | |
| Combined [l] | 3.6 | 4.4 | 3.5-3.6 | 4.0-4.2 | 4.0 | |
| CO2 emissions [g/km] | 93 | 114 | 90-93 | 104-110 | 104 | |
| Emission standard | EU6 | EU5 | EU5-EU6 | EU5 | EU5 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1377 | 1377 | 1364 | 1377 | 1395 | |
| Overall weight [kg] | 1857 | 1855 | 1850 | 1864 | 1885 | |
| Maximum trailer weight unbraked/braked [kg] | 685/1500 | 685/1500 | 680/1500 | 680/1500 | 695/1500 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | - | - | - | |
| Boot volume [l] | 491 | 491 | 491 | 491 | 491 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1567 | -/1567 | -/1567 | -/1567 | -/1567 | |
| Boot length [mm] | 994 | 994 | 994 | 994 | 994 | |
| Boot length with rear seats folded [mm] | 1850 | 1850 | 1850 | 1850 | 1850 | |
| Boot width between wheels/max [mm] | 1100/- | 1100/- | 1100/- | 1100/- | 1100/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | 561 | 561 | 561 | 561 | 561 | |
| Height of the open boot door [mm] | 2019 | 2019 | 2019 | 2019 | 2019 | |
| Boot opening height [mm] | 750 | 750 | 750 | 750 | 750 | |
| Boot opening width min/max [mm] | 905/1070 | 905/1070 | 905/1070 | 905/1070 | 905/1070 | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 60 | 60 | 60 | 60 | 60 | |
| AdBlue tank volume [l] | - | - | - | - | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | twist beam axle with torsion bar | |
| Tyre dimensions front | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Tyre dimensions rear | 195/65 R15 | 195/65 R15 | 205/55 R16 | 205/55 R16 | 205/55 R16 | |
| Wheel size front | 6.5J x 15 ET43 | 6.5J x 15 ET43 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | |
| Wheel size rear | 6.5J x 15 ET43 | 6.5J x 15 ET43 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | 6.5J x 16 ET47 | |
| Brake dimensions front | 280 | 280 | 280 | 280 | 280 | |
| Brake dimensions rear | 260 | 260 | 260 | 260 | 260 | |
| Steering | - | - | - | - | - | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.95/- | 11.95/- | 11.95/- | 11.95/- | 11.95/- | |
| Overall length [mm] | 4567 | 4567 | 4567 | 4567 | 4567 | |
| Overall width without/including mirrors [mm] | 1804/2037 | 1804/2037 | 1804/2037 | 1804/2037 | 1804/2037 | |
| Overall height [mm] | 1507 | 1507 | 1507 | 1507 | 1507 | |
| Wheelbase [mm] | 2703 | 2703 | 2703 | 2703 | 2703 | |
| Front wheel track [mm] | 1543 | 1543 | 1543 | 1543 | 1543 | |
| Rear wheel track [mm] | 1547 | 1547 | 1547 | 1547 | 1547 | |
| Forward overhang [mm] | 870 | 870 | 870 | 870 | 870 | |
| Rear overhang [mm] | 994 | 994 | 994 | 994 | 994 | |
| Clearance [mm] | 120 | 120 | 120 | 120 | 120 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 890 | 890 | 890 | 890 | 890 | |
| Headroom rear [mm] | 884 | 884 | 884 | 884 | 884 | |
| Front elbow/shoulder width [mm] | 1475/1418 | 1475/1418 | 1475/1418 | 1475/1418 | 1475/1418 | |
| Rear elbow/shoulder width [mm] | 1418/1379 | 1418/1379 | 1418/1379 | 1418/1379 | 1418/1379 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | - | - | - | - | - |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
