Renault Mégane
Date of manufacture
11/2015 – 2020 (Five-door hatchback)
2016 – 2020 (Sedan)
2016 – 2020 (Estate)
Platform
CMF-CD
Manufacturing locations
Palencia, Spain
Bursa, Turkey
Designer
Franck Le Gall
Tags
C-segment
French cars
The Renault Megane is a modern car available in three body styles - five-door hatchback, sedan and estate. The vehicle was developed in 2015 and since then it has been produced on the CMF-CD platform in Spain and Turkey. The engine range includes petrol and diesel engines with a maximum power of 221 kW (R.S 300). The same model has the highest speed of 260 km/h and the best acceleration 0-100 km/h in 5.7 seconds is achieved by the R.S 300. On the other hand, the Energy dCi 110 has the lowest consumption of 3.7 l/100 km and emissions of 95 g/km. The boot of the five-door hatchback has a capacity of 384 l, the estate 521 l and the sedan 503 l. The Renault Megane has proven its safety during the EURONCAP tests, where it received a rating of 5 out of 5 according to the 2015 methodology.
Car body style
Five-door hatchback
Date of manufacture
11/2015 – 2020Internal designation

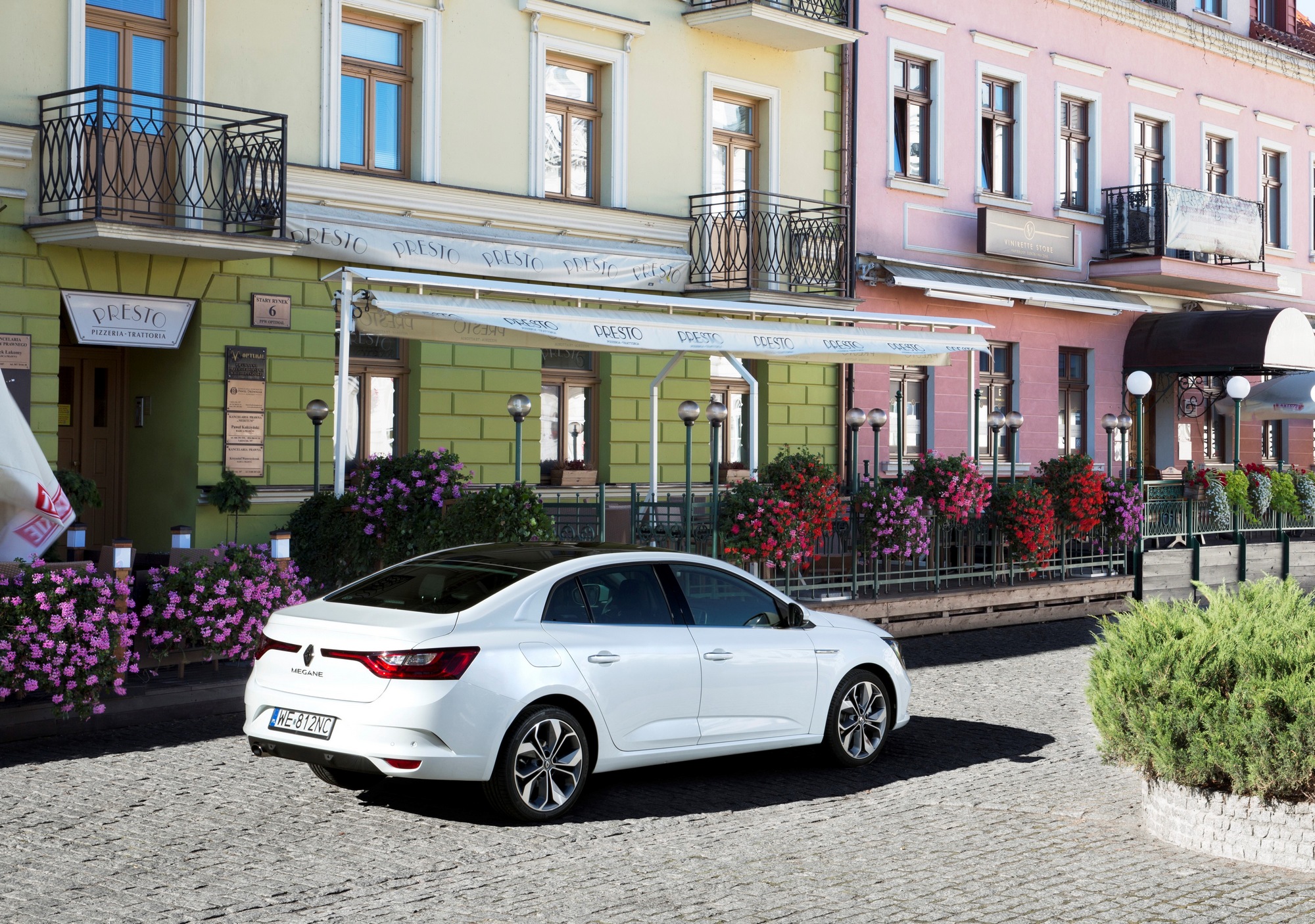

Sedan (GrandCoupe)
Date of manufacture
2016 – 2020Internal designation

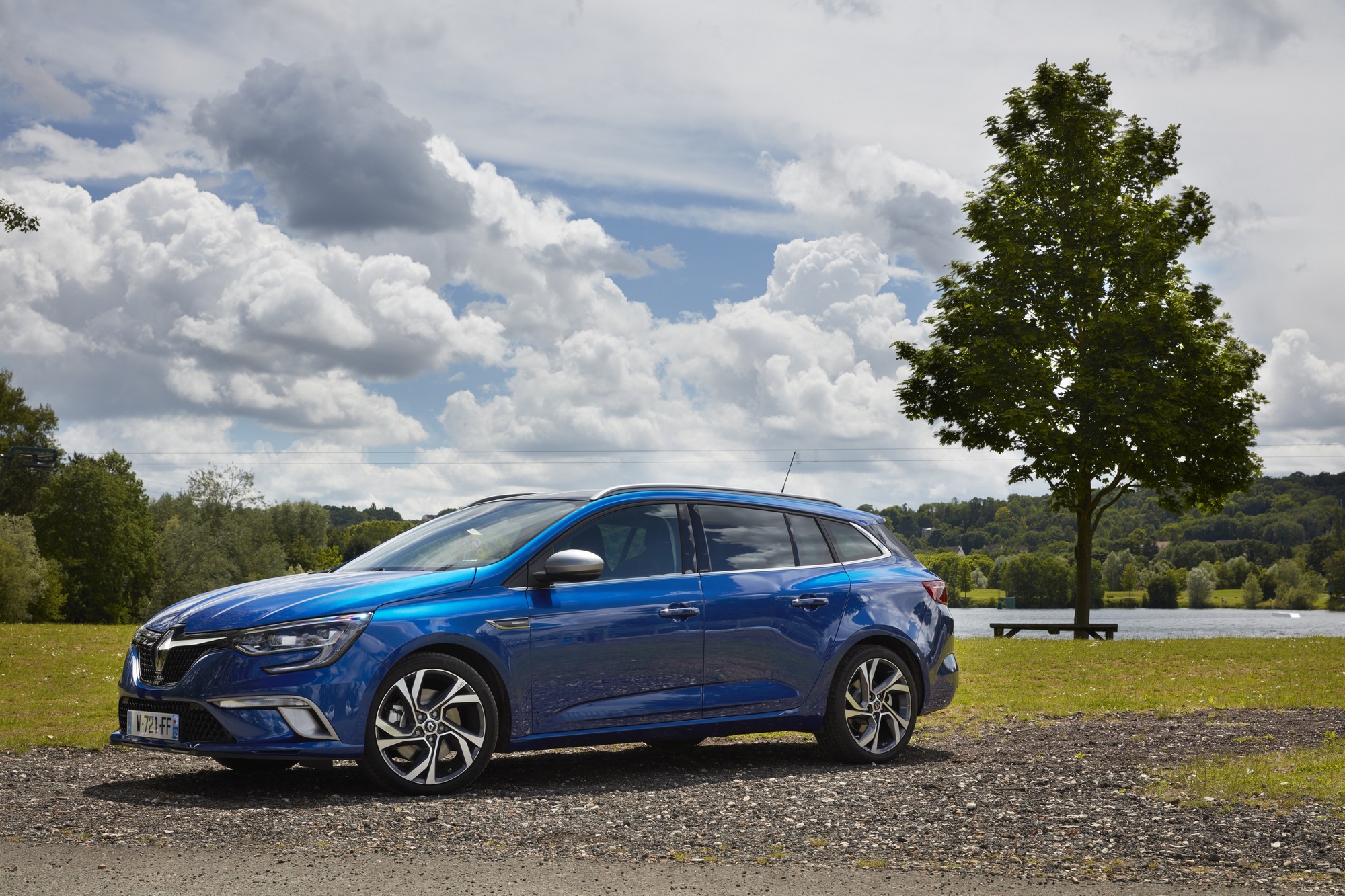

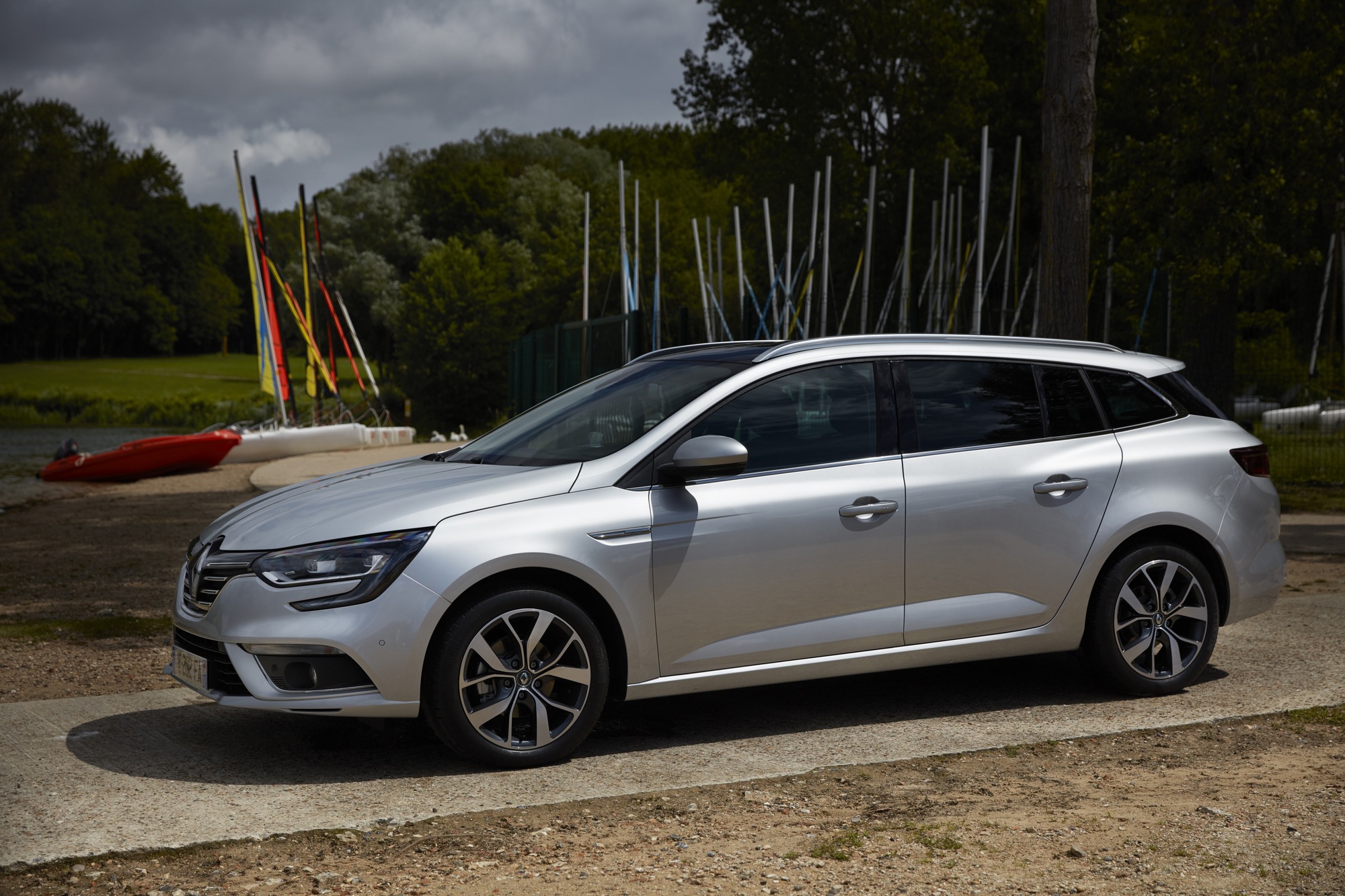

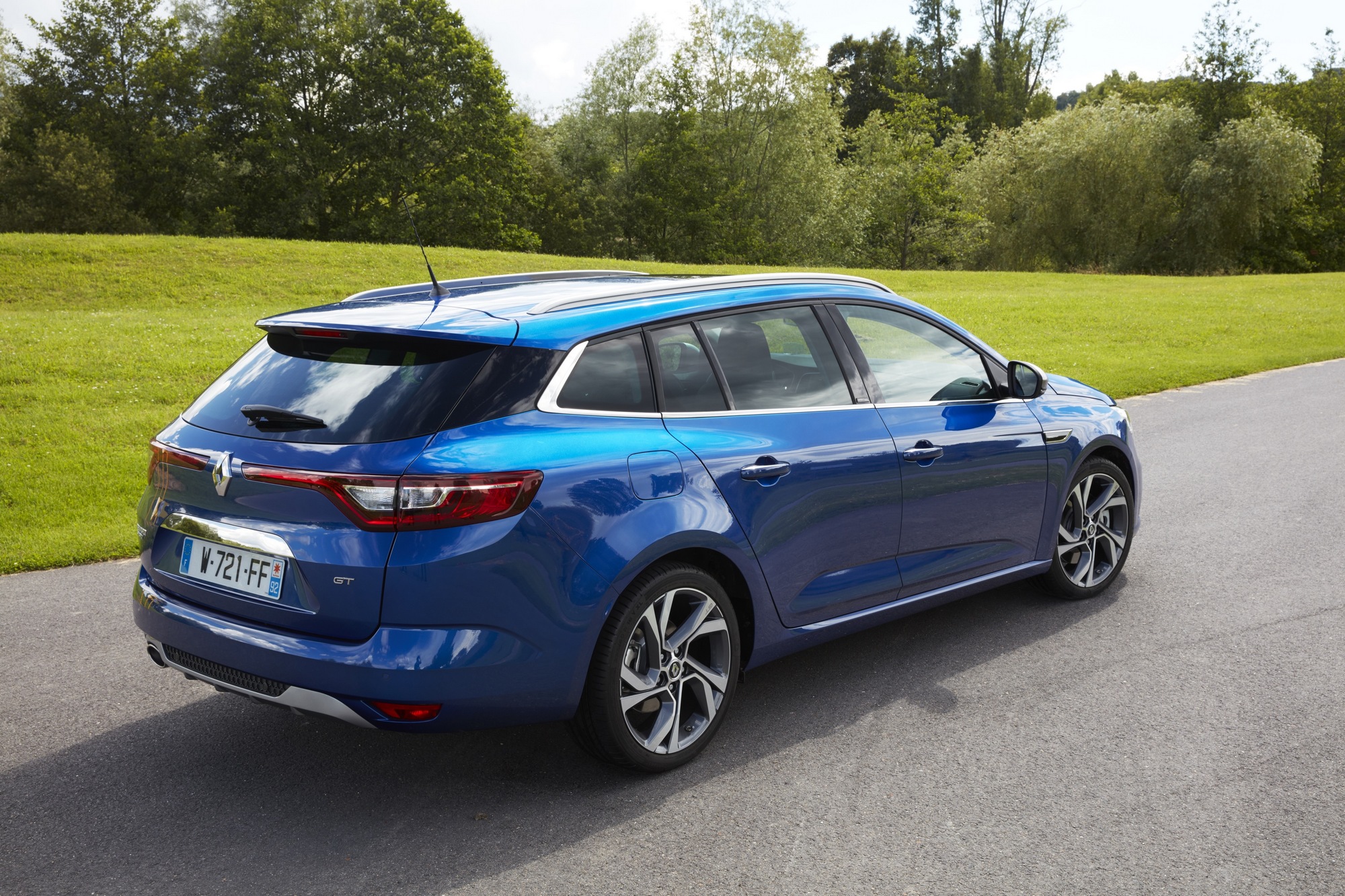

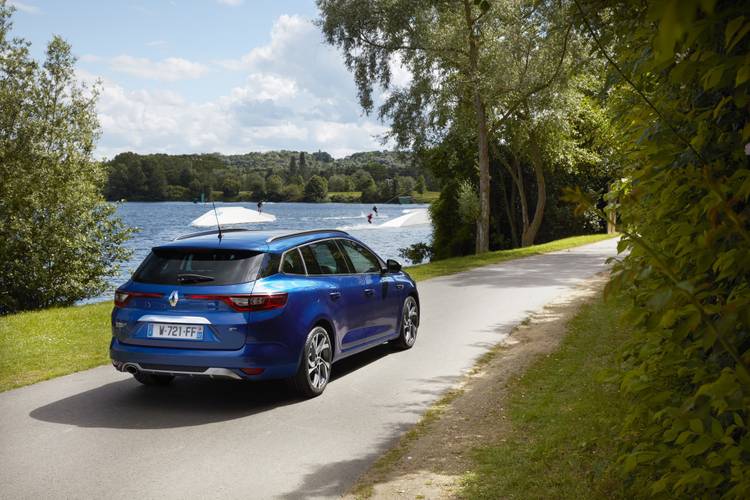

Estate (Grandtour)
Date of manufacture
2016 – 2020Internal designation
Technical data
Five-door hatchback
| Energy TCe 100 | TCe 100 | SCe 115 | TCe 115 | Energy TCe 130 | Energy TCe 130 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2018 | from 2018 to | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1198 | 1333 | 1598 | 1333 | 1198 | 1198 |
| Maximum output / speed [kW/min-1] | 74/4250 | 75/4500 | 84/5500 | 85/4500 | 97/5500 | 97/5500 |
| Maximum torque [Nm/min-1] | 175/1500 | 200/1400 | 156/4000 | 220/1500 | 205/2000 | 205/2000 |
| Bore and stroke [mm x mm] | 72,2 x 73,1 | 72.2 x 81.4 | 78,0 x 83,6 | 72.2 x 81.4 | 72,2 x 73,1 | 72,2 x 73,1 |
| Compression ratio | 10,0:1 | 10,5:1 | - | 10,5:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 179 | 180-182 | 187 | 190-192 | 197 | 197 |
| Acceleration 0–100 km/h [s] | 12.3 | 11,3 | 11.5 | 11,3 | 10.6 | 10.8 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 9,2 (4th gear) | - | 9,2 (4th gear) | - | - |
| City [l] | 6.7-6.9 | 7.2-7.0 | 8.6-8.7 | 7.2-7.0 | 6.8-6.9 | 6.8 |
| Out of town [l] | 4.6-4.7 | 4.8-4.5 | 5.0-5.1 | 4.8-4.5 | 4.5-4.6 | 4.7-4.8 |
| Combined [l] | 5.4-5.5 | 5.7-5.5 | 6.3-6.4 | 5.7-5.5 | 5.3-5.5 | 5.4-5.5 |
| CO2 emissions [g/km] | 120-124 | 130-125 | 142-144 | 130-124 | 119-123 | 122-124 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | 6,1-6,0 | - | 6,1-6,0 | - | - |
| CO2 emissions [g/km] | - | 138-137 | - | 138-137 | - | - |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1280-1431 | 1231-1353 | 1275-1414 | 1231-1353 | 1280-1427 | 1333-1448 |
| Overall weight [kg] | 1806-1817 | 1814 | 1789-1800 | 1814 | 1801-1813 | 1823-1834 |
| Maximum trailer weight unbraked/braked [kg] | 640-660/1300 | 650/1650 | 635-640/1300 | 650/1650 | 640-660/1300 | 665-670/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 384 | 384 | 384 | 384 | 384 | 384 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1247 | -/1247 | -/1247 | -/1247 | -/1247 | -/1247 |
| Boot length [mm] | 469 | 469 | 469 | 469 | 469 | 469 |
| Boot length with rear seats folded [mm] | 1582 | 1582 | 1582 | 1582 | 1582 | 1582 |
| Boot width between wheels/max [mm] | 1111/- | 1111/- | 1111/- | 1111/- | 1111/- | 1111/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 750 | 750 | 750 | 750 | 750 | 750 |
| Height of the open boot door [mm] | 2044 | 2044 | 2044 | 2044 | 2044 | 2044 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 904/1081 | 904/1081 | 904/1081 | 904/1081 | 904/1081 | 904/1081 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 47 | 49,7 | 47 | 49,7 | 47 | 47 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 91H | 205/55 R16 91H/V | 195/65 R15 91H | 205/55 R16 91H/V | 195/65 R15 91H | 205/55 R16 91H/V |
| Tyre dimensions rear | 195/65 R15 91H | 205/55 R16 91H/V | 195/65 R15 91H | 205/55 R16 91H/V | 195/65 R15 91H | 205/55 R16 91H/V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 269 x 22 | 280 x 24 | 269 x 22 | 280 x 24 | 280 x 24 | 280 x 24 |
| Brake dimensions rear | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 |
| Overall length [mm] | 4359 | 4359 | 4359 | 4359 | 4359 | 4359 |
| Overall width without/including mirrors [mm] | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2669 | 2669 | 2669 | 2669 | 2669 | 2669 |
| Front wheel track [mm] | 1591 | 1591 | 1591 | 1591 | 1591 | 1591 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 919 | 919 | 919 | 919 | 919 | 919 |
| Rear overhang [mm] | 771 | 771 | 771 | 771 | 771 | 771 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 886 | 886 | 886 | 886 | 886 | 886 |
| Headroom rear [mm] | 866 | 866 | 866 | 866 | 866 | 866 |
| Front elbow/shoulder width [mm] | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 |
| Rear elbow/shoulder width [mm] | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 179/- | 179/- | 179/- | 179/- | 179/- | 179/- |
| TCe 140 | TCe 140 | TCe 160 | TCe 160 | Energy TCe 205 | R.S 280 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from 2018 to | from 2018 to | from 2018 to | from to 2018 | from 2017 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1333 | 1333 | 1333 | 1333 | 1618 | 1798 |
| Maximum output / speed [kW/min-1] | 103/4500 | 103/4500 | 117/5500 | 117/5500 | 151/6000 | 205/6000 |
| Maximum torque [Nm/min-1] | 240/1600 | 240/1600 | 260/1750 | 270/1800 | 280/2400 | 390/3200 |
| Bore and stroke [mm x mm] | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 79,7 x 81,1 | 79,7 x 90.1 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 9,5:1 | - |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 205 | 205 | 205 | 205 | 230 | 255 |
| Acceleration 0–100 km/h [s] | 9.5 | 9,2 | 9,0 | 8,2 | 7.1 | 5,80 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 7.9 (4th gear) | 8,1 | 7,4 (4th gear) | 6,9 | - | 3,3 (4th gear) |
| City [l] | 7.2-7.0 | 7.5-7.3 | 7.1-6.9 | 7.7-7.6 | 7.8 | - |
| Out of town [l] | 4.9-4.6 | 5.0-4.7 | 4.9-4.6 | 5.2-4.9 | 4.9 | - |
| Combined [l] | 5.7-5.5 | 5.9-5.8 | 5.7-5.5 | 6.1-5.9 | 6.0 | - |
| CO2 emissions [g/km] | 131-125 | 134-133 | 131-125 | 140-134 | 134 | - |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,3-6,0 | 6,6-6,4 | 6,4-6,3 | 6,6-6,5 | - | 7,9 |
| CO2 emissions [g/km] | 142-137 | 149-146 | 145-142 | 149-147 | - | 178 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1231-1353 | 1259-1378 | 1254-1353 | 1279-1378 | 1467-1538 | 1437-1482 |
| Overall weight [kg] | 1814 | 1839 | 1814 | 1839 | 1924 | 1907 |
| Maximum trailer weight unbraked/braked [kg] | 650/1650 | 695/1700 | 660/1650 | 705/1700 | 730/1300 | - |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 384 | 384 | 384 | 384 | 384 | 294 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1247 | -/1247 | -/1247 | -/1247 | -/1247 | - |
| Boot length [mm] | 469 | 469 | 469 | 469 | 469 | 469 |
| Boot length with rear seats folded [mm] | 1582 | 1582 | 1582 | 1582 | 1582 | 1582 |
| Boot width between wheels/max [mm] | 1111/- | 1111/- | 1111/- | 1111/- | 1111/- | 1111/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 750 | 750 | 750 | 750 | 750 | 750 |
| Height of the open boot door [mm] | 2044 | 2044 | 2044 | 2044 | 2044 | 2044 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 904/1081 | 904/1081 | 904/1081 | 904/1081 | 904/1081 | 904/1081 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 49,7 | 49,7 | 49,7 | 49,7 | 50 | 49,7 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms and torsion bar, swivel wheels | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 225/45 R17 91W | 235/40 R18 |
| Tyre dimensions rear | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 225/45 R17 91W | 235/40 R18 |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 280 x 24 | 280 x 24 | 296 x 26 | 296 x 26 | 320 x 28 | 355 x 28 |
| Brake dimensions rear | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 290 x 11 | 290 x 11 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 10.4/11.0 | 11.2/11.8 |
| Overall length [mm] | 4359 | 4359 | 4359 | 4359 | 4359 | 4364 |
| Overall width without/including mirrors [mm] | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1875/- |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1435 |
| Wheelbase [mm] | 2669 | 2669 | 2669 | 2669 | 2669 | 2669 |
| Front wheel track [mm] | 1591 | 1591 | 1591 | 1591 | 1591 | 1615 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1596 |
| Forward overhang [mm] | 919 | 919 | 919 | 919 | 919 | 916 |
| Rear overhang [mm] | 771 | 771 | 771 | 771 | 771 | 786 |
| Clearance [mm] | 145 | 145 | 145 | 145 | - | 101 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 886 | 886 | 886 | 886 | 886 | 886 |
| Headroom rear [mm] | 866 | 866 | 866 | 866 | 866 | 866 |
| Front elbow/shoulder width [mm] | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 |
| Rear elbow/shoulder width [mm] | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 179/- | 179/- | 179/- | 179/- | 179/- | 179/- |
| R.S 280 | R.S 300 | R.S 300 | Energy dCi 90 | Blue dCi 95 | Energy dCi 110 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2017 to | from 2017 to | from 2017 to | from to 2018 | from 2018 to | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1798 | 1798 | 1798 | 1461 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 205/6000 | 221/6000 | 221/6000 | 66/4000 | 70/3750 | 81/4000 |
| Maximum torque [Nm/min-1] | 390/3200 | 400/3200 | 400/3200 | 220/1750 | 240/1750 | 260/1750 |
| Bore and stroke [mm x mm] | 79,7 x 90.1 | 79,7 x 90.1 | 79,7 x 90.1 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | - | - | - | 15,5:1 | - | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
| - |
| - | - | - |
| Top speed [km/h] | 250 | 260 | 255 | 174 | 185-188 | 187 |
| Acceleration 0–100 km/h [s] | 5,80 | 5,70 | 5,70 | 13.4 | 12.1 | 11.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 3,4 | 3,1 (4th gear) | 3,2 | - | 10.0 (4th gear) | - |
| City [l] | - | - | - | 4.2-4.4 | - | 4.2-4.4 |
| Out of town [l] | - | - | - | 3.4-3.6 | - | 3.4-3.6 |
| Combined [l] | - | - | - | 3.7-3.9 | - | 3.7-3.9 |
| CO2 emissions [g/km] | - | - | - | 95-100 | - | 95-100 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 8,3 | 8,2 | 8,4 | - | 4,5 | - |
| CO2 emissions [g/km] | 187 | 185 | 190 | - | 118 | - |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1460-1506 | 1419-1474 | 1443-1498 | 1280-1466 | 1315-1437 | 1280-1473 |
| Overall weight [kg] | 1931 | 1899 | 1923 | 1841-1852 | 1898 | 1848-1859 |
| Maximum trailer weight unbraked/braked [kg] | - | - | - | 640-685/1300 | 695/1650 | 640-685/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 294 | 294 | 294 | 384 | 384 | 384 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | -/1247 | -/1247 | -/1247 |
| Boot length [mm] | 469 | 469 | 469 | 469 | 469 | 469 |
| Boot length with rear seats folded [mm] | 1582 | 1582 | 1582 | 1582 | 1582 | 1582 |
| Boot width between wheels/max [mm] | 1111/- | 1111/- | 1111/- | 1111/- | 1111/- | 1111/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 750 | 750 | 750 | 750 | 750 | 750 |
| Height of the open boot door [mm] | 2044 | 2044 | 2044 | 2044 | 2044 | 2044 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 904/1081 | 904/1081 | 904/1081 | 904/1081 | 904/1081 | 904/1081 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 49,7 | 49,7 | 49,7 | 47 | 44,9 | 47 |
| AdBlue tank volume [l] | - | - | - | - | 16 | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 235/40 R18 | 245/35 R19 | 245/35 R19 | 195/65 R15 91H | 205/55 R16 91H/V | 195/65 R15 91H |
| Tyre dimensions rear | 235/40 R18 | 245/35 R19 | 245/35 R19 | 195/65 R15 91H | 205/55 R16 91H/V | 195/65 R15 91H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 355 x 28 | 355 x 28 | 355 x 28 | 269 x 22 | 280 x 24 | 280 x 24 |
| Brake dimensions rear | 290 x 11 | 290 x 11 | 290 x 11 | 260 x 8 | 260 x 8 | 260 x 8 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 |
| Overall length [mm] | 4364 | 4364 | 4364 | 4359 | 4359 | 4359 |
| Overall width without/including mirrors [mm] | 1875/- | 1875/- | 1875/- | 1814/2058 | 1814/2058 | 1814/2058 |
| Overall height [mm] | 1435 | 1435 | 1435 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2669 | 2669 | 2669 | 2669 | 2669 | 2669 |
| Front wheel track [mm] | 1615 | 1615 | 1615 | 1591 | 1591 | 1591 |
| Rear wheel track [mm] | 1596 | 1596 | 1596 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 916 | 916 | 916 | 919 | 919 | 919 |
| Rear overhang [mm] | 786 | 786 | 786 | 771 | 771 | 771 |
| Clearance [mm] | 101 | 101 | 101 | 145 | 145 | 145 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 886 | 886 | 886 | 886 | 886 | 886 |
| Headroom rear [mm] | 866 | 866 | 866 | 866 | 866 | 866 |
| Front elbow/shoulder width [mm] | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 |
| Rear elbow/shoulder width [mm] | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 179/- | 179/- | 179/- | 179/- | 179/- | 179/- |
| Energy dCi 110 | Blue dCi 115 | Blue dCi 115 | Energy dCi 130 | Blue dCi 150 | Energy dCi 165 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from 2018 to | from to 2018 | from 2018 to | from to 2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1461 | 1461 | 1461 | 1598 | 1749 | 1598 |
| Maximum output / speed [kW/min-1] | 81/4000 | 85/3750 | 85/3750 | 96/4000 | 110/3500 | 118/4000 |
| Maximum torque [Nm/min-1] | 250/1750 | 260/2000 | 260/2000 | 320/1750 | 340/1750 | 380/1750 |
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 80,0 x 79,5 | 80.0 x 87.0 | 80,0 x 79,5 |
| Compression ratio | 15,5:1 | 15.2:1 | 15.2:1 | 15,4:1 | 15,4:1 | 15,4:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic |
| Drive specifications |
| - |
| - | - |
|
| Top speed [km/h] | 187 | 190-193 | 192-194 | 198 | 205 | 214 |
| Acceleration 0–100 km/h [s] | 12.3 | 11,1 | 10.6 | 10.0 | 9.3 | - |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 8.0 (4th gear) | 7.9 (4th gear) | - | 7.1 (4th gear) | - |
| City [l] | 4.0-4.2 | 4.9-4.5 | 4.9-4.6 | 4.6-4.7 | 5.4-5.3 | 5.3 |
| Out of town [l] | 3.5-3.6 | 3.8-3.5 | 3.8 | 3.6-3.7 | 4.4-4.3 | 4.4 |
| Combined [l] | 3.7-3.8 | 4.2-3.9 | 4.2-4.1 | 4.0 | 4.8-4.7 | 4.7 |
| CO2 emissions [g/km] | 95-98 | 110-102 | 111-108 | 103-105 | 126-124 | 124 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | 4,7-4,5 | 4,9-4,8 | - | 5,6 | - |
| CO2 emissions [g/km] | - | 123-118 | 132-129 | - | 148-147 | - |
| Emission standard | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1386-1501 | 1315-1437 | 1346-1465 | 1393-1523 | 1443-1533 | 1505-1575 |
| Overall weight [kg] | 1876-1887 | 1898 | 1926 | 1890-1909 | 1994 | 2001 |
| Maximum trailer weight unbraked/braked [kg] | 690-695/1300 | 695/1650 | 735/1700 | 695-720/1600 | 750/1700 | 750/1600-1850 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 384 | 384 | 384 | 384 | 384 | 384 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1247 | -/1247 | -/1247 | -/1247 | -/1247 | -/1247 |
| Boot length [mm] | 469 | 469 | 469 | 469 | 469 | 469 |
| Boot length with rear seats folded [mm] | 1582 | 1582 | 1582 | 1582 | 1582 | 1582 |
| Boot width between wheels/max [mm] | 1111/- | 1111/- | 1111/- | 1111/- | 1111/- | 1111/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 750 | 750 | 750 | 750 | 750 | 750 |
| Height of the open boot door [mm] | 2044 | 2044 | 2044 | 2044 | 2044 | 2044 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 904/1081 | 904/1081 | 904/1081 | 904/1081 | 904/1081 | 904/1081 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 47 | 44,9 | 44,9 | 47 | 44,9 | 50 |
| AdBlue tank volume [l] | - | 16 | 16 | - | 16 | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/50 R17 | 225/45 R17 91W |
| Tyre dimensions rear | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/50 R17 | 225/45 R17 91W |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 280 x 24 | 280 x 24 | 280 x 24 | 296 x 26 | 280 x 24 | - |
| Brake dimensions rear | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | - |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 10.4/11.0 |
| Overall length [mm] | 4359 | 4359 | 4359 | 4359 | 4359 | 4359 |
| Overall width without/including mirrors [mm] | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 |
| Overall height [mm] | 1447 | 1447 | 1447 | 1447 | 1447 | 1447 |
| Wheelbase [mm] | 2669 | 2669 | 2669 | 2669 | 2669 | 2669 |
| Front wheel track [mm] | 1591 | 1591 | 1591 | 1591 | 1591 | 1591 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 919 | 919 | 919 | 919 | 919 | 919 |
| Rear overhang [mm] | 771 | 771 | 771 | 771 | 771 | 771 |
| Clearance [mm] | 145 | 145 | 145 | 145 | 145 | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 886 | 886 | 886 | 886 | 886 | 886 |
| Headroom rear [mm] | 866 | 866 | 866 | 866 | 866 | 866 |
| Front elbow/shoulder width [mm] | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 | 1418/1441 |
| Rear elbow/shoulder width [mm] | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 | 1420/1390 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 179/- | 179/- | 179/- | 179/- | 179/- | 179/- |
Sedan (GrandCoupe)
| SCe 115 | TCe 115 | Energy TCe 130 | TCe 140 | TCe 140 | Energy dCi 90 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to | from to 2018 | from 2018 to | from 2018 to | from to 2018 |
| Engine type | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1598 | 1333 | 1198 | 1333 | 1333 | 1461 |
| Maximum output / speed [kW/min-1] | 84/5500 | 85/4500 | 97/5500 | 103/4500 | 103/4500 | 66/4000 |
| Maximum torque [Nm/min-1] | 156/4000 | 220/1500 | 205/2000 | 240/1600 | 240/1600 | 220/1750 |
| Bore and stroke [mm x mm] | 78,0 x 83,6 | 72.2 x 81.4 | 72,2 x 73,1 | 72.2 x 81.4 | 72.2 x 81.4 | 76,0 x 80,5 |
| Compression ratio | - | 10,5:1 | 10,0:1 | 10,5:1 | 10,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 5 gear manual | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 190 | 192 | 200 | 205 | 205 | 176 |
| Acceleration 0–100 km/h [s] | 11.8 | 10,9 | 10.9 | 9,7 | 9.0 | 13.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6-8.7 | 6,5-6,8 | 6.8 | 6,5-6,8 | 6,9-7,0 | 4.2-4.4 |
| Out of town [l] | 5.0-5.1 | 4,5-4,9 | 4.7-4.8 | 4,5-4,9 | 4,6-5,0 | 3.4-3.6 |
| Combined [l] | 6.3-6.4 | 5,3-5,6 | 5.4-5.5 | 5,3-5,6 | 5,5-5,7 | 3.7-3.9 |
| CO2 emissions [g/km] | 142-144 | 120-127 | 122-124 | 120-127 | 125-130 | 95-100 |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1322-1414 | 1320-1412 | 1390-1474 | 1320-1440 | 1307-1396 | 1395-1465 |
| Overall weight [kg] | 1790-1801 | 1834 | 1855-1861 | 1834 | 1858 | 1817-1852 |
| Maximum trailer weight unbraked/braked [kg] | 660/1300 | 695/1650 | 690-695/1300 | 695/1650 | 690/1650 | 695/1300 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | - |
| Maximum load on roof/carrier [kg] | - | 80/- | - | 80/- | 80/- | - |
| Boot volume [l] | 503 | 503 | 503 | 503 | 503 | 503 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | - |
| Boot length [mm] | 1084 | 1084 | 1084 | 1084 | 1084 | 1084 |
| Boot length with rear seats folded [mm] | 1904 | 1904 | 1904 | 1904 | 1904 | 1904 |
| Boot width between wheels/max [mm] | 1108/- | 1108/- | 1108/- | 1108/- | 1108/- | 1108/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 707 | 707 | 707 | 707 | 707 | 707 |
| Height of the open boot door [mm] | 1706 | 1706 | 1706 | 1706 | 1706 | 1706 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 945/1114 | 945/1114 | 945/1114 | 945/1114 | 945/1114 | 945/1114 |
| Number of doors | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 49.7 | 49,7 | 49.7 | 49,7 | 49,7 | 49 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V |
| Tyre dimensions rear | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 269 x 22 | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 | 269 x 22 |
| Brake dimensions rear | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- |
| Overall length [mm] | 4632 | 4632 | 4632 | 4632 | 4632 | 4632 |
| Overall width without/including mirrors [mm] | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 |
| Overall height [mm] | 1443 | 1443 | 1443 | 1443 | 1443 | 1443 |
| Wheelbase [mm] | 2711 | 2711 | 2711 | 2711 | 2711 | 2711 |
| Front wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | 1577 |
| Rear wheel track [mm] | 1574 | 1574 | 1574 | 1574 | 1574 | 1574 |
| Forward overhang [mm] | 919 | 919 | 919 | 919 | 919 | 919 |
| Rear overhang [mm] | 1002 | 1002 | 1002 | 1002 | 1002 | 1002 |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | 136 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 840 | 840 | 840 | 840 | 840 | 840 |
| Headroom rear [mm] | 851 | 851 | 851 | 851 | 851 | 851 |
| Front elbow/shoulder width [mm] | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 |
| Rear elbow/shoulder width [mm] | 1413/1390 | 1413/1390 | 1413/1390 | 1413/1390 | 1413/1390 | 1413/1390 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 216/- | 216/- | 216/- | 216/- | 216/- | 216/- |
| Energy dCi 110 | Energy dCi 110 | Blue dCi 115 | Blue dCi 115 | Energy dCi 130 | ||
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from to 2018 | from 2018 to | from 2018 to | from to 2018 | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/16 | |
| Engine displacement [cm³] | 1461 | 1461 | 1461 | 1461 | 1598 | |
| Maximum output / speed [kW/min-1] | 81/4000 | 81/4000 | 85/3750 | 85/3750 | 96/4000 | |
| Maximum torque [Nm/min-1] | 260/1750 | 250/1750 | 260/2000 | 260/2000 | 320/1750 | |
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 80,0 x 79,5 | |
| Compression ratio | 15,5:1 | 15,5:1 | 15.2:1 | 15.2:1 | 15,4:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | |
| Drive specifications | - |
| - |
| - | |
| Top speed [km/h] | 190 | 190 | 191 | 197 | 201 | |
| Acceleration 0–100 km/h [s] | 11.6 | 12.5 | 11,3 | 10,8 | 10.5 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 4.2-4.4 | 4.0-4.2 | 4,8-5,0 | 4,7-4,9 | 4.6-4.7 | |
| Out of town [l] | 3.4-3.6 | 3.5-3.6 | 3,5-3,7 | 3,7-3,8 | 3.6-3.7 | |
| Combined [l] | 3.7-3.9 | 3.7-3.8 | 4,0-4,2 | 4,1-4,2 | 4.0 | |
| CO2 emissions [g/km] | 95-100 | 95-98 | 106-110 | 108-112 | 103-105 | |
| Emission standard | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1395-1487 | 1395-1515 | 1375-1467 | 1403-1493 | 1476-1546 | |
| Overall weight [kg] | 1864-1874 | 1892-1902 | 1929 | 1955 | 1927-1933 | |
| Maximum trailer weight unbraked/braked [kg] | 695/1300 | 695/1300 | 725/1650 | 735/1650 | 735-750/1600 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | - | - | - | - | - | |
| Maximum load on roof/carrier [kg] | - | - | 80/- | 80/- | - | |
| Boot volume [l] | 503 | 503 | 503 | 503 | 503 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | - | - | - | - | - | |
| Boot length [mm] | 1084 | 1084 | 1084 | 1084 | 1084 | |
| Boot length with rear seats folded [mm] | 1904 | 1904 | 1904 | 1904 | 1904 | |
| Boot width between wheels/max [mm] | 1108/- | 1108/- | 1108/- | 1108/- | 1108/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | 707 | 707 | 707 | 707 | 707 | |
| Height of the open boot door [mm] | 1706 | 1706 | 1706 | 1706 | 1706 | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | 945/1114 | 945/1114 | 945/1114 | 945/1114 | 945/1114 | |
| Number of doors | 4 | 4 | 4 | 4 | 4 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 49 | 49 | 49,0 | 49,0 | 49 | |
| AdBlue tank volume [l] | - | - | 15.8 | 15.8 | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |
| Tyre dimensions front | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | |
| Tyre dimensions rear | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 | 296 x 26 | |
| Brake dimensions rear | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.3/- | 11.3/- | 11.3/- | 11.3/- | 11.3/- | |
| Overall length [mm] | 4632 | 4632 | 4632 | 4632 | 4632 | |
| Overall width without/including mirrors [mm] | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | |
| Overall height [mm] | 1443 | 1443 | 1443 | 1443 | 1443 | |
| Wheelbase [mm] | 2711 | 2711 | 2711 | 2711 | 2711 | |
| Front wheel track [mm] | 1577 | 1577 | 1577 | 1577 | 1577 | |
| Rear wheel track [mm] | 1574 | 1574 | 1574 | 1574 | 1574 | |
| Forward overhang [mm] | 919 | 919 | 919 | 919 | 919 | |
| Rear overhang [mm] | 1002 | 1002 | 1002 | 1002 | 1002 | |
| Clearance [mm] | 136 | 136 | 136 | 136 | 136 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 840 | 840 | 840 | 840 | 840 | |
| Headroom rear [mm] | 851 | 851 | 851 | 851 | 851 | |
| Front elbow/shoulder width [mm] | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 | |
| Rear elbow/shoulder width [mm] | 1413/1390 | 1413/1390 | 1413/1390 | 1413/1390 | 1413/1390 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | 216/- | 216/- | 216/- | 216/- | 216/- |
Estate (Grandtour)
| Energy TCe 100 | TCe 100 | SCe 115 | TCe 115 | Energy TCe 130 | Energy TCe 130 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2017 | from 2018 to | from to 2017 | from 2018 to | from to 2017 | from to 2017 |
| Engine type | Ignition supercharged | Ignition supercharged | Petrol | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1198 | 1333 | 1598 | 1333 | 1198 | 1198 |
| Maximum output / speed [kW/min-1] | 74/4250 | 75/4500 | 84/5500 | 85/4500 | 97/5500 | 97/5500 |
| Maximum torque [Nm/min-1] | 175/1500 | 200/1400 | 156/4000 | 220/1500 | 205/2000 | 205/2000 |
| Bore and stroke [mm x mm] | 72,2 x 73,1 | 72.2 x 81.4 | 78,0 x 83,6 | 72.2 x 81.4 | 72,2 x 73,1 | 72,2 x 73,1 |
| Compression ratio | 10,0:1 | 10,5:1 | - | 10,5:1 | 10,0:1 | 10,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 5 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic |
| Drive specifications | - | - | - | - | - |
|
| Top speed [km/h] | 179 | 182 | 187 | 190 | 197 | 197 |
| Acceleration 0–100 km/h [s] | 12.6 | 12.2 | 11.9 | 11,1 | 11.0 | 11.7 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 9,2 (4th gear) | - | 9.5 (4th gear) | - | - |
| City [l] | 6.7-6.9 | 7.2-7.0 | 8.6-8.7 | 6,5-6,8 | 6.8-6.9 | 6.8 |
| Out of town [l] | 4.6-4.7 | 4.8-4.5 | 5.0-5.1 | 4,5-4,8 | 4.5-4.6 | 4.7-4.8 |
| Combined [l] | 5.4-5.5 | 5.7-5.5 | 6.3-6.4 | 5,3-5,6 | 5.3-5.5 | 5.4-5.5 |
| CO2 emissions [g/km] | 120-124 | 130-125 | 142-144 | 120-127 | 119-123 | 122-124 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | 6,1-6,0 | - | 6,1-6,0 | - | - |
| CO2 emissions [g/km] | - | 138-137 | - | 138-137 | - | - |
| Emission standard | EU6 | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1366-1493 | 1287-1419 | 1302-1460 | 1287-1419 | 1368-1493 | 1399-1524 |
| Overall weight [kg] | 1868-1880 | 1881 | 1835-1847 | 1881 | 1869-1880 | 1900-1911 |
| Maximum trailer weight unbraked/braked [kg] | 680-685/1400 | 680/1700 | 650-670/1400 | 680/1700 | 680-690/1400 | 695-705/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 521 | 521 | 521 | 521 | 521 | 521 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1504 | -/1504 | -/1504 | -/1504 | -/1504 | -/1504 |
| Boot length [mm] | 950 | 950 | 950 | 950 | 950 | 950 |
| Boot length with rear seats folded [mm] | 1754 | 1754 | 1754 | 1754 | 1754 | 1754 |
| Boot width between wheels/max [mm] | 1109/- | 1109/- | 1109/- | 1109/- | 1109/- | 1109/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 601 | 601 | 601 | 601 | 601 | 601 |
| Height of the open boot door [mm] | 2038 | 2038 | 2038 | 2038 | 2038 | 2038 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 854/1036 | 854/1036 | 854/1036 | 854/1036 | 854/1036 | 854/1036 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 47 | 49,7 | 47 | 49,7 | 47 | 47 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/65 R15 91H | 205/55 R16 91H/V | 195/65 R15 91H | 205/55 R16 91H/V | 195/65 R15 91H | 205/55 R16 91H/V |
| Tyre dimensions rear | 195/65 R15 91H | 205/55 R16 91H/V | 195/65 R15 91H | 205/55 R16 91H/V | 195/65 R15 91H | 205/55 R16 91H/V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 269 x 22 | 280 x 24 | 269 x 22 | 280 x 24 | 280 x 24 | 280 x 24 |
| Brake dimensions rear | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 |
| Overall length [mm] | 4626 | 4626 | 4626 | 4626 | 4626 | 4626 |
| Overall width without/including mirrors [mm] | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 |
| Overall height [mm] | 1449 | 1449 | 1449 | 1449 | 1449 | 1449 |
| Wheelbase [mm] | 2669 | 2669 | 2669 | 2669 | 2669 | 2669 |
| Front wheel track [mm] | 1591 | 1591 | 1591 | 1591 | 1591 | 1591 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 919 | 919 | 919 | 919 | 919 | 919 |
| Rear overhang [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 886 | 886 | 886 | 886 | 886 | 886 |
| Headroom rear [mm] | 871 | 871 | 871 | 871 | 871 | 871 |
| Front elbow/shoulder width [mm] | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 |
| Rear elbow/shoulder width [mm] | 1412/1377 | 1412/1377 | 1412/1377 | 1412/1377 | 1412/1377 | 1412/1377 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 216/- | 216/- | 216/- | 216/- | 216/- | 216/- |
| TCe 140 | TCe 140 | TCe 160 | TCe 160 | Energy TCe 205 | Energy dCi 90 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from 2018 to | from 2018 to | from 2018 to | from to 2017 | from to 2017 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 |
| Engine displacement [cm³] | 1333 | 1333 | 1333 | 1333 | 1618 | 1461 |
| Maximum output / speed [kW/min-1] | 103/4500 | 103/4500 | 117/5500 | 117/5500 | 151/6000 | 66/4000 |
| Maximum torque [Nm/min-1] | 240/1600 | 240/1600 | 260/1750 | 270/1800 | 280/2400 | 220/1750 |
| Bore and stroke [mm x mm] | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 79,7 x 81,1 | 76,0 x 80,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 9,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 7 gear automatic | 6 gear manual |
| Drive specifications | - |
| - |
|
| - |
| Top speed [km/h] | 205 | 205 | 205 | 205 | 230 | 174 |
| Acceleration 0–100 km/h [s] | 9,8 | 9,9 | 9,3 | 8,8 | 7.4 | 14.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 8.3 (4th gear) | 8,4 | 7,8 (4th gear) | 7.2 | - | - |
| City [l] | 6,5-6,8 | 6,9-7,0 | 7,0-7,1 | 6,9-7,0 | 7.8 | 4.2-4.4 |
| Out of town [l] | 4,5-4,8 | 4,6-5,0 | 4,6-5,0 | 4,8-5,2 | 4.9 | 3.4-3.6 |
| Combined [l] | 5,3-5,6 | 5,5-5,7 | 5,5-5,8 | 5,6-5,8 | 6.0 | 3.7-3.9 |
| CO2 emissions [g/km] | 122-127 | 125-130 | 125-131 | 127-133 | 134 | 95-100 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 6,3-6,0 | 6,6-6,4 | 6,4-6,3 | 6,6-6,5 | - | - |
| CO2 emissions [g/km] | 142-137 | 149-146 | 145-142 | 149-147 | - | - |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1287-1419 | 1315-1444 | 1314-1419 | 1339-1444 | 1467-1538 | 1400-1535 |
| Overall weight [kg] | 1881 | 1906 | 1881 | 1906 | 1924 | 1911-1922 |
| Maximum trailer weight unbraked/braked [kg] | 680/1700 | 695/1700 | 690/1700 | 705/1700 | 730/1300 | 700/1400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 521 | 521 | 521 | 521 | 521 | 521 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1504 | -/1504 | -/1504 | -/1504 | -/1504 | -/1504 |
| Boot length [mm] | 950 | 950 | 950 | 950 | 950 | 950 |
| Boot length with rear seats folded [mm] | 1754 | 1754 | 1754 | 1754 | 1754 | 1754 |
| Boot width between wheels/max [mm] | 1109/- | 1109/- | 1109/- | 1109/- | 1109/- | 1109/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 601 | 601 | 601 | 601 | 601 | 601 |
| Height of the open boot door [mm] | 2038 | 2038 | 2038 | 2038 | 2038 | 2038 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 854/1036 | 854/1036 | 854/1036 | 854/1036 | 854/1036 | 854/1036 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 49,7 | 49,7 | 49,7 | 49,7 | 50 | 47 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms and torsion bar, swivel wheels | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 225/45 R17 91W | 195/65 R15 91H |
| Tyre dimensions rear | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 225/45 R17 91W | 195/65 R15 91H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 280 x 24 | 280 x 24 | 296 x 26 | 296 x 26 | 320 x 28 | 269 x 22 |
| Brake dimensions rear | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 290 x 11 | 260 x 8 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 10.4/11.0 | 11.2/11.8 |
| Overall length [mm] | 4626 | 4626 | 4626 | 4626 | 4626 | 4626 |
| Overall width without/including mirrors [mm] | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 |
| Overall height [mm] | 1449 | 1449 | 1449 | 1449 | 1449 | 1449 |
| Wheelbase [mm] | 2669 | 2669 | 2669 | 2669 | 2669 | 2669 |
| Front wheel track [mm] | 1591 | 1591 | 1591 | 1591 | 1591 | 1591 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 919 | 919 | 919 | 919 | 919 | 919 |
| Rear overhang [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 886 | 886 | 886 | 886 | 886 | 886 |
| Headroom rear [mm] | 871 | 871 | 871 | 871 | 871 | 871 |
| Front elbow/shoulder width [mm] | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 |
| Rear elbow/shoulder width [mm] | 1412/1377 | 1412/1377 | 1412/1377 | 1412/1377 | 1412/1377 | 1412/1377 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 216/- | 216/- | 216/- | 216/- | 216/- | 216/- |
| Blue dCi 95 | Energy dCi 110 | Energy dCi 110 | Blue dCi 115 | Blue dCi 115 | Energy dCi 130 | |
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from to 2017 | from to 2017 | from 2018 to | from 2018 to | from to 2017 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/8 | 4/8 | 4/8 | 4/8 | 4/8 | 4/16 |
| Engine displacement [cm³] | 1461 | 1461 | 1461 | 1461 | 1461 | 1598 |
| Maximum output / speed [kW/min-1] | 70/3750 | 81/4000 | 81/4000 | 85/3750 | 85/3750 | 96/4000 |
| Maximum torque [Nm/min-1] | 240/1750 | 260/1750 | 250/1750 | 260/2000 | 260/2000 | 320/1750 |
| Bore and stroke [mm x mm] | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 76,0 x 80,5 | 80,0 x 79,5 |
| Compression ratio | - | 15,5:1 | 15,5:1 | 15.2:1 | 15.2:1 | 15,4:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual |
| Drive specifications | - | - |
| - |
| - |
| Top speed [km/h] | 188 | 187 | 187 | 193 | 194 | 198 |
| Acceleration 0–100 km/h [s] | 12.4 | 11.6 | 12.7 | 11,4 | 10,9 | 10.6 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | 10.3 (4th gear) | - | - | 8.1 (4th gear) | 8.2 (4th gear) | - |
| City [l] | - | 4.2-4.4 | 4.0-4.2 | 4,6-4,9 | 4,6-4,9 | 4.6-4.7 |
| Out of town [l] | - | 3.4-3.6 | 3.5-3.6 | 3,5-3,8 | 3,8-3,9 | 3.6-3.7 |
| Combined [l] | - | 3.7-3.9 | 3.7-3.8 | 3,9-4,2 | 4,1-4,2 | 4.0 |
| CO2 emissions [g/km] | - | 95-100 | 95-98 | 102-110 | 108-111 | 103-105 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 4,5 | - | - | 4,7-4,5 | 4,9-4,8 | - |
| CO2 emissions [g/km] | 118 | - | - | 123-118 | 132-129 | - |
| Emission standard | Euro 6d-TEMP | EU6 | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1367-1499 | 1400-1538 | 1392-1556 | 1367-1499 | 1398-1527 | 1469-1576 |
| Overall weight [kg] | 1961 | 1914-1925 | 1932-1943 | 1961 | 1989 | 1952-1963 |
| Maximum trailer weight unbraked/braked [kg] | 720/1700 | 700/1400 | 690-720/1400 | 720/1700 | 735/1700 | 730-740/1700 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 521 | 521 | 521 | 521 | 521 | 521 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1504 | -/1504 | -/1504 | -/1504 | -/1504 | -/1504 |
| Boot length [mm] | 950 | 950 | 950 | 950 | 950 | 950 |
| Boot length with rear seats folded [mm] | 1754 | 1754 | 1754 | 1754 | 1754 | 1754 |
| Boot width between wheels/max [mm] | 1109/- | 1109/- | 1109/- | 1109/- | 1109/- | 1109/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 601 | 601 | 601 | 601 | 601 | 601 |
| Height of the open boot door [mm] | 2038 | 2038 | 2038 | 2038 | 2038 | 2038 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 854/1036 | 854/1036 | 854/1036 | 854/1036 | 854/1036 | 854/1036 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 44,9 | 47 | 47 | 44,9 | 44,9 | 47 |
| AdBlue tank volume [l] | 16 | - | - | 16 | 16 | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 205/55 R16 91H/V | 195/65 R15 91H | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V |
| Tyre dimensions rear | 205/55 R16 91H/V | 195/65 R15 91H | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V | 205/55 R16 91H/V |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 | 280 x 24 | 296 x 26 |
| Brake dimensions rear | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 | 260 x 8 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 | 11.2/11.8 |
| Overall length [mm] | 4626 | 4626 | 4626 | 4626 | 4626 | 4626 |
| Overall width without/including mirrors [mm] | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 | 1814/2058 |
| Overall height [mm] | 1449 | 1449 | 1449 | 1449 | 1449 | 1449 |
| Wheelbase [mm] | 2669 | 2669 | 2669 | 2669 | 2669 | 2669 |
| Front wheel track [mm] | 1591 | 1591 | 1591 | 1591 | 1591 | 1591 |
| Rear wheel track [mm] | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| Forward overhang [mm] | 919 | 919 | 919 | 919 | 919 | 919 |
| Rear overhang [mm] | 995 | 995 | 995 | 995 | 995 | 995 |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 886 | 886 | 886 | 886 | 886 | 886 |
| Headroom rear [mm] | 871 | 871 | 871 | 871 | 871 | 871 |
| Front elbow/shoulder width [mm] | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 | 1492/1441 |
| Rear elbow/shoulder width [mm] | 1412/1377 | 1412/1377 | 1412/1377 | 1412/1377 | 1412/1377 | 1412/1377 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 216/- | 216/- | 216/- | 216/- | 216/- | 216/- |
| Blue dCi 150 | Energy dCi 165 | |||||
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to | from to 2017 | ||||
| Engine type | Diesel supercharged | Diesel supercharged | ||||
| Number of cylinders/valves | 4/16 | 4/16 | ||||
| Engine displacement [cm³] | 1749 | 1598 | ||||
| Maximum output / speed [kW/min-1] | 110/3500 | 118/4000 | ||||
| Maximum torque [Nm/min-1] | 340/1750 | 380/1750 | ||||
| Bore and stroke [mm x mm] | 80.0 x 87.0 | 80,0 x 79,5 | ||||
| Compression ratio | 15,4:1 | 15,4:1 | ||||
| Oil volume [l] | - | - | ||||
| Coolant volume [l] | - | - | ||||
| Technical specifications |
|
| ||||
| Drive axle | Front | Front | ||||
| Gearbox | 6 gear manual | 6 gear automatic | ||||
| Drive specifications | - |
| ||||
| Top speed [km/h] | 205 | 214 | ||||
| Acceleration 0–100 km/h [s] | 9.5 | 8.9 | ||||
| Acceleration 0–80 km/h [s] | - | - | ||||
| Acceleration 80–120 km/h [s] | 7.4 (4th gear) | - | ||||
| City [l] | 5,3-5,4 | 5.3 | ||||
| Out of town [l] | 4,3-4,4 | 4.4 | ||||
| Combined [l] | 4,7-4,8 | 4.7 | ||||
| CO2 emissions [g/km] | 124-126 | 124 | ||||
| Low speed [l] | - | - | ||||
| Medium speed [l] | - | - | ||||
| High speed [l] | - | - | ||||
| Extra high speed [l] | - | - | ||||
| Combined speed [l] | 5,6 | - | ||||
| CO2 emissions [g/km] | 148-147 | - | ||||
| Emission standard | Euro 6d-TEMP | EU6 | ||||
| Standard for fuel consumption measurement | - | - | ||||
| Energy class | - | - | ||||
| Stationary vehicle noise [dB] | - | - | ||||
| Driving noise [dB] | - | - | ||||
| Standby weight [kg] | 1501-1596 | 1500-1615 | ||||
| Overall weight [kg] | 2058 | 1995 | ||||
| Maximum trailer weight unbraked/braked [kg] | 750/1700 | 750/1600 | ||||
| Maximum front/rear axle load [kg] | - | - | ||||
| Maximum vertical load on the tow bar [kg] | 75 | 75 | ||||
| Maximum load on roof/carrier [kg] | 80/- | 80/- | ||||
| Boot volume [l] | 521 | 521 | ||||
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1504 | -/1504 | ||||
| Boot length [mm] | 950 | 950 | ||||
| Boot length with rear seats folded [mm] | 1754 | 1754 | ||||
| Boot width between wheels/max [mm] | 1109/- | 1109/- | ||||
| Boot height to headliner/ceiling [mm] | - | - | ||||
| Loading edge height [mm] | 601 | 601 | ||||
| Height of the open boot door [mm] | 2038 | 2038 | ||||
| Boot opening height [mm] | - | - | ||||
| Boot opening width min/max [mm] | 854/1036 | 854/1036 | ||||
| Number of doors | 5 | 5 | ||||
| Number of seats | 5 | 5 | ||||
| Fuel tank volume [l] | 44,9 | 50 | ||||
| AdBlue tank volume [l] | 16 | - | ||||
| Air resistance [Cd] | - | - | ||||
| Front suspension | MacPherson | MacPherson | ||||
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | ||||
| Tyre dimensions front | 205/50 R17 | 225/45 R17 91W | ||||
| Tyre dimensions rear | 205/50 R17 | 225/45 R17 91W | ||||
| Wheel size front | - | - | ||||
| Wheel size rear | - | - | ||||
| Brake dimensions front | 280 x 24 296 x 26 | 320 x 28 | ||||
| Brake dimensions rear | 260 x 8 | 290 x 11 | ||||
| Steering | Electric power steering | Electric power steering | ||||
| Number of steering wheel turns | - | - | ||||
| Turning diameter track/circumference [m] | 11.2/11.8 | 10.4/11.0 | ||||
| Overall length [mm] | 4626 | 4626 | ||||
| Overall width without/including mirrors [mm] | 1814/2058 | 1814/2058 | ||||
| Overall height [mm] | 1449 | 1449 | ||||
| Wheelbase [mm] | 2669 | 2669 | ||||
| Front wheel track [mm] | 1591 | 1591 | ||||
| Rear wheel track [mm] | 1586 | 1586 | ||||
| Forward overhang [mm] | 919 | 919 | ||||
| Rear overhang [mm] | 995 | 995 | ||||
| Clearance [mm] | - | - | ||||
| Wading depth [mm] | - | - | ||||
| Approach angle front [°] | - | - | ||||
| Approach angle rear [°] | - | - | ||||
| Transition angle [°] | - | - | ||||
| Climbing rate [°] | - | - | ||||
| Maximum side tilt [°] | - | - | ||||
| Headroom front [mm] | 886 | 886 | ||||
| Headroom rear [mm] | 871 | 871 | ||||
| Front elbow/shoulder width [mm] | 1492/1441 | 1492/1441 | ||||
| Rear elbow/shoulder width [mm] | 1412/1377 | 1412/1377 | ||||
| Legroom front knees/total [mm] | - | - | ||||
| Legroom rear knees/total [mm] | 216/- | 216/- |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
