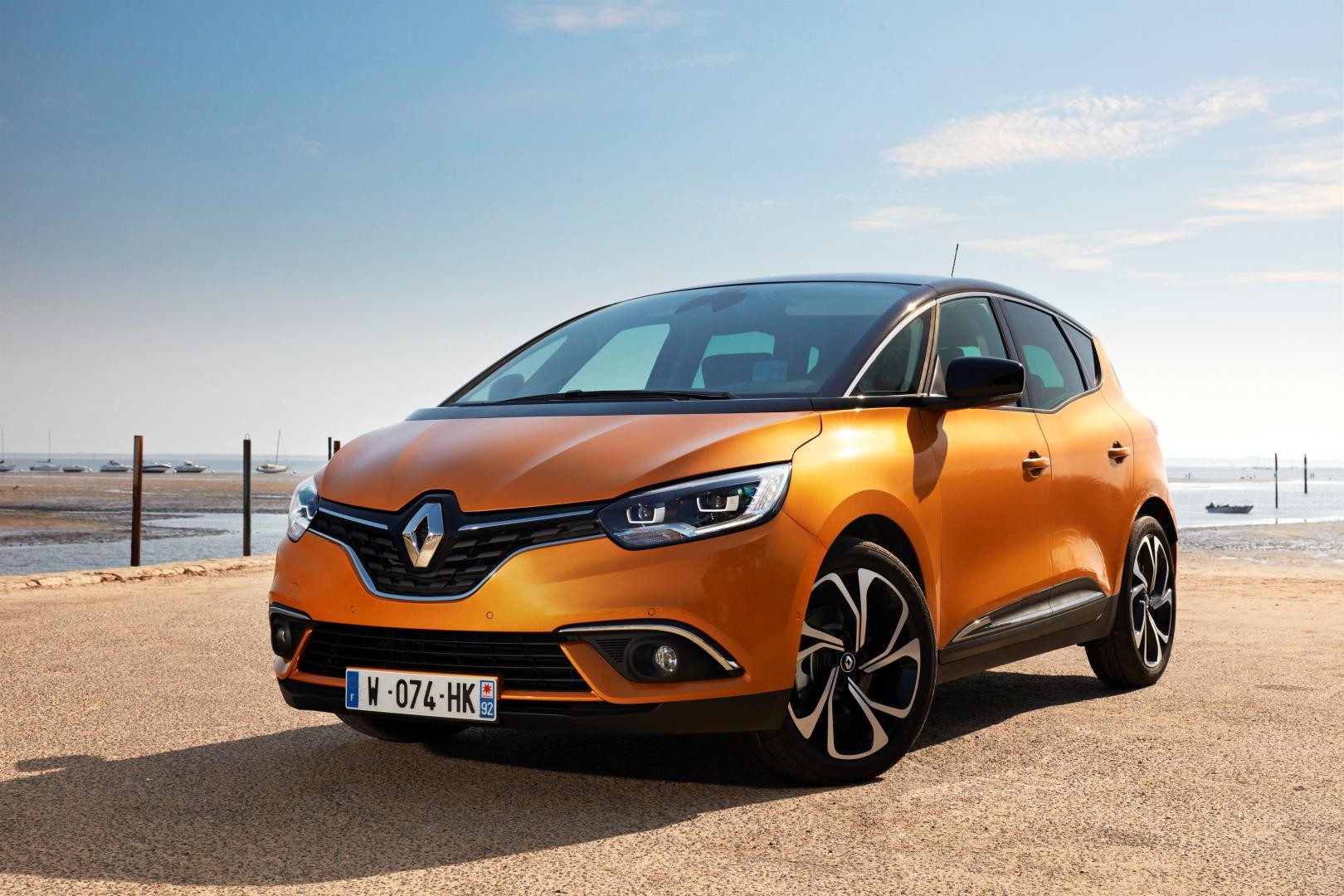

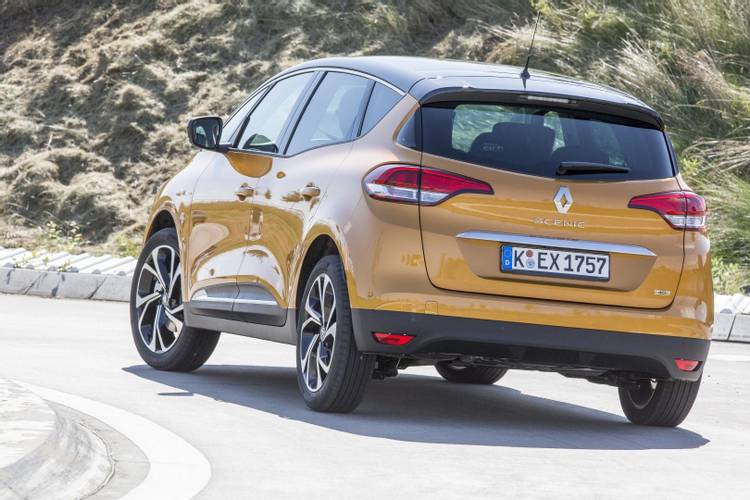

Renault Scénic
Date of manufacture
2016 – to this day (Medium MPV)
Platform
Renault-Nissan CMF
Manufacturing locations
Douai, France
Designer
Jérémie Sommer
Maxime Pinol
Tags
Mid-size MPV
French cars
Renault Scénic is a popular mid-size MPV that has been produced since 2016. It is built on the Renault-Nissan CMF platform and offers a wide range of petrol and diesel engines. The most powerful of these is the TCe 160 with 120 kW of power, a top speed of 210 km/h and a 0-100 km/h acceleration time of 9.1 seconds. The Energy dCi 110 has the lowest fuel consumption of 3.9 l/100 km and emissions of 100 g/km. The boot capacity is 506 l. In terms of safety, the Renault Scénic achieved a 5 out of 5 rating from EURONCAP in 2016.
Car body style
Medium MPV
Date of manufacture
2016 – to this dayInternal designation
-
Technical data
Medium MPV
| Energy TCe 115 | TCe 115 | Energy TCe 130 | TCe 140 | TCe 140 | TCe 160 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2017 | from 2018 to | from to 2018 | from 2018 to | from 2018 to | from 2020 to |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1198 | 1333 | 1198 | 1333 | 1333 | 1333 |
| Maximum output / speed [kW/min-1] | 85/4500 | 85/4500 | 96/5500 | 103/4500 | 103/4500 | 116/5500 |
| Maximum torque [Nm/min-1] | 190/2000 | 240/1600 | 205/2000 | 260/1750 | 240/1600 | 270/1800 |
| Bore and stroke [mm x mm] | 72,2 x 73,1 | 72.2 x 81.4 | 72,2 x 73,1 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 |
| Compression ratio | 10,0:1 | 10,5:1 | 10,0:1 | 10,5:1 | 10,5:1 | 10,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear manual | 6 gear manual | 6 gear manual | 7 gear automatic | 7 gear automatic |
| Drive specifications | - | - | - | - |
|
|
| Top speed [km/h] | 185 | 182-193 | 190 | 195-201 | 195-201 | 200 |
| Acceleration 0–100 km/h [s] | 12.3 | 11,0-11,3 | 11,4 | 10,1-10,4 | 9,6-10,2 | 9.5-10.1 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | 9.5-10.4 (4th gear) | - | 8.4-9.2 (4th gear) | 8.4-9.2 | 8.0-8.7 |
| City [l] | 7.2 | 6,8-7,6 | 7,2 | 6,8-7,4 | 6,8-7,0 | - |
| Out of town [l] | 5.0 | 4,6-5,0 | 5,0 | 4,6-5,1 | 4,7-5,3 | - |
| Combined [l] | 5.8 | 5,4-5,9 | 5,8 | 5,4-5,9 | 5,4-5,9 | - |
| CO2 emissions [g/km] | 129 | 122-135 | 129 | 122-135 | 122-135 | - |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | 6.8-6.3 | - | 6.8-6.3 | 6.9-6.5 | 6.9-6.5 |
| CO2 emissions [g/km] | - | 154-143 | - | 154-143 | 156-147 | 156-146 |
| Emission standard | EU6 | Euro 6d-TEMP - Euro 6d | EU6 | Euro 6 - Euro 6d-TEMP - Euro 6d | Euro 6 - Euro 6d-TEMP - Euro 6d | Euro 6d |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1503 | 1488-1603 | 1505 | 1502-1604 | 1505-1628 | 1554 |
| Overall weight [kg] | 2031 | 2017-2018 | 2021 | 2018-2019 | 2043-2046 | 2044 |
| Maximum trailer weight unbraked/braked [kg] | 750/1850 | 750/1500-1850 | 750/1500-1850 | 750/1500-1850 | 750/1500-1850 | 750/1500 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 506 | 506 | 506 | 506 | 506 | 506 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1554 | -/1554 | -/1554 | -/1554 | -/1554 | -/1554 |
| Boot length [mm] | 625 | 625 | 625 | 625 | 625 | 625 |
| Boot length with rear seats folded [mm] | 1688 | 1688 | 1688 | 1688 | 1688 | 1688 |
| Boot width between wheels/max [mm] | 1092/- | 1092/- | 1092/- | 1092/- | 1092/- | 1092/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 686 | 686 | 686 | 686 | 686 | 686 |
| Height of the open boot door [mm] | 2069 | 2069 | 2069 | 2069 | 2069 | 2069 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 910/1069 | 910/1069 | 910/1069 | 910/1069 | 910/1069 | 910/1069 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | - | 50-52 | 50 | 50-52 | 50-52 | - |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H |
| Tyre dimensions rear | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 |
| Brake dimensions rear | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.18/- | 11.18/- | 11.18/- | 11.18/- | 11.18/- | 11.18/- |
| Overall length [mm] | 4406 | 4406 | 4406 | 4406 | 4406 | 4406 |
| Overall width without/including mirrors [mm] | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 |
| Overall height [mm] | 1653 | 1653 | 1653 | 1653 | 1653 | 1653 |
| Wheelbase [mm] | 2734 | 2734 | 2734 | 2734 | 2734 | 2734 |
| Front wheel track [mm] | 1602 | 1602 | 1602 | 1602 | 1602 | 1602 |
| Rear wheel track [mm] | 1596 | 1596 | 1596 | 1596 | 1596 | 1596 |
| Forward overhang [mm] | 931 | 931 | 931 | 931 | 931 | 931 |
| Rear overhang [mm] | 741 | 741 | 741 | 741 | 741 | 741 |
| Clearance [mm] | 170 | 170 | 170 | 170 | 170 | 170 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 918 | 918 | 918 | 918 | 918 | 918 |
| Headroom rear [mm] | 869 | 869 | 869 | 869 | 869 | 869 |
| Front elbow/shoulder width [mm] | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 |
| Rear elbow/shoulder width [mm] | 1488/1388 | 1488/1388 | 1488/1388 | 1488/1388 | 1488/1388 | 1488/1388 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 212/- | 212/- | 212/- | 212/- | 212/- | 212/- |
| TCe 160 | TCe 160 | TCe 160 | TCe 160 | Energy dCi 110 | Energy dCi 110 | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2020 | from to 2020 | from 2018 to 2018 | from 2018 to 2018 | from to 2018 | from to 2018 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/8 | 4/8 |
| Engine displacement [cm³] | 1333 | 1333 | 1333 | 1333 | 1461 | 1461 |
| Maximum output / speed [kW/min-1] | 117/5500 | 117/5500 | 120/5500 | 120/5500 | 81/4000 | 81/4000 |
| Maximum torque [Nm/min-1] | 260/1750 | 270/1800 | 260/1750 | 260/1800 | 260/1750 | 250/1750 |
| Bore and stroke [mm x mm] | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 72.2 x 81.4 | 76,0 x 80,5 | 76,0 x 80,5 |
| Compression ratio | 10,5:1 | 10,5:1 | 10,5:1 | 10,5:1 | 15,5:1 | 15,5:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 7 gear automatic | 6 gear manual | 7 gear automatic | 6 gear manual | 6 gear automatic |
| Drive specifications | - |
| - |
| - |
|
| Top speed [km/h] | 210 | 210 | 200 | 200 | 183 | 183 |
| Acceleration 0–100 km/h [s] | 10 | 9,3 | 9,9 | 9,1 | 12,4 | 12,4 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 7,5-7,7 | 7,2-7,3 | 6,8 | 6,8 | 4,2 | 4,2 |
| Out of town [l] | 5,0-5,3 | 5,0-5,1 | 4,6 | 4,7 | 3,7 | 3,9 |
| Combined [l] | 5,9-6,2 | 5,8-5,9 | 5,4 | 5,4 | 3,9 | 4,0 |
| CO2 emissions [g/km] | 136-141 | 132-135 | 122 | 122 | 100 | 104 |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | Euro 6 | Euro 6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1608 | 1632 | 1502 | 1505 | 1505 | 1576 |
| Overall weight [kg] | 2023 | 2047 | 2023 | 2046 | 2046 | 2097 |
| Maximum trailer weight unbraked/braked [kg] | 750/1500-1800 | 750/1500-1800 | 750/1500-1850 | 750/1500-1850 | 750/1500-1850 | 750/1500-1850 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | 75 |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | 80/- |
| Boot volume [l] | 506 | 506 | 506 | 506 | 506 | 506 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1554 | -/1554 | -/1554 | -/1554 | -/1554 | -/1554 |
| Boot length [mm] | 625 | 625 | 625 | 625 | 625 | 625 |
| Boot length with rear seats folded [mm] | 1688 | 1688 | 1688 | 1688 | 1688 | 1688 |
| Boot width between wheels/max [mm] | 1092/- | 1092/- | 1092/- | 1092/- | 1092/- | 1092/- |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | 686 | 686 | 686 | 686 | 686 | 686 |
| Height of the open boot door [mm] | 2069 | 2069 | 2069 | 2069 | 2069 | 2069 |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | 910/1069 | 910/1069 | 910/1069 | 910/1069 | 910/1069 | 910/1069 |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Fuel tank volume [l] | 52 | 52 | 50 | 50 | 50,5 | 50,5 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | - | - | - | - | - | - |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms |
| Tyre dimensions front | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H |
| Tyre dimensions rear | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H |
| Wheel size front | - | - | - | - | - | - |
| Wheel size rear | - | - | - | - | - | - |
| Brake dimensions front | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 |
| Brake dimensions rear | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.18/- | 11.18/- | 11.18/- | 11.18/- | 11.18/- | 11.18/- |
| Overall length [mm] | 4406 | 4406 | 4406 | 4406 | 4406 | 4406 |
| Overall width without/including mirrors [mm] | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 |
| Overall height [mm] | 1653 | 1653 | 1653 | 1653 | 1653 | 1653 |
| Wheelbase [mm] | 2734 | 2734 | 2734 | 2734 | 2734 | 2734 |
| Front wheel track [mm] | 1602 | 1602 | 1602 | 1602 | 1602 | 1602 |
| Rear wheel track [mm] | 1596 | 1596 | 1596 | 1596 | 1596 | 1596 |
| Forward overhang [mm] | 931 | 931 | 931 | 931 | 931 | 931 |
| Rear overhang [mm] | 741 | 741 | 741 | 741 | 741 | 741 |
| Clearance [mm] | 170 | 170 | 170 | 170 | 170 | 170 |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 918 | 918 | 918 | 918 | 918 | 918 |
| Headroom rear [mm] | 869 | 869 | 869 | 869 | 869 | 869 |
| Front elbow/shoulder width [mm] | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 |
| Rear elbow/shoulder width [mm] | 1488/1388 | 1488/1388 | 1488/1388 | 1488/1388 | 1488/1388 | 1488/1388 |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | 212/- | 212/- | 212/- | 212/- | 212/- | 212/- |
| Blue dCi 120 | Blue dCi 120 | Energy dCi 130 | Blue dCi 150 | Energy dCi 160 | ||
|---|---|---|---|---|---|---|
| Date of sale | from 2018 to 2020 | from 2018 to 2020 | from to 2018 | from 2018 to 2020 | from to 2018 | |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | |
| Engine displacement [cm³] | 1749 | 1749 | 1598 | 1749 | 1598 | |
| Maximum output / speed [kW/min-1] | 88/3500 | 88/3500 | 96/4000 | 110/3500 | 118/4000 | |
| Maximum torque [Nm/min-1] | 300/1750 | 300/1750 | 320/1750 | 340/1750 | 360/1750 | |
| Bore and stroke [mm x mm] | 80.0 x 87.0 | 80.0 x 87.0 | 80,0 x 79,5 | 80.0 x 87.0 | 80,0 x 79,5 | |
| Compression ratio | 15,4:1 | 15,4:1 | 15,4:1 | 15,4:1 | 15,4:1 | |
| Oil volume [l] | - | - | - | - | - | |
| Coolant volume [l] | - | - | - | - | - | |
| Technical specifications |
|
|
|
|
| |
| Drive axle | Front | Front | Front | Front | Front | |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear automatic | |
| Drive specifications | - |
| - | - |
| |
| Top speed [km/h] | 195 | 187 | 190 | 210 | 200 | |
| Acceleration 0–100 km/h [s] | 14,2 | 12.4 | 11,4 | 12,1 | 10,7 | |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | |
| City [l] | 5,8-5,9 | 5.8-5.5 | 5,1 | 5,8-5,9 | 5,0 | |
| Out of town [l] | 4,2-4,3 | 4.4-4.3 | 4,1 | 4,2-4,3 | 4,3 | |
| Combined [l] | 4,8-4,9 | 4.9-4.8 | 4,5 | 4,8-4,9 | 4,5 | |
| CO2 emissions [g/km] | 127-129 | 129-126 | 116 | 127-129 | 118 | |
| Emission standard | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | Euro 6d-TEMP | EU6 | |
| Standard for fuel consumption measurement | - | - | - | - | - | |
| Energy class | - | - | - | - | - | |
| Stationary vehicle noise [dB] | - | - | - | - | - | |
| Driving noise [dB] | - | - | - | - | - | |
| Standby weight [kg] | 1637 | 1784 | 1615 | 1637 | 1614 | |
| Overall weight [kg] | 2170 | 2199 | 2123 | 2170 | 2133 | |
| Maximum trailer weight unbraked/braked [kg] | 750/1500-1800 | 750/1500-1800 | 750/1500-1850 | 750/1500-1800 | 750/1500-1850 | |
| Maximum front/rear axle load [kg] | - | - | - | - | - | |
| Maximum vertical load on the tow bar [kg] | 75 | 75 | 75 | 75 | 75 | |
| Maximum load on roof/carrier [kg] | 80/- | 80/- | 80/- | 80/- | 80/- | |
| Boot volume [l] | 506 | 506 | 506 | 506 | 506 | |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/1554 | -/1554 | -/1554 | -/1554 | -/1554 | |
| Boot length [mm] | 625 | 625 | 625 | 625 | 625 | |
| Boot length with rear seats folded [mm] | 1688 | 1688 | 1688 | 1688 | 1688 | |
| Boot width between wheels/max [mm] | 1092/- | 1092/- | 1092/- | 1092/- | 1092/- | |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | |
| Loading edge height [mm] | 686 | 686 | 686 | 686 | 686 | |
| Height of the open boot door [mm] | 2069 | 2069 | 2069 | 2069 | 2069 | |
| Boot opening height [mm] | - | - | - | - | - | |
| Boot opening width min/max [mm] | 910/1069 | 910/1069 | 910/1069 | 910/1069 | 910/1069 | |
| Number of doors | 5 | 5 | 5 | 5 | 5 | |
| Number of seats | 5 | 5 | 5 | 5 | 5 | |
| Fuel tank volume [l] | 52 | 52 | 50,5 | 52 | 50,5 | |
| AdBlue tank volume [l] | 16 | 16 | - | 16 | - | |
| Air resistance [Cd] | - | - | - | - | - | |
| Front suspension | MacPherson | MacPherson | MacPherson | MacPherson | MacPherson | |
| Rear suspension | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | twist beam axle with trailing arms | |
| Tyre dimensions front | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | |
| Tyre dimensions rear | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | 195/55 R20 95H | |
| Wheel size front | - | - | - | - | - | |
| Wheel size rear | - | - | - | - | - | |
| Brake dimensions front | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 | 320 x 28 | |
| Brake dimensions rear | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | 290 x 11 | |
| Steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | Electric power steering | |
| Number of steering wheel turns | - | - | - | - | - | |
| Turning diameter track/circumference [m] | 11.18/- | 11.18/- | 11.18/- | 11.18/- | 11.18/- | |
| Overall length [mm] | 4406 | 4406 | 4406 | 4406 | 4406 | |
| Overall width without/including mirrors [mm] | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 | 1866/2128 | |
| Overall height [mm] | 1653 | 1653 | 1653 | 1653 | 1653 | |
| Wheelbase [mm] | 2734 | 2734 | 2734 | 2734 | 2734 | |
| Front wheel track [mm] | 1602 | 1602 | 1602 | 1602 | 1602 | |
| Rear wheel track [mm] | 1596 | 1596 | 1596 | 1596 | 1596 | |
| Forward overhang [mm] | 931 | 931 | 931 | 931 | 931 | |
| Rear overhang [mm] | 741 | 741 | 741 | 741 | 741 | |
| Clearance [mm] | 170 | 170 | 170 | 170 | 170 | |
| Wading depth [mm] | - | - | - | - | - | |
| Approach angle front [°] | - | - | - | - | - | |
| Approach angle rear [°] | - | - | - | - | - | |
| Transition angle [°] | - | - | - | - | - | |
| Climbing rate [°] | - | - | - | - | - | |
| Maximum side tilt [°] | - | - | - | - | - | |
| Headroom front [mm] | 918 | 918 | 918 | 918 | 918 | |
| Headroom rear [mm] | 869 | 869 | 869 | 869 | 869 | |
| Front elbow/shoulder width [mm] | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 | 1526/1494 | |
| Rear elbow/shoulder width [mm] | 1488/1388 | 1488/1388 | 1488/1388 | 1488/1388 | 1488/1388 | |
| Legroom front knees/total [mm] | - | - | - | - | - | |
| Legroom rear knees/total [mm] | 212/- | 212/- | 212/- | 212/- | 212/- |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
