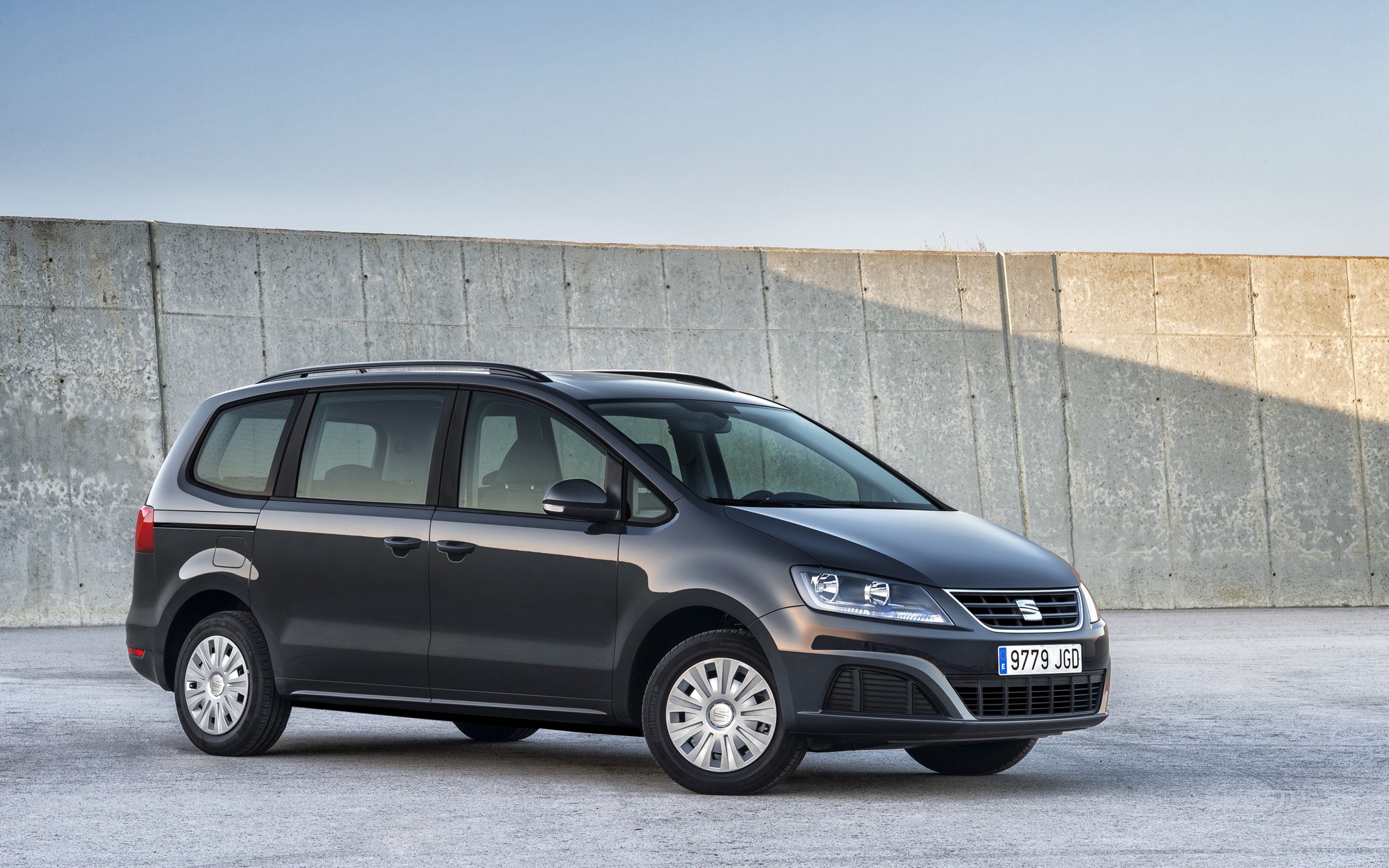

Seat Alhambra
Date of manufacture
2015 – to this day (MPV)
Platform
Volkswagen Group A5 (PQ46)
Manufacturing locations
Palmela, Portugal
Designer
-
Tags
Large MPV
Spanish cars
The Seat Alhambra is a multi-purpose vehicle (MPV) first manufactured in Portugal in 2015. The Volkswagen Group A5 (PQ46) platform provides the basis for this vehicle and offers a wide range of petrol and diesel engines. The most powerful model is the 2.0 TSI with 162 kW, which reaches a top speed of 226 km/h and the best acceleration from 0-100 km/h in 7.8 seconds. The most economical version is the 2.0 TDI with a consumption of 5 l/100 km and CO2 emissions of 130 g/km. The trunk has a capacity of 809 liters. In EURONCAP safety tests, the Seat Alhambra received a rating of 5 out of 5 according to the methodology in force in 2010.
Car body style
Technical data
MPV
| 1.4 TSI | 1.4 TSI | 2.0 TSI | 2.0 TDI | 2.0 TDI | 2.0 TDI | |
|---|---|---|---|---|---|---|
| Date of sale | - | - | from to 2018 | from to 2018 | from to 2020 | from to 2020 |
| Engine type | Ignition supercharged | Ignition supercharged | Ignition supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1395 | 1395 | 1984 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/5000-6000 | 110/5000-6000 | 162/4500-6200 | 85/4200 | 110/3500 | 110/3500 |
| Maximum torque [Nm/min-1] | 250/1500-3500 | 250/1500-3500 | 350/1500-4400 | 280/1750-2500 | 340/1750-3000 | 340/1750-3000 |
| Bore and stroke [mm x mm] | 74,5 x 80,0 | 74,5 x 80,0 | 82,5 x 92,8 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 10,0:1 | 10,0:1 | 9,6:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | Front | Front | Front | Front | Front | Front |
| Gearbox | 6 gear manual | 6 gear automatic | 6 gear automatic | 6 gear manual | 6 gear manual | 6 gear manual |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 200 | 198 | 226 | 184 | 200 | 198 |
| Acceleration 0–100 km/h [s] | 9.9 | 9.9 | 7.8 | 12.6 | 10.3 | 10.3 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 8.6-7.9 [8.6-8.0 seven seats] | 8.6-8.0 [8.6-8.1 seven seats] | 9.2 [9.3 seven seats] | 6.0 [6.1 seven seats] | 6.1-6.0 [6.1 seven seats] | 6.2-5.9 |
| Out of town [l] | 6.0-5.5 [6.0-5.6 seven seats] | 6.3-5.8 [6.3-5.9 seven seats] | 6.0 [6.1 seven seats] | 4.5 [4.6 seven seats] | 4.6-4.5 [4.6 seven seats] | 4.8-4.7 |
| Combined [l] | 7.0-6.4 [7.0-6.5 seven seats] | 7.1-6.6 [7.1-6.7 seven seats] | 7.2 [7.3 seven seats] | 5.0 [5.1 seven seats] | 5.2-5.0 [5.2-5.1 seven seats] | 5.3-5.2 |
| CO2 emissions [g/km] | 159-148 [159-151 seven seats] | 163-154 [163-157 seven seats] | 167 [168 seven seats] | 130 [132 seven seats] | 135-130 [135-132 seven seats] | 140-136 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | 8.6-7.6 | 9.1-8.2 | - | - | 6.6-6.2 | 7.0-6.6 |
| CO2 emissions [g/km] | 194-174 | 206-187 | - | - | 173-164 | 184-174 |
| Emission standard | EU6 - Euro 6d-TEMP - Euro 6d | EU6 - Euro 6d-TEMP - Euro 6d | EU6 | EU6 | EU6 - Euro 6d-TEMP | EU6 - Euro 6d-TEMP |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1695-1727 [1755 seven seats] | 1715-1753 [1768 seven seats] | 1790 [1838 seven seats] | 1798 [1849 seven seats] | 1785-1798 [1849 seven seats] | 1798-1805 [1849 seven seats] |
| Overall weight [kg] | 2290-2330 [2420 seven seats] | 2310-2350 [2430 seven seats] | 2360 [2490 seven seats] | 2440 [2520 seven seats] | 2390-2440 [2520 seven seats] | 2410-2440 [2520 seven seats] |
| Maximum trailer weight unbraked/braked [kg] | 750/1800 | 750/1800 | 750/2200 | 750/2200 | 750/2200 | 750/2200 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 809 | 809 | 809 | 809 | 809 | 809 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2430 | -/2430 | -/2430 | -/2430 | -/2430 | -/2430 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.299 | 0.299 | 0.299 | 0.299 | 0.299 | 0.299 |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers |
| Rear suspension | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers |
| Tyre dimensions front | 205/60 R16 96H | 215/60 R16 95H | 215/60 R16 95H | 205/60 R16 96H | 205/60 R16 96H | 205/60 R16 96H |
| Tyre dimensions rear | 205/60 R16 96H | 215/60 R16 95H | 215/60 R16 95H | 205/60 R16 96H | 205/60 R16 96H | 205/60 R16 96H |
| Wheel size front | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 |
| Wheel size rear | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 |
| Brake dimensions front | 314 x 30 | 314 x 30 | 314 x 30 | 314 x 30 | 314 x 30 | 314 x 30 |
| Brake dimensions rear | 282 x 12 | 282 x 12 | 282 x 12 | 282 x 12 | 282 x 12 | 282 x 12 |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 4854 | 4854 | 4854 | 4854 | 4854 | 4854 |
| Overall width without/including mirrors [mm] | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 |
| Overall height [mm] | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 |
| Wheelbase [mm] | 2919 | 2919 | 2919 | 2919 | 2919 | 2919 |
| Front wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Rear wheel track [mm] | 1617 | 1617 | 1617 | 1617 | 1617 | 1617 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1021 | 1021 | 1021 | 1021 | 1021 | 1021 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- |
| Rear elbow/shoulder width [mm] | 1578/- | 1578/- | 1578/- | 1578/- | 1578/- | 1578/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Third row elbow/shoulder width [mm] | 1254/- | 1254/- | 1254/- | 1254/- | 1254/- | 1254/- |
| 2.0 TDI 4Drive | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI | 2.0 TDI 4Drive | |
|---|---|---|---|---|---|---|
| Date of sale | from to 2018 | from 2018 to 2020 | from 2018 to 2020 | from to 2018 | from to 2018 | from to 2018 |
| Engine type | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged | Diesel supercharged |
| Number of cylinders/valves | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 | 4/16 |
| Engine displacement [cm³] | 1968 | 1968 | 1968 | 1968 | 1968 | 1968 |
| Maximum output / speed [kW/min-1] | 110/3500 | 130/3500-4000 | 130/3500-4000 | 135/3500-4000 | 135/3500-4000 | 135/3500-4000 |
| Maximum torque [Nm/min-1] | 340/1750-3000 | 380/1750-2500 | 380/1750-2500 | 380/1750-3000 | 380/1750-3000 | 380/1750-3000 |
| Bore and stroke [mm x mm] | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 | 81,0 x 95,5 |
| Compression ratio | 16,0:1 | 15.8:1 | 15.8:1 | 16,0:1 | 16,0:1 | 16,0:1 |
| Oil volume [l] | - | - | - | - | - | - |
| Coolant volume [l] | - | - | - | - | - | - |
| Technical specifications |
|
|
|
|
|
|
| Drive axle | 4x4 | Front | 4x4 | Front | Front | 4x4 |
| Gearbox | 6 gear manual | 6 gear automatic | 7 gear automatic | 6 gear manual | 6 gear automatic | 6 gear automatic |
| Drive specifications |
|
|
|
|
|
|
| Top speed [km/h] | 198 | 210 | 208 | 215 | 213 | 211 |
| Acceleration 0–100 km/h [s] | 10.6 | 9.3 | 9.1 | 8.9 | 8.9 | 8.9 |
| Acceleration 0–80 km/h [s] | - | - | - | - | - | - |
| Acceleration 80–120 km/h [s] | - | - | - | - | - | - |
| City [l] | 6.7 | 6.5 | 7.6 | 6.7 | 6.1 | 6.7 |
| Out of town [l] | 5.0 | 5.1 | 5.6 | 4.5 | 4.8 | 5.2 |
| Combined [l] | 5.6 | 5.6 | 6.3 | 5.3 | 5.3 | 5.8 |
| CO2 emissions [g/km] | 146 | 147 | 166 | 138 | 138 | 152 |
| Low speed [l] | - | - | - | - | - | - |
| Medium speed [l] | - | - | - | - | - | - |
| High speed [l] | - | - | - | - | - | - |
| Extra high speed [l] | - | - | - | - | - | - |
| Combined speed [l] | - | 7.0-6.8 | 7.6-7.3 | - | - | - |
| CO2 emissions [g/km] | - | 184-177 | 198-191 | - | - | - |
| Emission standard | EU6 | Euro 6d-TEMP | Euro 6d-TEMP | EU6 | EU6 | EU6 |
| Standard for fuel consumption measurement | - | - | - | - | - | - |
| Energy class | - | - | - | - | - | - |
| Stationary vehicle noise [dB] | - | - | - | - | - | - |
| Driving noise [dB] | - | - | - | - | - | - |
| Standby weight [kg] | 1921 [1972 seven seats] | 1815 | 1915 | 1828 [1879 seven seats] | 1830 [1881 seven seats] | 1932 [1983 seven seats] |
| Overall weight [kg] | 2660 [2640 seven seats] | 2390 | 2560 | 2470 [2550 seven seats] | 2470 [2550 seven seats] | 2670 [2650 seven seats] |
| Maximum trailer weight unbraked/braked [kg] | 750/2400 | 750/2200 | 750/2400 | 750/2200 | 750/2200 | 750/2400 |
| Maximum front/rear axle load [kg] | - | - | - | - | - | - |
| Maximum vertical load on the tow bar [kg] | 100 | 100 | 100 | 100 | 100 | 100 |
| Maximum load on roof/carrier [kg] | 100/- | 100/- | 100/- | 100/- | 100/- | 100/- |
| Boot volume [l] | 809 | 809 | 809 | 809 | 809 | 809 |
| Boot volume with rear seats folded to the edge of the seats/ceiling [l] | -/2430 | -/2430 | -/2430 | -/2430 | -/2430 | -/2430 |
| Boot volume, third row of seats [l] | - | - | - | - | - | - |
| Boot volume, third row seats folded [l] | - | - | - | - | - | - |
| Boot length [mm] | - | - | - | - | - | - |
| Boot length with rear seats folded [mm] | - | - | - | - | - | - |
| Boot width between wheels/max [mm] | - | - | - | - | - | - |
| Boot height to headliner/ceiling [mm] | - | - | - | - | - | - |
| Loading edge height [mm] | - | - | - | - | - | - |
| Height of the open boot door [mm] | - | - | - | - | - | - |
| Boot opening height [mm] | - | - | - | - | - | - |
| Boot opening width min/max [mm] | - | - | - | - | - | - |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 | 5-7 |
| Fuel tank volume [l] | 70 | 70 | 70 | 70 | 70 | 70 |
| AdBlue tank volume [l] | - | - | - | - | - | - |
| Air resistance [Cd] | 0.299 | 0.299 | 0.299 | 0.299 | 0.299 | 0.299 |
| Front suspension | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers | MacPherson, coil springs, hydraulic shock absorbers |
| Rear suspension | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers | multilink, coil springs, stabiliser bar, hydraulic shock absorbers |
| Tyre dimensions front | 205/60 R16 96H | 215/60 R16 95H | 215/60 R16 95H | 215/60 R16 95H | 215/60 R16 95H | 225/50 R17 98V |
| Tyre dimensions rear | 205/60 R16 96H | 215/60 R16 95H | 215/60 R16 95H | 215/60 R16 95H | 215/60 R16 95H | 225/50 R17 98V |
| Wheel size front | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 7.0J x 17 ET39 |
| Wheel size rear | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 6.5J x 16 ET33 | 7.0J x 17 ET39 |
| Brake dimensions front | 314 x 30 | 314 x 30 | 314 x 30 | 314 x 30 | 314 x 30 | 314 x 30 |
| Brake dimensions rear | 282 x 12 | 282 x 12 | 282 x 12 | 282 x 12 | 282 x 12 | 282 x 12 |
| Steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering | Rack & pinion with electro-mechanical power steering |
| Number of steering wheel turns | - | - | - | - | - | - |
| Turning diameter track/circumference [m] | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- | 11.9/- |
| Overall length [mm] | 4854 | 4854 | 4854 | 4854 | 4854 | 4854 |
| Overall width without/including mirrors [mm] | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 | 1904/2081 |
| Overall height [mm] | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 |
| Wheelbase [mm] | 2919 | 2919 | 2919 | 2919 | 2919 | 2919 |
| Front wheel track [mm] | 1569 | 1569 | 1569 | 1569 | 1569 | 1569 |
| Rear wheel track [mm] | 1617 | 1617 | 1617 | 1617 | 1617 | 1617 |
| Forward overhang [mm] | - | - | - | - | - | - |
| Rear overhang [mm] | - | - | - | - | - | - |
| Clearance [mm] | - | - | - | - | - | - |
| Wading depth [mm] | - | - | - | - | - | - |
| Approach angle front [°] | - | - | - | - | - | - |
| Approach angle rear [°] | - | - | - | - | - | - |
| Transition angle [°] | - | - | - | - | - | - |
| Climbing rate [°] | - | - | - | - | - | - |
| Maximum side tilt [°] | - | - | - | - | - | - |
| Headroom front [mm] | 1021 | 1021 | 1021 | 1021 | 1021 | 1021 |
| Headroom rear [mm] | 973 | 973 | 973 | 973 | 973 | 973 |
| Front elbow/shoulder width [mm] | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- | 1507/- |
| Rear elbow/shoulder width [mm] | 1578/- | 1578/- | 1578/- | 1578/- | 1578/- | 1578/- |
| Legroom front knees/total [mm] | - | - | - | - | - | - |
| Legroom rear knees/total [mm] | - | - | - | - | - | - |
| Third row of seats, headroom [mm] | 945 | 945 | 945 | 945 | 945 | 945 |
| Third row elbow/shoulder width [mm] | 1254/- | 1254/- | 1254/- | 1254/- | 1254/- | 1254/- |
Gallery
Vehicle information and technical data are for guidance only and may contain inaccuracies. Technical data may vary depending on the country of purchase, measurement methodology, selected equipment or installed accessories.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
Please always refer to the vehicle registration document or your authorised dealer for exact details.
